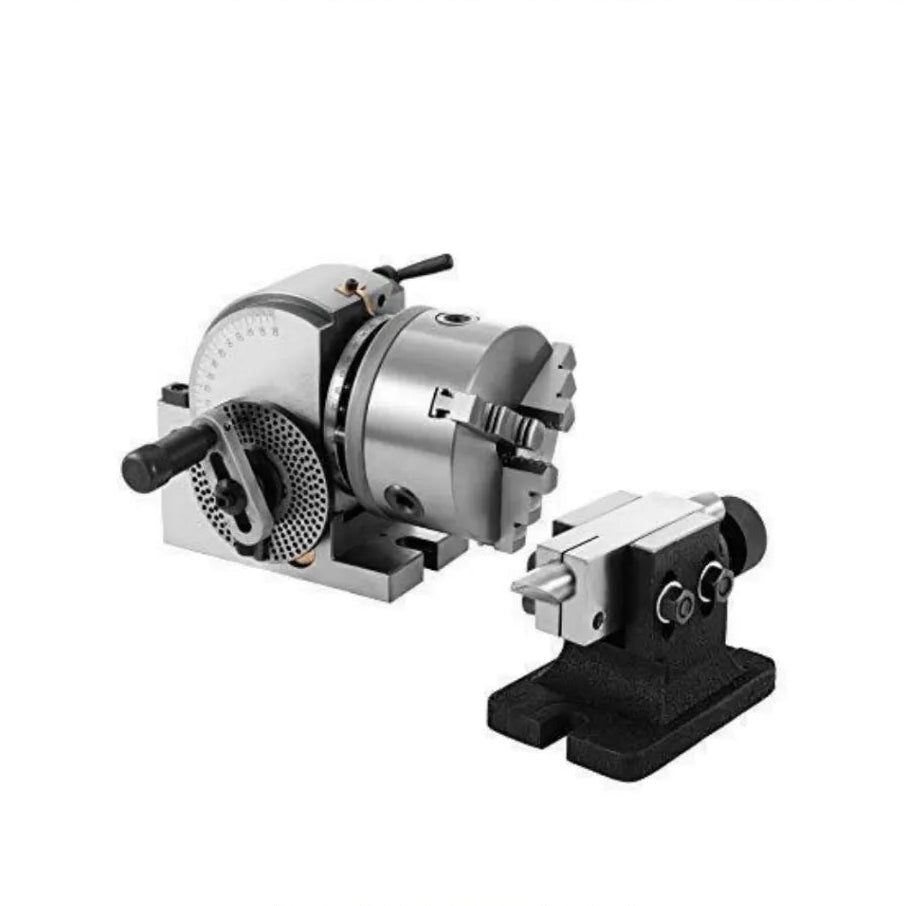

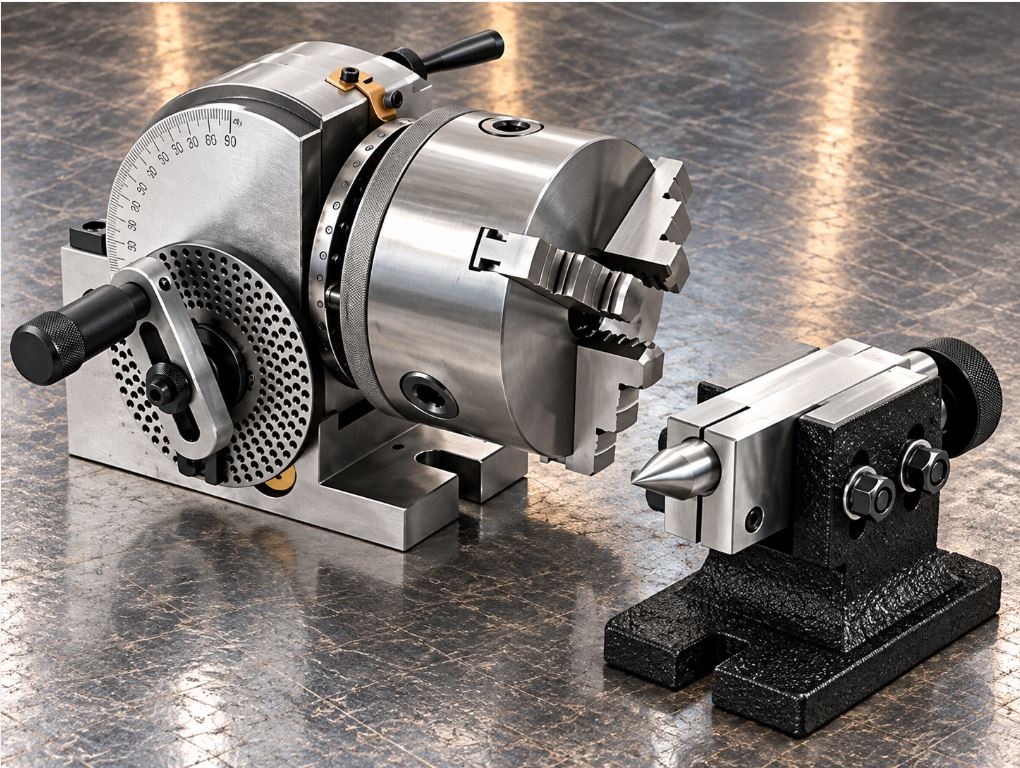

Semi-Universal Dividing Head with 6" (160mm) 3-Jaw Chuck

Name: Semi-Universal Dividing Head with 6" (160mm) 3-Jaw Chuck
Brand: Steelmaster Industrial
SKU: 13+0063
Price: 799.00 AUD
Availability: InStock

PRICE EX GST

$799.00

PRICE INC GST

$878.90

MODEL NUMBER: SEMI-UNIVERSAL-DIVIDING-HEAD-160MM-CHUCK

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

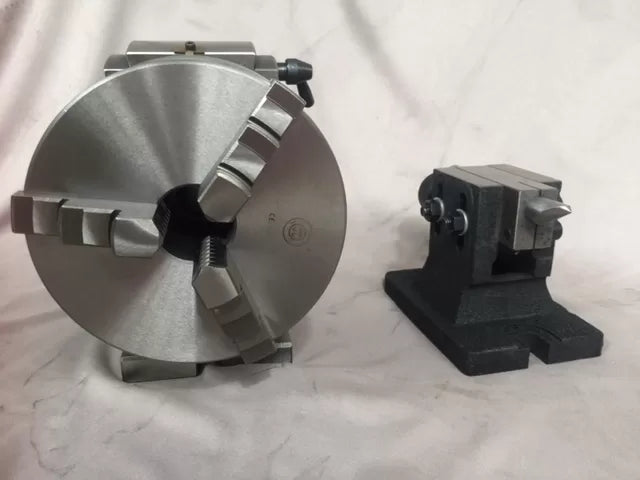

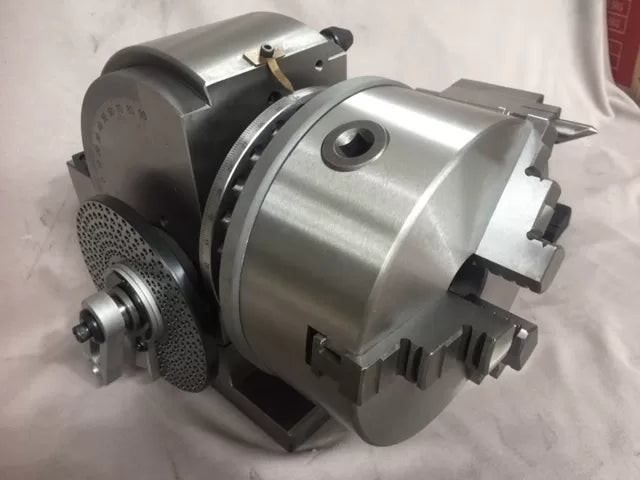

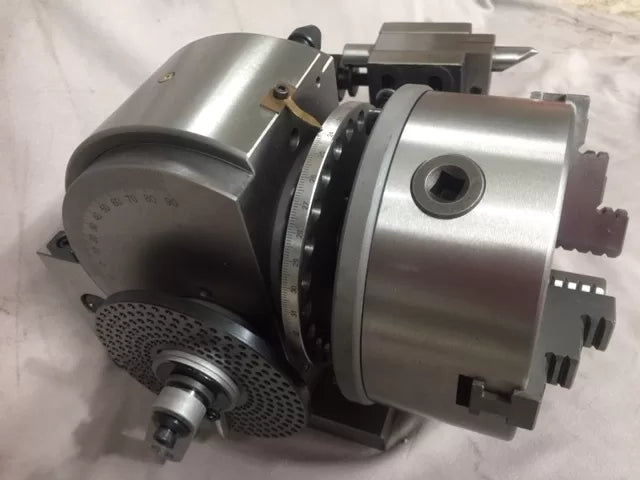

A semi-universal dividing head complete with a 6-inch (160mm) 3-jaw chuck.

PRODUCT FEATURES

Hardened and ground spindle rigidly held between taper roller bearings
Improved design for a more accurate chuck mount
The head can be swivelled from 10º below horizontal to 90º vertical
Designed to carry out all types of gear cutting, precision dividing
Slotted base on dividing head & tailstock for use with key steel to align quickly on machine

Specifications:
Dividing head:
Taper 3mt
Bore 20mm
Overall length 293 mm
Overall width 156mm
Height 220mm

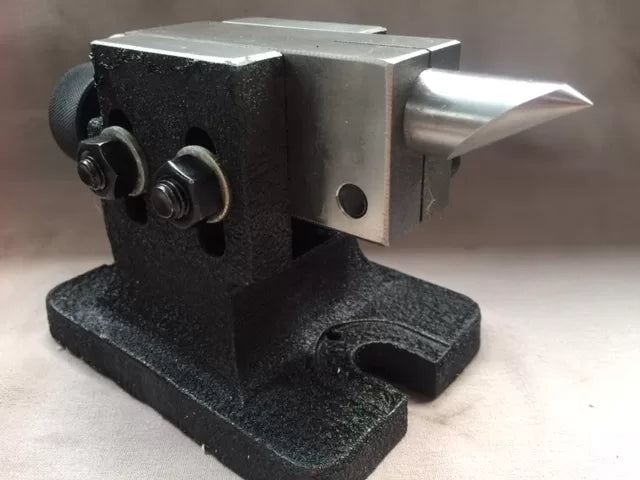

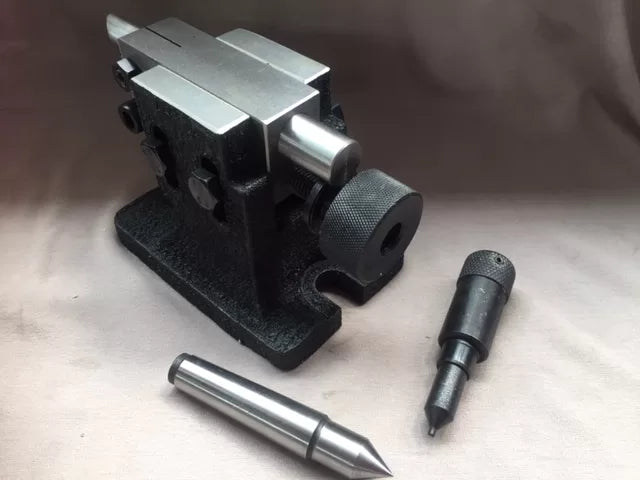

Tailstock
Top length of tailstock 191mm
Bottom of tailstock 150mm
height to pin 128mm
Overall height 137mm
Top Width 88mm
Bottom width 108mm
Overall weight 38kg
