Steelmaster Industrial | SKU: 12-0107

Sale

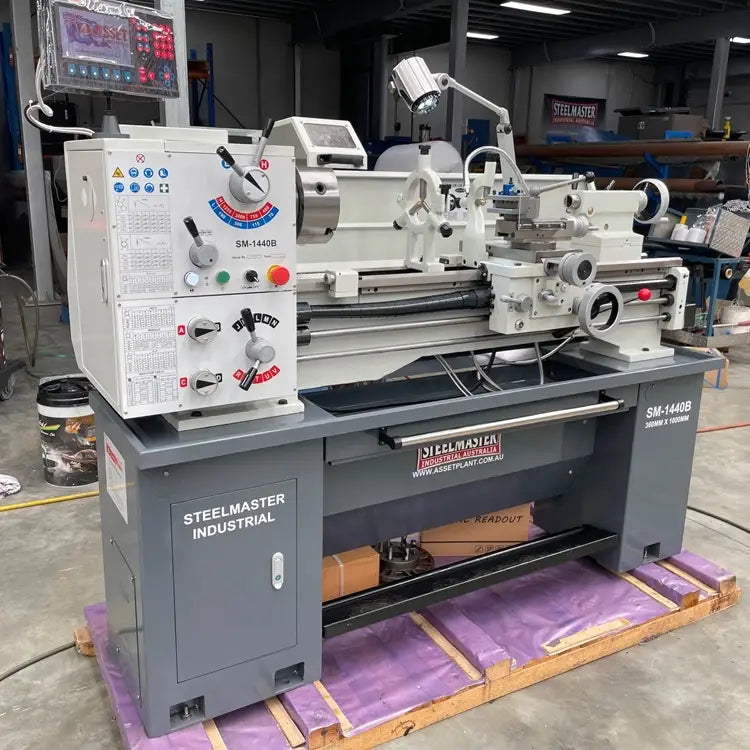

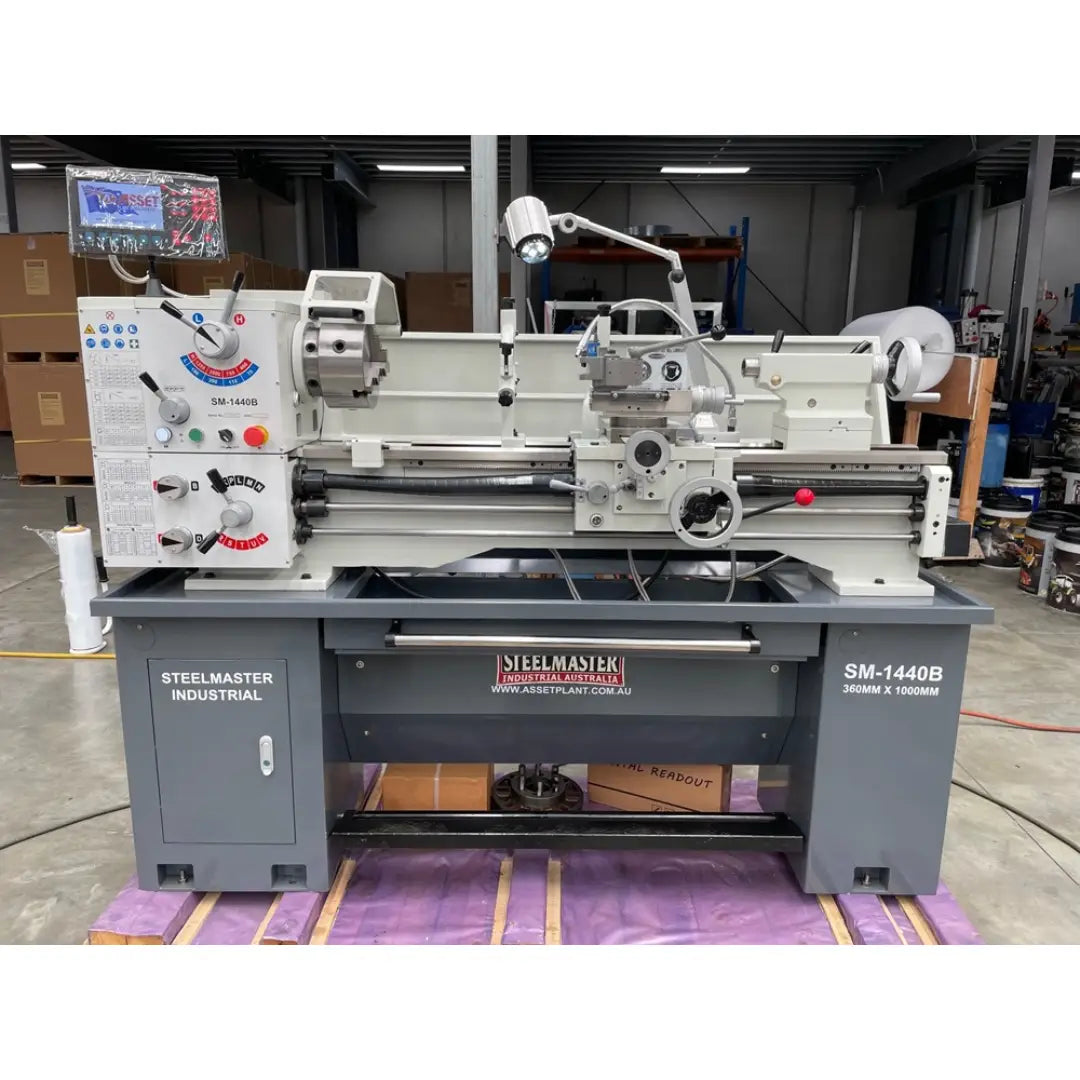

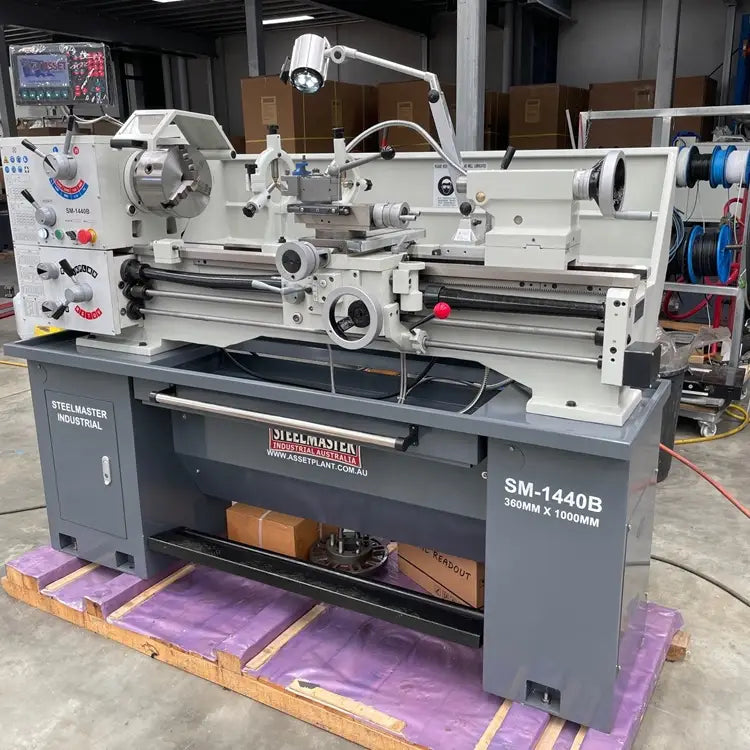

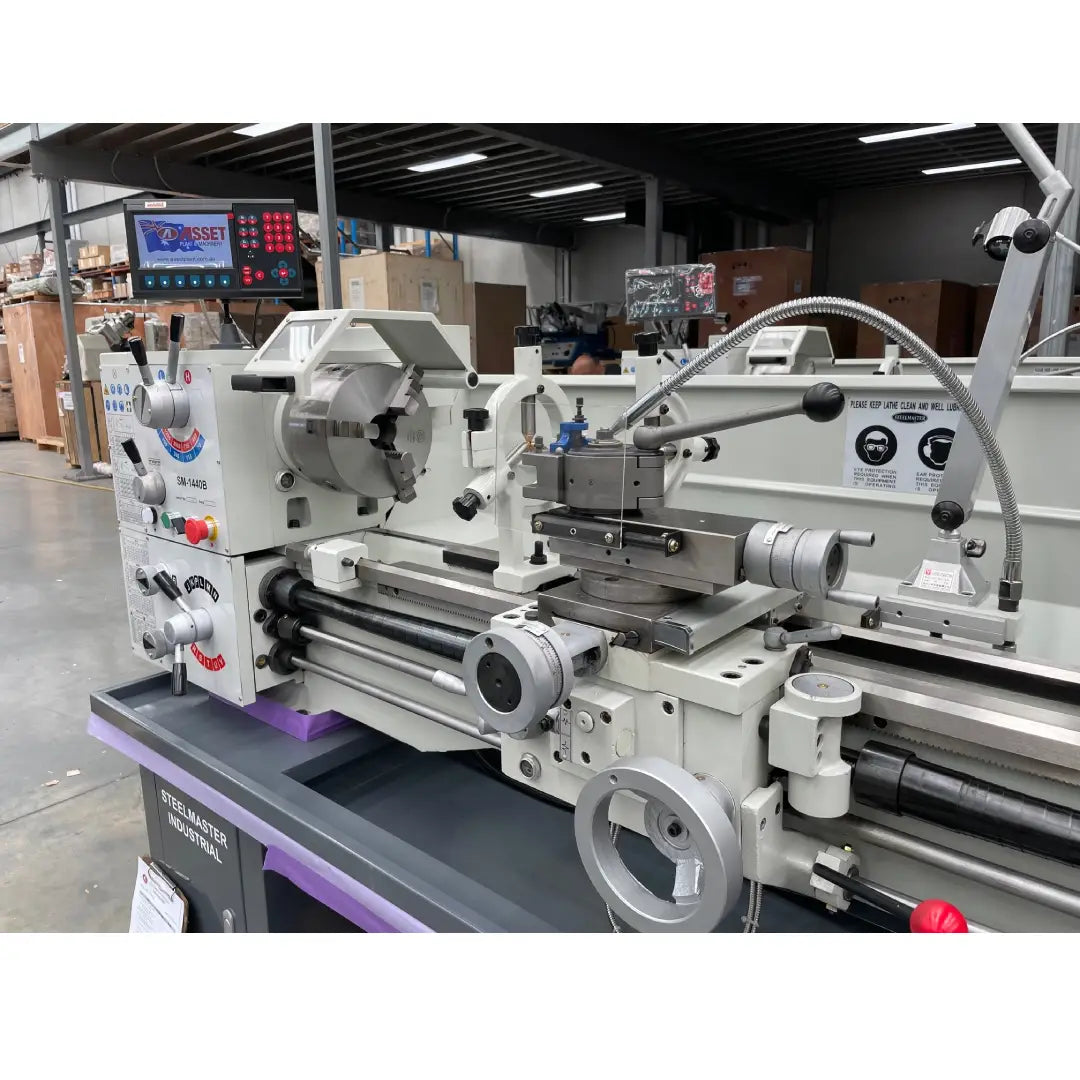

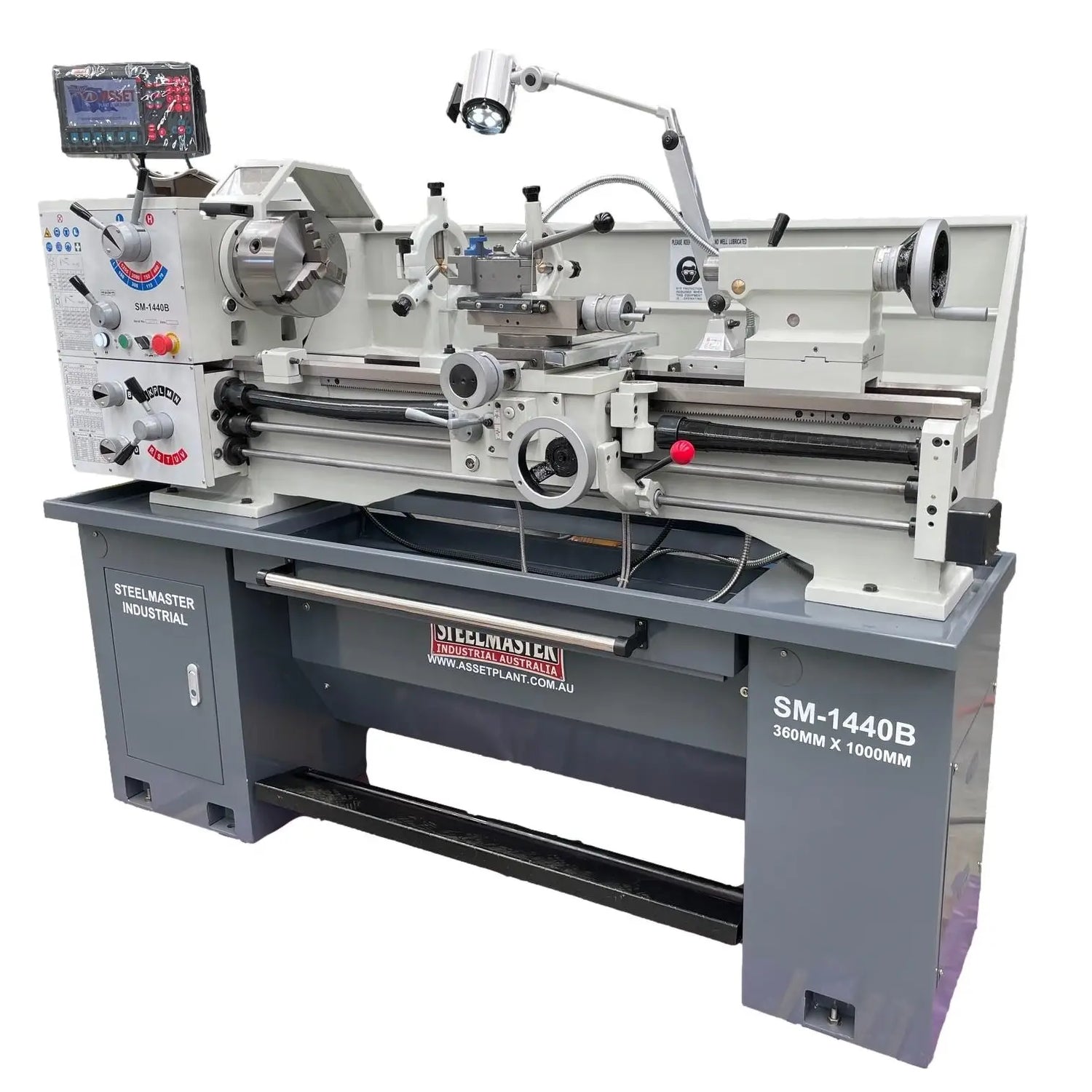

Centre Lathe (240V) - 1000mm Centres , 356mm Swing , 51mm Bore

Name: Centre Lathe (240V) - 1000mm Centres , 356mm Swing , 51mm Bore
Brand: Steelmaster Industrial
SKU: 12-0107
Price: 8795.00 AUD
Availability: InStock

PRICE EX GST

Reg: $9,190.00

Sale: $8,795.00

PRICE INC GST

Reg: $10,109.00

Sale: $9,674.50

MODEL NUMBER: SM-1440B-CENTRE-LATHE-240V

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

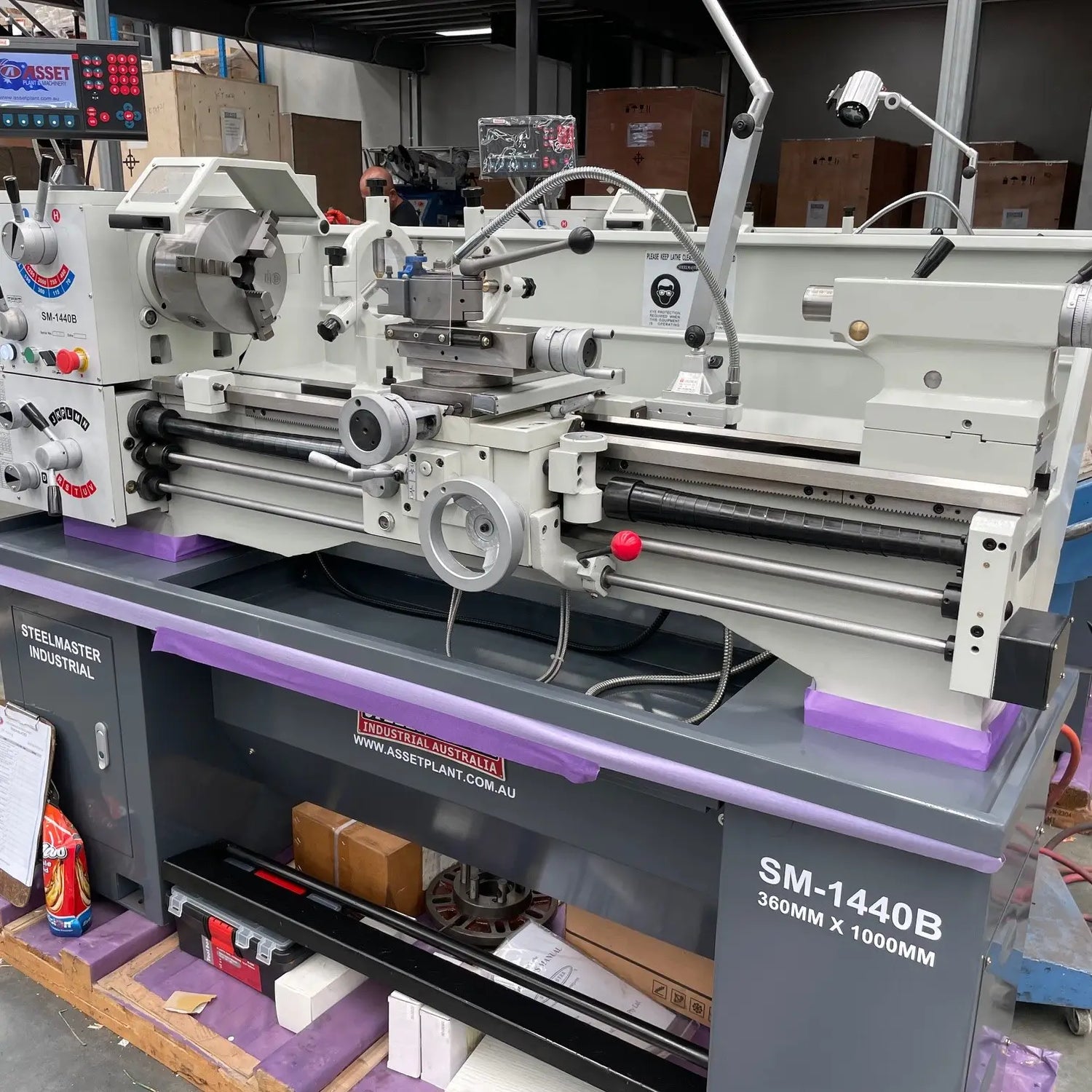

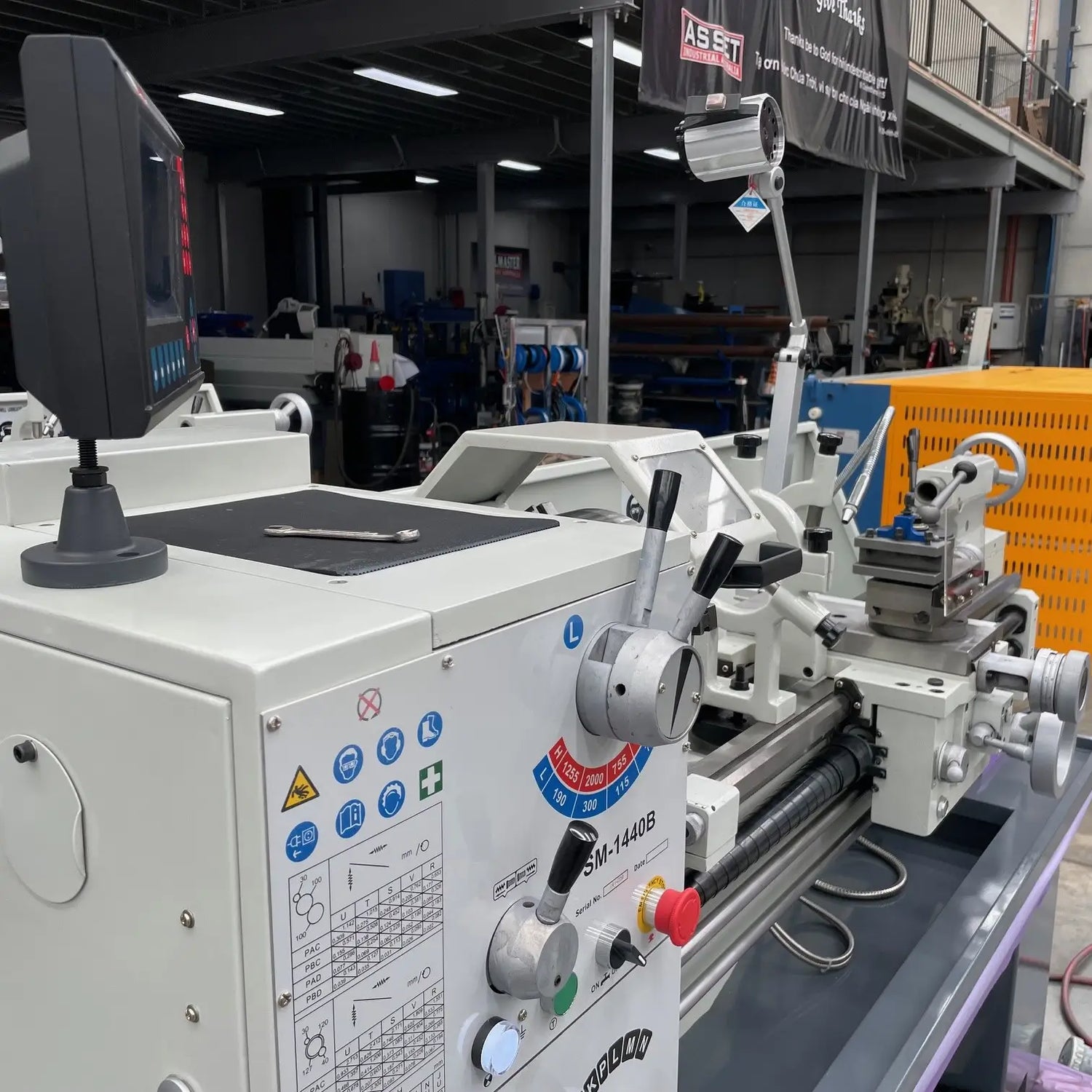

240V centre lathe with 1000mm between centres, a 356mm swing, and a 51mm spindle bore.

PRODUCT FEATURES

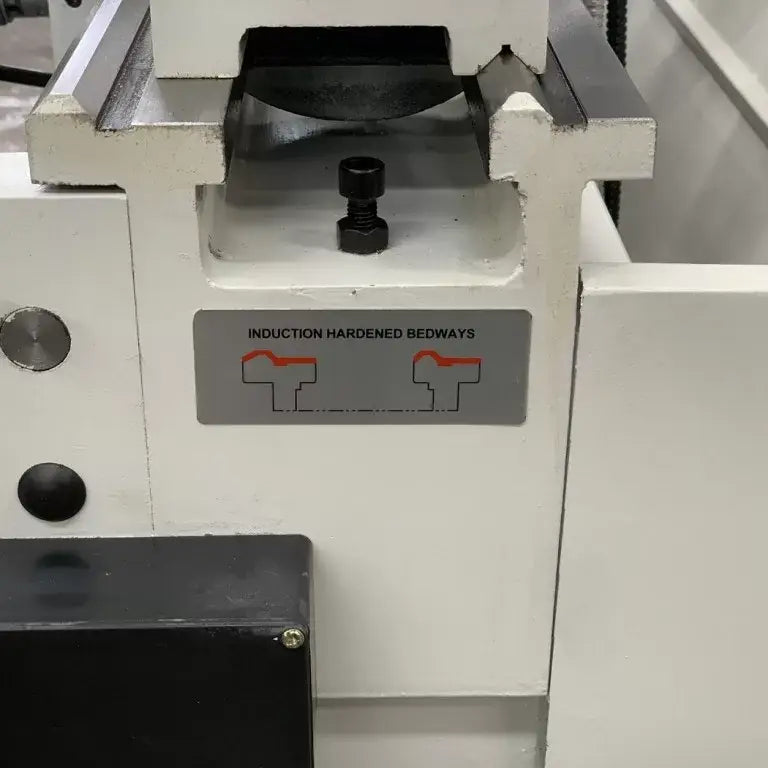

Induction-hardened and ground cast iron bed and slide ways
Spindle holding camlock system

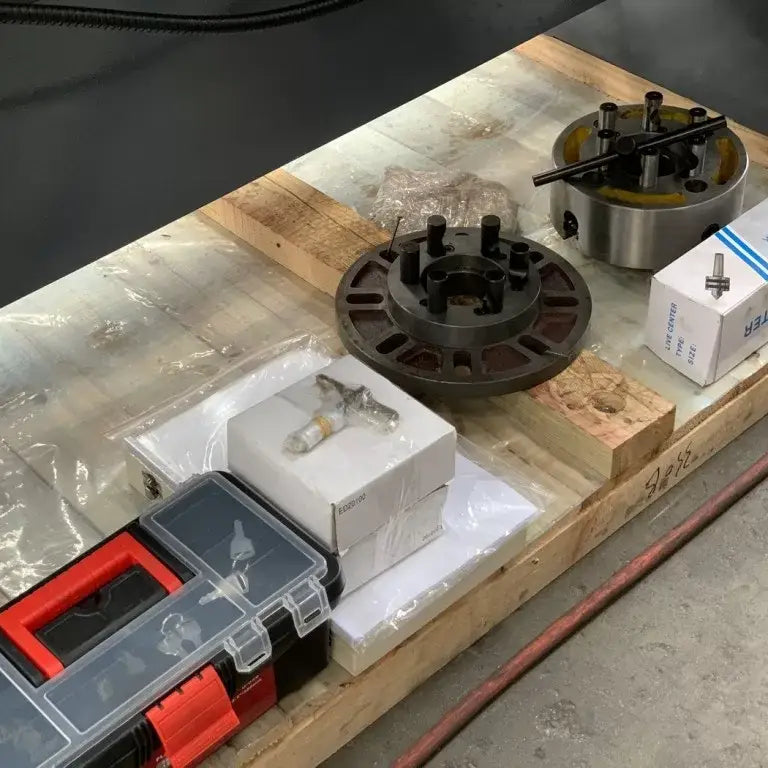

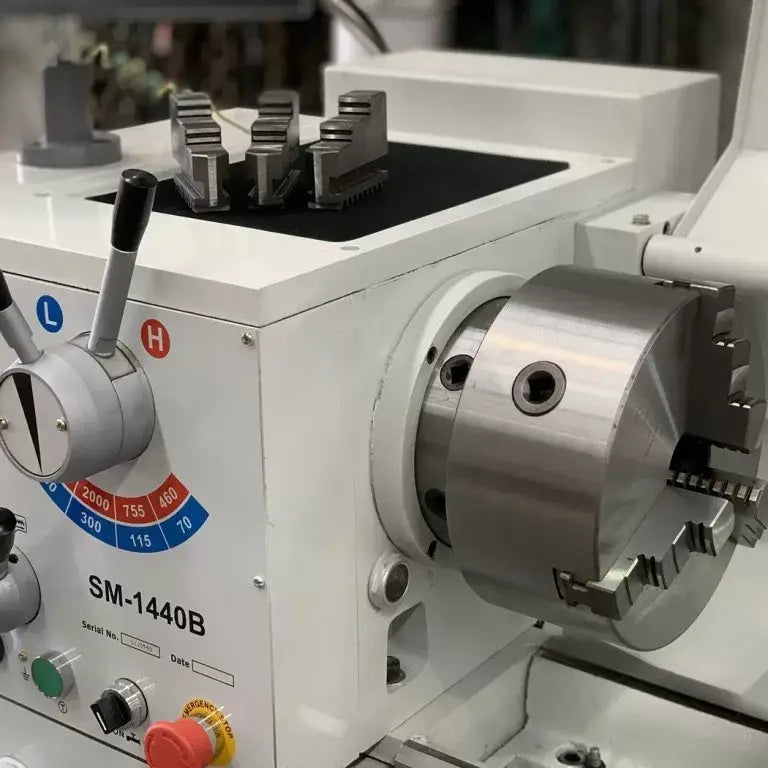

200mm 3 & 4 jaw chucks, faceplate, fixed & travelling steadies standard
Main spindle running in oil bath, hardened and ground with two adjustable precision taper roller bearings ensures accuracy

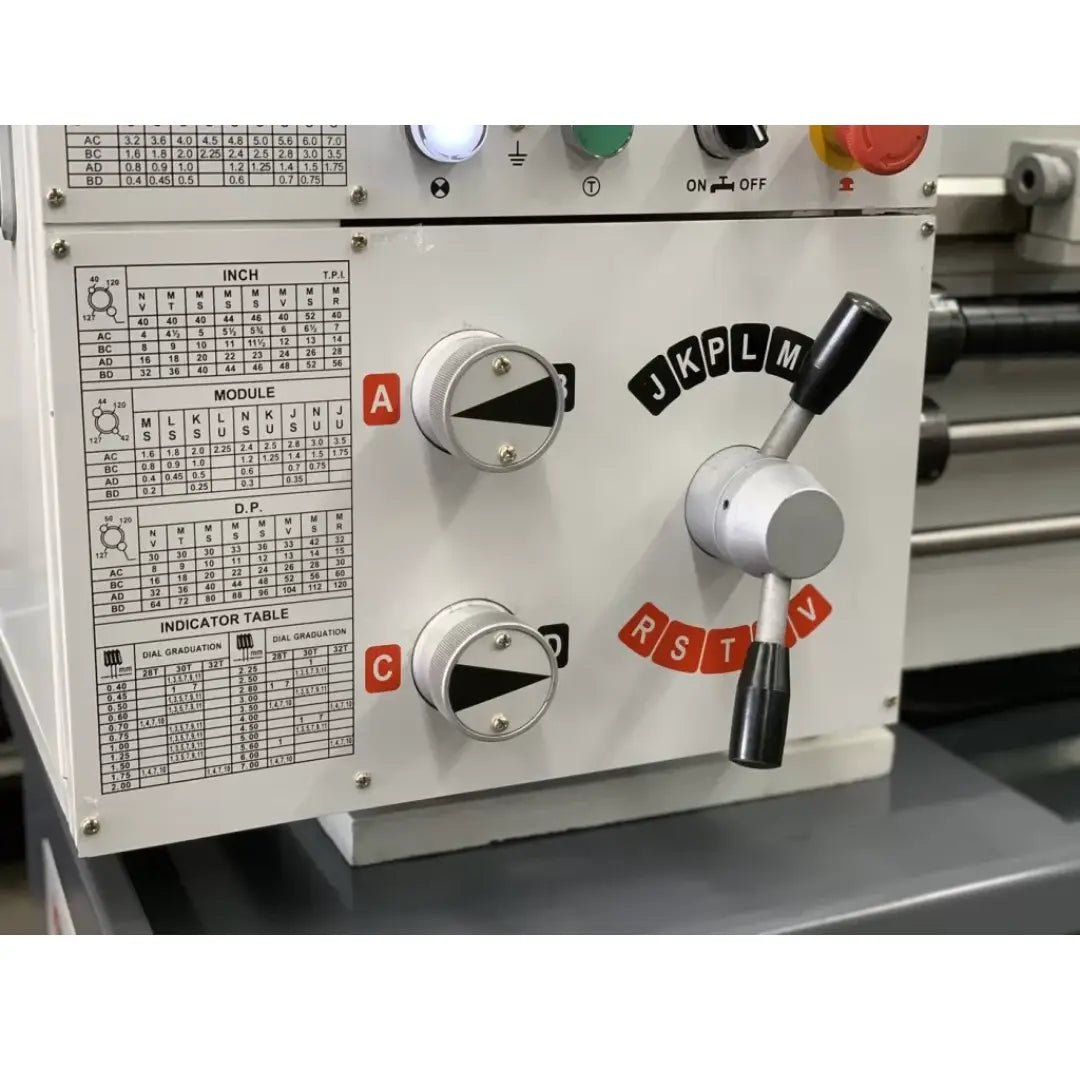

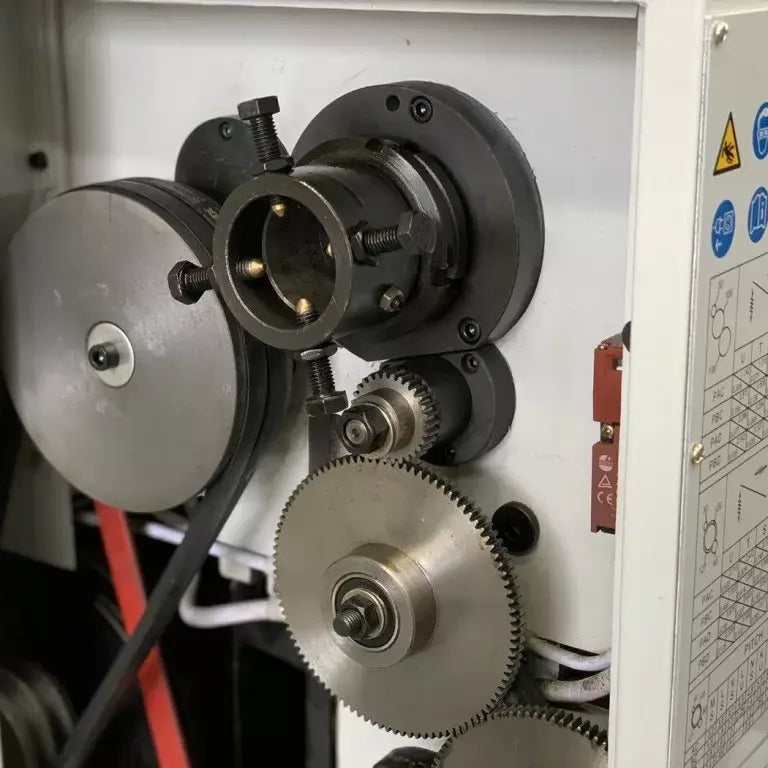

Huge thread cutting ranges – metric / imperial / DP & modular

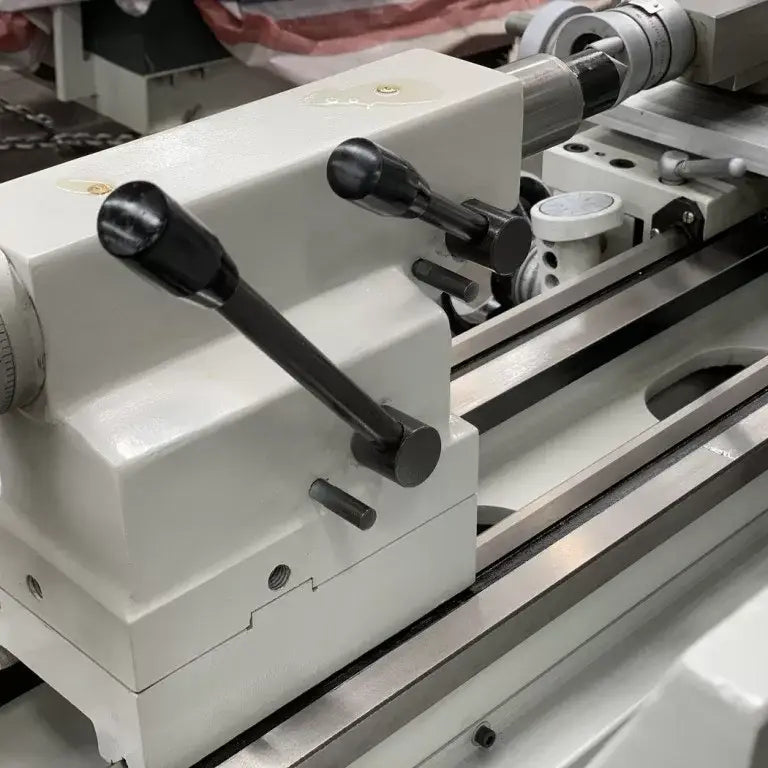

Transversal adjustment of tailstock for taper cutting applications

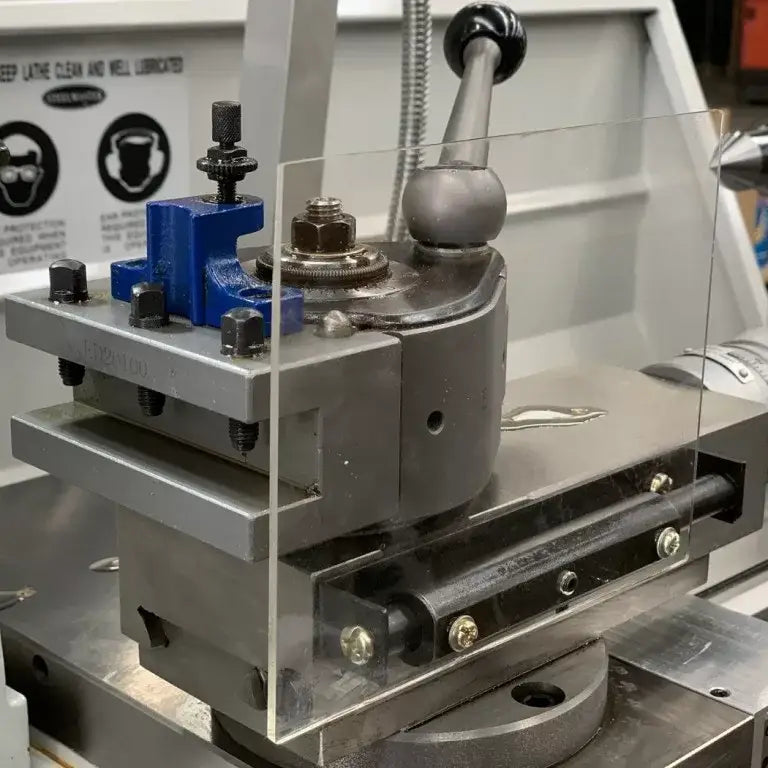

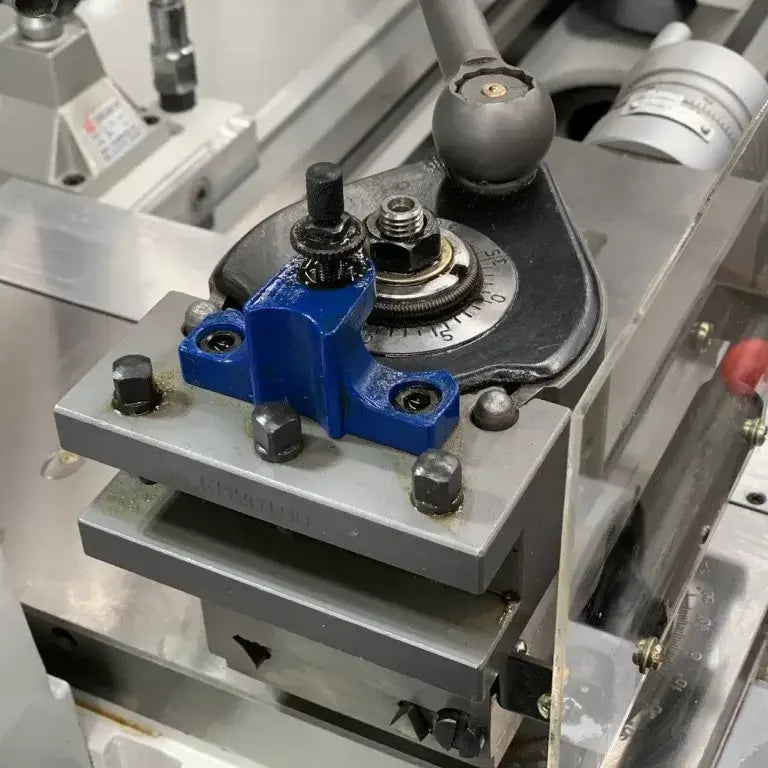

Quick change tool post standard

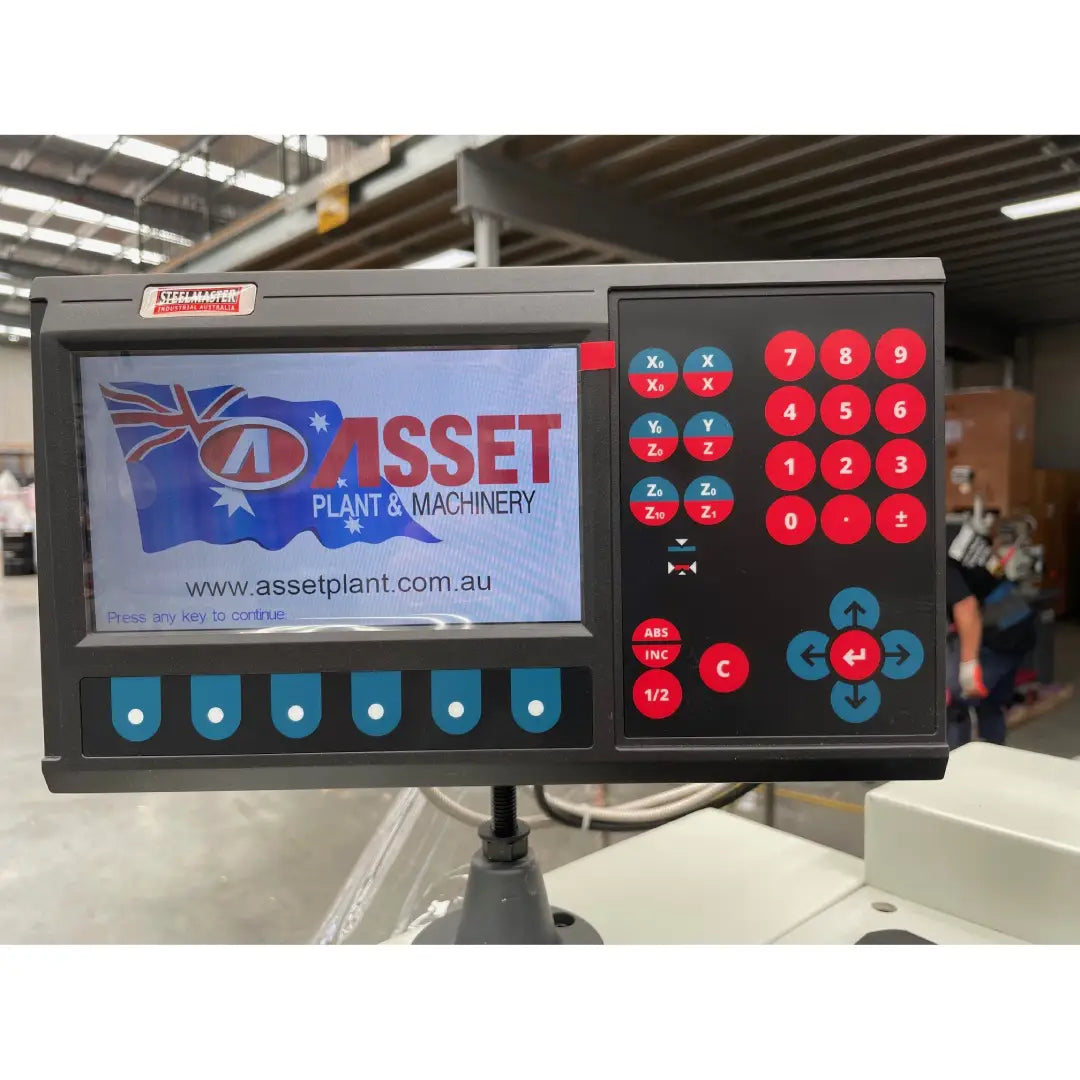

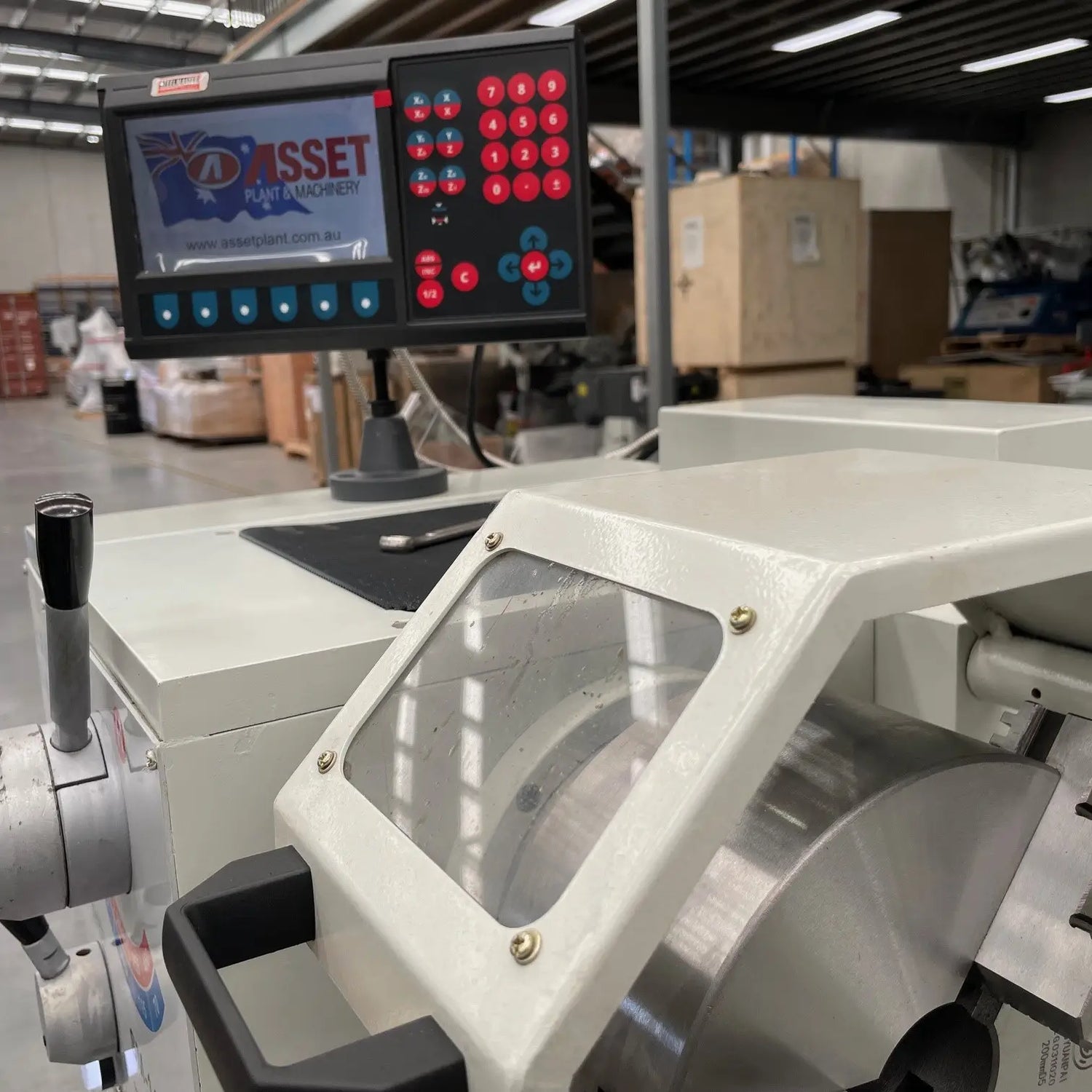

NEW Steelmaster 2 axis DRO fitted as standard

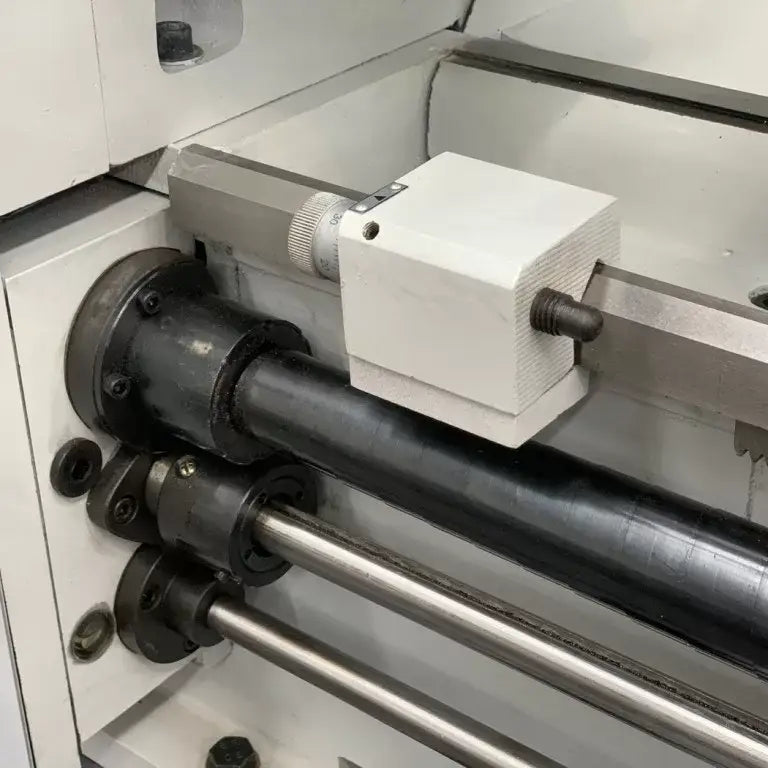

Safety covered lead screw

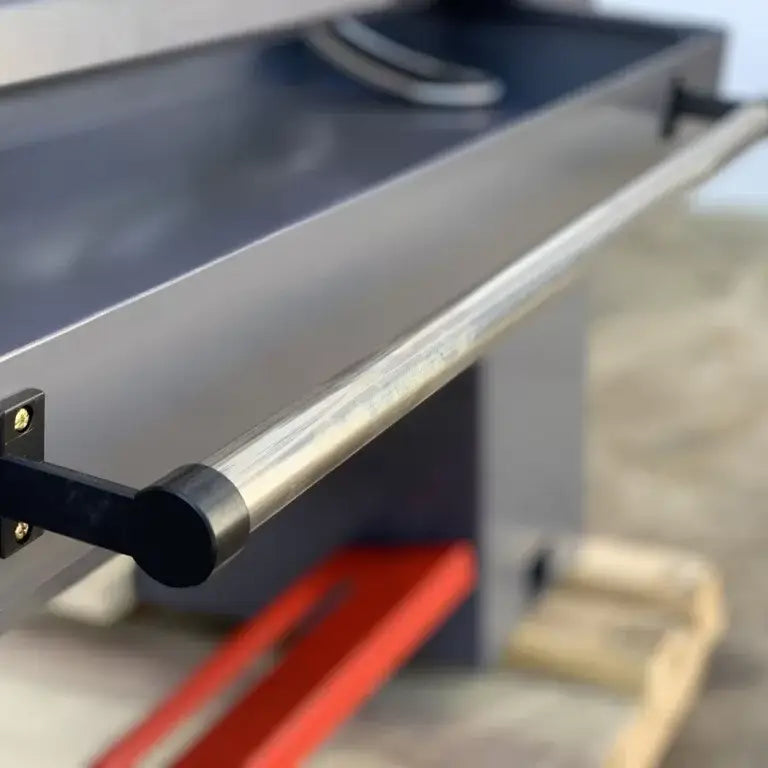

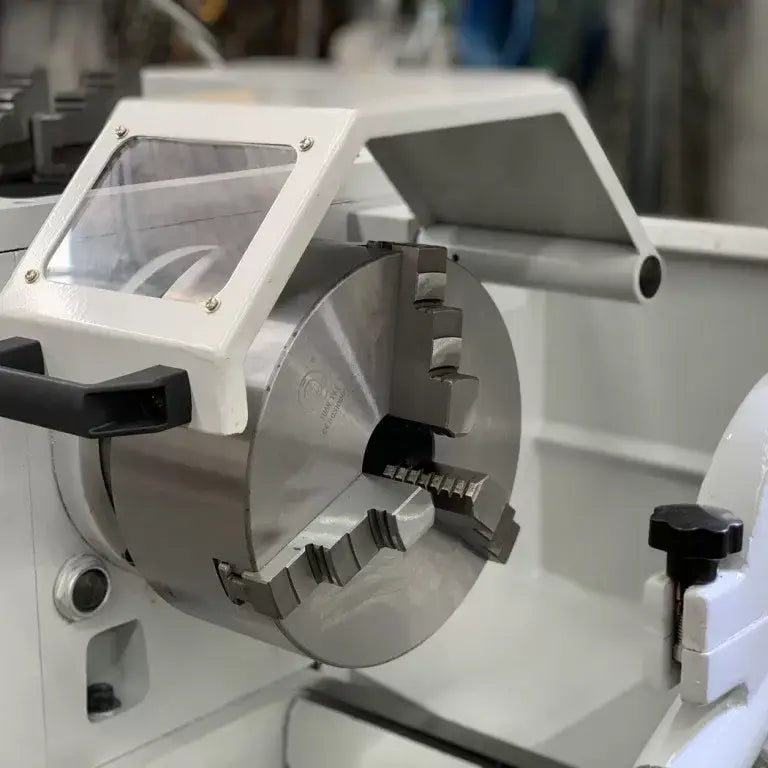

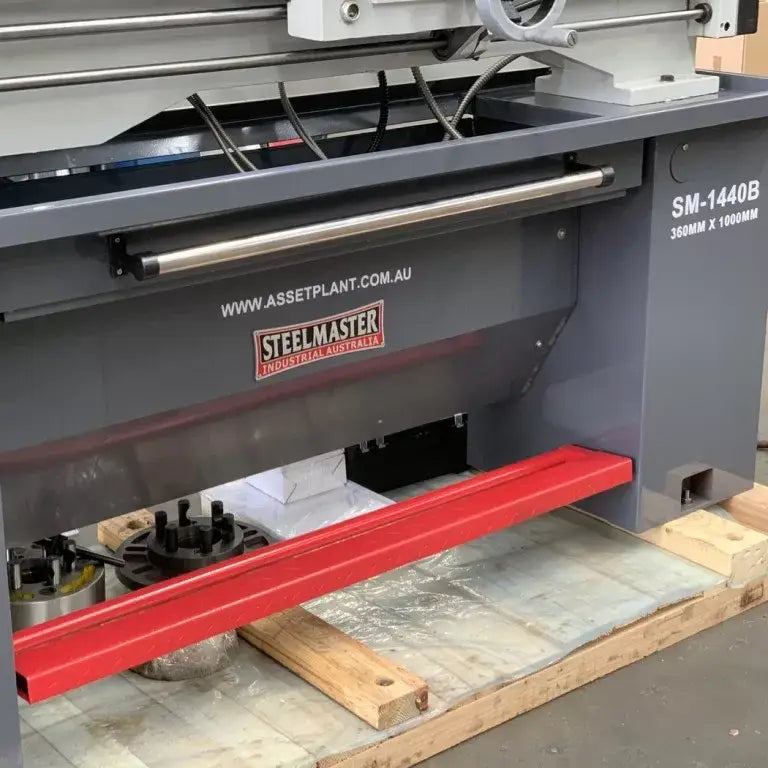

Safety interlocks on chuck guard, gear box and foot brake

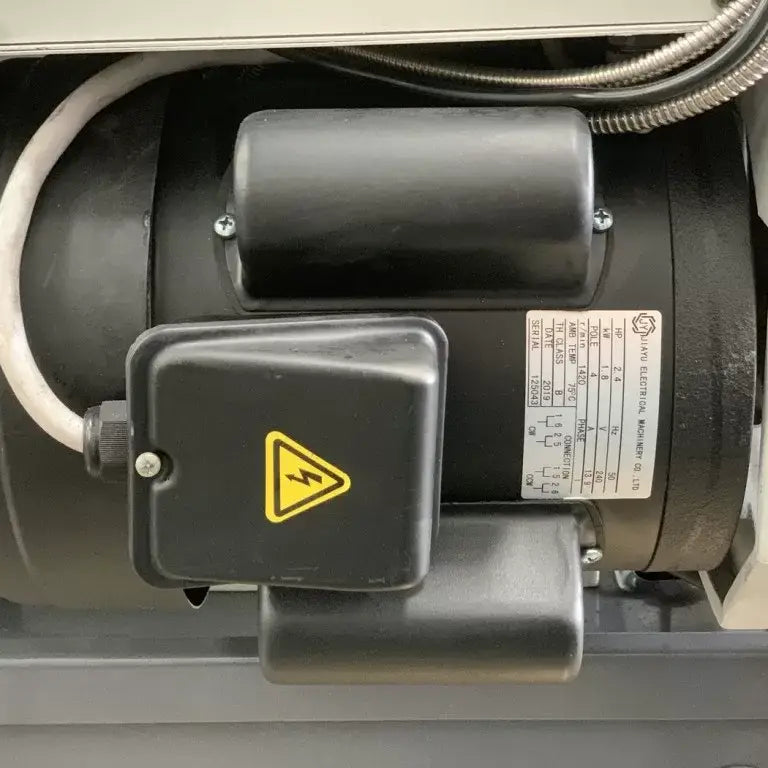

240V / 15Amp – 2HP
CE compliant

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

364mm swing over bed
476mm swing in gap
230mm gap width
1000mm between centres
51mm spindle bore

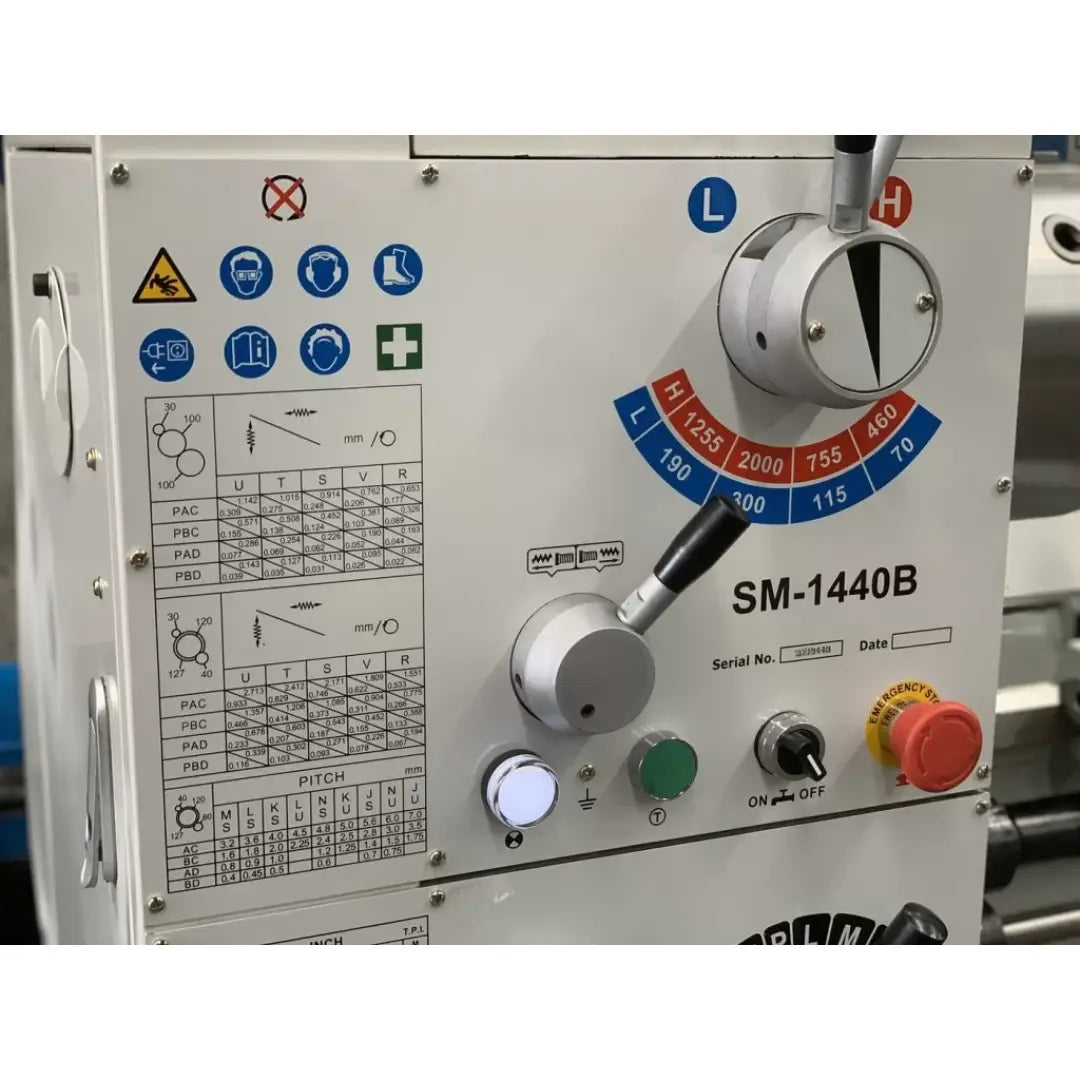

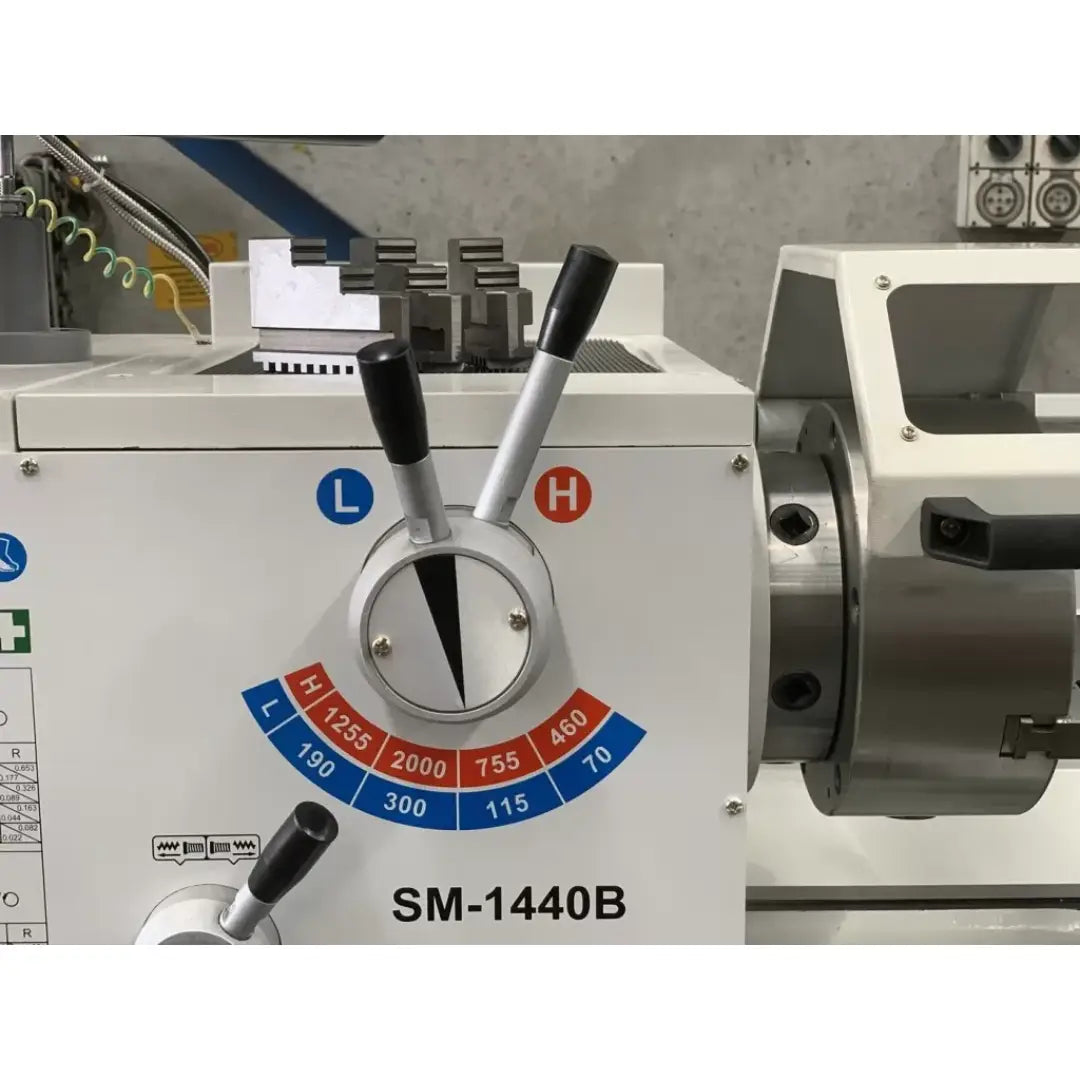

Speeds(8)-70/115/190/300/460/775/1255/2000

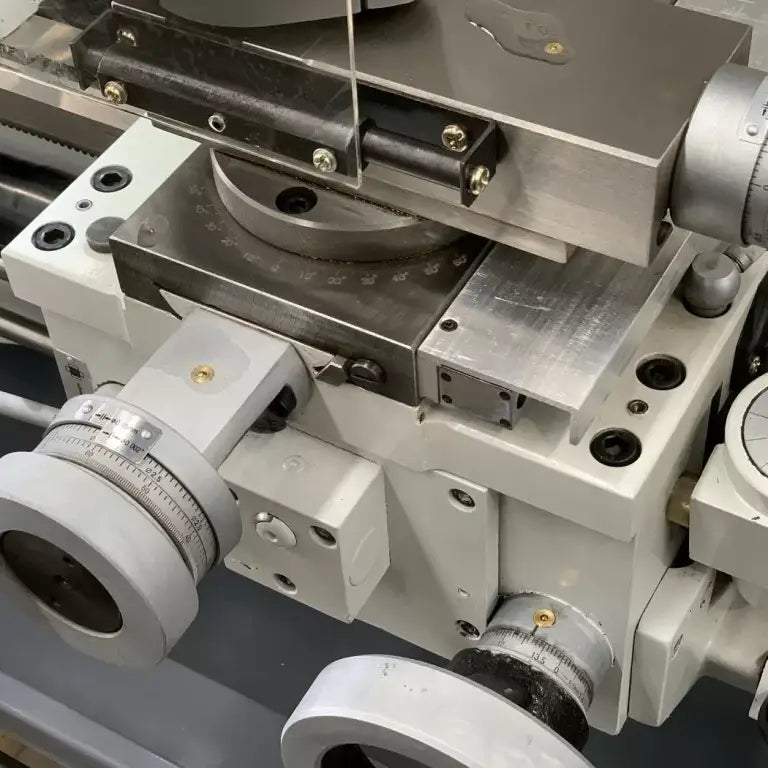

160mm – cross slide travel
88mm – top slide travel
100mm – tailstock travel
40mm – tailstock diameter
187mm – bed width
Headstock MT6
MT4 tailstock taper
Thread Cutting – Metric (mm) 0.4mm ~ 7.0mm – (32)
Thread Cutting – Imperial (Inch) 4tpi ~ 7tpi – (32)
Thread Cutting – Module 0.35 ~ 3.5 – (27)
Thread Cutting – D.P. 8 ~ 120 – (32)

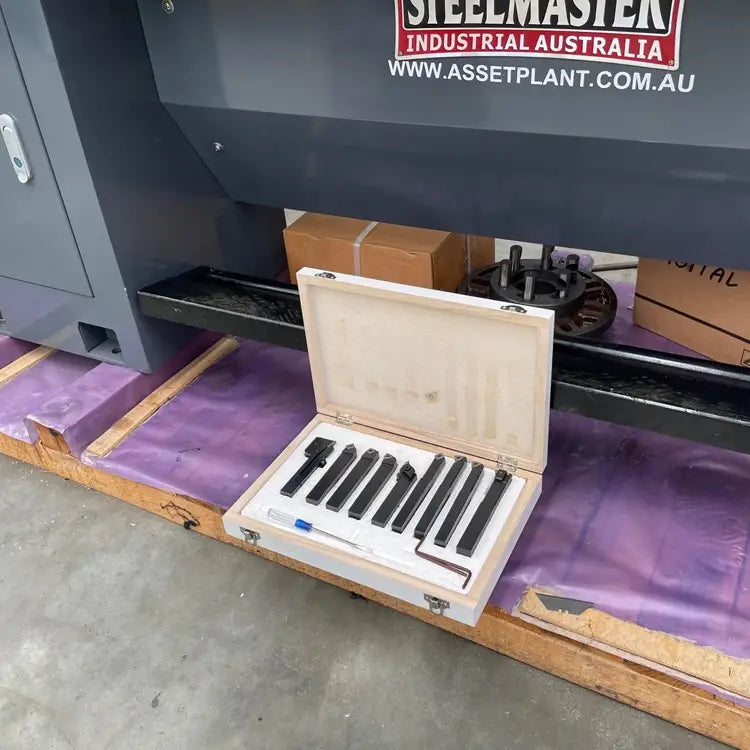

Suits cutting tools – 16mm & 20mm Shanks
Metric leadscrew fitted
200mm 3 jaw chuck
200mm 4 jaw chuck
Faceplate supplied

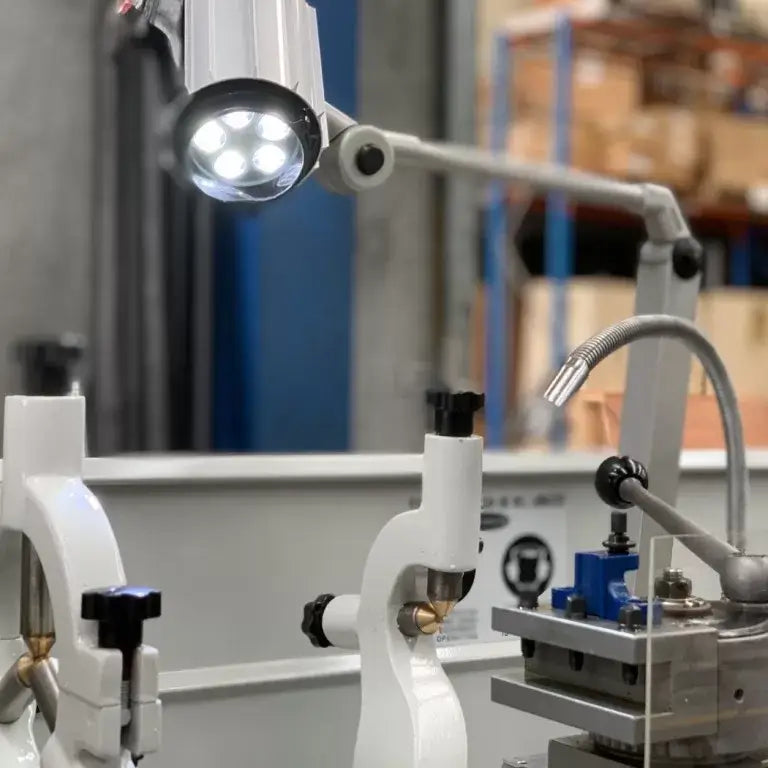

Fixed & travelling steadies

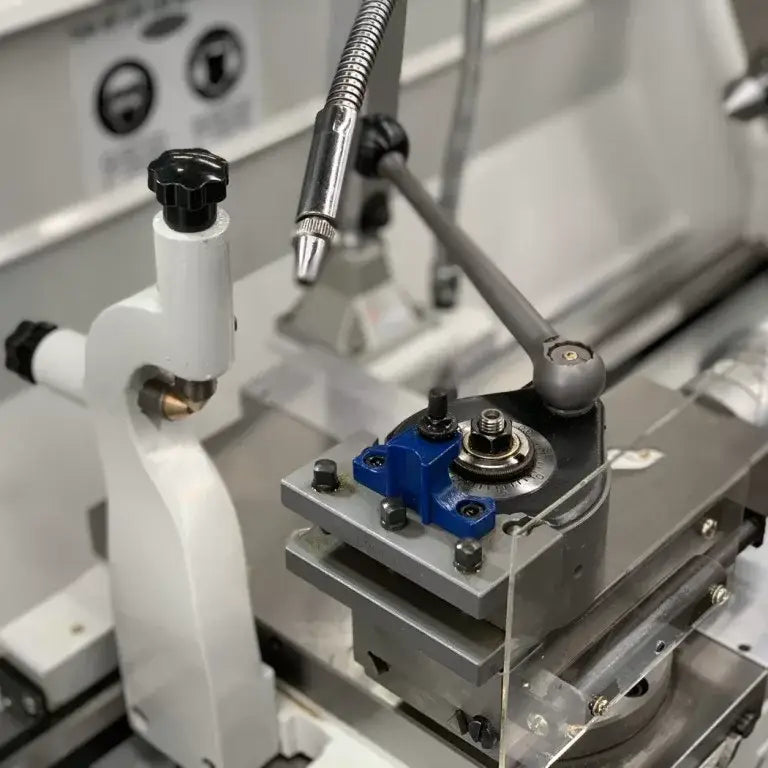

Euro Haas type quick change post with 3 x holders

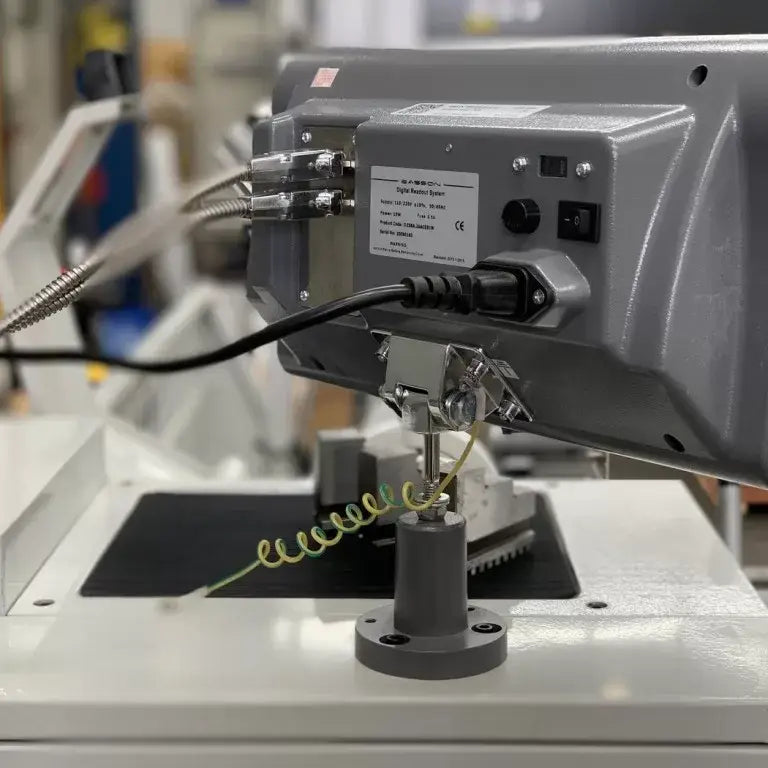

2 axis digital read out fitted
Shipping dimensions – 1900mm x 1100mm x 1145mm
Power – 240V 1.8Kw – 15 amp
Approx weight: 720kg
