Steelmaster Industrial

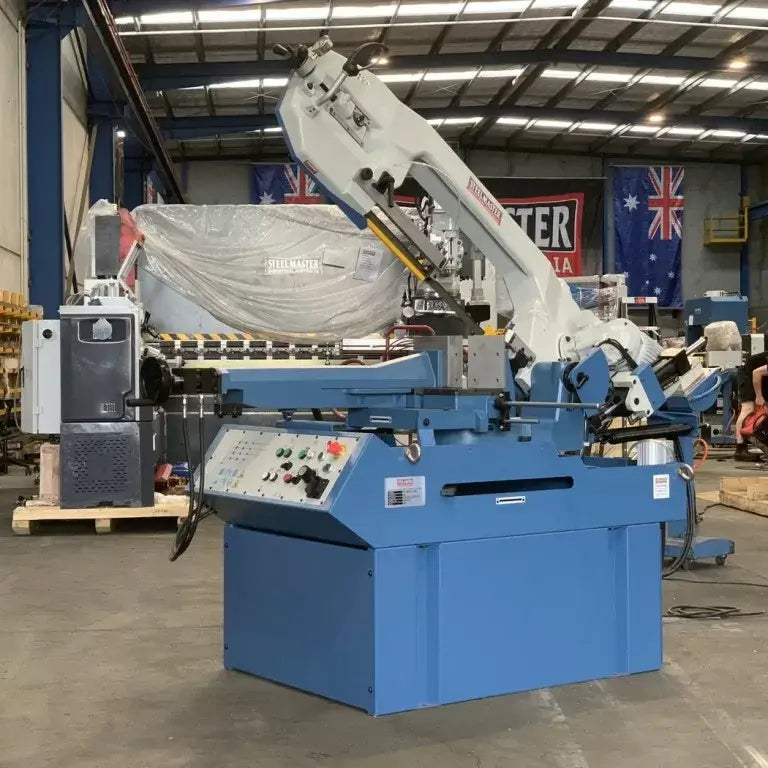

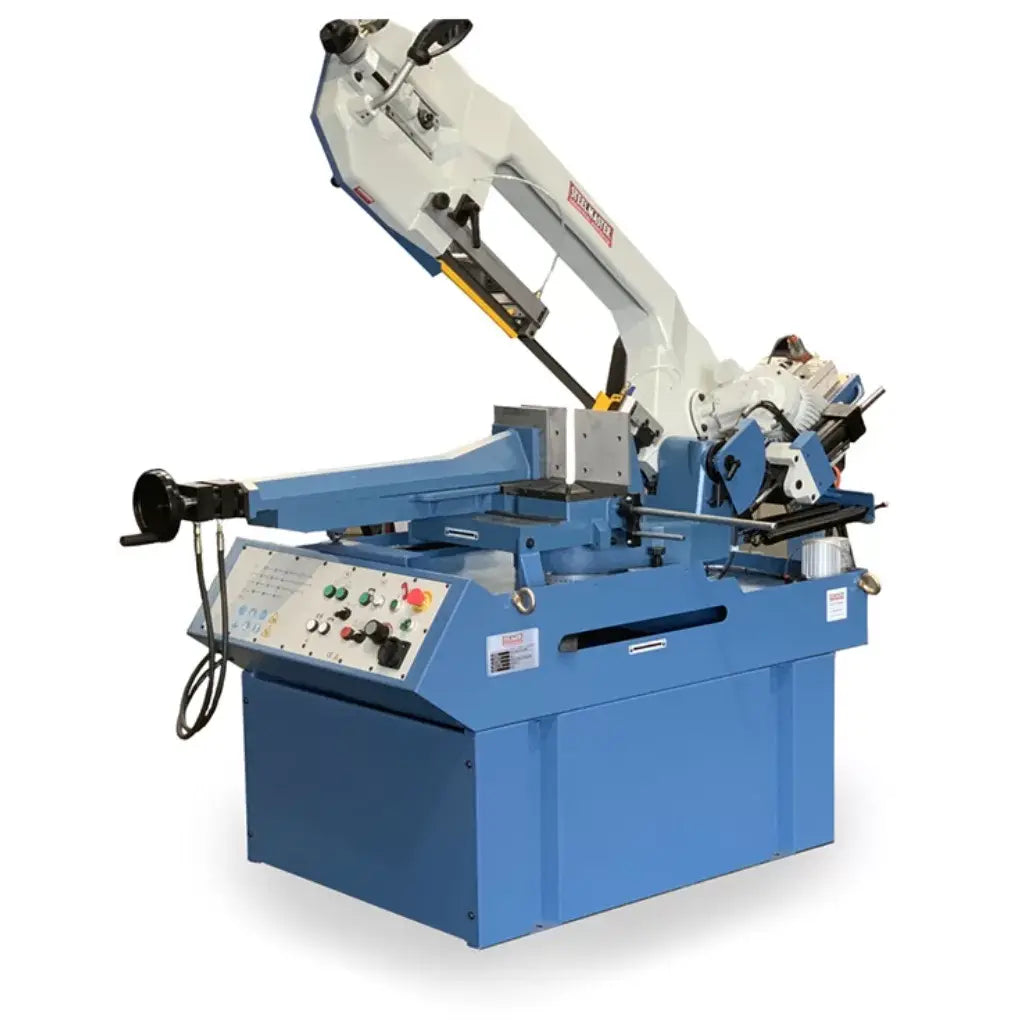

Semi-Automatic Hydraulic Double Mitre Bandsaw, 530mm RHS x 355mm Round Capacity
Sale price
$11,950.00
Regular price
$12,850.00
Unit price
Unavailable
Heavy-duty Semi-Automatic Double Mitre Bandsaw with 530mm x 300mm RHS capacity, featuring Hydraulic Vice and Automatic Return for powerful, smooth cutting.

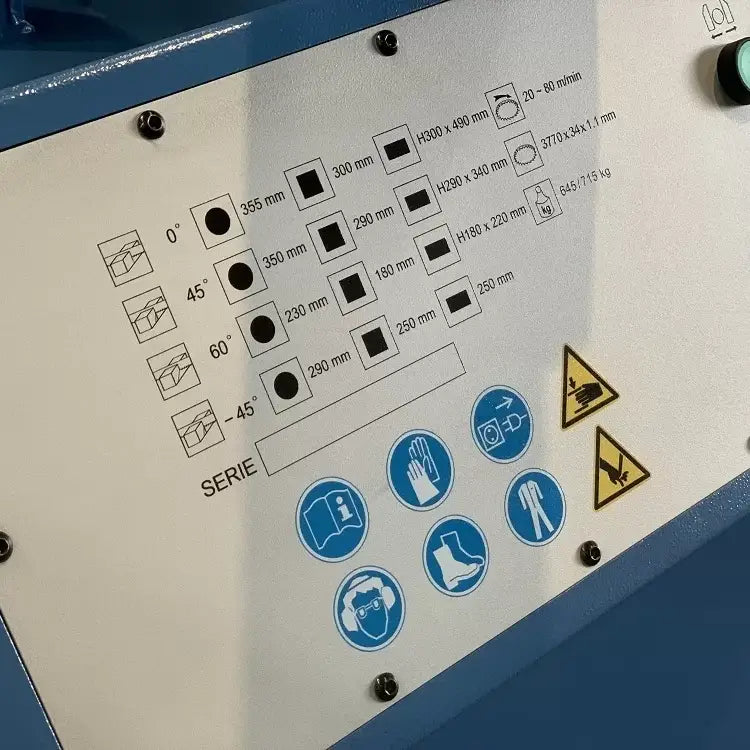

Technical Data
355mm round capacity
530mm x 300mm rectangular capacity.

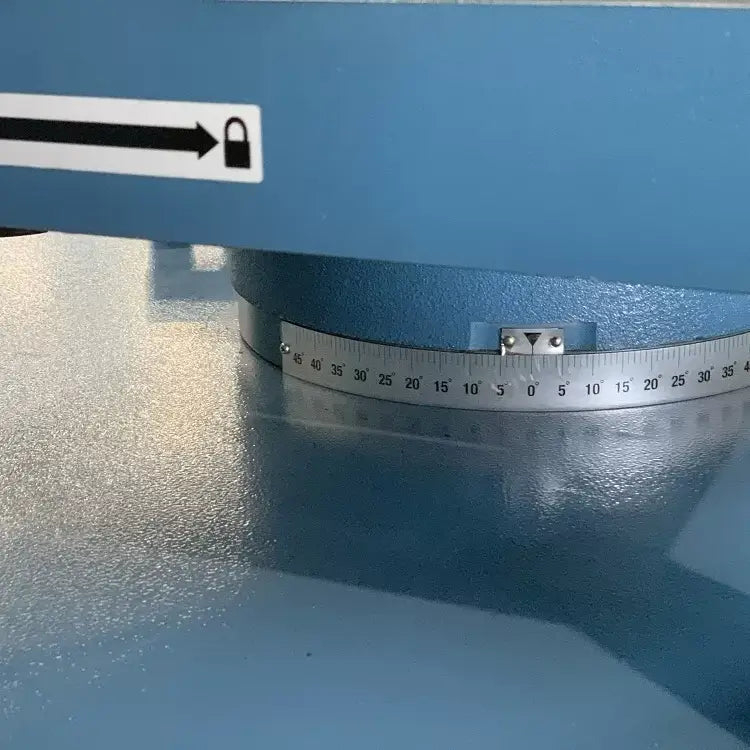

Mitre cutting range – 0 ~ 60 degrees
Blade speed: 20 ~ 80m/min
Blade size: 3770mm x 34mm x 0.9mm
Table working height: 975mm
Dimensions: 2180mm x 970mm x 1130mm
Crate size: 1900mm x 1000mm x 1400mm x 860kg
Weight: 855Kg
Motor: 2.2Kw / 415V
Product Features
Quality Taiwanese Build Quality

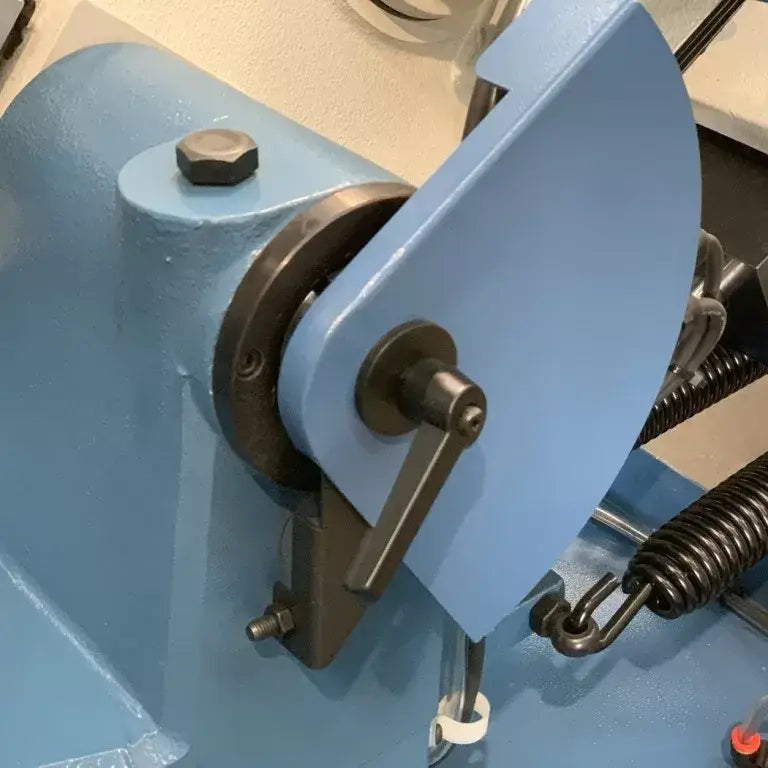

Double mitre cutting bandsaw with quick action angle positioning
Super industrial strength 34mm wide bi metal blade.

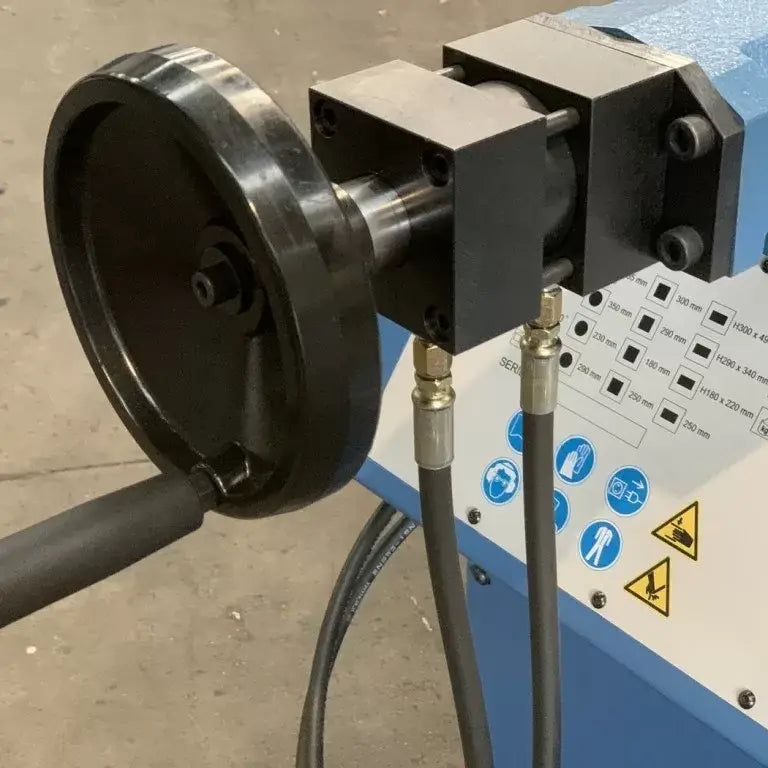

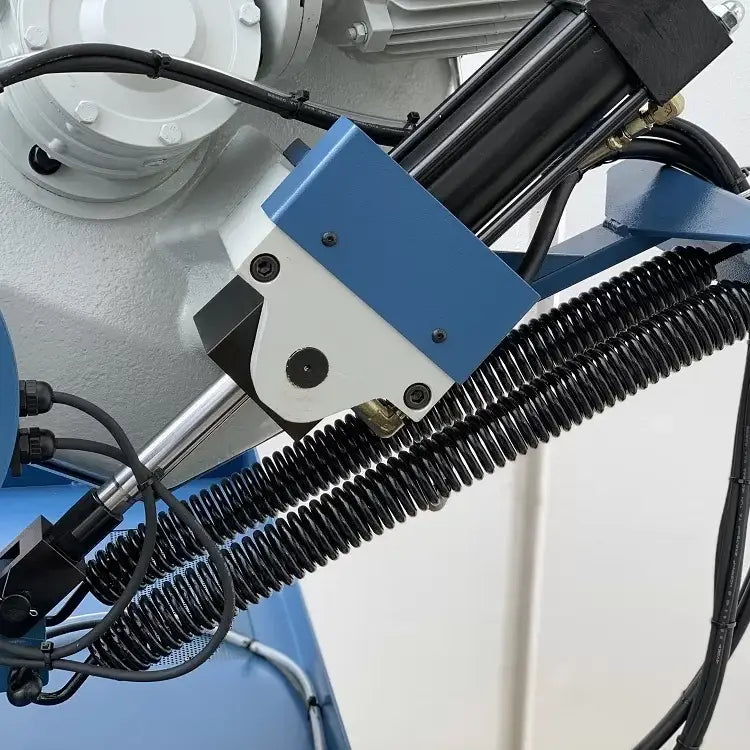

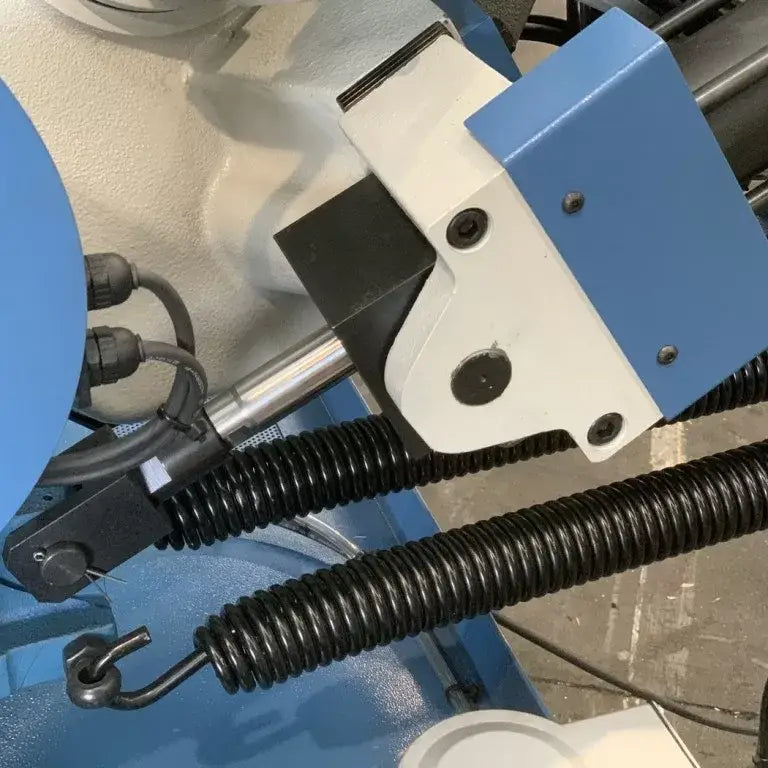

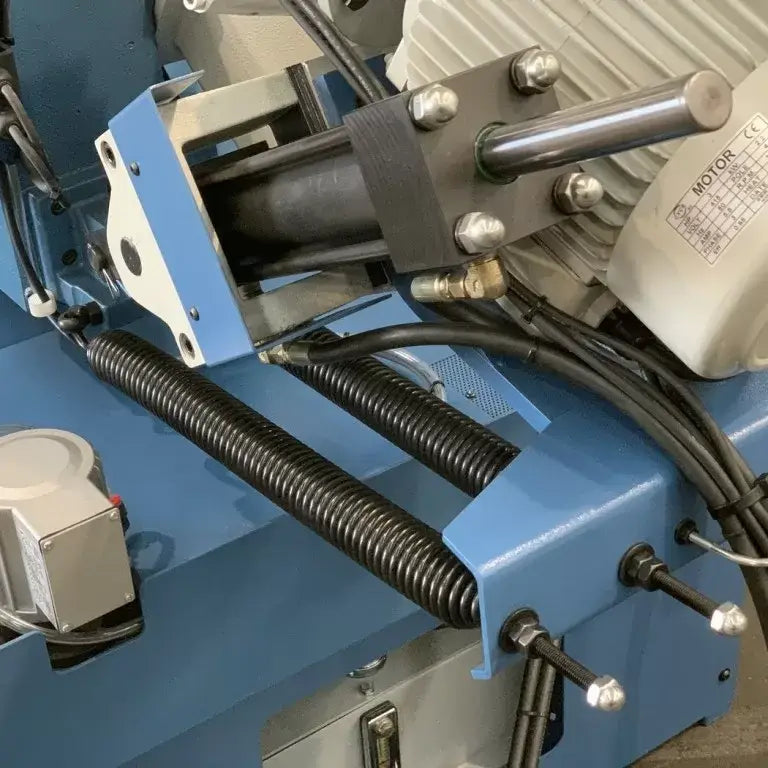

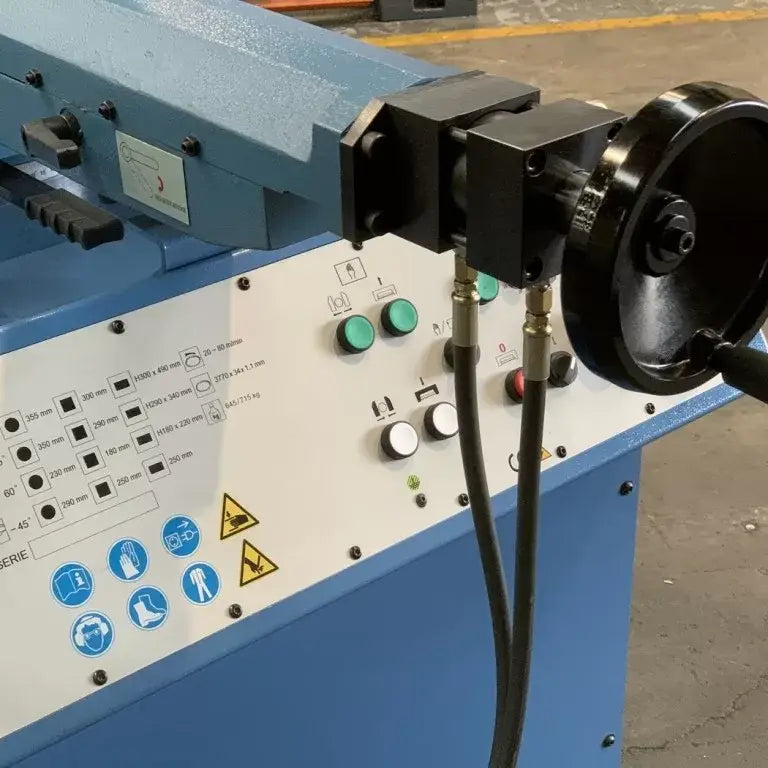

Hydraulic down feed system for automatic continuous lowering of the saw frame

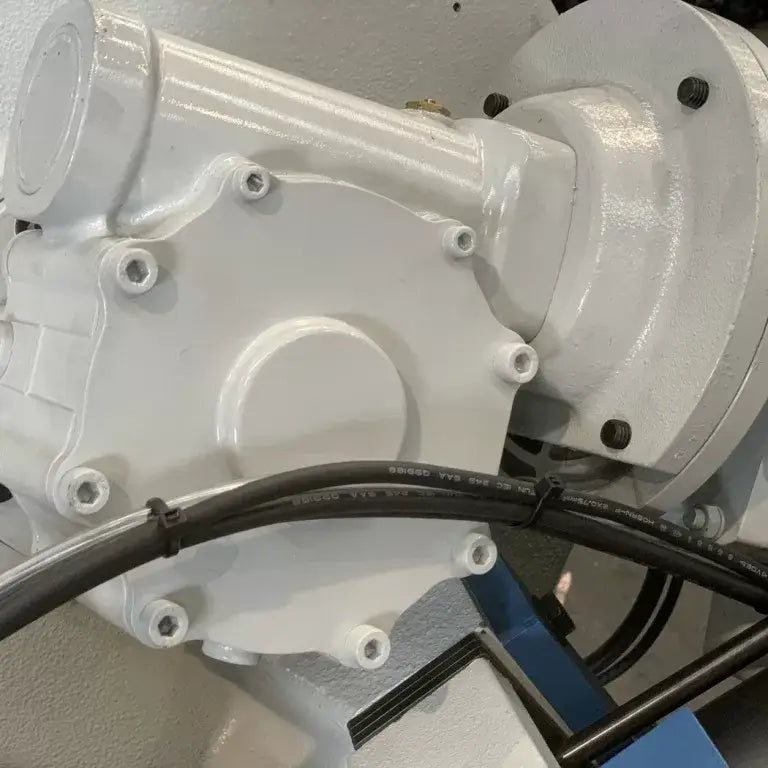

Hardened, polished worm gear with bronze drive gear for longer service life

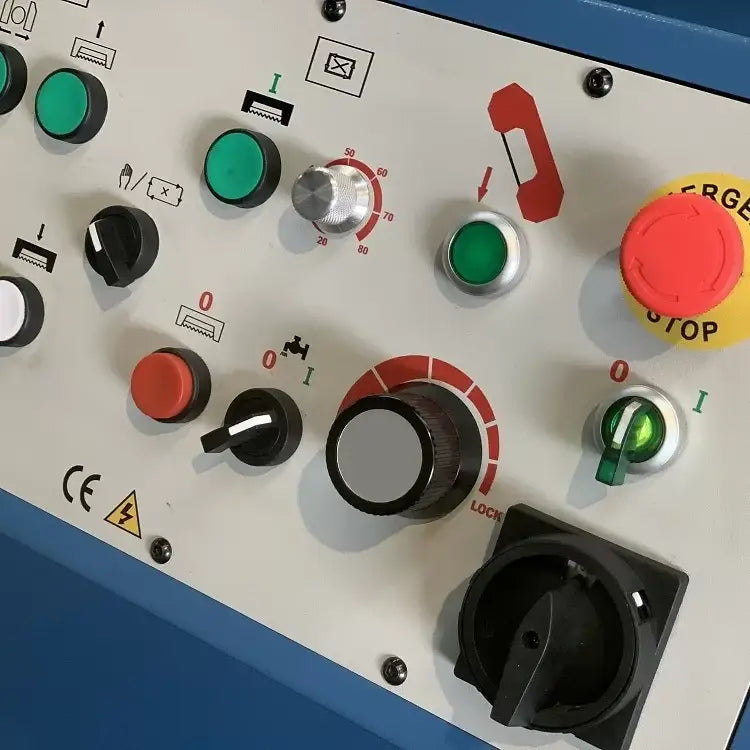

Variable blade speed operation to enable the cutting on a variety of materials

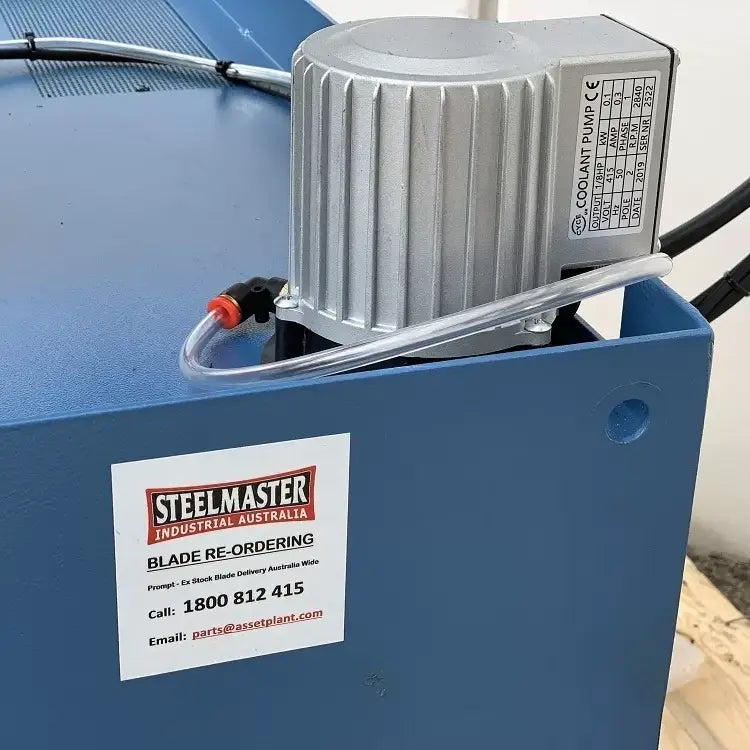

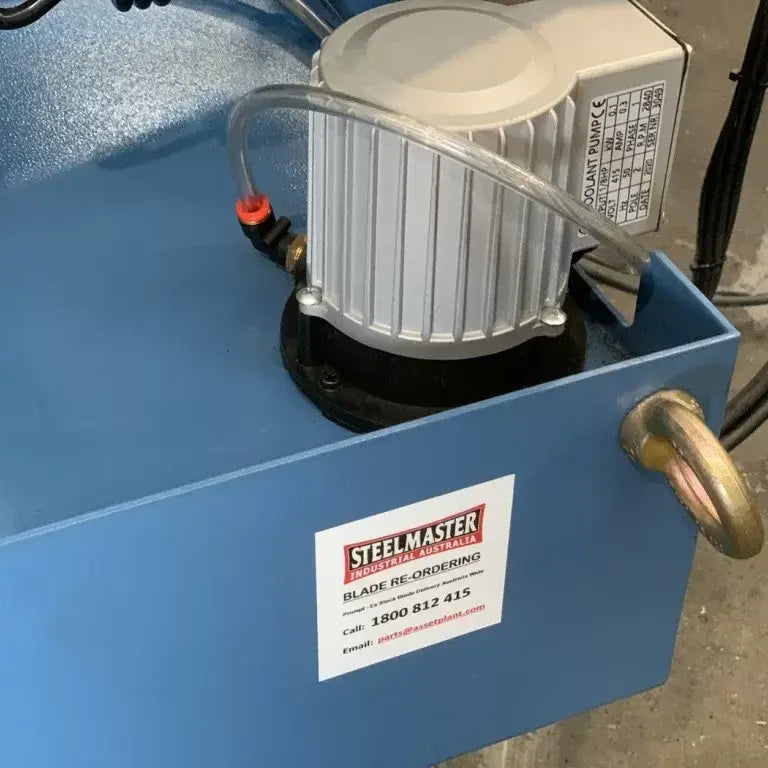

Machine stand with integrated cooling fitted as standard

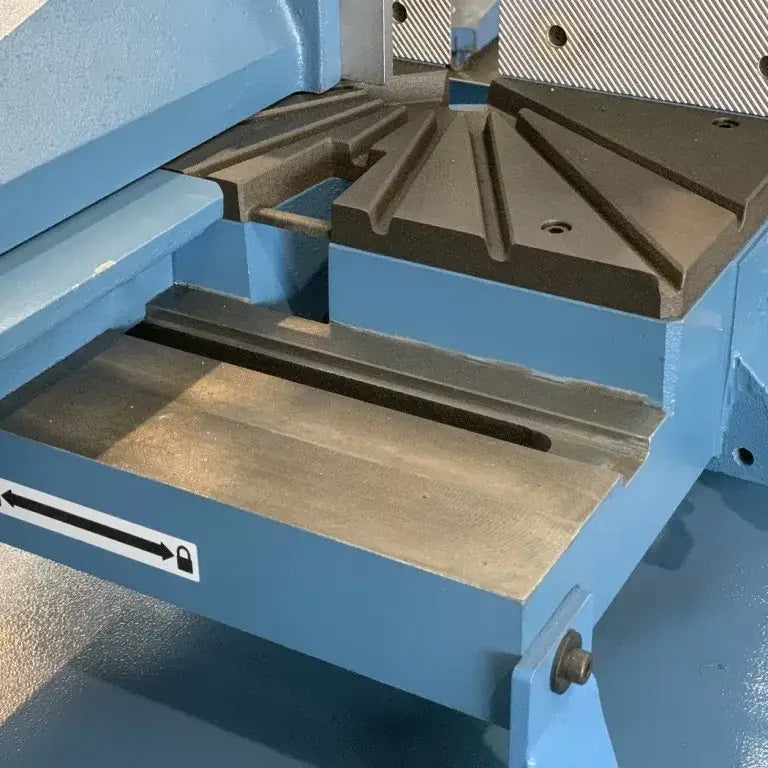

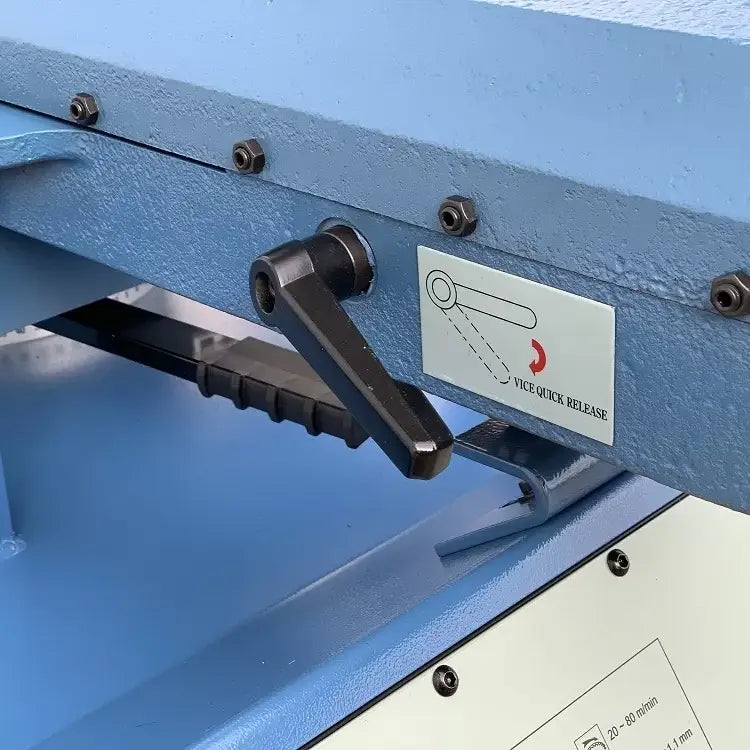

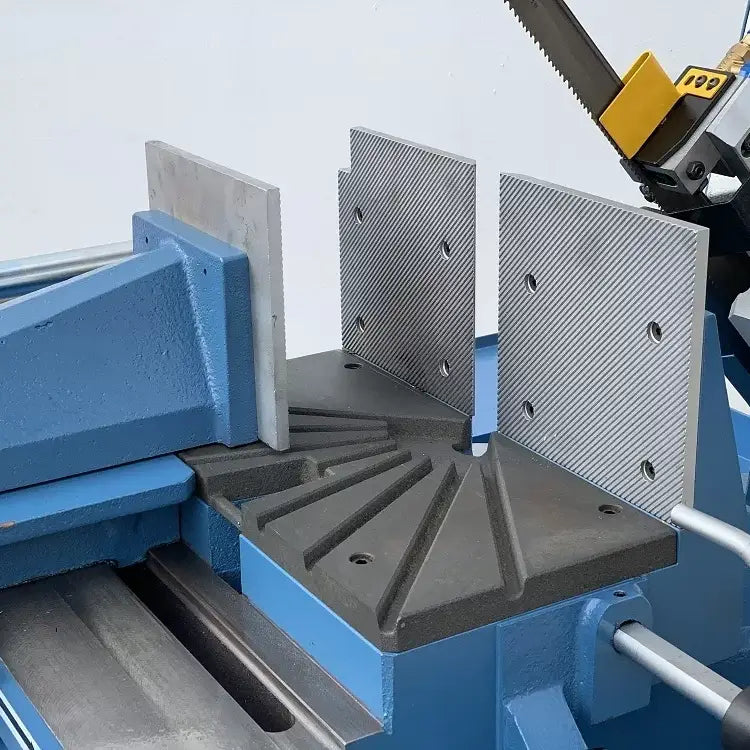

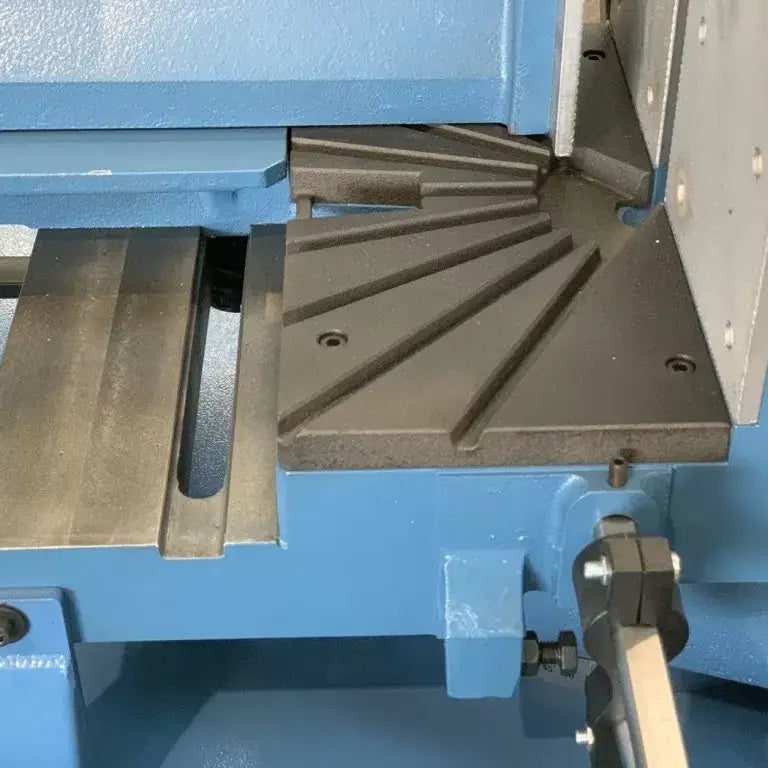

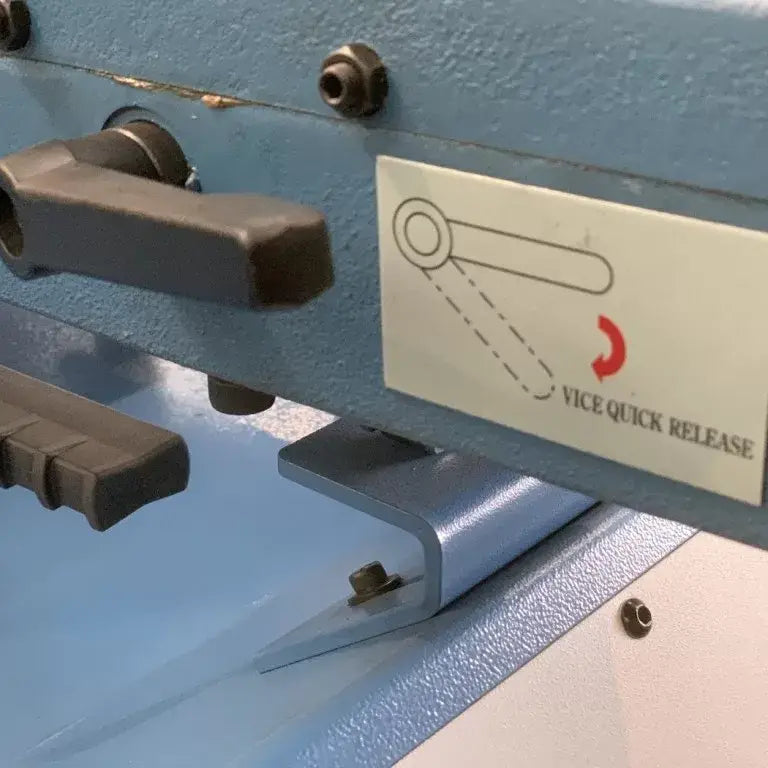

Quick action clamping vice
Powerful motor suitable for continuous operation
Saw arm mitres up to 60° featuring space saving and convenient mitre cutting
Vibration free, low noise operation ensures clean cut and high precision

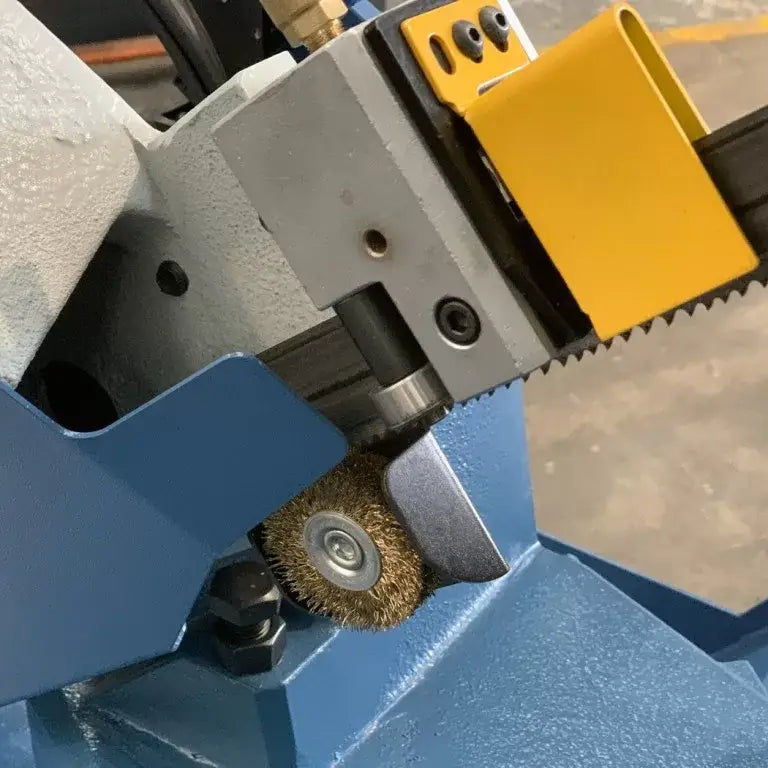

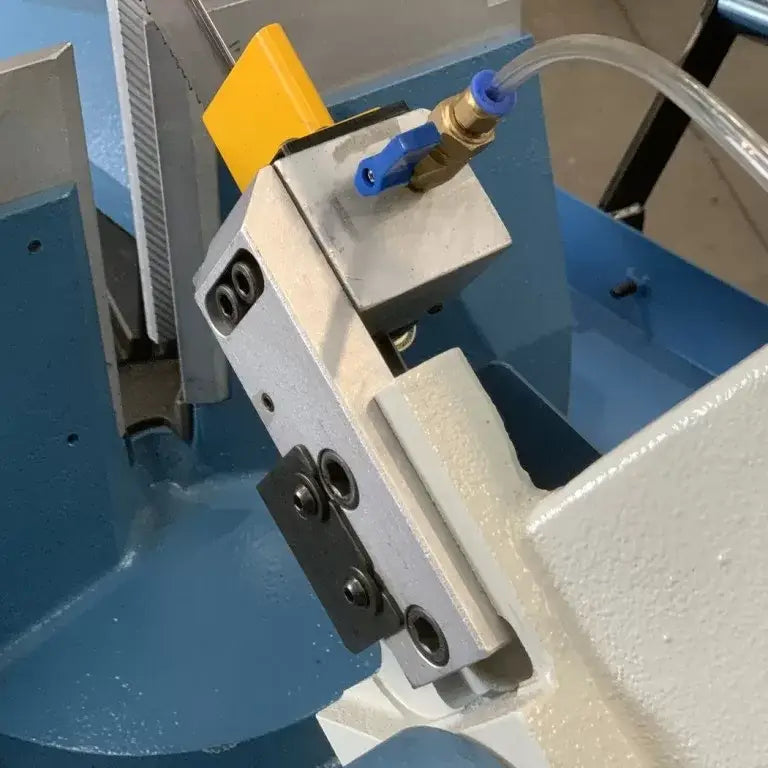

Carbide blade guides
Blade tensioning gauge
Stand included
CE compliant
Services required to be provided by customer
Cutting Capacity
530mm x 300mm
