Steelmaster Industrial

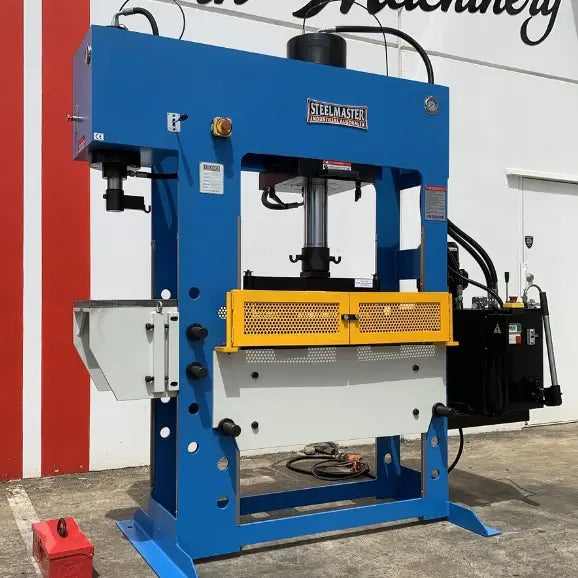

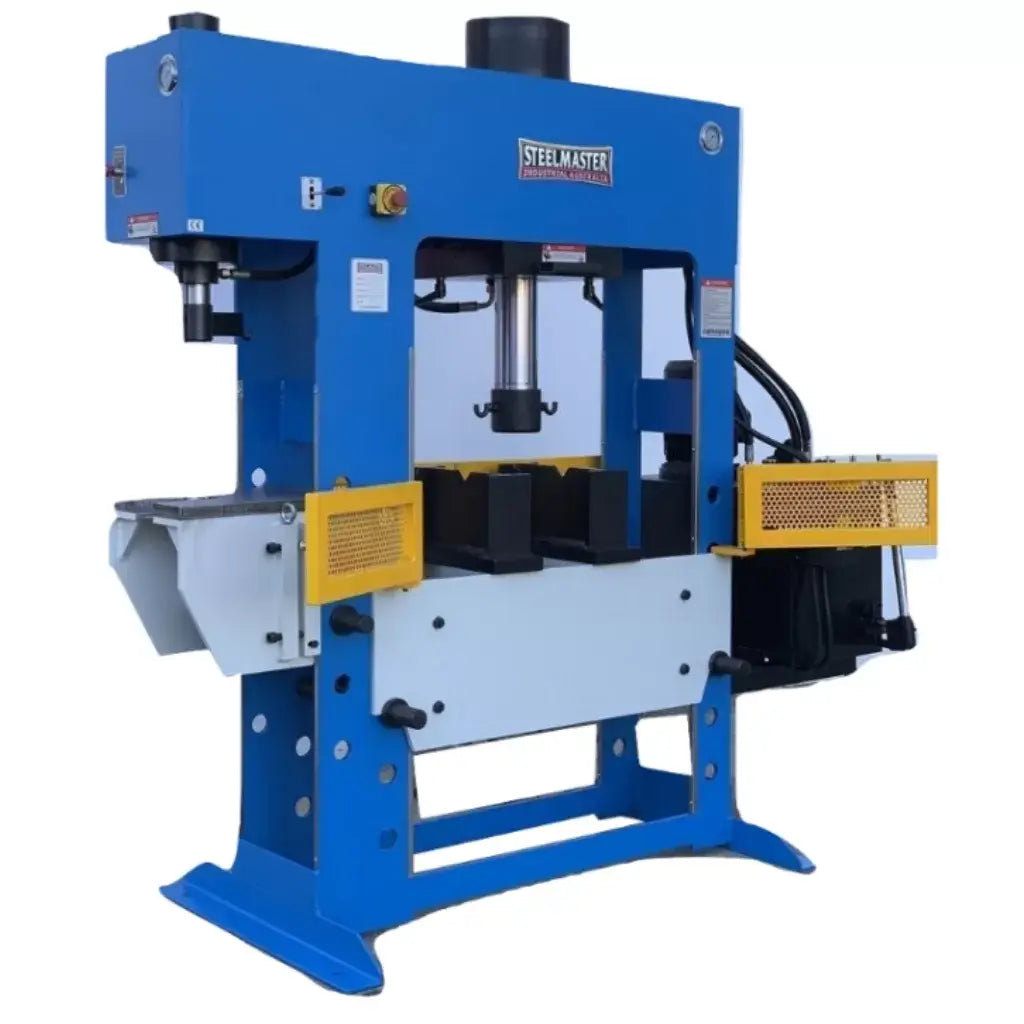

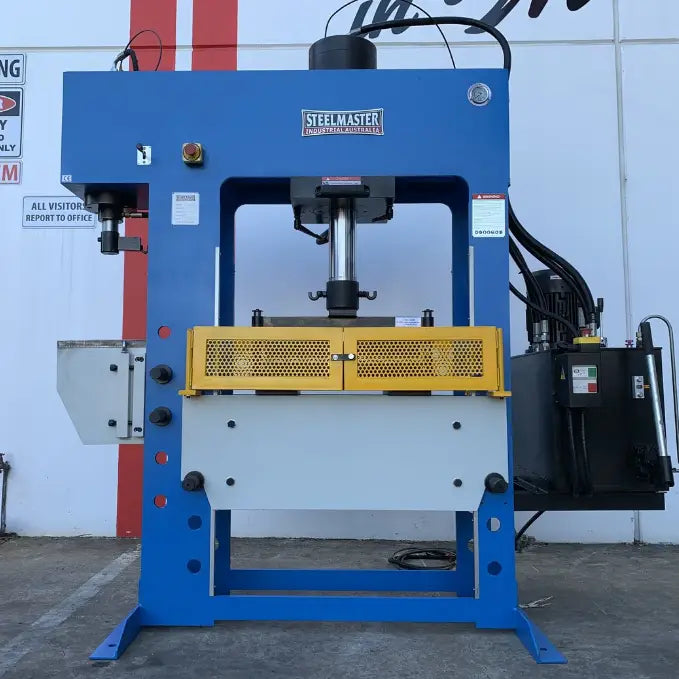

Hydraulic Combination Sliding Head Workshop Press, 100/16 Ton
Regular price
$14,850.00
Unit price
Unavailable

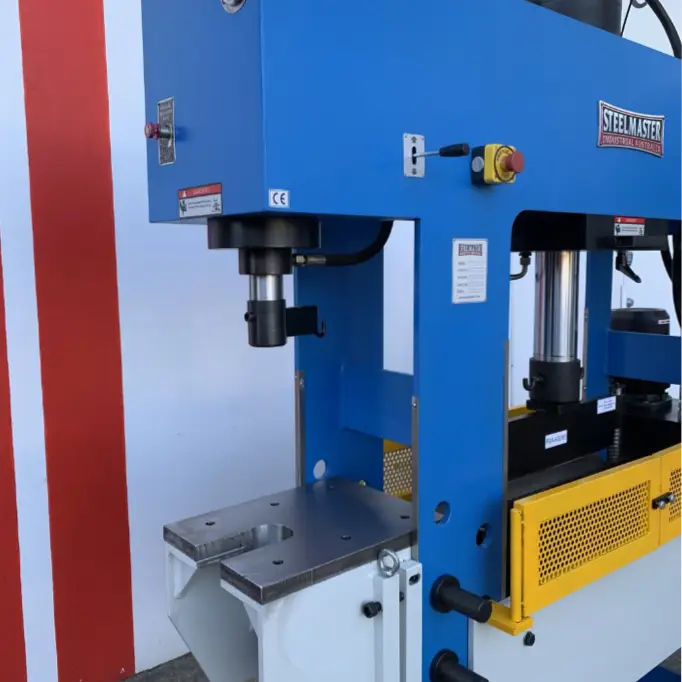

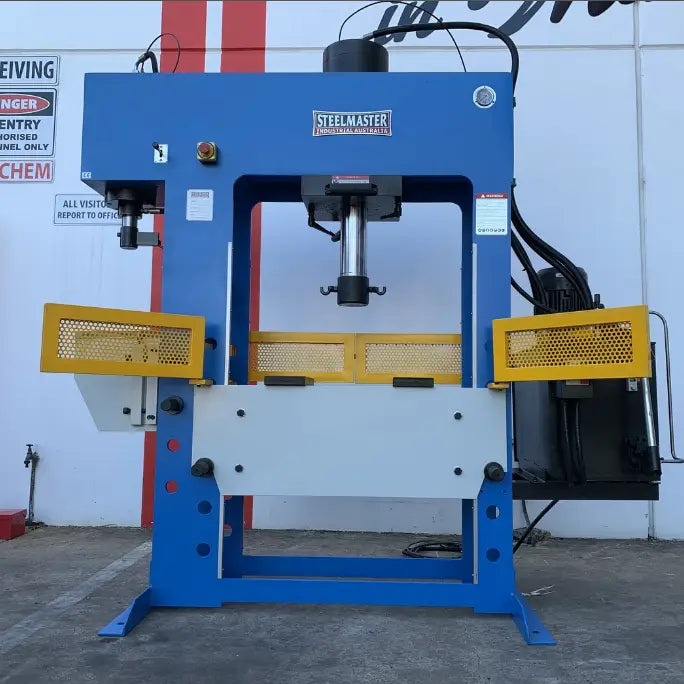

A SM-HC100/15 hydraulic combination sliding head workshop press, featuring a 100-ton main press and a 16-ton broach press.
Technical Data
Capacity – 100Ton main press capacity

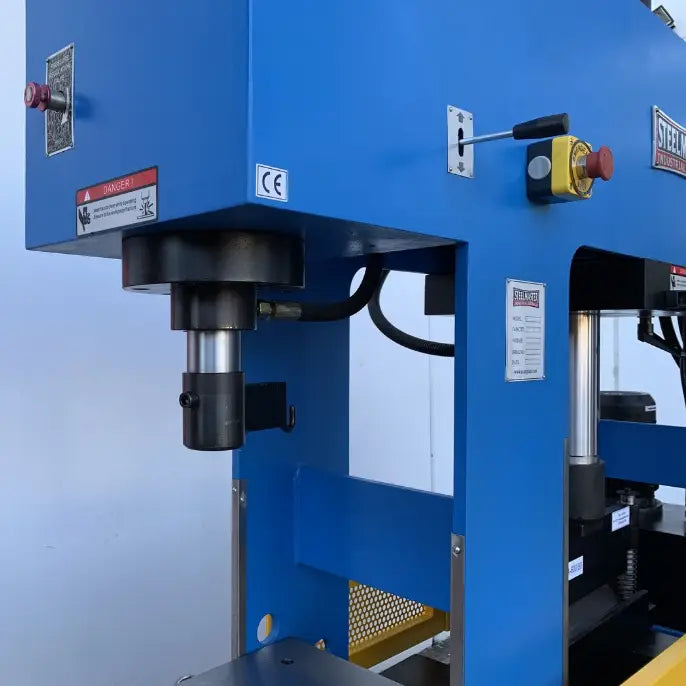

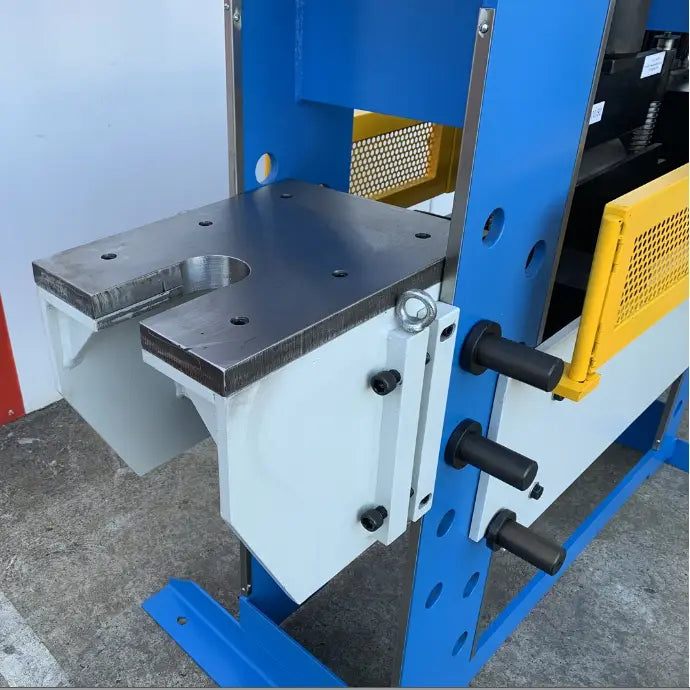

Capacity – 15Ton side broach press capacity
Overall width – 1500mm
Stroke length – 400mm
Max. pressure – 263 bar
Frame width – 900mm
Cylinder – fixed & sliding
Working speed – 2.5 (main) & 15 (side) mm / sec
Approach speed – 10 (main) & 60 (side) mm / sec
Return speed – 13 (main) & 87 (side) mm / sec

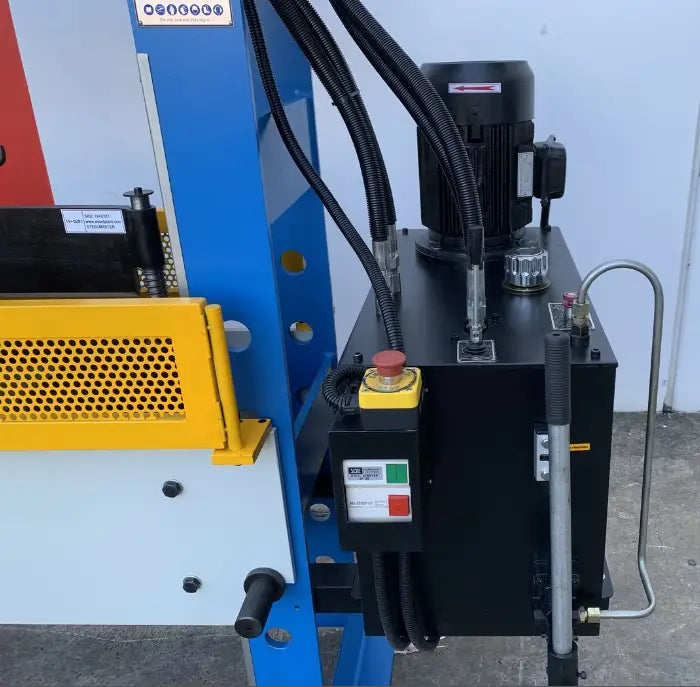

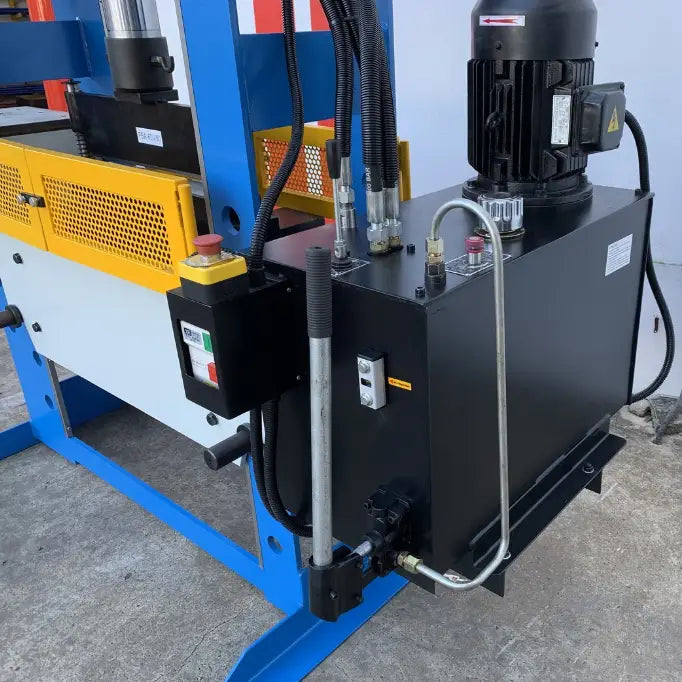

Oil tank capacity – 150 litres
Power – 4.0Kw / 415Volt
Dimensions – 2050mm x 900mm x 2150mm x 2100kg
Product Features
Main 100 ton ram force / 16ton side mounted press capacity.
Fixed central position or sliding left or right positioning.
Offering more flexibility to your pressing applications

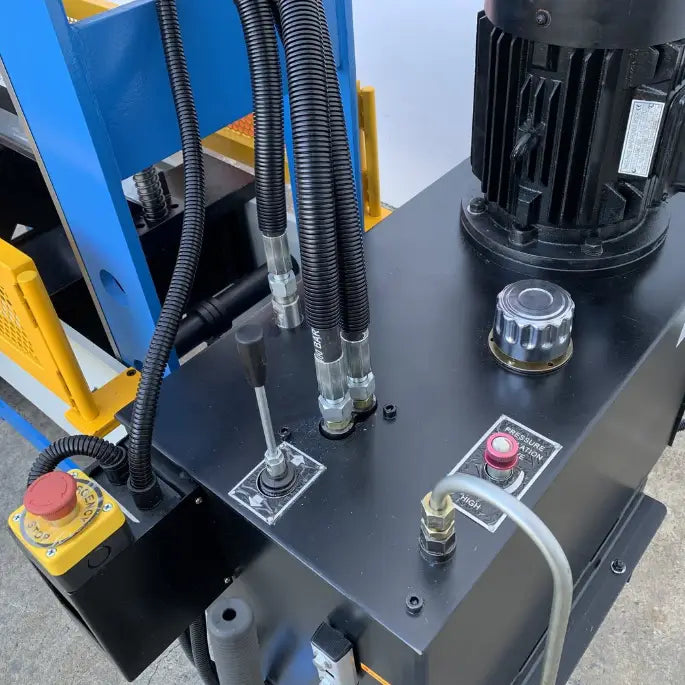

Single speed control with manual adjustment
For the removal and press-fit of bearings and bushings
Extremely torsion proof steel welded frame

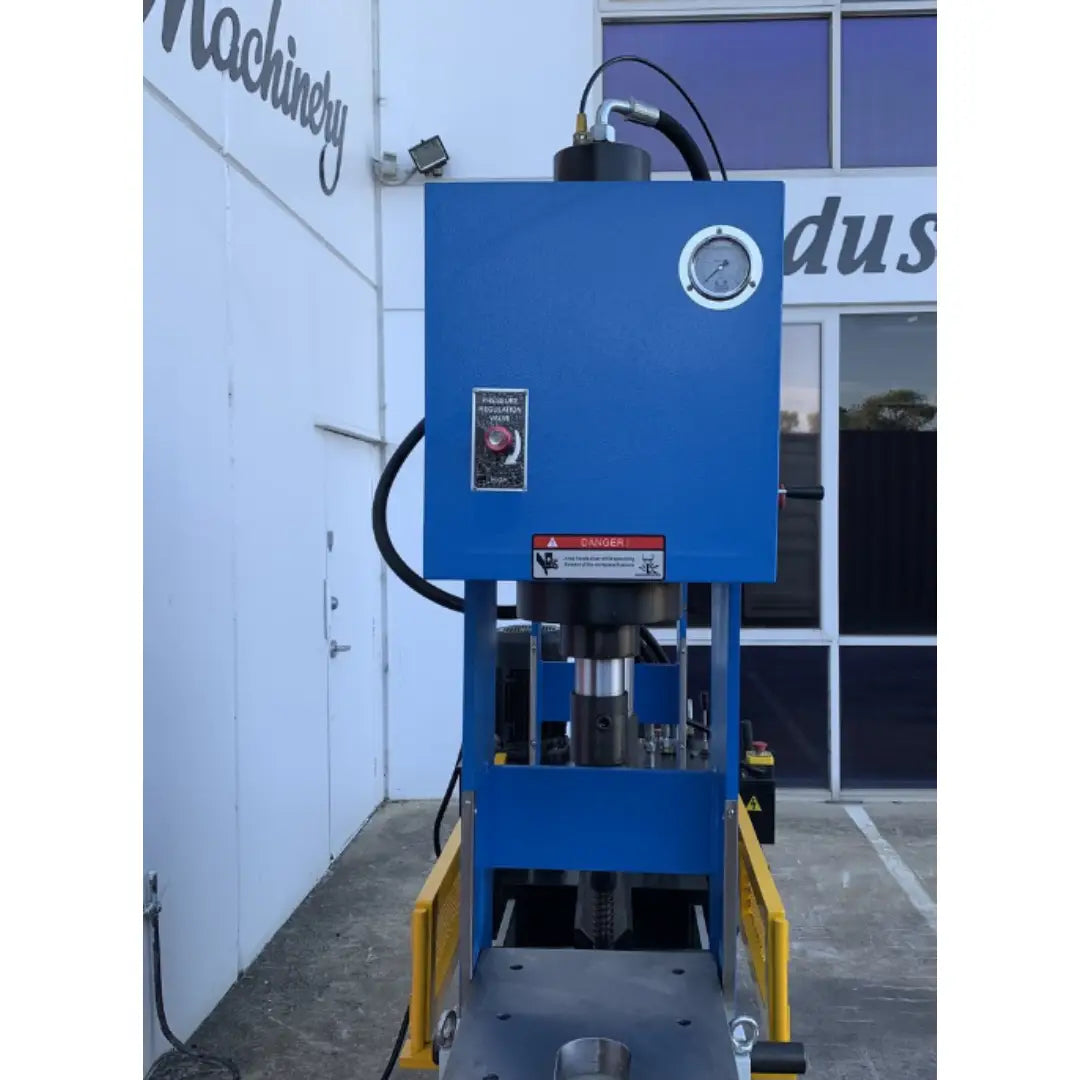

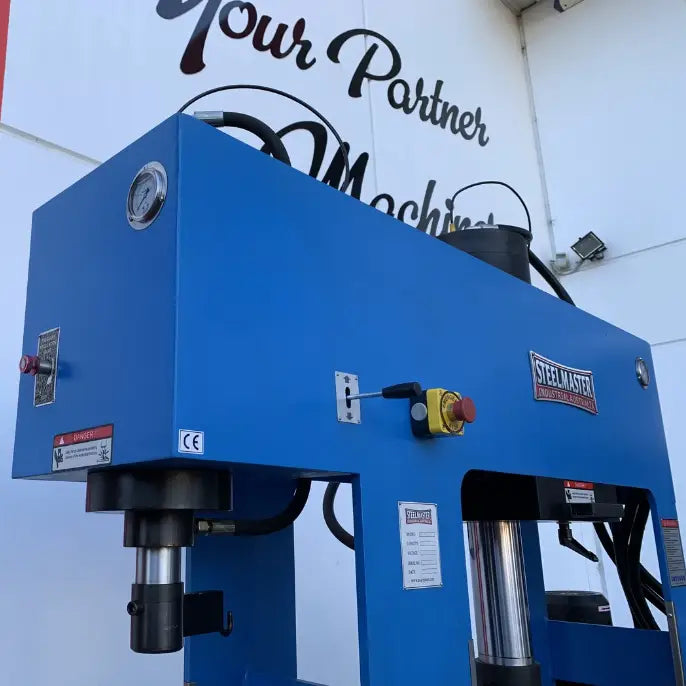

Hydraulic pressure gauge fitted

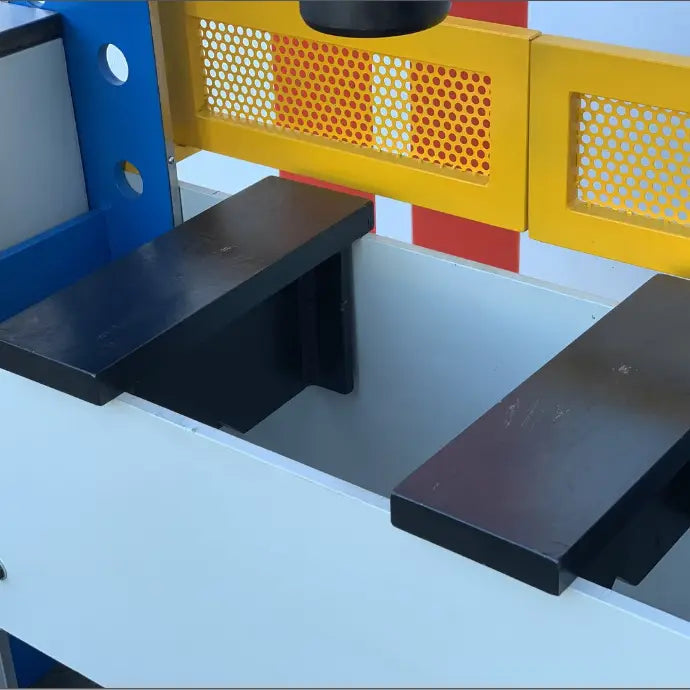

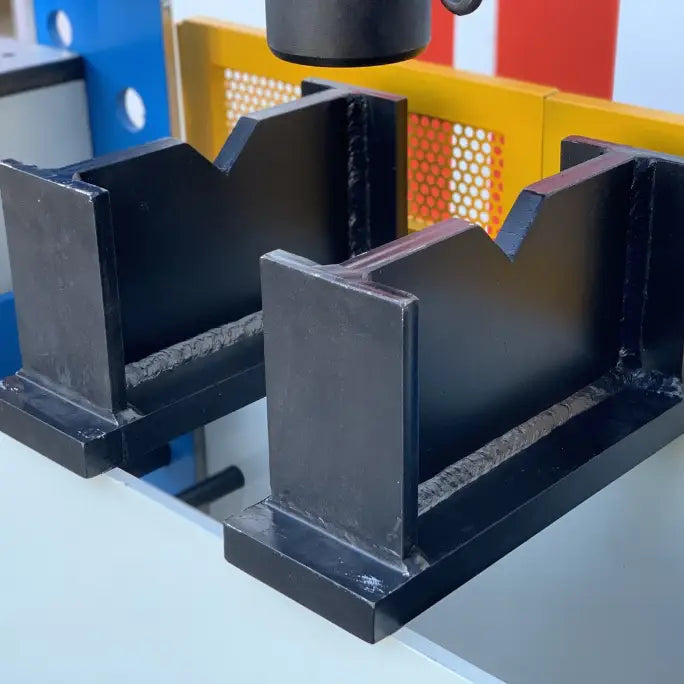

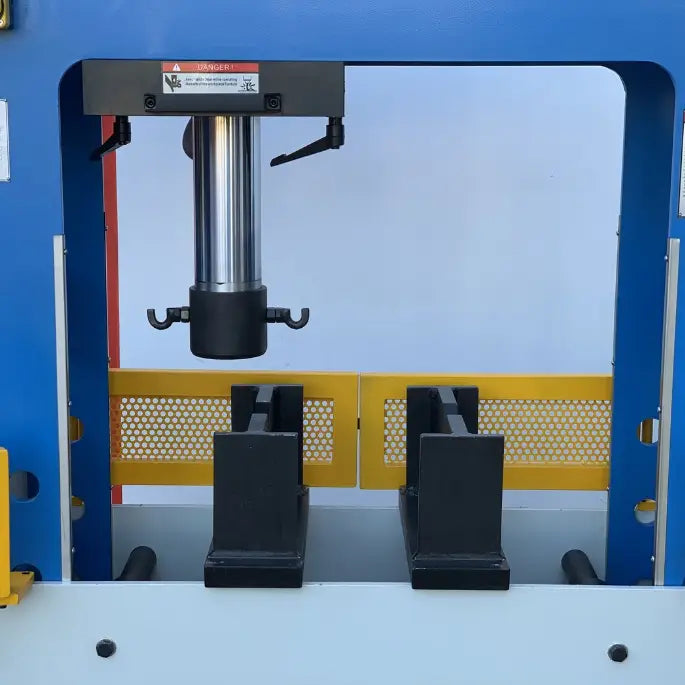

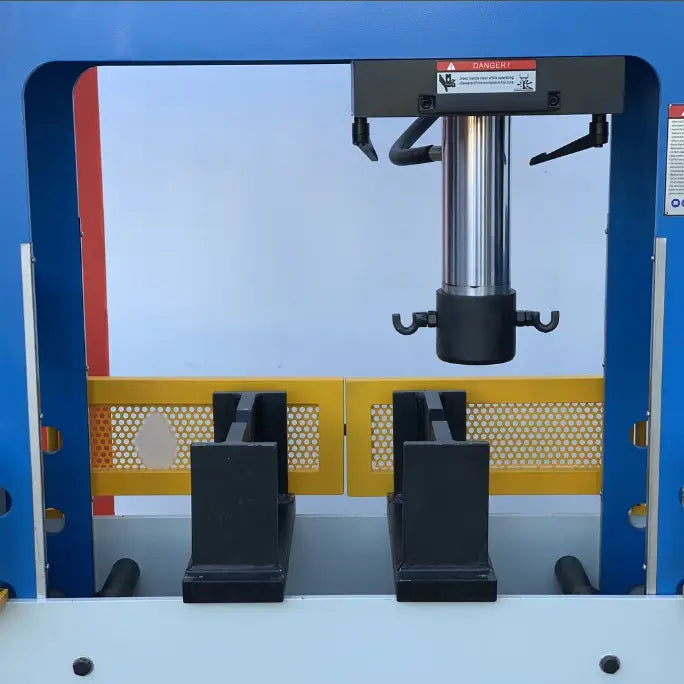

Quick fit work plate with vee blocks supplied.

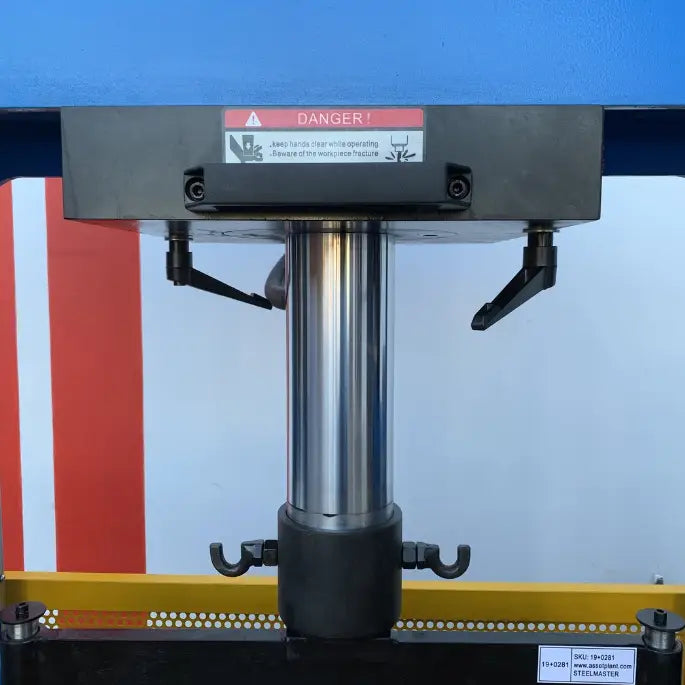

Lifting chains included
Offered in 100/150/200 & 300ton models
