Steelmaster Industrial | SKU: 11-0311-PDB

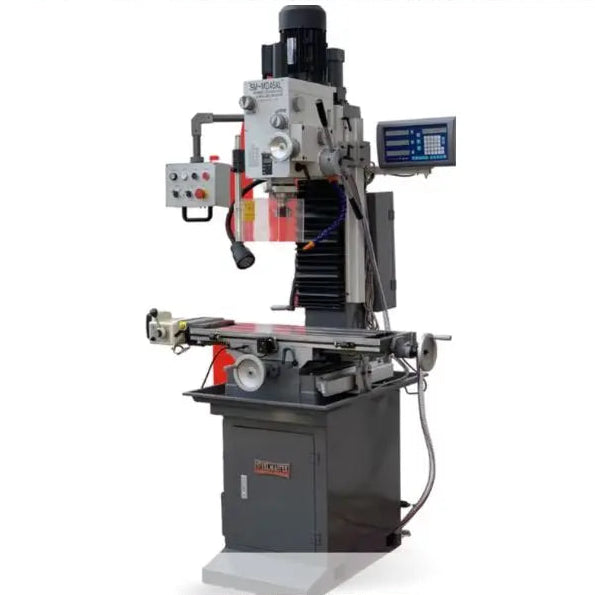

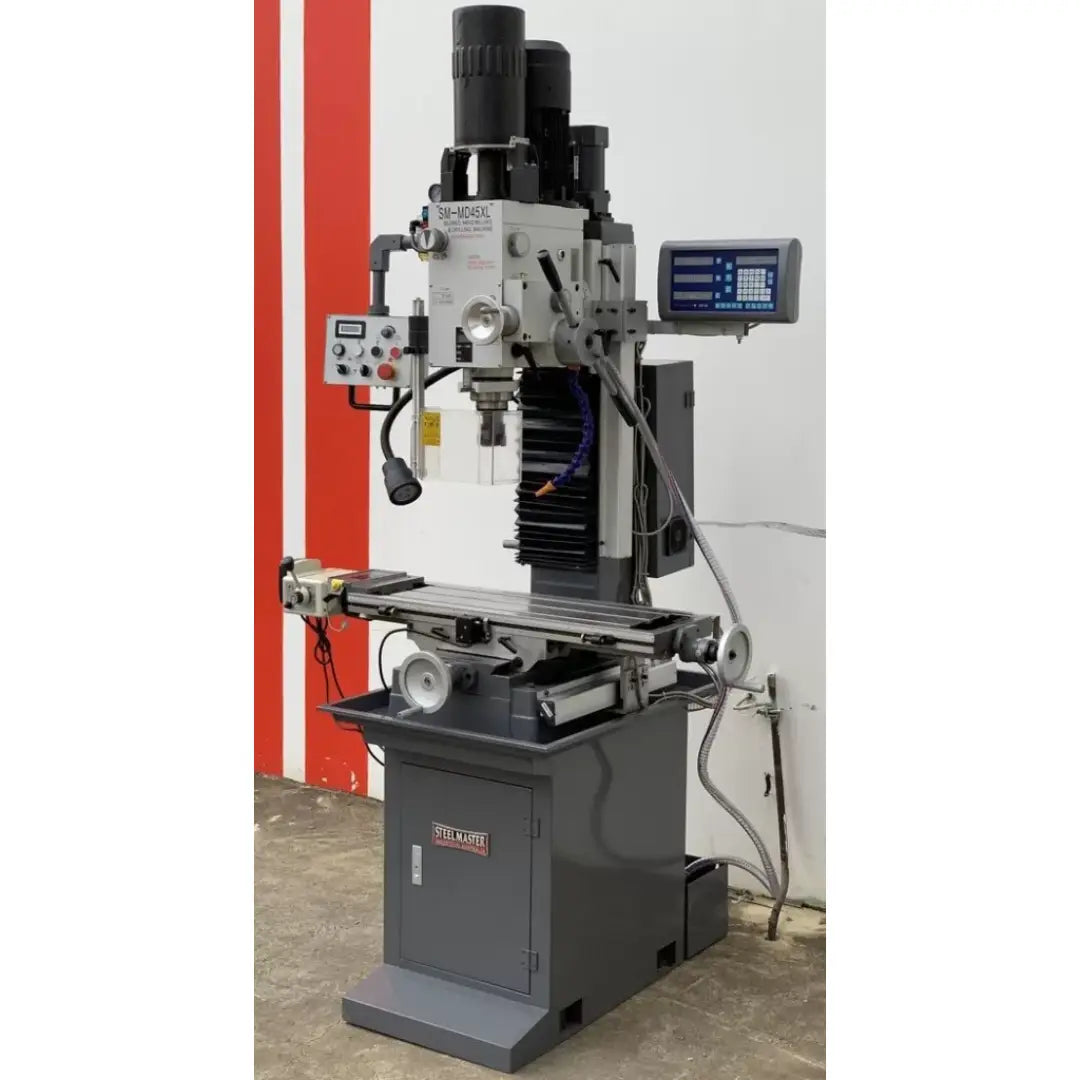

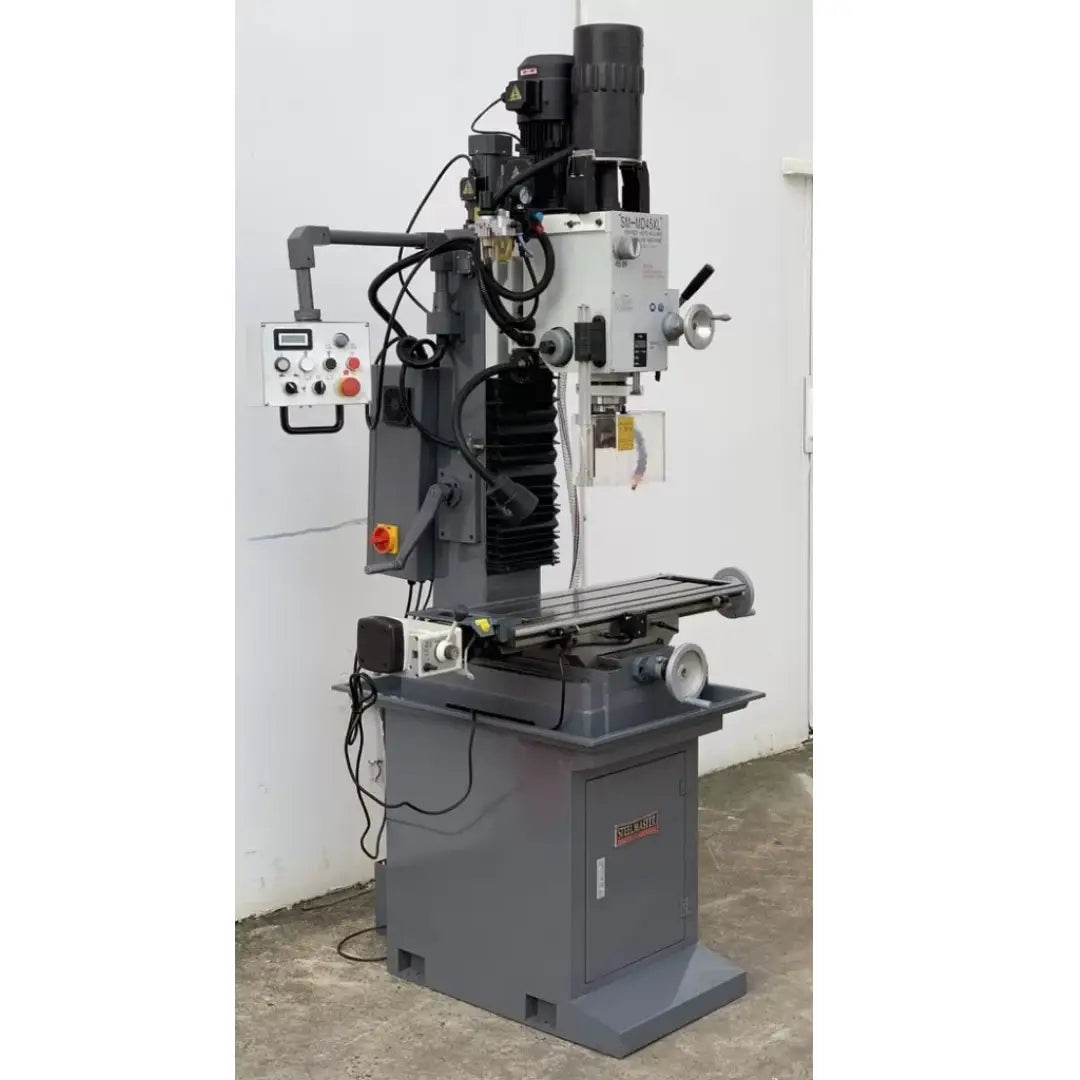

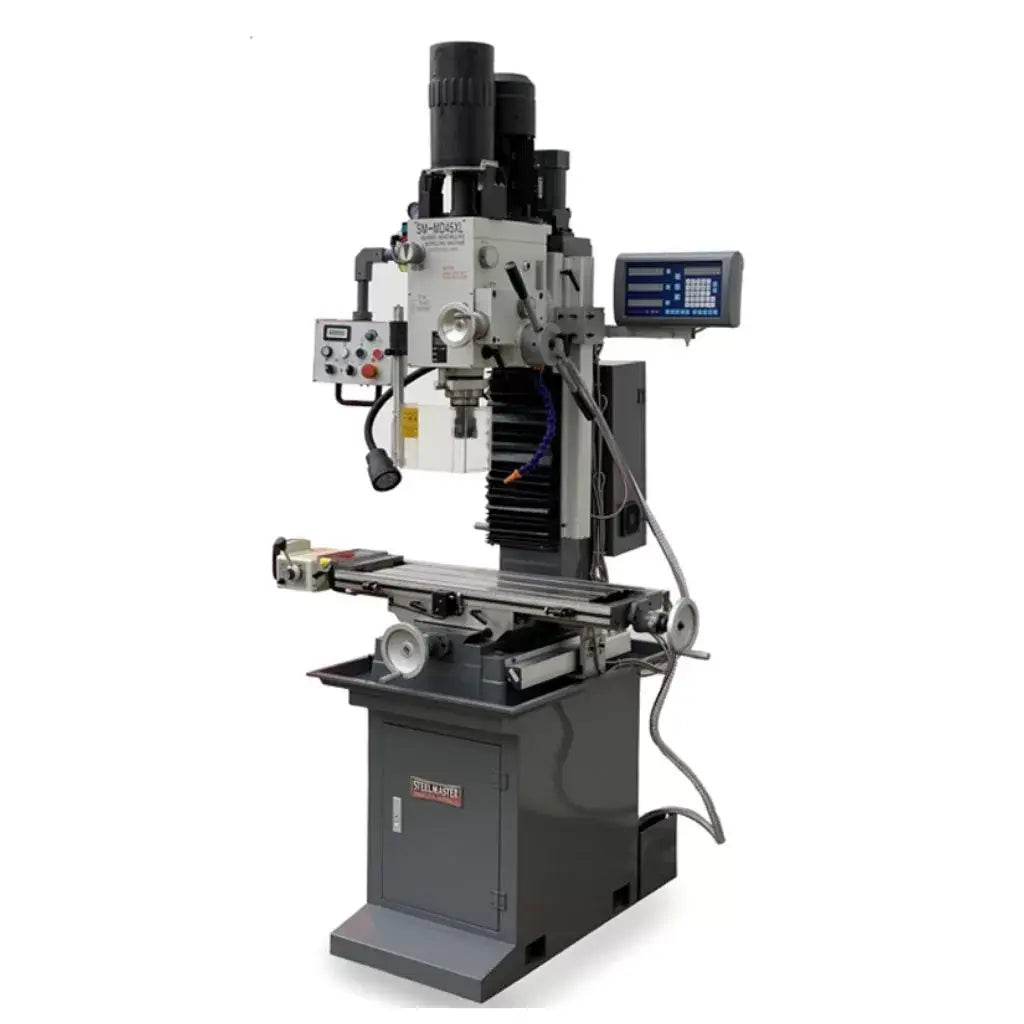

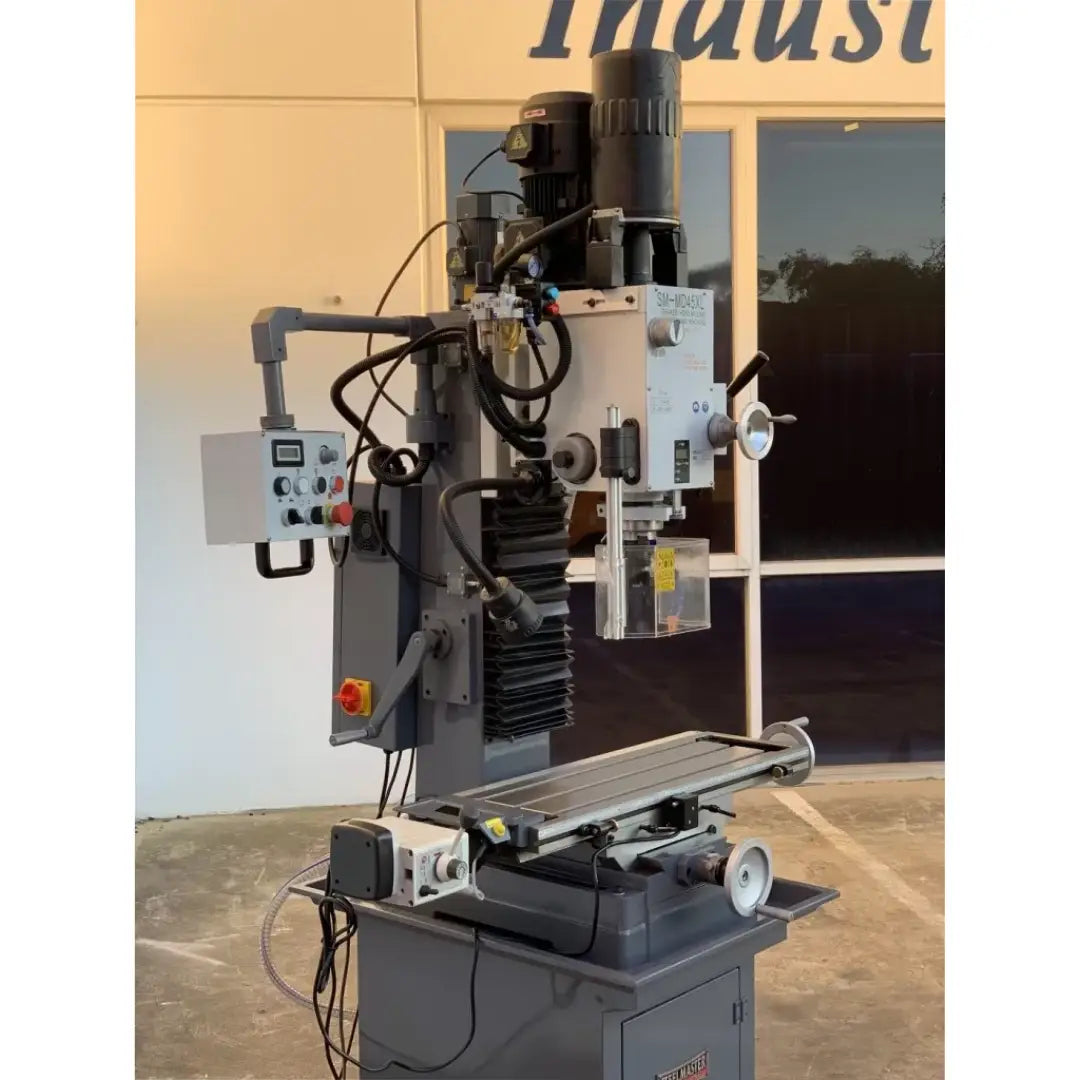

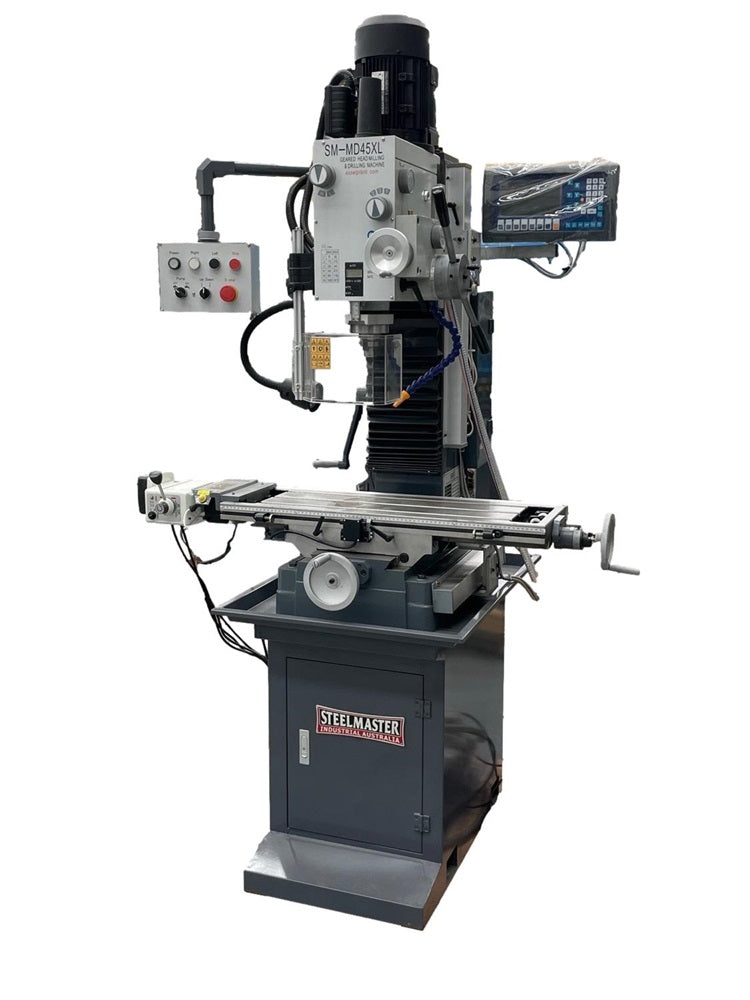

Mill Drill with DRO, Geared Drive Mill Drill With Power Draw Bar, Coolant, Power Head Up & Down

Name: Mill Drill with DRO, Geared Drive Mill Drill With Power Draw Bar, Coolant, Power Head Up & Down
Brand: Steelmaster Industrial
SKU: 11-0311-PDB
Price: 6495.00 AUD
Availability: InStock

PRICE EX GST

$6,495.00

PRICE INC GST

$7,144.50

MODEL NUMBER: SM-MD45XL-GEARED-MILL-DRILL-DRO

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

This premium Steelmaster Geared Drive Mill Drill features a DRO, power draw bar, coolant, and power head elevation. A top-tier mill drill.

PRODUCT FEATURES

3 axis DRO

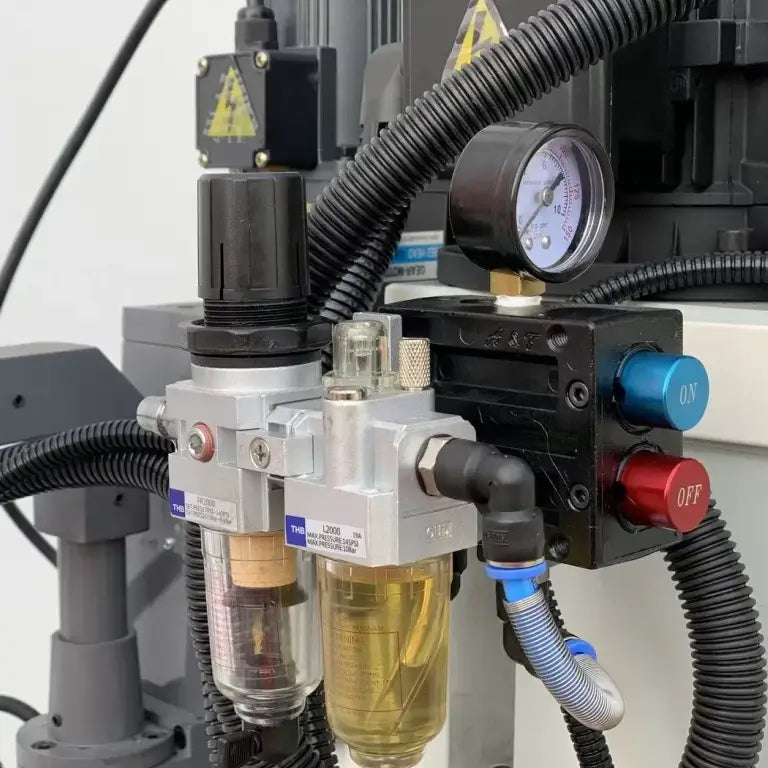

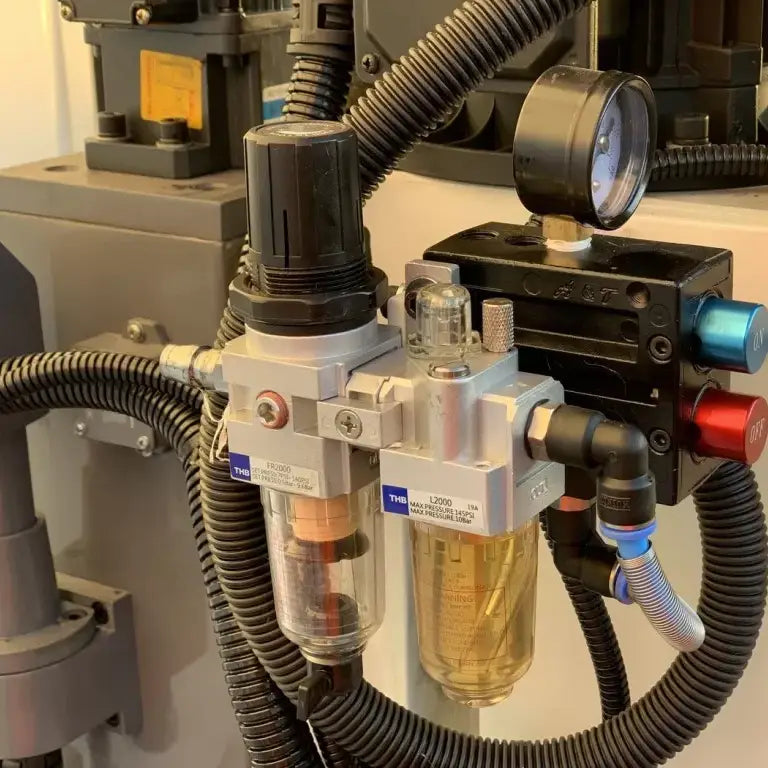

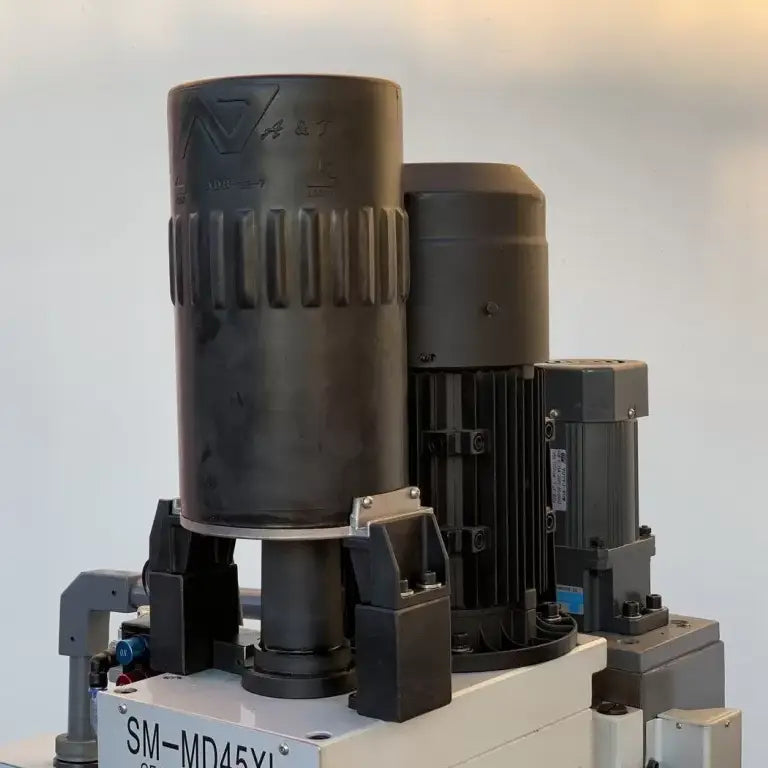

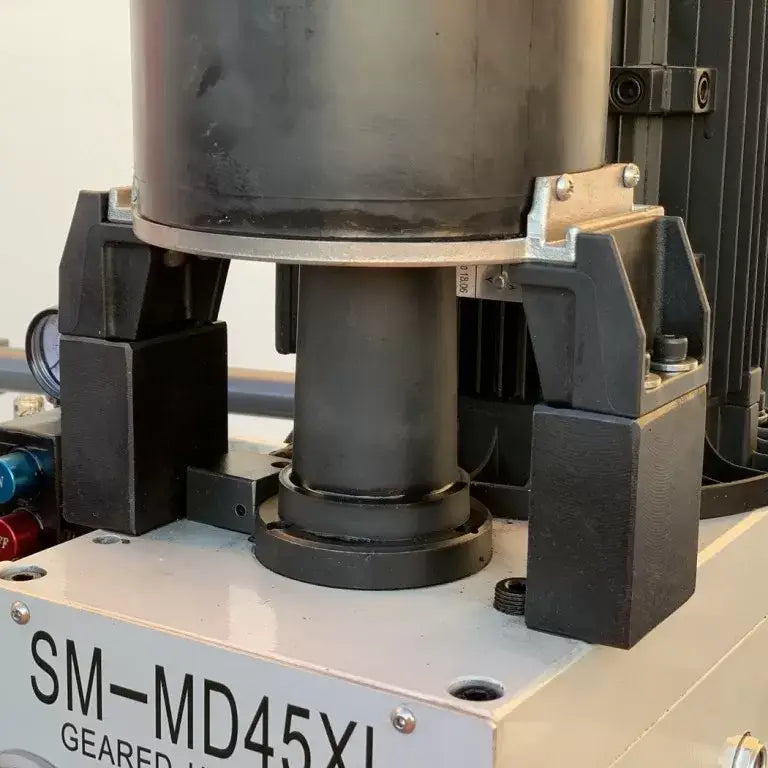

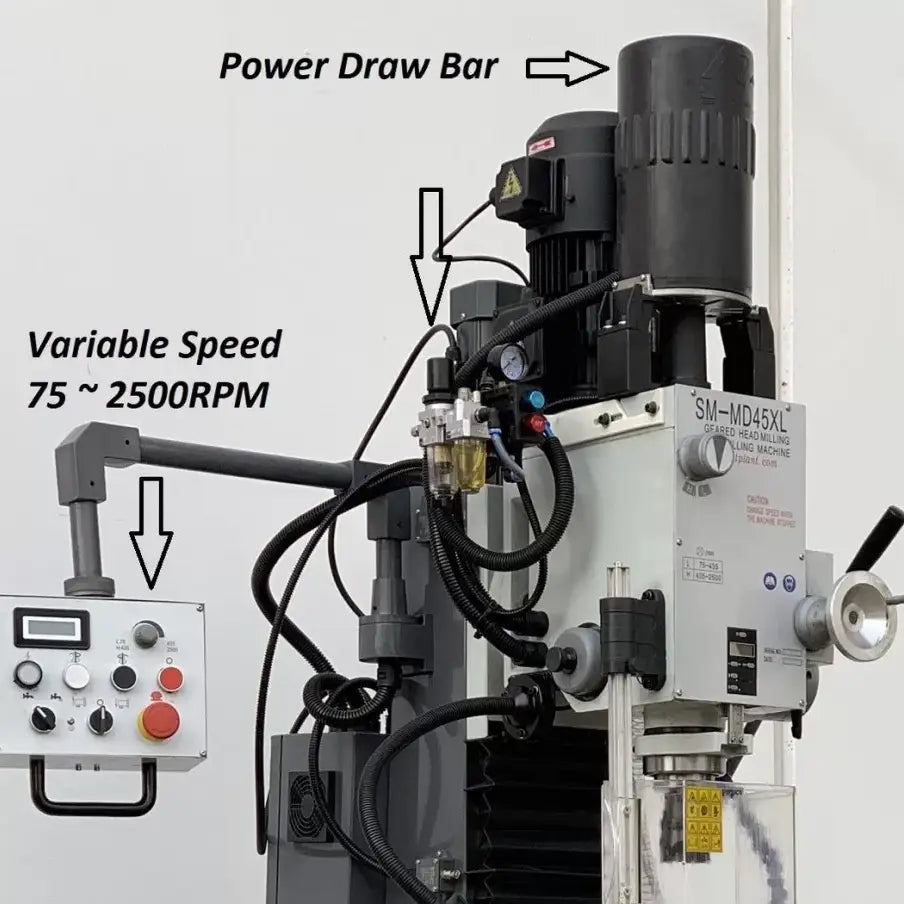

Power Operated Draw Bar For Quick Tool Change
Power up & down via dovetail guides

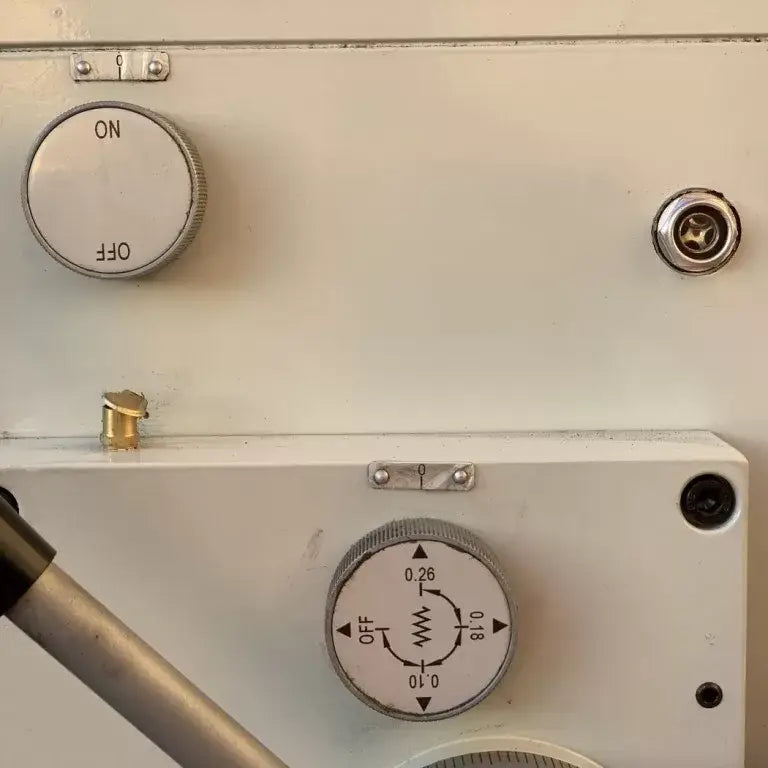

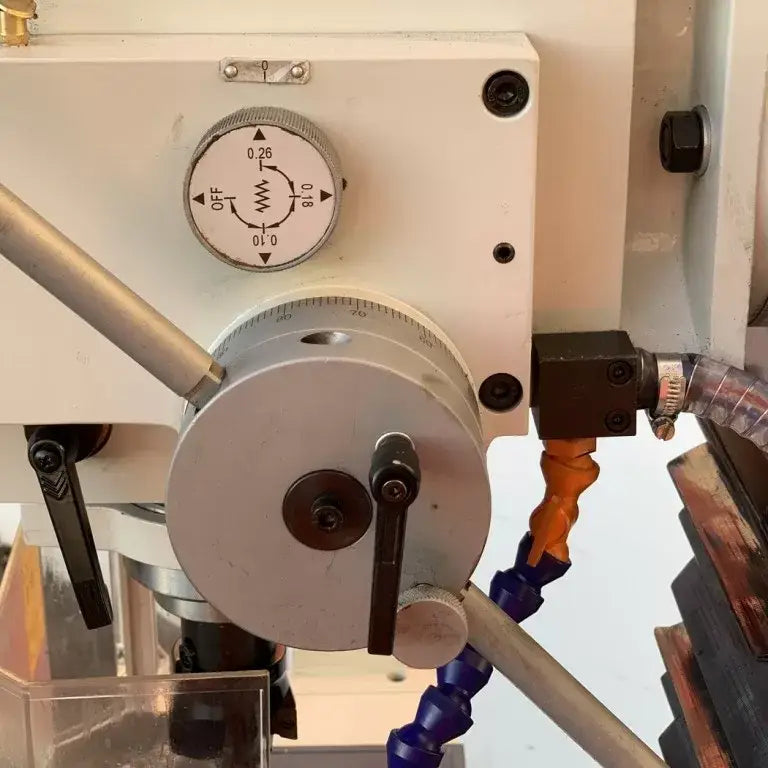

Power spindle quill down feed.

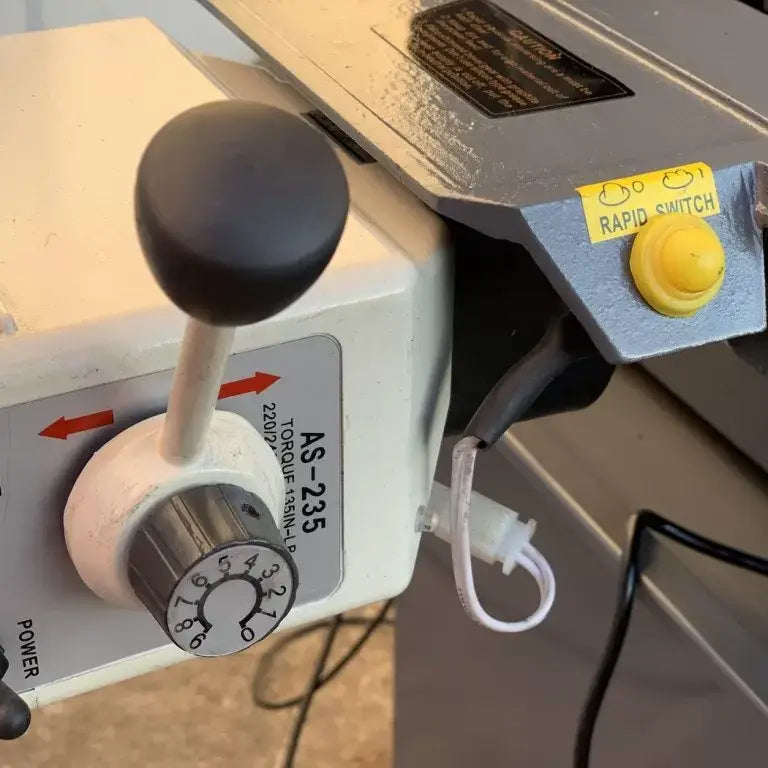

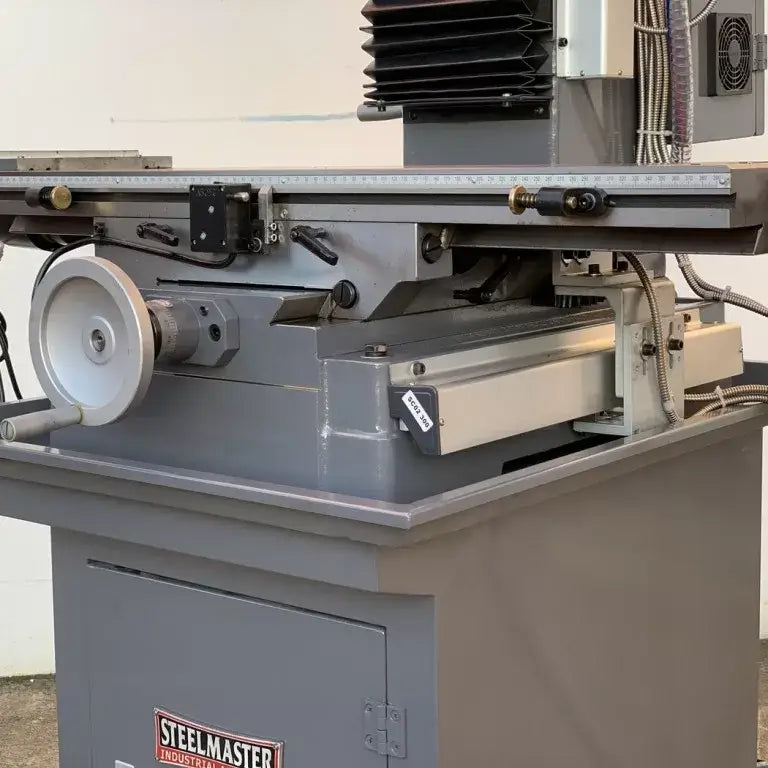

Longitudinal power feed of work table
Draw bar spindle for milling
Large ISO30 Spindle
Forward and reverse operation

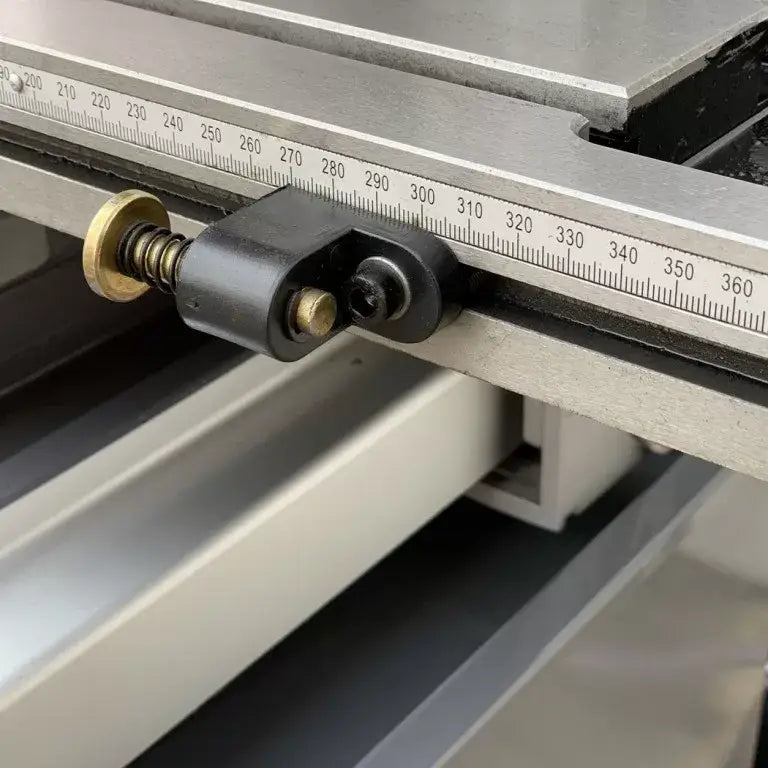

Adjustable depth stop
Digital depth display with zero position
Ideal workshop drill for all applications
Heavy duty tapered roller bearing spindle offering stability and long life

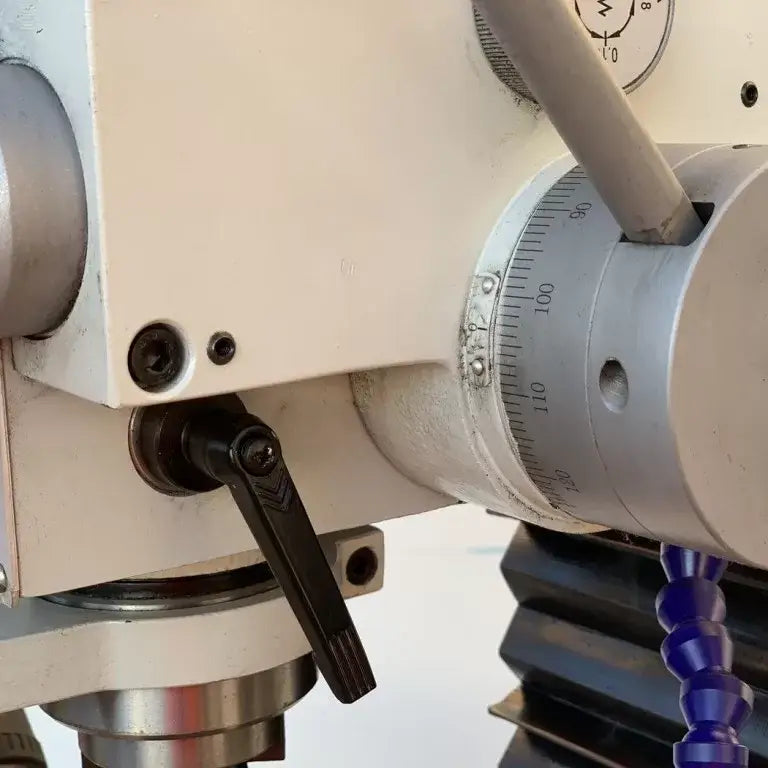

Positive spindle lock standard
Perspex safety guard
Gear drive with low noise

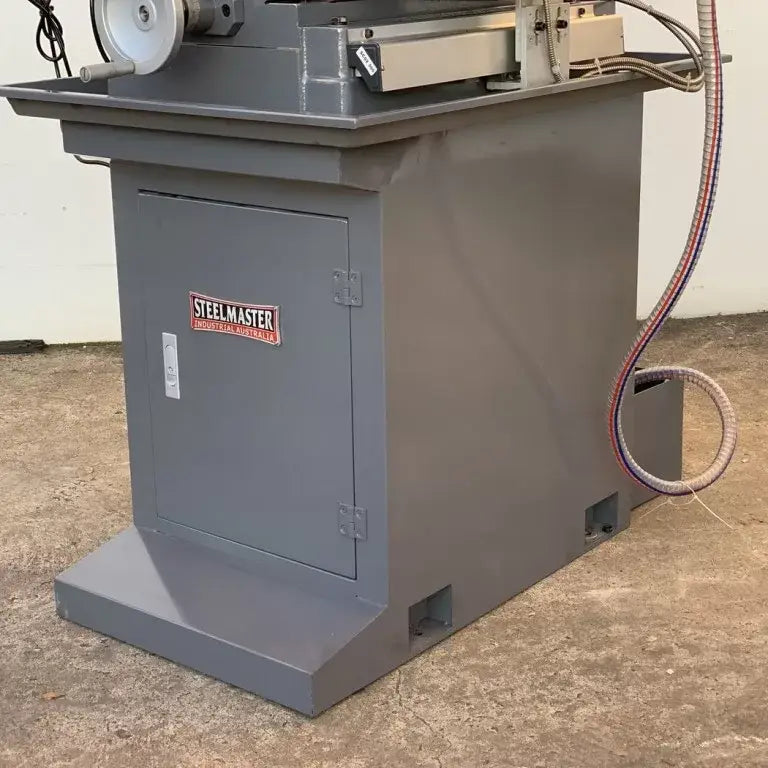

Heavy duty stand with coolant tray

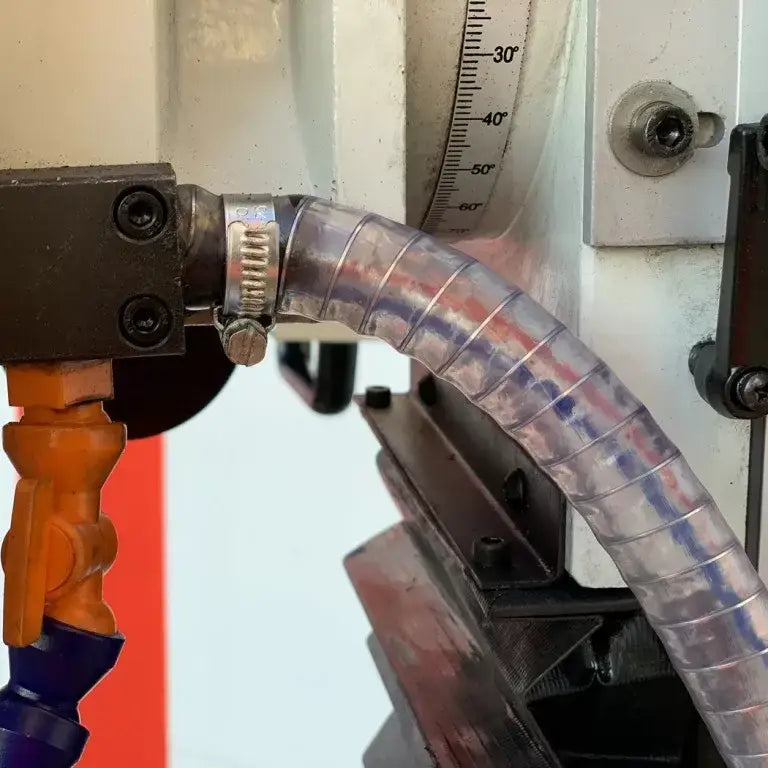

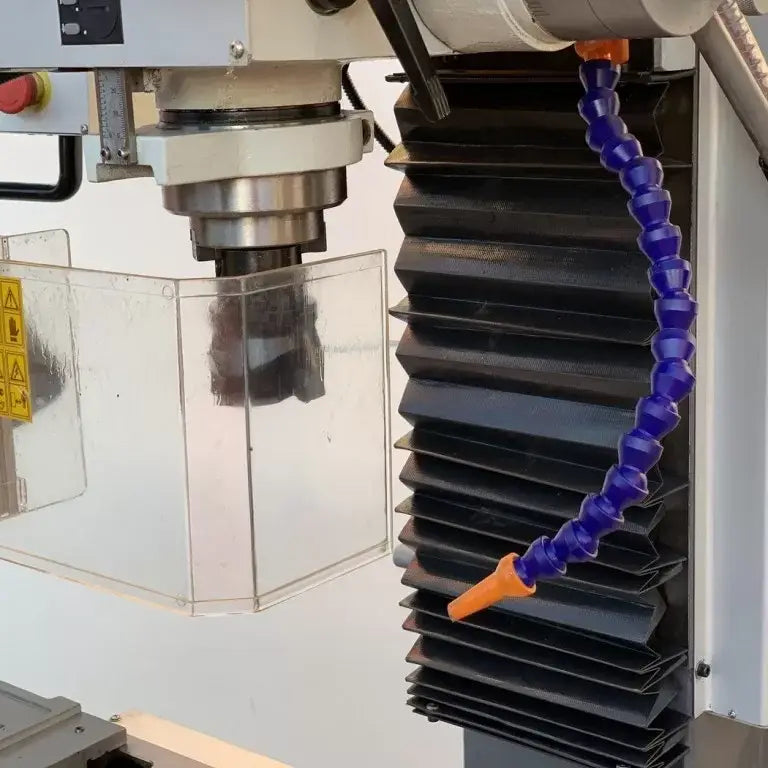

Coolant system supplied standard
LED work light fitted
240 Volt operation
CE compliant

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

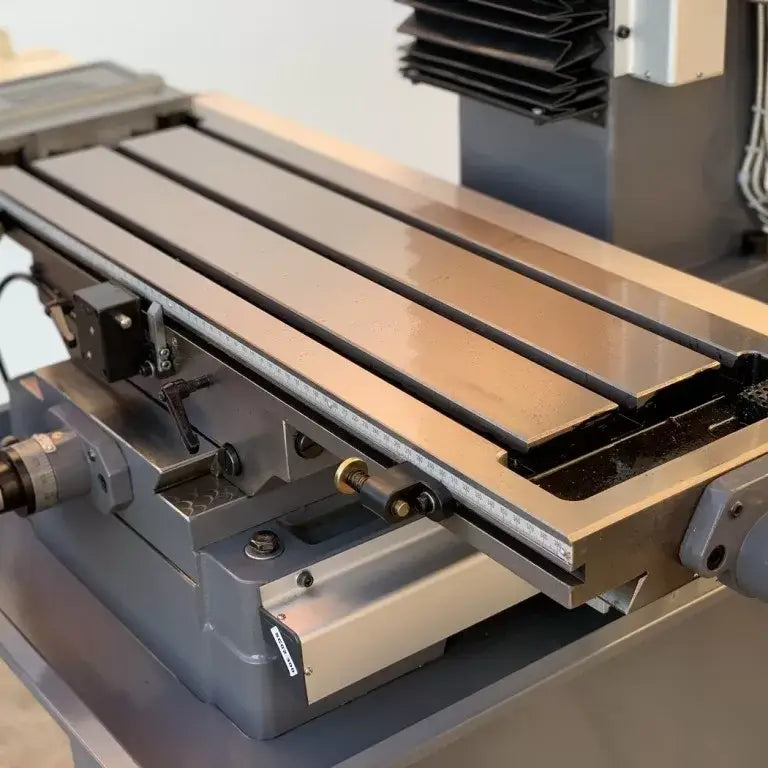

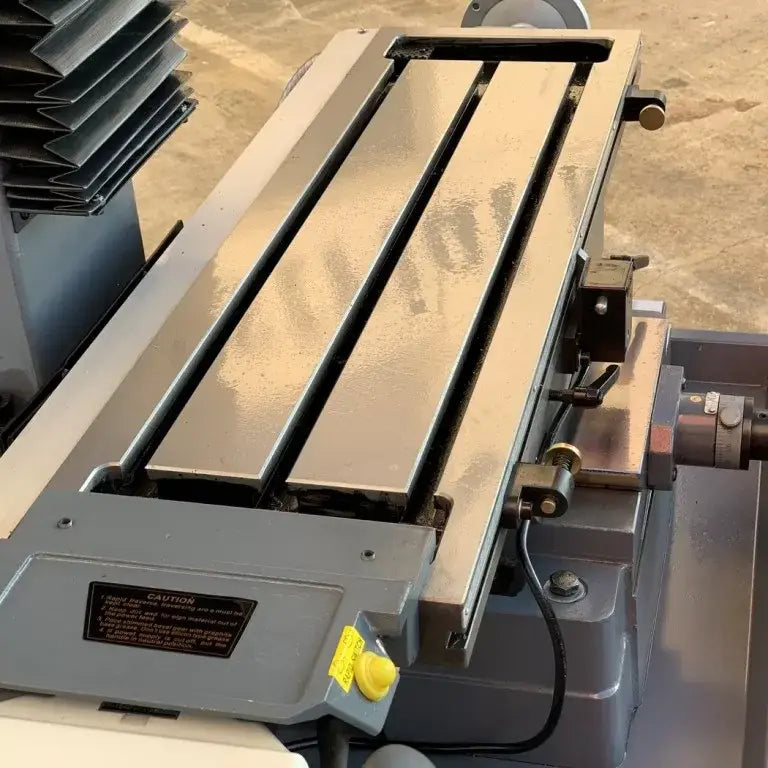

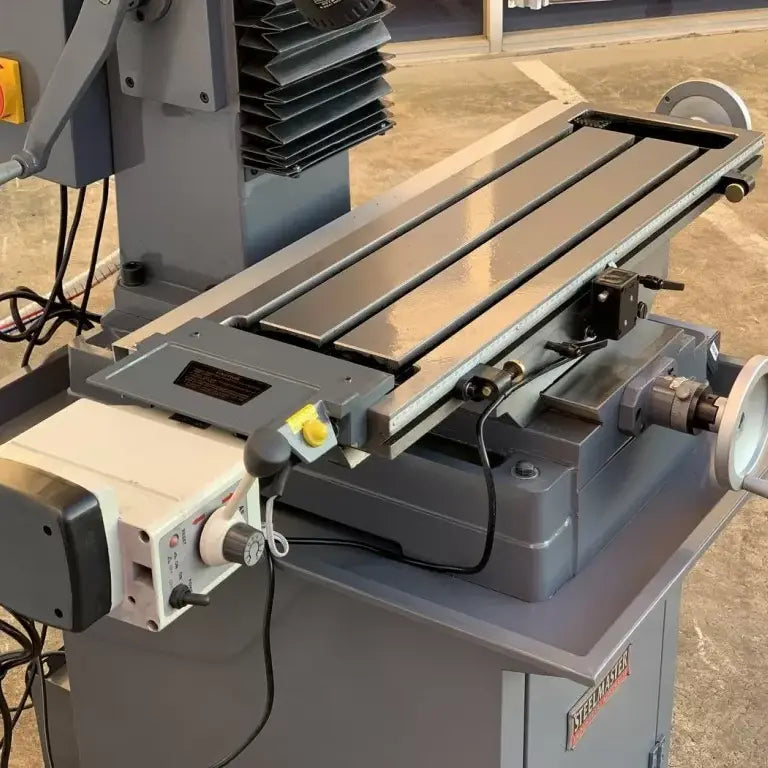

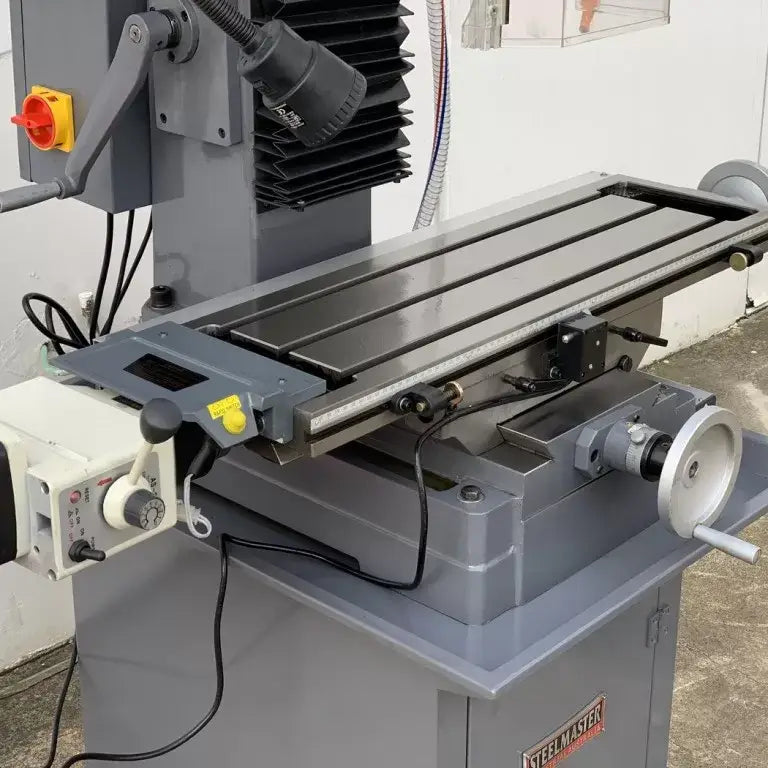

820mm x 240mm tee slotted work table

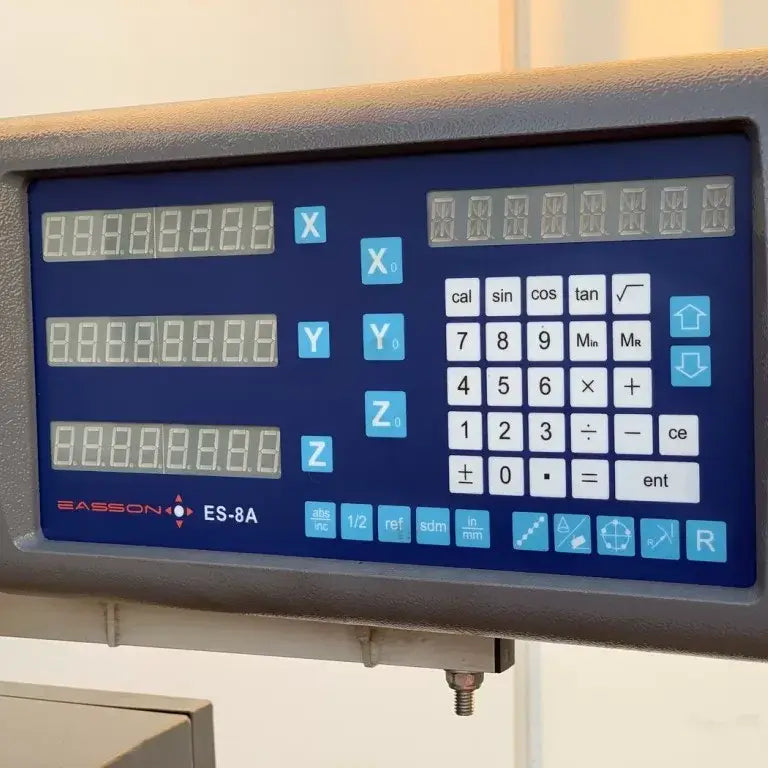

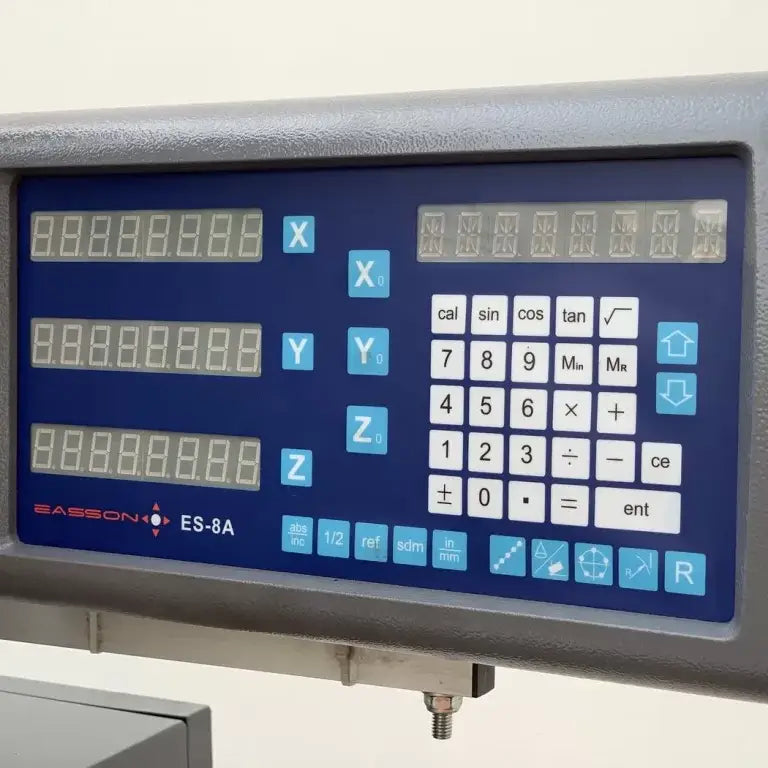

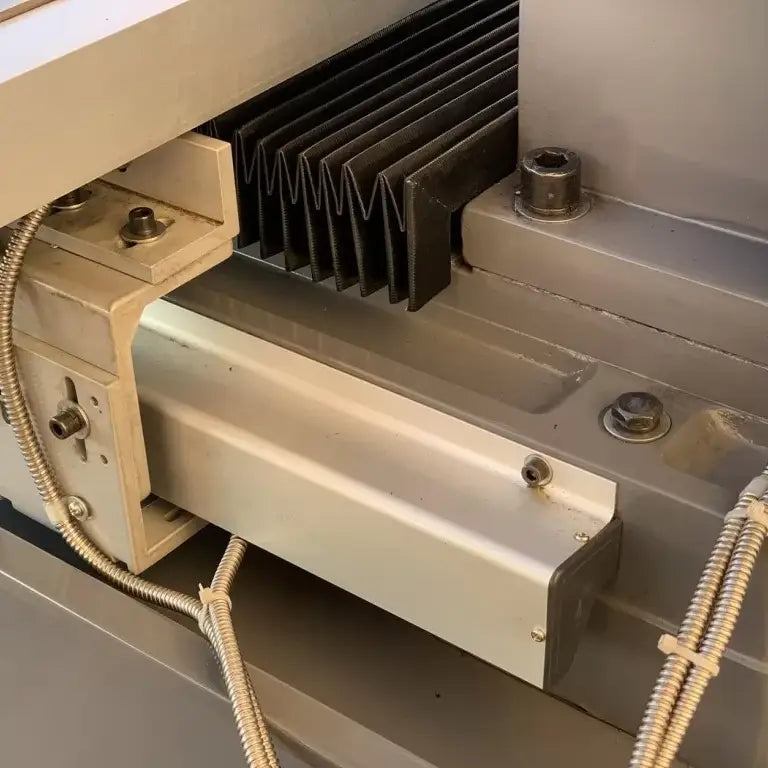

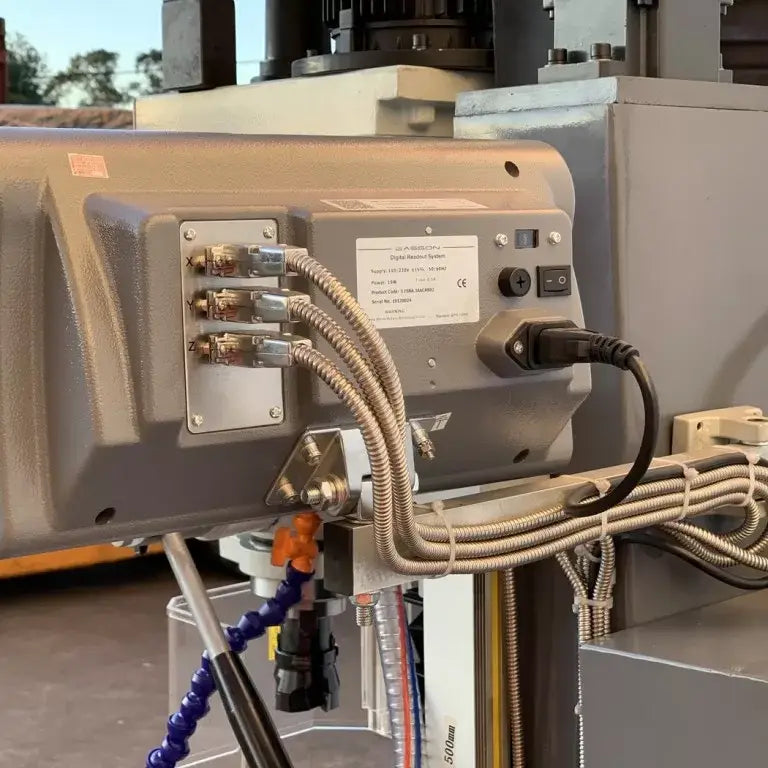

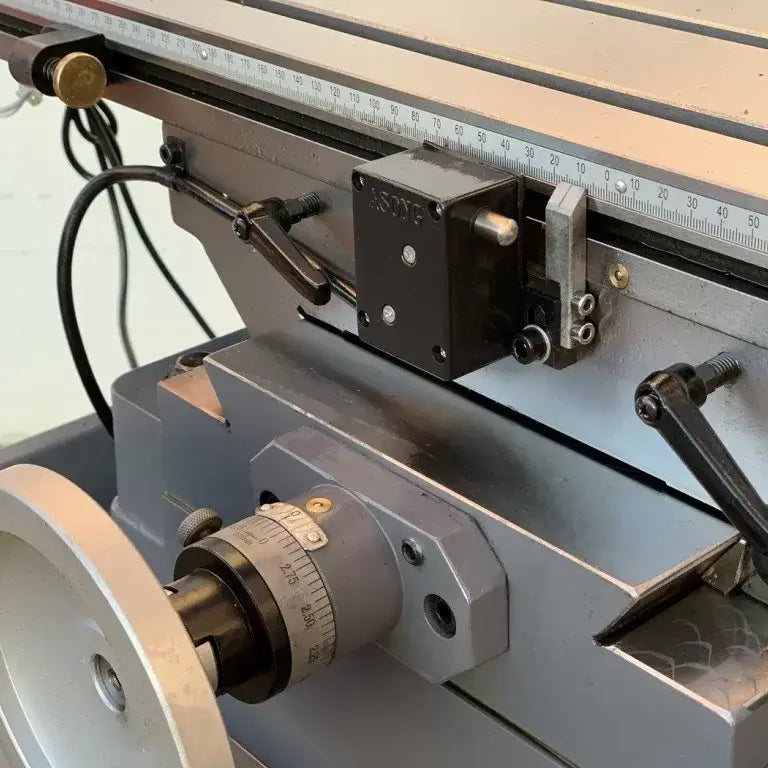

New Easson ES-8A 3 axis digital read out
Travel (x,y,z) 560mm, 190mm, 420mm
ISO 30 taper spindle

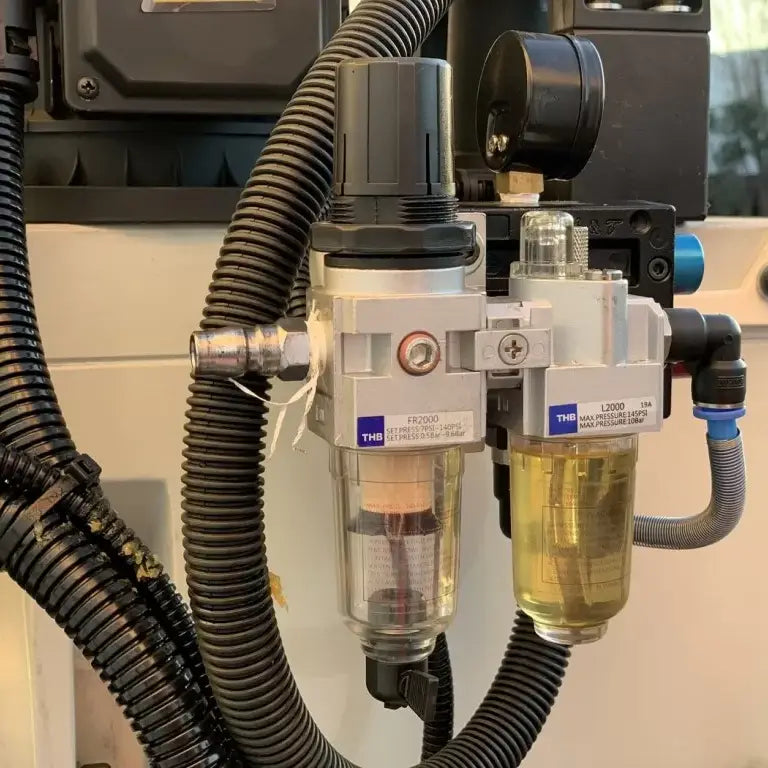

Power Operated drawbar
95mm spindle diameter
490mm spindle to table
273mm throat depth

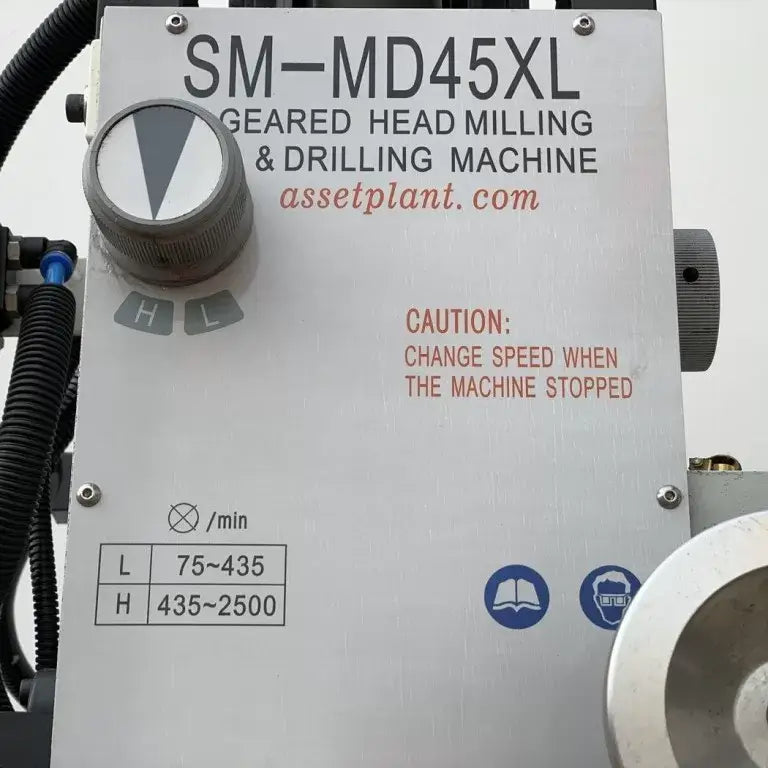

Speeds range – 75 ~ 2500

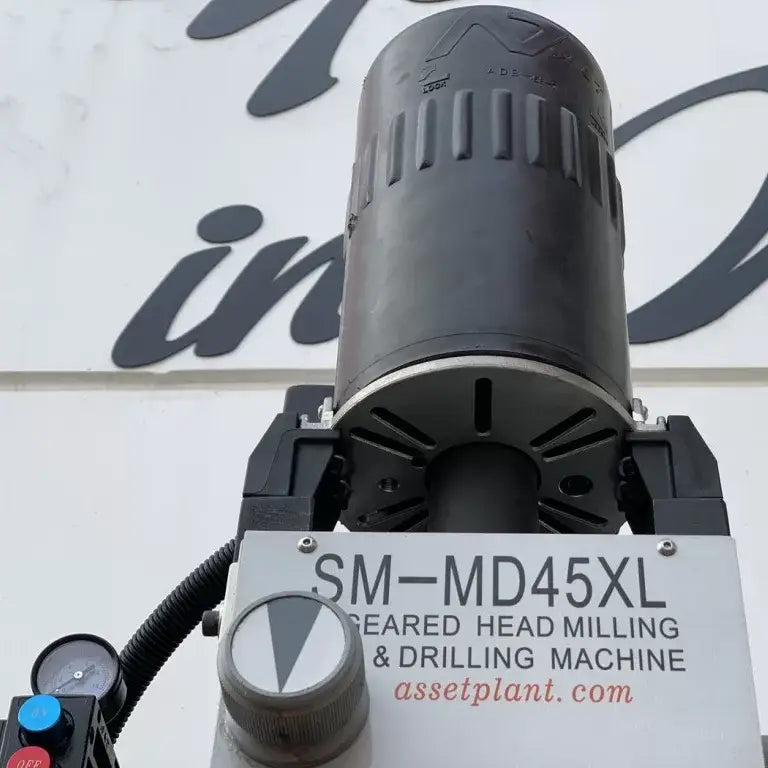

Motor capacity – 1.5Kw x 240Volt
Machine dimensions – 850mm x 780mm x 1650mm
Shipping dimensions – 930mm x 1240mm x 2100mm
Approx weight: 470kg
Same machine builder at Grizzly model G0755
