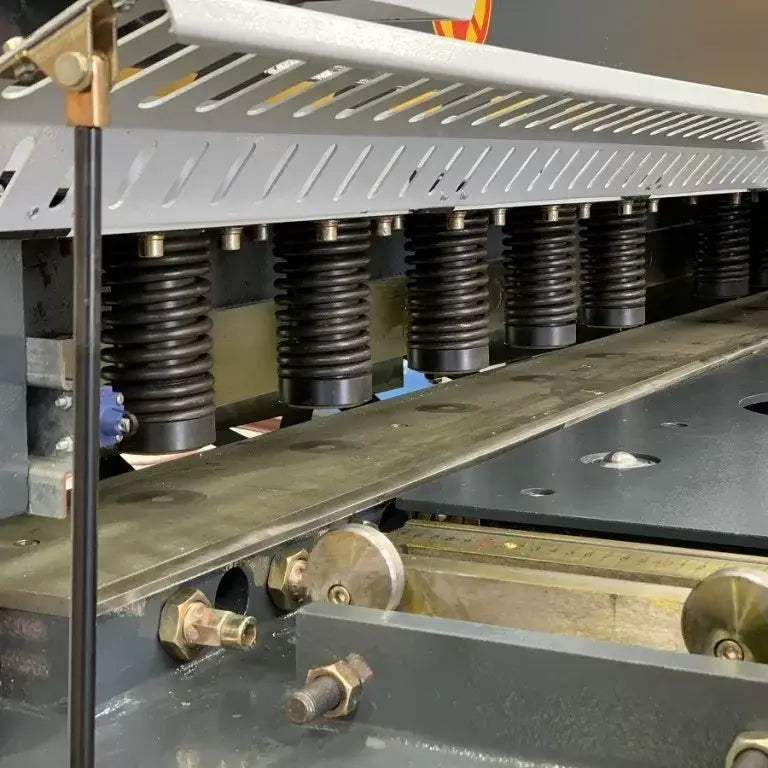

Guillotine Variable Rake 4000mm x 8mm, P40T CNC Touch Screen Control
Regular price
$48,850.00
Unit price
Unavailable

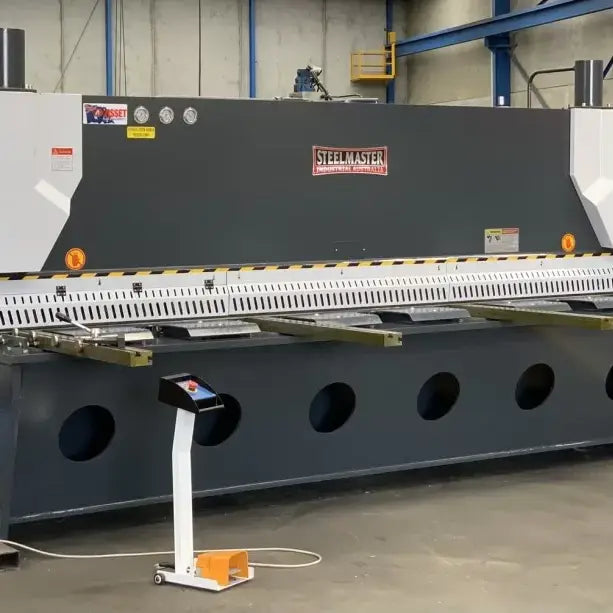

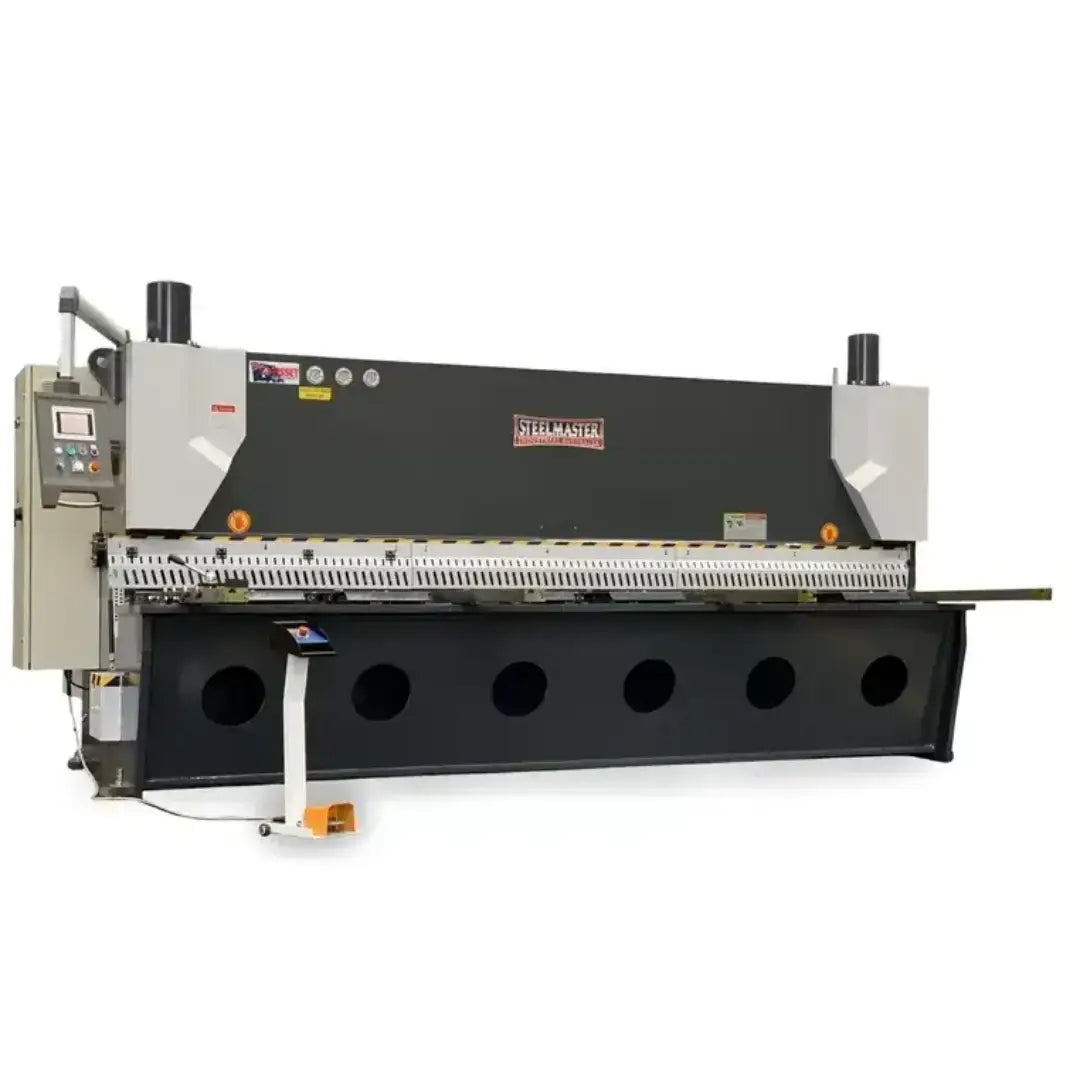

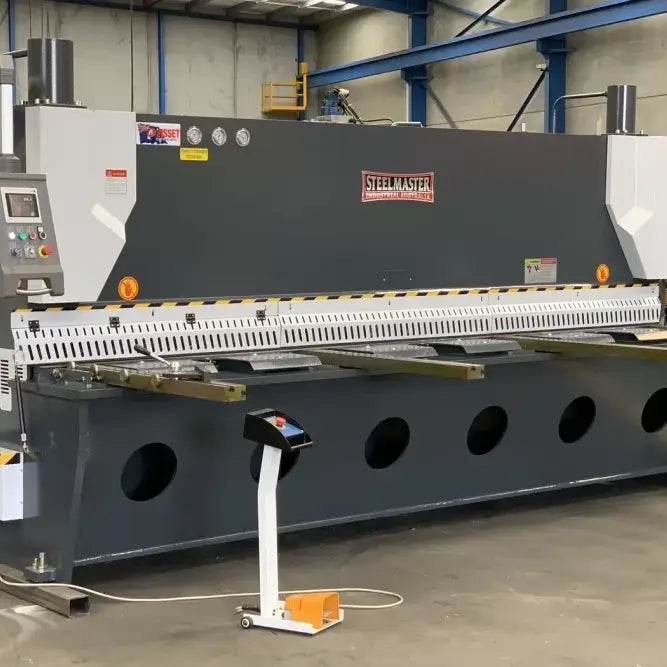

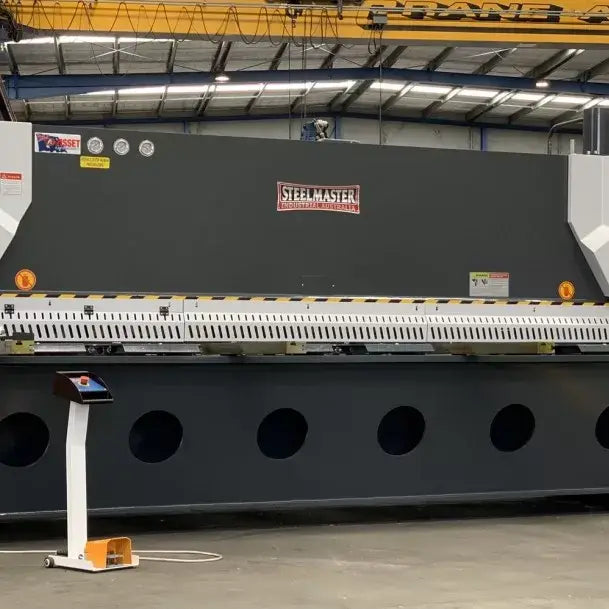

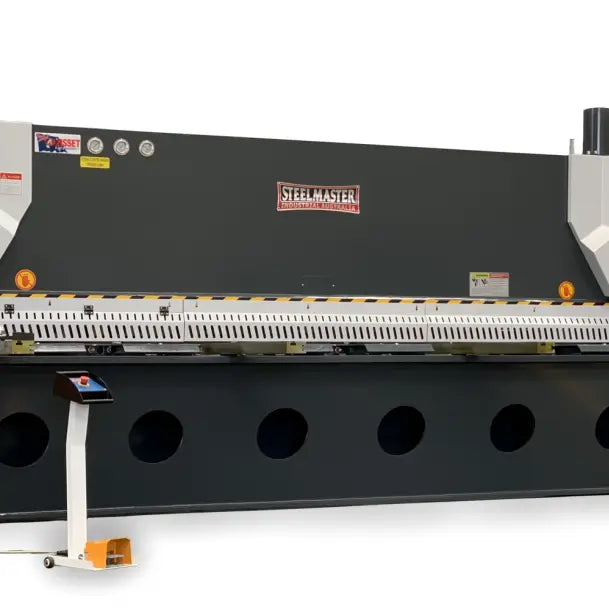

A 4000mm Steelmaster Variable Rake Guillotine with P40T CNC touch screen, a top-tier sheet metal guillotine.
Technical Data
3200mm x 13.0mm cutting capacity
100mm standard side throat depth
0 ~ 1000mm back gauge range
0.5 ~ 2.0 degrees variable rake setting
Shipping dimensions – 4050mm x 1900mm x 2350mm
Weight – 11000Kg
Power – 415V 15Kw
Product Features

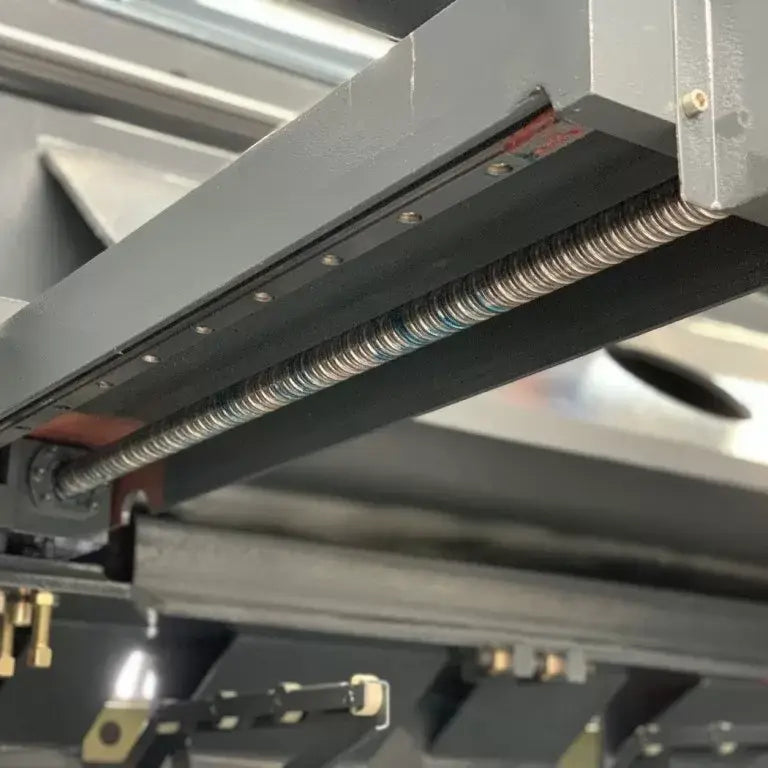

Precision Ballscrew motorised back gauge to 1000 mm range

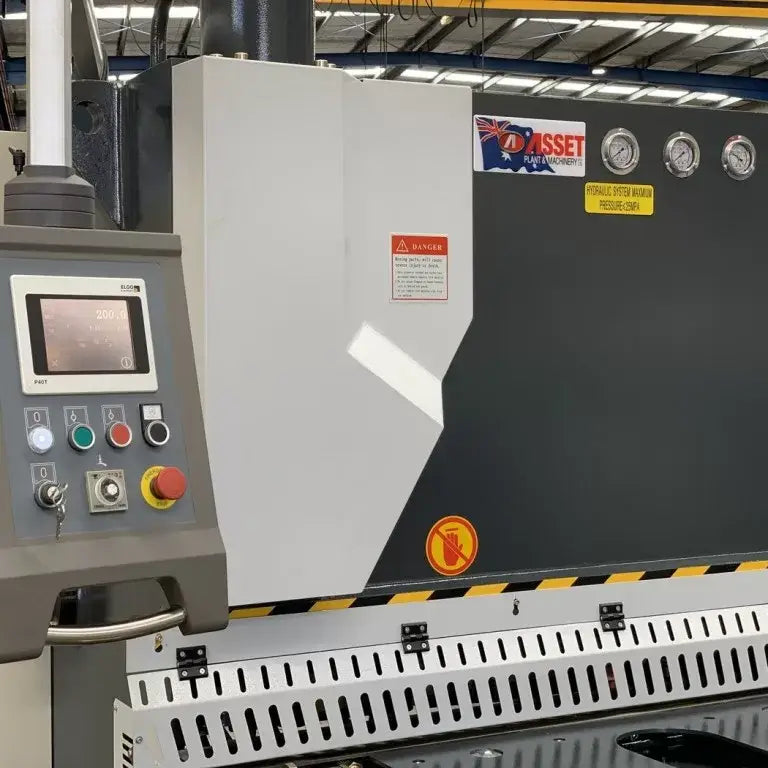

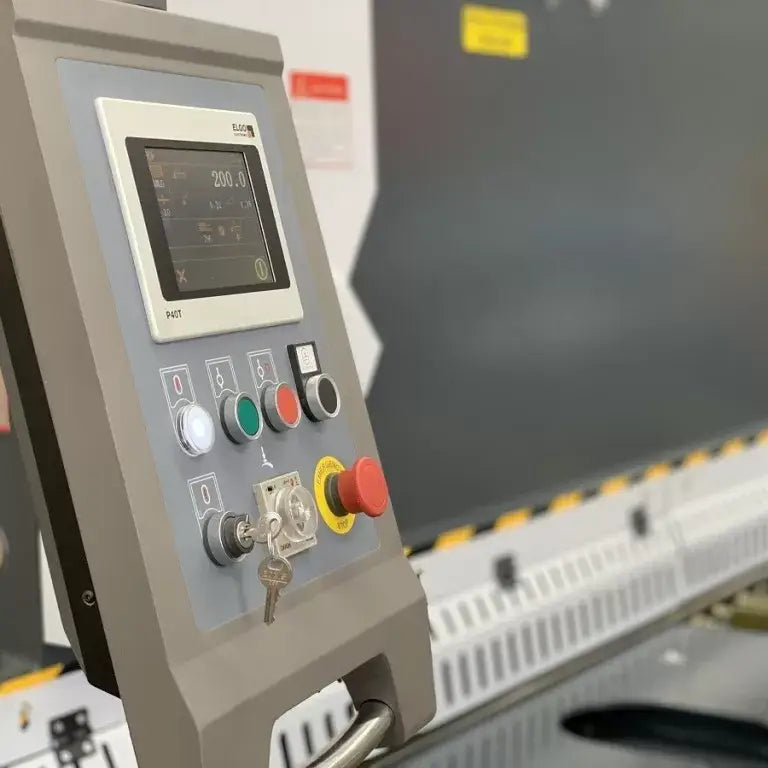

German P40T Touch screen system with programmable angle blade setting

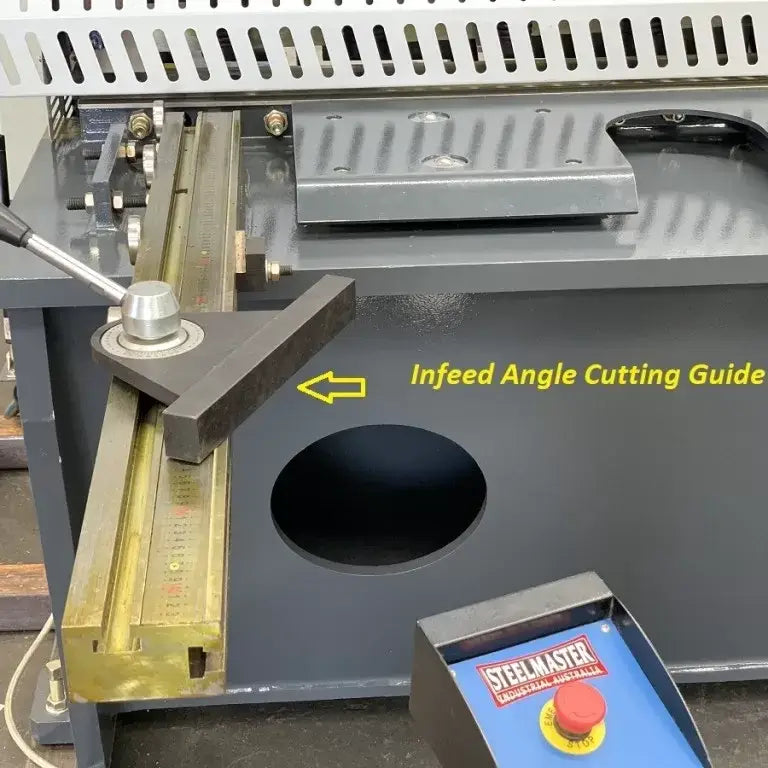

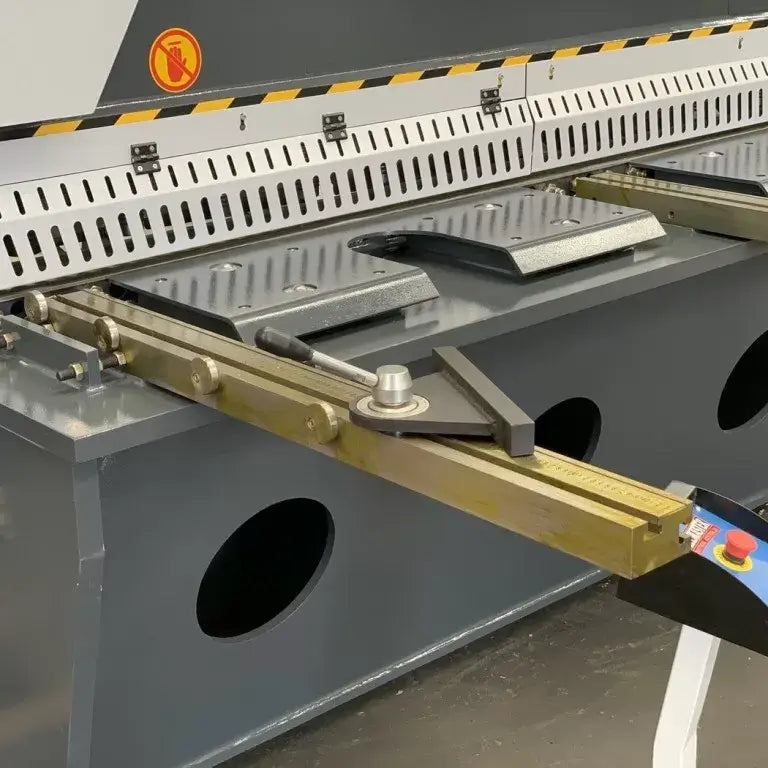

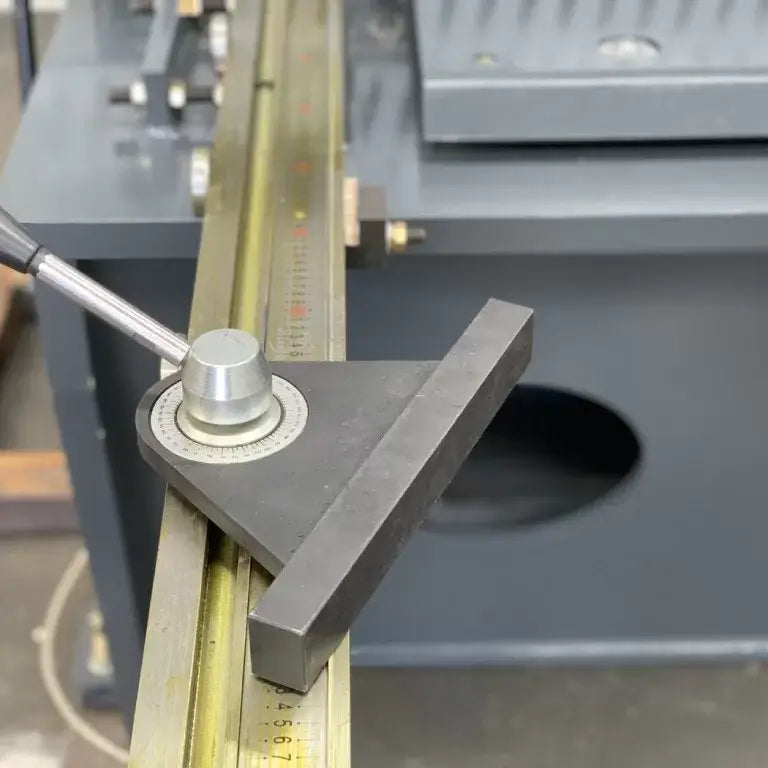

Unique front angle gauge with calibrated setting.
Laser line pointer displaying operator cutting line
Multi edge quality cutting blades

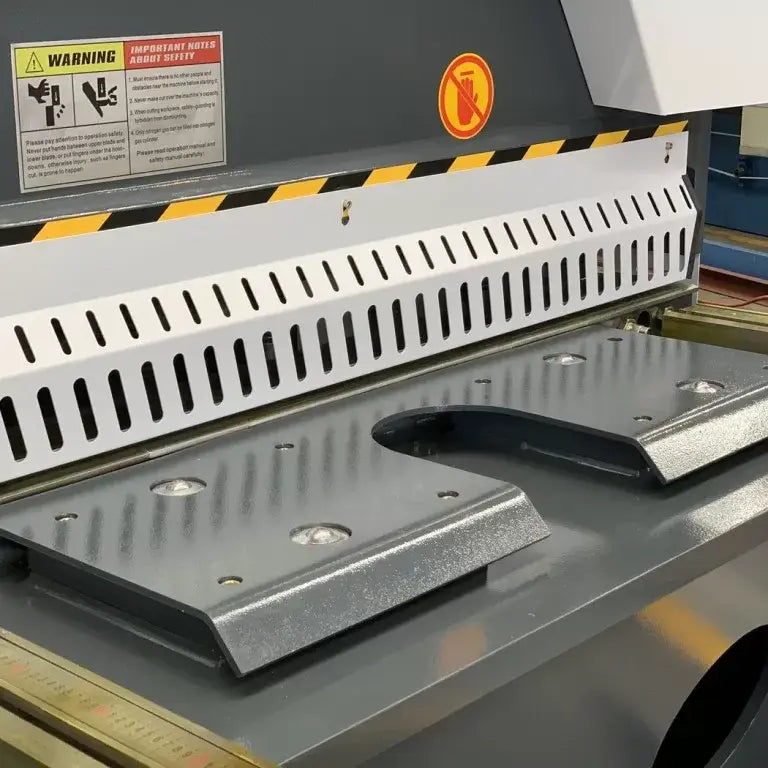

Heavy duty ‘ball transfers’ fitted as standard

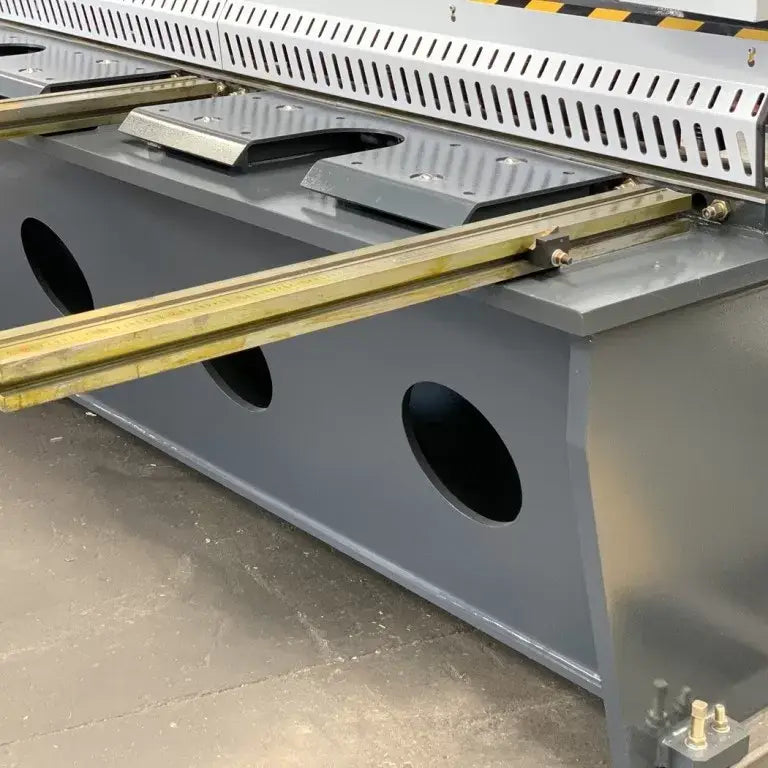

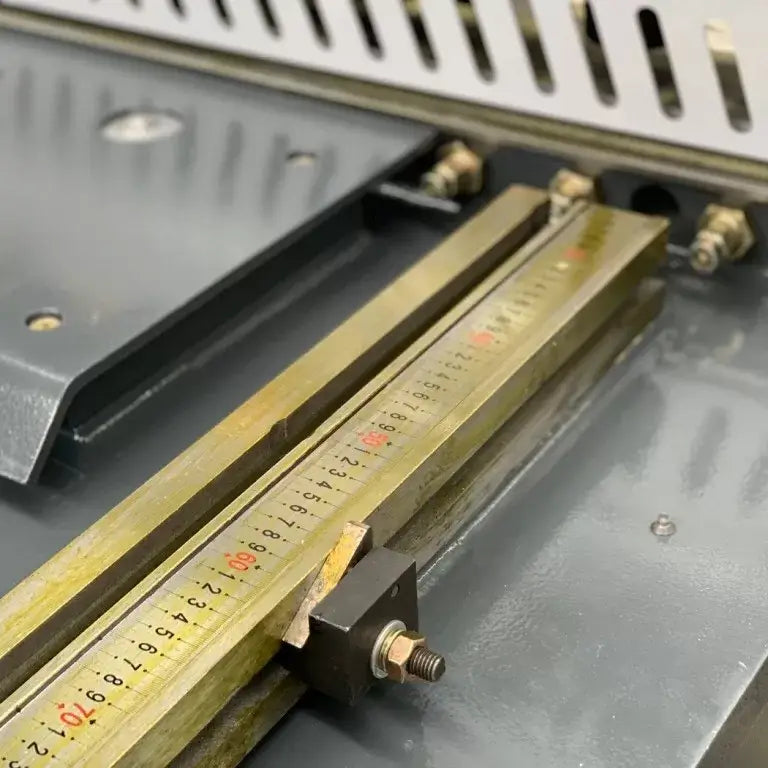

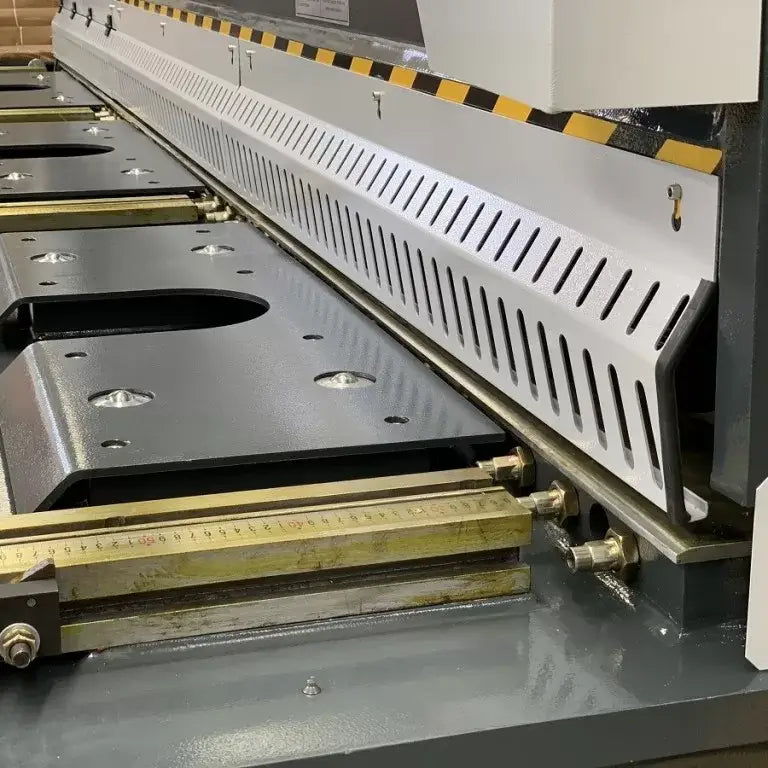

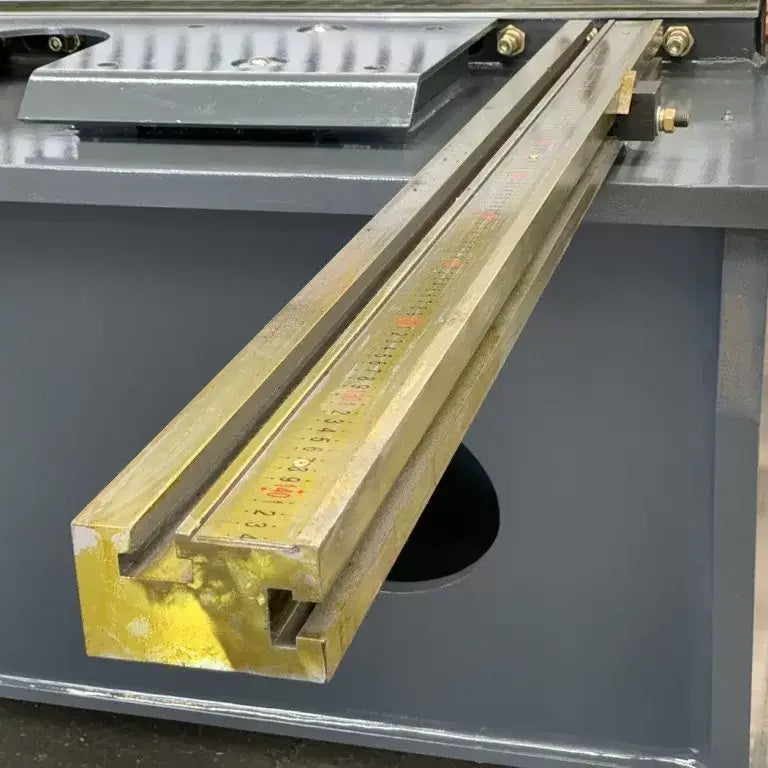

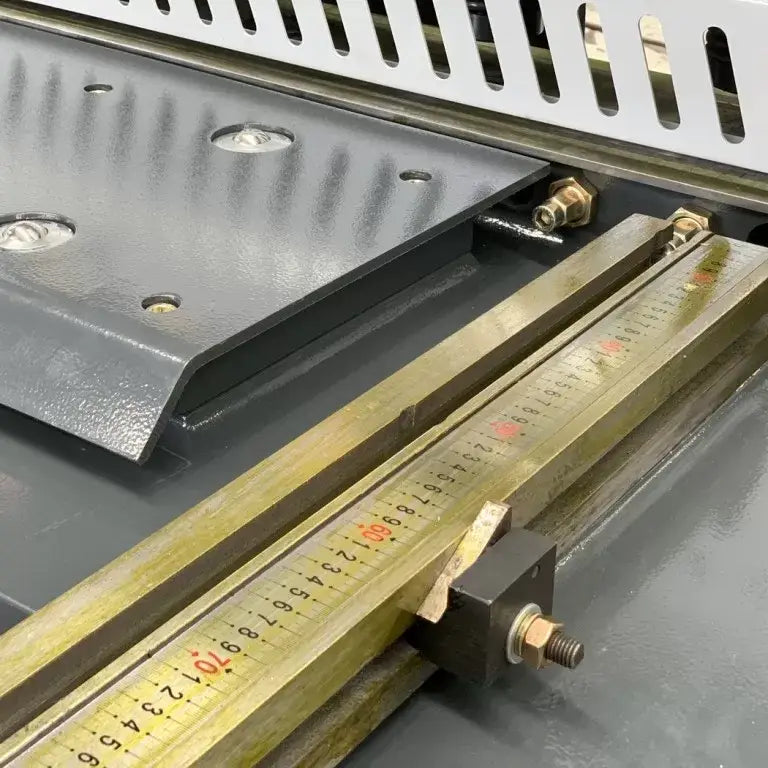

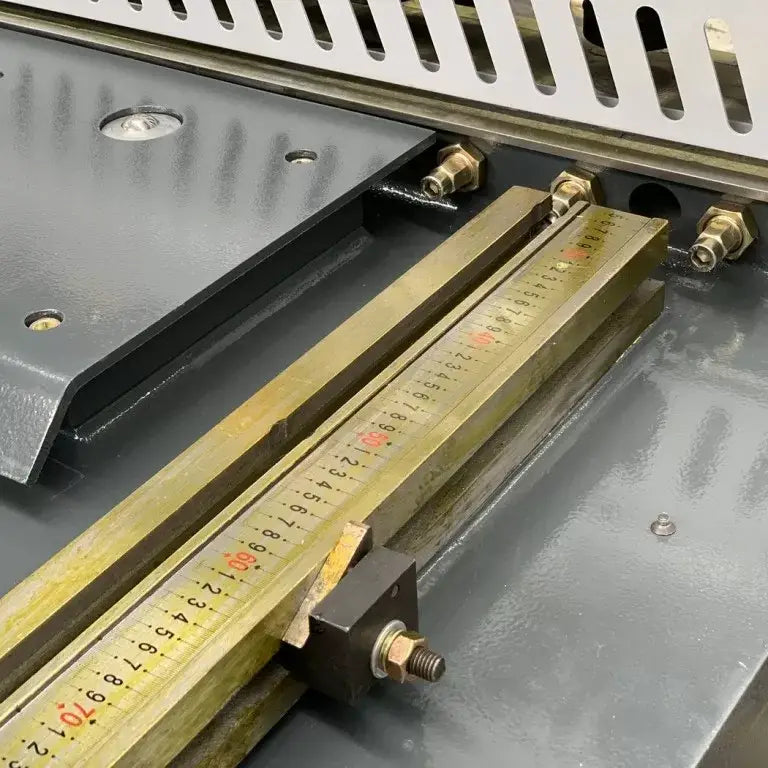

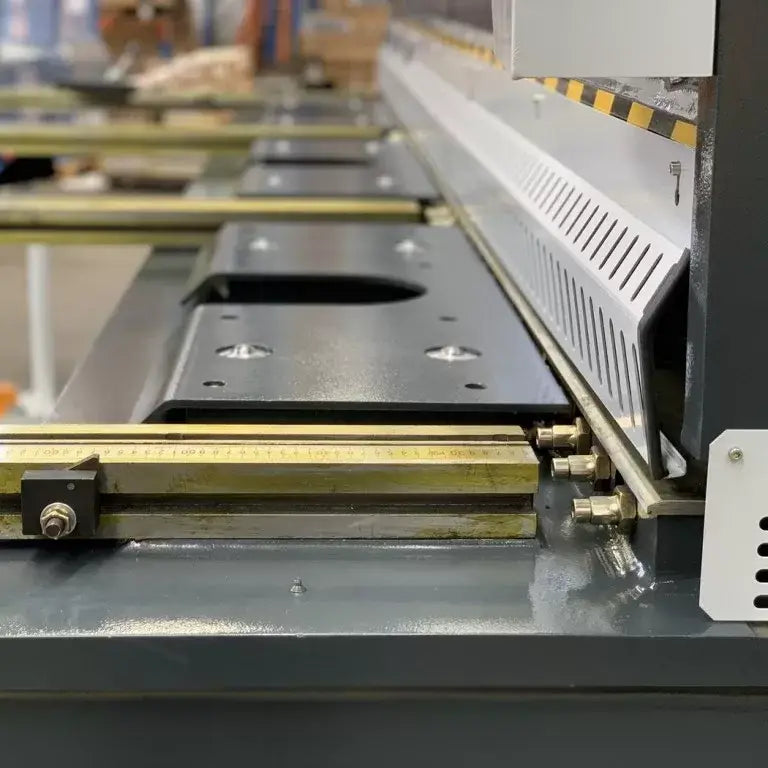

Heavy duty squaring arm with stainless steel scales
Rear safety fencing with ‘safety cut-off’ guards
Open side throat for long length slitting
Sturdy remote operation foot-pedal with ’emergency stop’ fitted
CE compliant
Services required to be provided by customer
Cutting Capacity
4000mm x 8mm
