Asset Plant & Machinery Australia-NZ Pty Ltd | SKU: 23-0605N

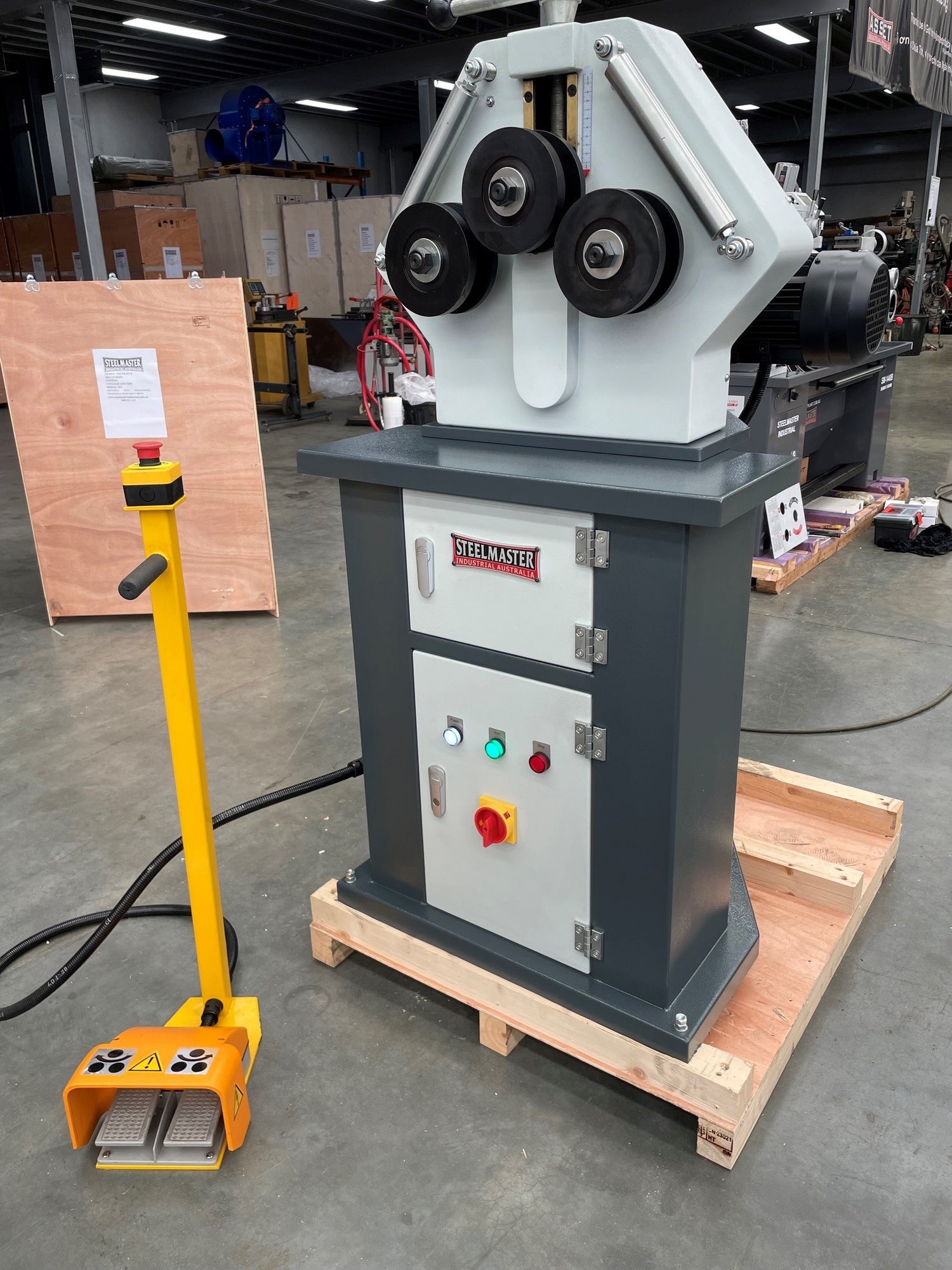

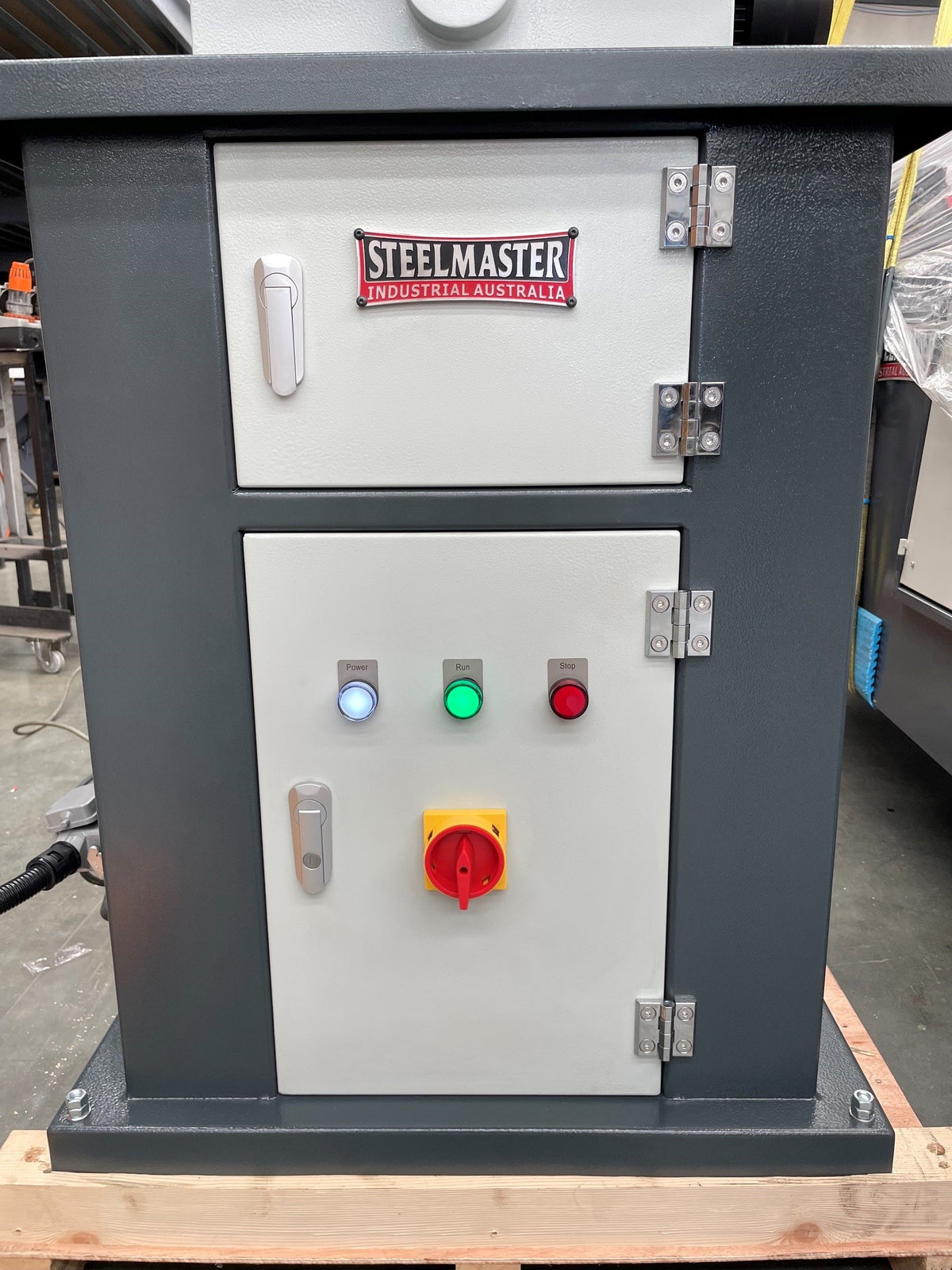

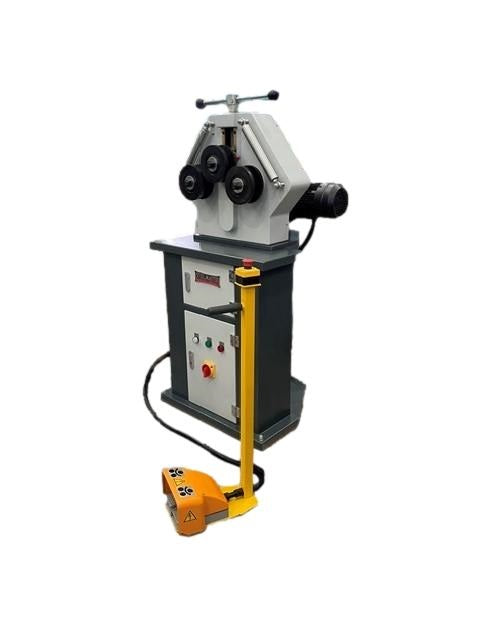

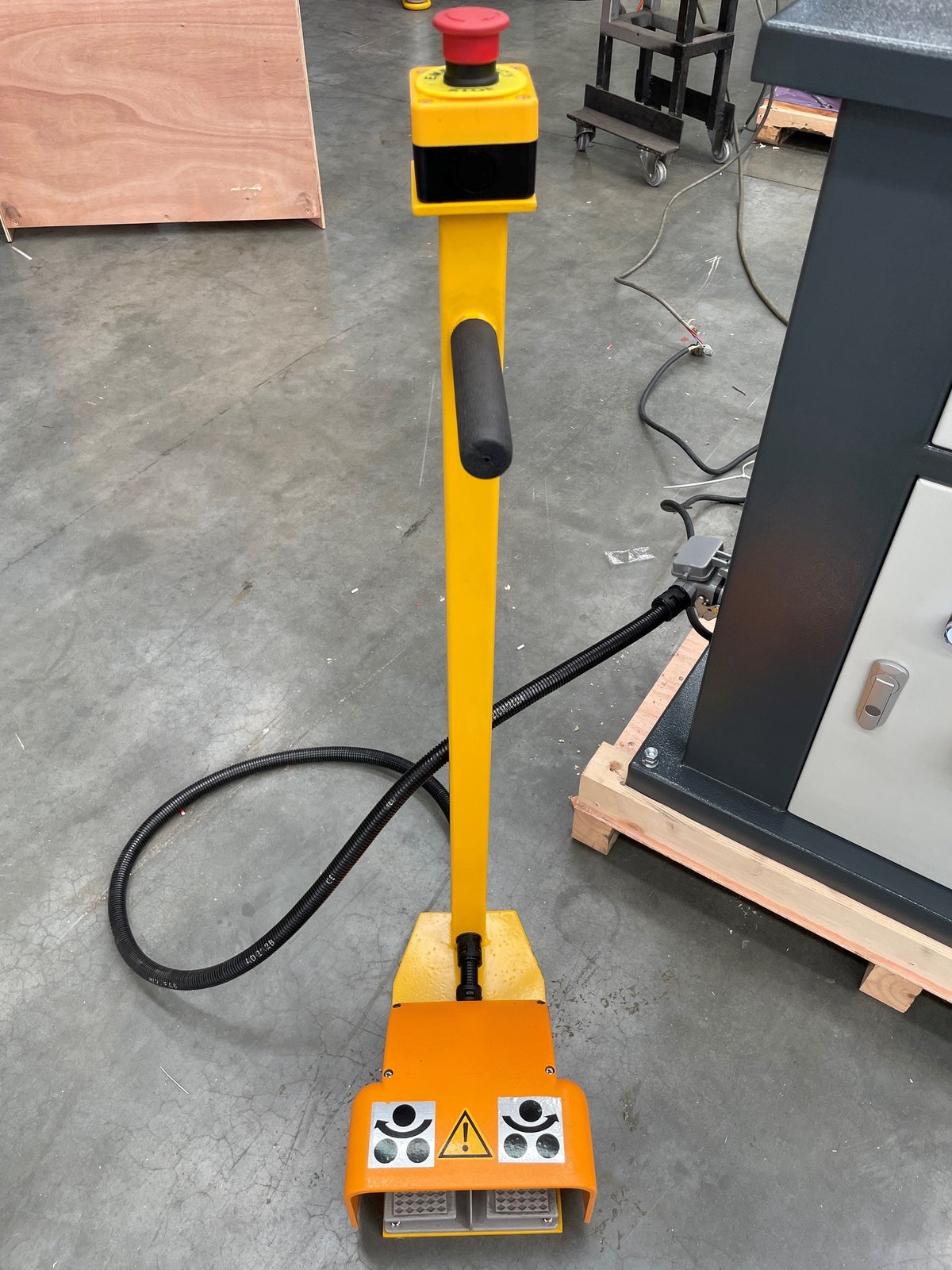

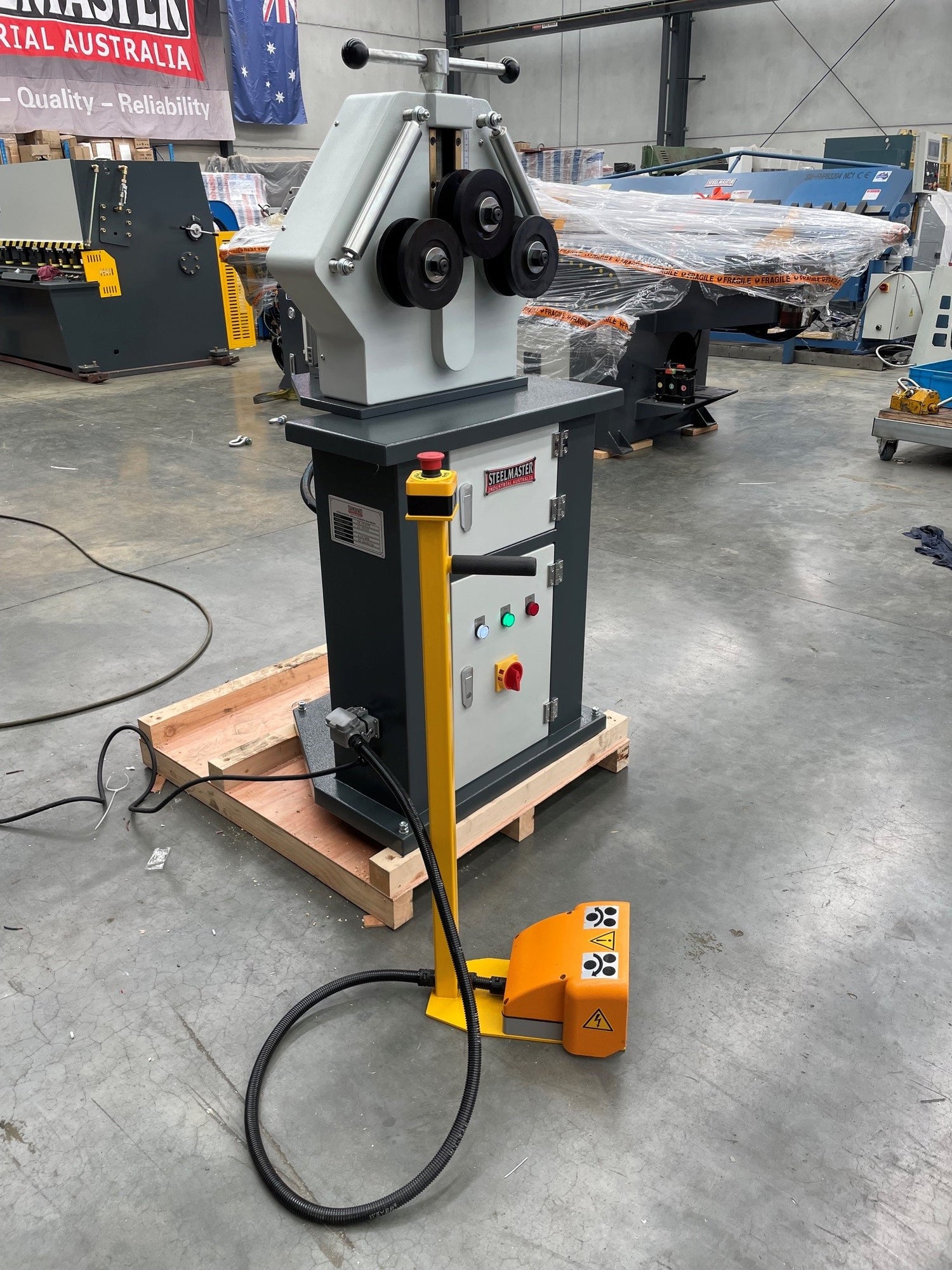

SM-PK35VH Section - Ring Roller. Steelmaster - Horizontal & Vertical Operation Motorized Bottom Rollers, Forward / Reverse Operation With E-Stop. 415V / 3Phase.

Name: SM-PK35VH Section - Ring Roller. Steelmaster - Horizontal & Vertical Operation Motorized Bottom Rollers, Forward / Reverse Operation With E-Stop. 415V / 3Phase.
Brand: Asset Plant & Machinery Australia-NZ Pty Ltd
SKU: 23-0605N
Availability: InStock

PRICE EX GST

$0.00

PRICE INC GST

$0.00

MODEL NUMBER: SM-PK35VH-SECTION-RING-ROLLER-STEELMASTER-HORIZONTAL-VERTICAL-OPERATION-MOTORIZED-BOTTOM-ROLLERS-FORWARD-REVERSE-OPERATION-WITH-E-STOP-415V-3PHASE

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

INCLUDES

standard section rollers and spacers

PRODUCT FEATURES

heavy duty steel fabricated fame

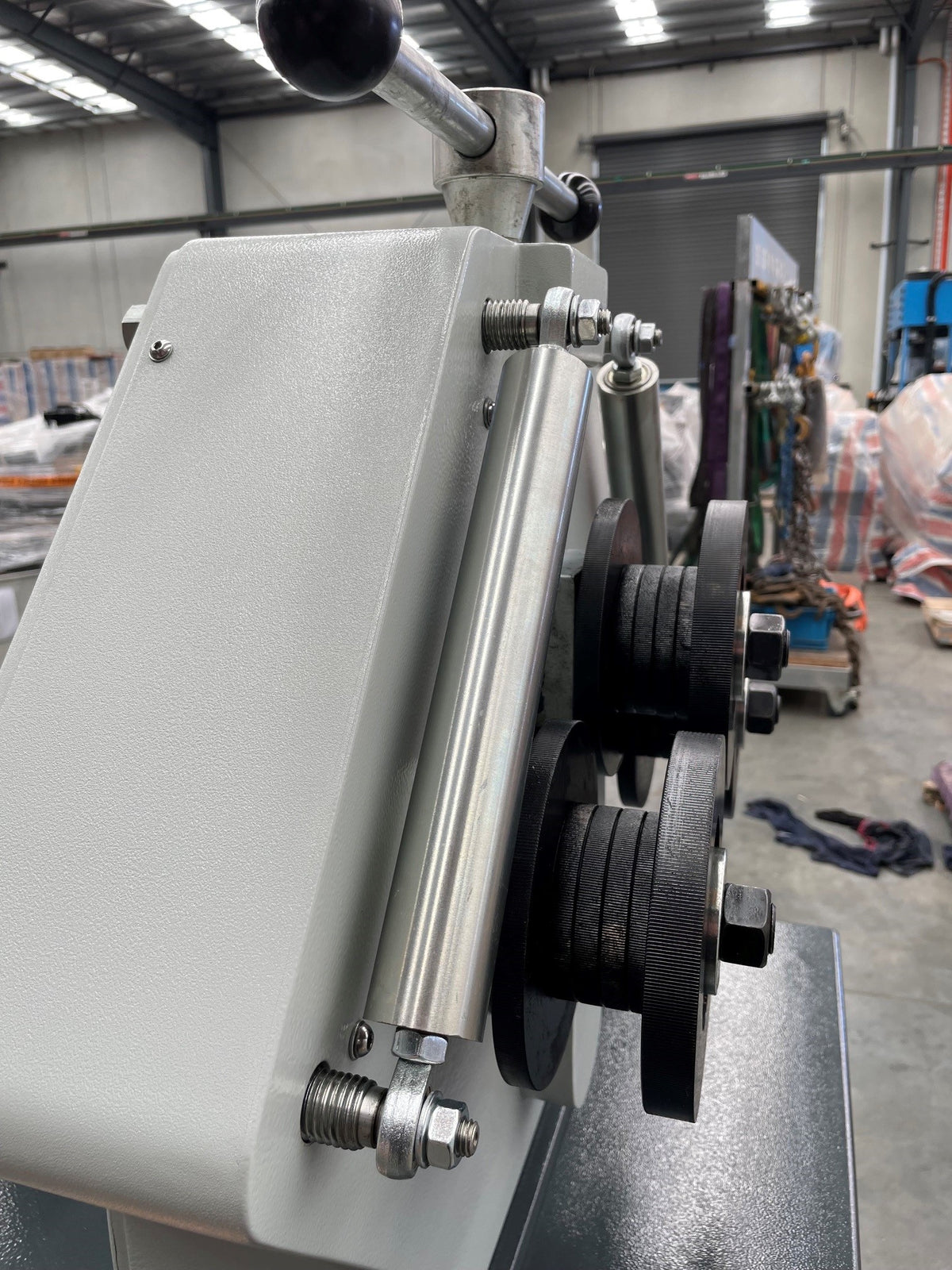

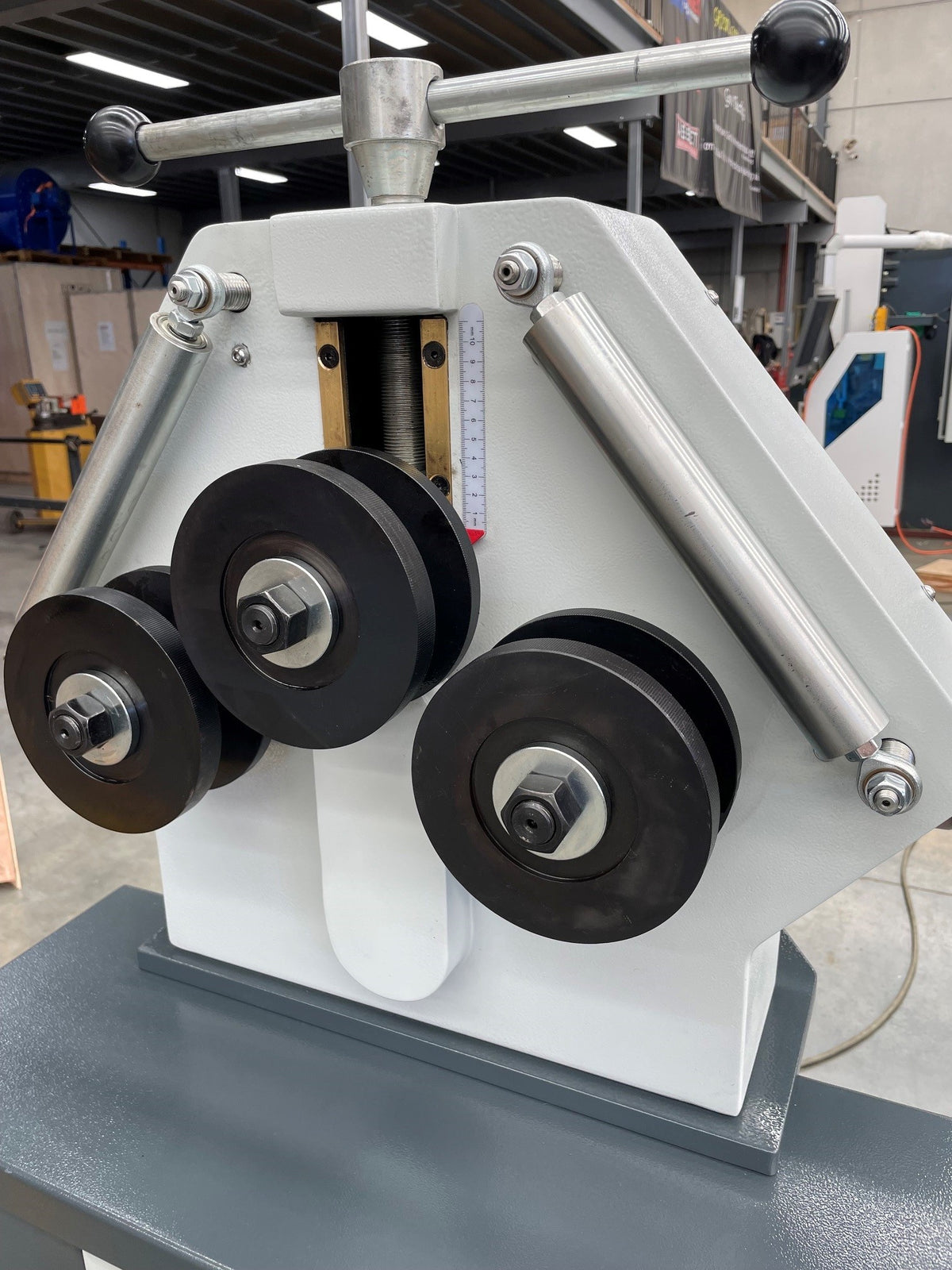

manual adjustment of top roller
side supports on all models

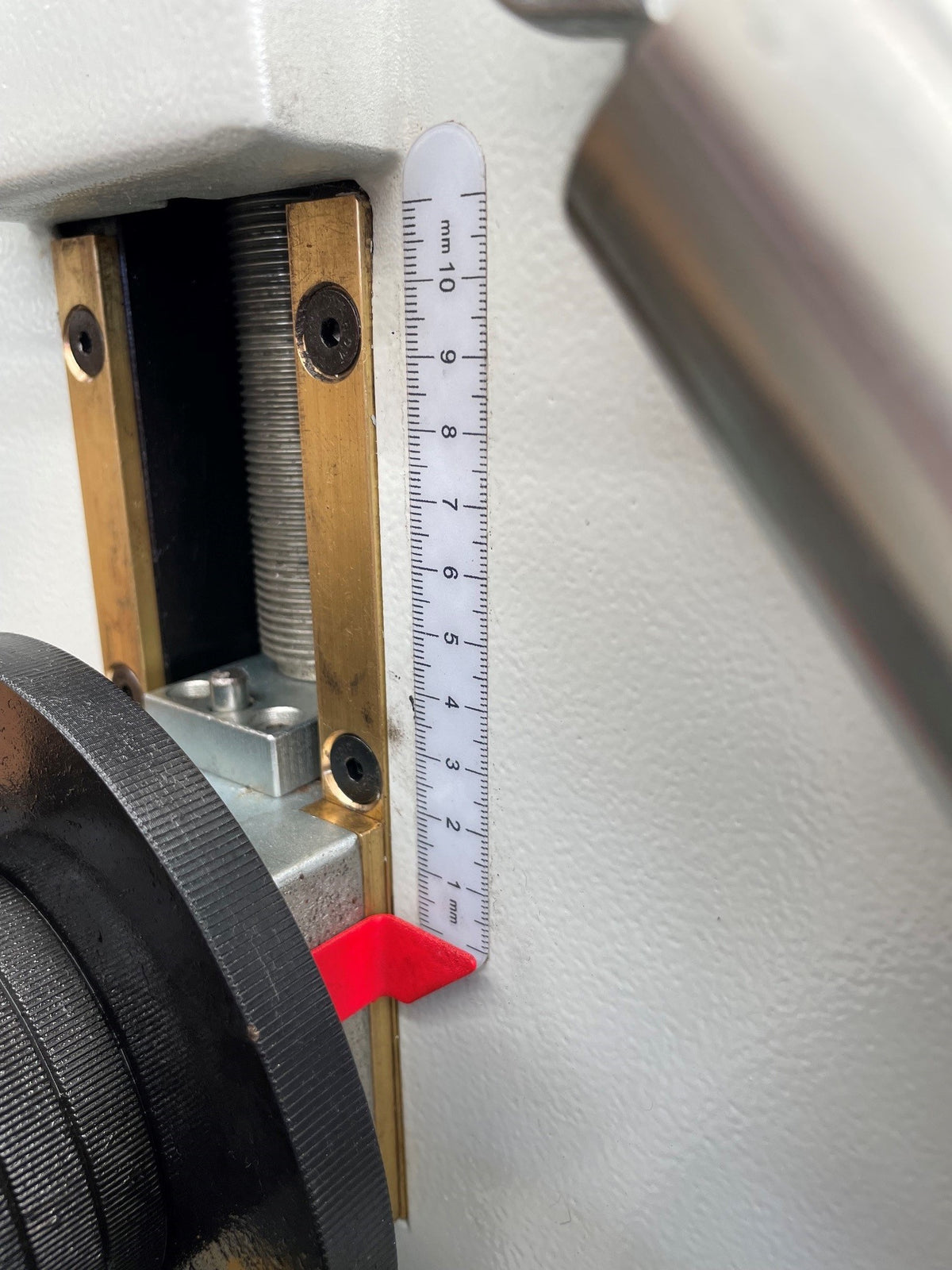

calibrated scale for roller adjustment
one piece guiding mono block mounted on cross head
powered hardened 98mm top & 118mm bottom rolls
standard flat & angle rolls are included

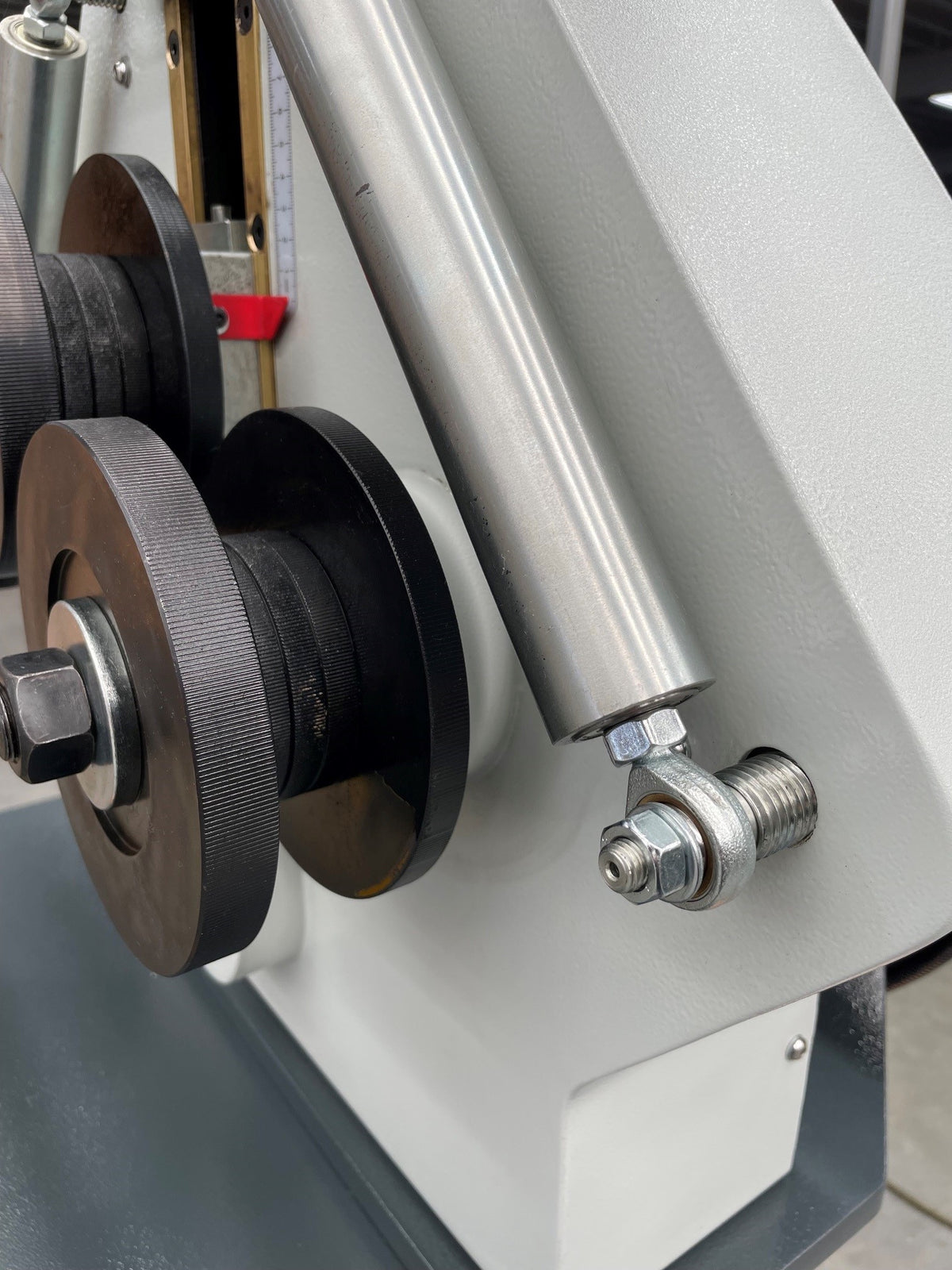

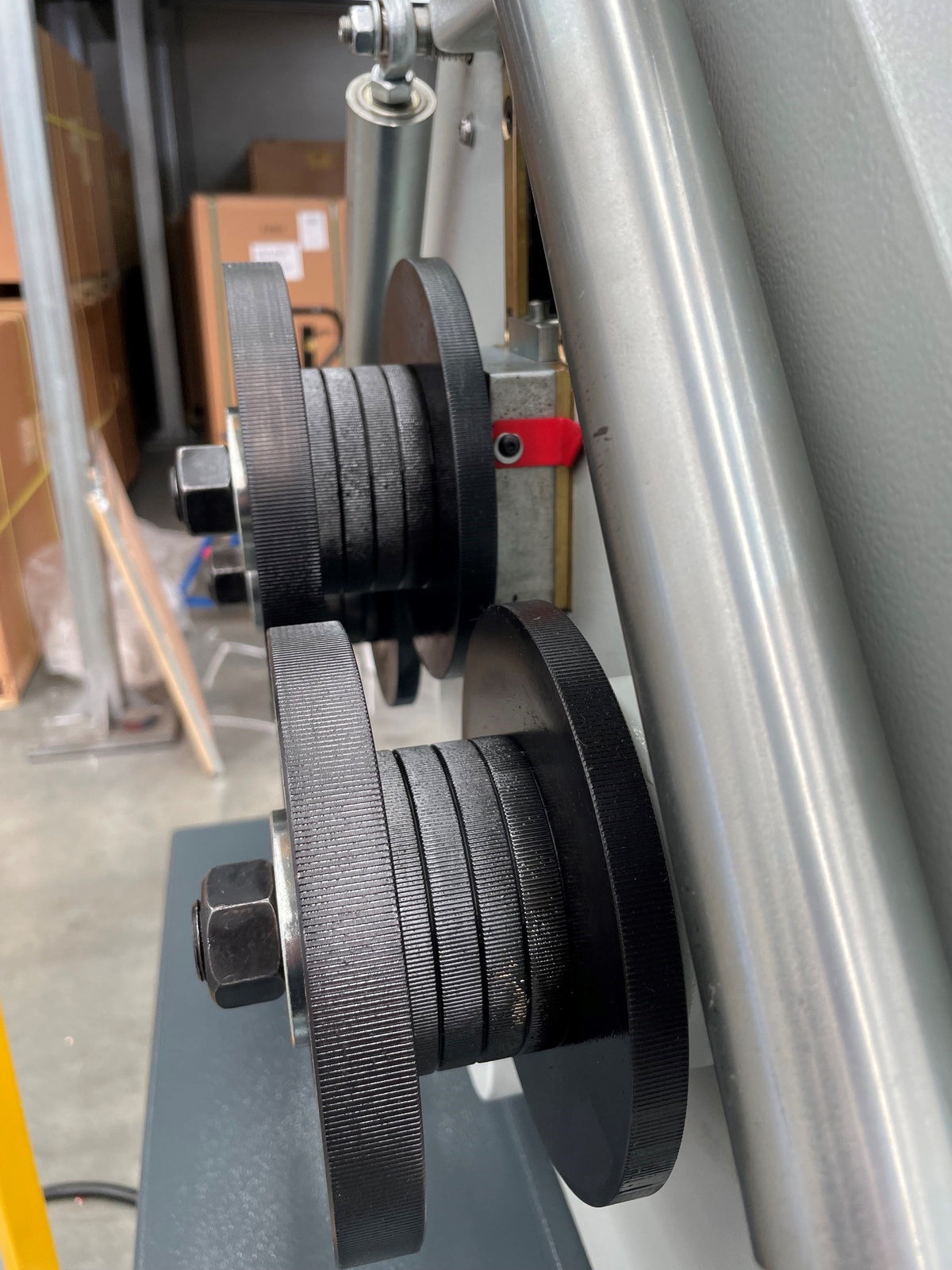

bottom rolls are knurled for additional grip on material
additional dies are required to roll round bar, round pipe/tube & square tube
CE compliant

TECHNICAL DATA

top roll diameter - 138mm
bottom roll diameter - 138mm
bottom roller centre distance -
centre distance bottom roller to top roller at max. height -
bending speed 4.5m/min
pipe capacity – 35mm - 2.9mm wall. min. dia.– 600mm
tube capacity – 35mm x 1.5mm / min. dia.– 1000mm
angle iron capacity – 40mm x 4mm / min. dia.– 600mm
solid capacity – 20mm / min. dia.– 900mm
flat bar (easy way) – 50mm x 10mm / min. dia.– 700mm
flat bar (hard way) – 40mm x 10mm / min. dia.– 800mm
shaft dia - 30mm
dimensions - 650mm x 520mm x 1390m
shipping dimensions 850mm x 710mm x 1450mm
weight - 190kg

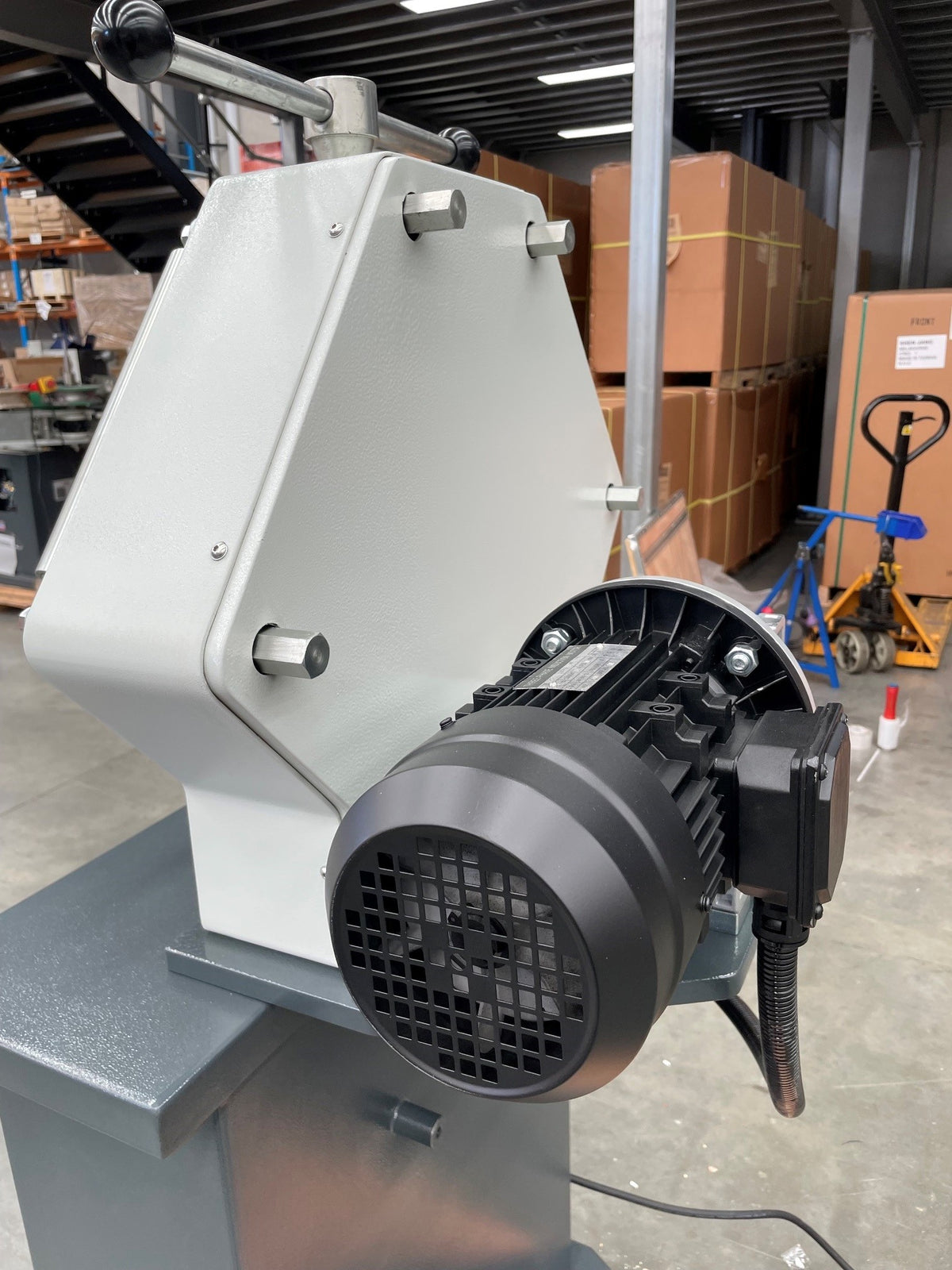

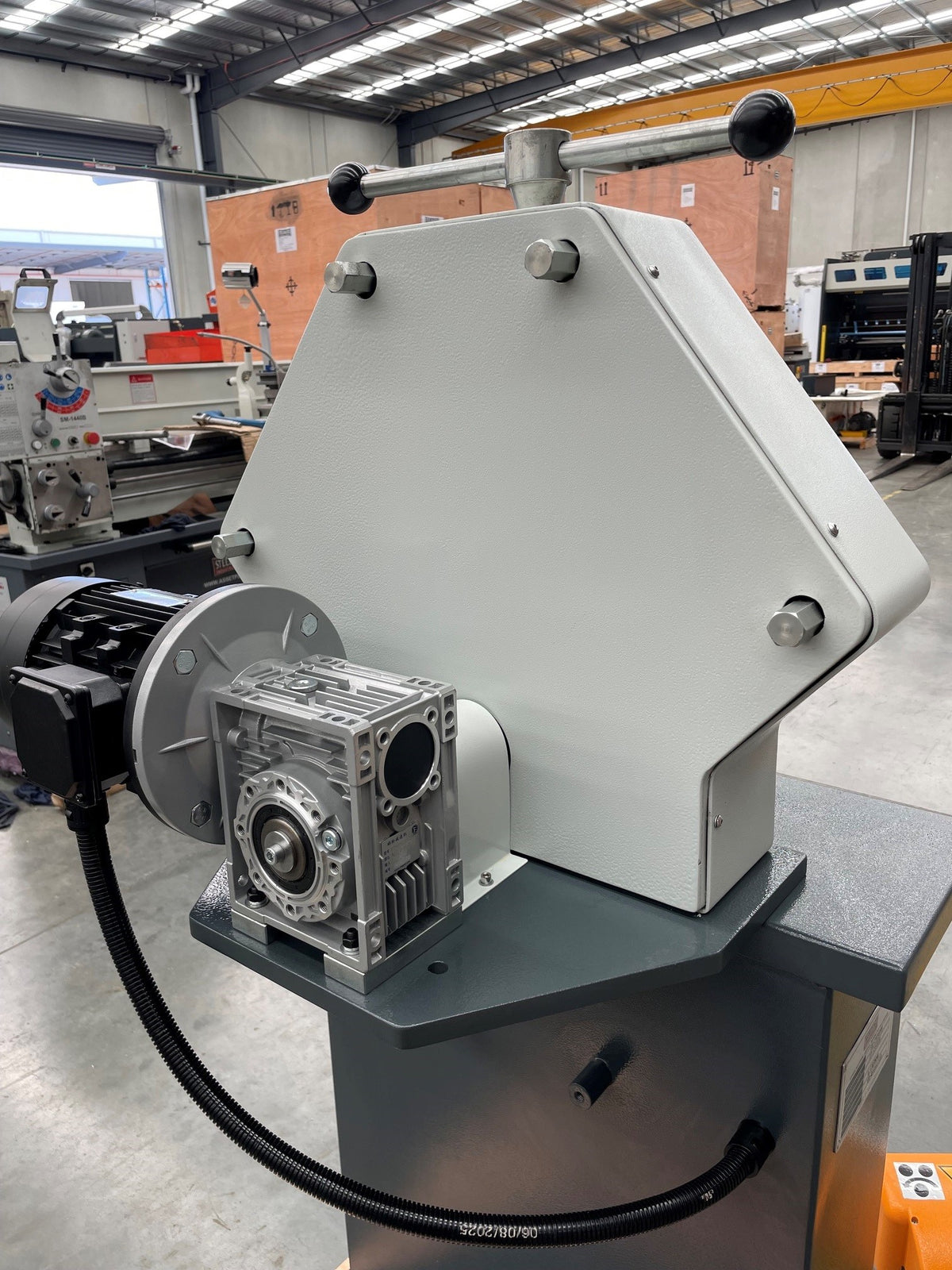

power 0.75KW. 415V
