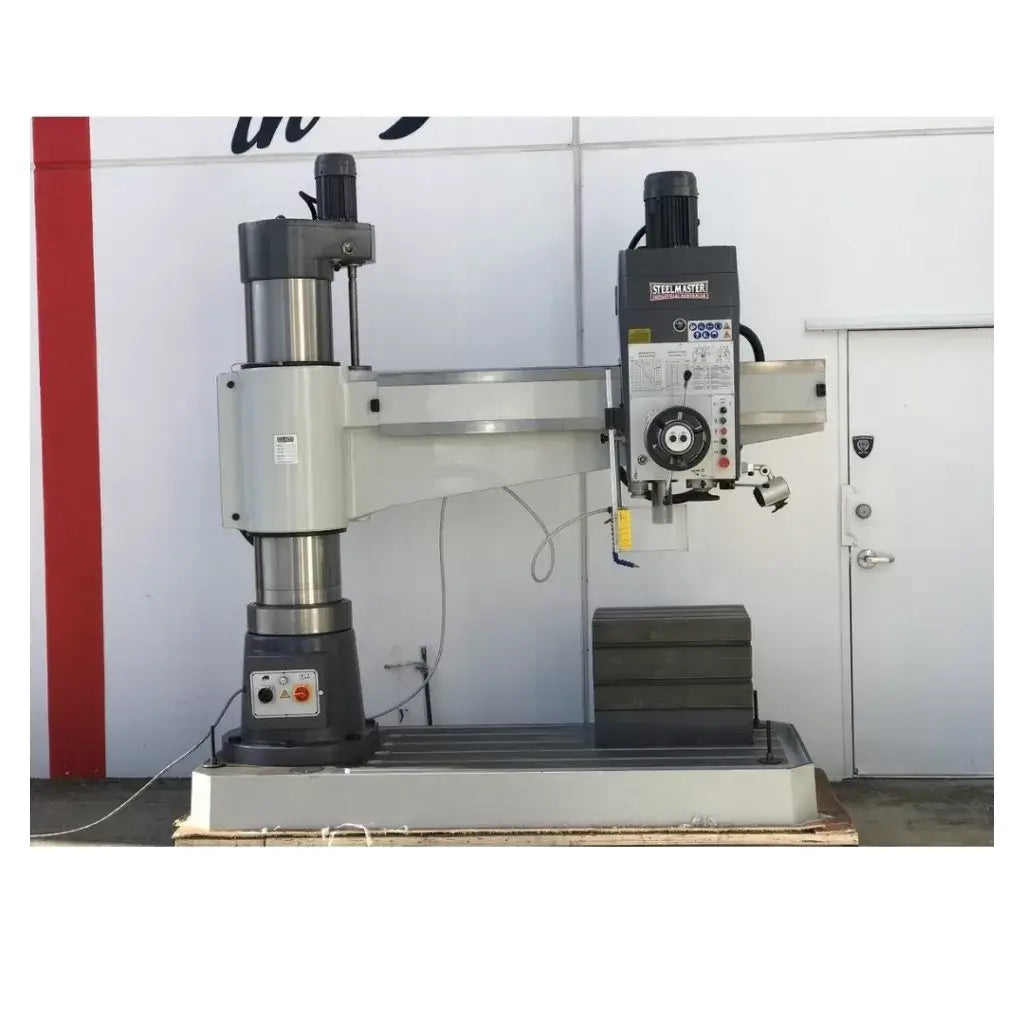

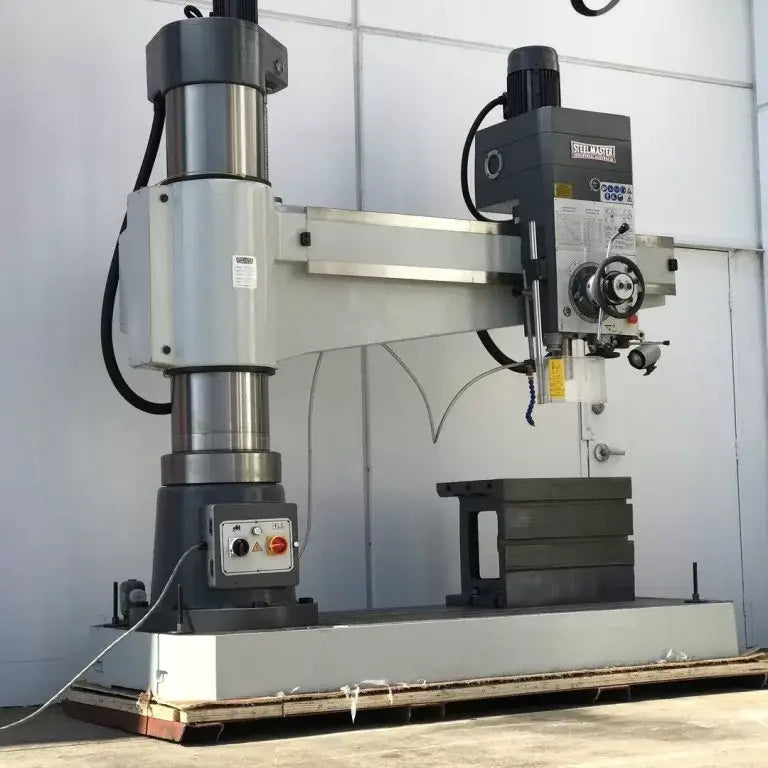

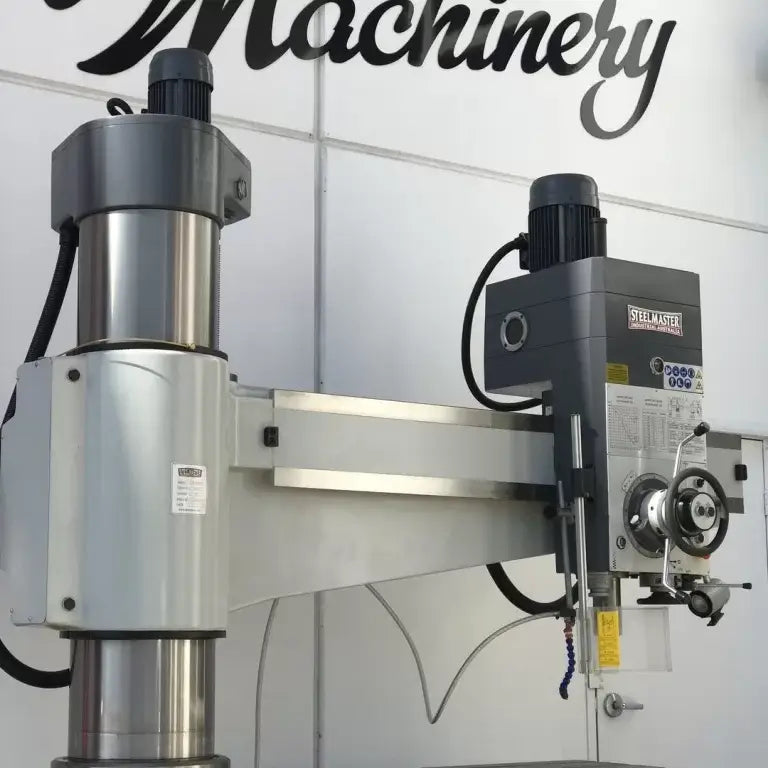

Radial Arm Drill, 1600mm Arm, 50mm Capacity, 5MT Spindle

Made from high quality fine grain cast iron with heavy duty ribbing to ensure extremely low vibration

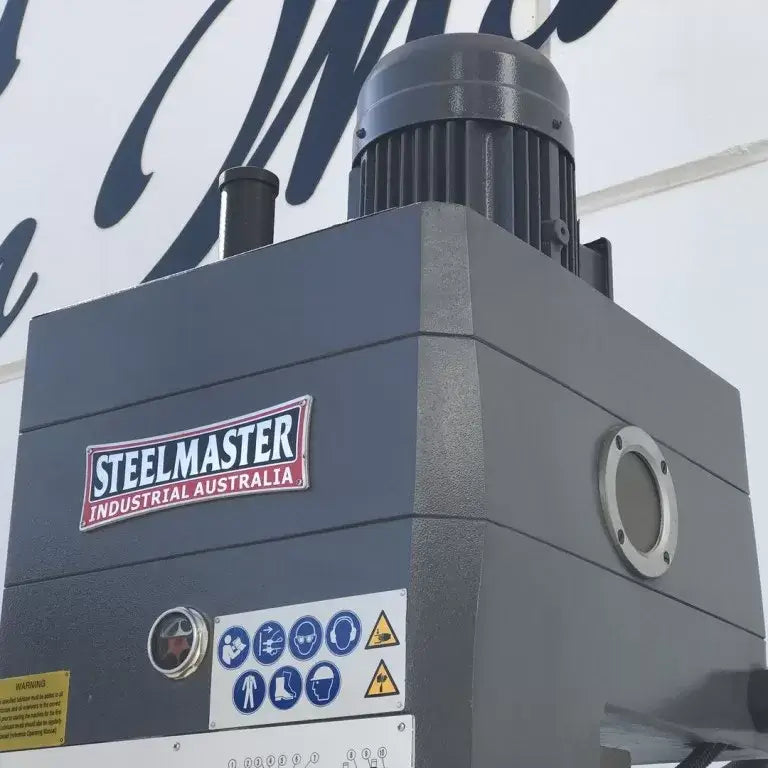

Oil bath lubricated gearbox with hardened, precise ground gears
Quiet operation

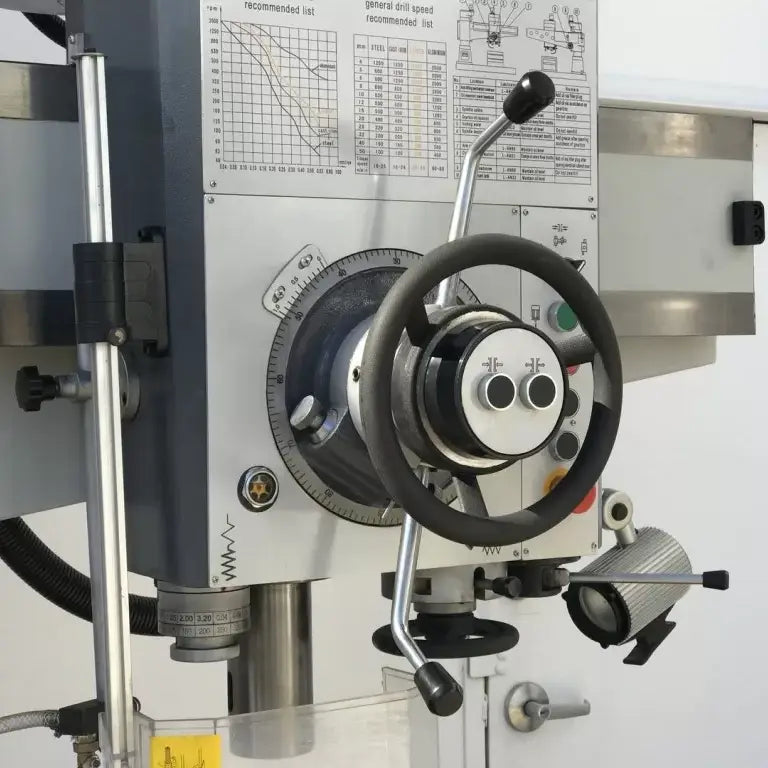

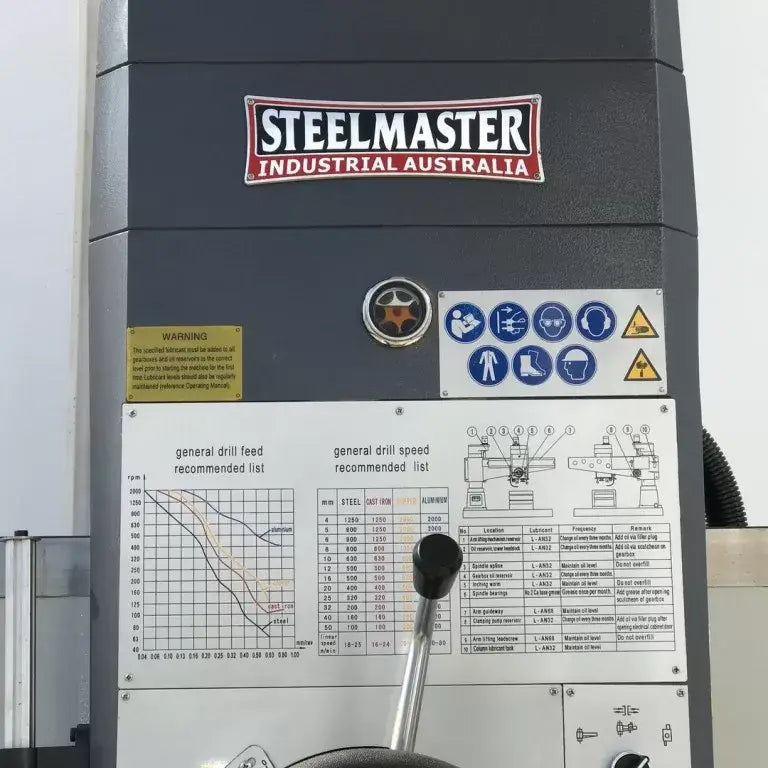

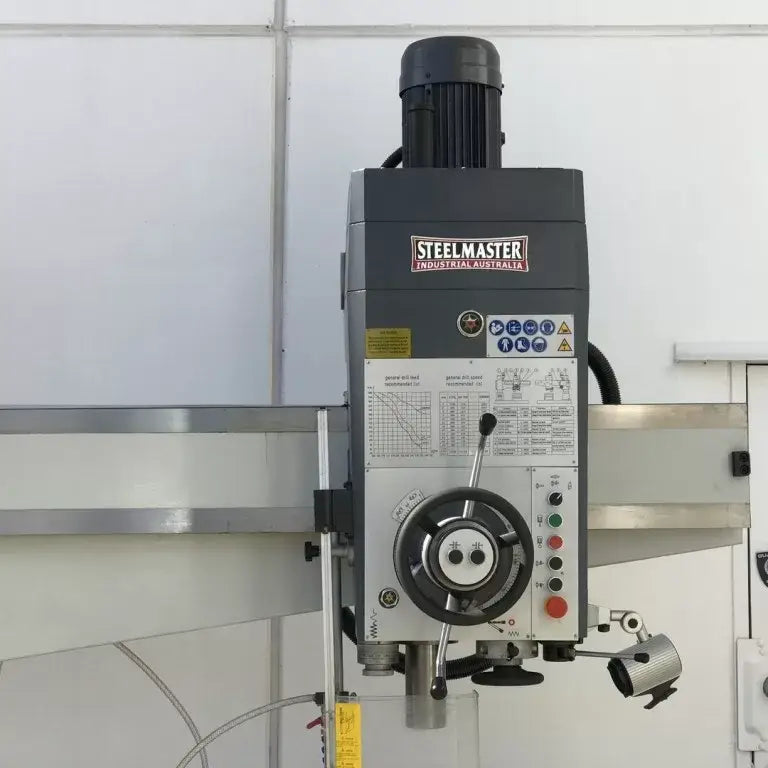

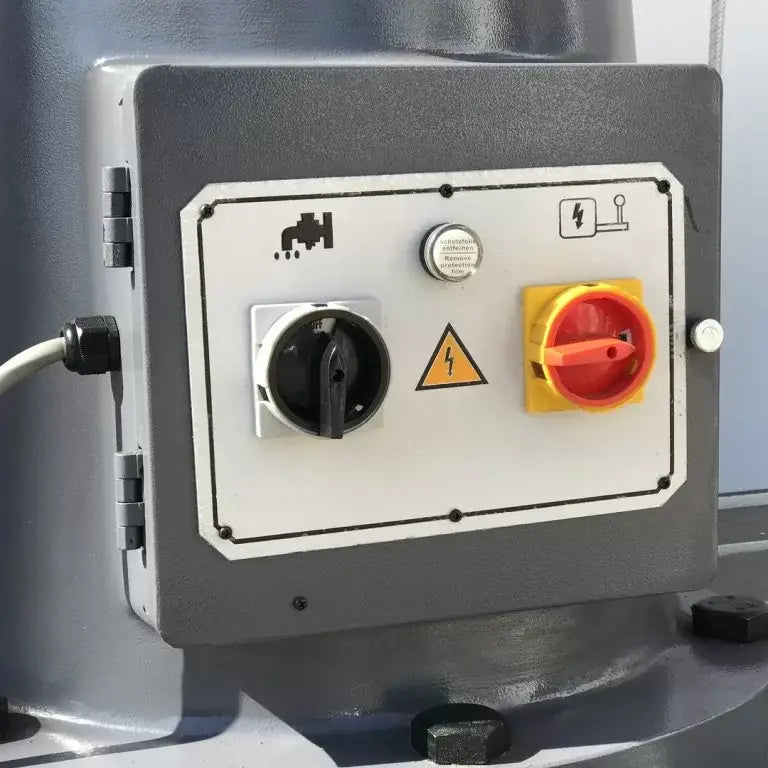

Easily accessible front panel to electrical and mechanical controls

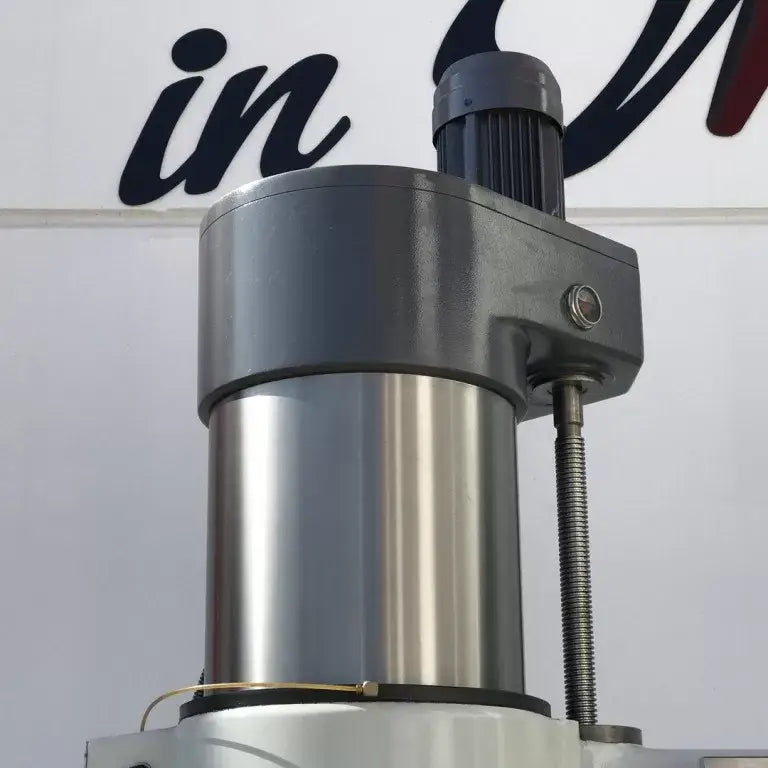

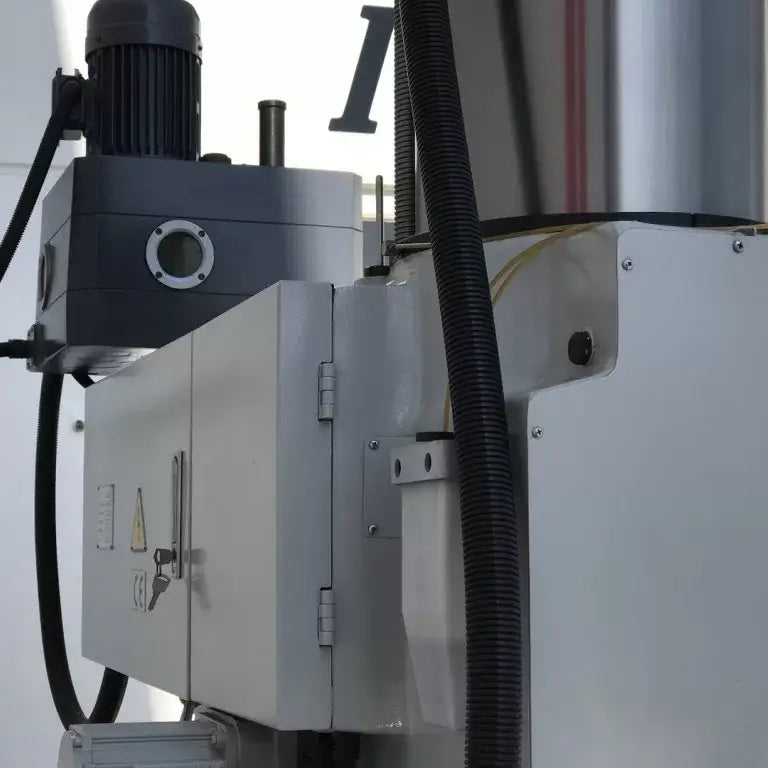

Arm height adjustment through elevating screw and elevating motor
Hardened and ground guide ways
Hydraulic operated feed and spindle drive system ensuring long life
Heavy duty tee slotted box table
up to 3000 mm capacity available

P.O.A - 15kg and up

50mm drilling & M42 tapping capacity

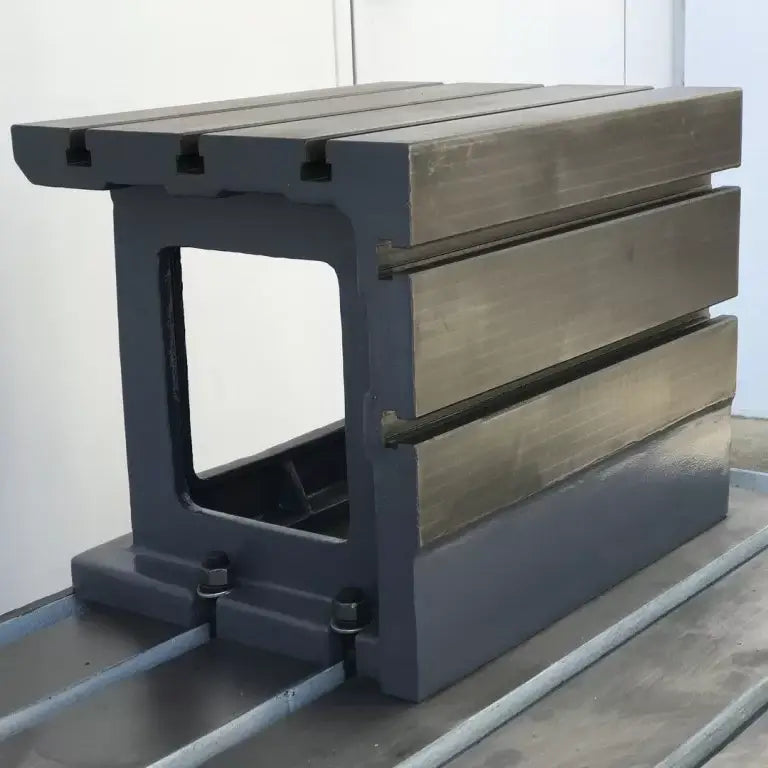

630mm x 500mm x 500mm heavy duty box table

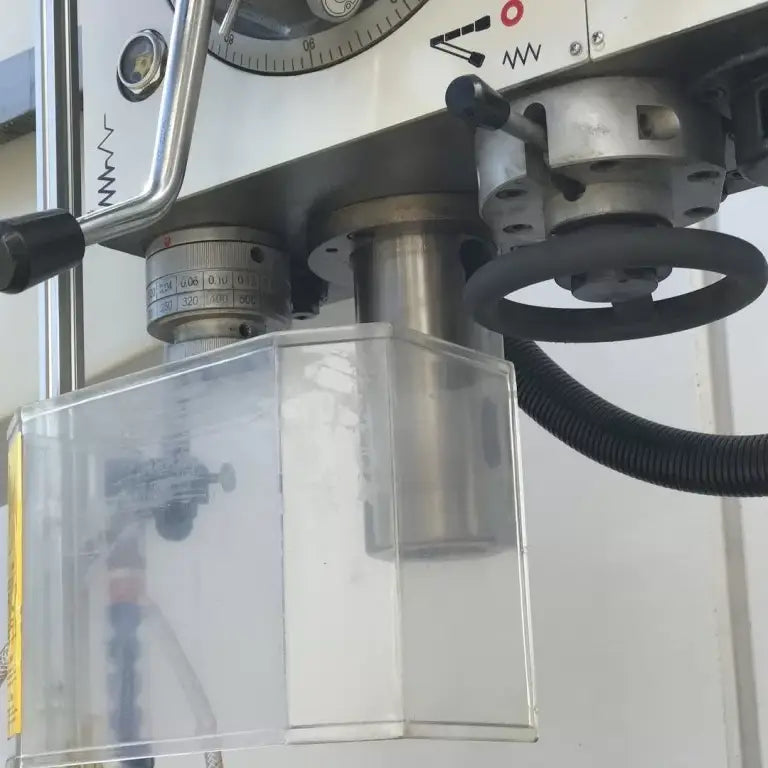

315mm spindle travel
5 morse taper spindle

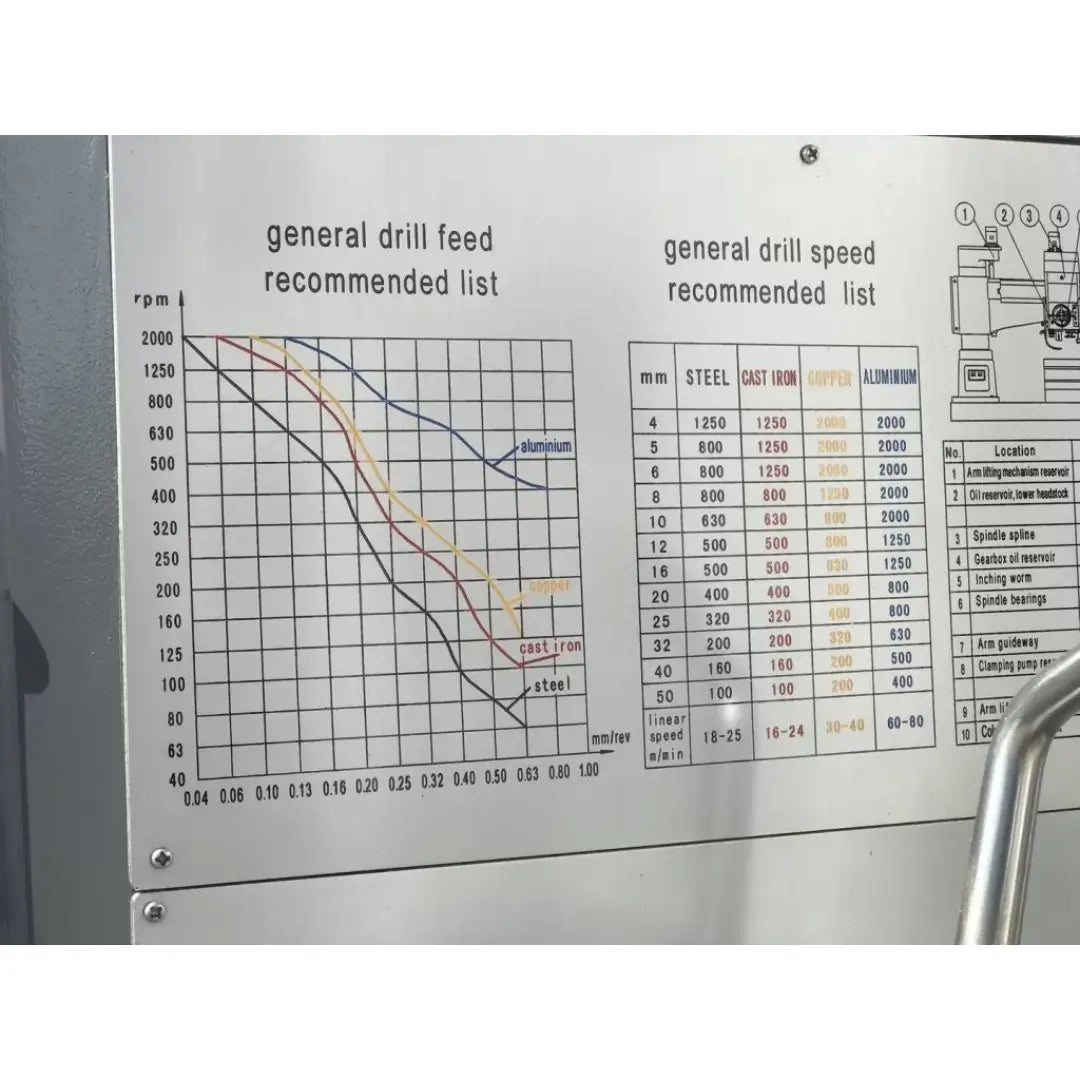

Speeds range – 25 ~ 2000 (8)
Motor capacity – 4.0Kw x 415Volt
Shipping dimensions – 2500mm x 1200mm x 2650mm
Approx weight: 4350kg
Spindle holding fixture 5 mt
Spindle distance / table (max) -600 mm
Spindle distance / base (max) -1200 mm
Throat depth - 360 mm
Working table surface (l x w) - 450 x 400 x 400 mm
T-slot size -18 mm
Spindle speeds-25 ~ 2000 rpm
Number of steps- 16 steps

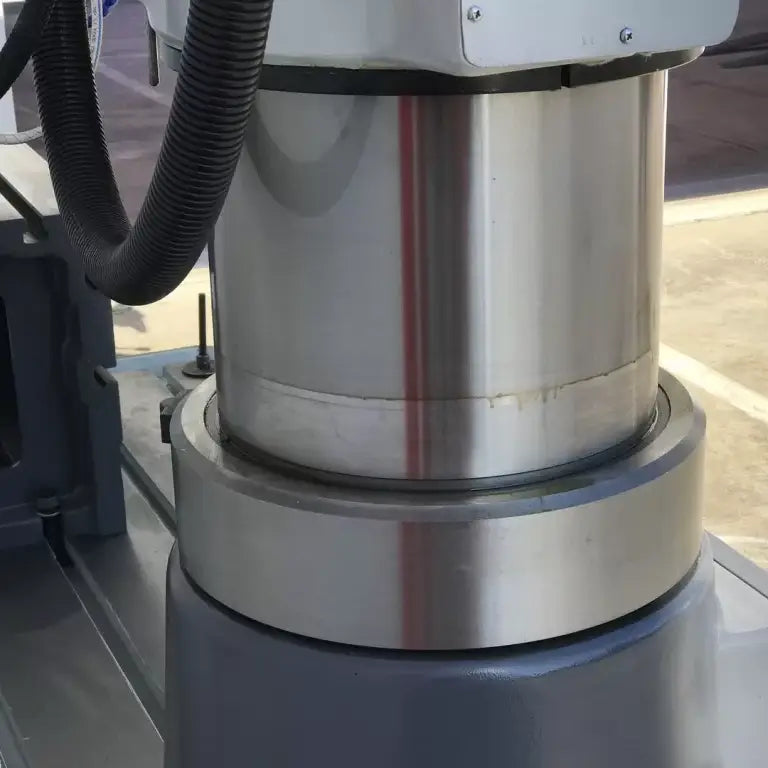

Upright diameter - 350 mm
Motor power- 2.2 / 415 kw/
Distance spindle / table (max)- 670 mm
Distance spindle / table (max)- 1220 mm
Spindle to column travel (max)-1600 mm/td>
Spindle to column travel (min)- 350 mm/td>
Drilling table swivel 360° deg

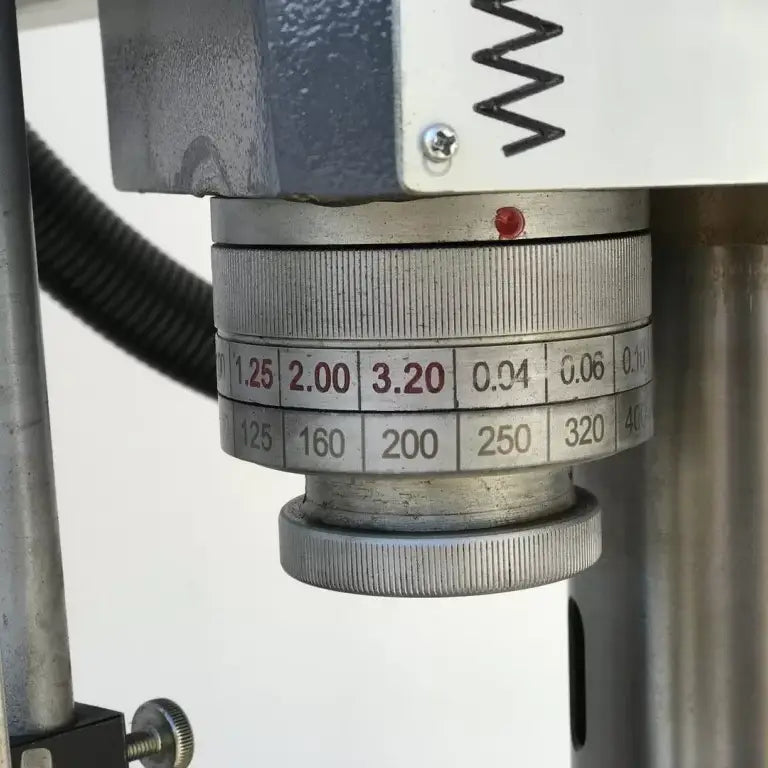

Power spindle feed- 0.04 ~ 3.2 / 16 mm/rev
Power spindle feed- 0.13 ~ 0.54 / 4 mm/re
