Steelmaster Industrial | SKU: 14-0821

Industrial Tube/Pipe Grinding Linisher, 30-90 Deg Tilt (Price Upon Request)

Name: Industrial Tube/Pipe Grinding Linisher, 30-90 Deg Tilt (Price Upon Request)
Brand: Steelmaster Industrial
SKU: 14-0821
Price: 2995.00 AUD
Availability: InStock

PRICE EX GST

$2,995.00

PRICE INC GST

$3,294.50

MODEL NUMBER: SM-TN76-TUBE-PIPE-GRINDING-LINISHER

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

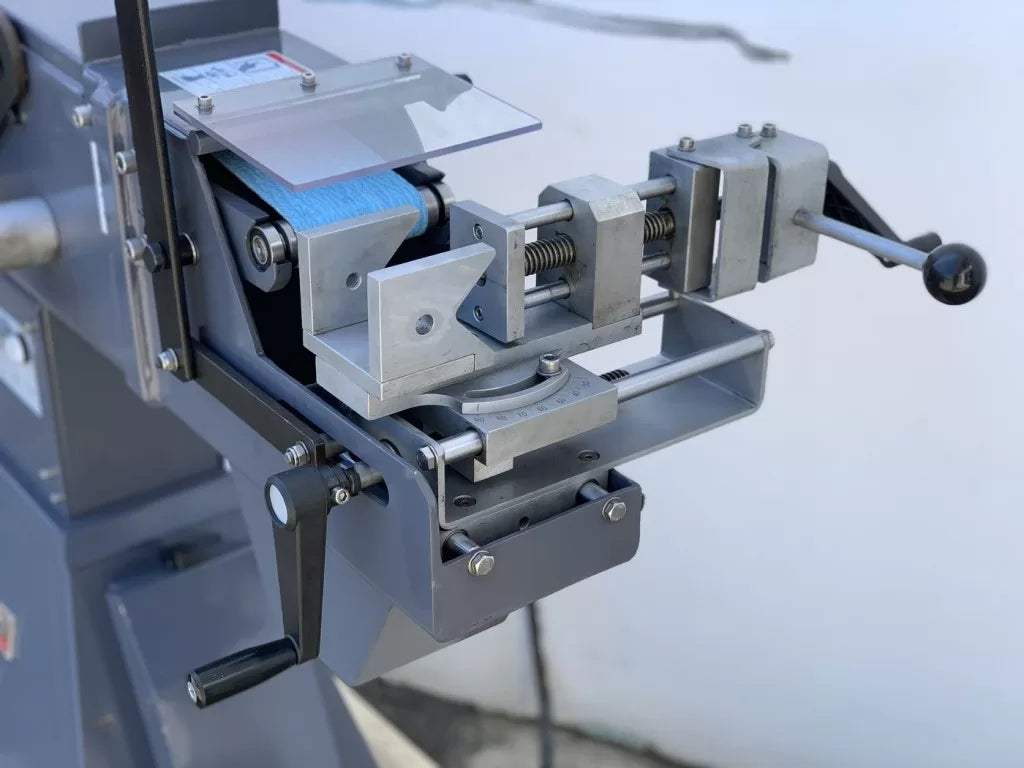

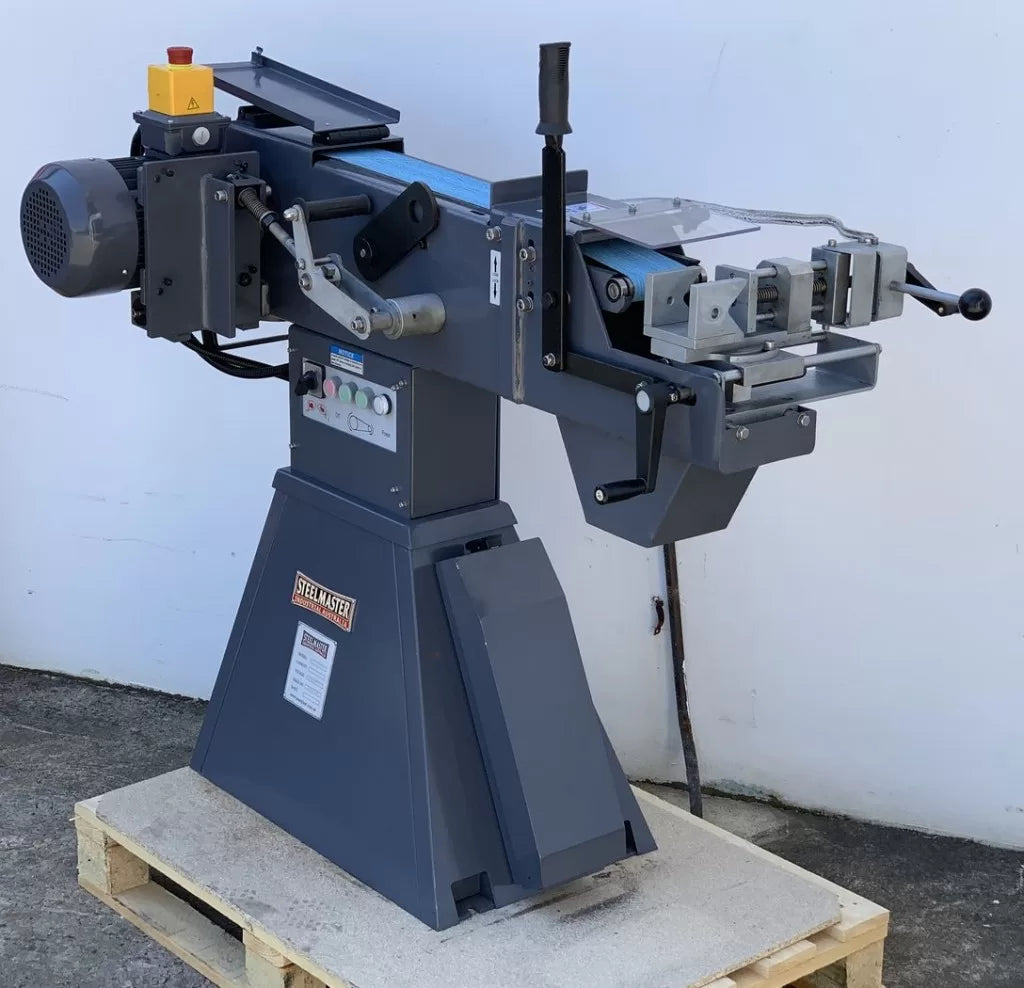

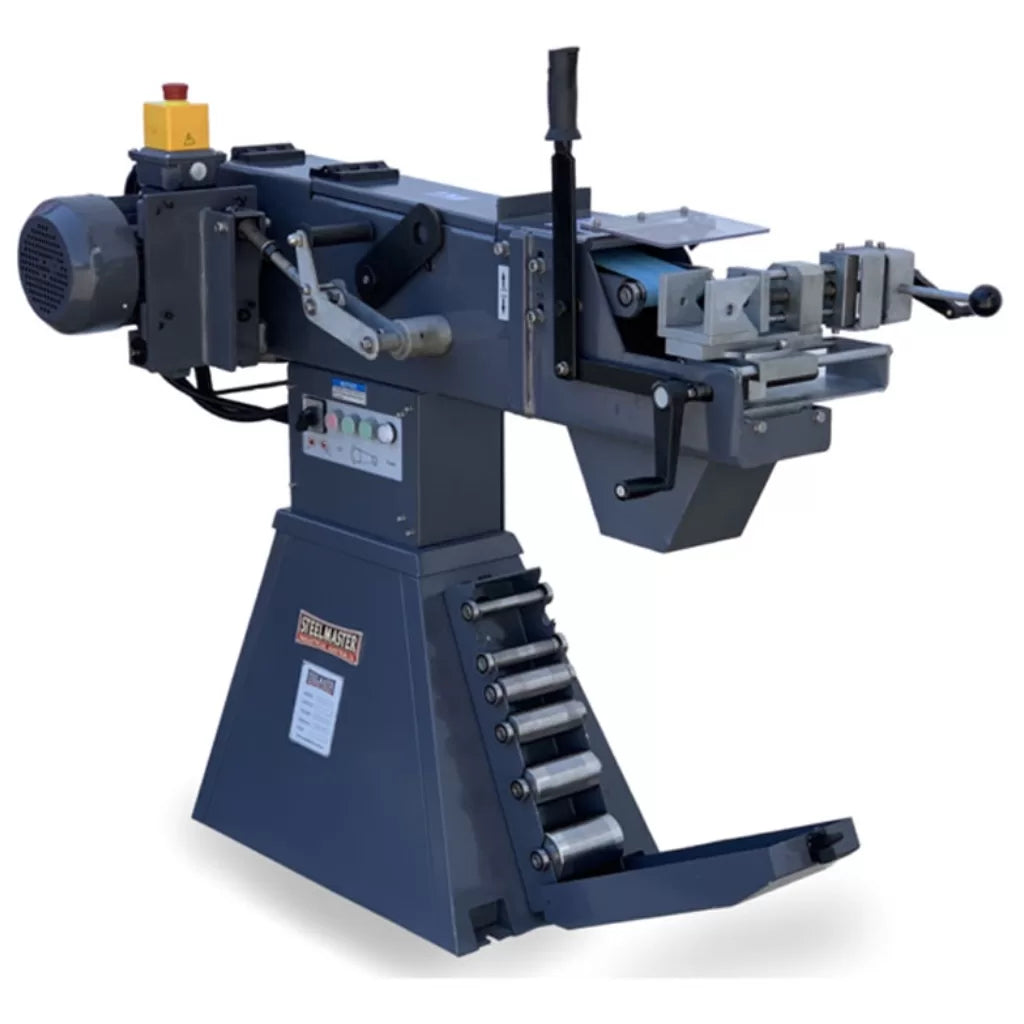

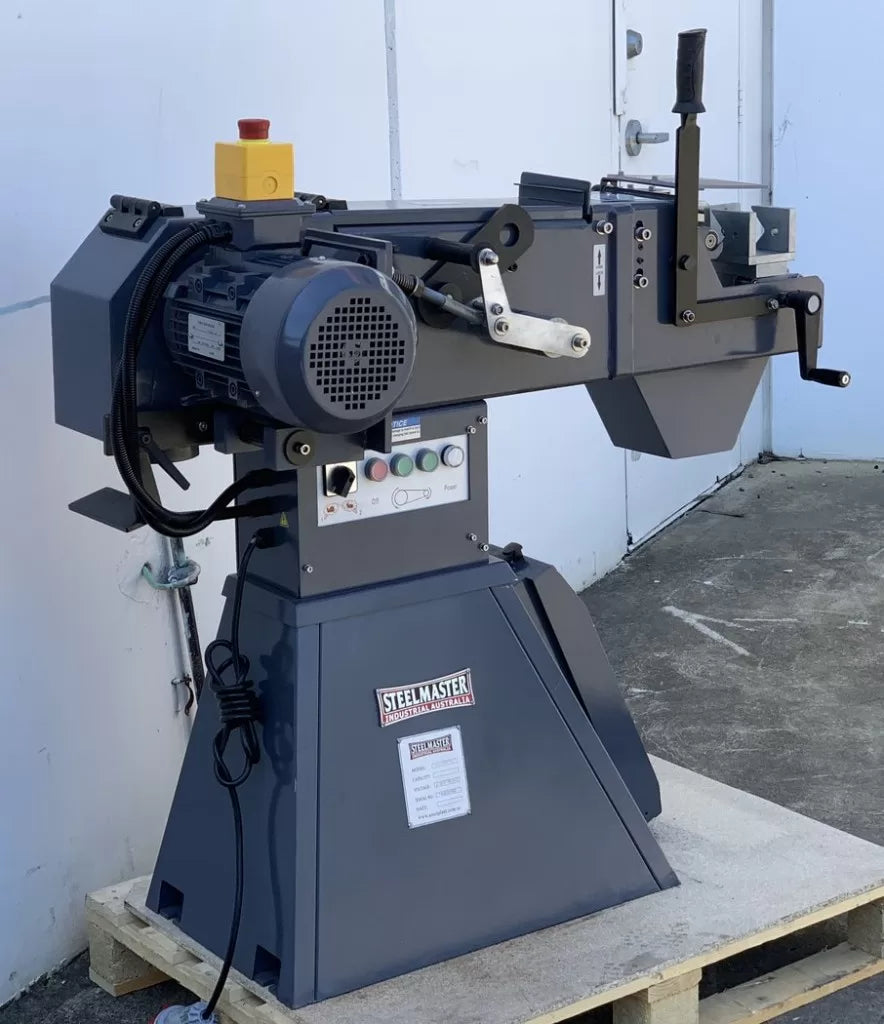

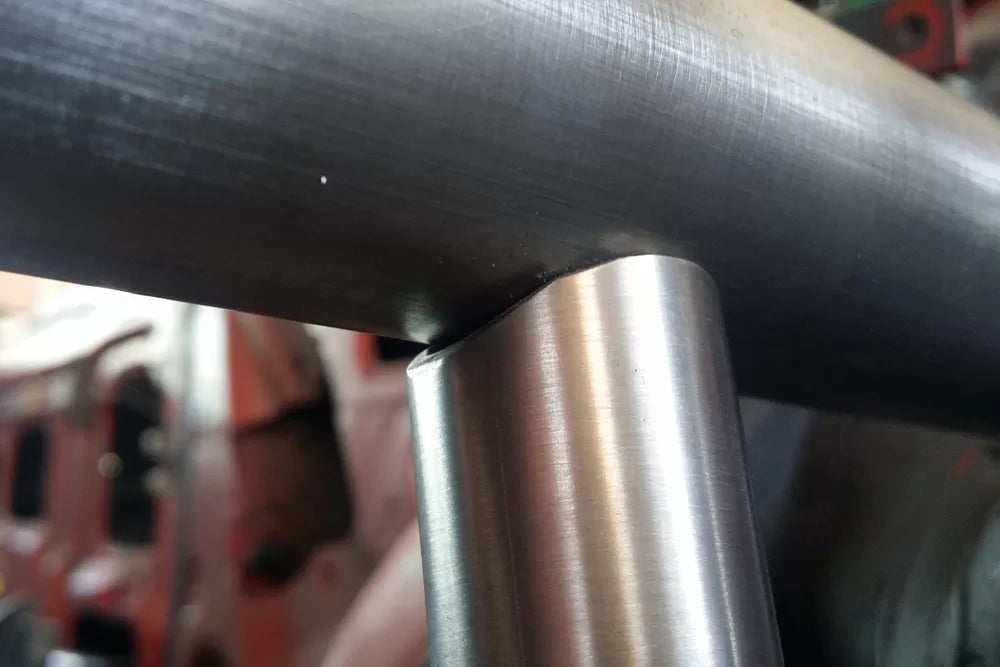

Steelmaster SM-TN76 industrial tube and pipe grinding linisher. Features adjustable tilt angle from 30 to 90 degrees.

PRODUCT FEATURES

Heavy duty industrial preferred machine
Quick and cost effective solution for all industrial pipe grinding applications

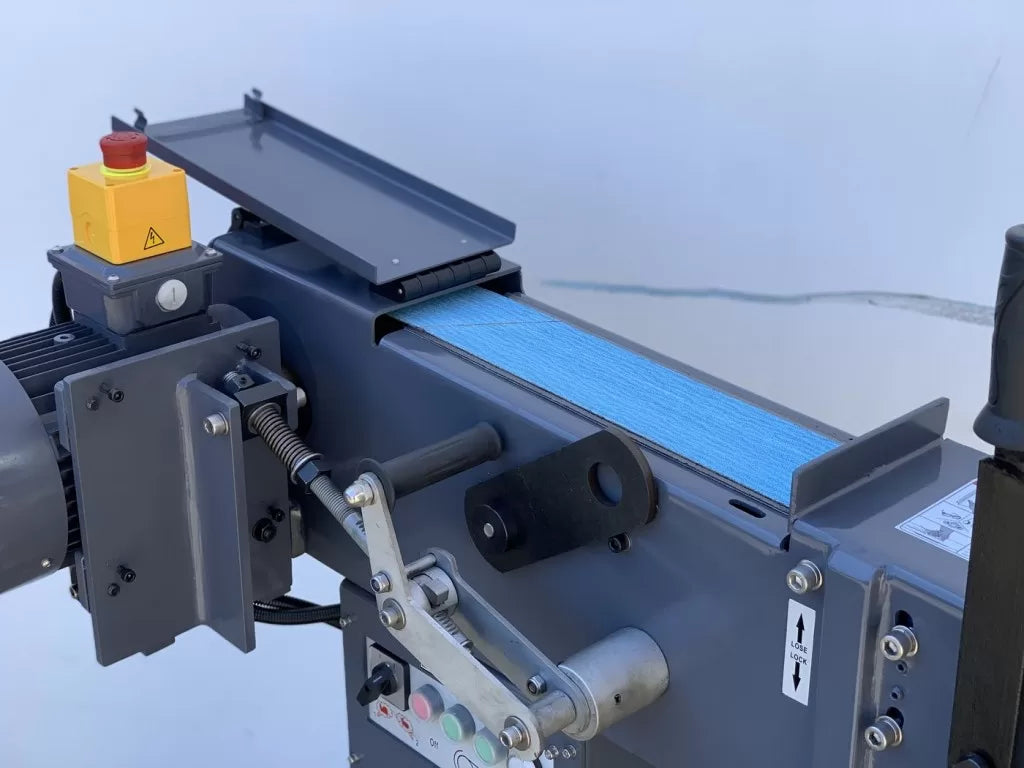

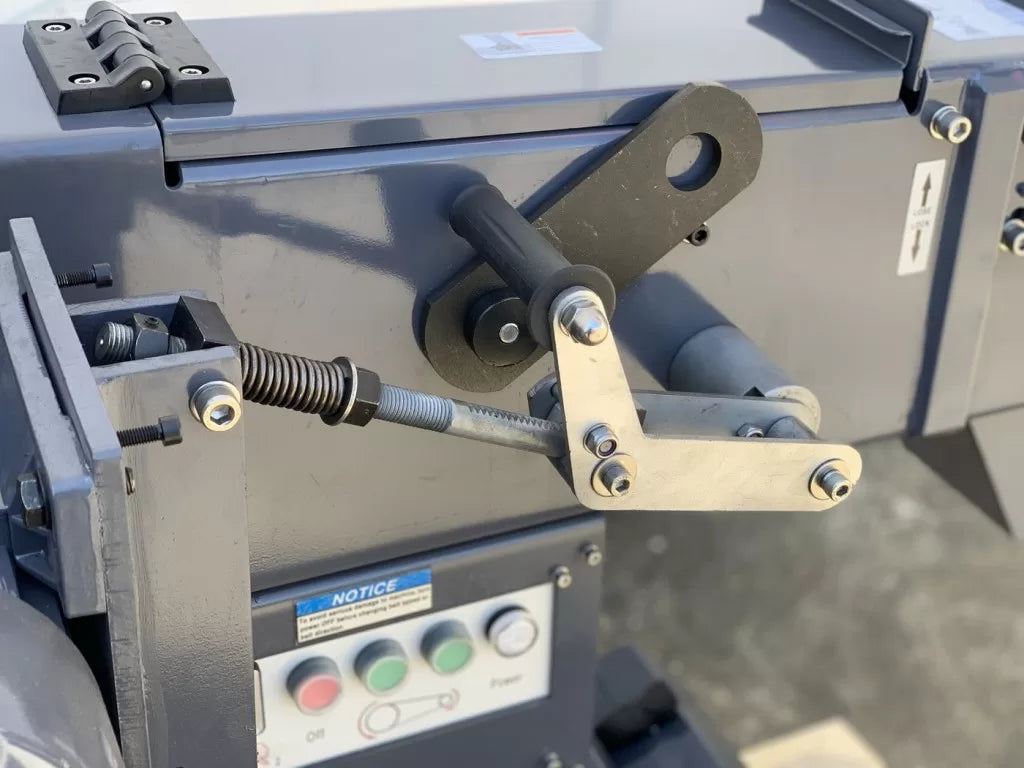

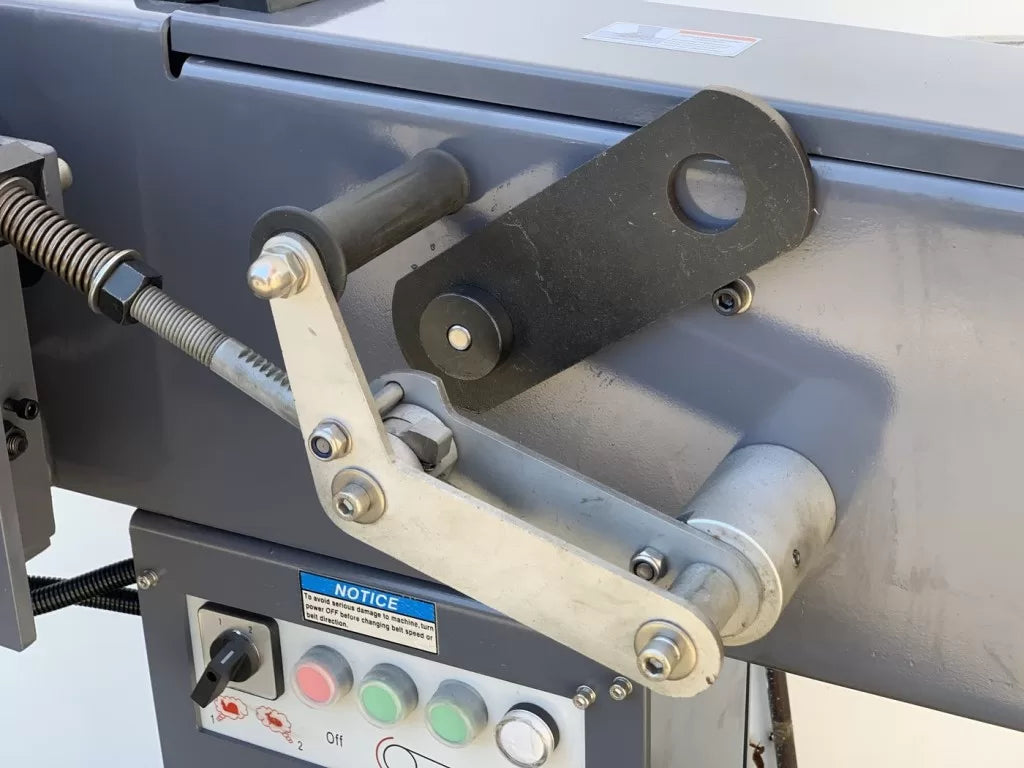

Quick action belt change system

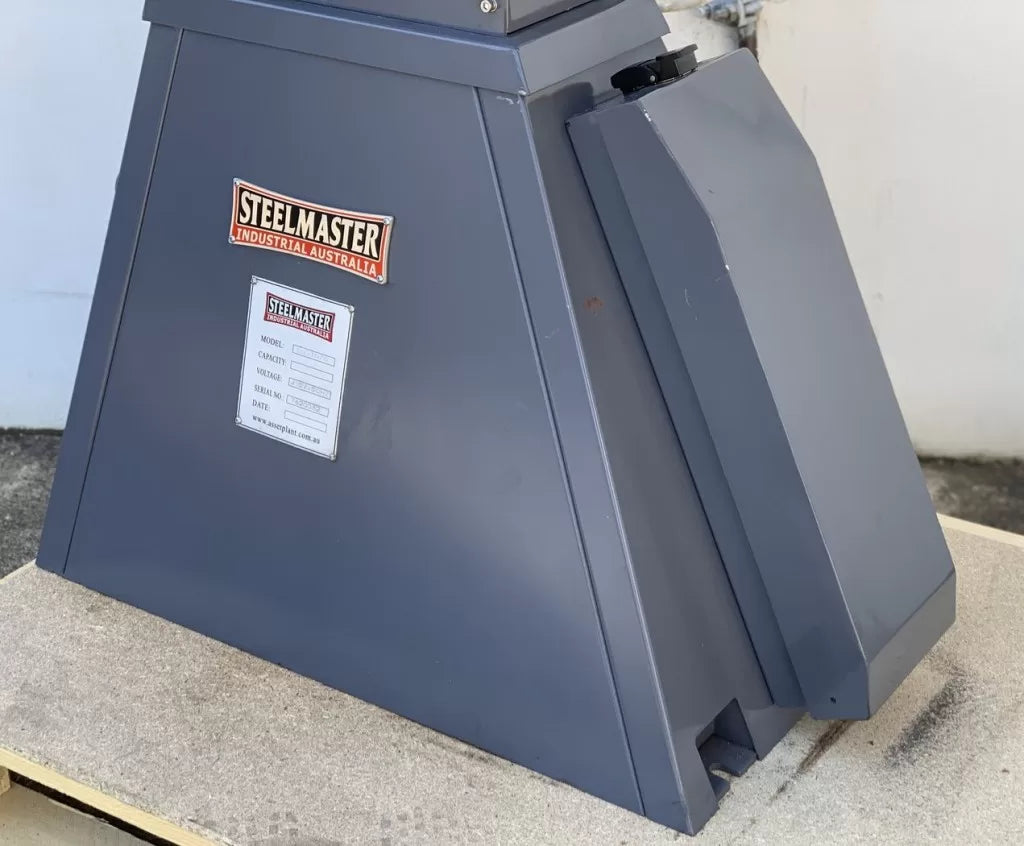

Stand included as standard

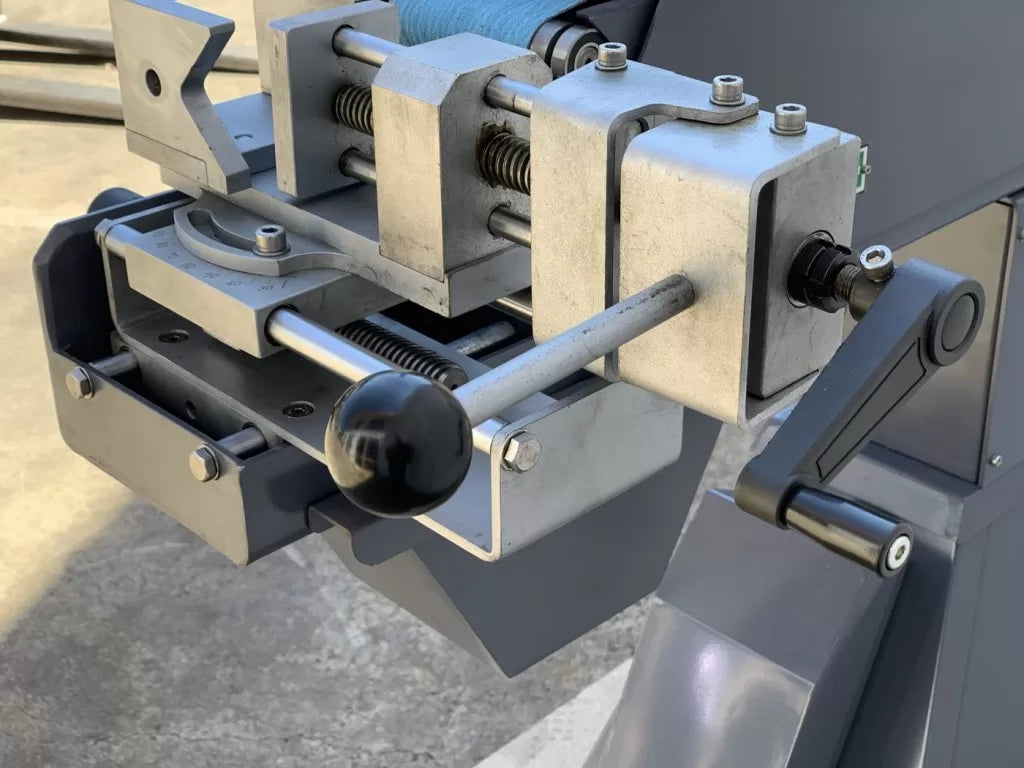

Easy operation, rotating design

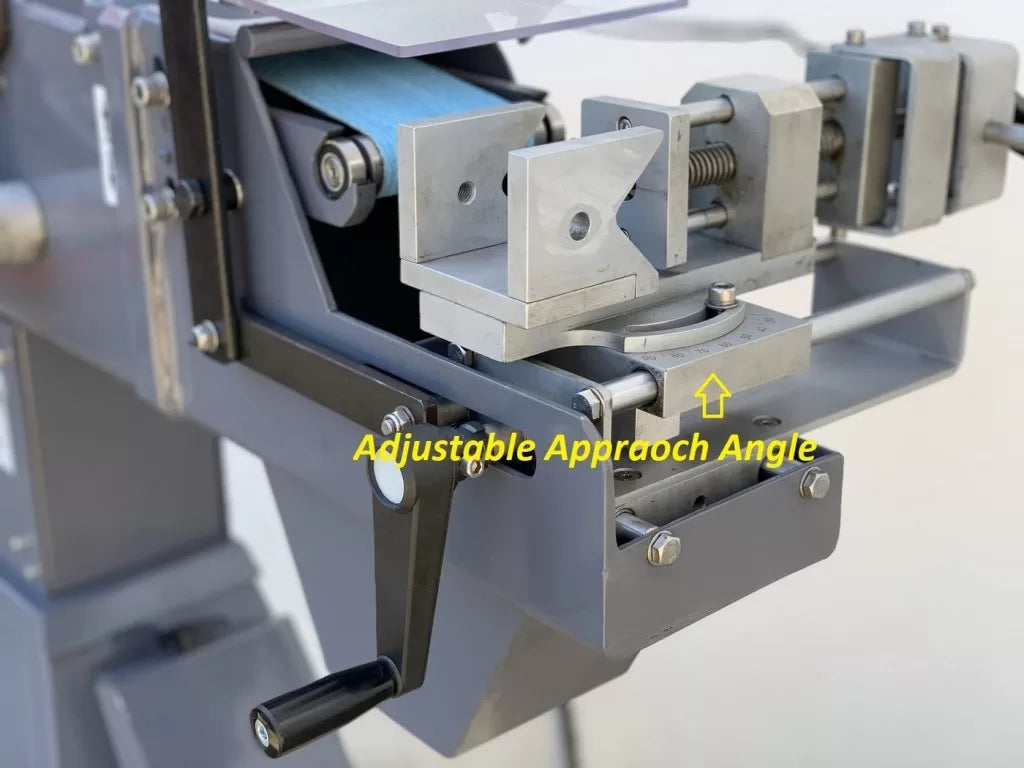

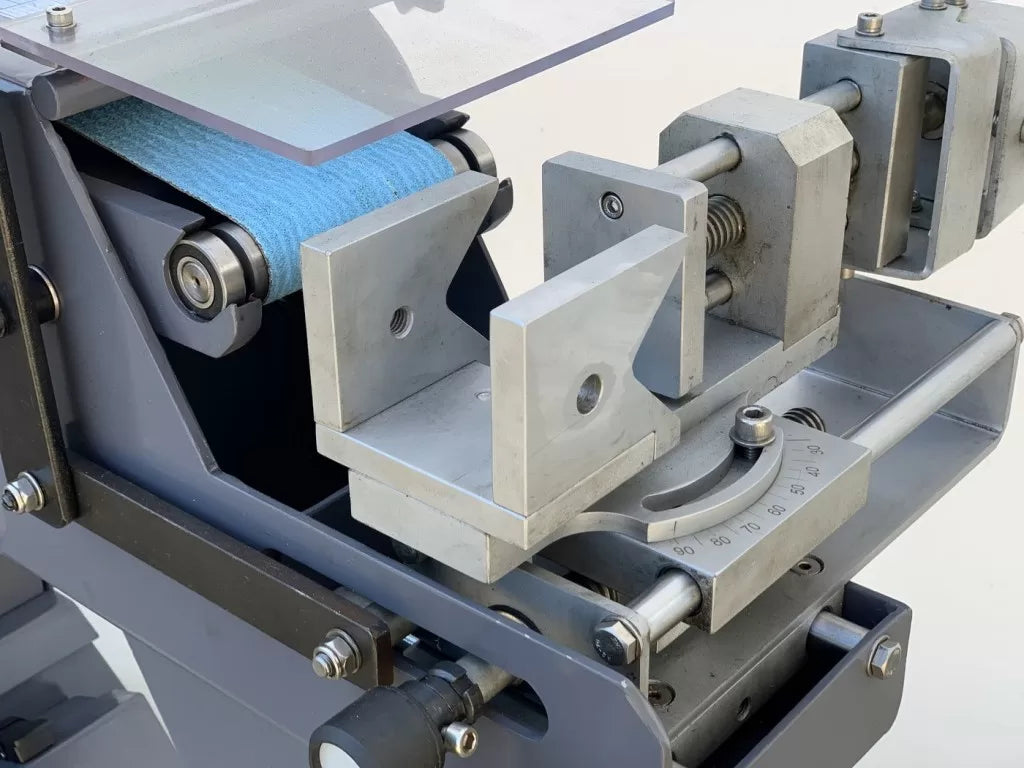

Grinds at any angle from 30° to 90°
Grinds at any diameter from Ø 19 to Ø 76.1 mm
Font grit catchment tray

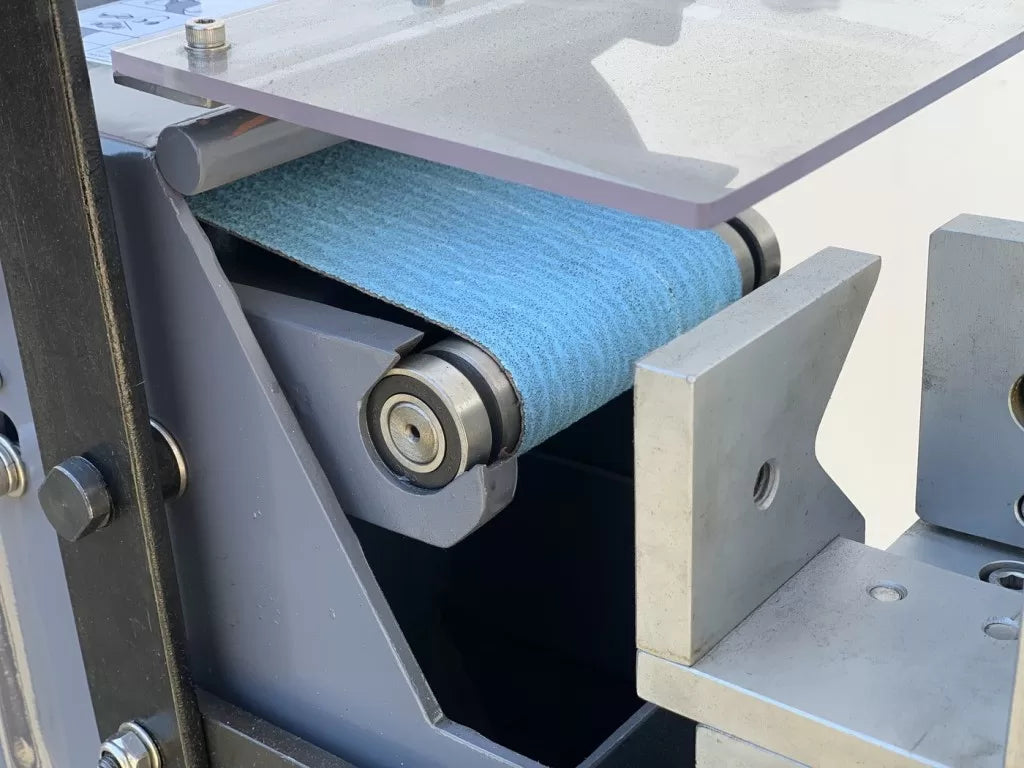

Rear grit dust outlet?perspex safety guard
Grinds all major materials
Suitable for tubes and profiles

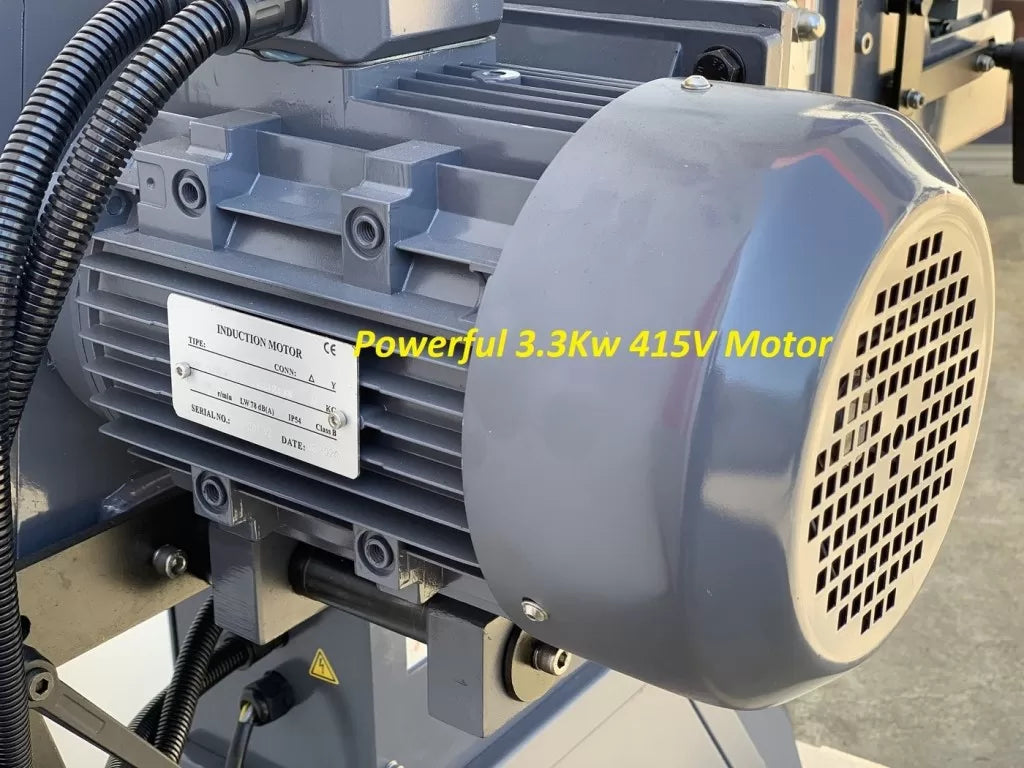

Powerful 3 kW motor

RECOMMENDED ADD ON ACCESSORIES

14+0011 – SM-BL100 Industrial Belt Linisher Belts 80 Grit Fine. Belt Size 2000mm L x 100mm W.
14+0012 – SM-BL100 Industrial Belt Linisher Belts 40 Grit Course. Belt Size 2000mm L x 100mm W.

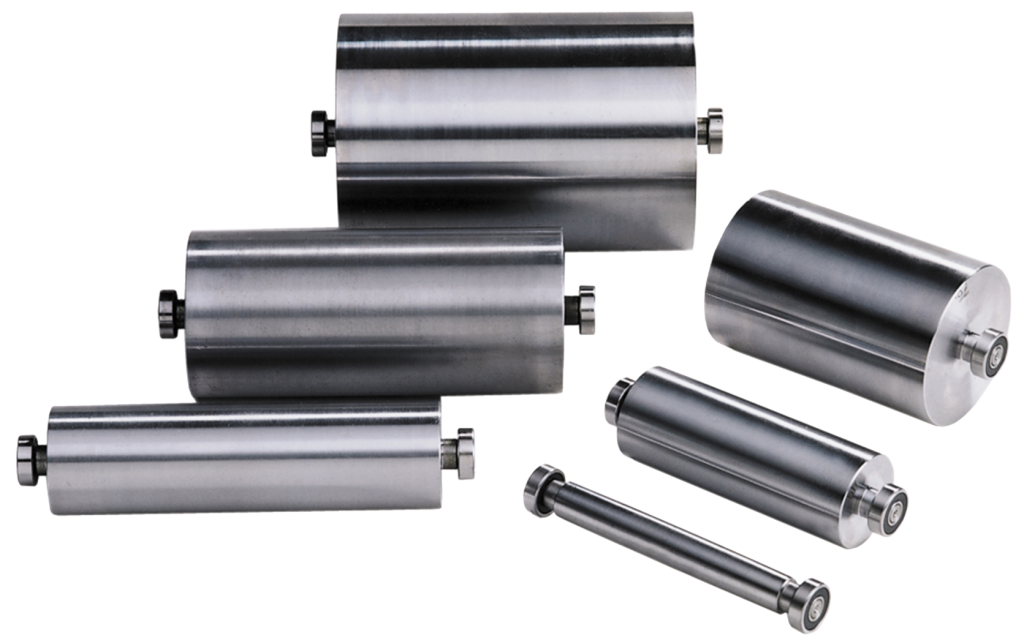

14+0001 SM-TN76 Former to suit Profile Grinder-1/2″ (12.7mm)
14+0002 SM-TN76 Former to suit Profile Grinder-3/4″ (19.5mm)
14+0042 SM-TN76 Former to suit Profile Grinder – 20mm
14+0025 SM-TN76 Former to suit Profile Grinder – 22mm
14+0026 SM-TN76 Former to suit Profile Grinder – 25.4mm
14+0043 SM-TN76 Former to suit Profile Grinder – 26mm
14+0027 SM-TN76 Former to suit Profile Grinder – 27mm (20mm NB Pipe)
14+0043 SM-TN76 Former to suit Profile Grinder – 26mm
14+0028 SM-TN76 Former to suit Profile Grinder – 32mm (25mm NB Pipe)
14+0029 SM-TN76 Former to suit Profile Grinder – 34mm
14+0030 SM-TN76 Former to suit Profile Grinder – 38mm
14+0031 SM-TN76 Former to suit Profile Grinder – 42mm (32mm NB Pipe Size)
14+0032 SM-TN76 Former to suit Profile Grinder – 44mm
14+0033 SM-TN76 Former to suit Profile Grinder – 48mm (40mm NB Pipe Size)
14+0034 SM-TN76 Former to suit Profile Grinder – 50.8 mm
14+0023 SM-TN76 Former to suit Profile Grinder – 57mm
14+0035 SM-TN76 Former to suit Profile Grinder – 60mm (50mm NB Pipe Size)
❚14+0036 SM-TN76 Former to suit Profile Grinder – 63.5mm
❚14+0037 SM-TN76 Former to suit Profile Grinder – 76mm (65mm NB Pipe Size)

TECHNICAL DATA

100mm x 2000mm belt dimensions

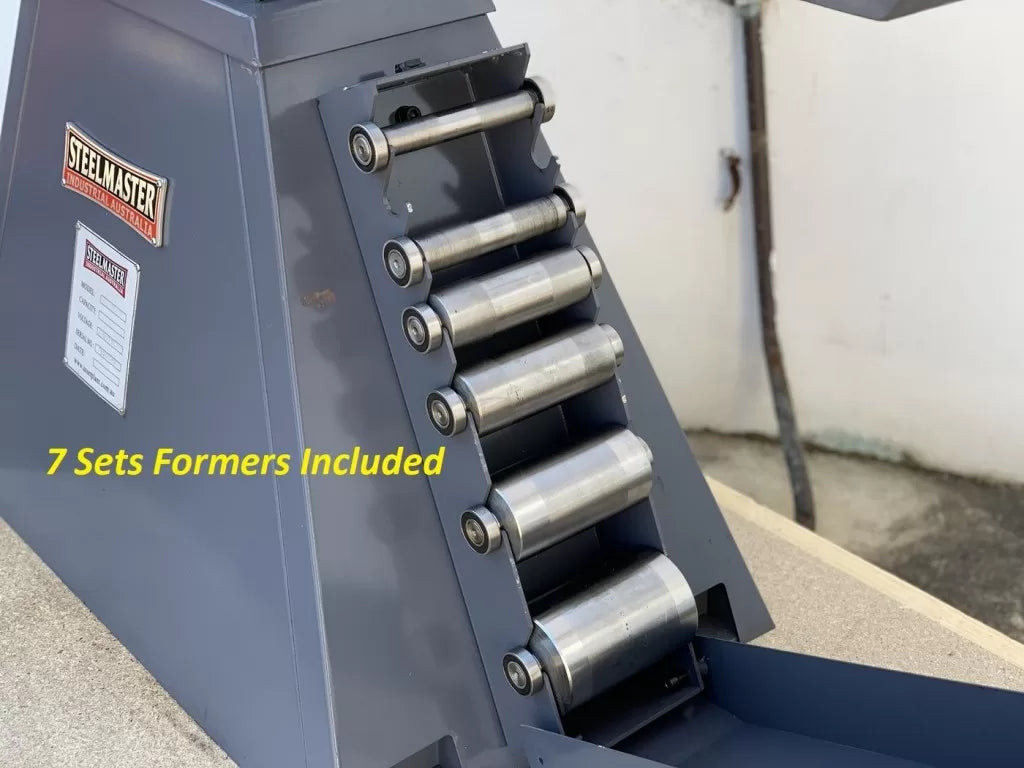

?ncludes 7 sets formers: 20mm (3/4”), 26mm (1”), 32mm (1 ¼”), 42mm (1 ½”), 48mm (2”), 60mm (2 ½”) & 76mm (3”)
30m/sec belt speeds

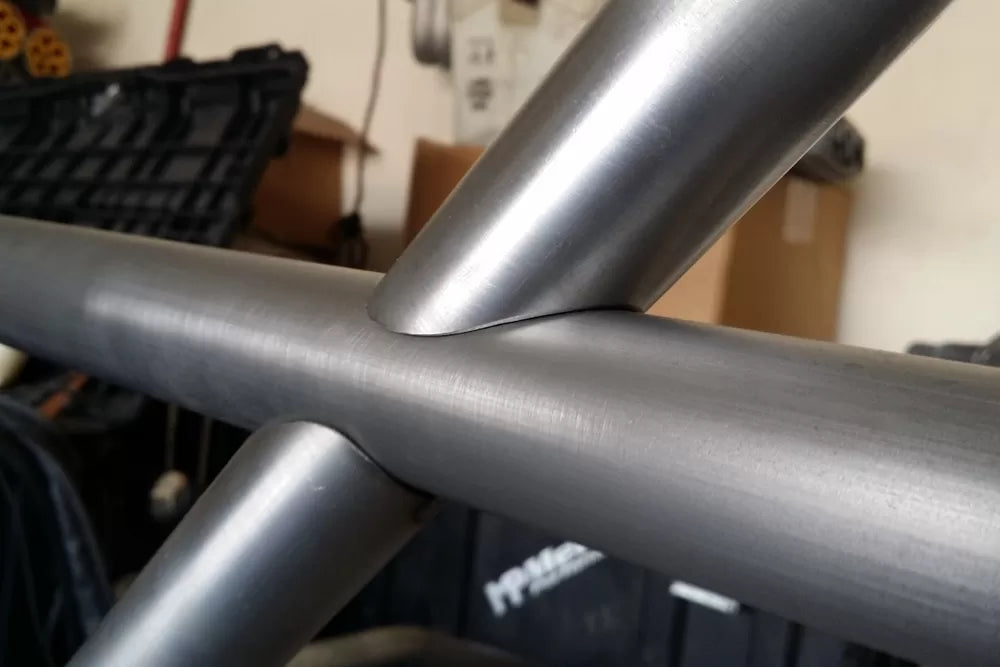

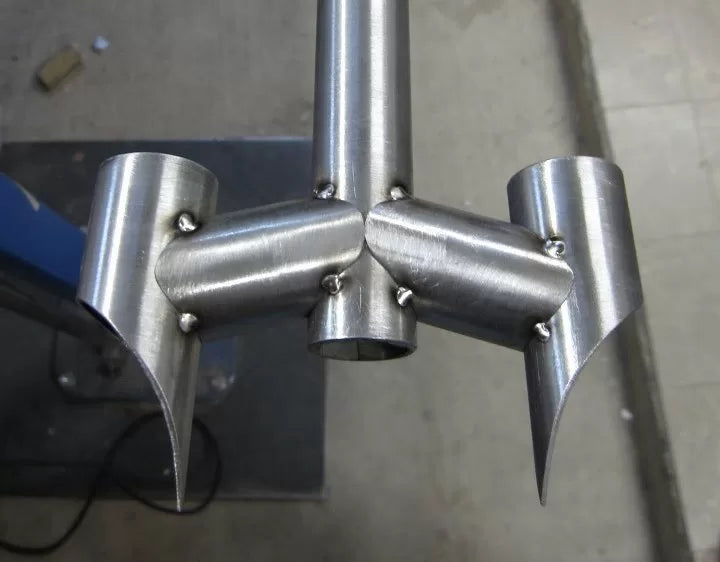

30 ~ 90 degree angle notching
110mm x 360mm Top Linishing Platen
1250mm x 750mm x 1140mm overall dimensions
1330mm x 730mm x 640mm shipping dimensions
188kg – shipping weight
3.3Kw x 415V power

Recommended Add On Accessories
14+0011 – SM-BL100 Industrial Belt Linisher Belts 80 Grit Fine. Belt Size 2000mm L x 100mm W.
14+0012 – SM-BL100 Industrial Belt Linisher Belts 40 Grit Course. Belt Size 2000mm L x 100mm W.
14+0001 SM-TN76 Former to suit Profile Grinder-1/2? (12.7mm)
14+0002 SM-TN76 Former to suit Profile Grinder-3/4? (19.5mm)
14+0042 SM-TN76 Former to suit Profile Grinder – 20mm
14+0025 SM-TN76 Former to suit Profile Grinder – 22mm
14+0026 SM-TN76 Former to suit Profile Grinder – 25.4mm
14+0043 SM-TN76 Former to suit Profile Grinder – 26mm
14+0027 SM-TN76 Former to suit Profile Grinder – 27mm (20mm NB Pipe)
14+0043 SM-TN76 Former to suit Profile Grinder – 26mm
14+0028 SM-TN76 Former to suit Profile Grinder – 32mm (25mm NB Pipe)
14+0029 SM-TN76 Former to suit Profile Grinder – 34mm
14+0030 SM-TN76 Former to suit Profile Grinder – 38mm
14+0031 SM-TN76 Former to suit Profile Grinder – 42mm (32mm NB Pipe Size)
14+0032 SM-TN76 Former to suit Profile Grinder – 44mm
14+0033 SM-TN76 Former to suit Profile Grinder – 48mm (40mm NB Pipe Size)
14+0034 SM-TN76 Former to suit Profile Grinder – 50.8 mm
14+0023 SM-TN76 Former to suit Profile Grinder – 57mm
14+0035 SM-TN76 Former to suit Profile Grinder – 60mm (50mm NB Pipe Size)
14+0036 SM-TN76 Former to suit Profile Grinder – 63.5mm
14+0037 SM-TN76 Former to suit Profile Grinder – 76mm (65mm NB Pipe Size)
