Tube & Pipe Bender, 76mm Capacity, 4 Tooling Sets, 415V
Regular price
$15,850.00
Unit price
Unavailable

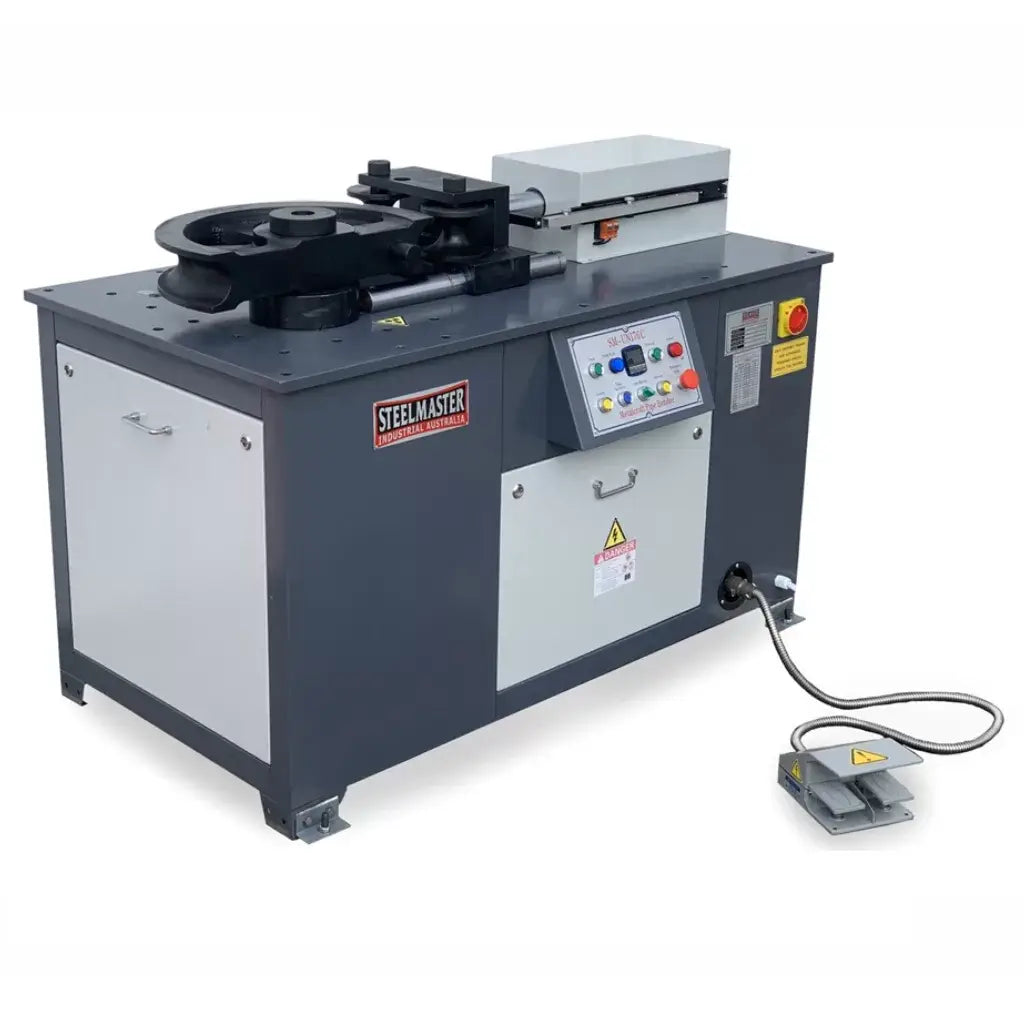

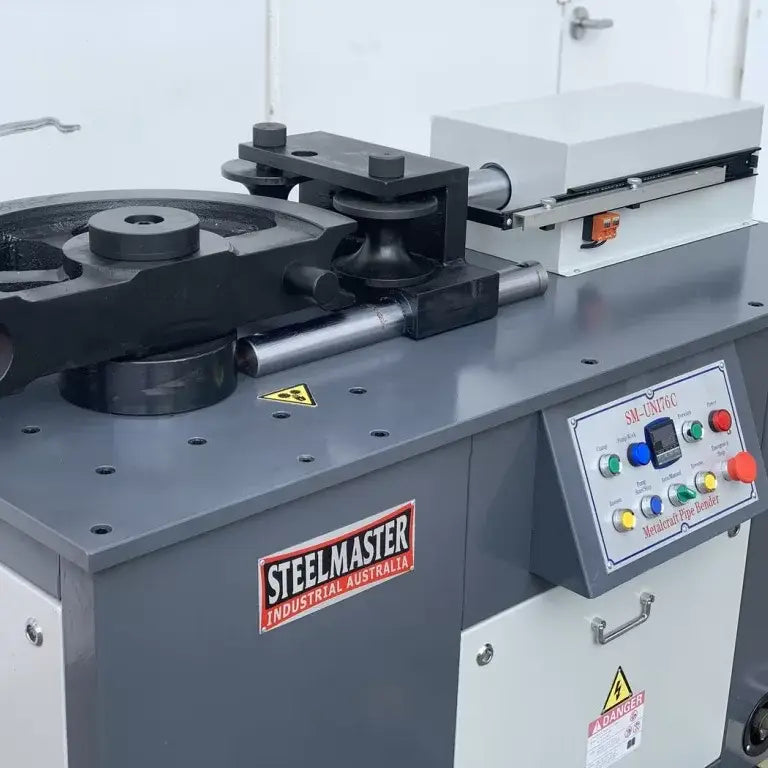

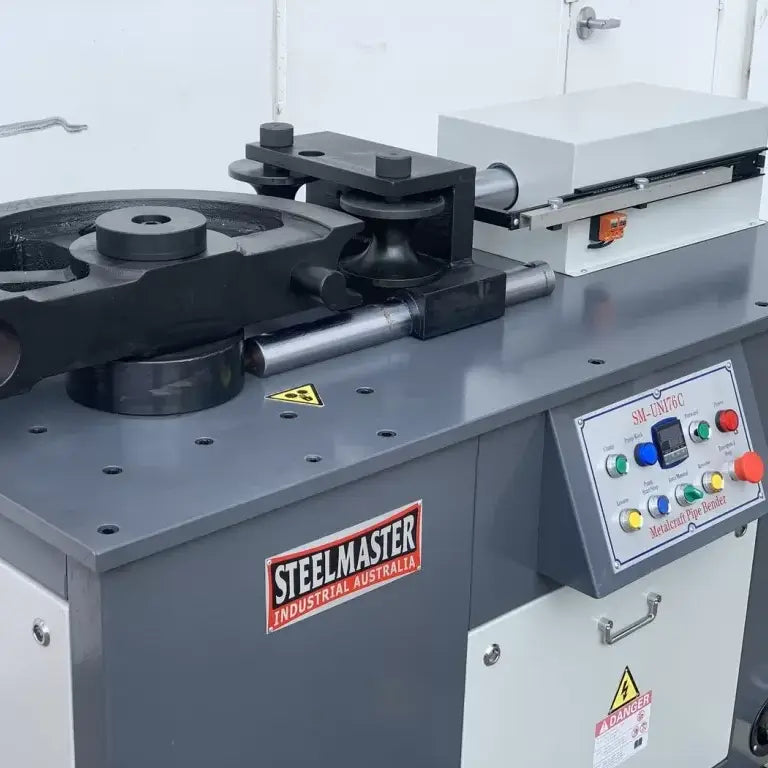

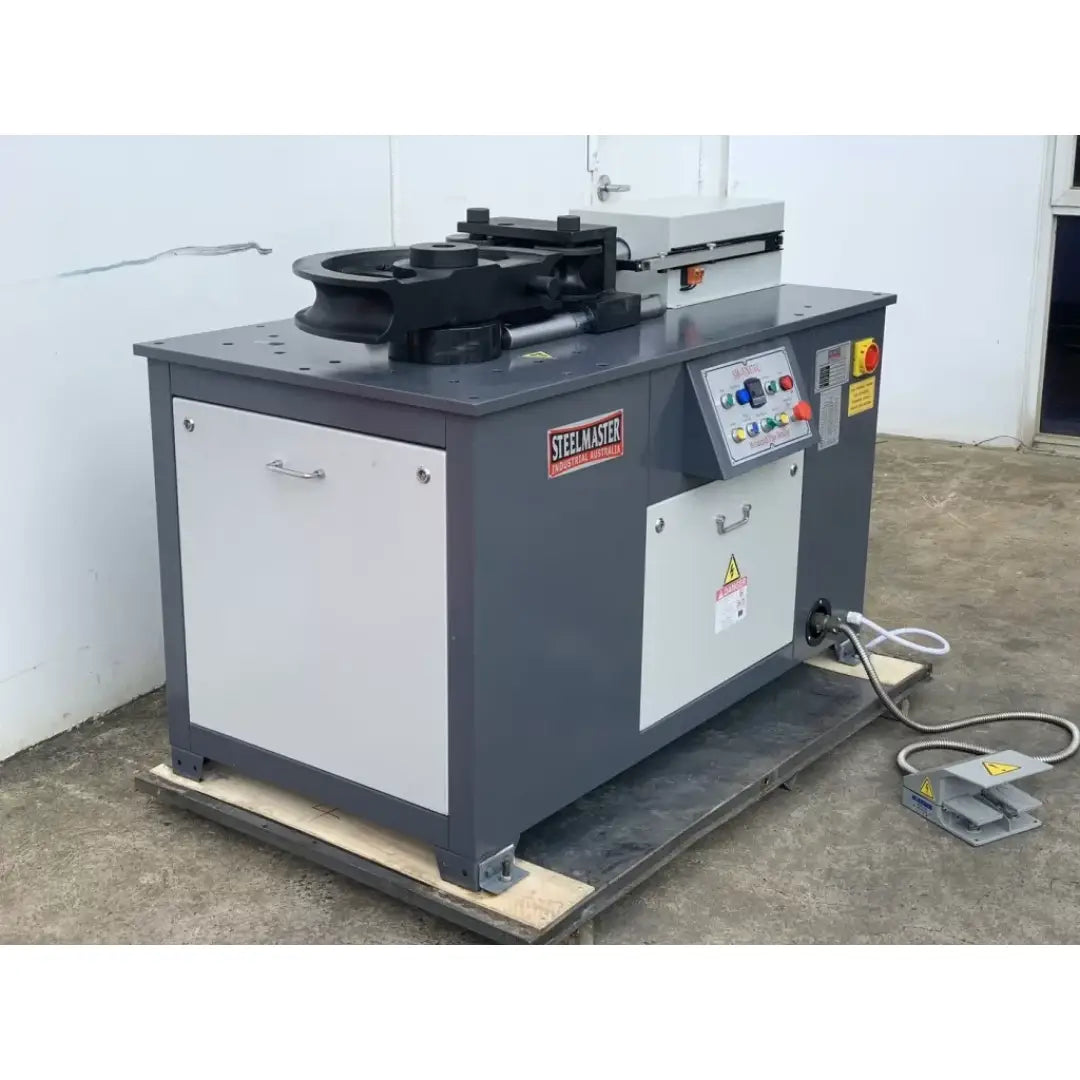

SM-UNI76C Tube & Pipe Bender, 76mm capacity, with hydraulic clamping and digital angle setting. Includes 4 tooling sets (48.3mm, 60.3mm, 76.2mm Round; 50mm Square). 415V.
Technical Data

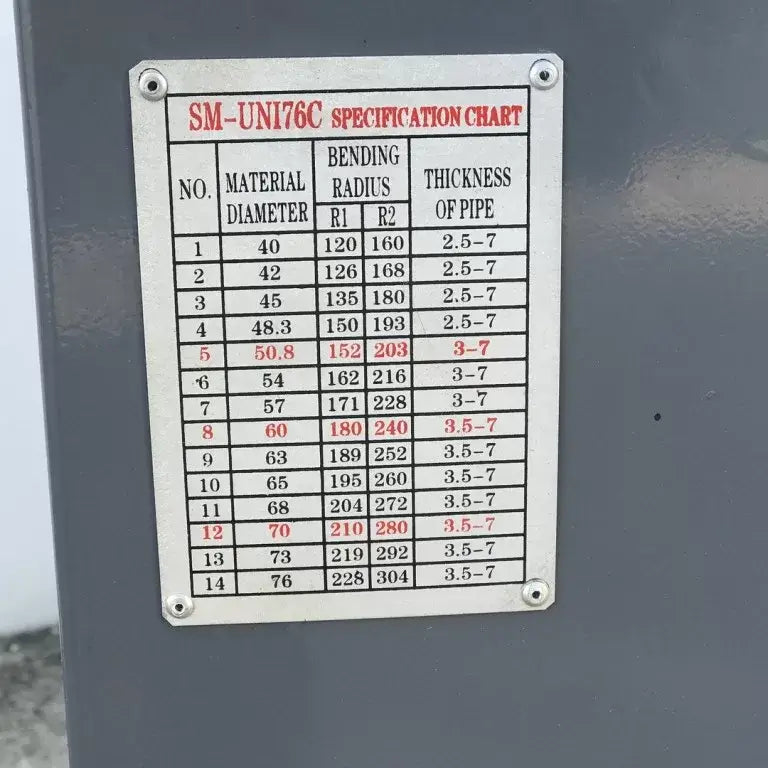

76mm x 2mm ~ 7mm bending capacity
0 ~ 180 bending range
Shipping dimensions – 1550mm x 700mm x 1100mm
Power – 415V 5.5Kw
Approx weight: 750kg
Product Features
76mm Mild Steel Capacity.

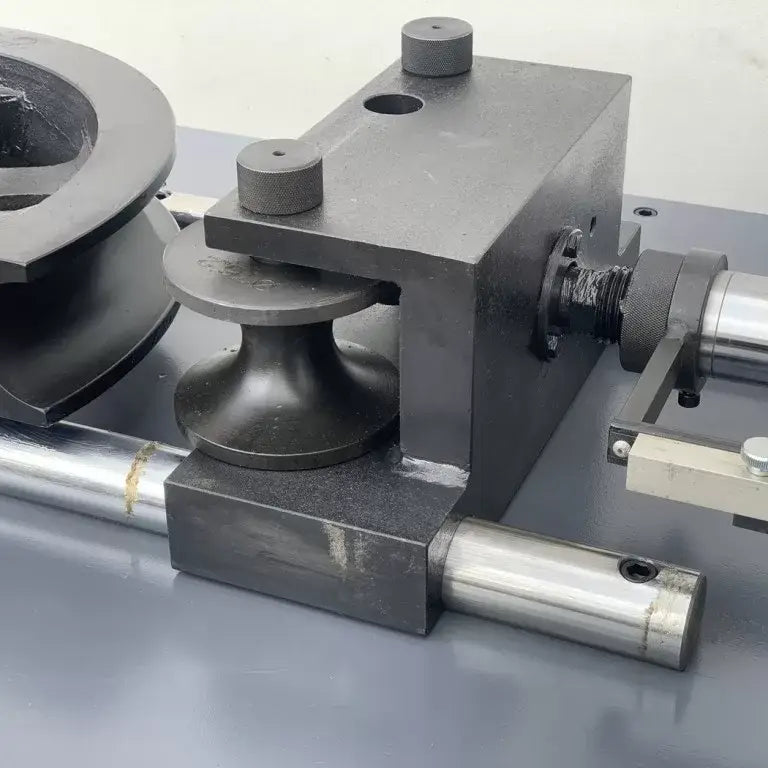

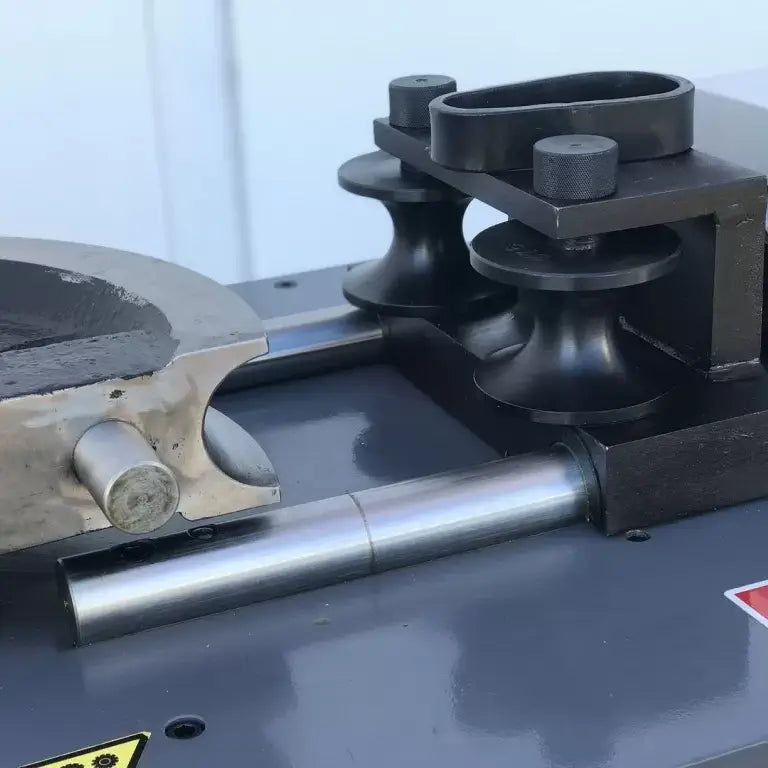

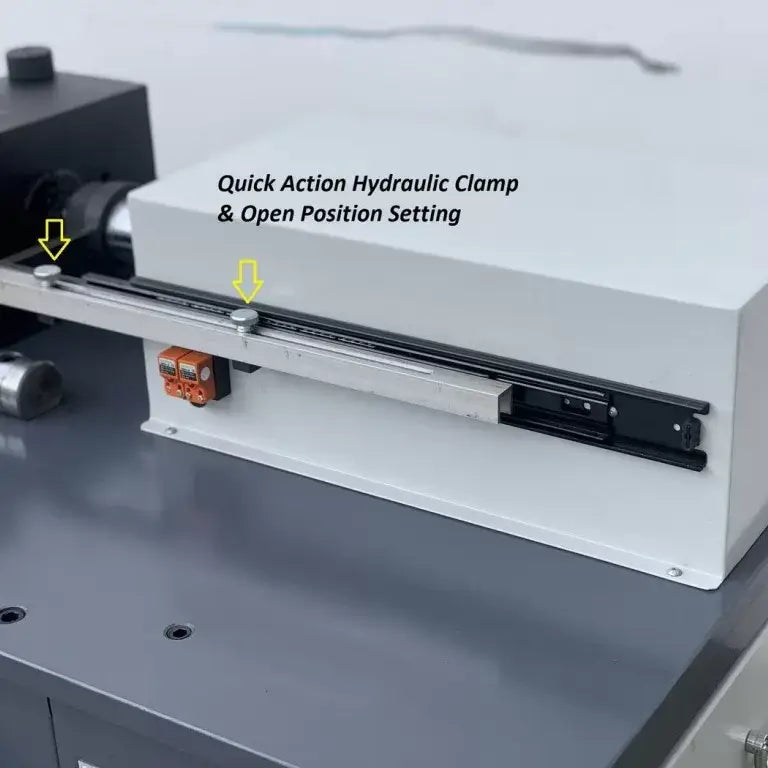

Hydraulic clamp & release operation.
Heavy Duty Steel Plate Construction.
4 Sets Tooling Included comprising.

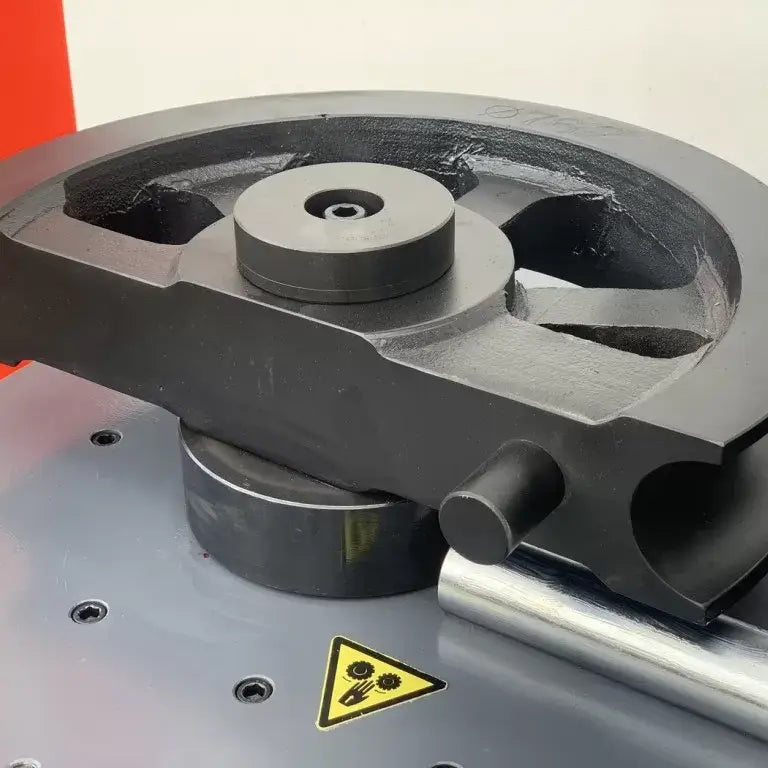

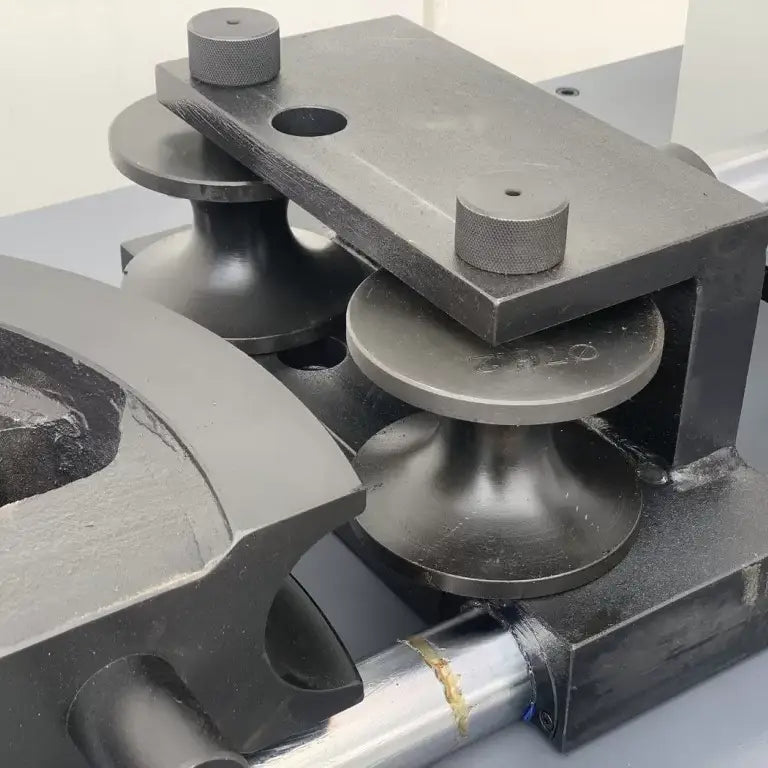

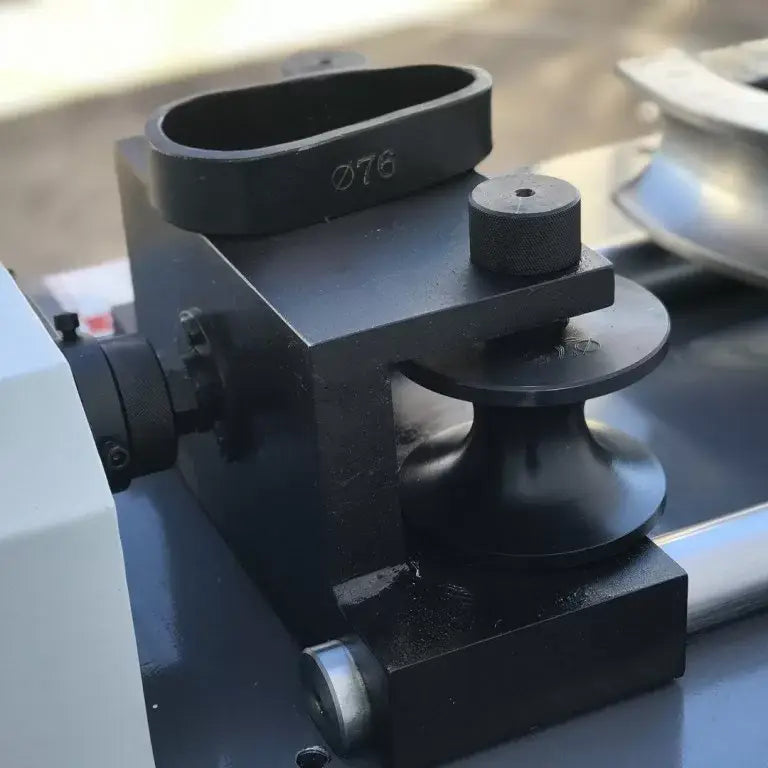

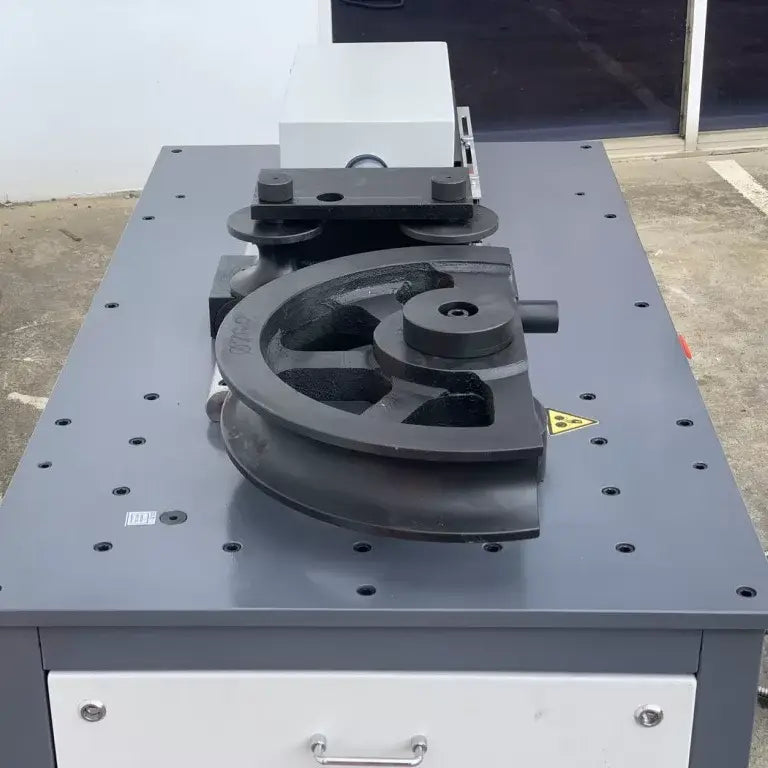

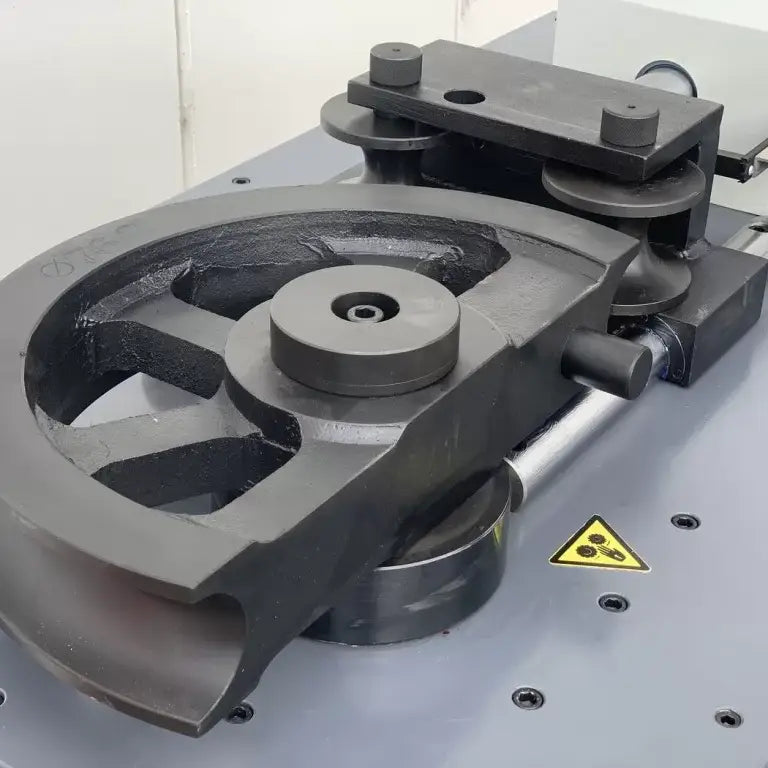

Round Formers: 40NB – OD 48.3mm, 50NB – OD 60.3mm, 76mm Round & 50mm Square.
Special stainless formers available for 38.1mm & 50.8mm
Many Other Tooling Selections In Stock from NB15 (21.3mm) & 25mm Square & above

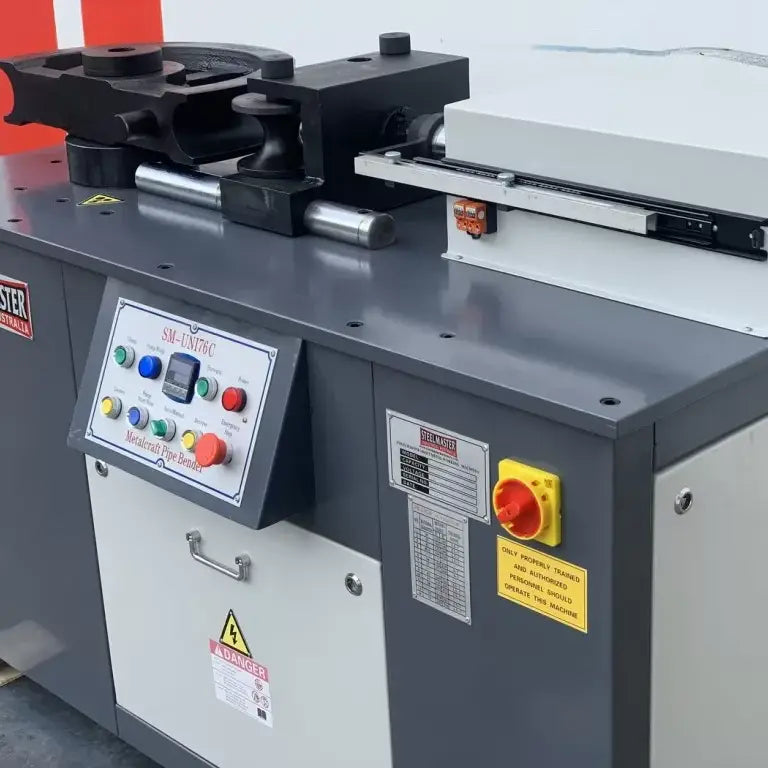

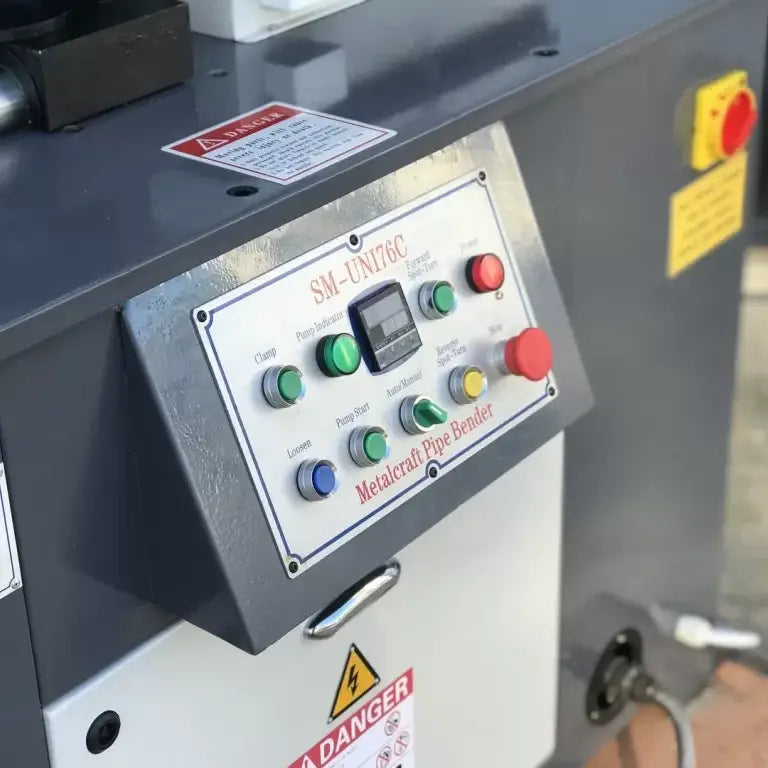

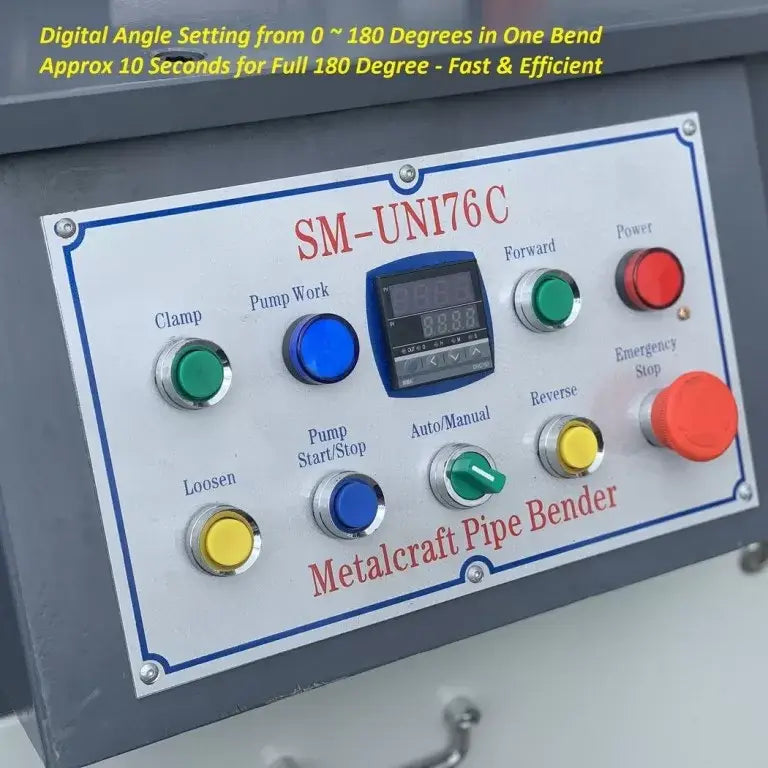

Easy Set Digital Angle Controller in Auto or Jobbing.
Twin Foot Pedal Operation.
Includes Sturdy Cabinet with Storage Area.
