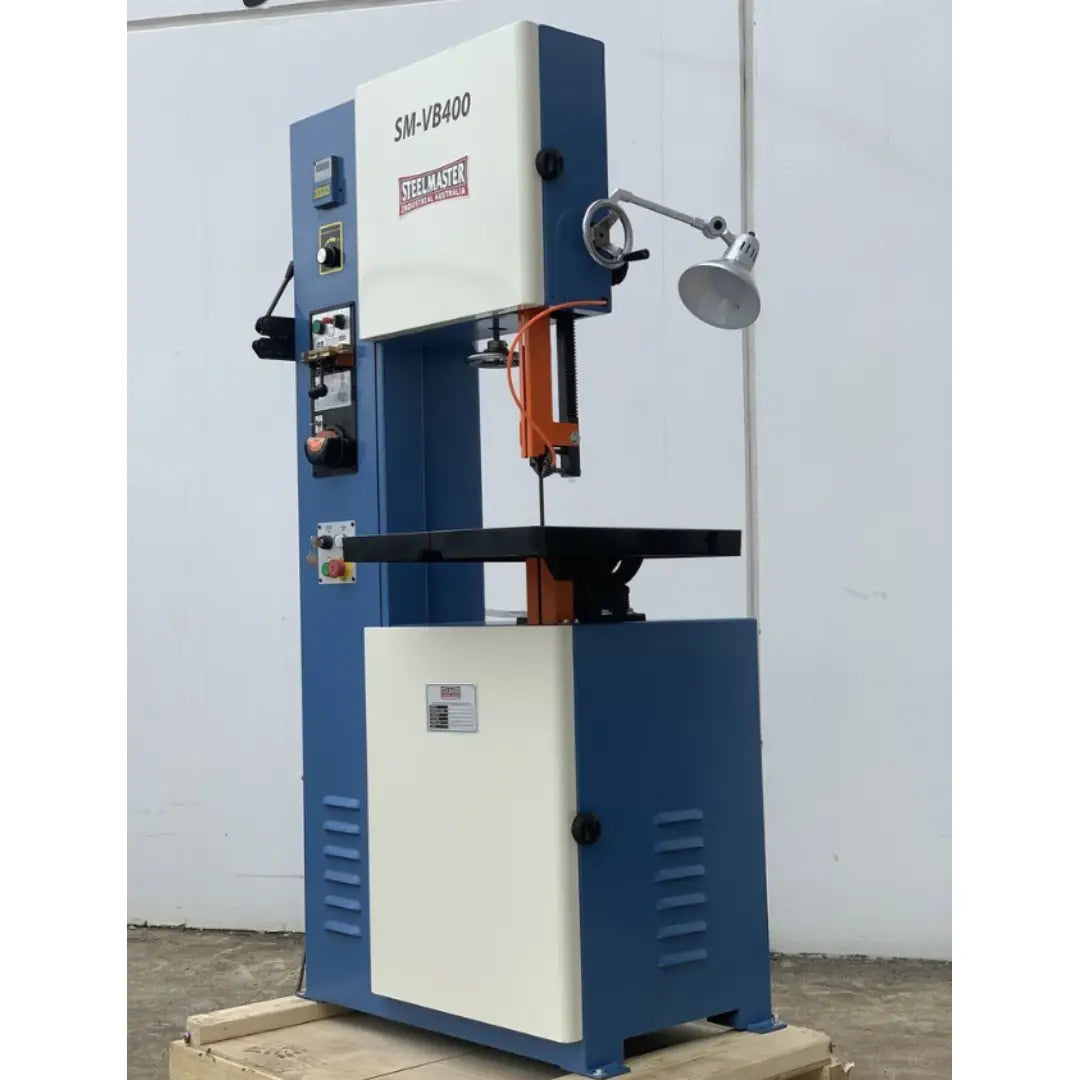

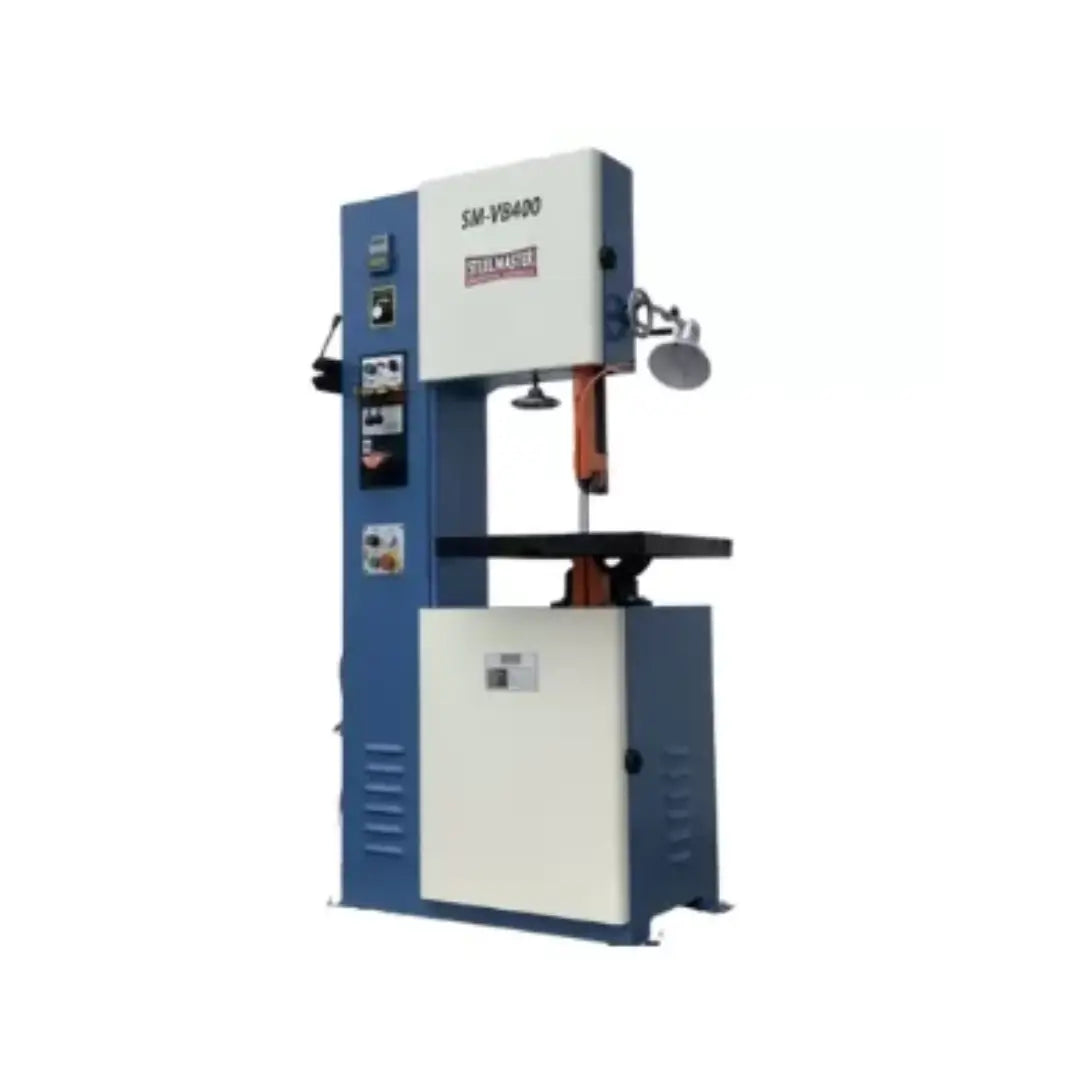

Steelmaster SM-VB400 Vertical Bandsaw 400mm Deep Throat Tilting Table

Name: Steelmaster SM-VB400 Vertical Bandsaw 400mm Deep Throat Tilting Table
Brand: Steelmaster Industrial
SKU: 15-0202
Price: 8850.00 AUD
Availability: InStock

PRICE EX GST

$8,850.00

PRICE INC GST

$9,735.00

MODEL NUMBER: SM-VB400-VERTICAL-BANDSAWSM-VB400-VERTICAL-BANDSAW

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

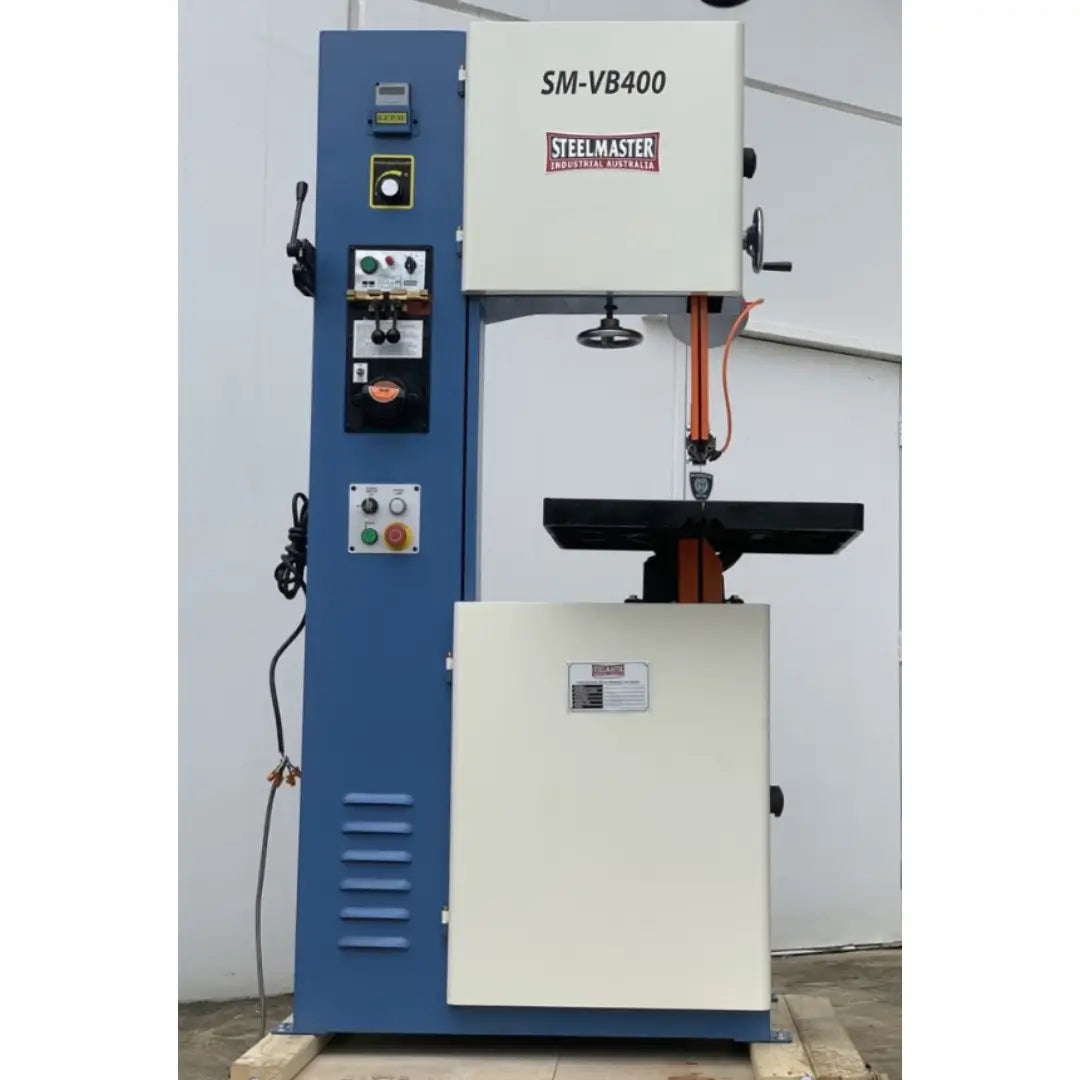

Complete Steelmaster SM-VB400 Vertical Bandsaw featuring a 400mm deep throat capacity and a versatile tilting table.

CUTTING CAPACITY

450mm

PRODUCT FEATURES

Torsion proof steel frame construction

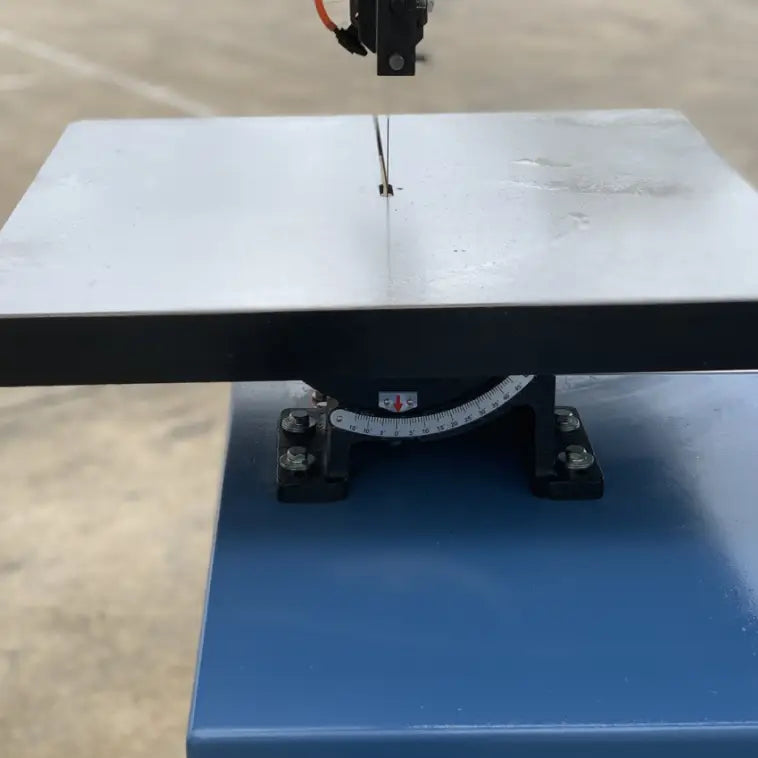

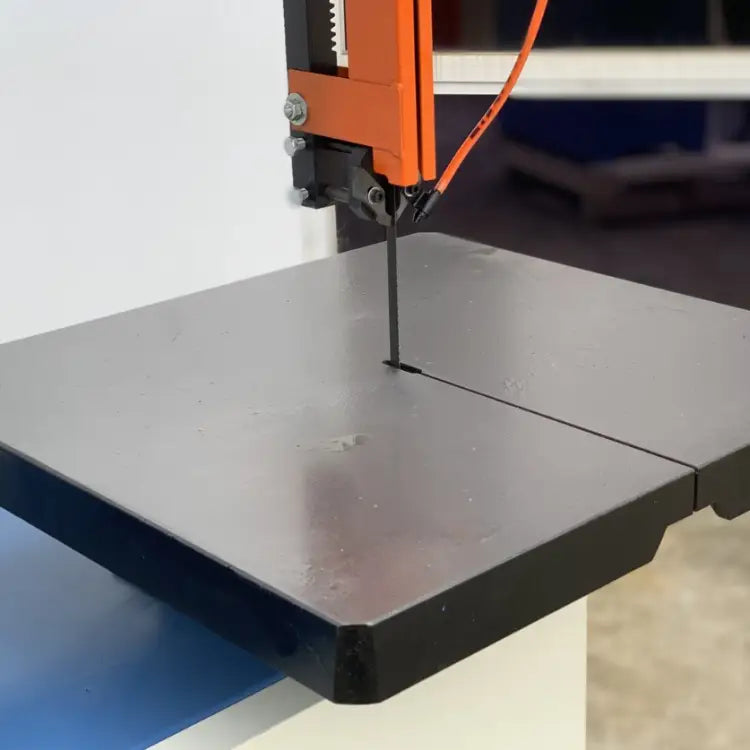

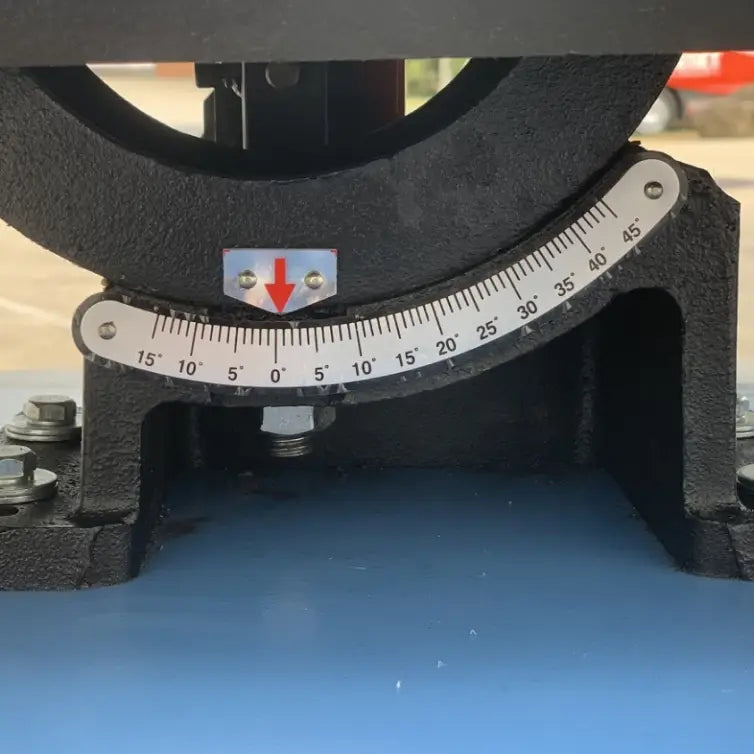

Heavy duty cast-iron tilting table

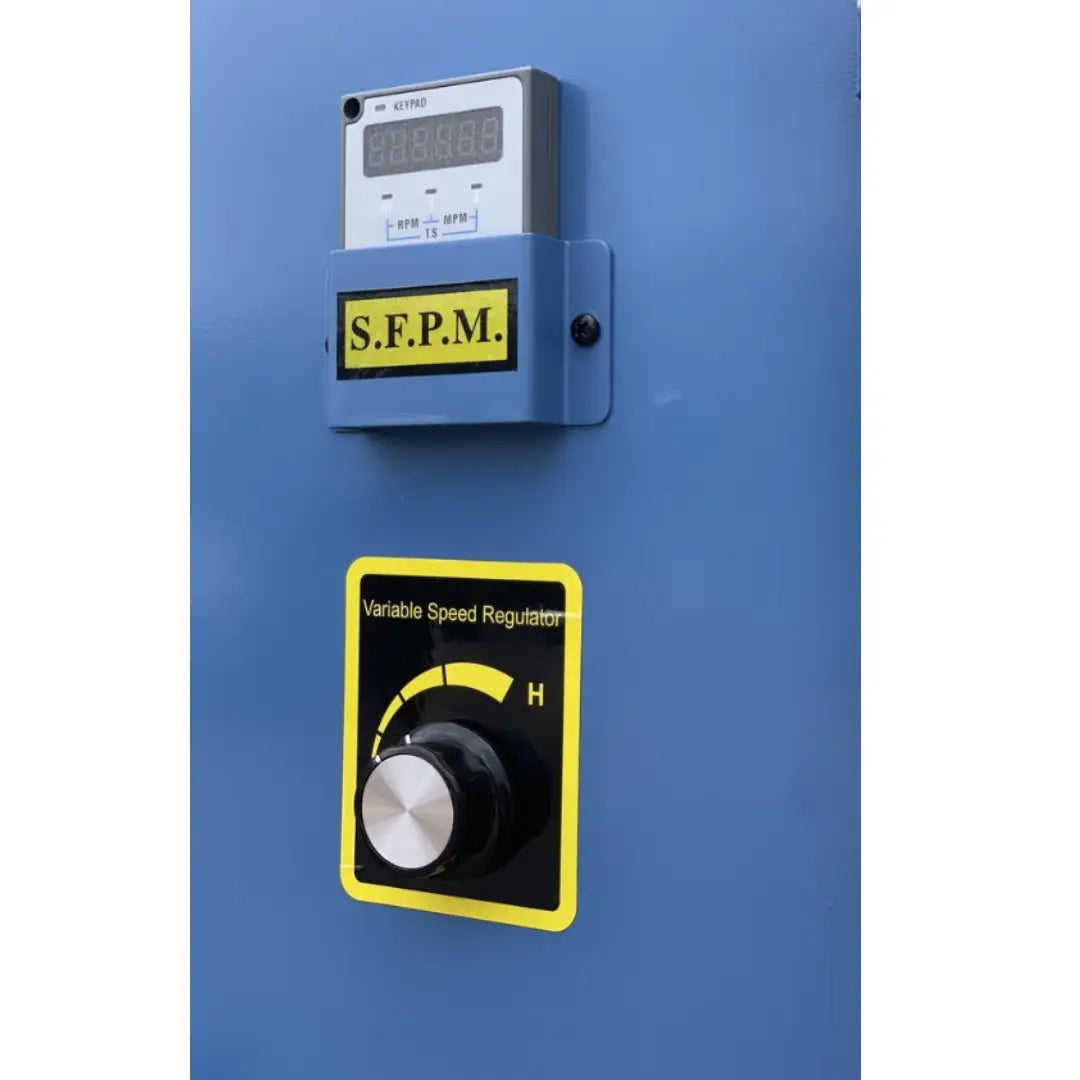

Infinitely variable speed operation
Speed levels are shifted through an oil bath lubricated gear drive
Deep throat capacity up to 500 mm

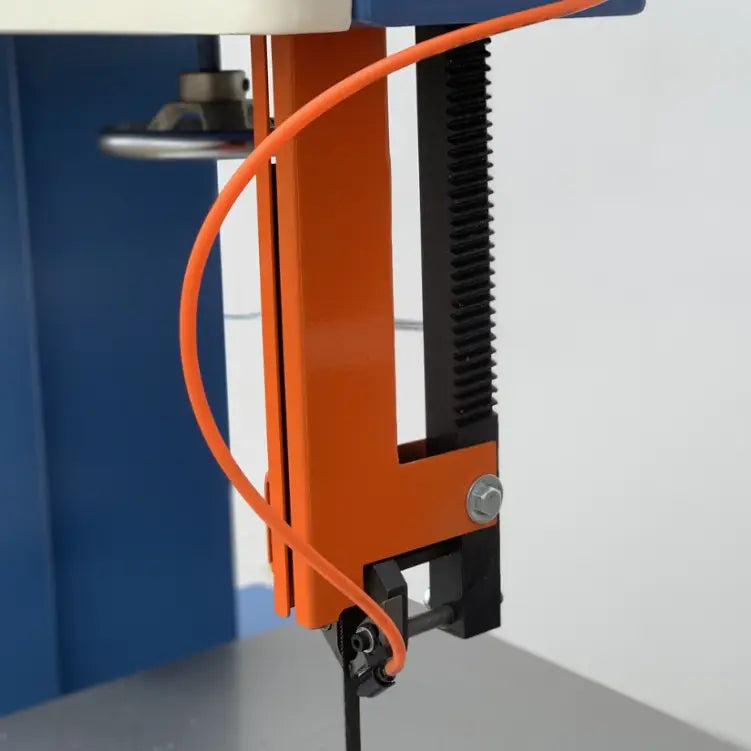

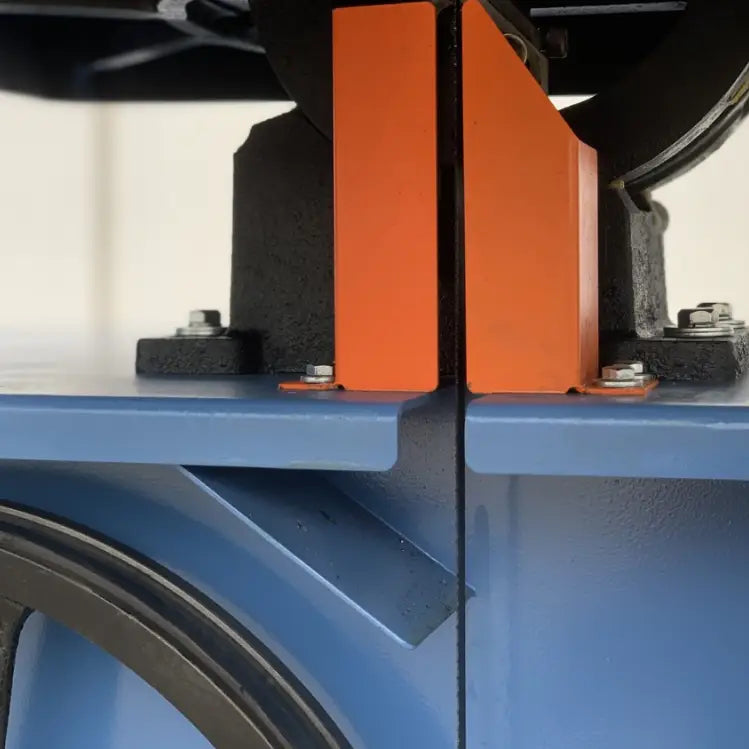

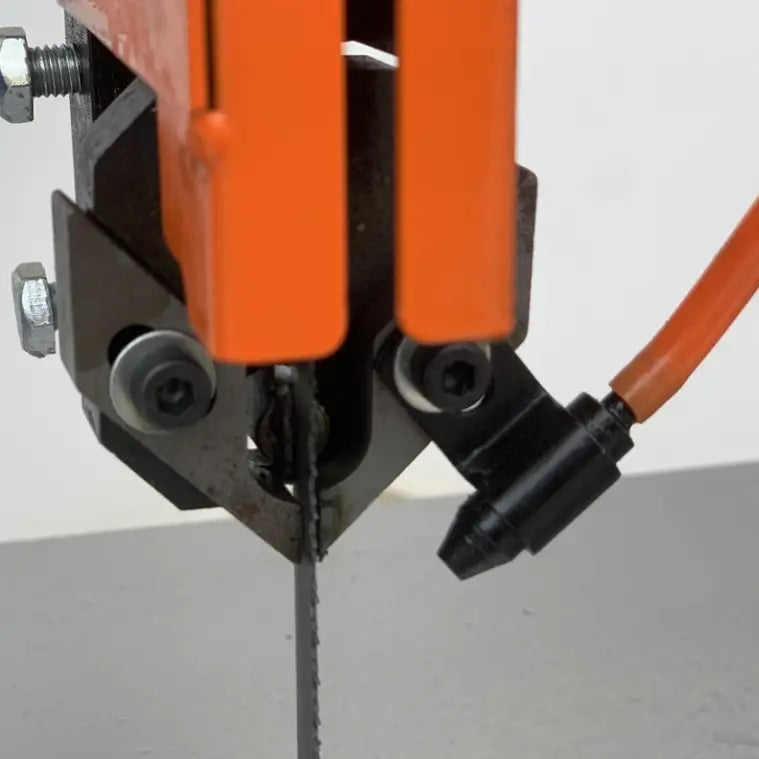

Top and bottom precision blade guides, tungsten carbide tipped

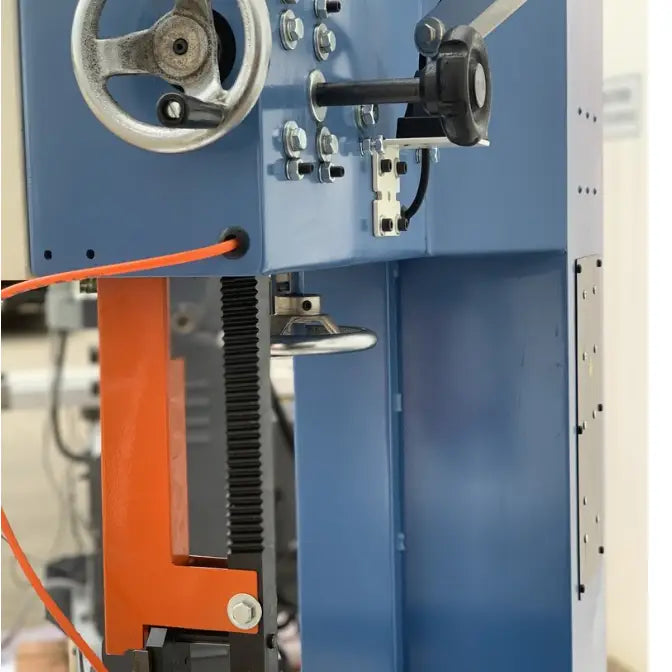

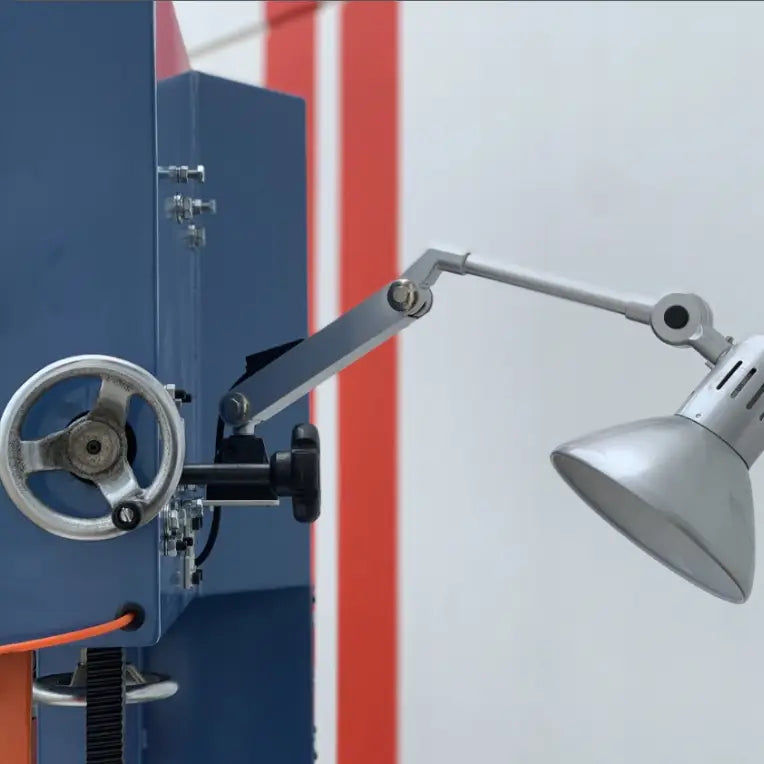

Top blade guide adjustment via hand wheel
Blade tensioning and blade travel alignment via hand wheel

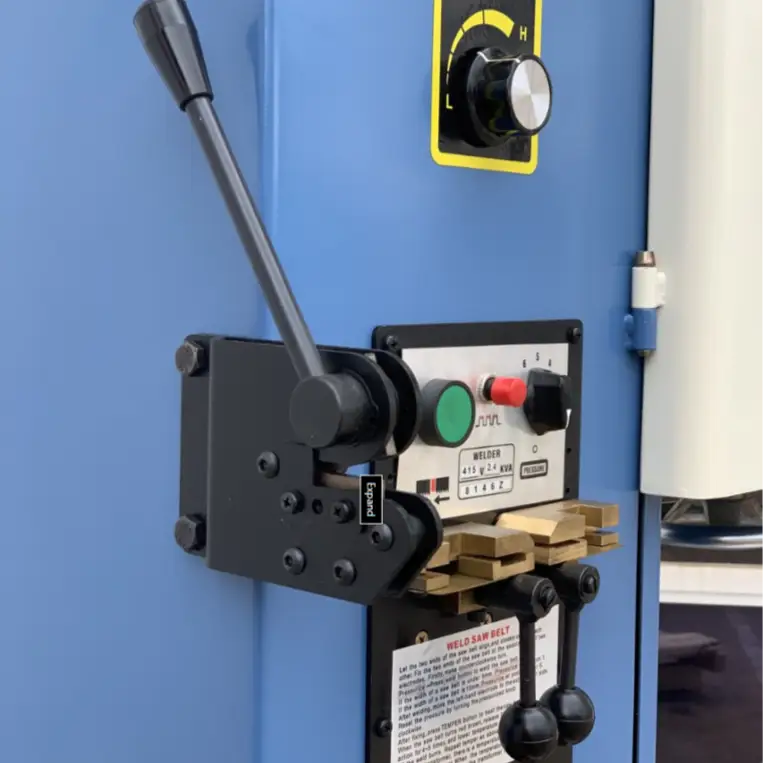

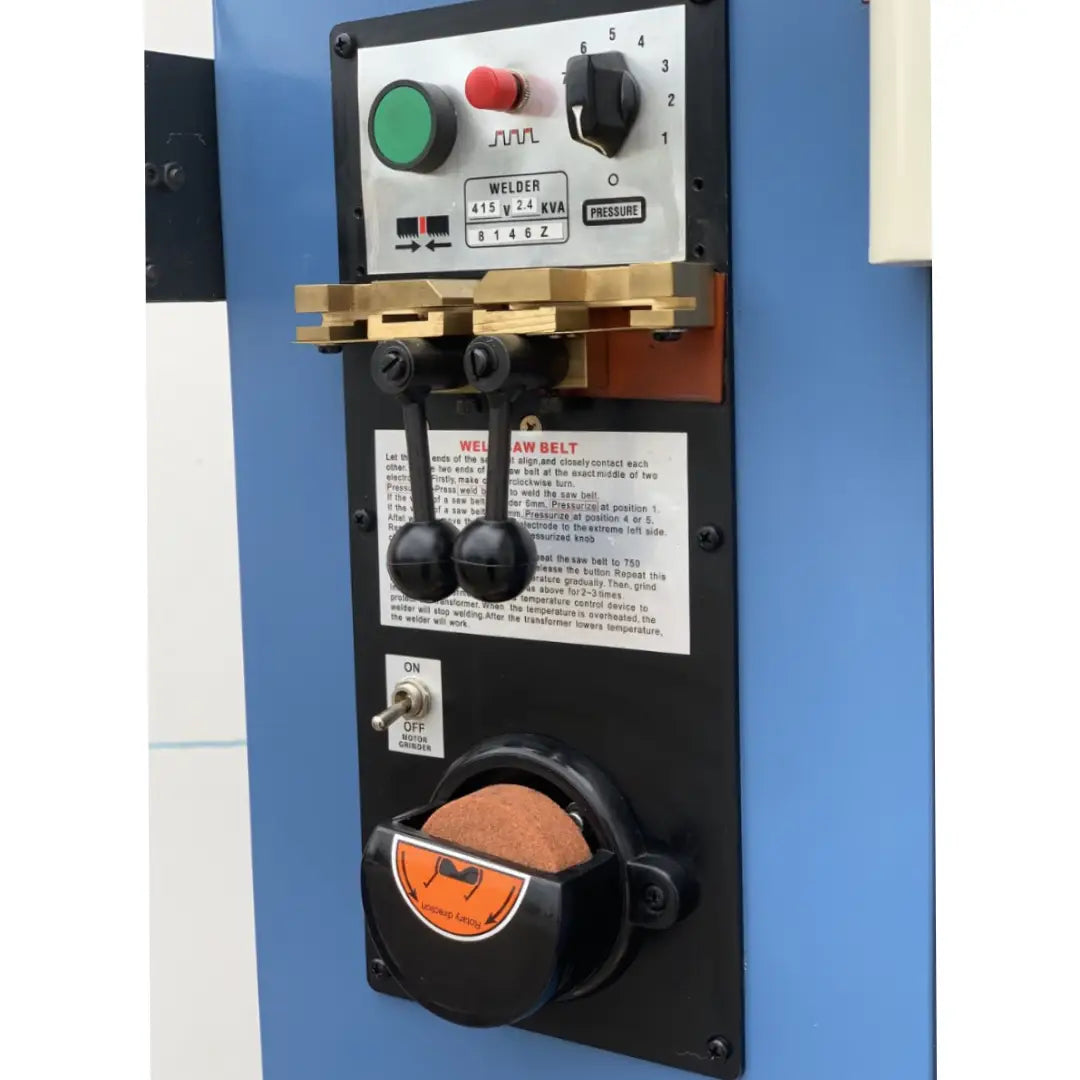

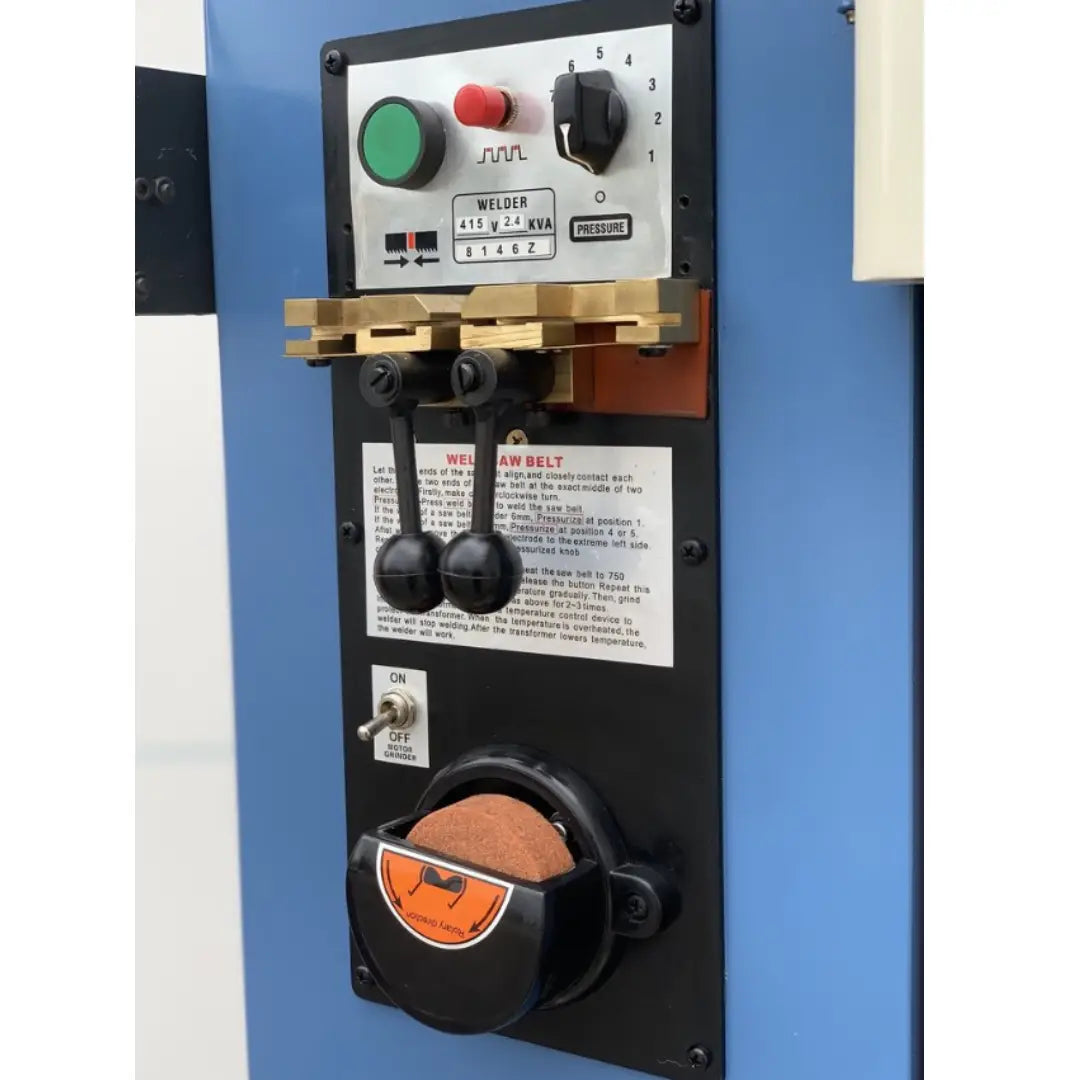

Butt welder with annealing device

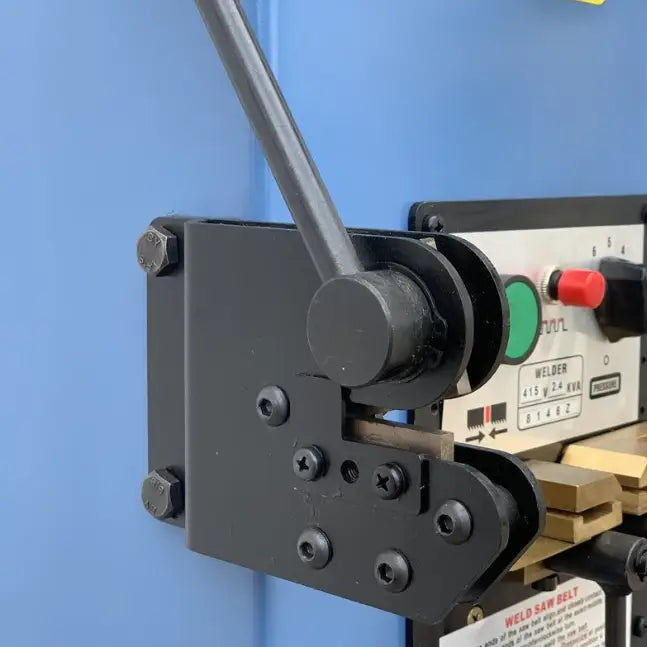

Manual blade shear and grinding wheel
Pneumatic swarf blower
Tool box and operation manual
CE compliant

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

Throat Capacity – 450mm
Open Height – 360mm
Table Size – 600 x 550mm
Working Table Height – 1010mm
Speeds – 16-96m/min
Blade Size – 3365mm x 10mm x 0.65mm
Welder Capacity – 3-16mm
Motor – 1.5Kw / 415V
Weight – 450kg
Shipping Dimensions: 950mm x 750mm x 1850mm x 4801Kg
