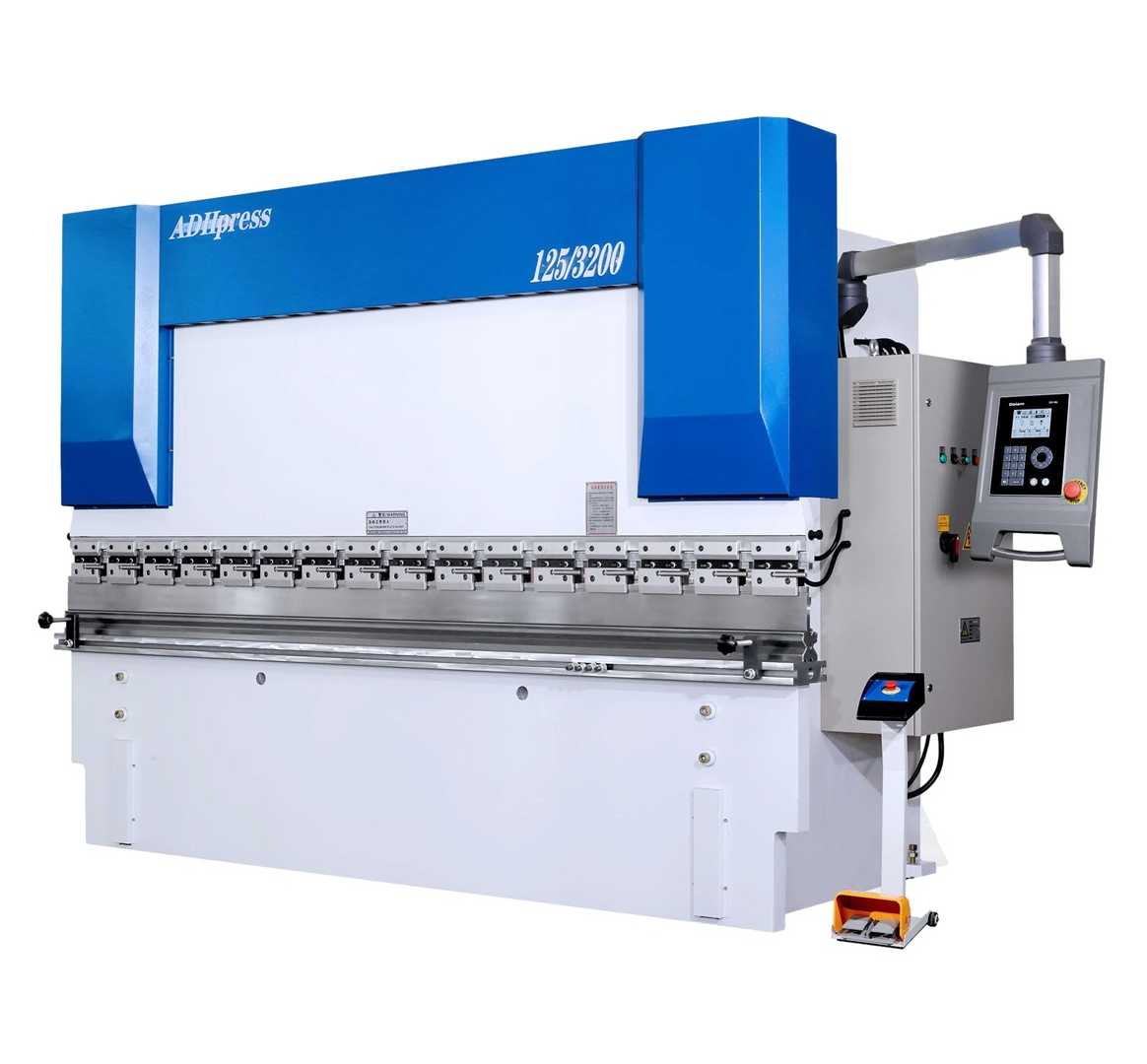

Steelmaster ADH PB125/3200MB7, NC Pressbrake. 3200mm x 125Ton. 2 Axis NC Estun E21, DSP Laser Guards. Top & Bottom Tooling, Ball Screw Back Gauge on Linear Guides, E-Stop, 415v.

hydraulic synchronised positive stop design, electronically controlled by Estun NC programmable controller assuring accurate repeatability and ease of use.
deep side throats and wider distances between the vertical frames offering you more application scope.
segmented heavy duty 86° offset top tool, segmented for return bend clearance.
full length Multi Vee bottom block with a smart selection of openings also including safety edge vee (‘V’) for over bending.
power operated back gauge with quality support fingers also with vertical adjustment
front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.
conveniently mounted control box on pendant for quick swivel and adjustments.
integrated hydraulic system allowing rapid approach switching automatically to slow bend.
modern designed pendant foot pedal operation with stainless braided cable.
variable hydraulic pressure control valving fitted standard
safety and material selection bending charts mounted on front beam for easy access.
supplied pre commissioned prior to delivery
pre commissioned prior to delivery
CE compliant

90mm x 90mm x 4000mm Multi Vee Bottom Vee Block & Cradle
Segmented Top Offset Goose Neck Tooling With Scalloped Horned Ends

2 x Axis Etsun E21 NC Controller for Depth & Back Gauge
63 Ton Bending Capacity
precision ball screw Backgauge
tee slotted front beam
2500mm Bending Length
2050mm Distance Between Frames
250mm Side Throat Depth
120mm Ram Stroke
340mm Open Height
600mm Back Gauge Travel
5.5Kw / 415V Motor Power
2500mm x 1350mm x 2100mm Footprint
4500Kg Weight
