Steelmaster Industrial | SKU: 12+0118

Steelmaster Assembly Stand ISO30 Spindle

Name: Steelmaster Assembly Stand ISO30 Spindle
Brand: Steelmaster Industrial
SKU: 12+0118
Price: 1199.00 AUD
Availability: InStock

PRICE EX GST

$1,199.00

PRICE INC GST

$1,318.90

MODEL NUMBER: STEELMASTER-ASSEMBLY-STAND-ISO30

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

Dedicated assembly stand for ISO30 spindle tool holders, essential for safe tool changes.

PRODUCT FEATURES

Swings 400mm ~ 700mm

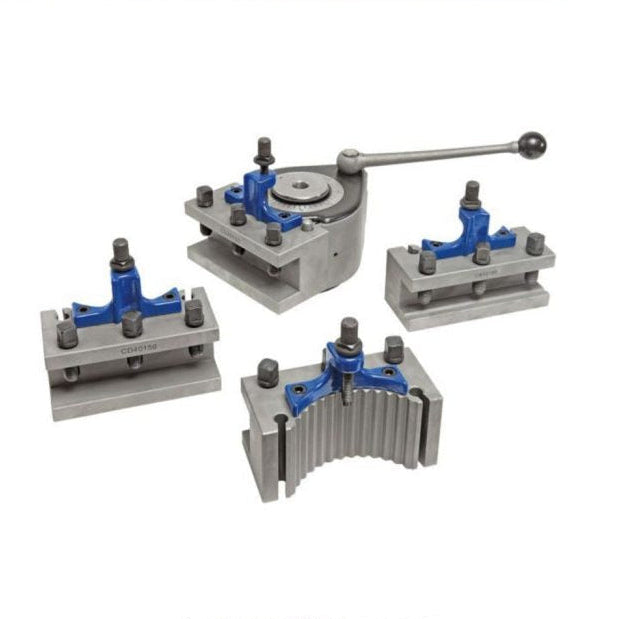

5 piece set comprising tool holder head, 3 x square tool holders & 1 x round tool holder.
Round tool holder Type: H, Series: CH 32-150, Tool Holder: 32mm x 150mm
Square tool holder Type: D, Series: CD 32-150, Tool Holder: 32mm x 150mm
our European quick change tool holders are compatible with all popular model lathes
tool holders are fixed against the central bodies gears by means of 2 chuck halves and an eccentric bolt
repeating accuracy 0.01mm
40 different angular positions
height adjustment via knurled screw
angle scale displayed on head

Steelmaster Assembly Stand ISO30 Spindle
