Steelmaster Industrial
CNC Plasma Cutter – STEELMASTER BLAZE - 1250mm x 1250mm Table, Fastcam CNC Software System,
Sale price
$11,950.00
Regular price
$14,850.00
Unit price
Unavailable

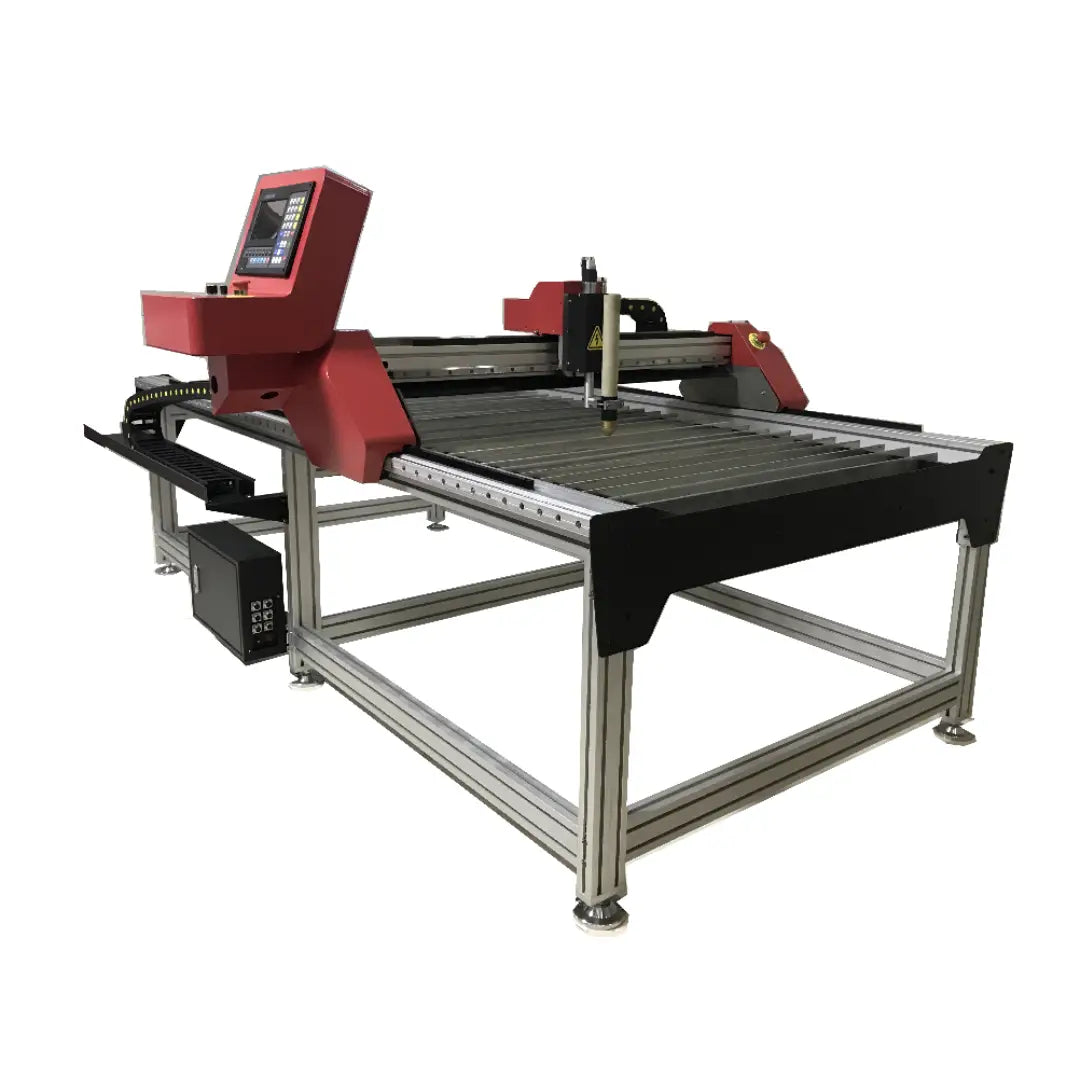

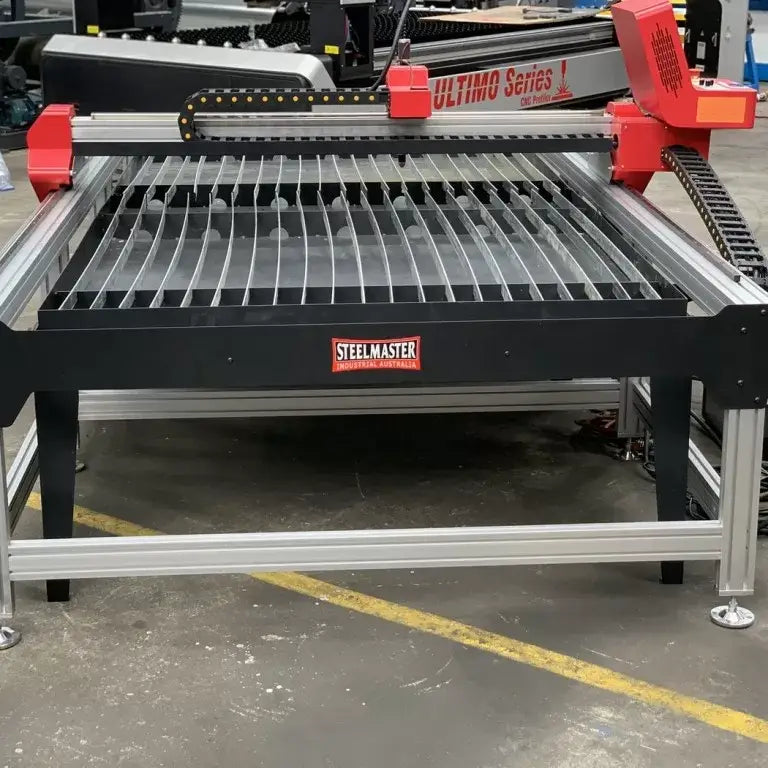

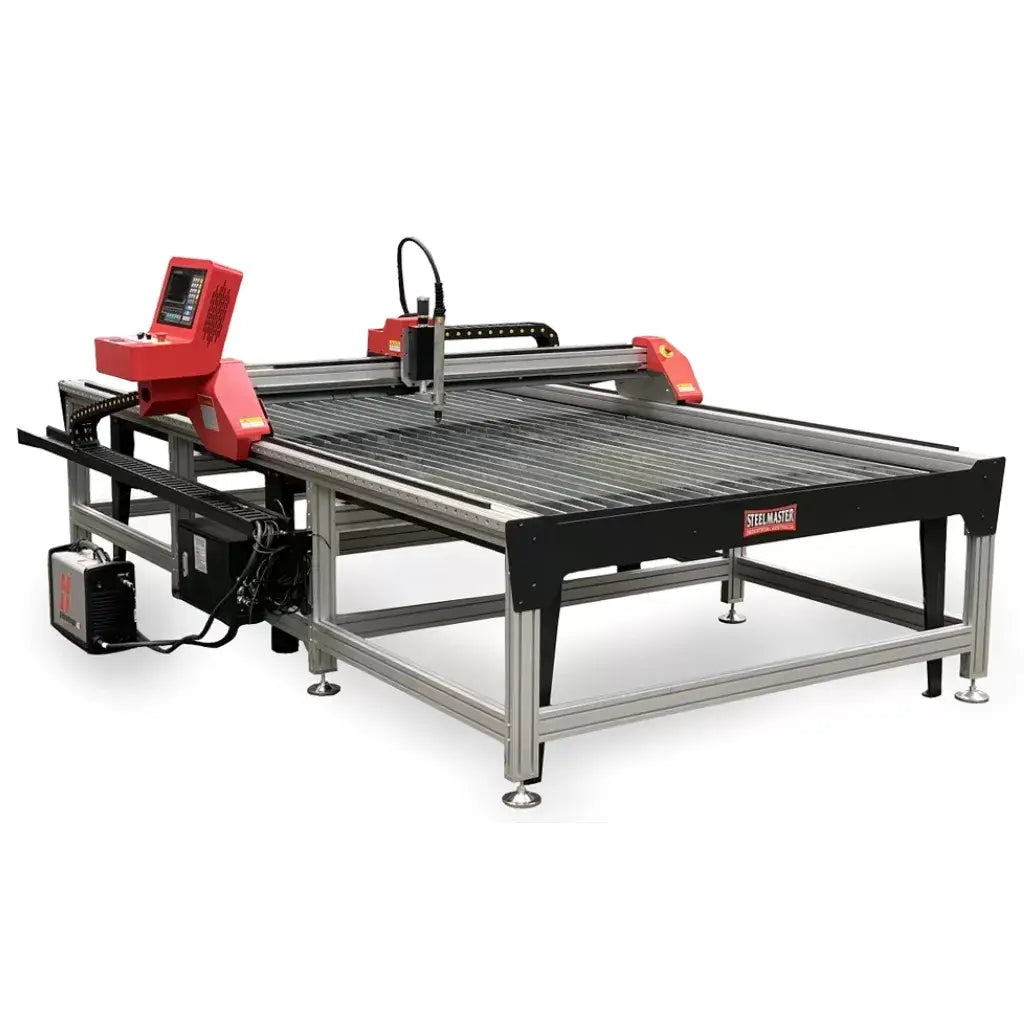

The Steelmaster Blaze CNC Plasma Cutter with a 1250mm x 1250mm table and Fastcam CNC software system.
Technical Data
Cutting area – 1200mm x 1200mm
Z travel – 100mm
MAX cutting speed – 6,000mm / min
Accuracy – 0.2mm
Plasma torch diameter – 35mm
Work mode of plasma – non contact ignition
Effective cutting area – 1200mm x 1200mm
Machine footprint – 1500mm x 1800mm
Full table 10mm / thicker material in smaller sections is suitable
Crate dimensions – TBAmm x TBAmm x TBAmm (H) x TBAKg
Power source – 415volt
12 month warranty

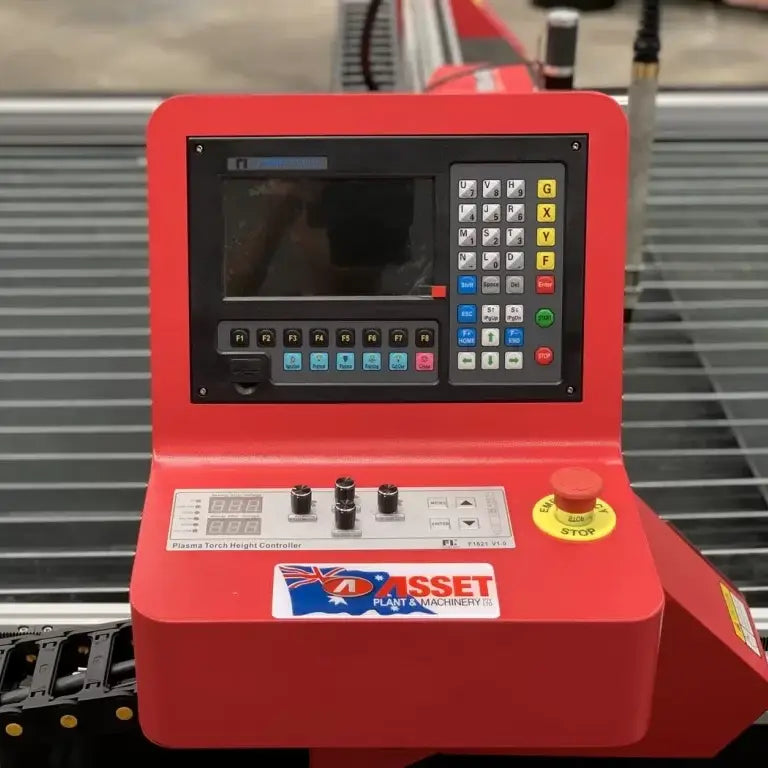

CNC CONTROL & SOFTWARE
Fastcam (Plate)
Save drawings to USB
All popular DXF and DWG files supported

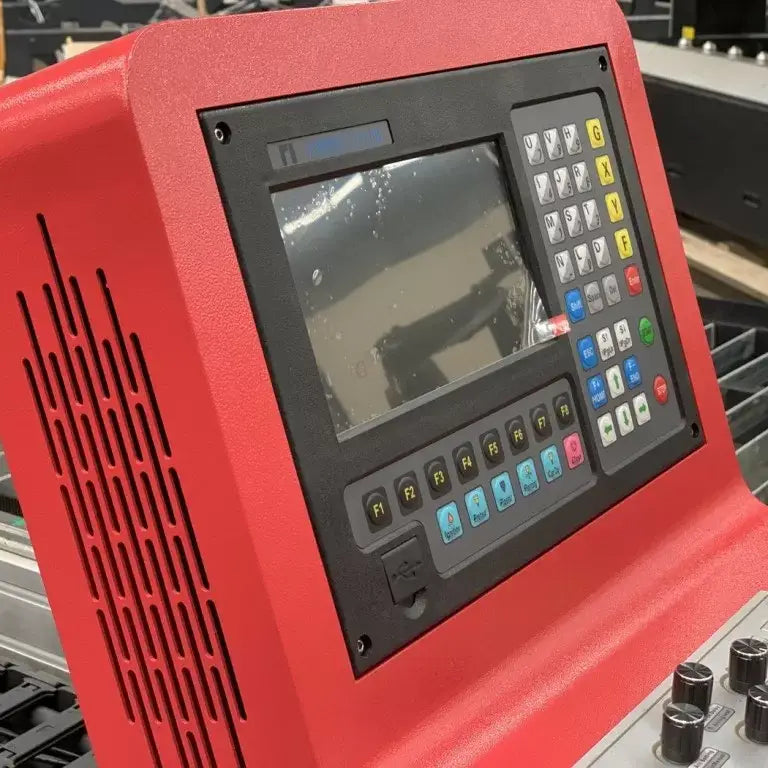

Huge LCD colour display
USB input

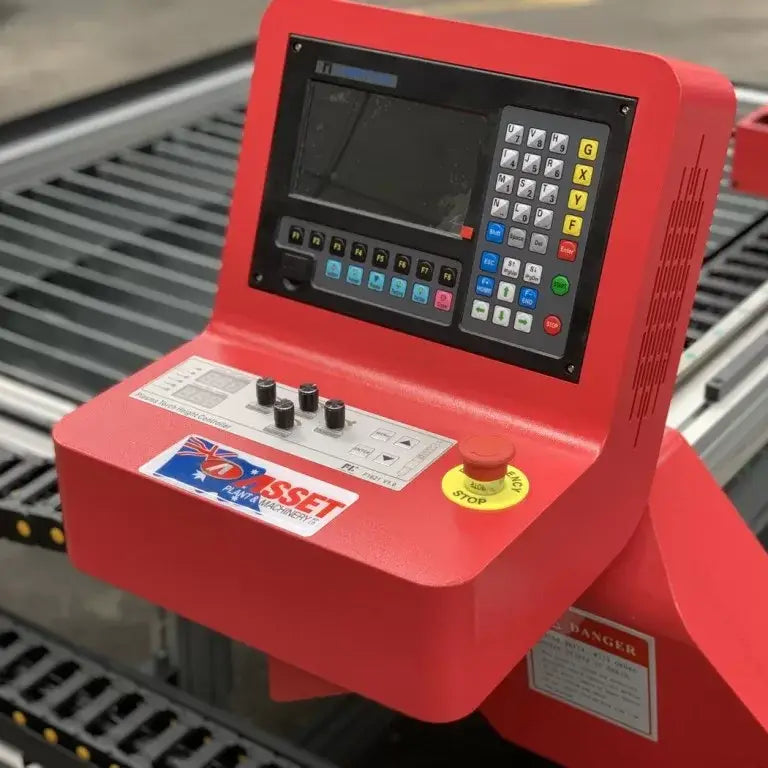

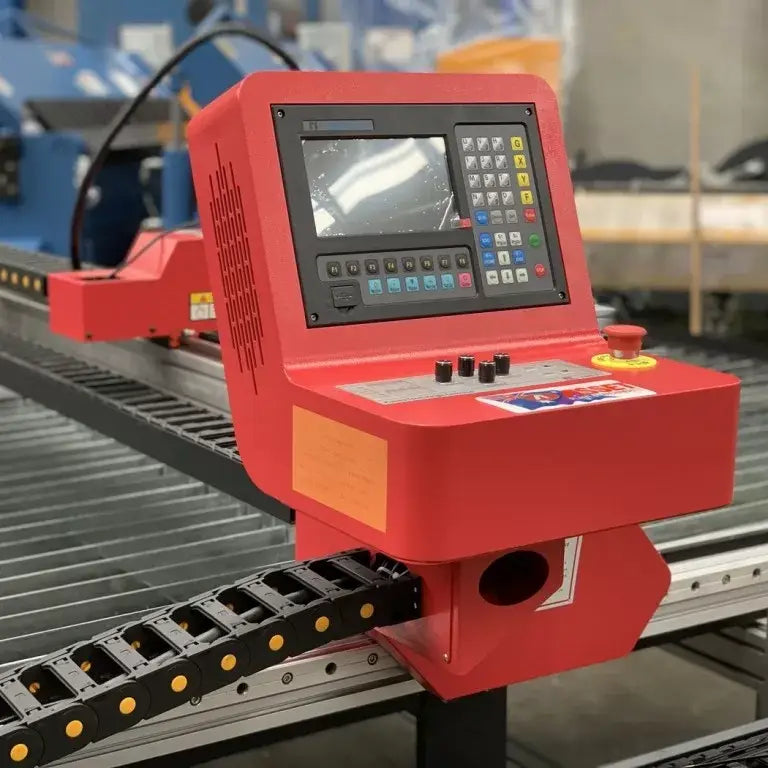

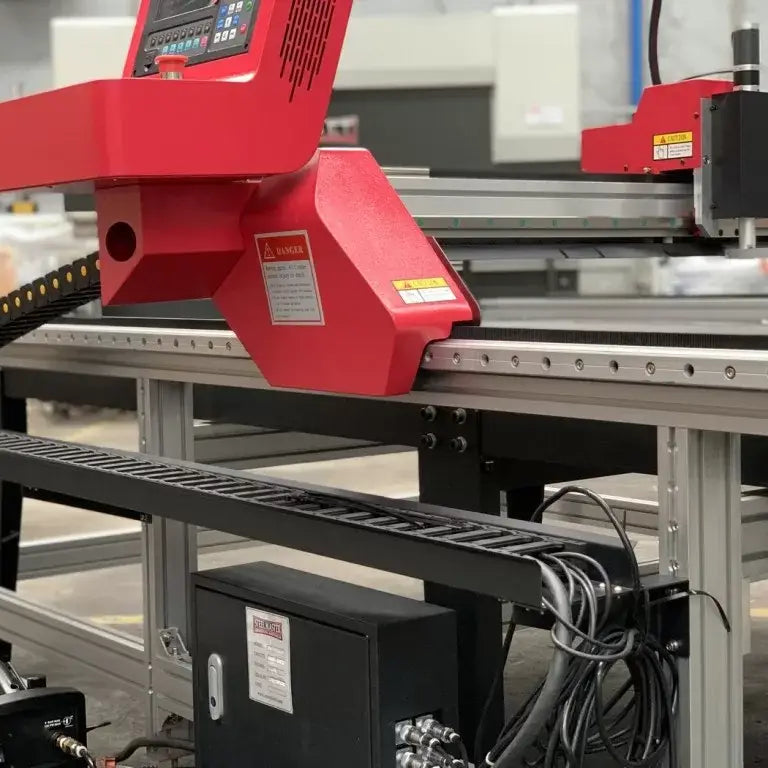

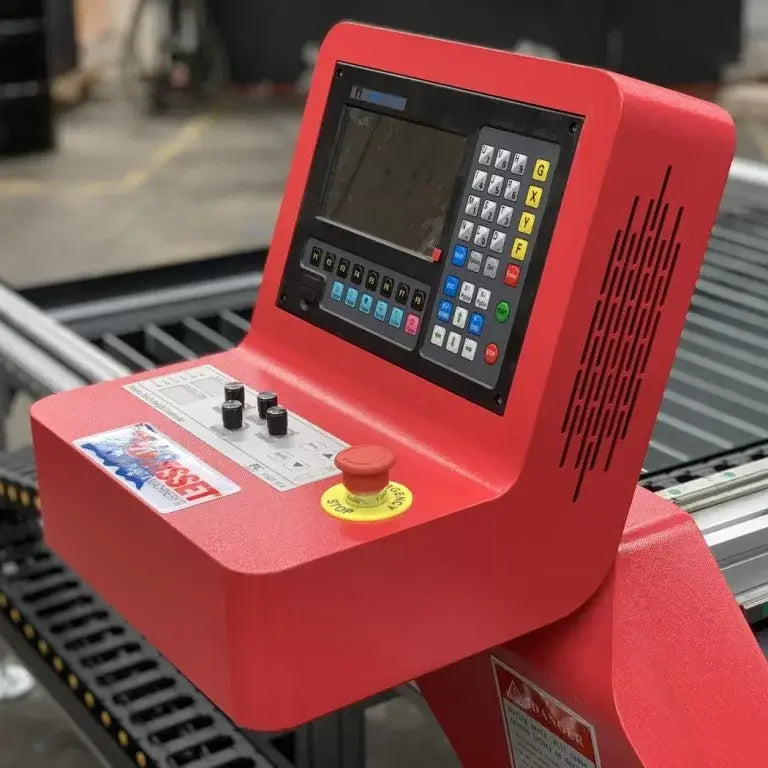

Mobile console
Template library for quick and easy cutting of standard shapes and angles
Real-time cutting path
Product Features

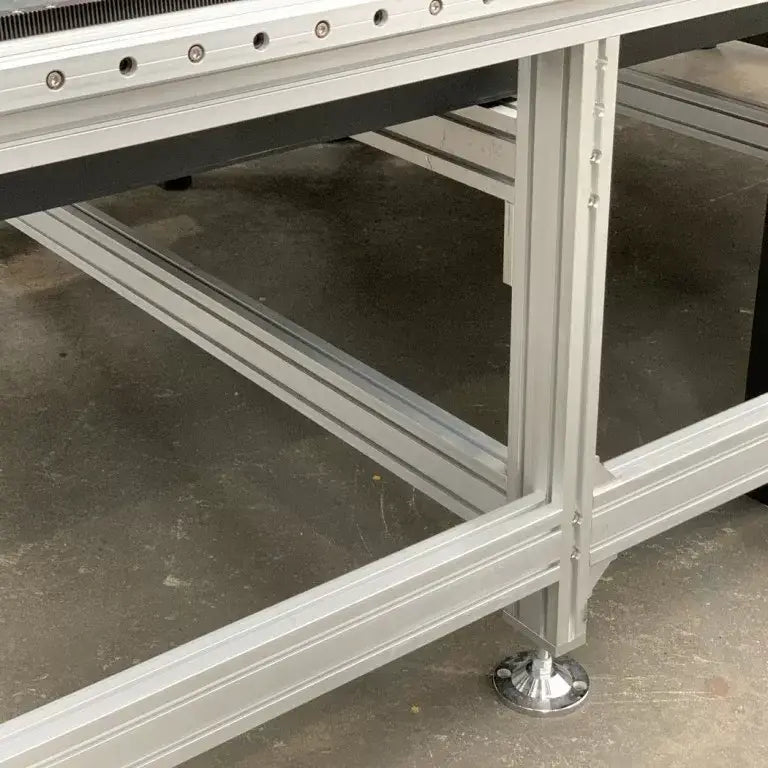

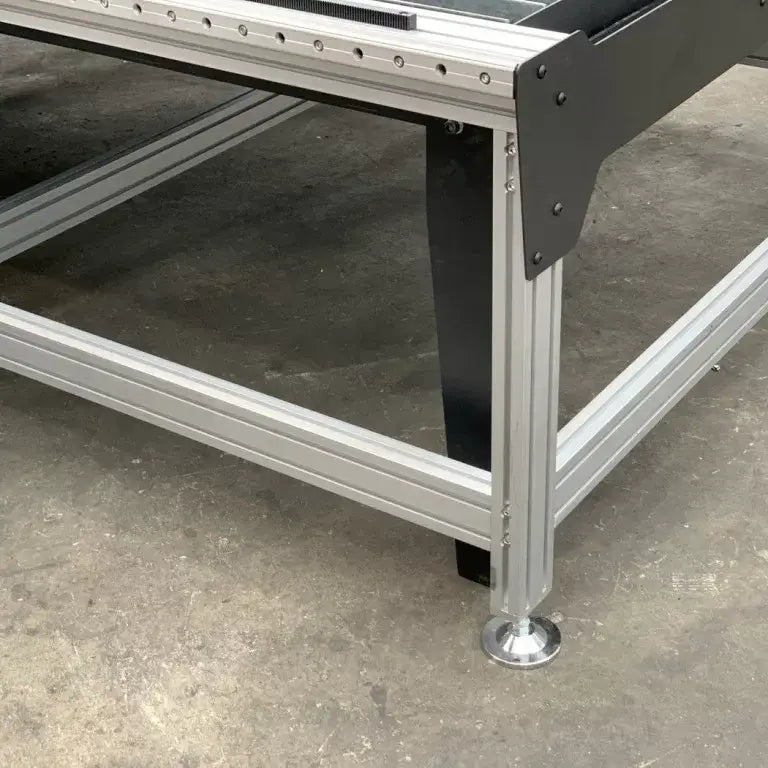

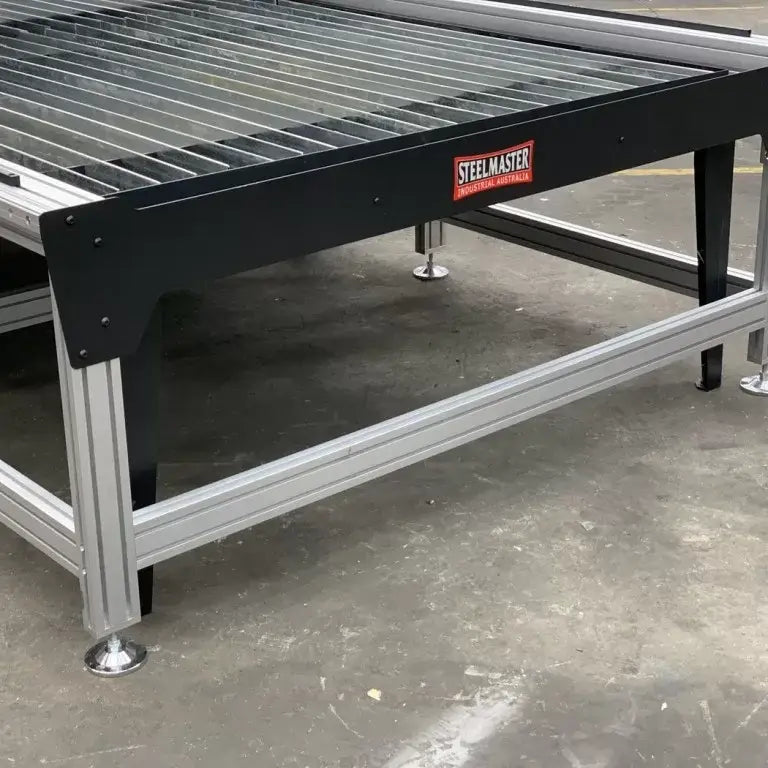

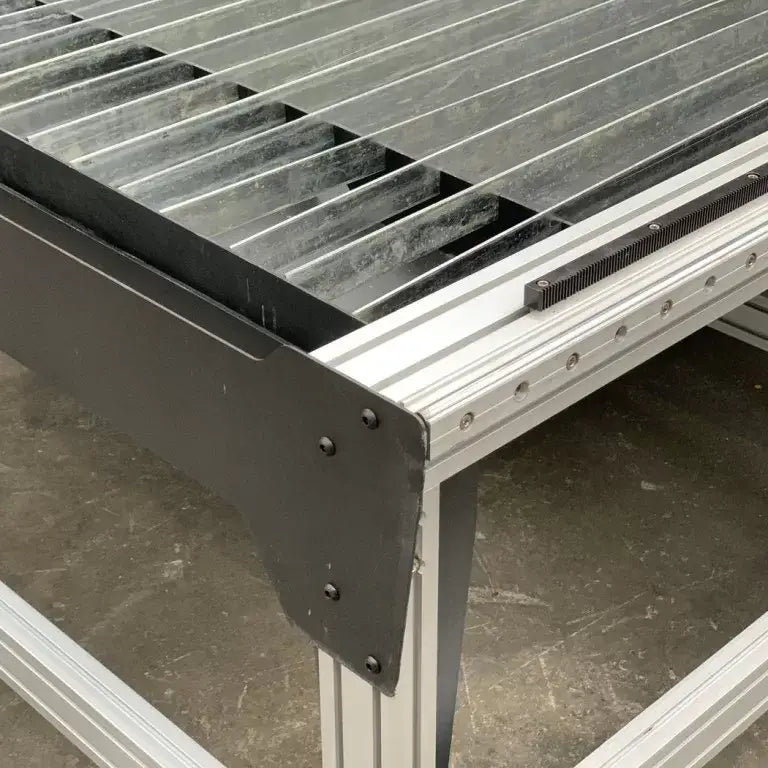

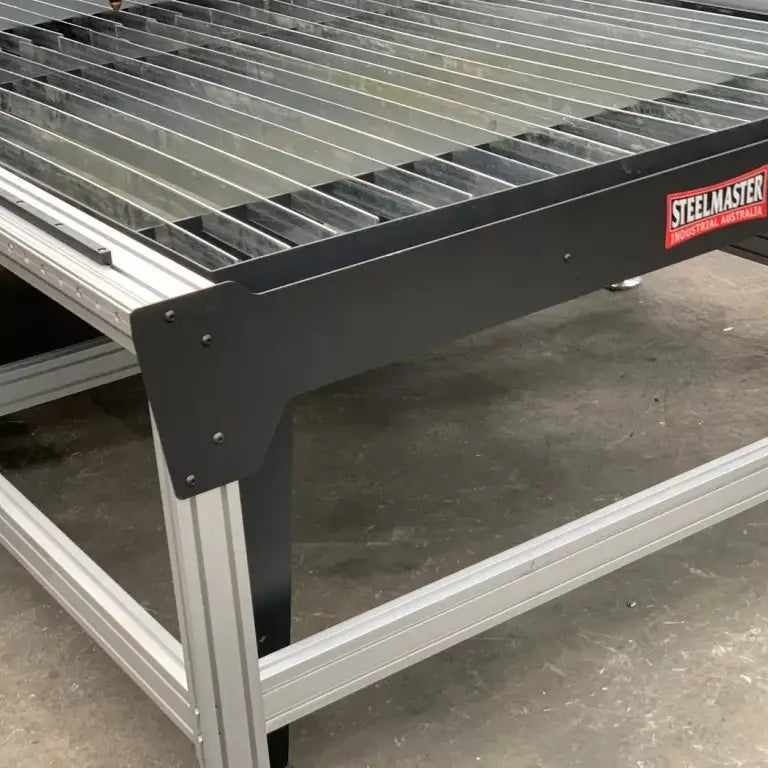

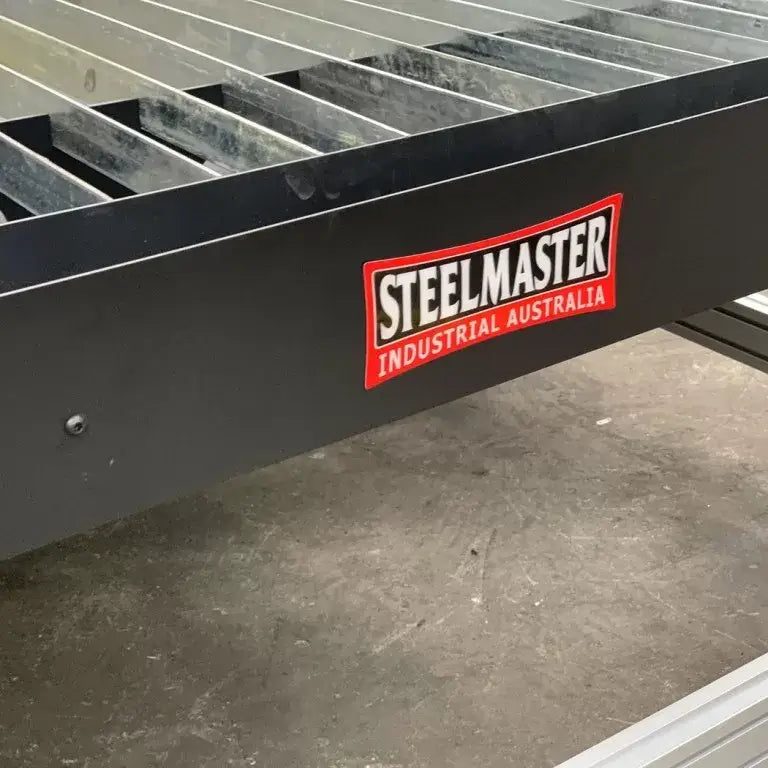

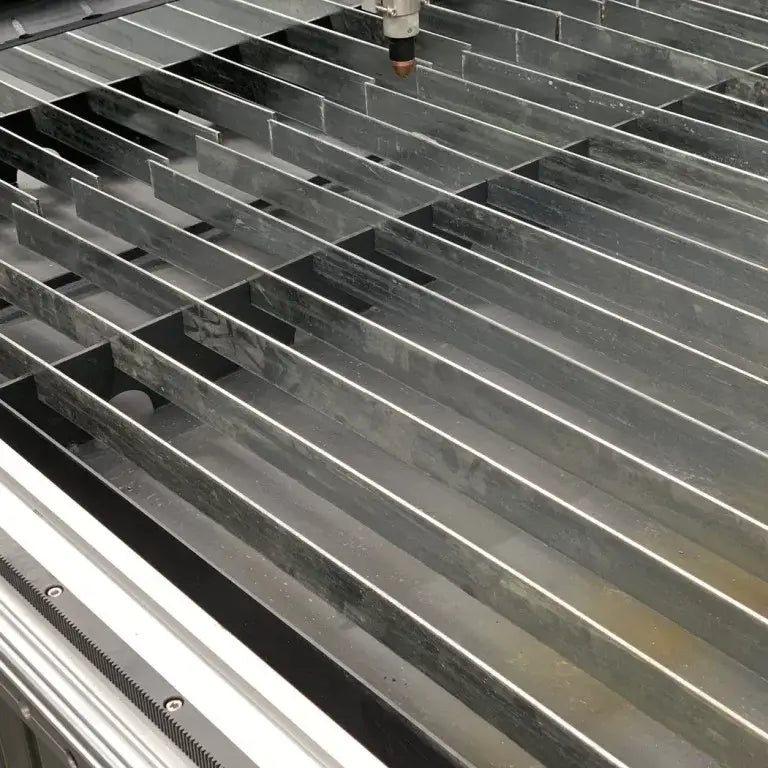

Industrial Build 1250mm x 1250mm cutting table

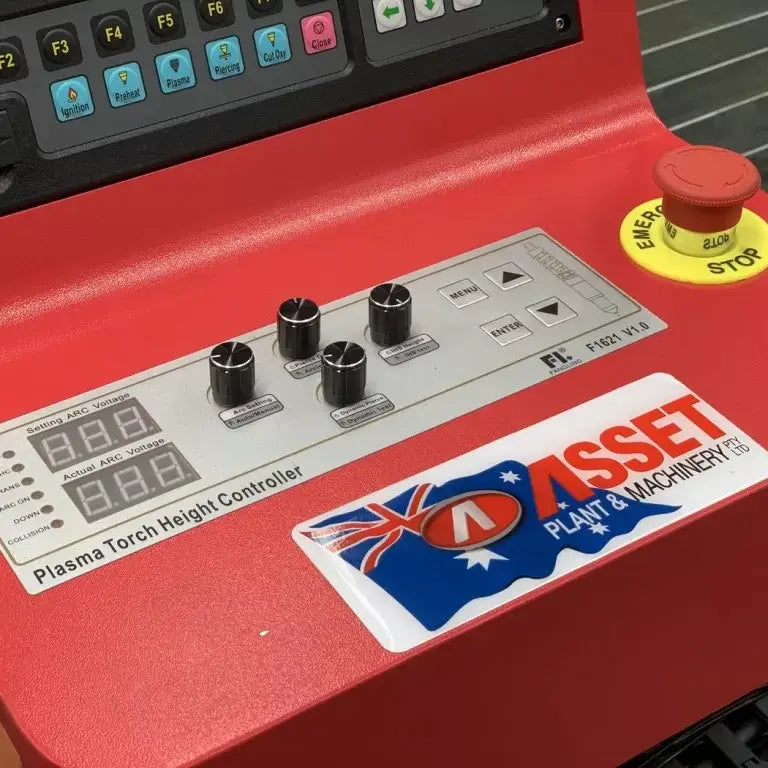

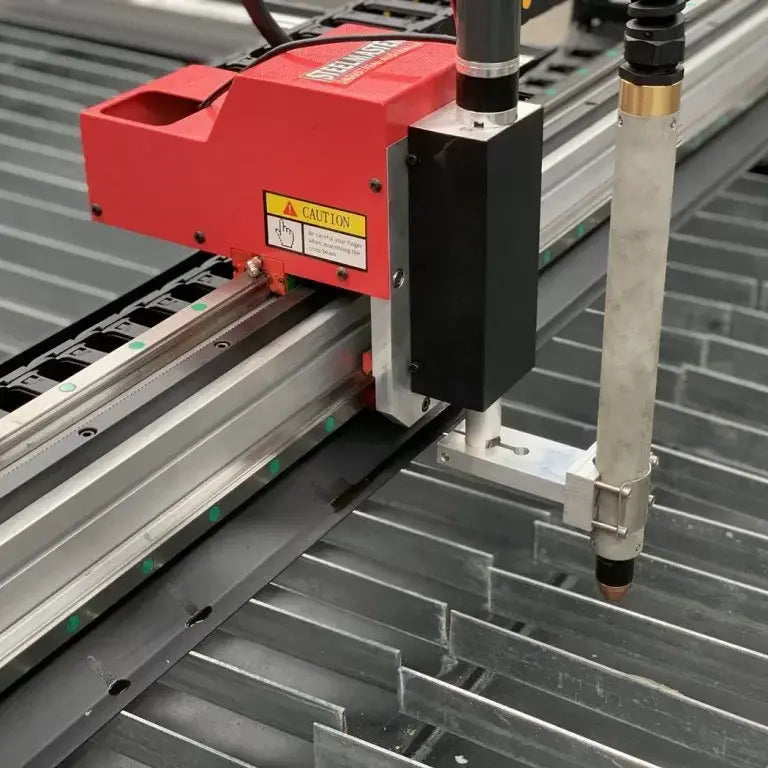

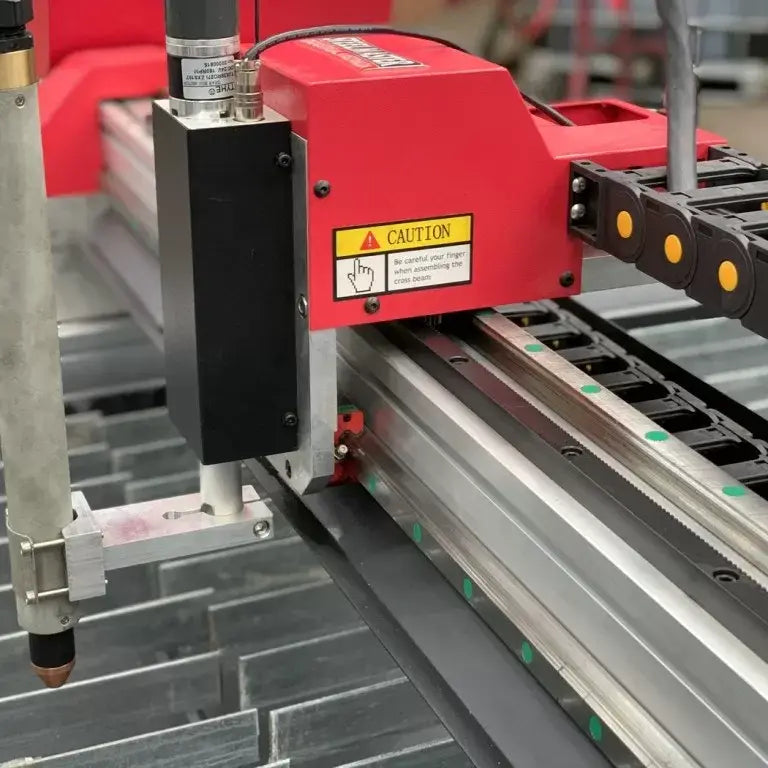

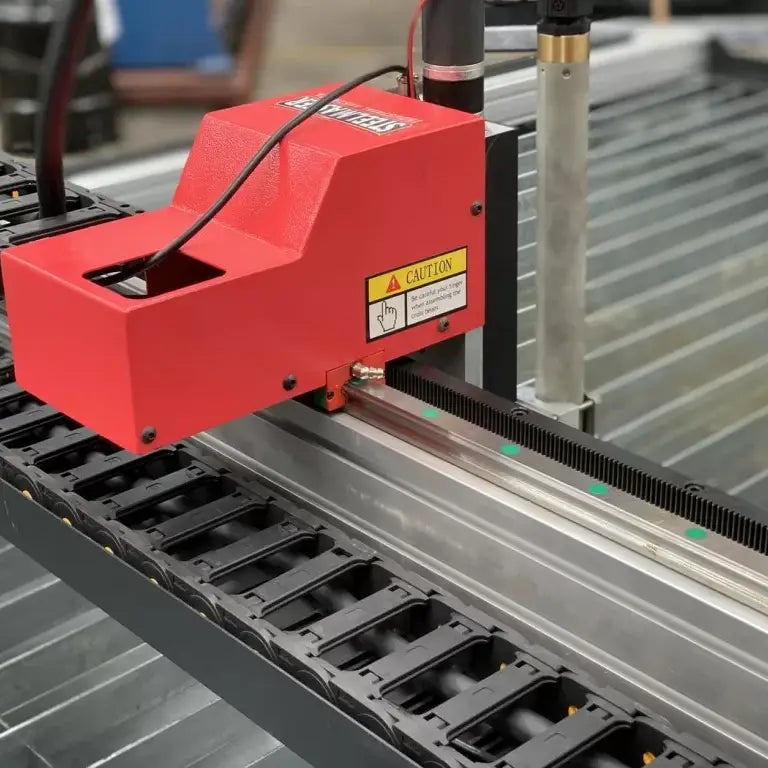

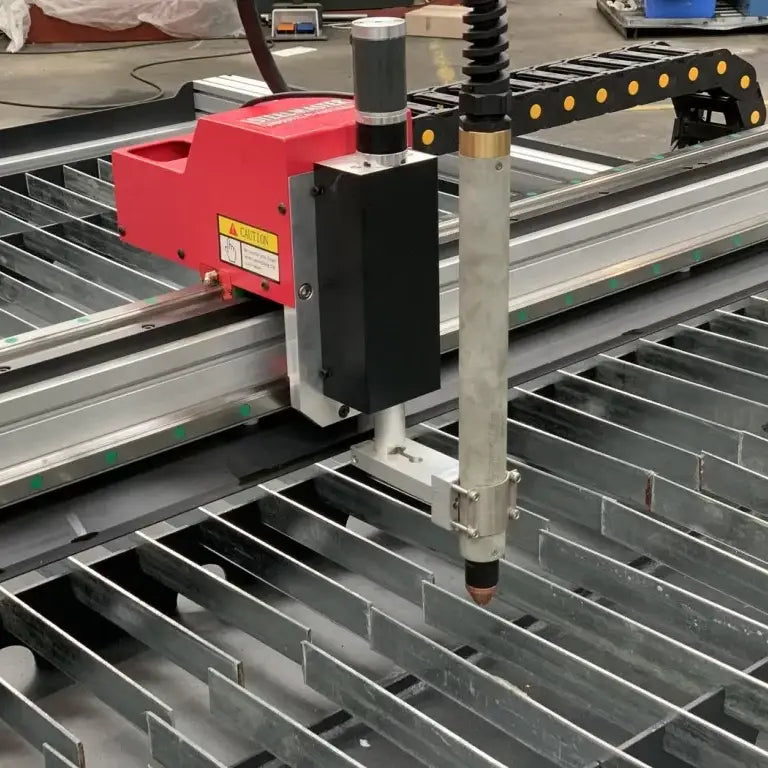

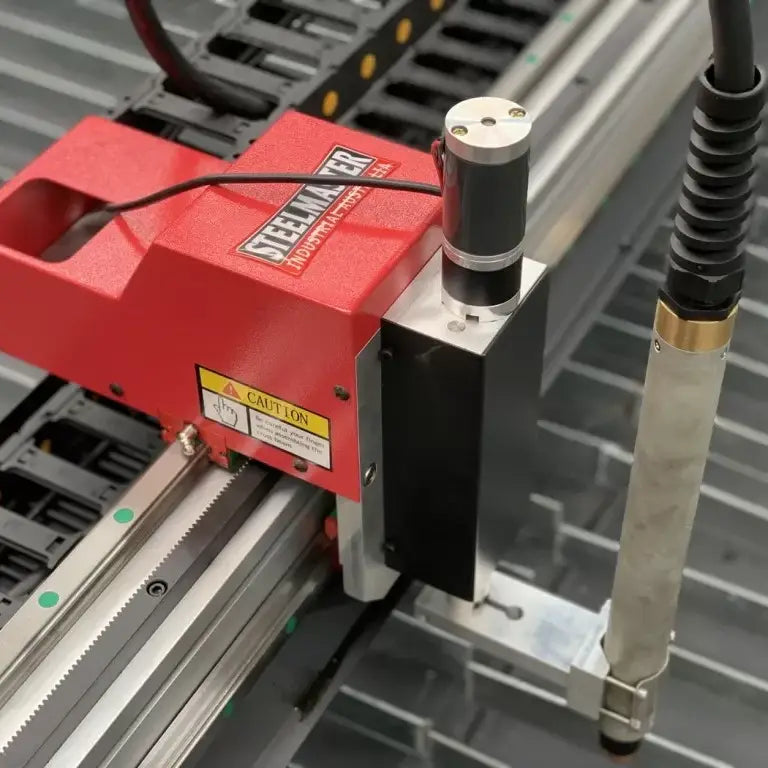

THC torch height control fitted
Superior cut speed, quality and stability
Optimum track speed. even for fine contours and tight radii
Huge LCD display
Fast Cam (Plate) module supplied standard
High quality CNC controller options offering options, accepting G & M codes.
Plasma Power Source, Lead & Torch need to be added to suit customers cutting requirements.
Services required to be provided by customer
Electrical connection.
Compressed air.
Fume extraction provisions.
Asset can offer you the above additional items on request.
Equipment & Accessories Supplied
Recommended Add On Accessories
25-0258 – Air Dryer – Power System – Model: PSD-5N, 20 cfm, 16 Bar 2~3 Degree Dew Point, – 240V
25+0258 – Filtration – HYPERTHERM – Model: 128647 Micron Eliminizer Filter To Be Fitted To The PMX
25+0259 – Filtration – Power System – Model: PSF12F, Purity – 0.01 Micron, 54CFM Volume, Auto Drain.
21+0805 – CLEARMASTER SM-DR-3000 Laser / Plasma Fume Extraction System, 3000m/Hr. Anti-Spark Arrestor – Up to 1500mm x 3000mm Table
21+0806 – CLEARMASTER SM-PA-6000CT Laser / Plasma Fume Extraction System, 6000m/Hr. Anti-Spark Arrestor Up to 2000mm x 4000mm Table
25-0259 – Power System Model NB7/270 – 35 CFM Piston Compressor. 7.5 H.P- 415 v
25-0220 – AIRMASTER Rotary Screw Air Compressor & Air Dryer. Model: 11MK2, 58 cfm Capacity, 116 psi.
50+0200 – Digital Thickness Gauge – 0mm ~ 15mm
50+0112 – Digital LCD Vernier Calliper – 150mm Length.
Full Range of Consumables Available In Store or Online

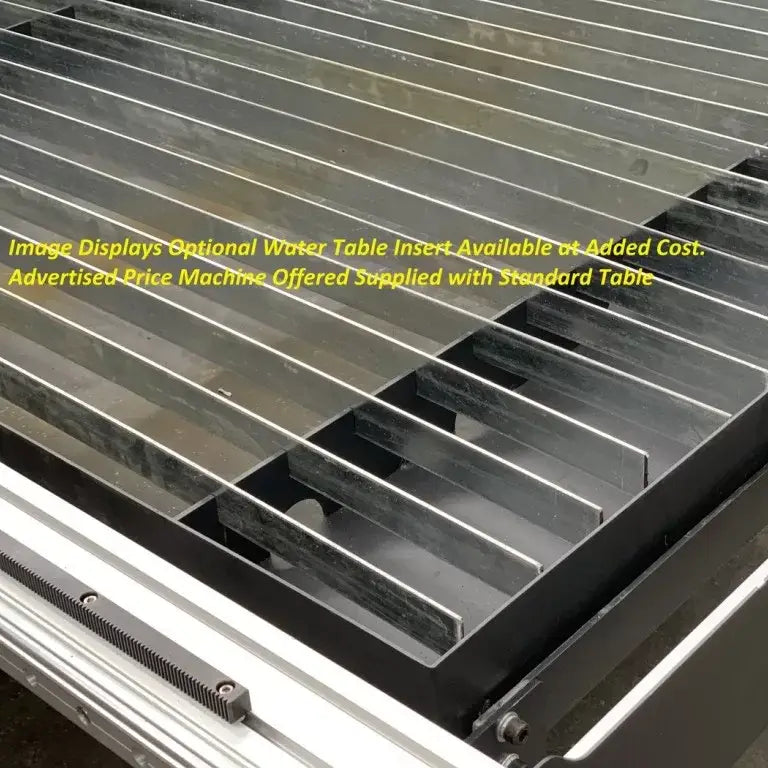

Water Table Model Also Available ON Request
Optional Items To Be Added
