Steelmaster Industrial  |  SKU: 25-0401

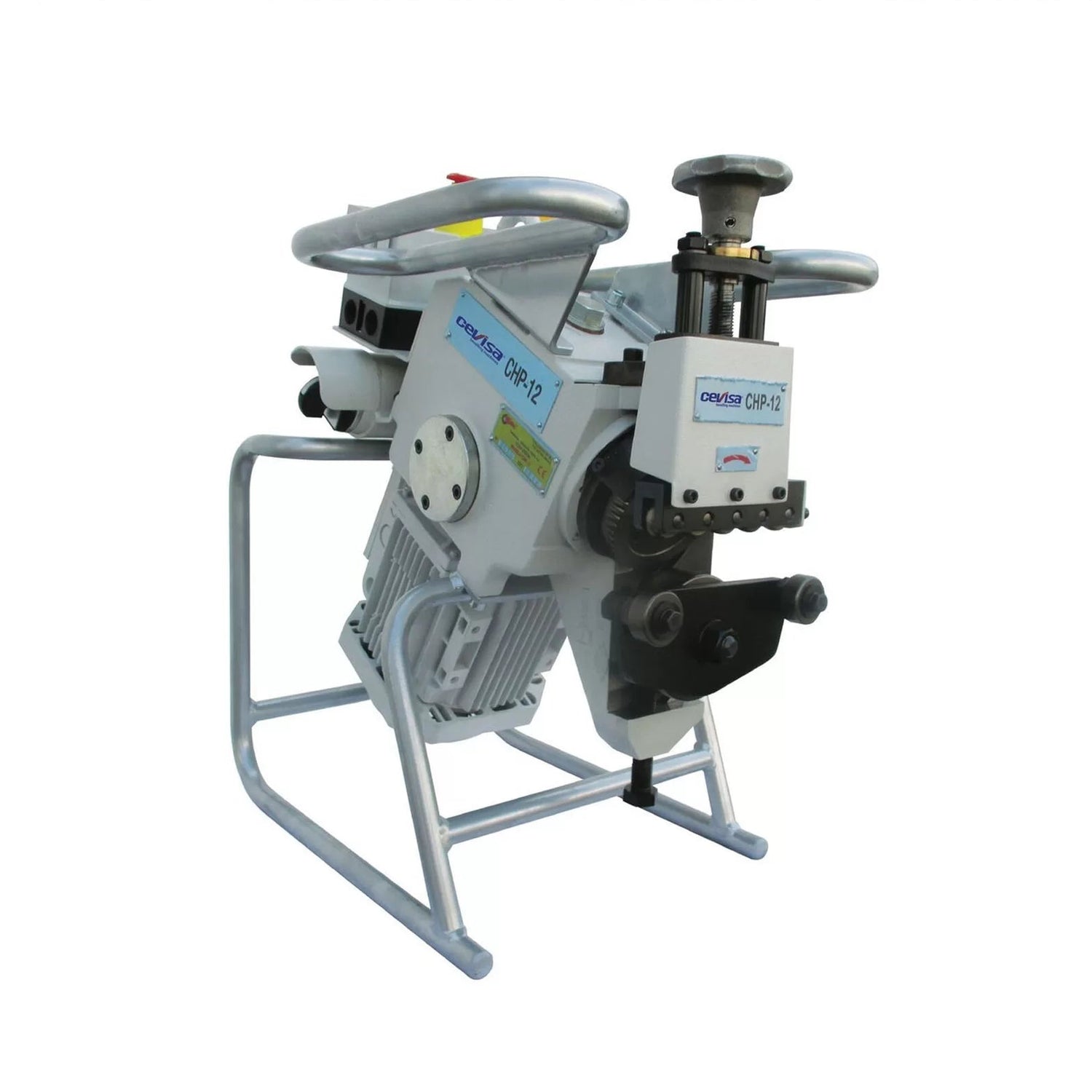

Plate Bevelling Machine Complete with 1 x Standard Milling & 1 x Tube Cutter Set

PRICE EX GST
$12,850.00
PRICE INC GST
$14,135.00

MODEL NUMBER: STEELMASTER-CHP12-CEVISA-BEVELLER

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours


Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION


PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

A complete Cevisa Plate Bevelling Machine, including standard milling and tube cutter sets for versatile edge preparation.

INCLUDES

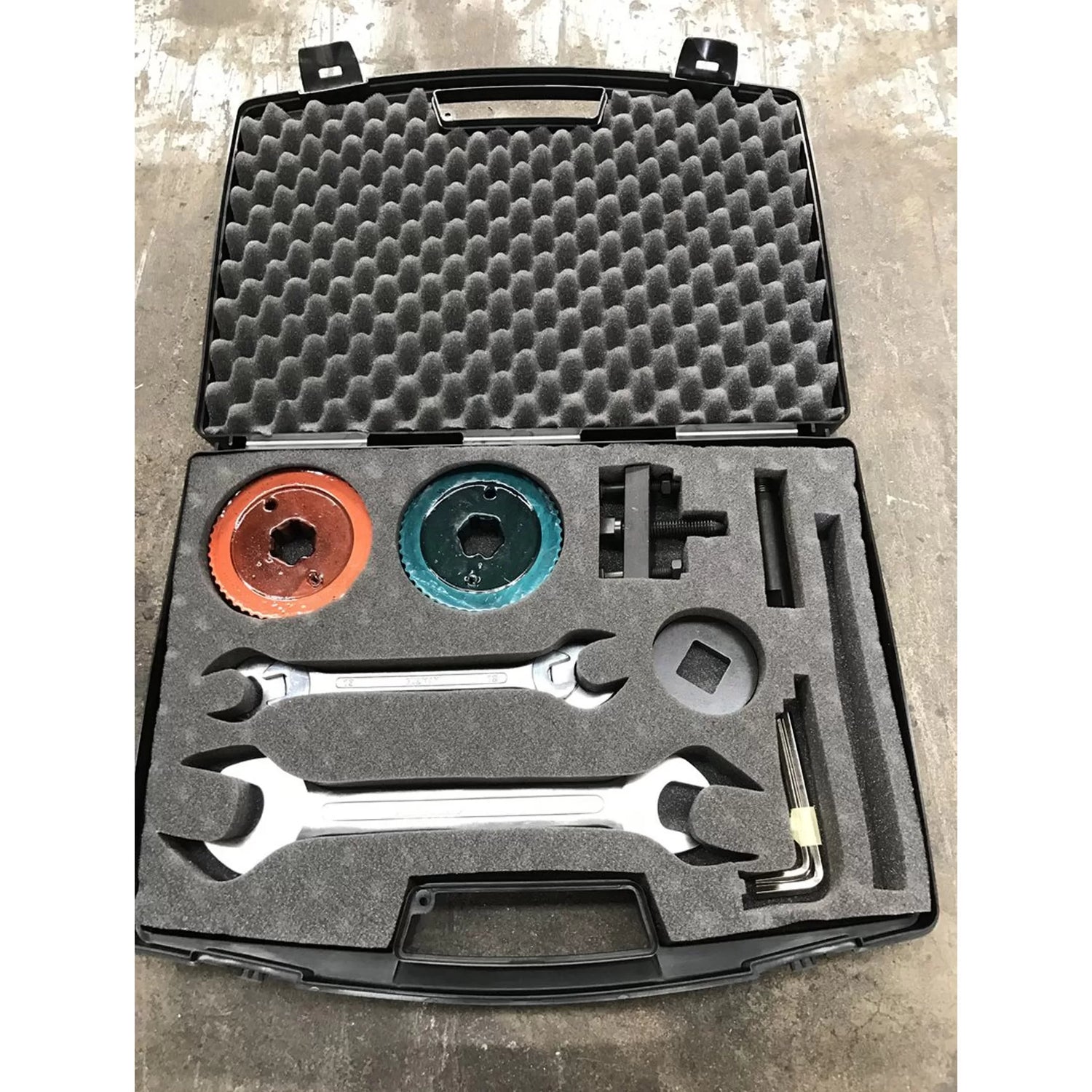

1 x angle vibration attachment
1 x set milling cutters
1 x set tube cutters

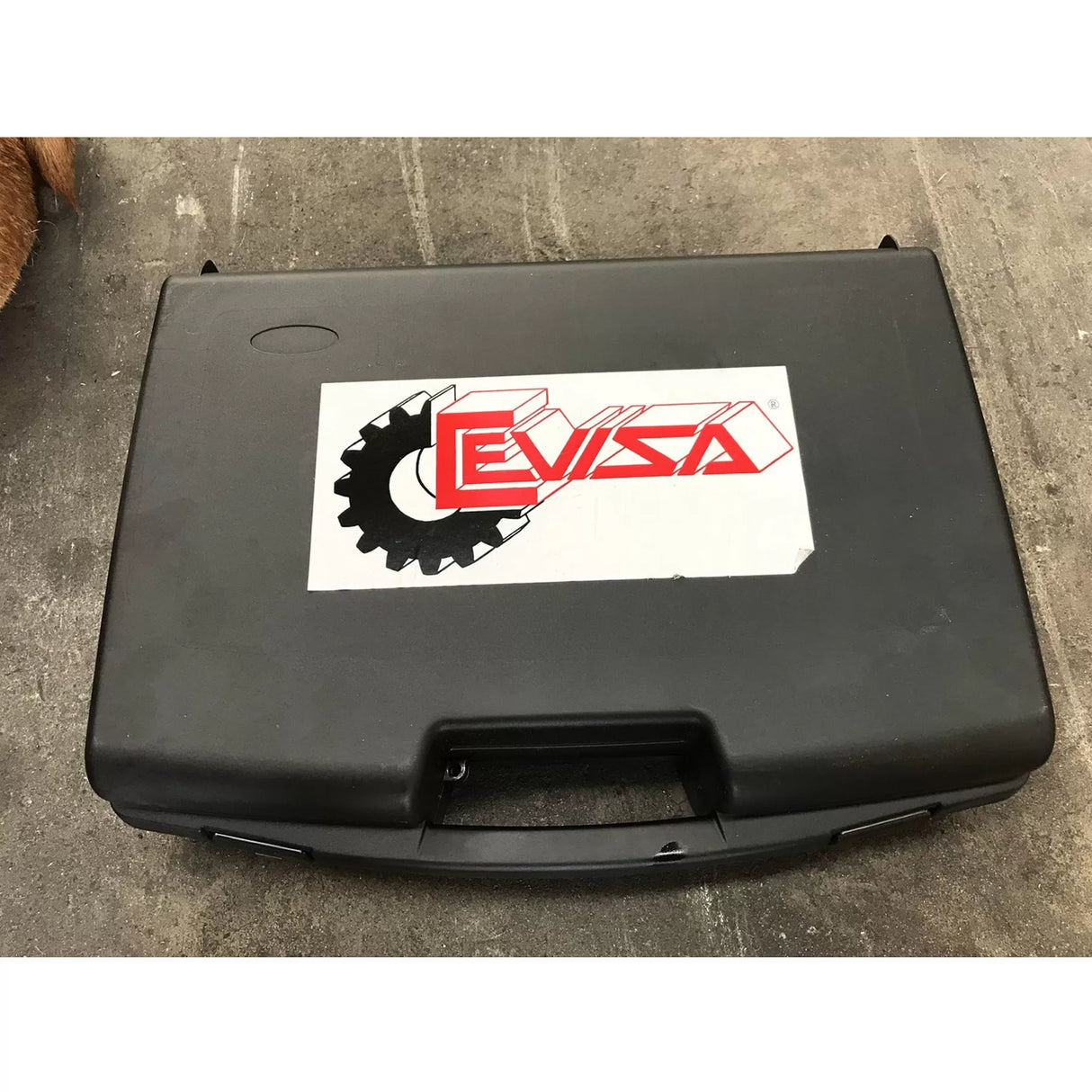

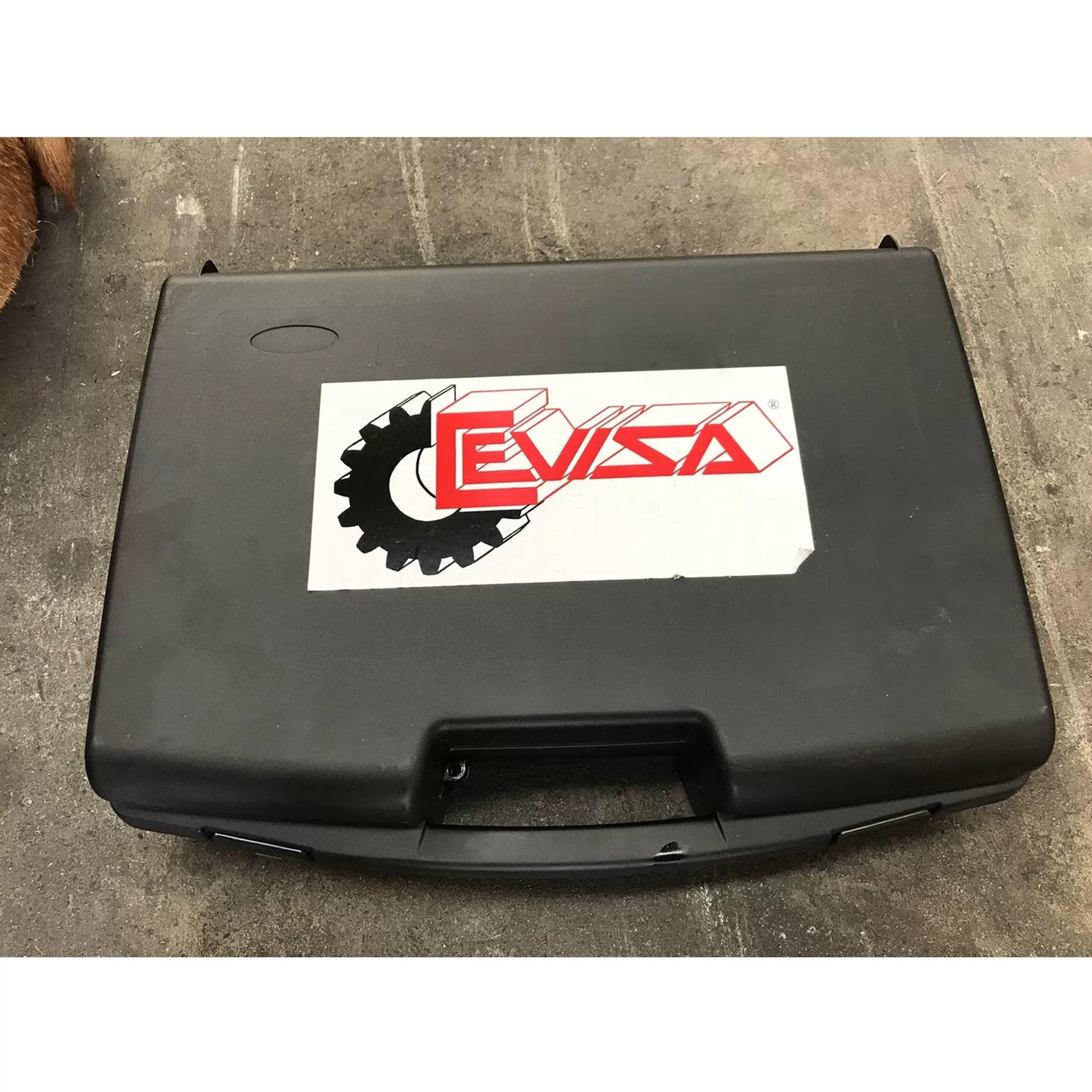

Tool box and operation manual
OPTIONAL PARTS ACCESSORIES AS FOLLOWS
Portable trolley stand 25+0401
30 degree standard angle variation device supplied.
Angle variation device – sold per angle
Angles available – 22.5/25/30/35/3735 & 45 degrees
SHIPPING CLASS
P.O.A - 15kg and up
TECHNICAL DATA
12mm max. bevel depth in 1 x pass.330mm swing over bed
6mm minimum plate thickness
40mm maximum plate thickness
1400 RPM
2600mm bevelling length per min.480mm swing in gap
100mm diameter pipe bevelling
55mm min. plate width – optional devices to suit 25/32&40mm width – please ask us.
65Kg machine weight
3 H.P. 415Volt
