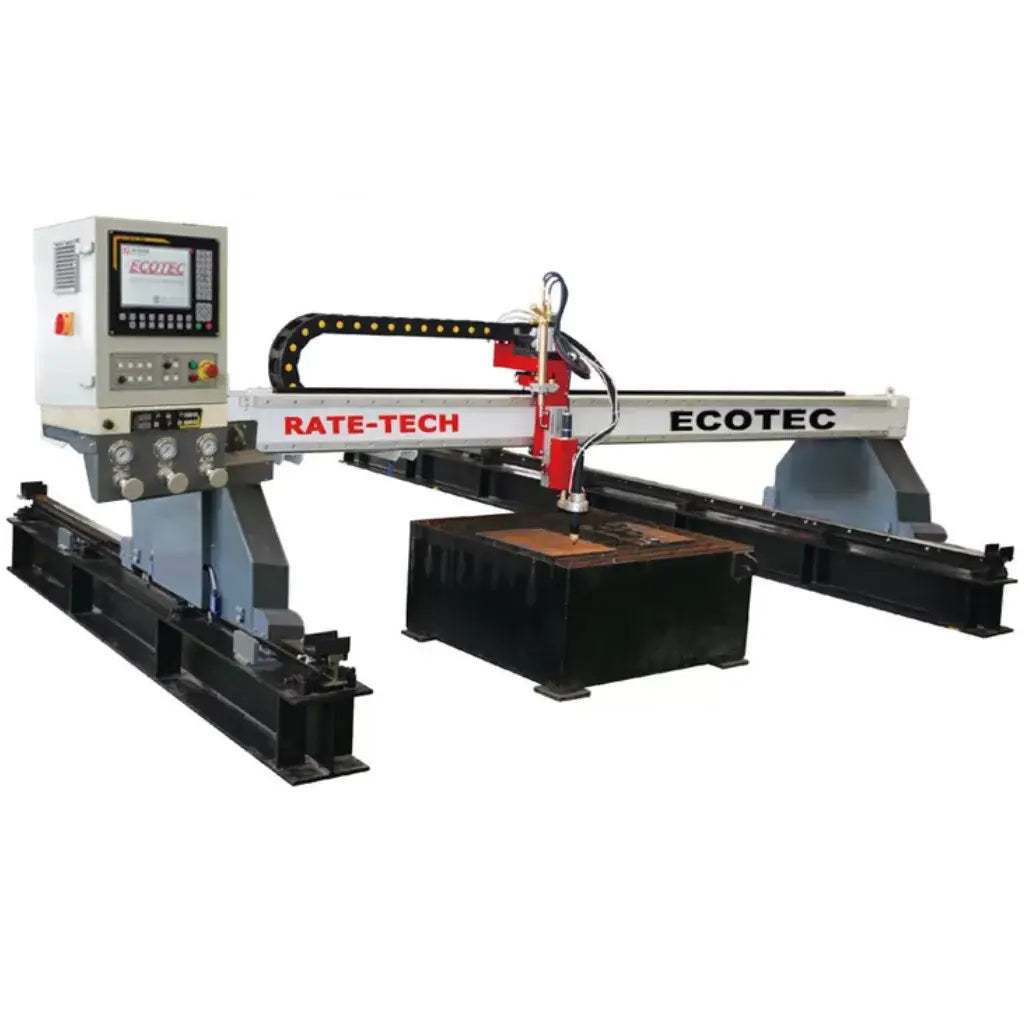

STEELMASTER ECO-TECH G3 - 3500 – High Performance Gantry Flame / Plasma Combo. 3000mm Wide Capacity,
Regular price
$53,850.00
Unit price
Unavailable
High performance Gantry Flame and Plasma Combo machine from Steelmaster. Features a large 3000mm wide cutting capacity for heavy-duty industrial fabrication.
Technical Data
Type G3
Torch Height Control Automatic Arc voltage THC (optional)
CNC System FastCAM Professional – Full Nesting
Input Voltage 240 V
Frequency 50 Hz
Input Power 2KW
Display Color LCD 10.4 ”
Effective Cut Width 3000mm
Machine Width: 4000mm
Longitudinal Length Supplied To Customers Requirements
Machine Height: 1560mm
Cutting Speed 0-10,000 mm/min
Mode of Cutting Flame or Plasma
Cutting Speed Flame 100 ~ 750mm / min
Flame head has angle tilting adjustment 45 degrees left and right
Positioning accuracy 0.5mm / 10,000mm
Repeatability 0.2mm / 10,000mm
Cutting Thickness: Flame: 5 ~ 150mm
Cutting Thickness: Plasma: Subject to plasma selection
Mode of Cutting Type A : Plasma Type B : Plasma/Flame
Z Axis stroke 100mm
Height Control THC – Both Plasma & Flame
Product Features
3000mm Cutting Width.
Cutting Length H Beam Rails & Groove Supplied As Per Customers Required Length.
No Power Source / Plasma Supplied with this proposal – PMX125 or Maxpro 200 suggested
Plasma/Oxy-Fuel cutting, Servo Drive
One (1) Oxy-Fuel Torch included – can accept up to 2 x torches – Head has angle tilting adjustment 45 degrees left and right
Anti – Collision Device
Quick cable connector, connecting with Kjellberg or hypertherm plasma power and cutting machine
Strengthen load capacity, available for 16kg of cutting torch
R&D on THC detector, which can simulate part of arc voltage output signal of plasma offered by customers (optional)
Services required to be provided by customer
Equipment & Accessories Supplied
Recommended Add On Accessories
Optional Items To Be Added
Additional (2nd) Oxy-Fuel Torch: $2800
Cutting Length H Beam Rails & Groove – Based on Customers Feeding Length $1550 / Linear Meter (Both Sides Included) SKU – 21+
Manually Adjustable Gas Control Box $1500
Related products settings
Configuration
Rails 22Kg / m
Lift Stroke = 100mm
Reducer 40:1
Rack High resistance
Gearing Mode Rack & pinion
CNC & THC F2300T
Servo Motor Panasonic
Electrical Schneider
OPTIONAL EQUIPMENT WE CAN OFFER
The principal characteristics of the STEELMASTER ADH FCM Series 3015 Fibre Laser are
You can also see the changes in the promotional video here
Programming
Fast Cam Professional with Full Nesting supplied
Program(nesting shapes), drawing is done by computer in office – additional offline drawing program required
Save G code into USB
Program is transferred to G code
Connect USB with machine controller
Operate controller ( for this step, no computer is needed)
