Steelmaster Industrial | SKU: 50+0119

INOX Vernier Caliper, 500mm Range, Satin Chrome

Name: INOX Vernier Caliper, 500mm Range, Satin Chrome
Brand: Steelmaster Industrial
SKU: 50+0119
Price: 199.00 AUD
Availability: InStock

PRICE EX GST

$199.00

PRICE INC GST

$218.90

MODEL NUMBER: STEELMASTER-INOX-VERNIER-CALIPER-500MM

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

A 500mm range INOX vernier caliper with a satin chrome finish for inside, outside, and height measurements.

DIMENSIONS

72 cm x 12 cm x 5 cm - 3kg

PRODUCT FEATURES

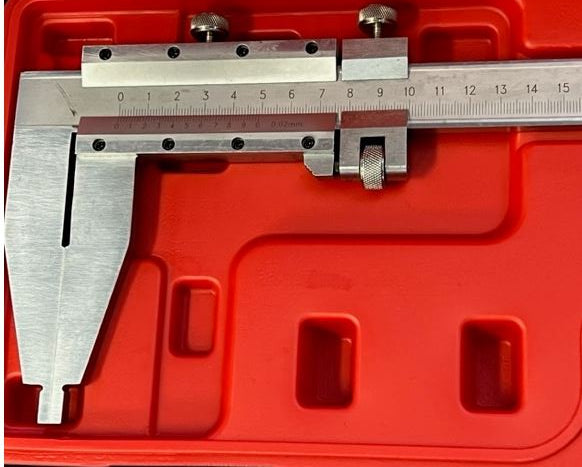

The Steelmaster INOX 500mm Vernier Caliper is a professional-grade, high-precision industrial measuring tool built for workshop fabrication and machining. Constructed from hardened, rust-proof stainless steel (INOX), it features a dull satin chrome-plated reading surface that reduces glare and offers high-contrast markings for clear readability.Key Specifications

TECHNICAL DATA

500mm measuring length
Hardened, rust-proof steel
Dull chrome-plated scale and vernier
Lapped measuring surface
Micro in-feed screw
Jaw length 300 mm = 55 mm, 500 mm = 100 mm 1000 mm = 140 mm
Calliper jaw 20 mm (300 mm = 15 mm)

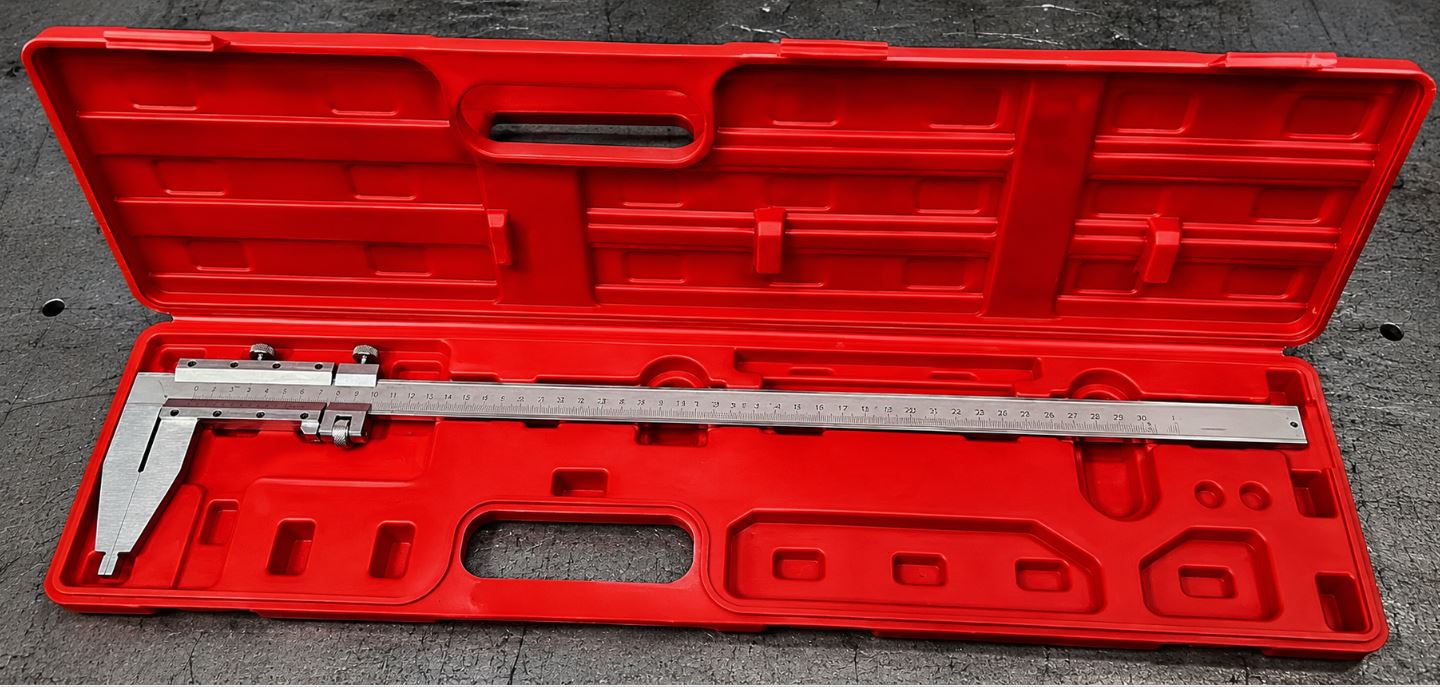

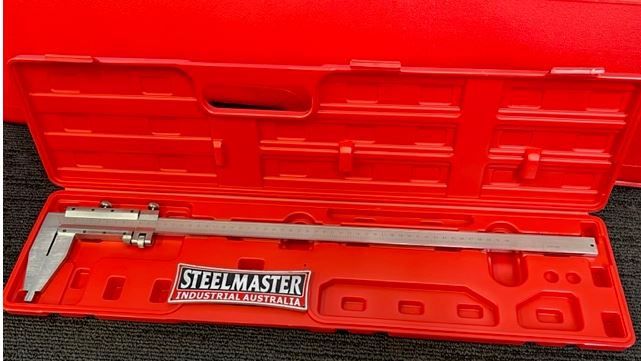

Includes case

TECHNICAL DIAGRAM INFO

Key Specifications
Measuring Range: 0–500 mm

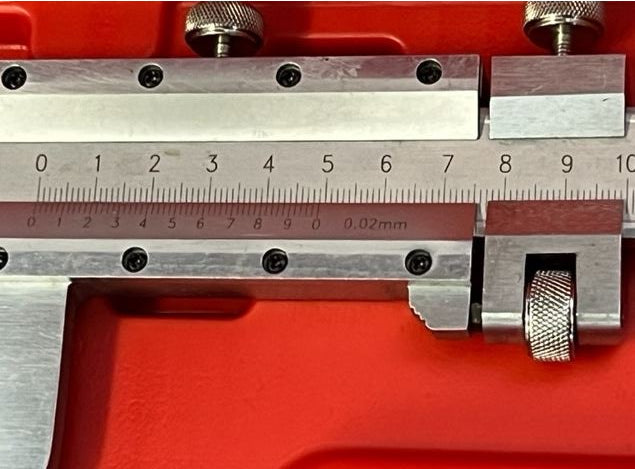

Graduation / Resolution: Precise down to 0.02 mm
Material: Hardened, rust-proof stainless steel (INOX)
Finish: Anti-glare satin chrome-plated scale and vernier
Jaw Length: 100 mm
Locking Mechanism: Automatic thumb lock lever to secure the jaws until depressed
Adjustment: Integrated micro in-feed screw for fine adjustment control

INOX Vernier Caliper, 500mm Range, Satin Chrome
