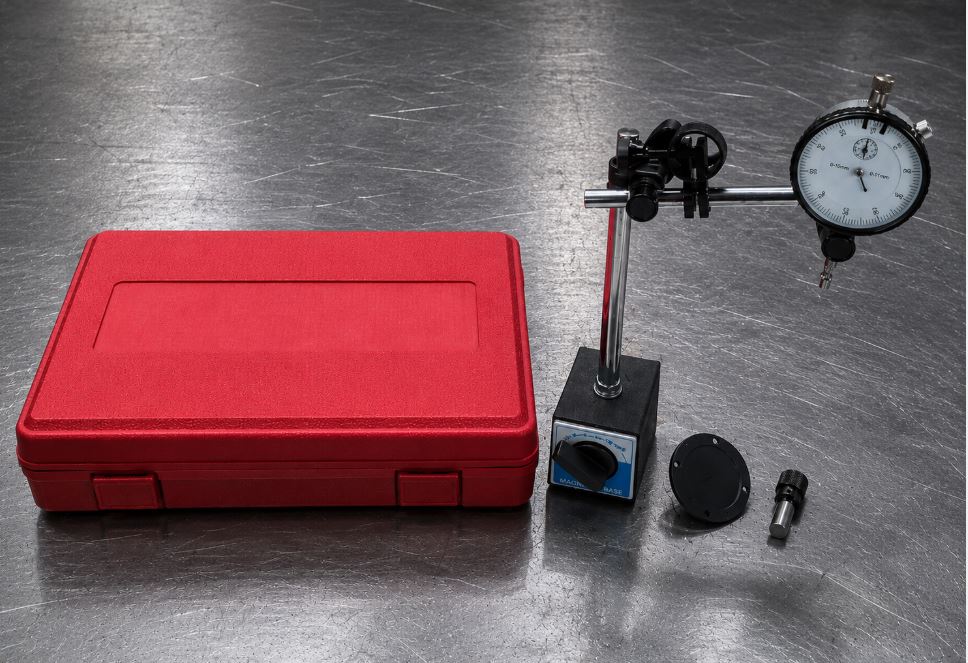

Magnetic Base and Dial Indicator Combo Kit, 620 N Adhesion

30 cm x 20 cm x 9 cm - 2.1 kg

Introducing our new director’s choice
Precision measurements and set ups have never been so easy
Magnetic base and gauges with just a turn of the switch

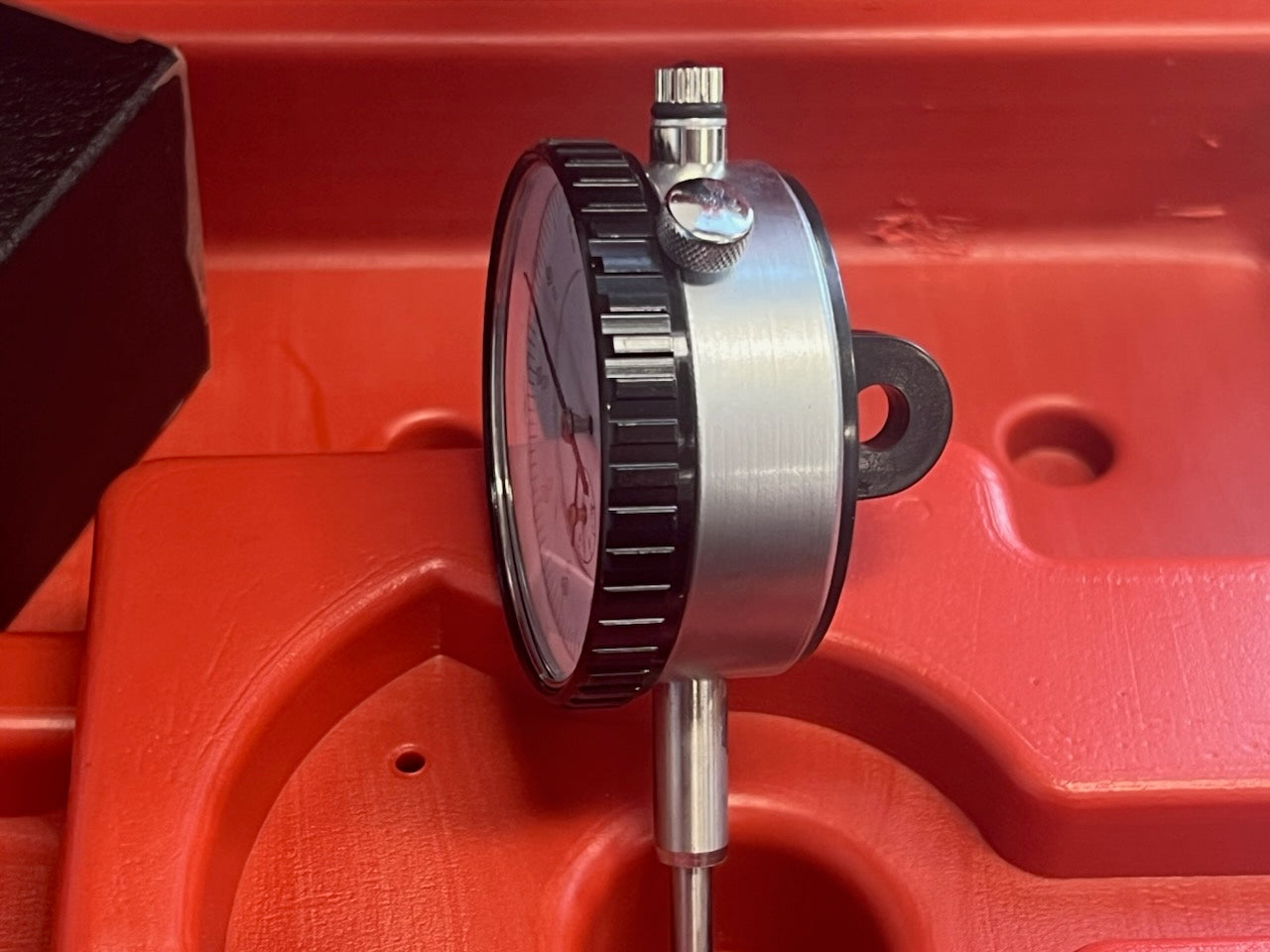

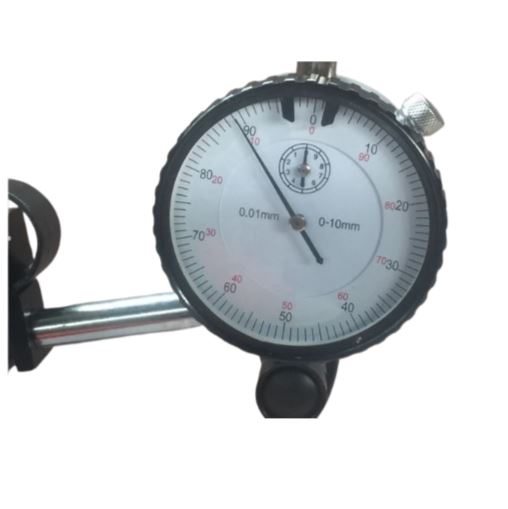

The dial indicator features a 0mm to 25mm travel

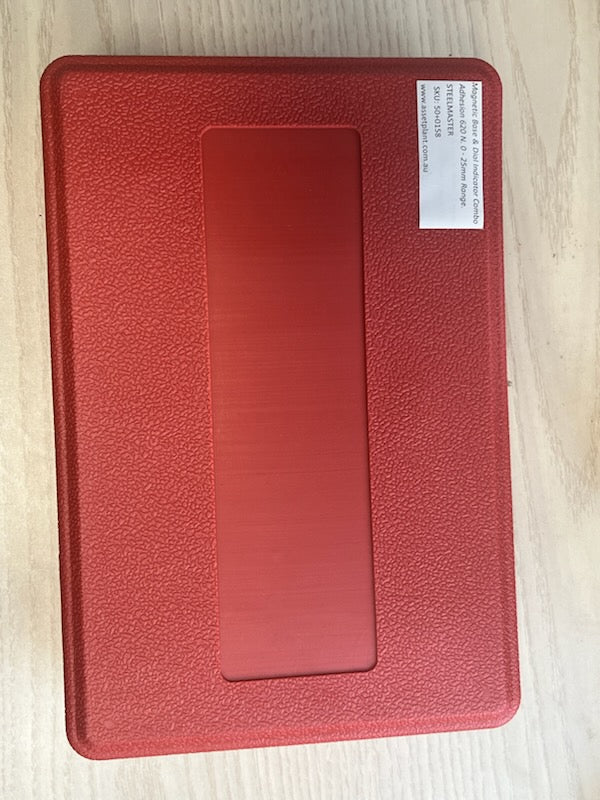

Our combo set is packaged in a protective case

The Magnetic Base and Dial Indicator Combo Kit (620 N Adhesion) is a highly reliable precision measurement toolset designed for engineering, machining, and automotive applications. It pairs a fine-resolution dial indicator with a robust magnetic stand to deliver precise runout and alignment data.
Key Technical Specifications
Magnetic Adhesion: 620 N (approximately 63 kgf of holding power), ensuring complete stability and vibration-free measurement.

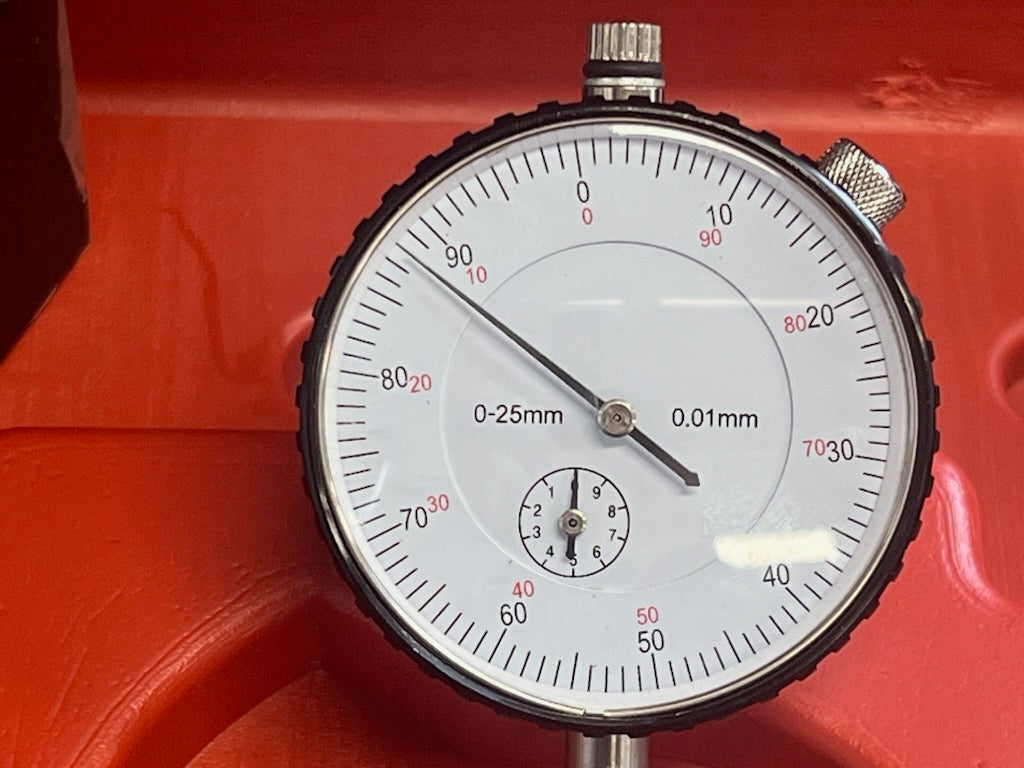

Measuring Range: 0 to 25 mm total plunger travel.

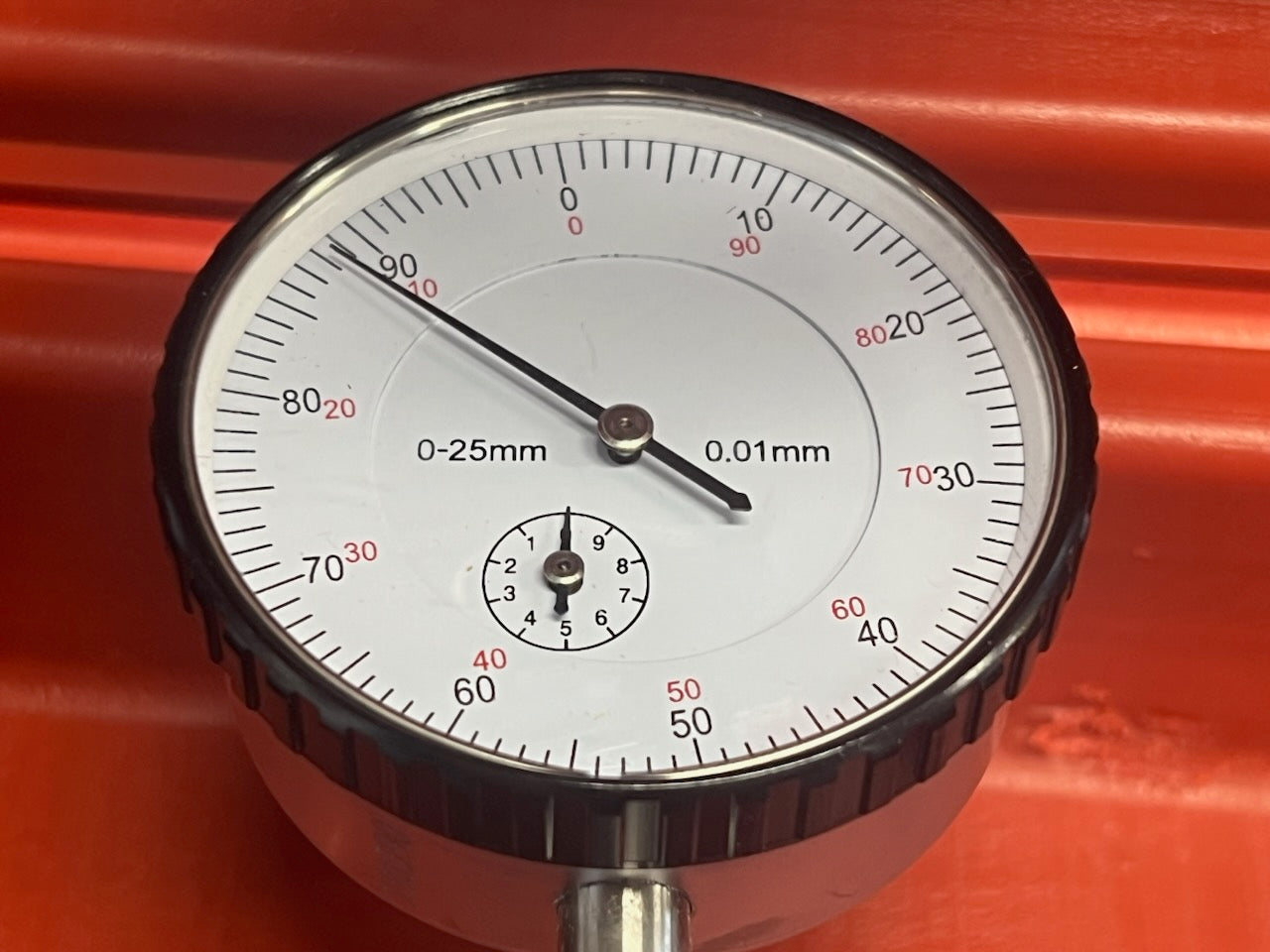

Resolution/Graduation: 0.01 mm increments for highly accurate comparative readings.

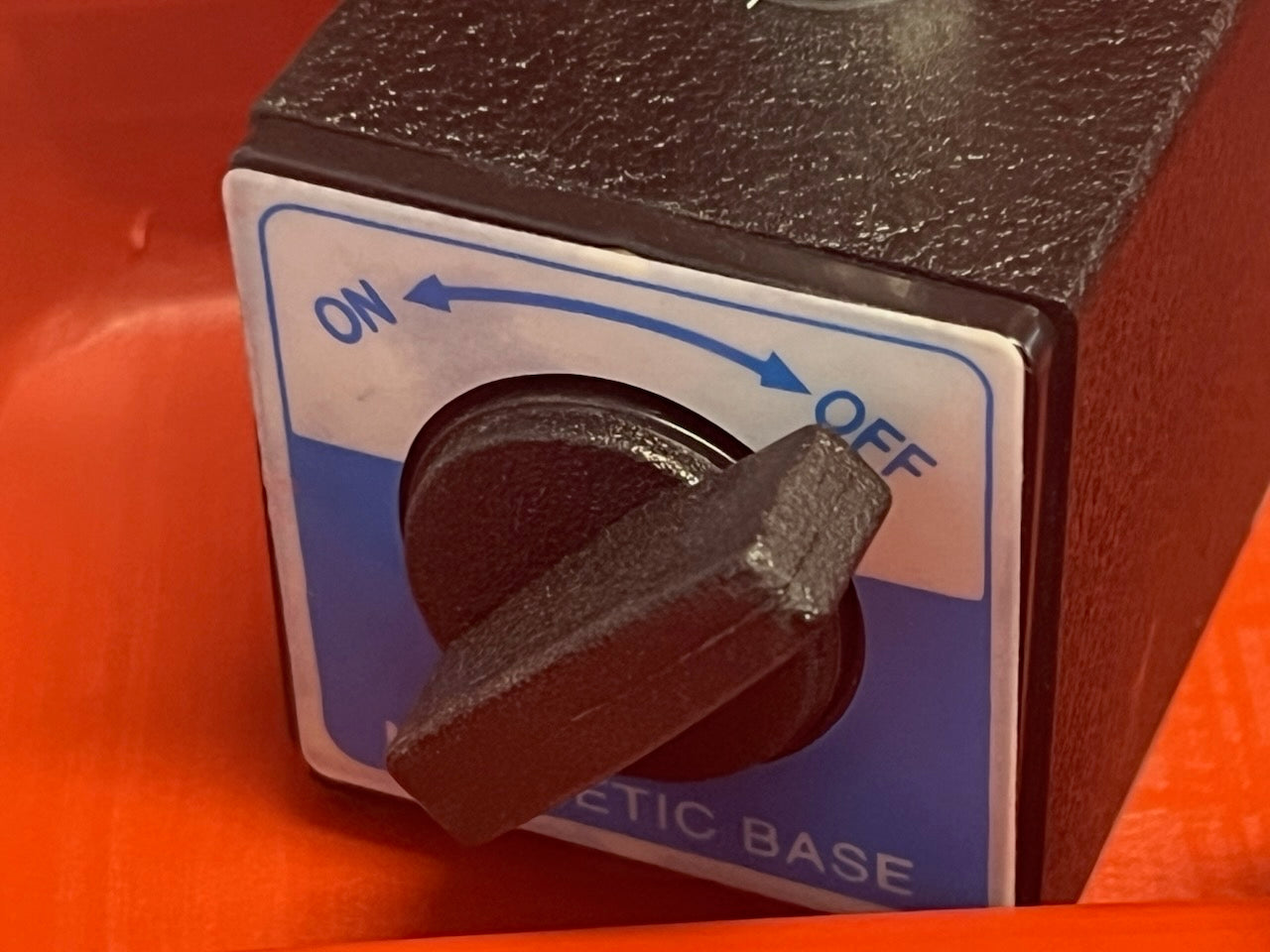

Control Mechanism: Features a physical On/Off switch to easily engage or release the permanent magnet without marring polished work pieces.

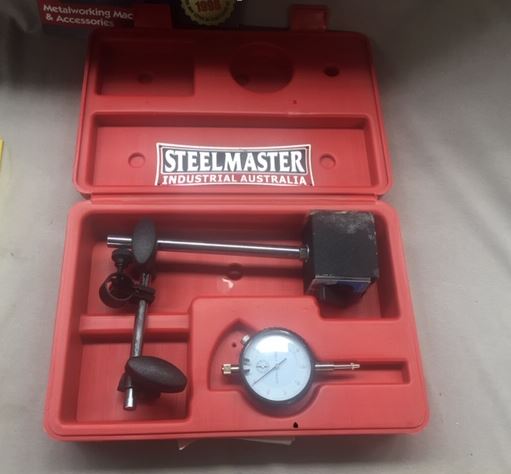

Enclosure: Typically supplied inside a protective moulded storage case to safeguard the delicate internal clockwork and components

Functional High lights

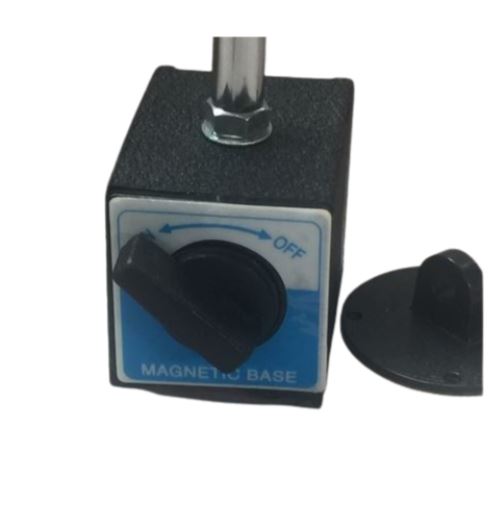

On/Off Magnetic Base: The mechanical switch changes the internal magnetic alignment, giving you immediate locking power on any flat or curved ferrous metal surface.
V-Groove Base Design: The underside of the base contains a machined V-channel, allowing it to sit perfectly flush against cylindrical parts like shafts, pipes, and rotors.

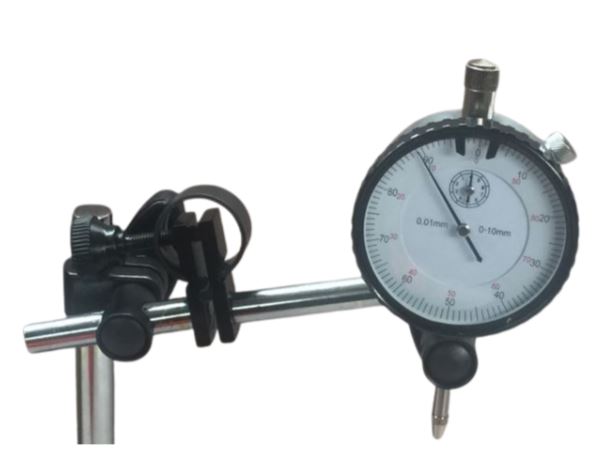

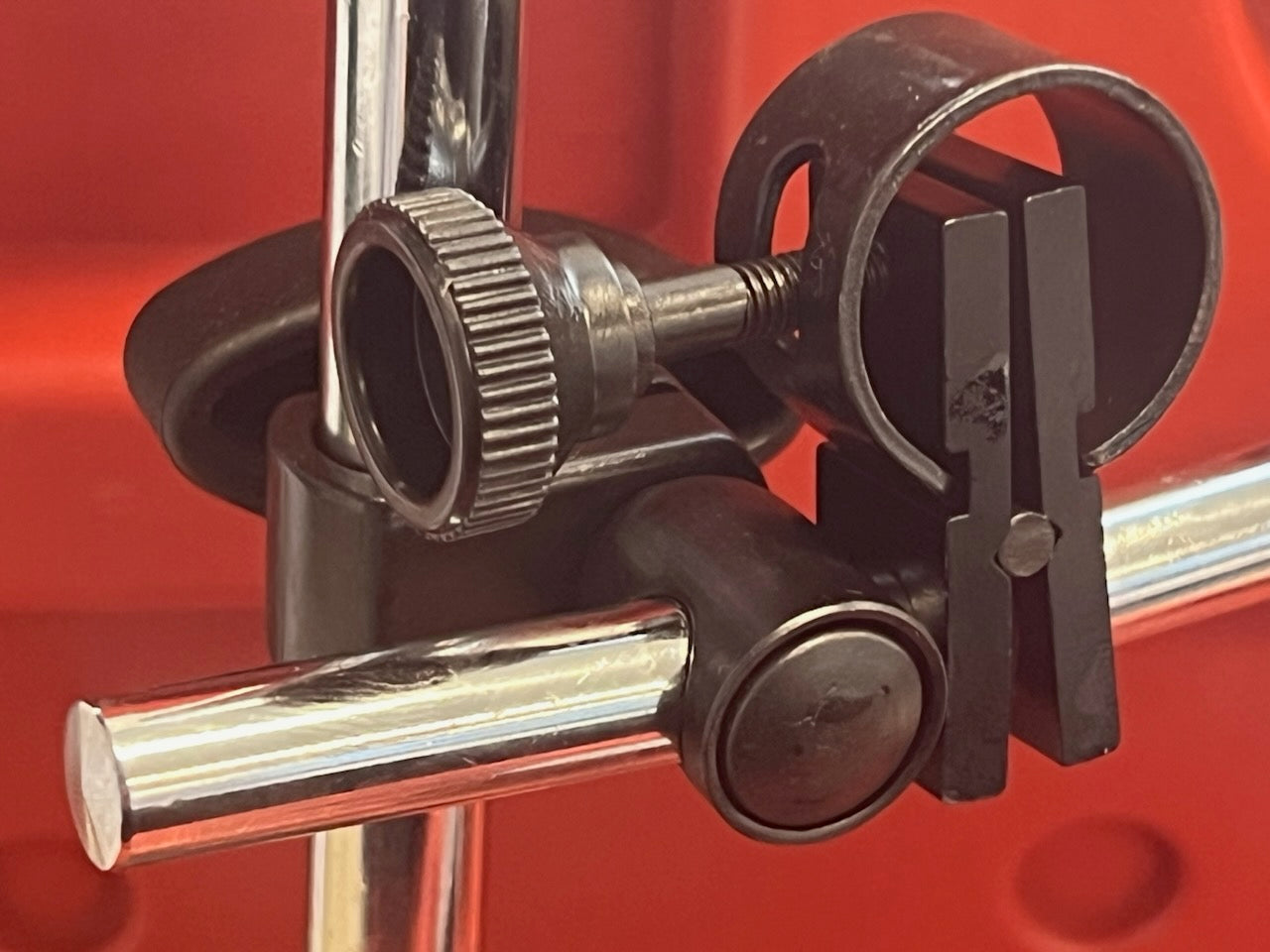

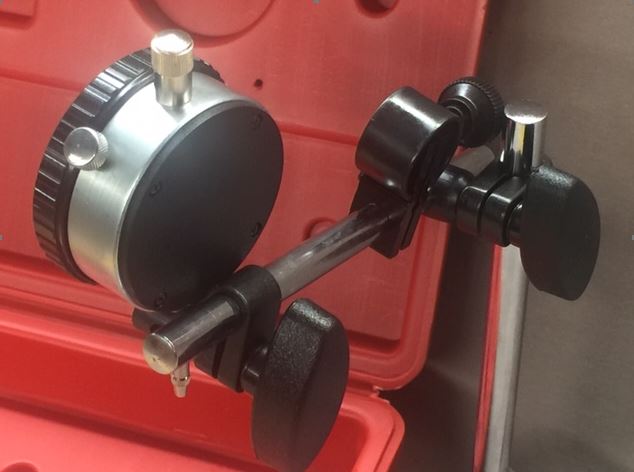

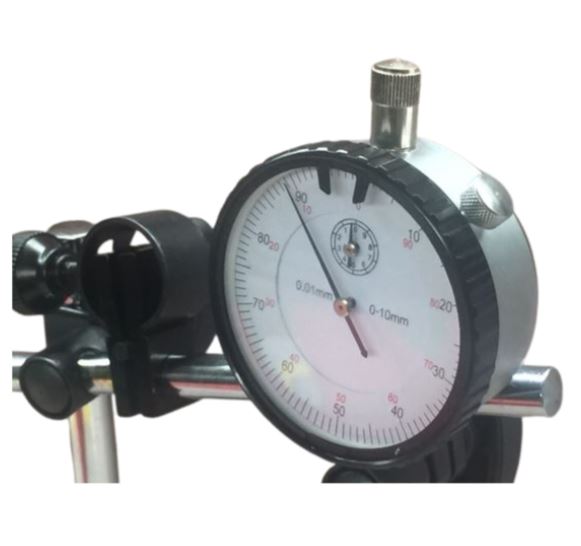

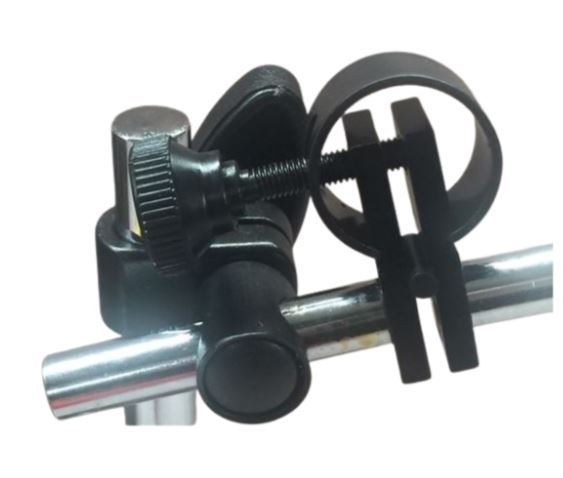

Multi-Axis Articulation: Fully adjustable rods and tight-locking clamps allow you to orient the indicator plunger at a precise 90-degree angle to the moving work piece.
