Steelmaster Morse Taper Sleeve MT2 / MT1

Name: Steelmaster Morse Taper Sleeve MT2 / MT1
Brand: Steelmaster Industrial
SKU: 12+0115
Price: 450.00 AUD
Availability: InStock

PRICE EX GST

$450.00

PRICE INC GST

$495.00

MODEL NUMBER: STEELMASTER-MORSE-TAPER-SLEEVE-MT2-MT1-DUP

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

Hardened and precision ground Morse taper sleeve for adapting MT1 tools to MT2 spindles.

PRODUCT FEATURES

Swings 150mm ~ 300mm

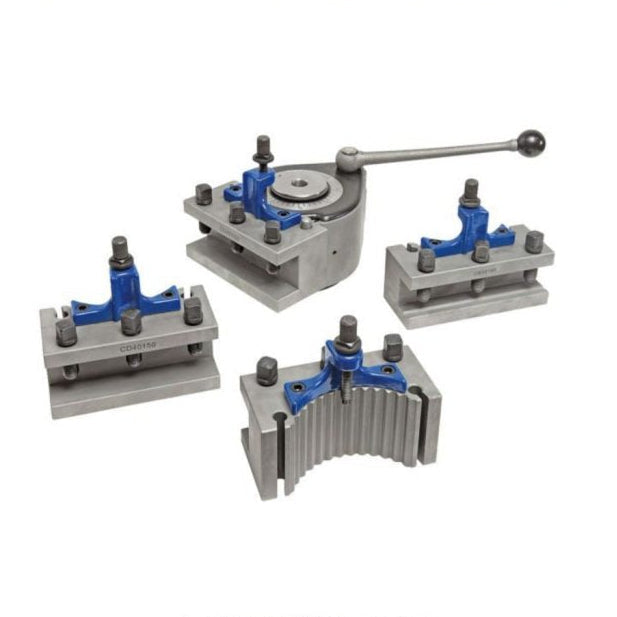

5 piece set comprising tool holder head, 3 x square tool holders & 1 x round tool holder.
Round tool holder Type: H, Series: AH 20-85, Tool Holder: 20mm x 90mm
Square tool holder Type: D, Series: AD 20-90, Tool Holder: 20mm x 90mm
our European quick change tool holders are compatible with all popular model lathes
tool holders are fixed against the central bodies gears by means of 2 chuck halves and an eccentric bolt
repeating accuracy 0.01mm
40 different angular positions
height adjustment via knurled screw
angle scale displayed on head

TECHNICAL DATA

Turning Diameter : 150 – 300
Slide width Max (z) : 100mm
Cutting tool rest Width (d) : 14mm
Tool Max (h) : 20mm
Hole Standard (v) : 20mm
Depth of bore hole max (s) 31mm
Total Width : 100mm
Total Height : 54mm
Depth of Bore hole max : 35mm
