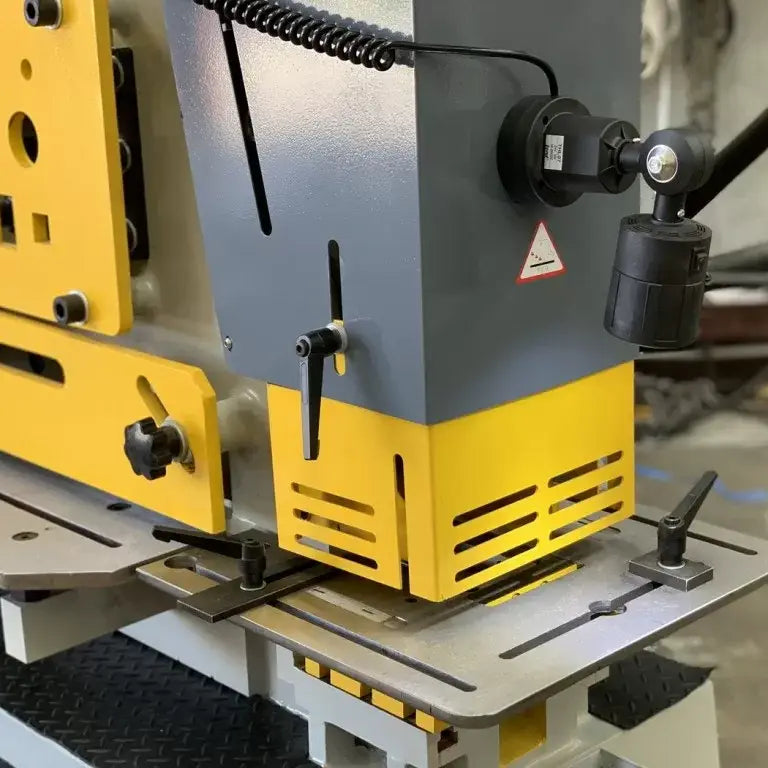

MULTI 125. Punch & Shear. Steelmaster 125Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch
Sale price
$28,850.00
Regular price
$31,850.00
Unit price
Unavailable

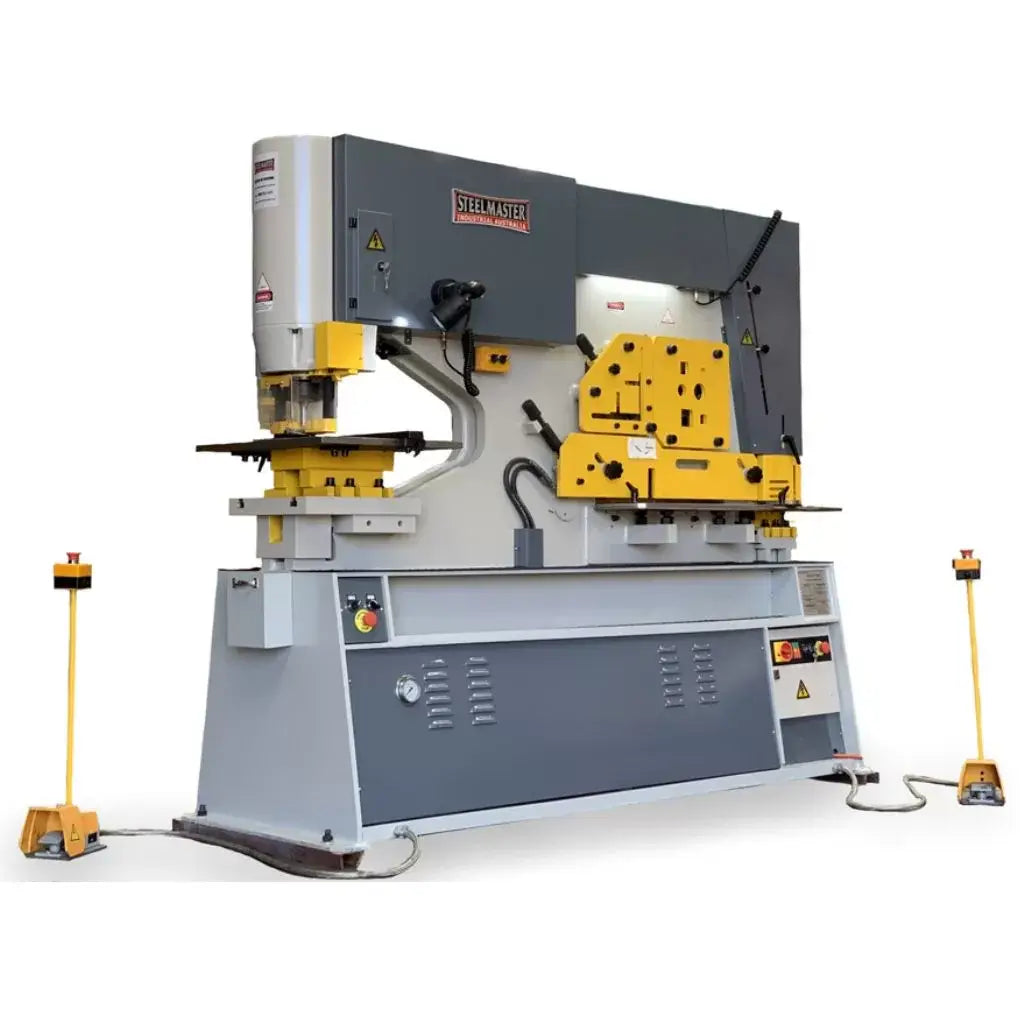

This 125-ton Steelmaster (MULTI 125) hydraulic punch and shear is a heavy-duty double-cylinder ironworker for punching, shearing, cropping, and notching.
Technical Data
35mm hole in 25mm plate (optional 57mm x 16mm)
80mm stroke length
1056mm working height
610mm deep punch throat depth – this is a must for all base plate work!
600mm x 15mm flat plate shear / also 380mm x 25mm
150mm x 150mm x 18mm angle crop also 80mm x 10mm at 45 degrees.
55mm round & square cropping
100mm x 60mm x 13mm rear notch
700mm x pressbrake bending kit supplied
200mm x 100mm section channel available – optional **
Shipping dimensions – 2000mm x 800mm x 2030mm
Weight – 3100Kg
Power – 415V 7.5Kw
Product Features
Double cylinder hydraulic punch & shear machine

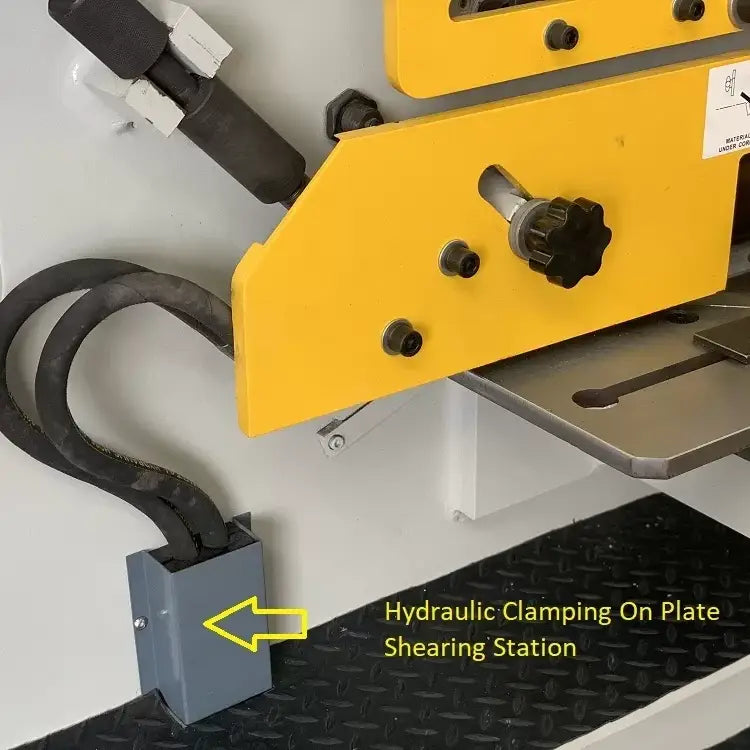

Hydraulic flat plate shear clamping now standard

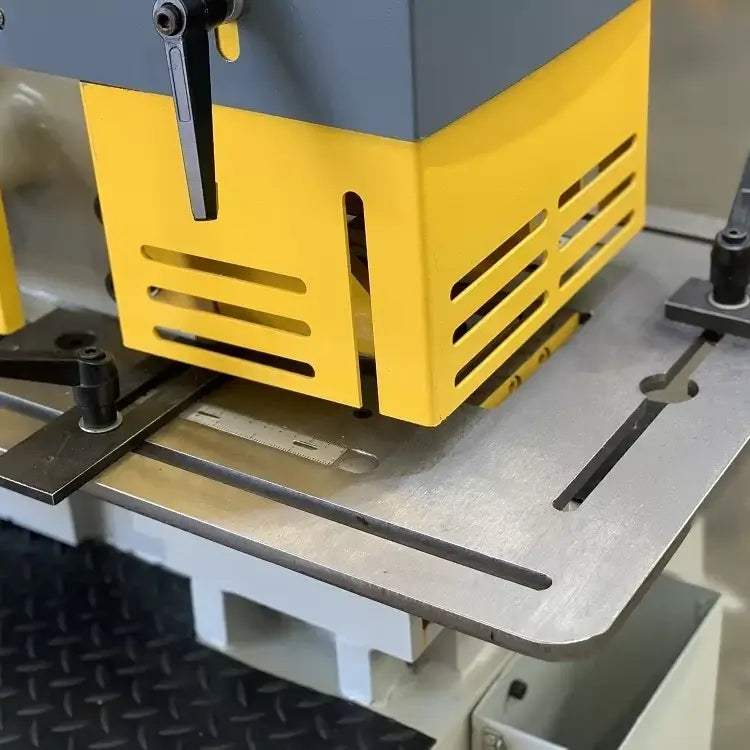

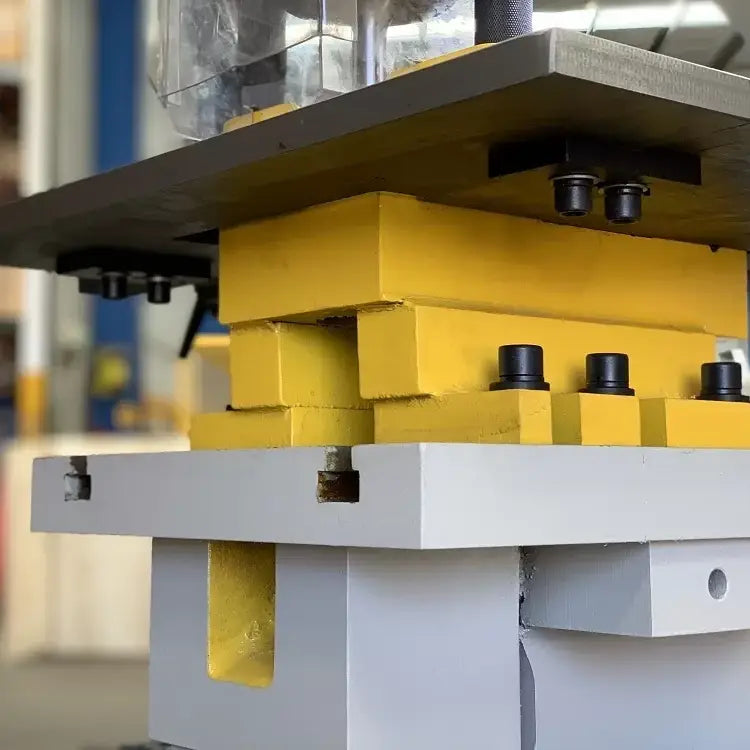

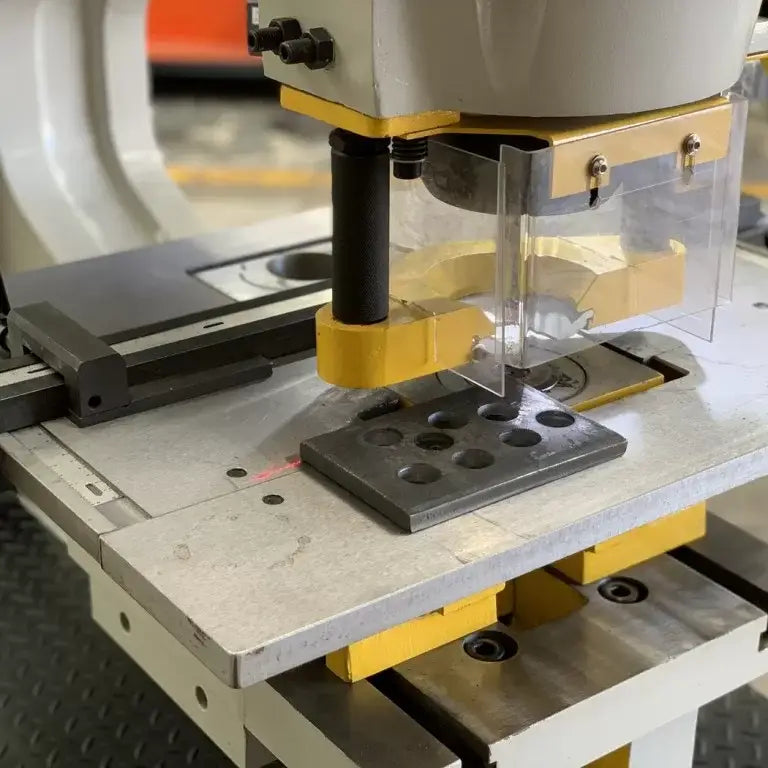

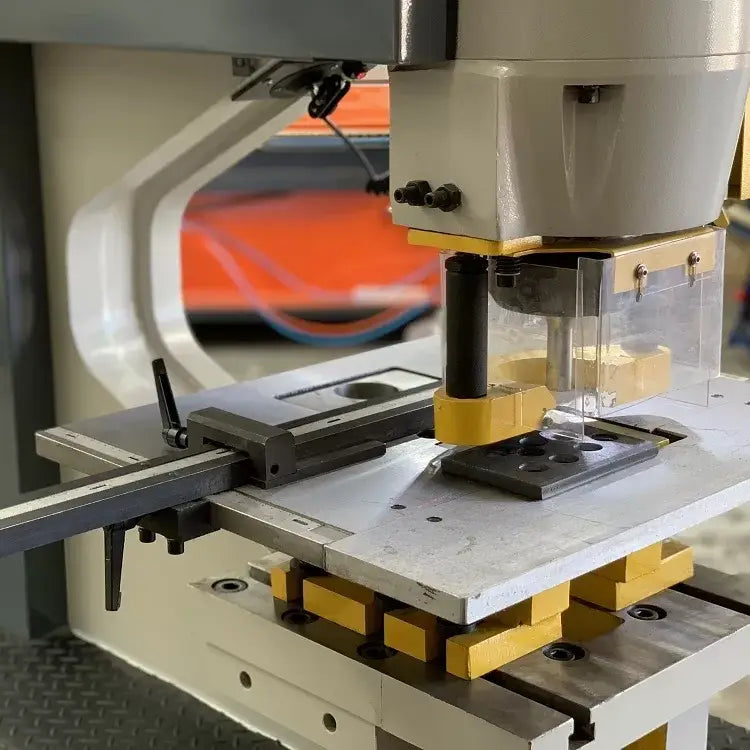

Large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications

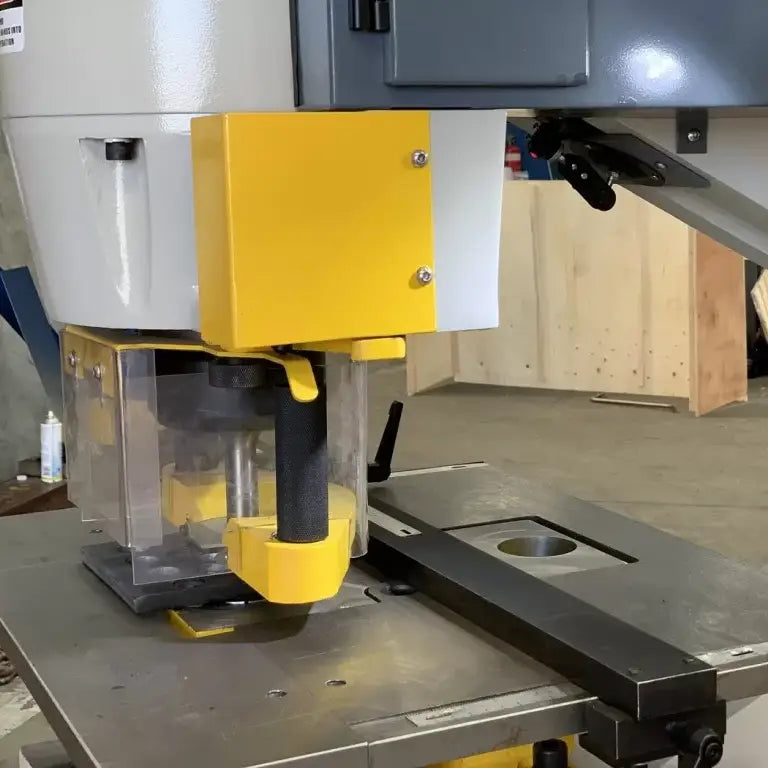

Swing-away punch-stripper unit
Two universal bottom die holders included

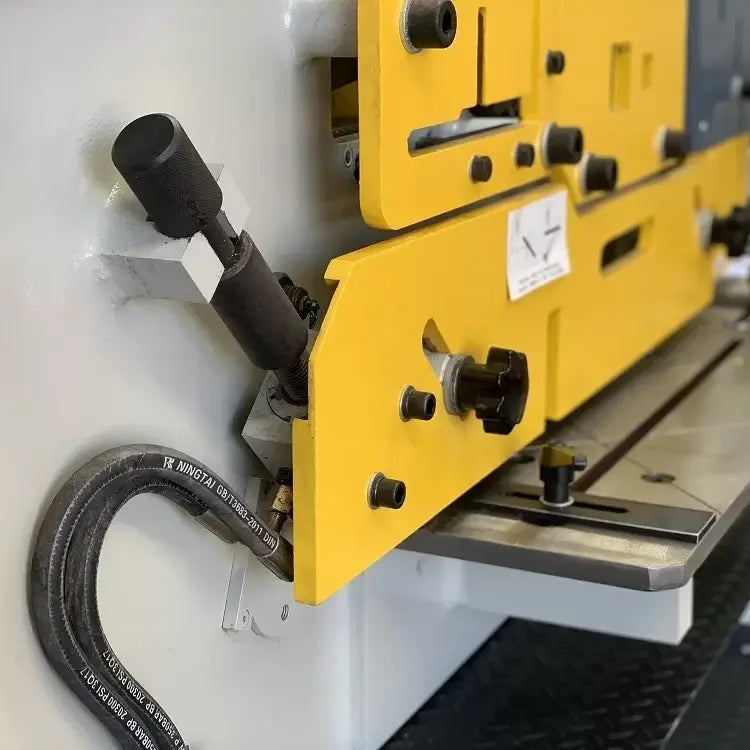

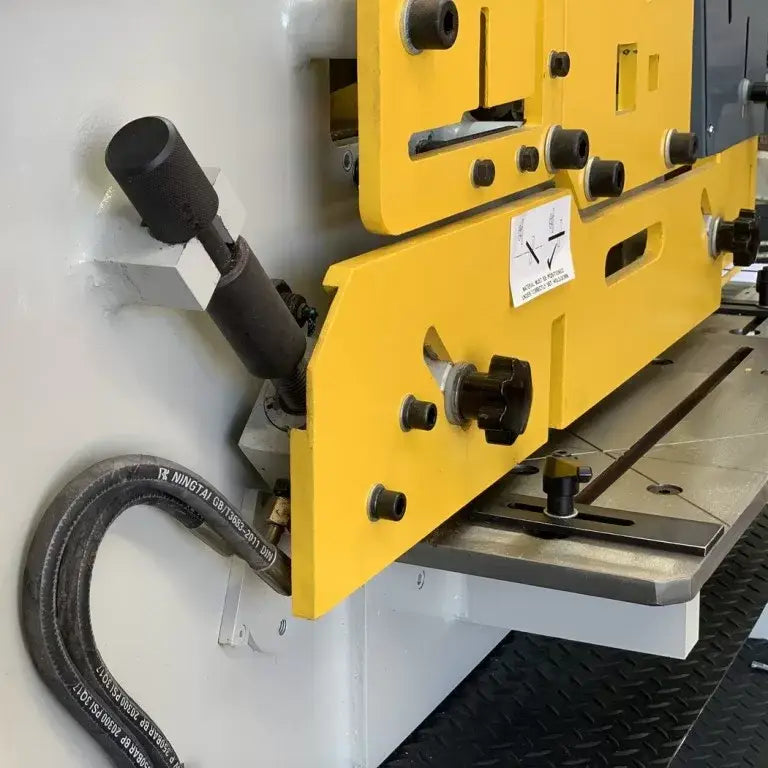

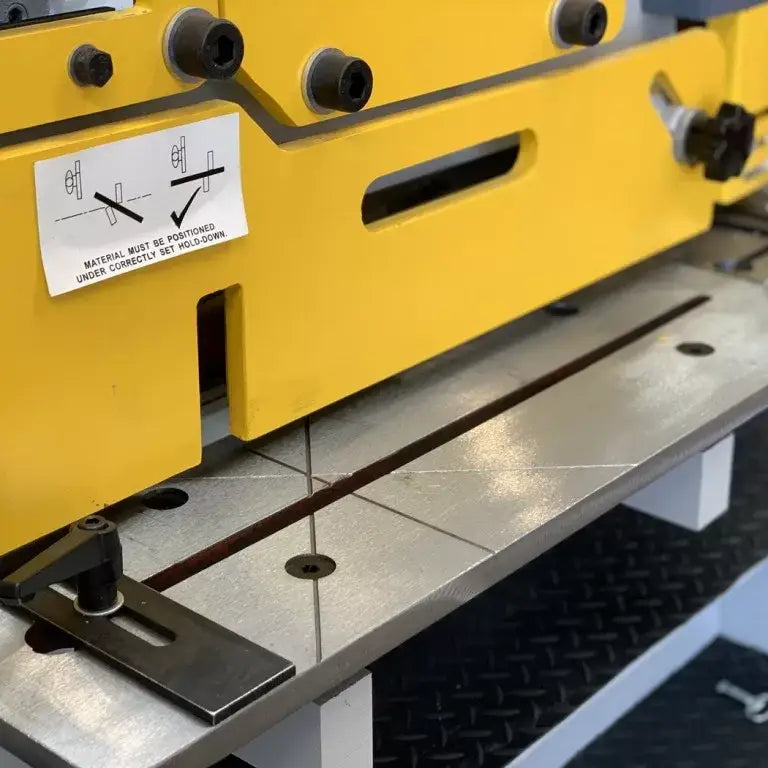

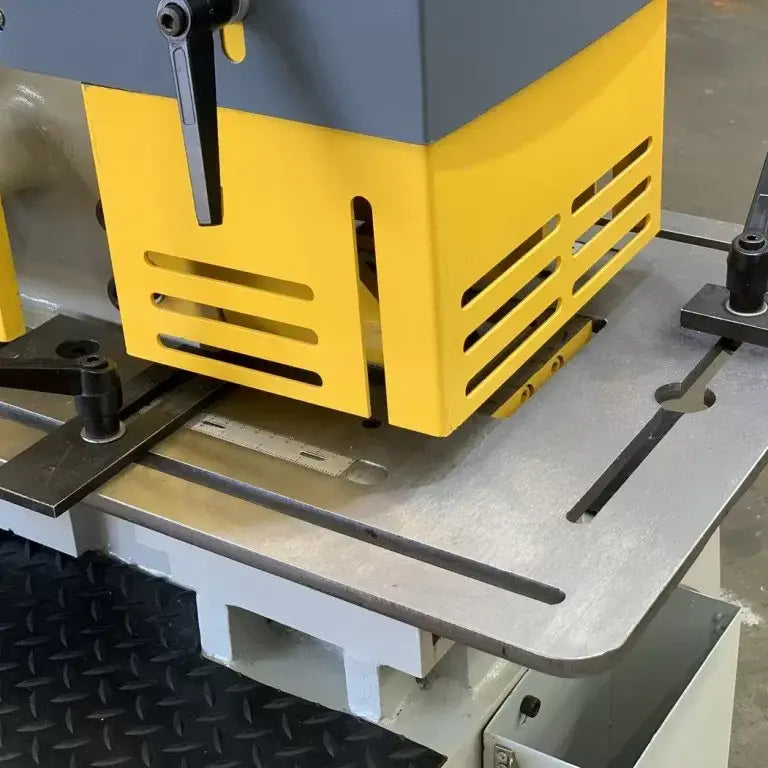

Hydraulic clamp assist flat plate shearing station with square & angle guides

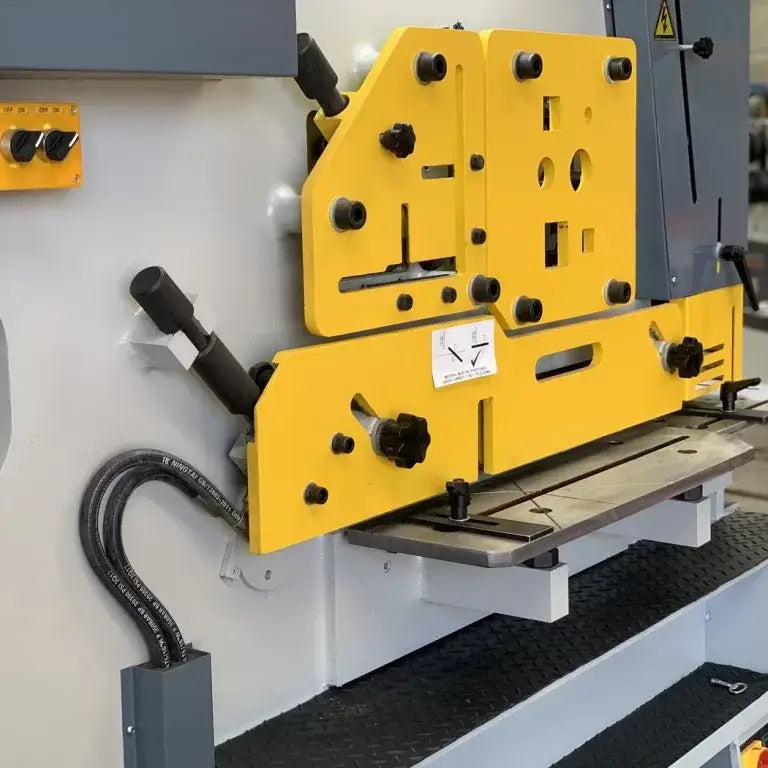

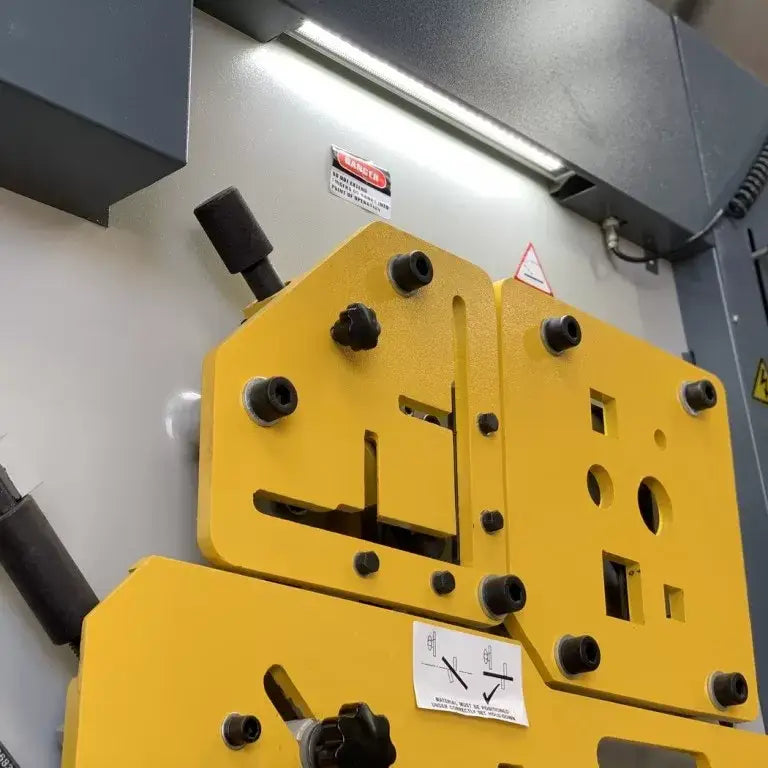

Angle cropping station
Round and square solid cropping station
Rear notching station

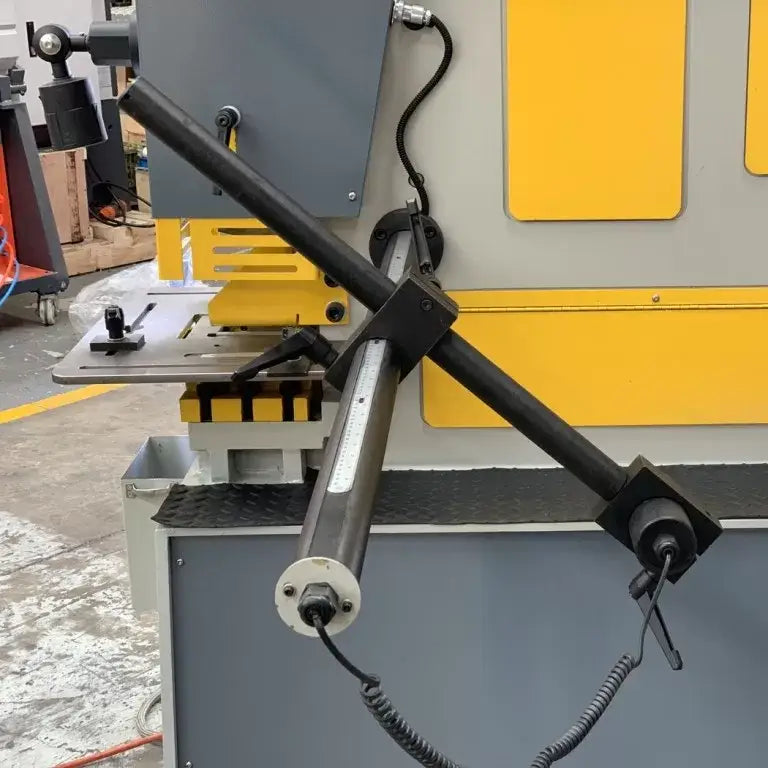

1000mm electric touch and cut feature
Pressbrake bending attachment supplied
10 sets of standard Kingsland type punch and die tooling included
Low power inching and adjustable stroke at punch station
Overload relief on the hydraulic system
Centralised pressure lubrication system
Roving foot pedal operation
Emergency stops
Machine manual
Service toolkit
Hydraulic oil supplied
CE compliantTechnical Data Snap-Shot
Services required to be provided by customer
Accessories Included

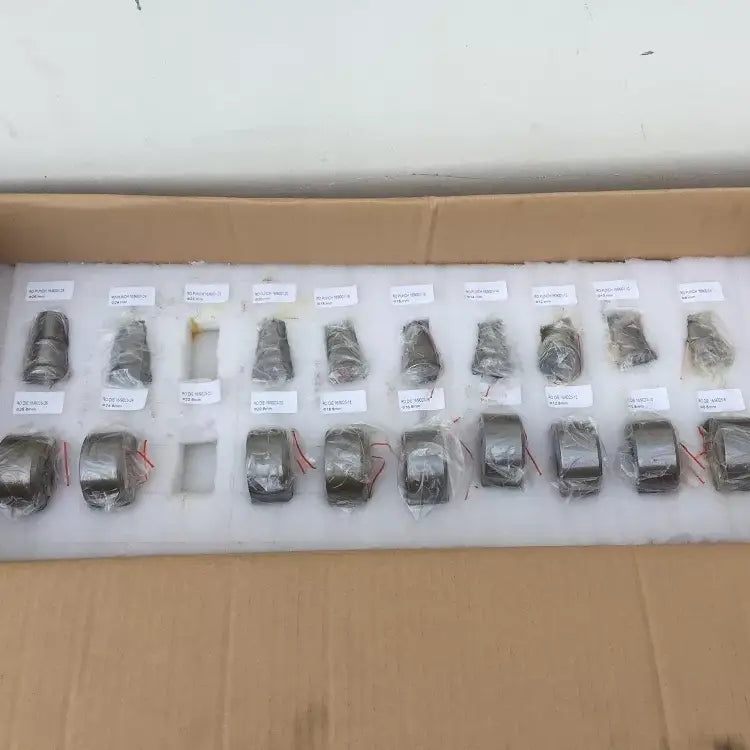

10 sets round punch & dies / long series punches (9006)
Electric touch & cut feature
Pressbrake attachment for bending
Toolbox & manual
Equipment & Accessories Supplied
Recommended Add On Accessories
Channel cropping – 200mm x 75mm x 6.5mm
