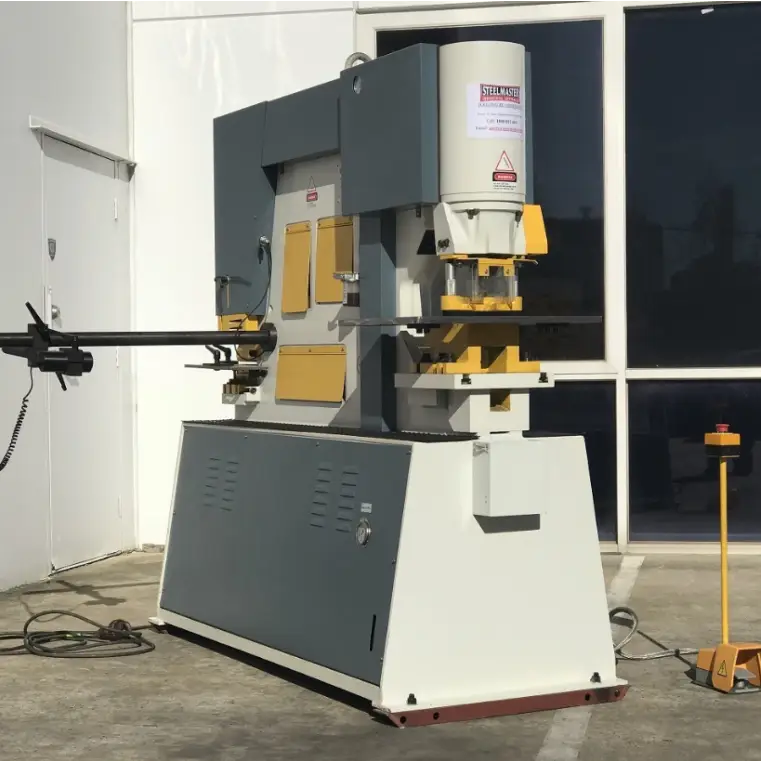

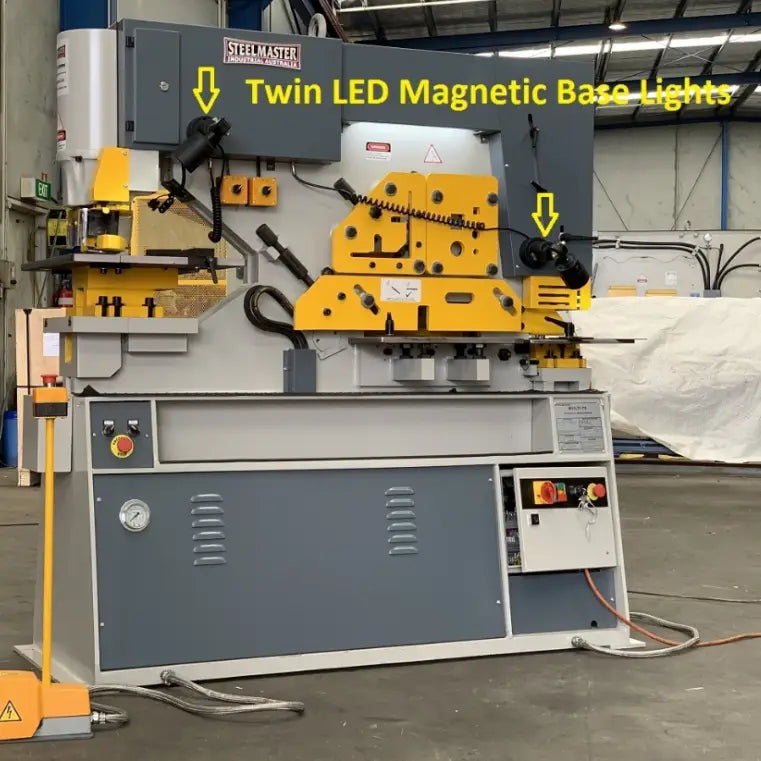

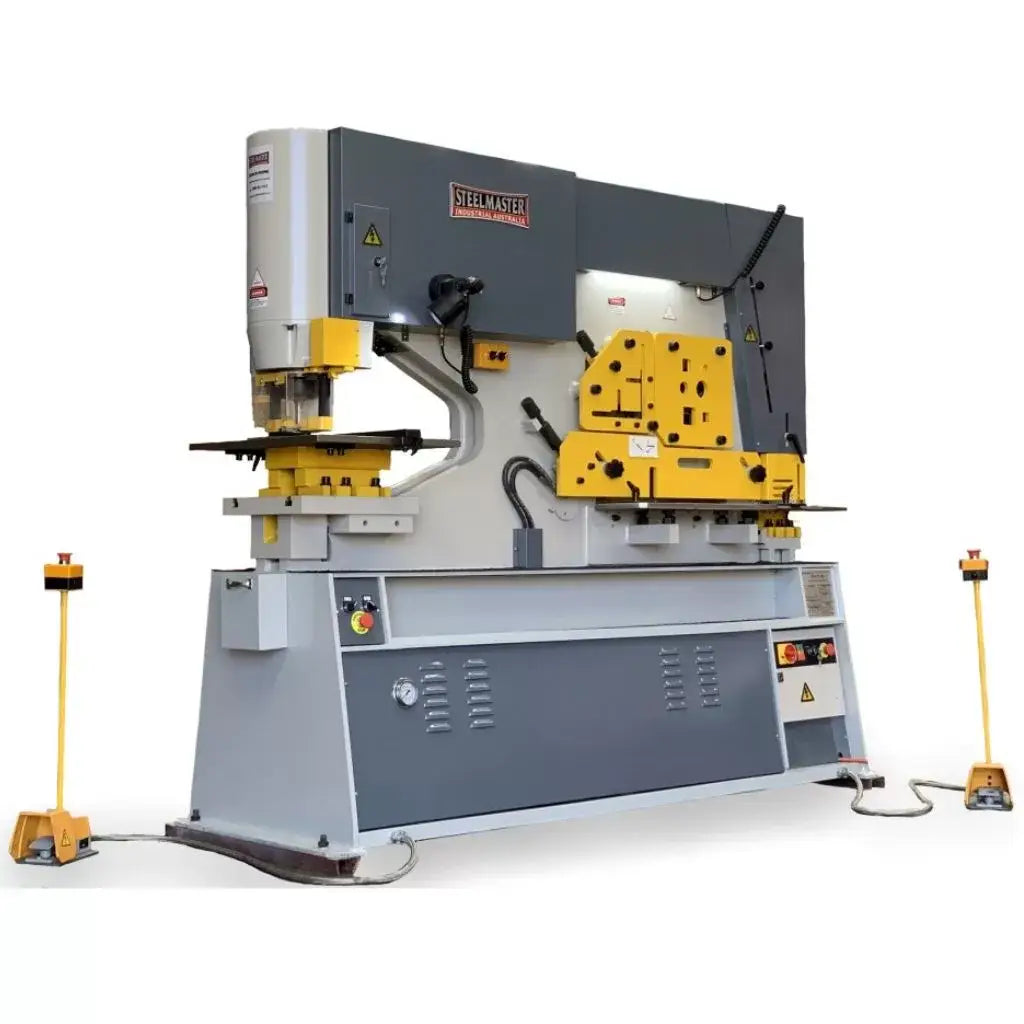

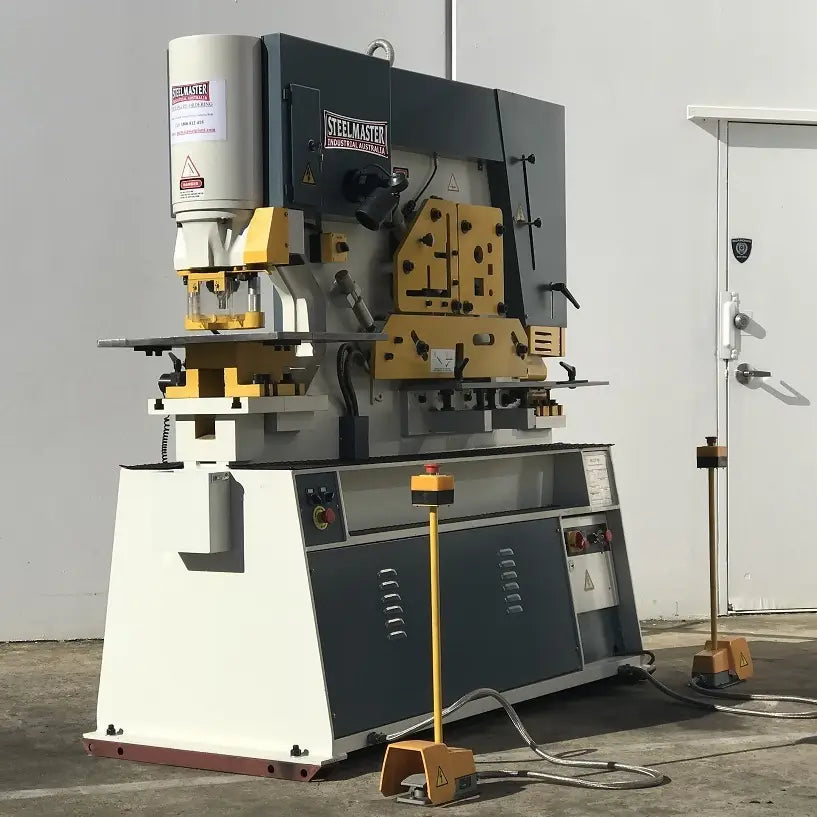

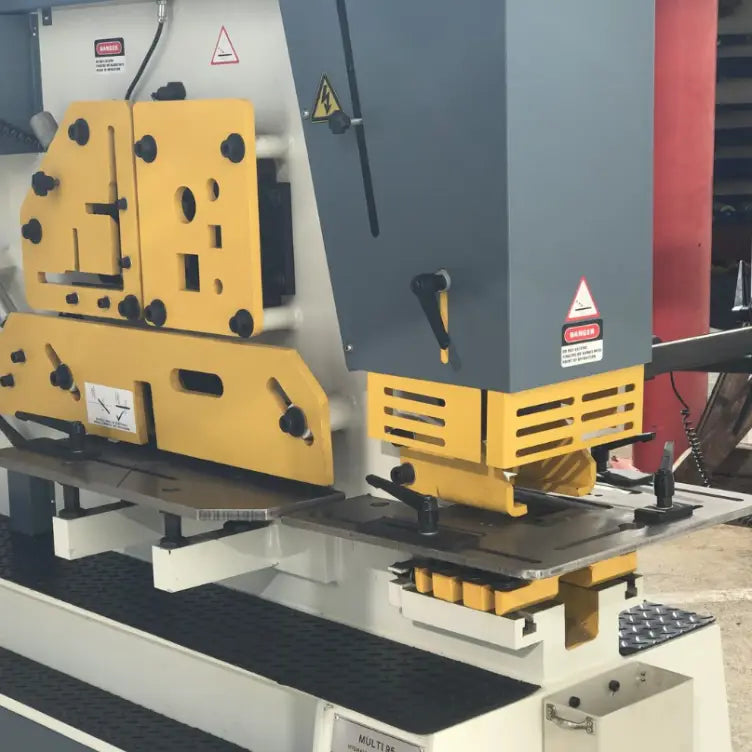

A heavy-duty 70-ton Steelmaster (MULTI 70) hydraulic punch and shear machine. This double-cylinder ironworker can punch, shear, crop, and notch.
Technical Data

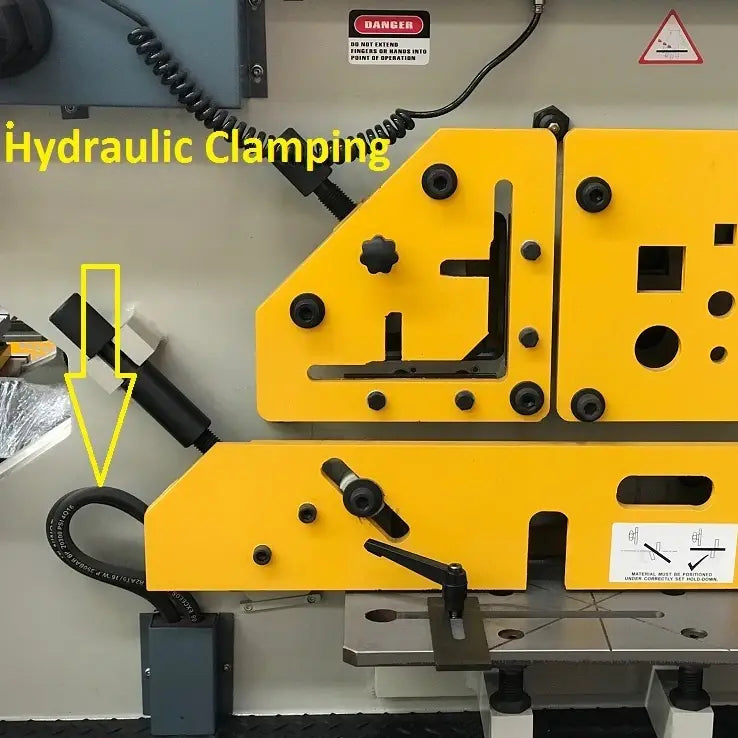

New hydraulic clamping on shearing station
26mm hole in 20mm plate (optional 57mm x 9mm)
55mm stroke length
1100mm working height
450mm deep punch throat depth – this is a must for all base plate work!
375mm x 15mm flat plate shear / also 300mm x 20mm
127mm x 127mm x 13mm angle crop also 70mm x 10mm at 45 degrees.
45mm round & square cropping
100mm x 45mm x 12mm rear notch
500mm x pressbrake bending kit supplied
130mm x 65mm section channel available – optional **
Shipping dimensions – 1640mm x 710mm x 1830mm
Weight – 1850Kg
Power – 415V 5.5Kw
Product Features
Double cylinder hydraulic punch & shear machine
Hydraulic flat plate shear clamping now standard

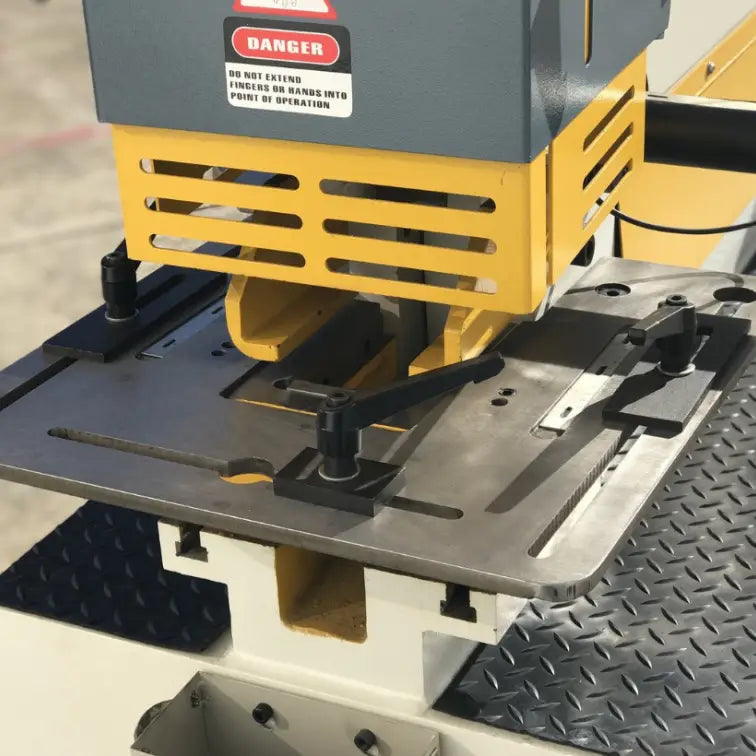

Large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications

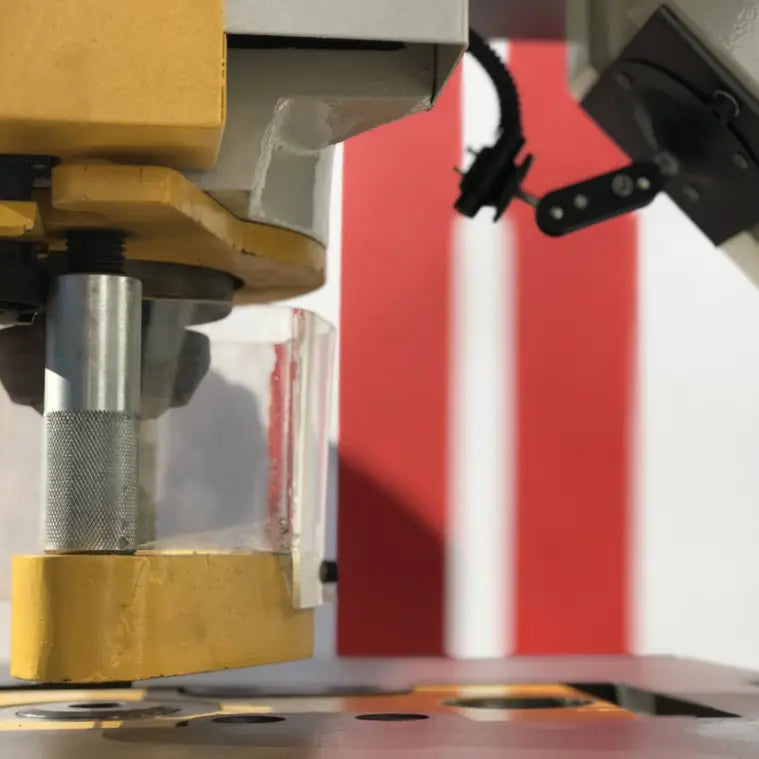

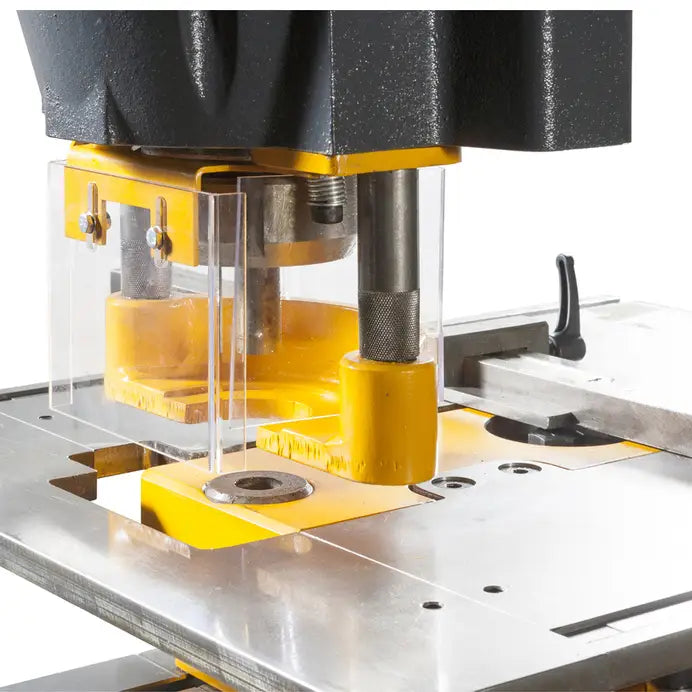

Swing-away punch-stripper unit
Two universal bottom die holders included

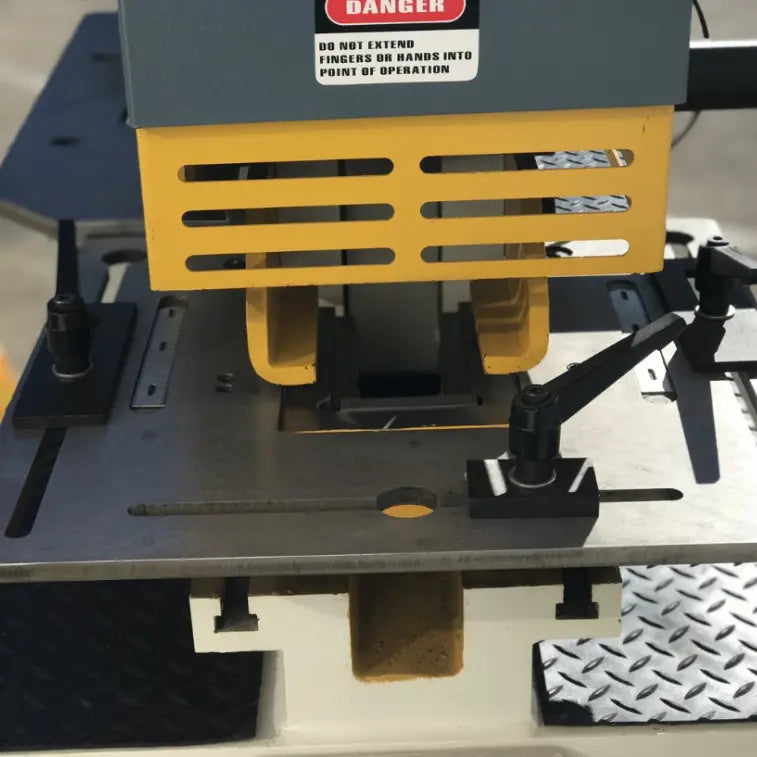

Hydraulic clamp assist flat plate shearing station with square & angle guides

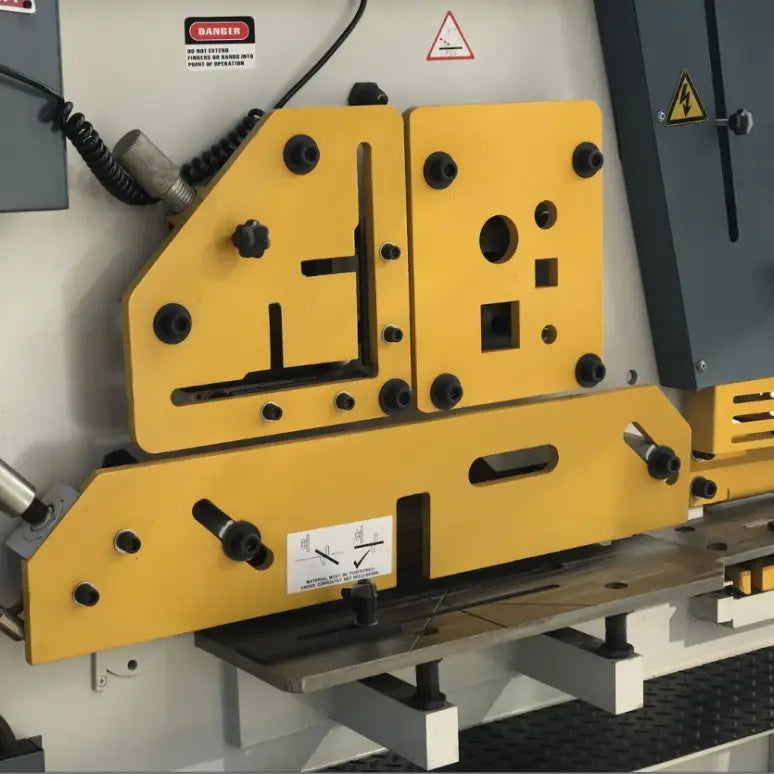

Angle cropping station
Round and square solid cropping station
Rear notching station

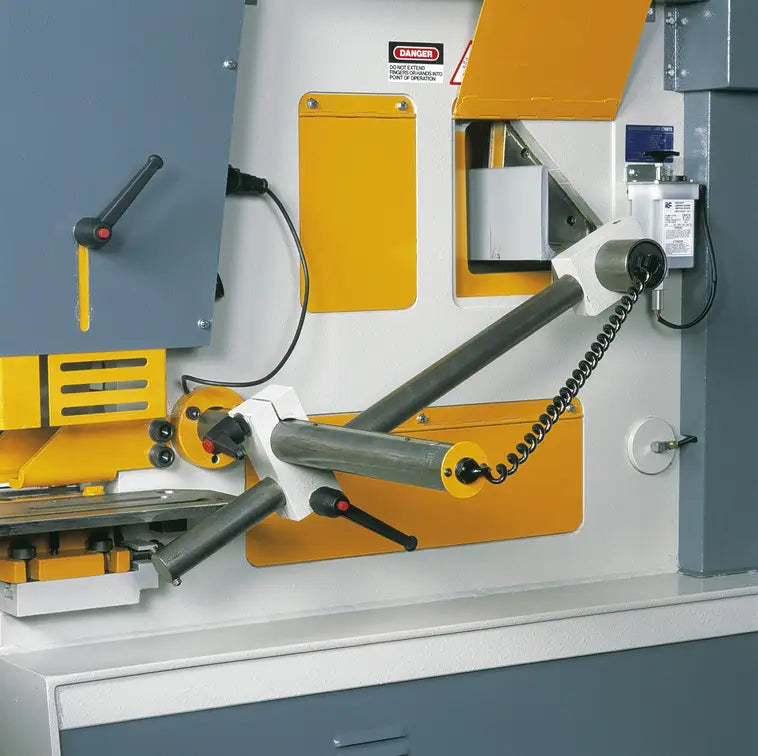

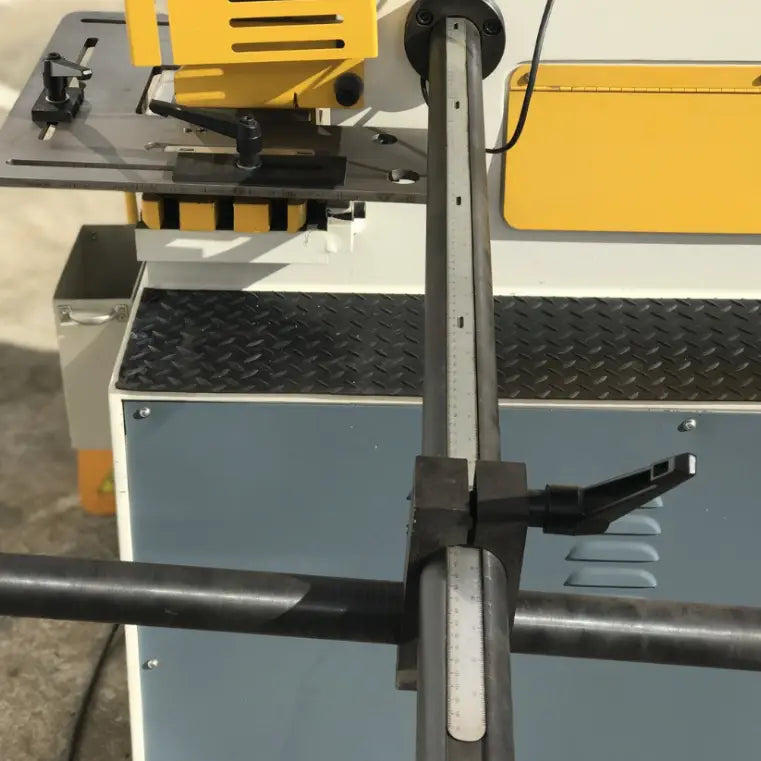

1000mm electric touch and cut feature

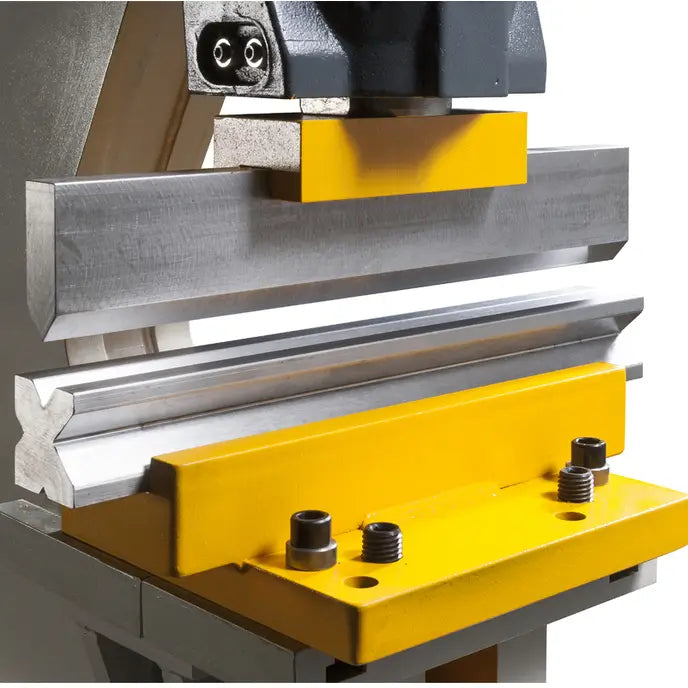

Pressbrake bending attachment supplied

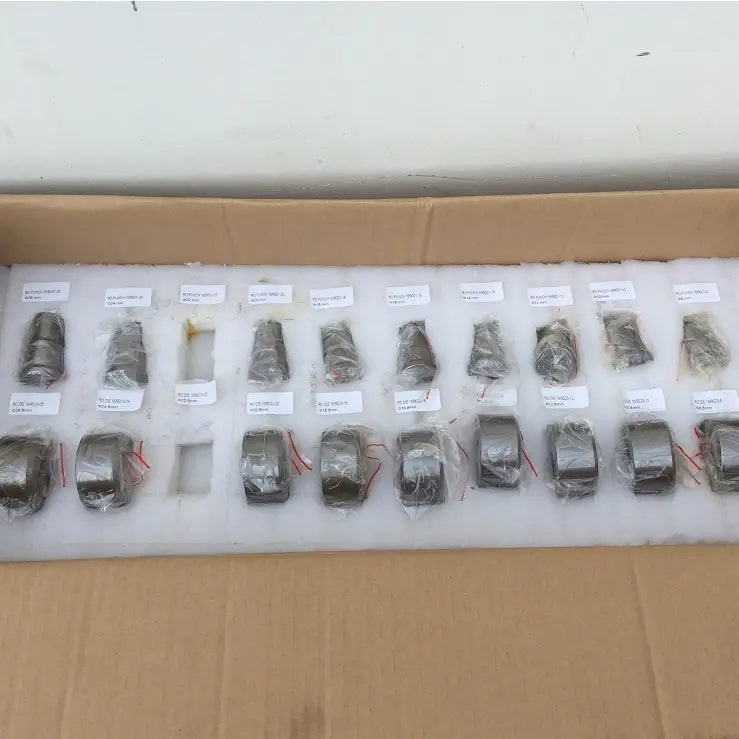

10 sets of standard Kingsland type punch and die tooling included
Low power inching and adjustable stroke at punch station

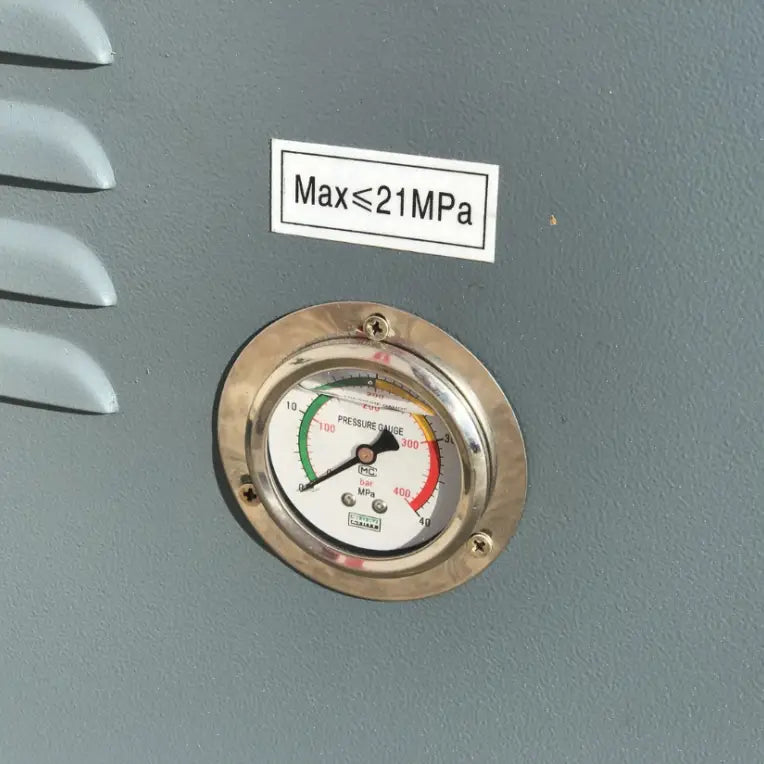

Overload relief on the hydraulic system

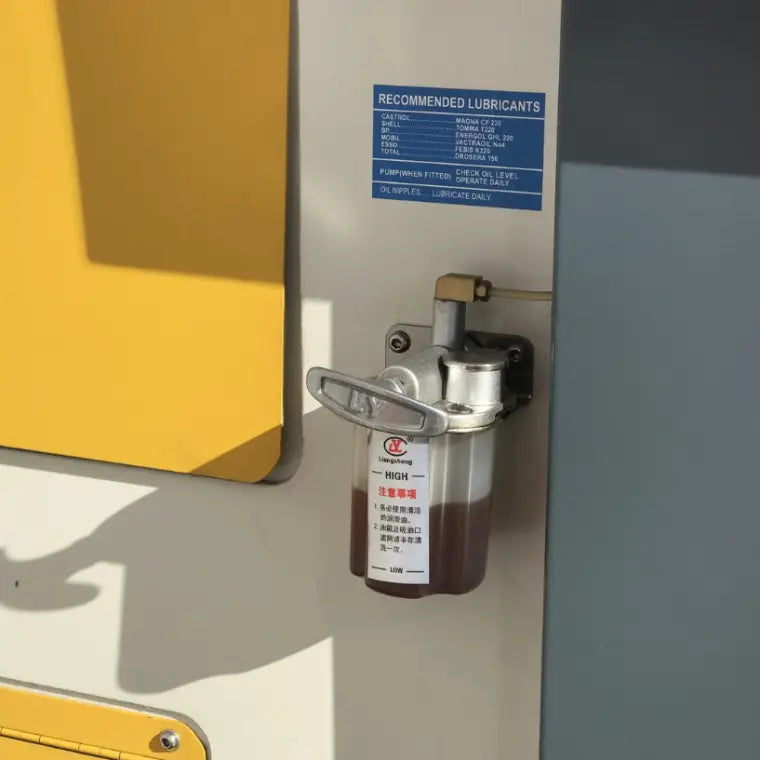

Centralised pressure lubrication system
Roving foot pedal operation
Emergency stops
Machine manual
Service toolkit
Hydraulic oil supplied
CE compliantTechnical Data Snap-Shot
Services required to be provided by customer
Accessories Included
10 sets round punch & dies / short series punches (9001)
Electric touch & cut feature
Pressbrake attachment for bending
Toolbox & manual
