MULTI 95. Punch & Shear. Steelmaster 95Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch
Sale price
$25,850.00
Regular price
$26,850.00
Unit price
Unavailable

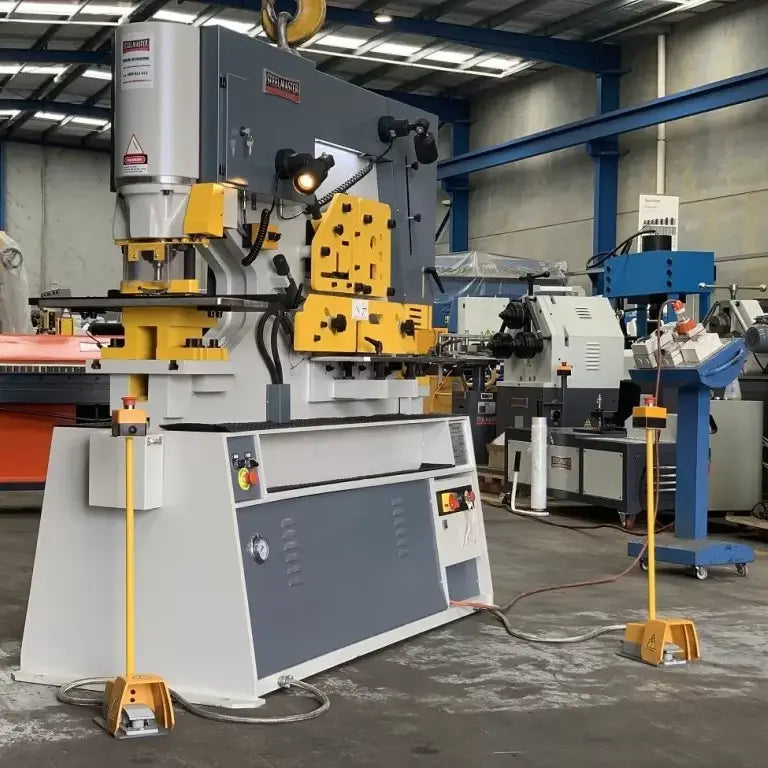

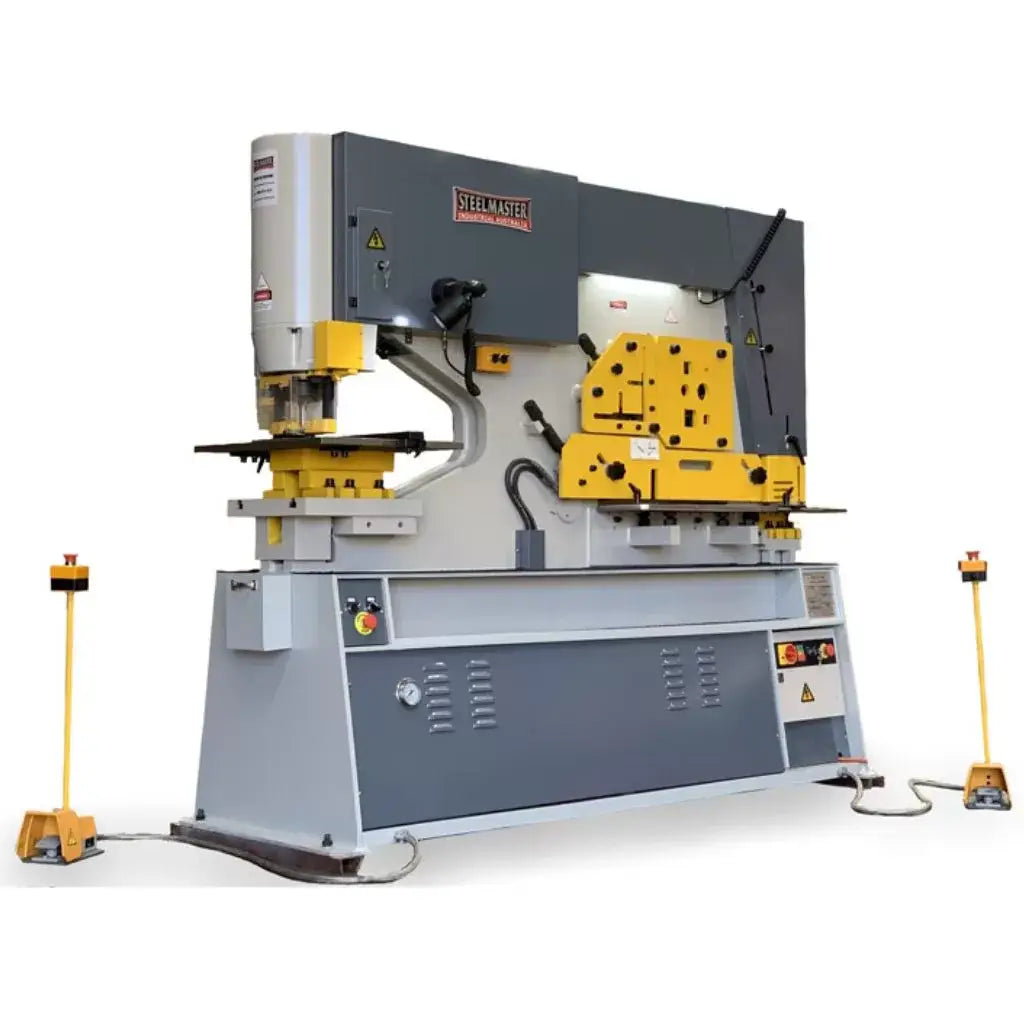

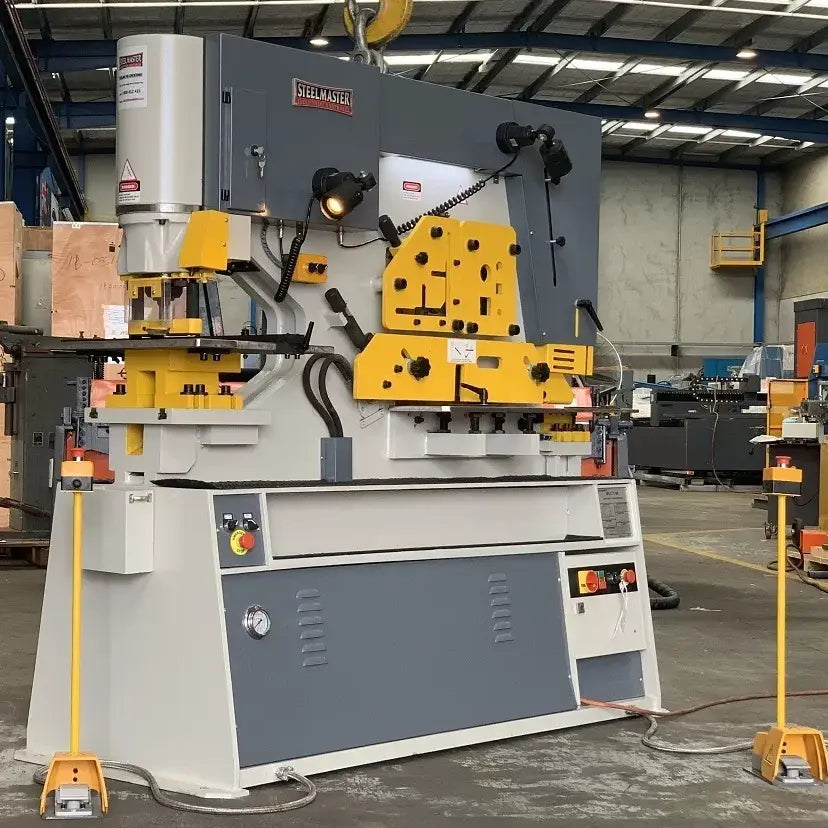

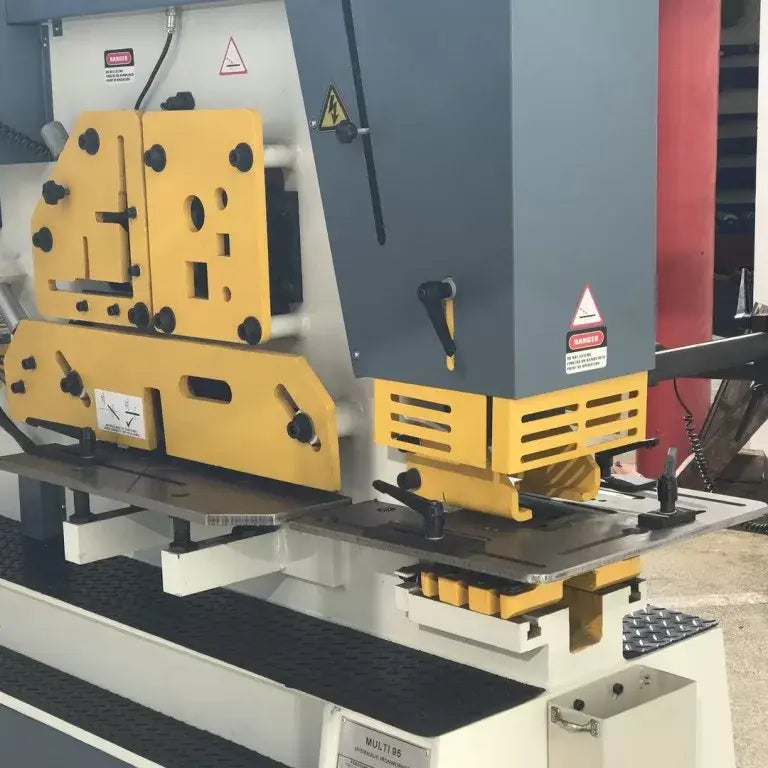

A 95-ton Steelmaster (MULTI 95) hydraulic punch and shear. A powerful double-cylinder ironworker designed to punch, shear, crop, and notch.

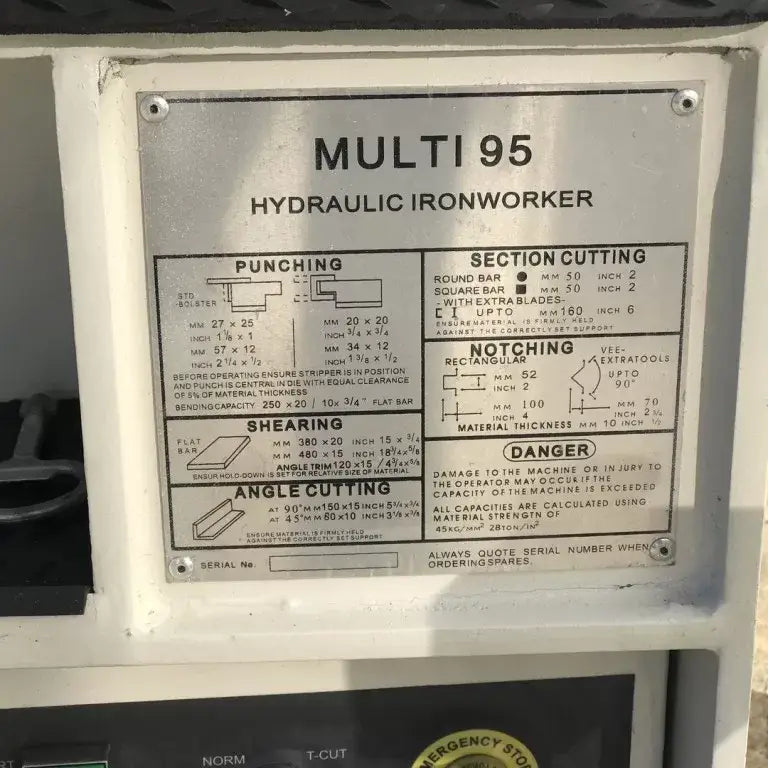

Technical Data
New hydraulic clamping on shearing station
28mm hole in 24mm plate (optional 57mm x 12mm)
80mm stroke length
1039mm working height
450mm deep punch throat depth – this is a must for all base plate work!
480mm x 15mm flat plate shear / also 380mm x 20mm
150mm x 150mm x 15mm angle crop also 80mm x 10mm at 45 degrees.
50mm round & square cropping
100mm x 52mm x 13mm rear notch
500mm x pressbrake bending kit supplied
160mm x 90mm section channel available – optional **
Shipping dimensions – 1900mm x 790mm x 1910mm
Weight – 2430Kg
Power – 415V 7.5Kw
Product Features
Double cylinder hydraulic punch & shear machine

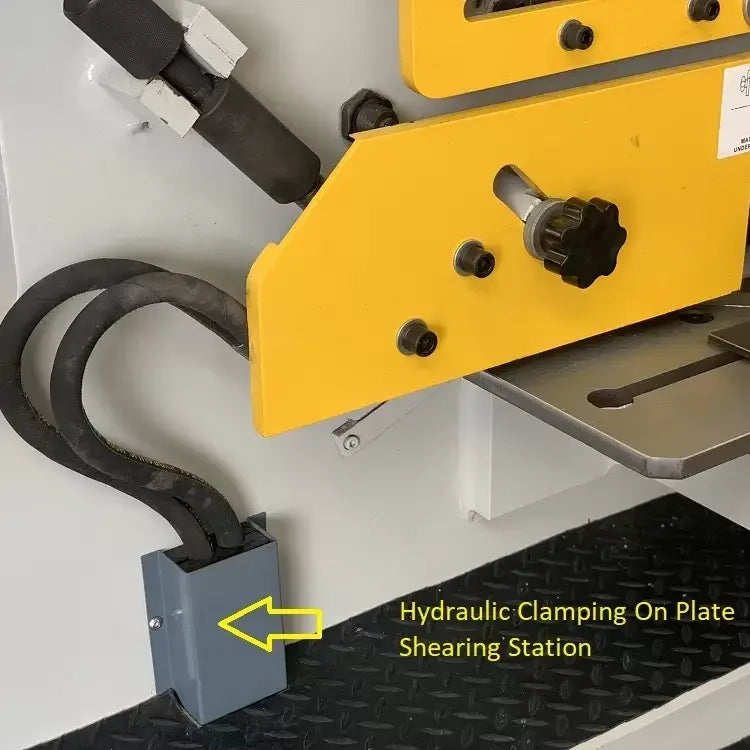

Hydraulic flat plate shear clamping now standard

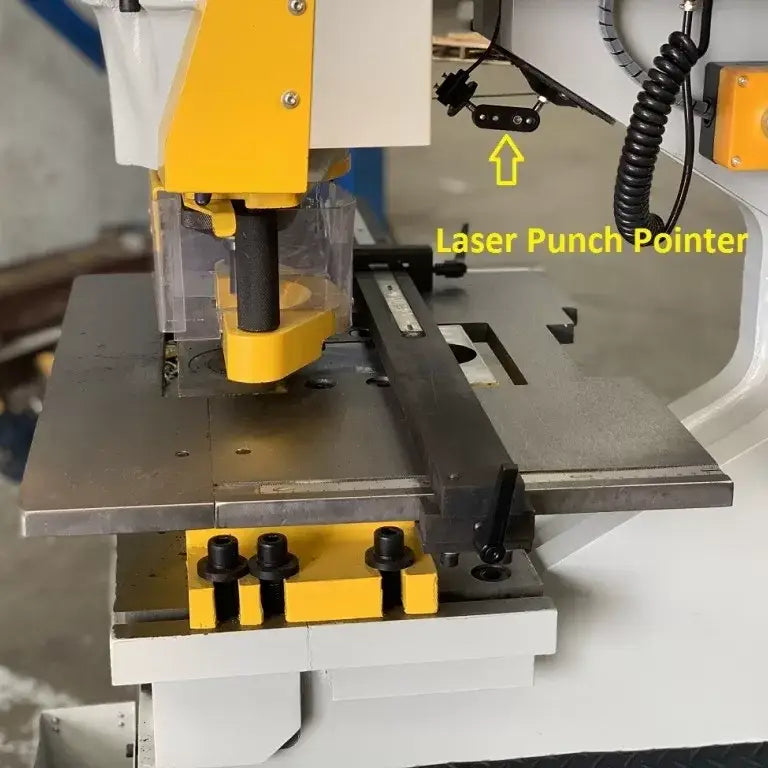

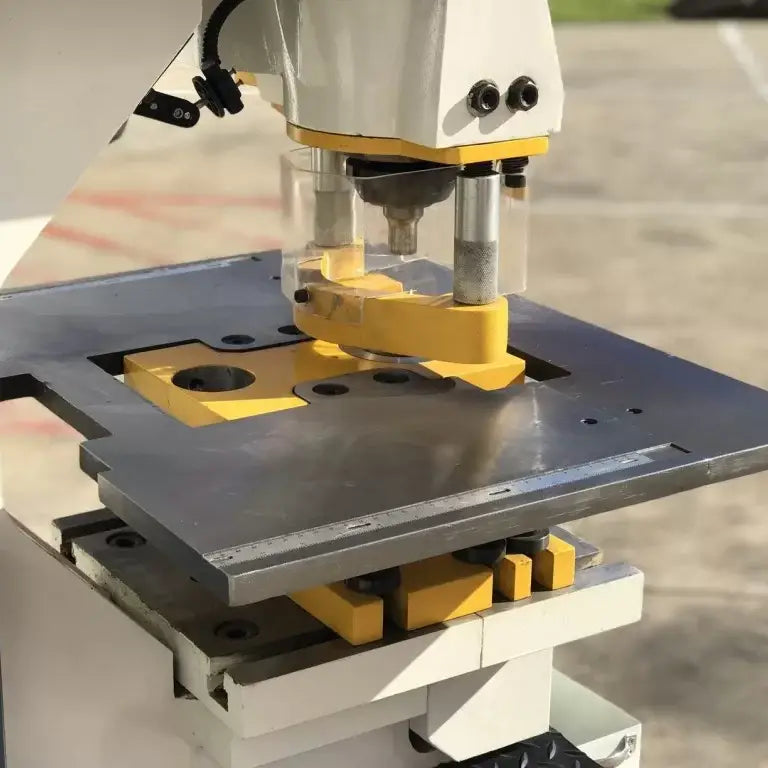

Large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications

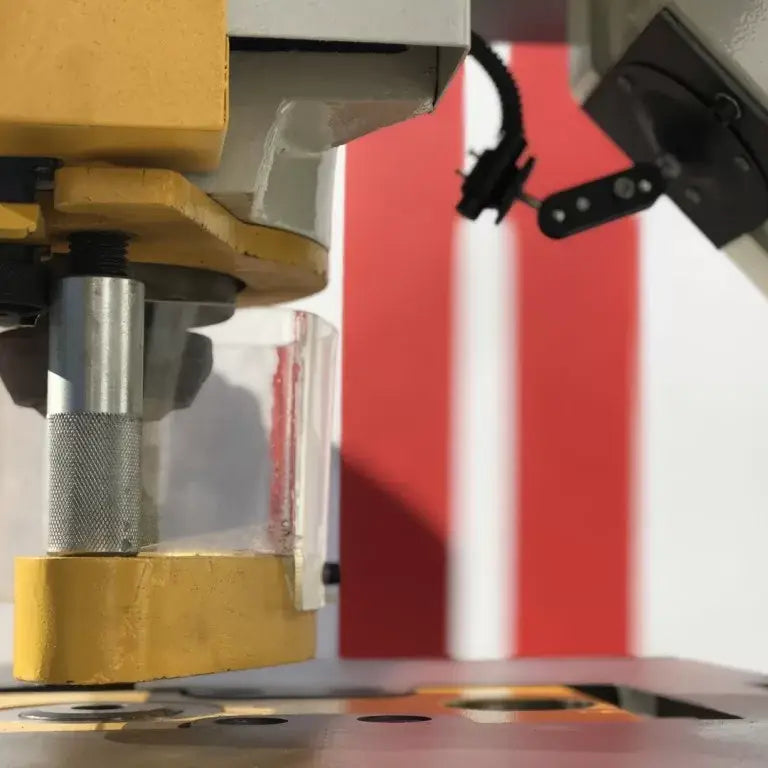

Swing-away punch-stripper unit
Two universal bottom die holders included

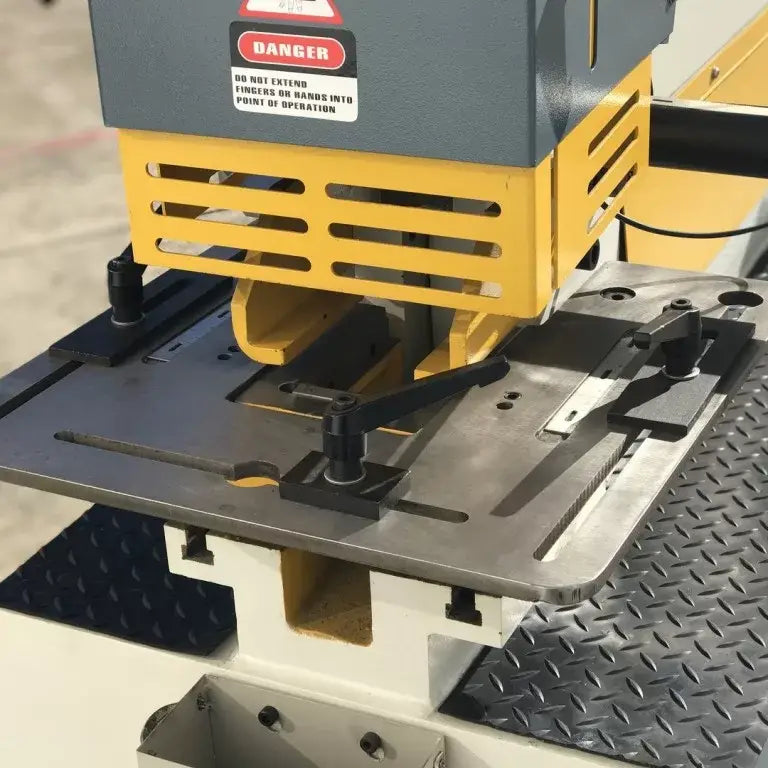

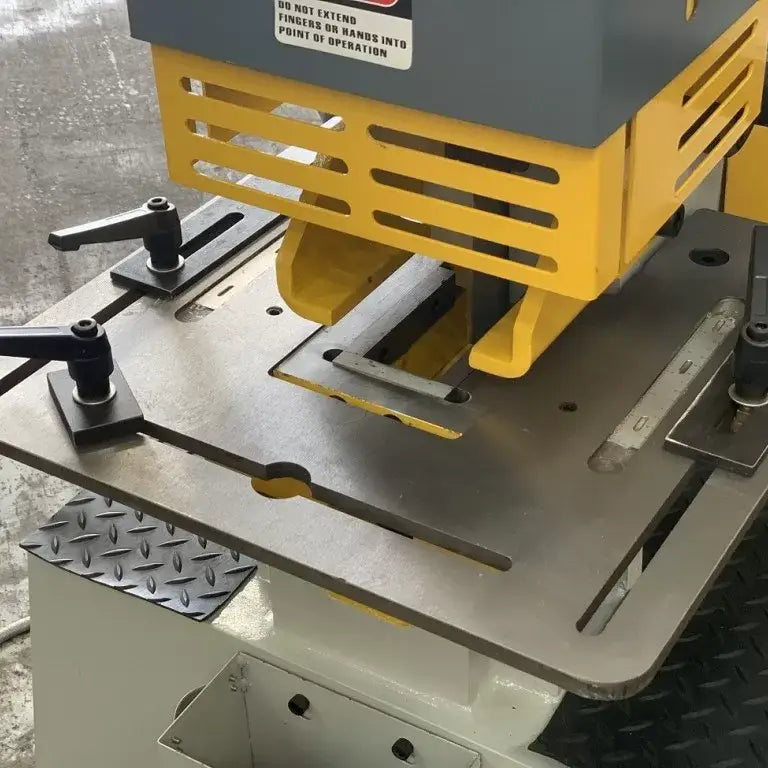

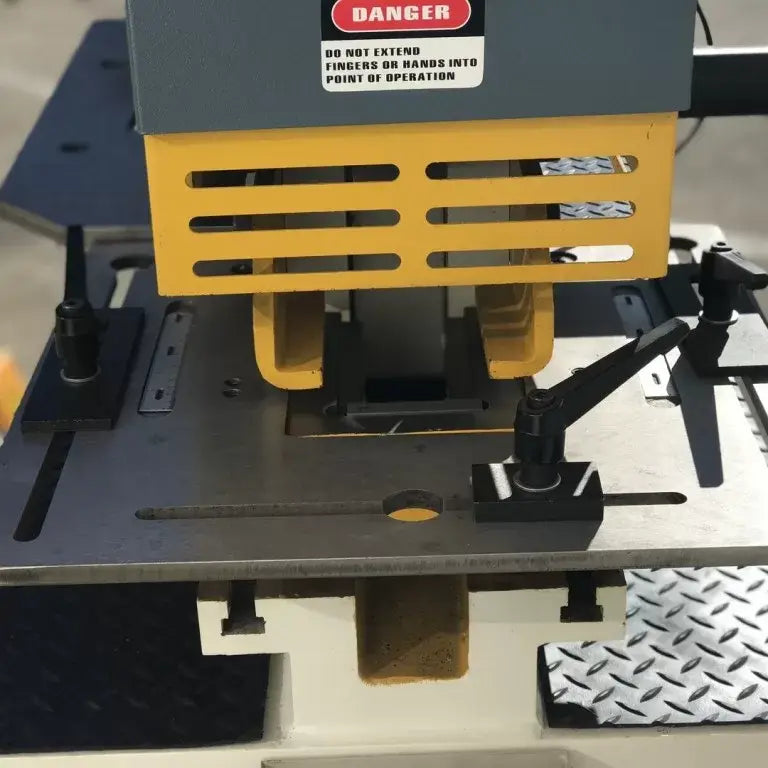

Hydraulic clamp assist flat plate shearing station with square & angle guides

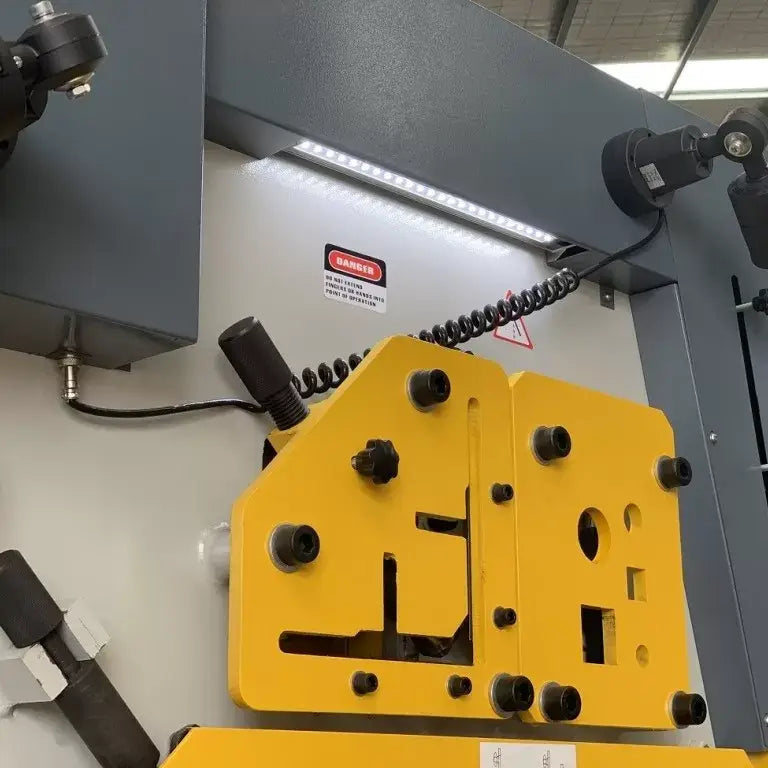

Angle cropping station
Round and square solid cropping station
Rear notching station

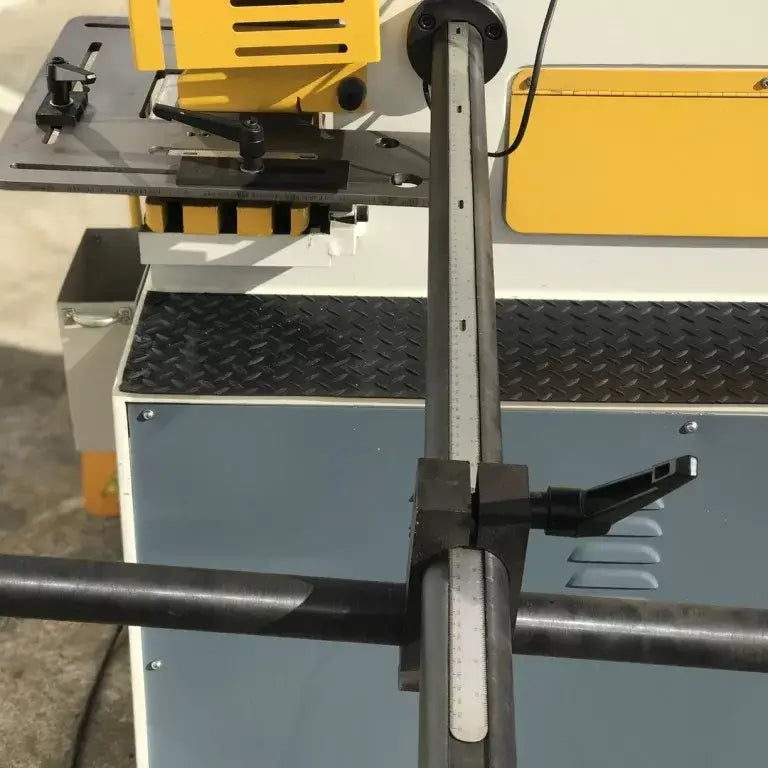

1000mm electric touch and cut feature

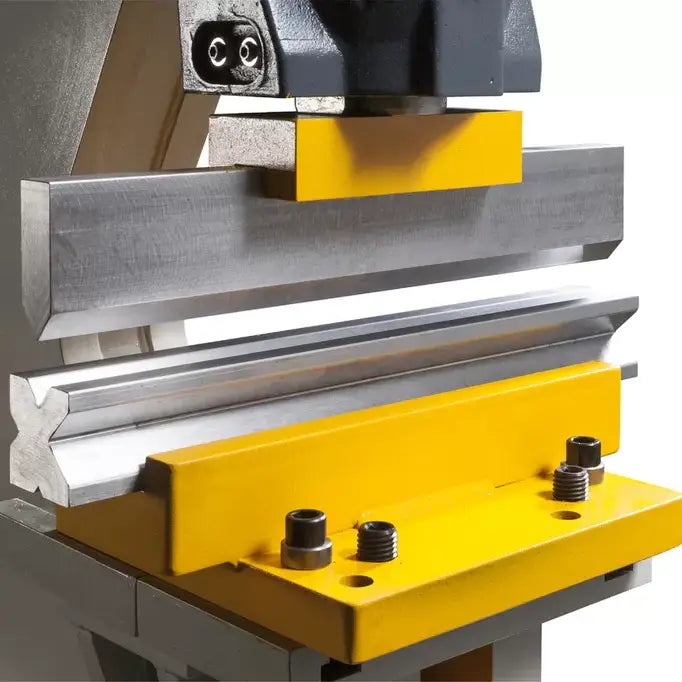

Pressbrake bending attachment supplied
10 sets of standard Kingsland type punch and die tooling included
Low power inching and adjustable stroke at punch station
Overload relief on the hydraulic system

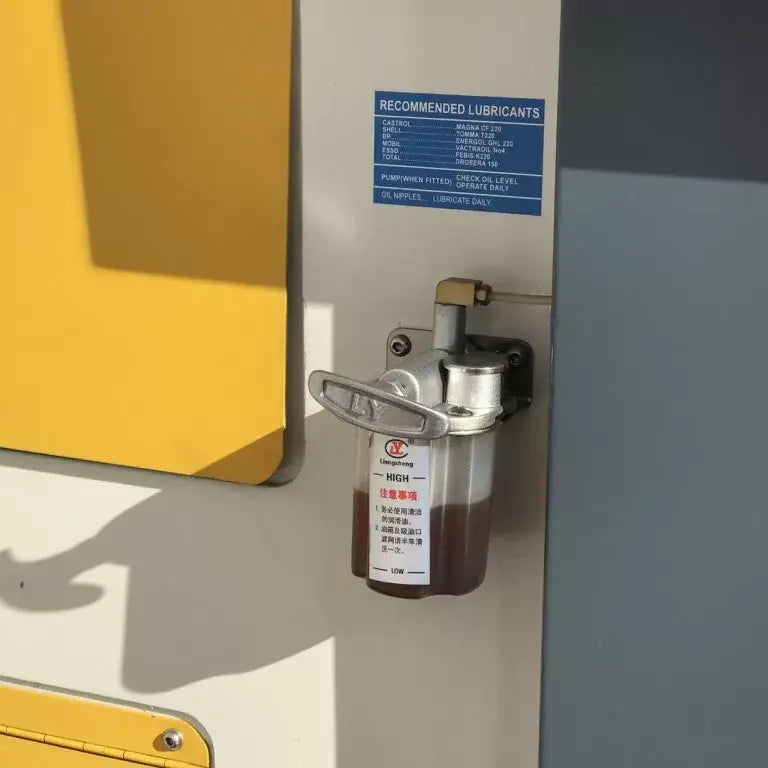

Centralised pressure lubrication system
Roving foot pedal operation
Emergency stops
Machine manual
Service toolkit
Hydraulic oil supplied
CE compliantTechnical Data Snap-Shot
Services required to be provided by customer
Accessories Included
10 sets round punch & dies / short series punches (9001)
Electric touch & cut feature
Pressbrake attachment for bending
Toolbox & manual
Equipment & Accessories Supplied
Recommended Add On Accessories
16+0134 – 20 piece Tooling Kit 9001 Punches / 9023 Dies = 8, 10, 12, 14 , 16, 18, 20, 22, 24 & 26m
16+0074 – Swan Neck Bolster to Suit 70/90/120 Range
16+0079 – Louvre Punch Bolster to Suit 70/90/120 Range
15+0290 – Roller Stands.52mm x 400mm Adjustable Height. 650 – 1080 High 200kg load capacity
15+0291 – Roller Stands. Heavy Duty 52mm x 125mm V – Type Adjustable Height 580 – 970 high 200kg capacity
15+0057 – Gravity Roller Conveyor Kit. 360mm x 3000mm. Complete with Adjustable Height Legs
Full Range, Round Punch & Dies in Stock from 3mm ~ 34mm in 0.5mm Increments also Slotted, Square, Offset & Many More
15+0183 – XDP 905 Performance Cutting, Punching, Tapping Spray – Improves Tool Life 5 Times
