Steelmaster Industrial | SKU: 27-0259

Open Front Hydraulic Press, 200 Ton Capacity, Heavy Duty

Name: Open Front Hydraulic Press, 200 Ton Capacity, Heavy Duty
Brand: Steelmaster Industrial
SKU: 27-0259
Price: 51850.00 AUD
Availability: InStock

PRICE EX GST

$51,850.00

PRICE INC GST

$57,035.00

MODEL NUMBER: SM-CDY200

Get this for only $ p/w. Request a quote today!

*Subject to Finance Approval. T&Cs apply.

Note: The estimated weekly repayment does not include GST.

PRODUCT OVERVIEW

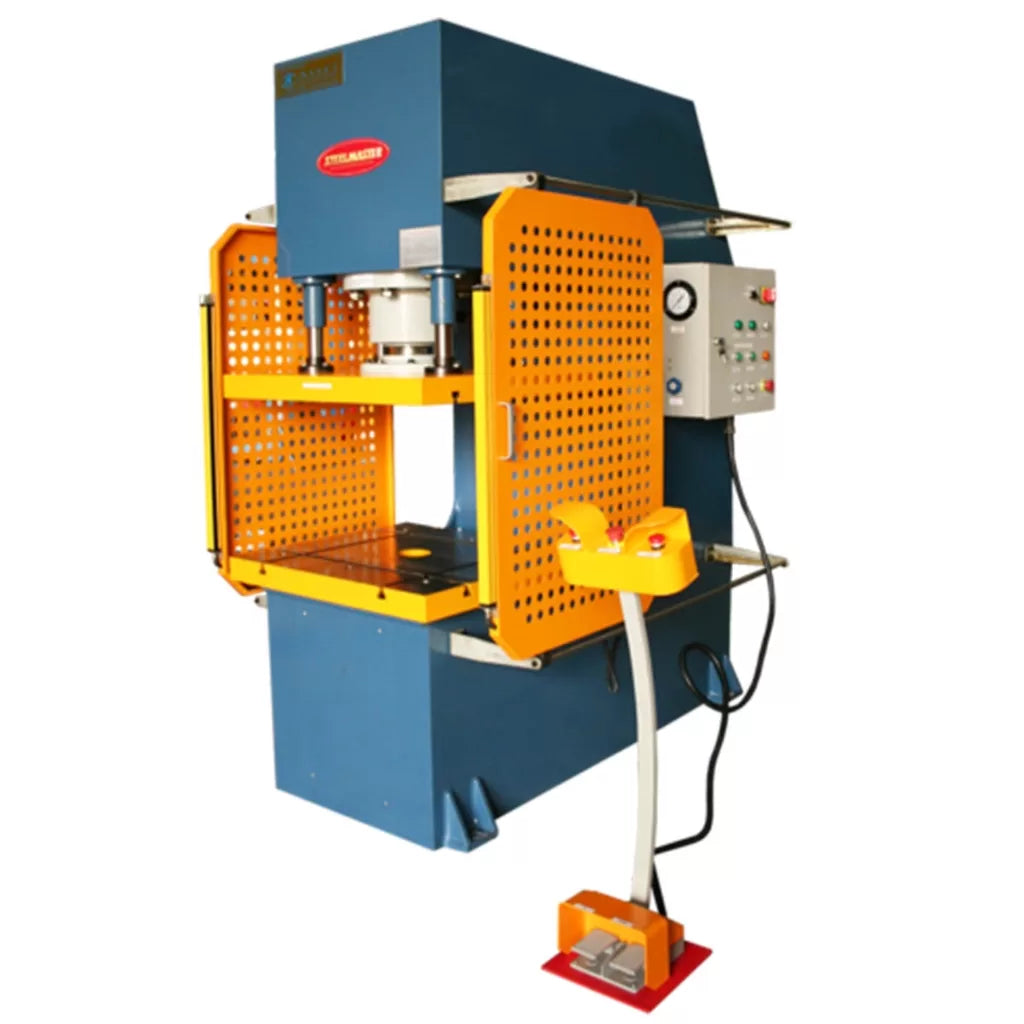

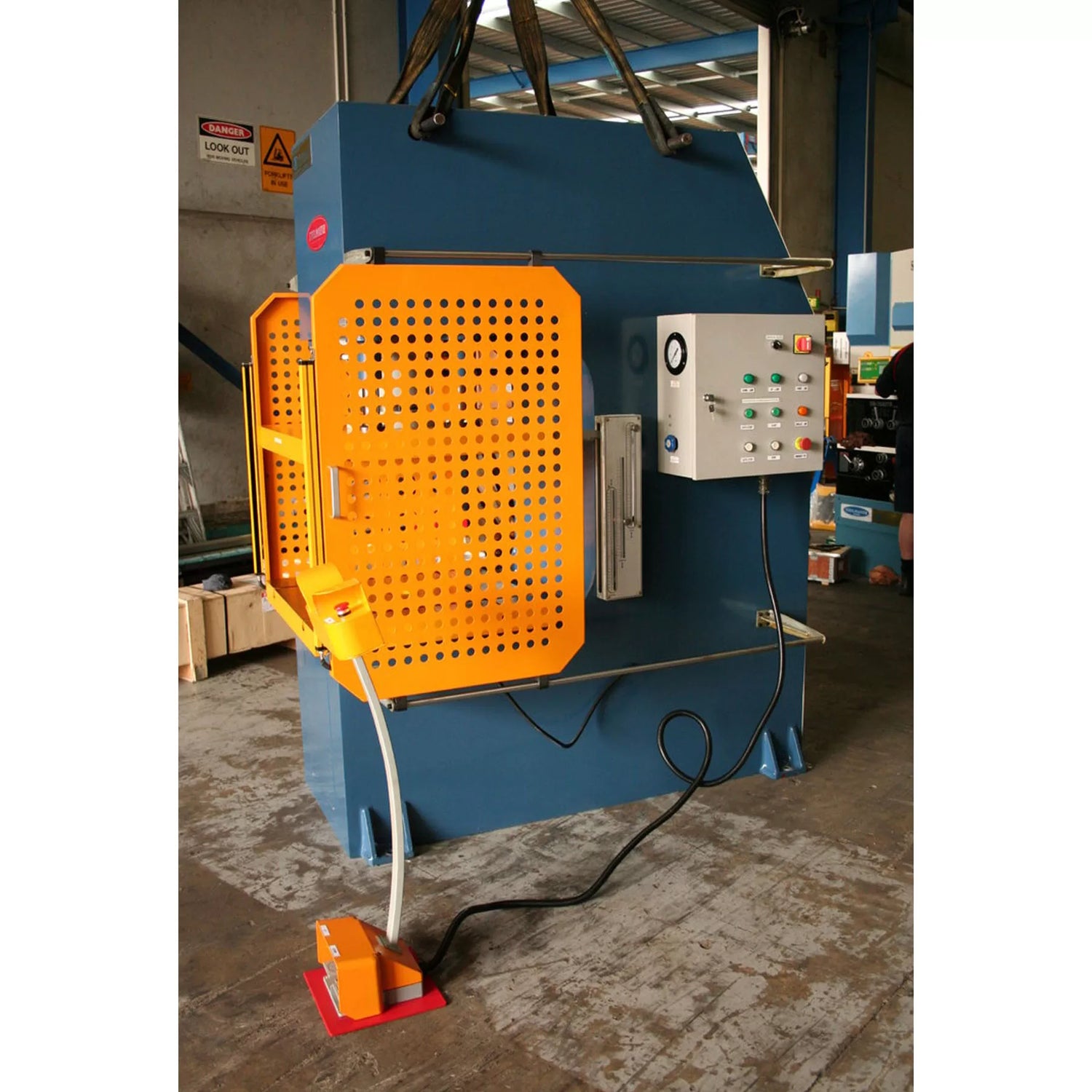

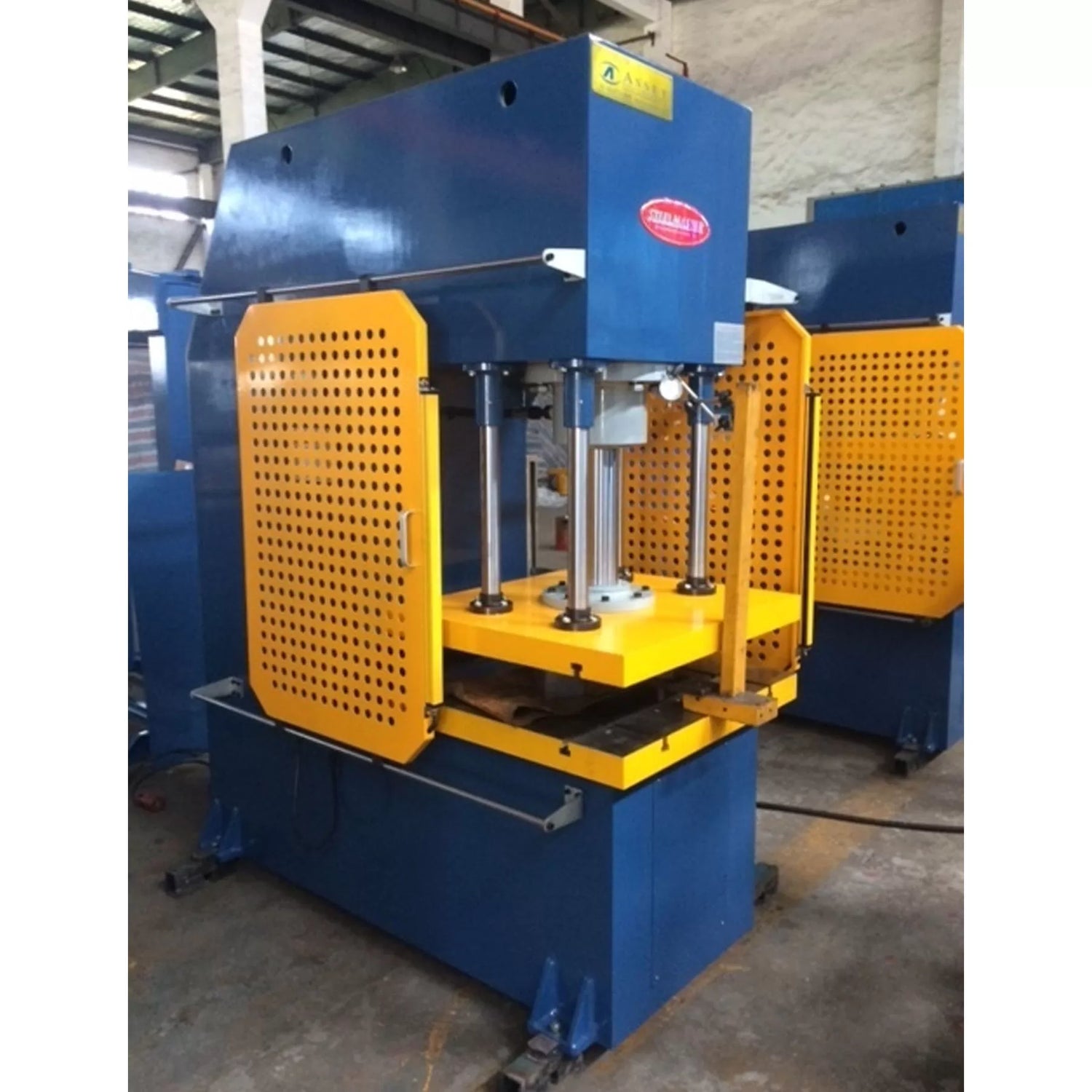

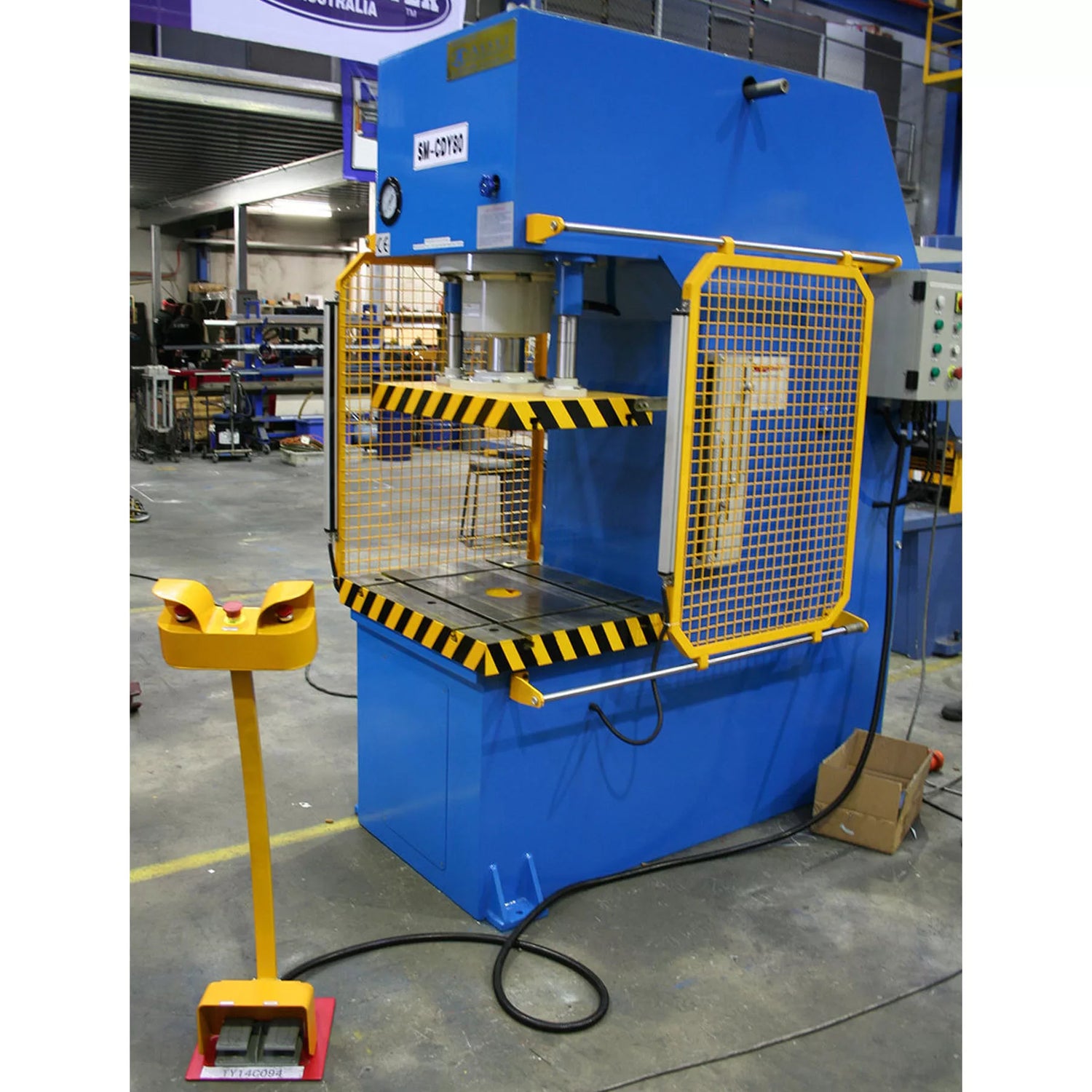

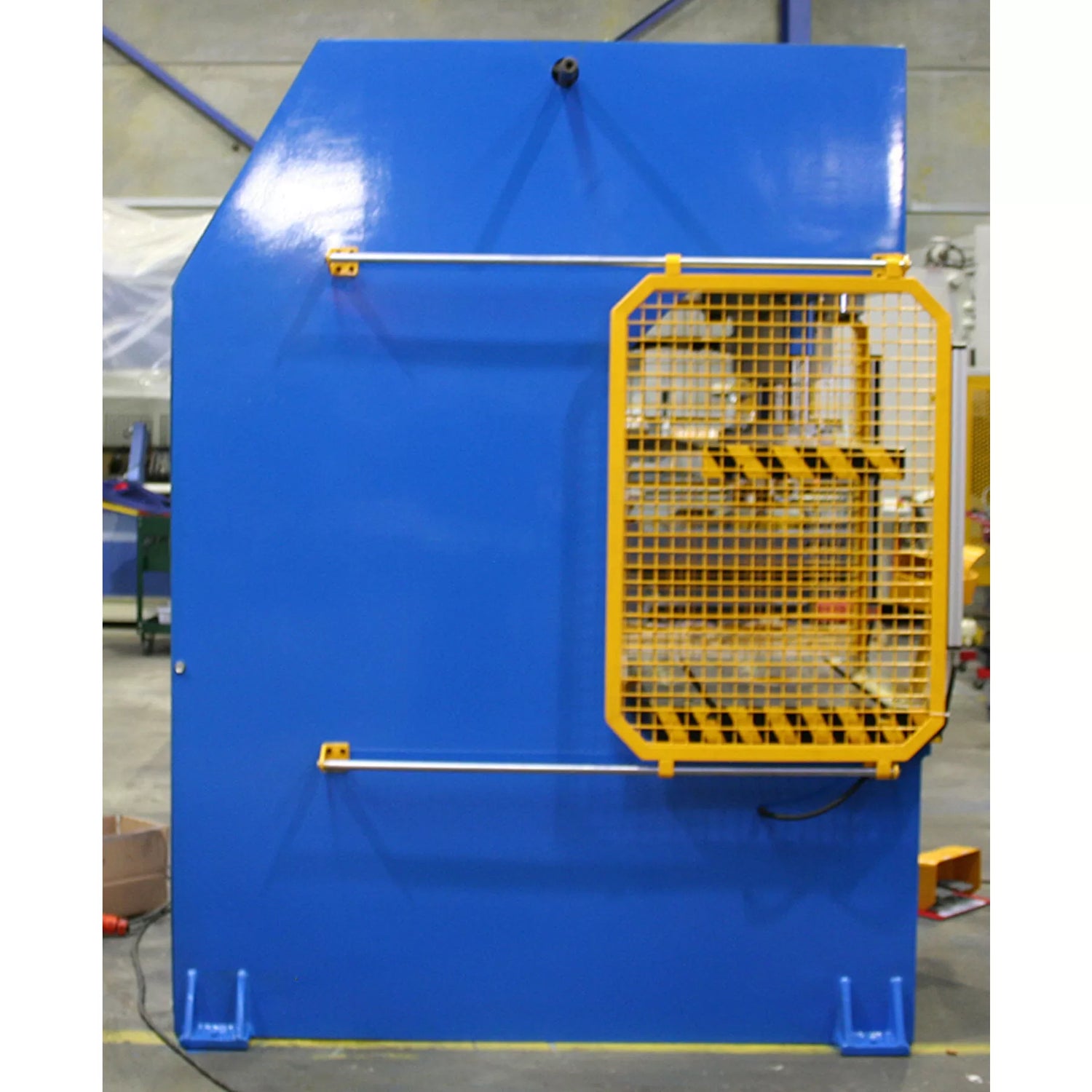

Steelmaster SM-CDY200 open front, heavy-duty industrial hydraulic press with a 200-ton capacity.

MODEL NUMBER

SM-CDY200

PRODUCT FEATURES

80 ~ 200 ton force models available

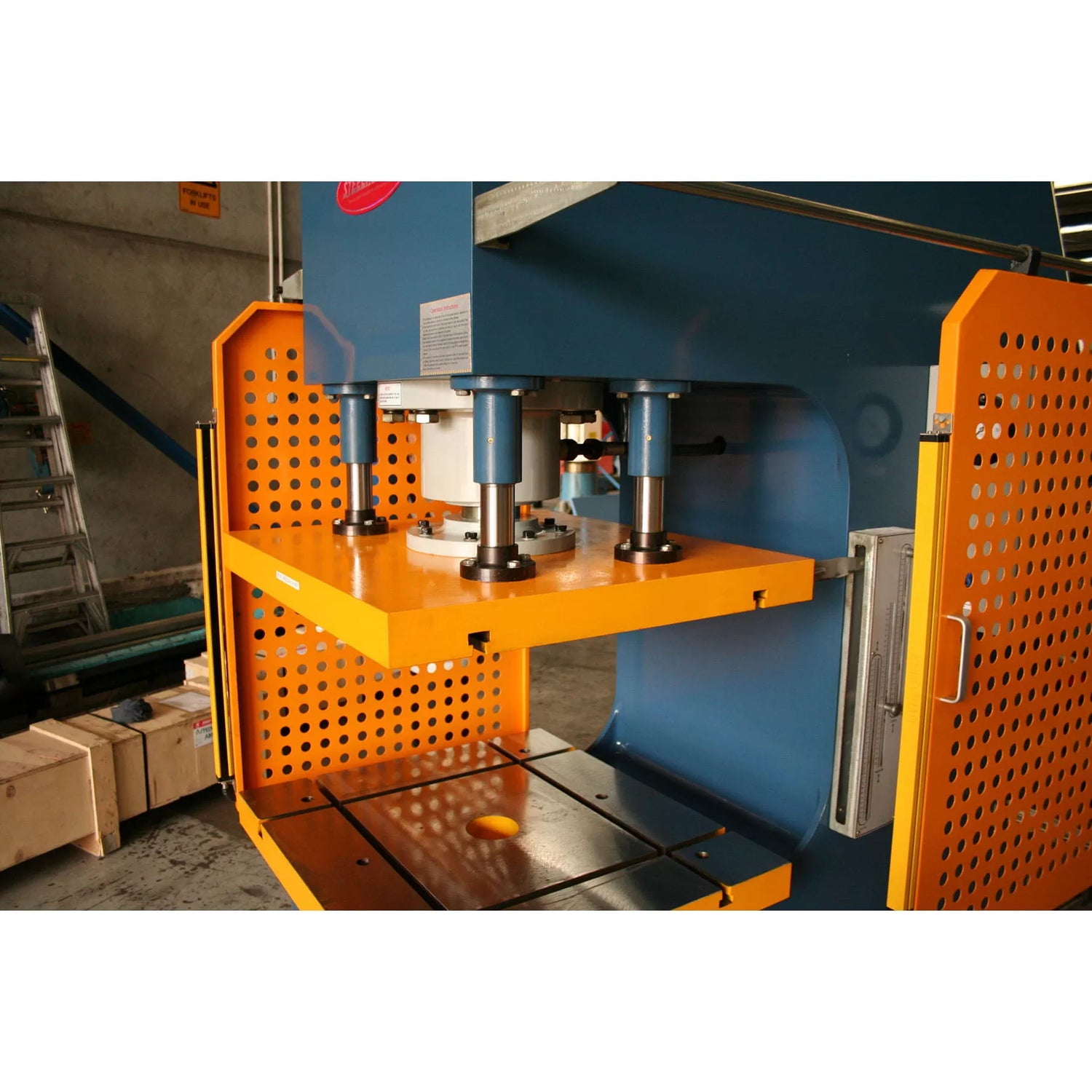

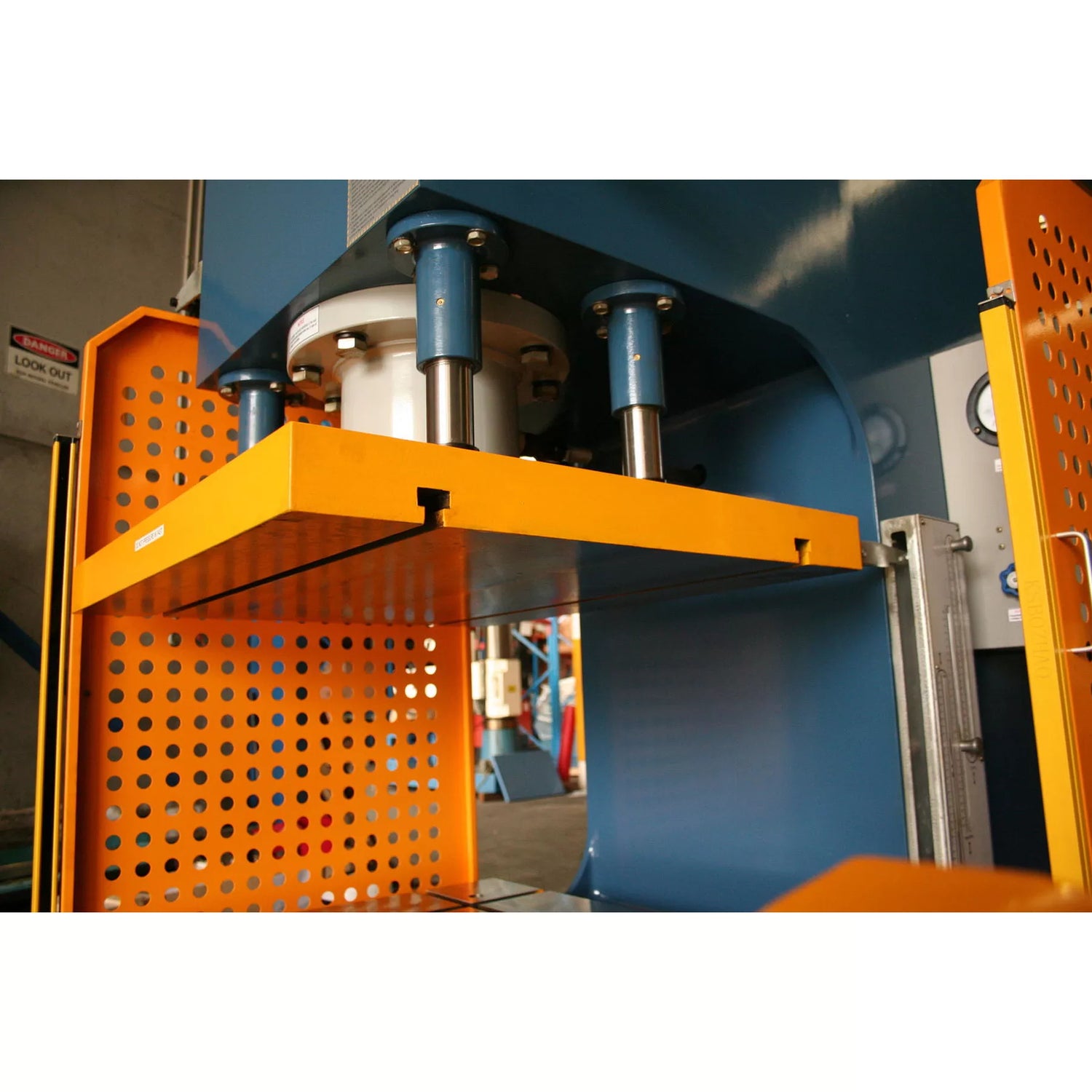

Strong hydraulic cylinder ensures uniform and precise pressing during operation
Ideal for pressing, bending, punching & moulding

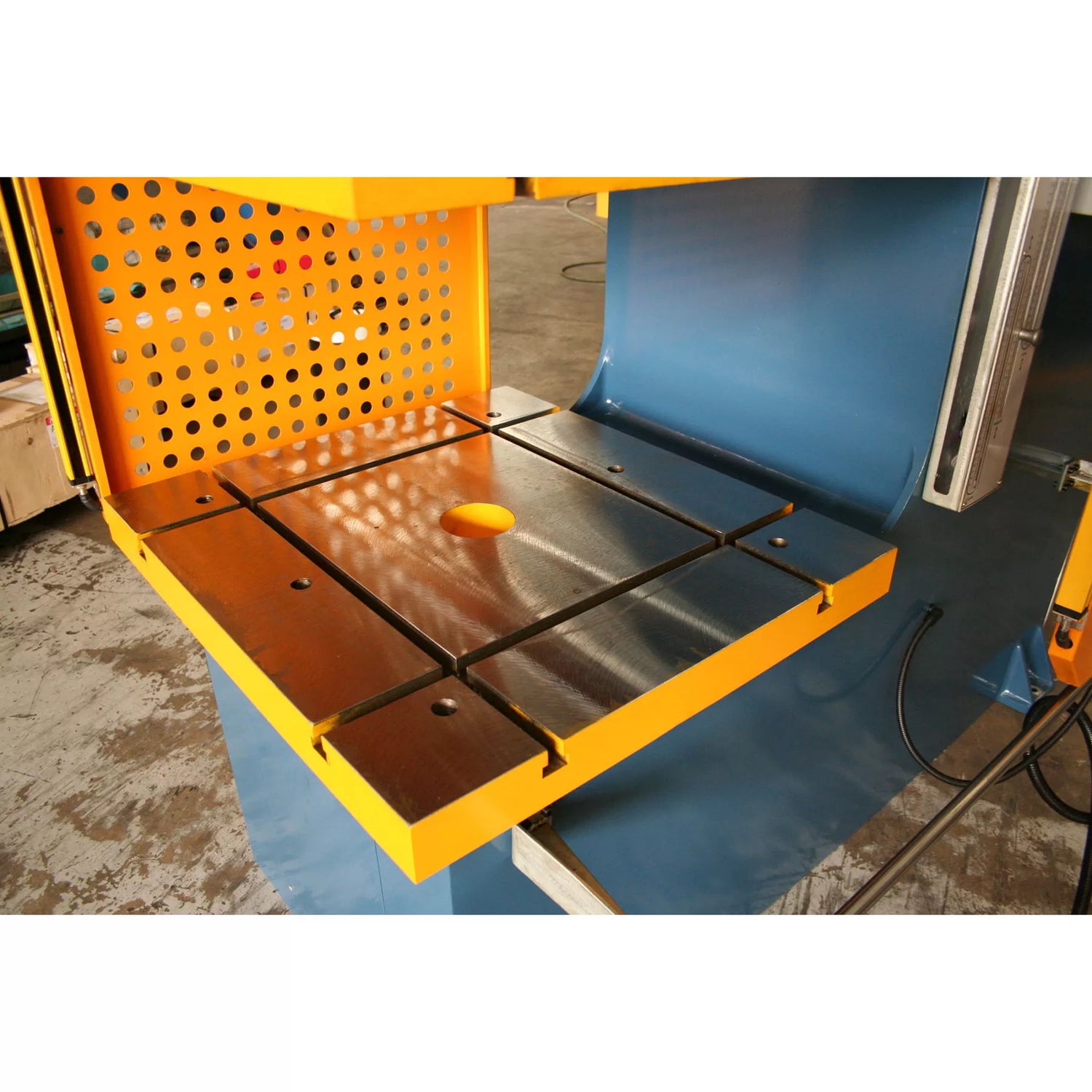

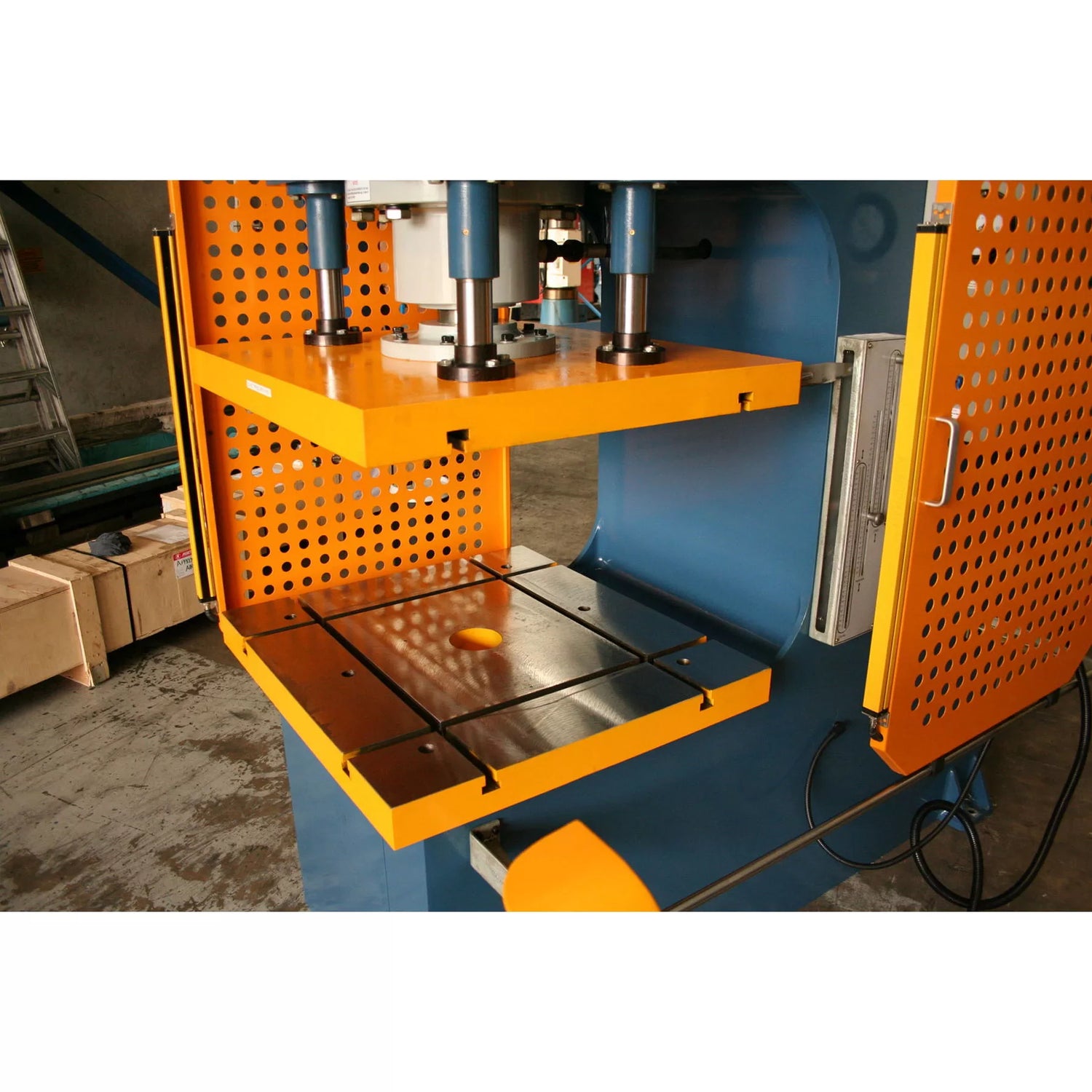

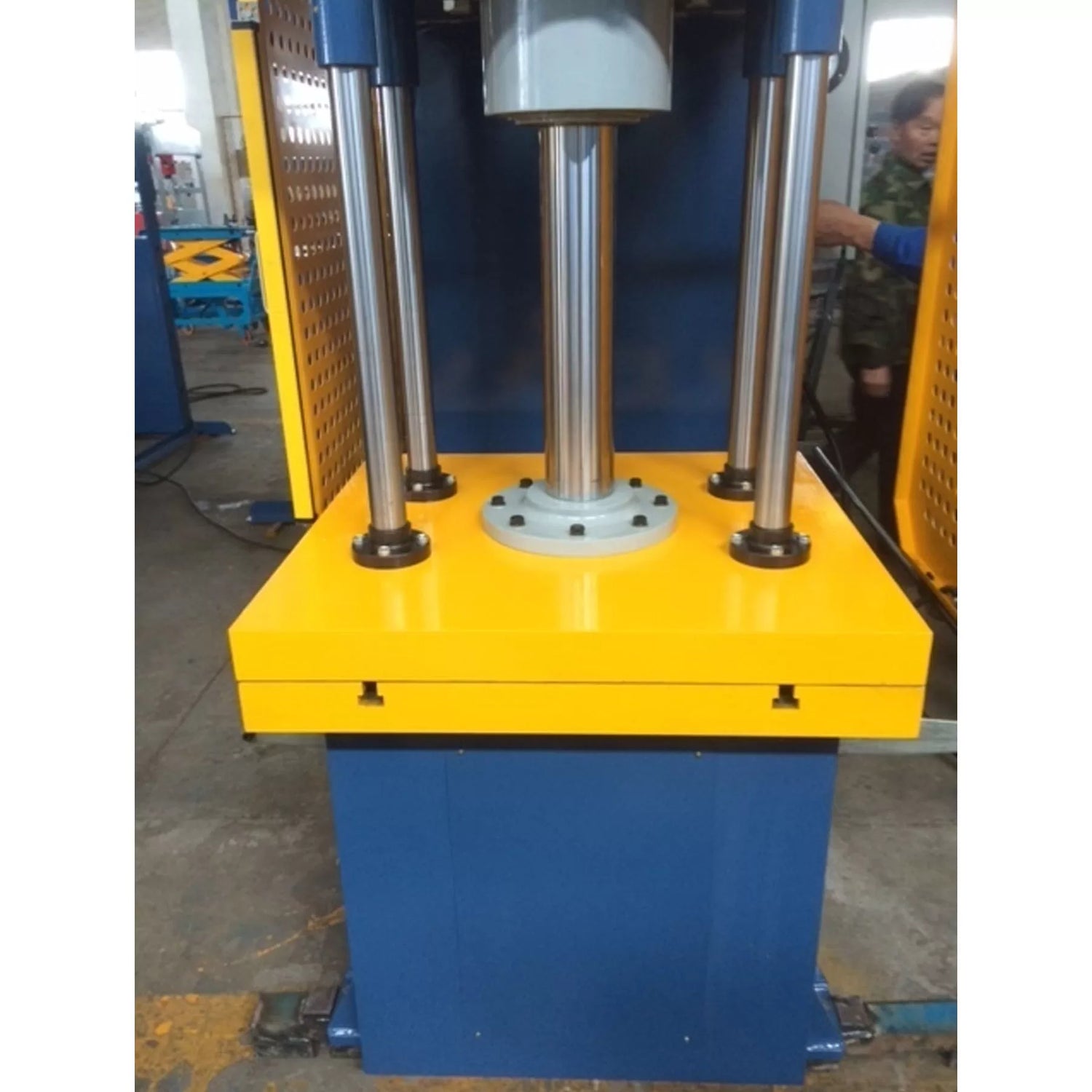

Fixed T-Slotted bottom bed for tool and job clamping
Three speed operation, rapid & working speed & retract.
Extremely torsion proof steel welded frame

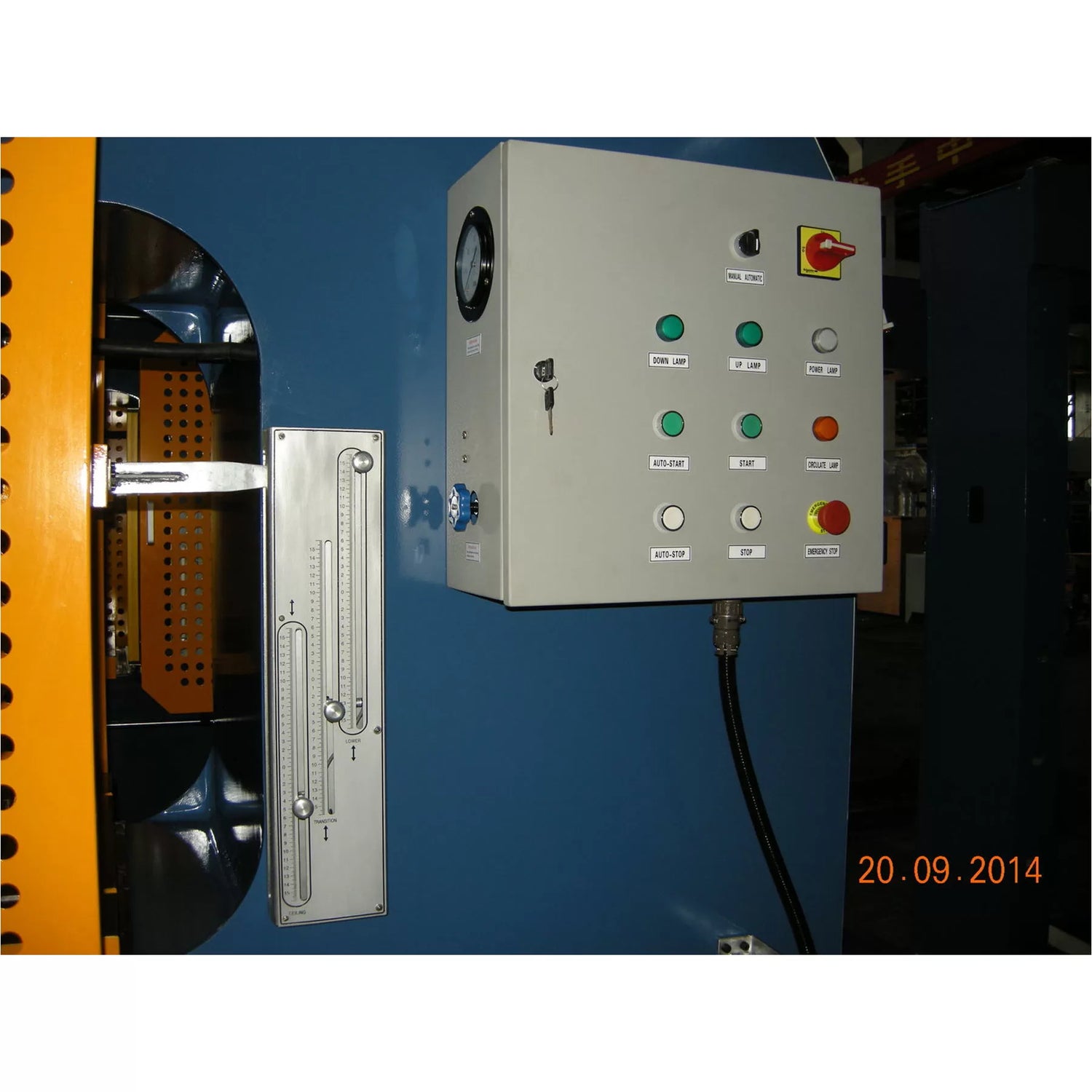

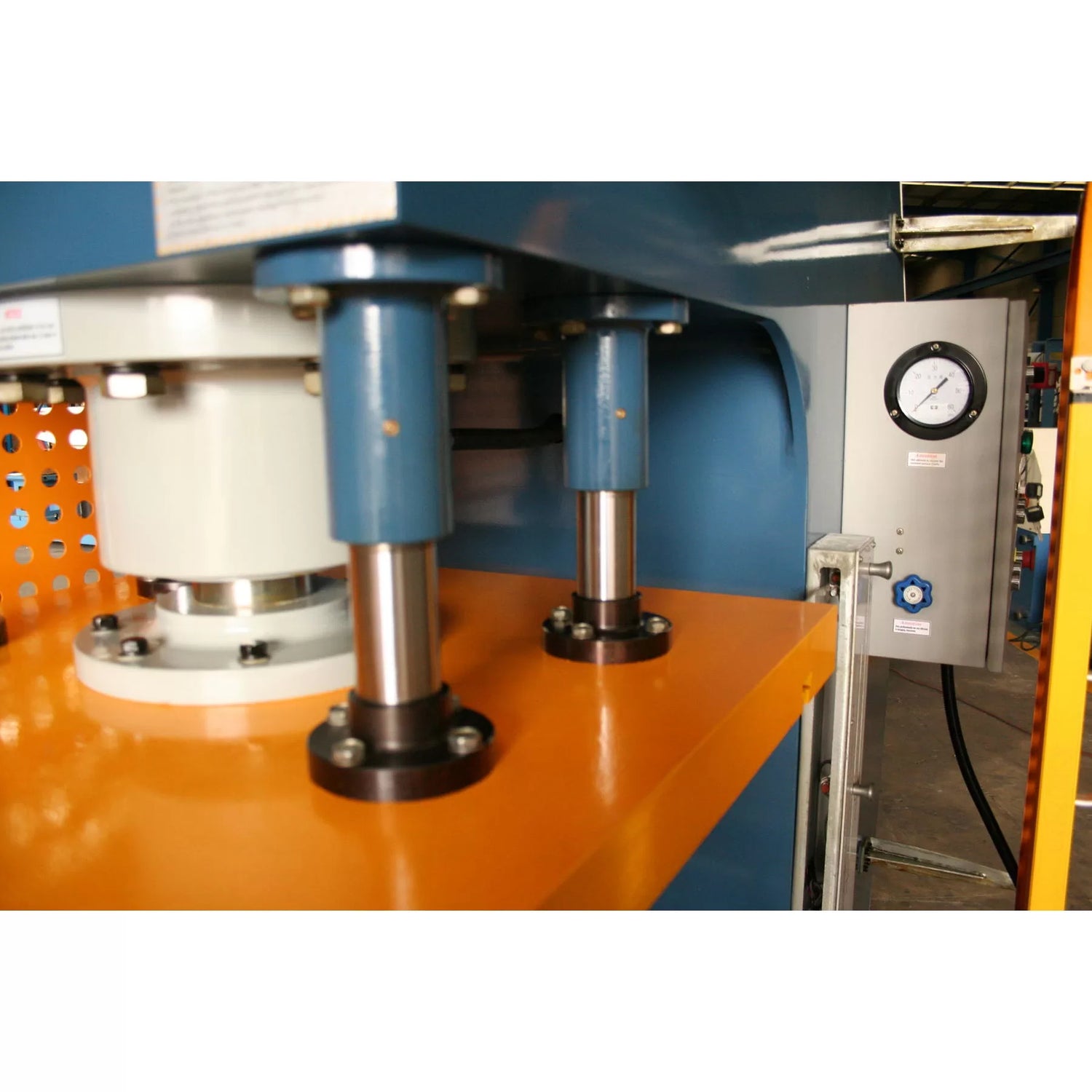

Hydraulic pressure gauge fitted

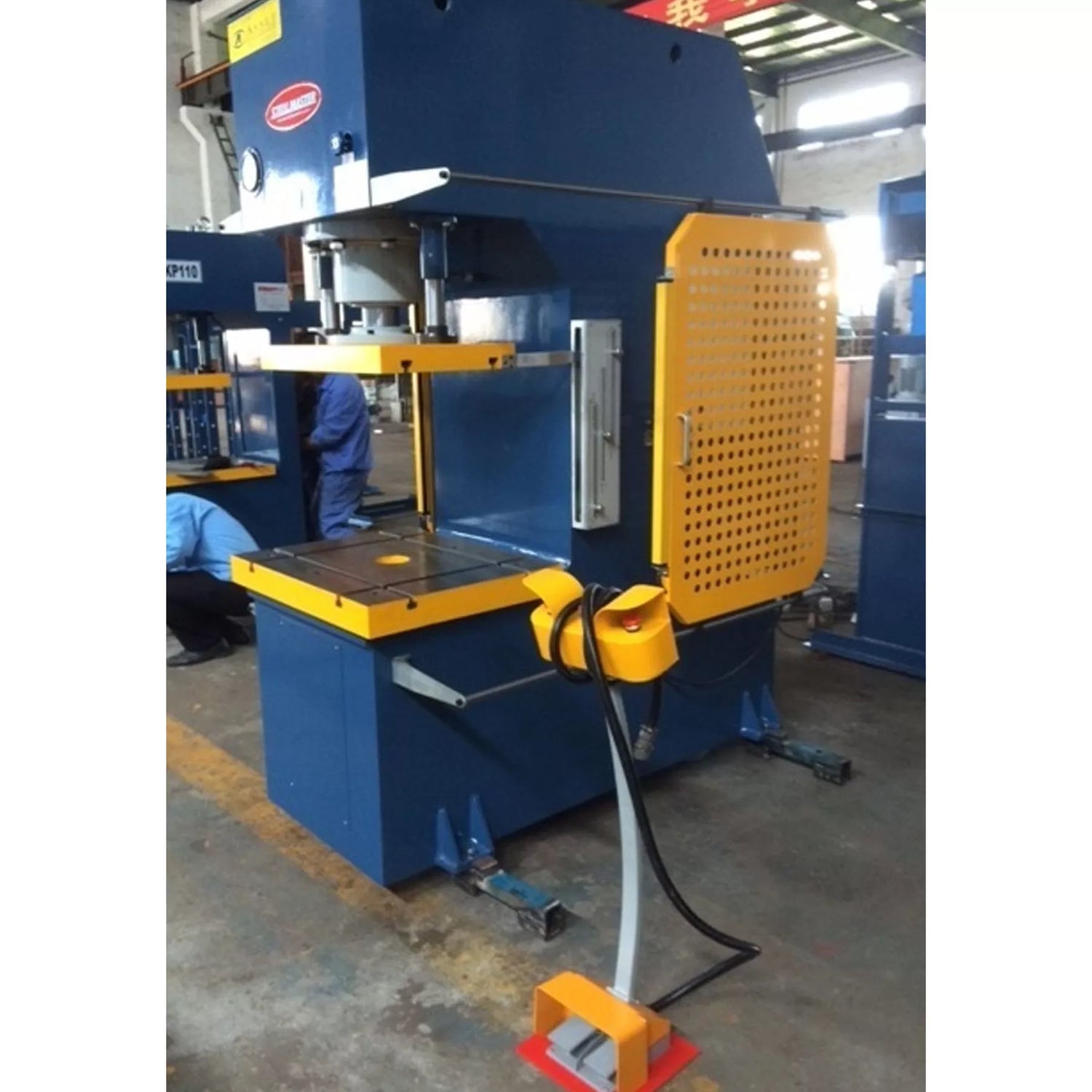

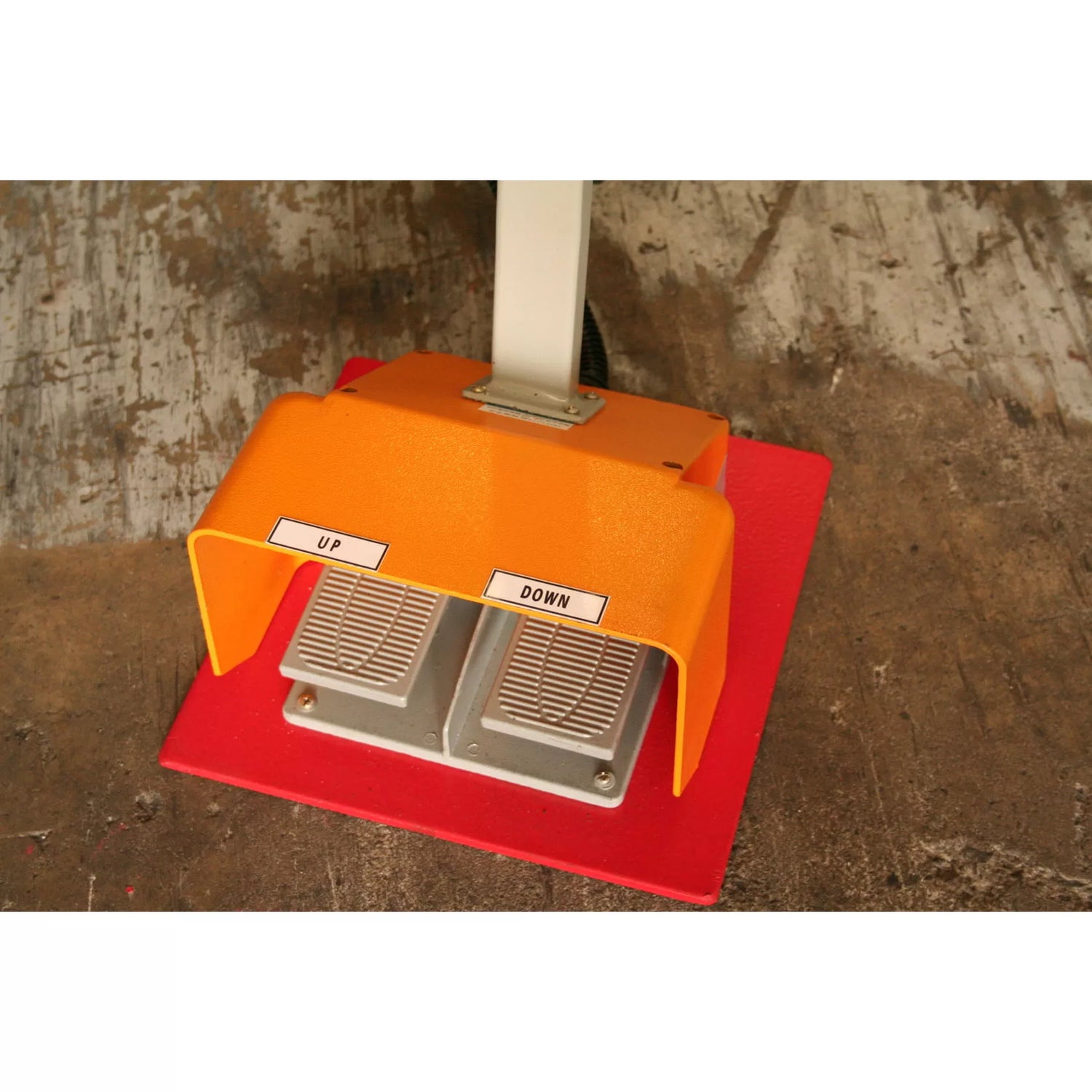

Foot pedal operation option.

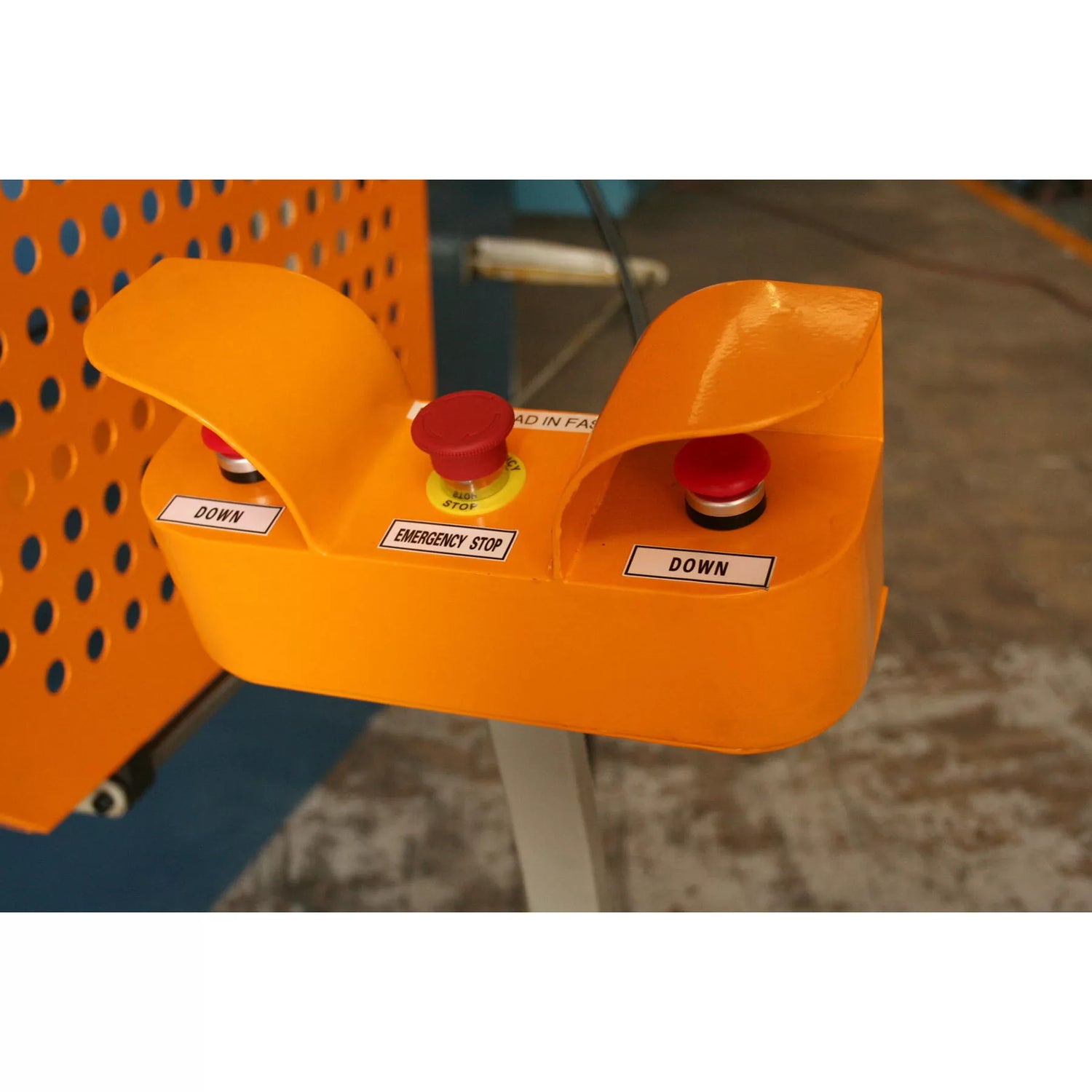

CE standard and safety E stops and standard.

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

Capacity – 200Ton
Bottom platen dimensions – 1160mm x 700mm
Top platen dimensions – 860mm x 600mm
Throat depth – 500
Stroke length – 350mm
Open height – 620mm
Table height – 800mm
Speed- approach, pressing, return – 31 / 7 / 47mm/sec
Power – 15kw / 415Volt
Dimensions – 2200mm x 1150mm x 2780mm x 5300kg
