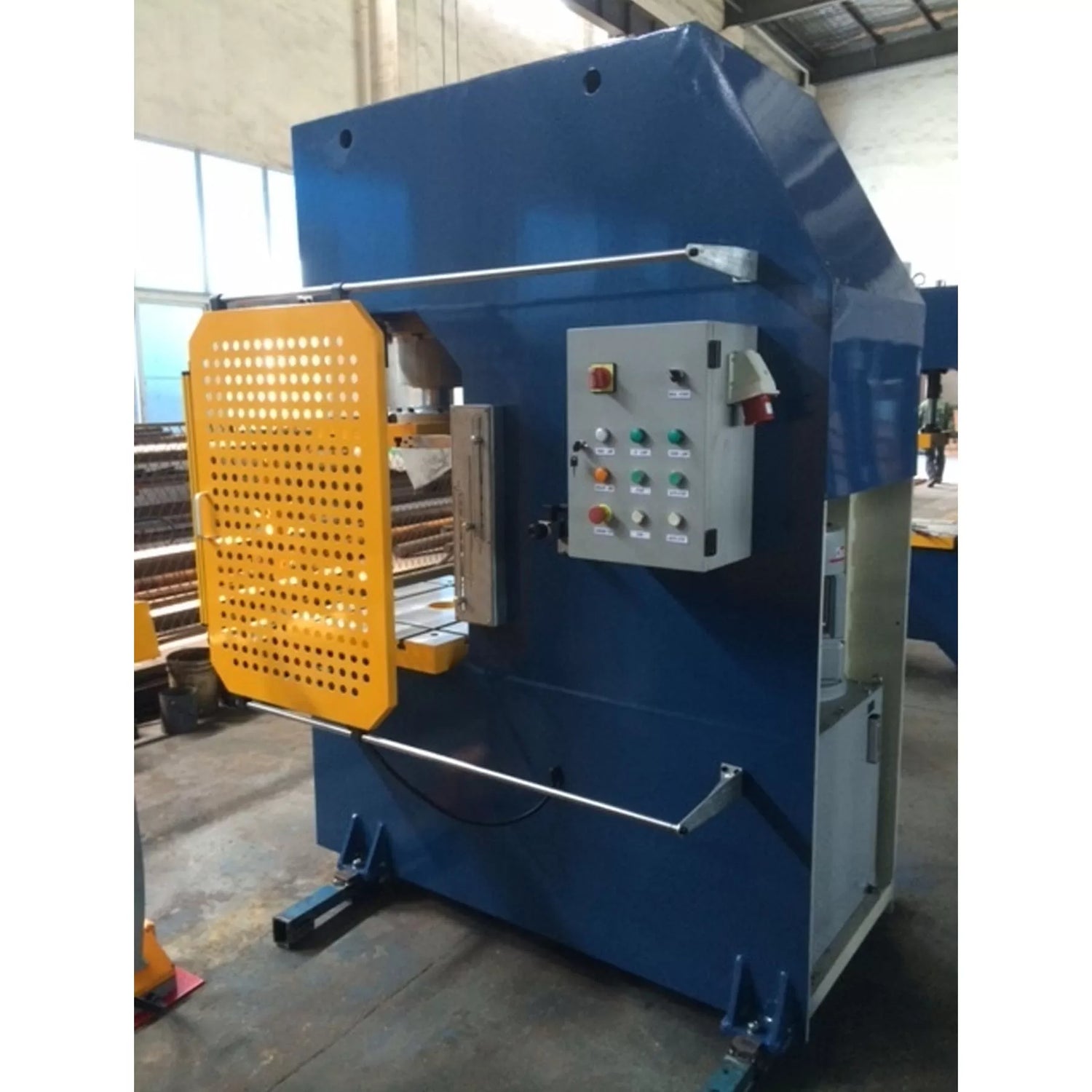

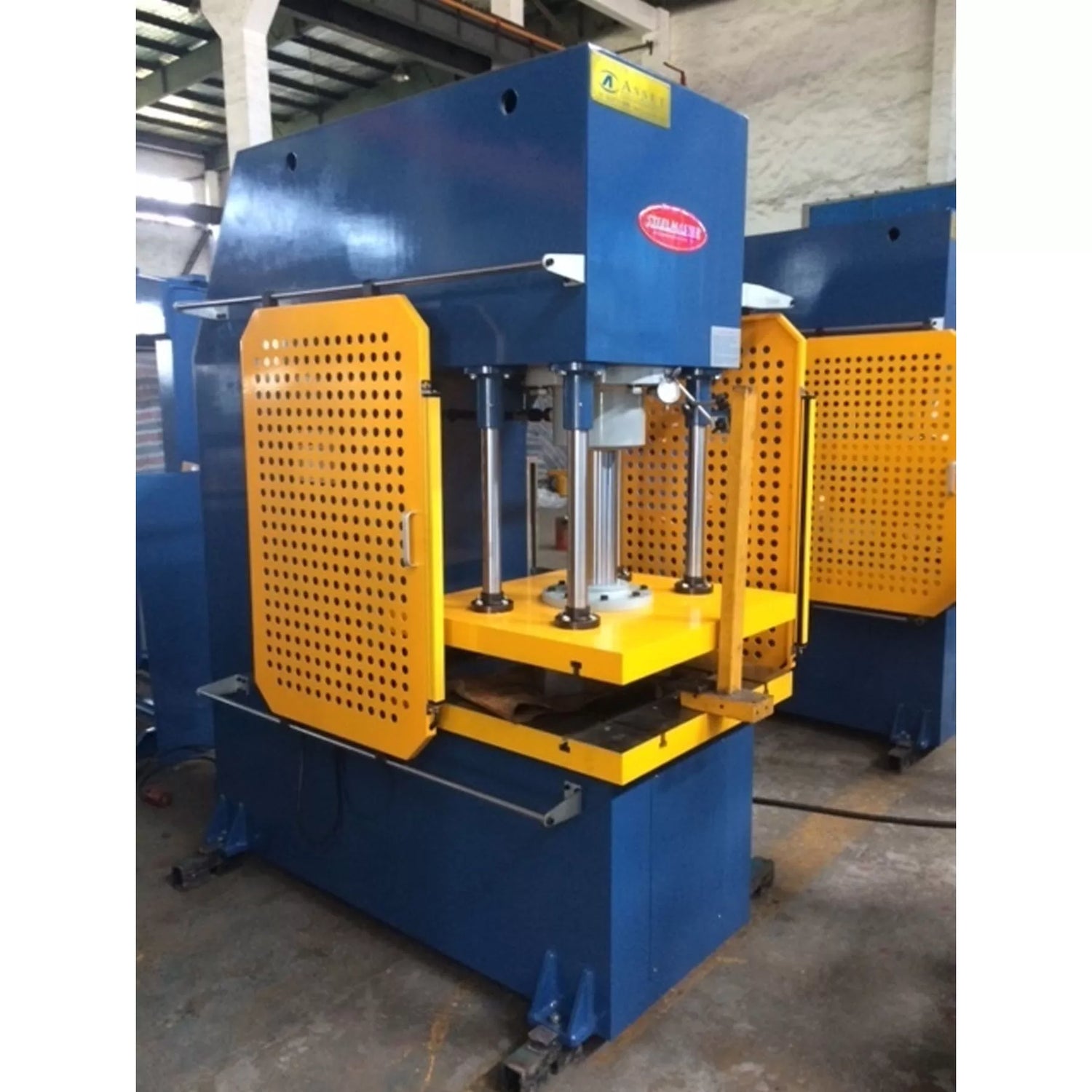

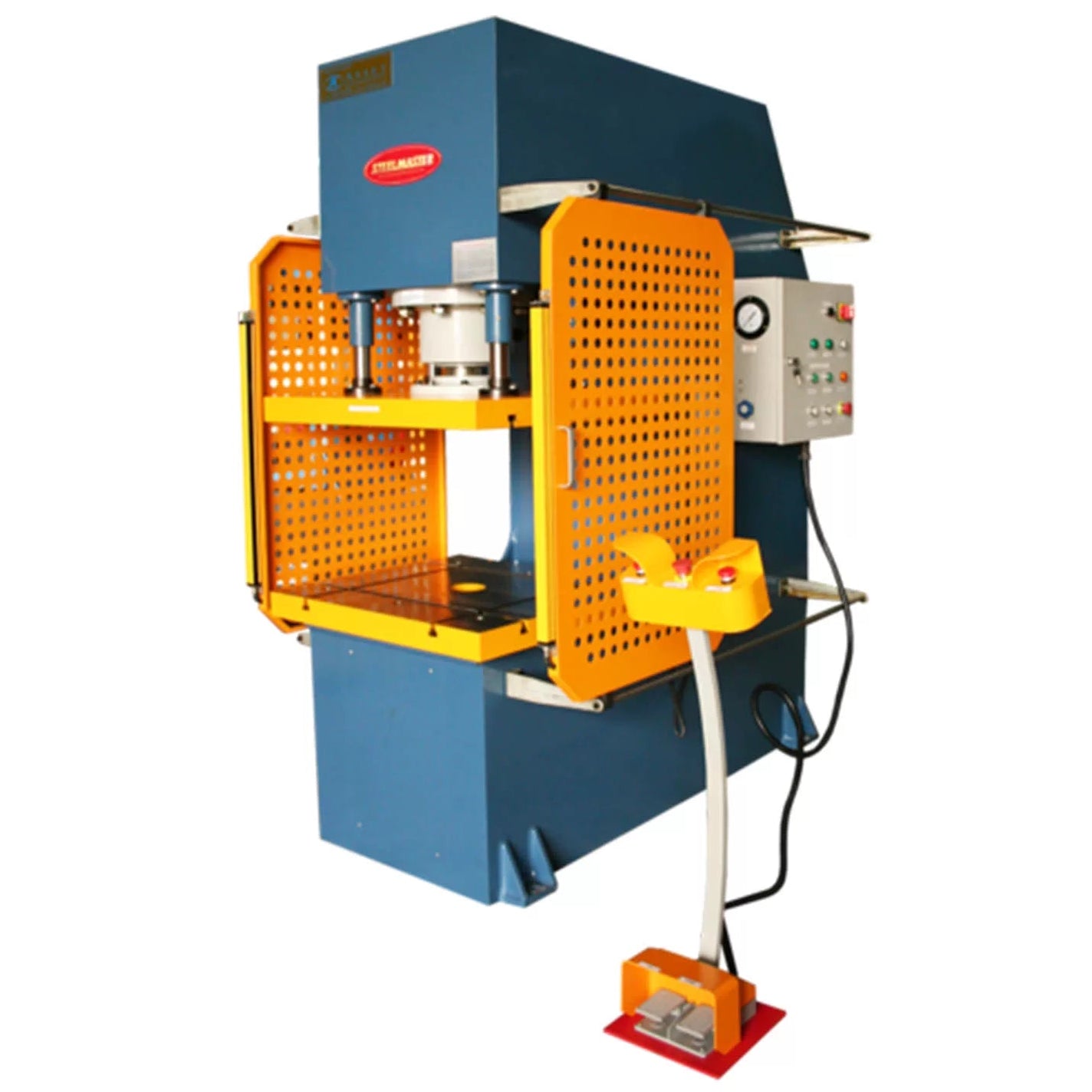

Open Front Hydraulic Press, 80 Ton Capacity, Heavy Duty

SM-CDY80

80 ~ 200 ton force models available

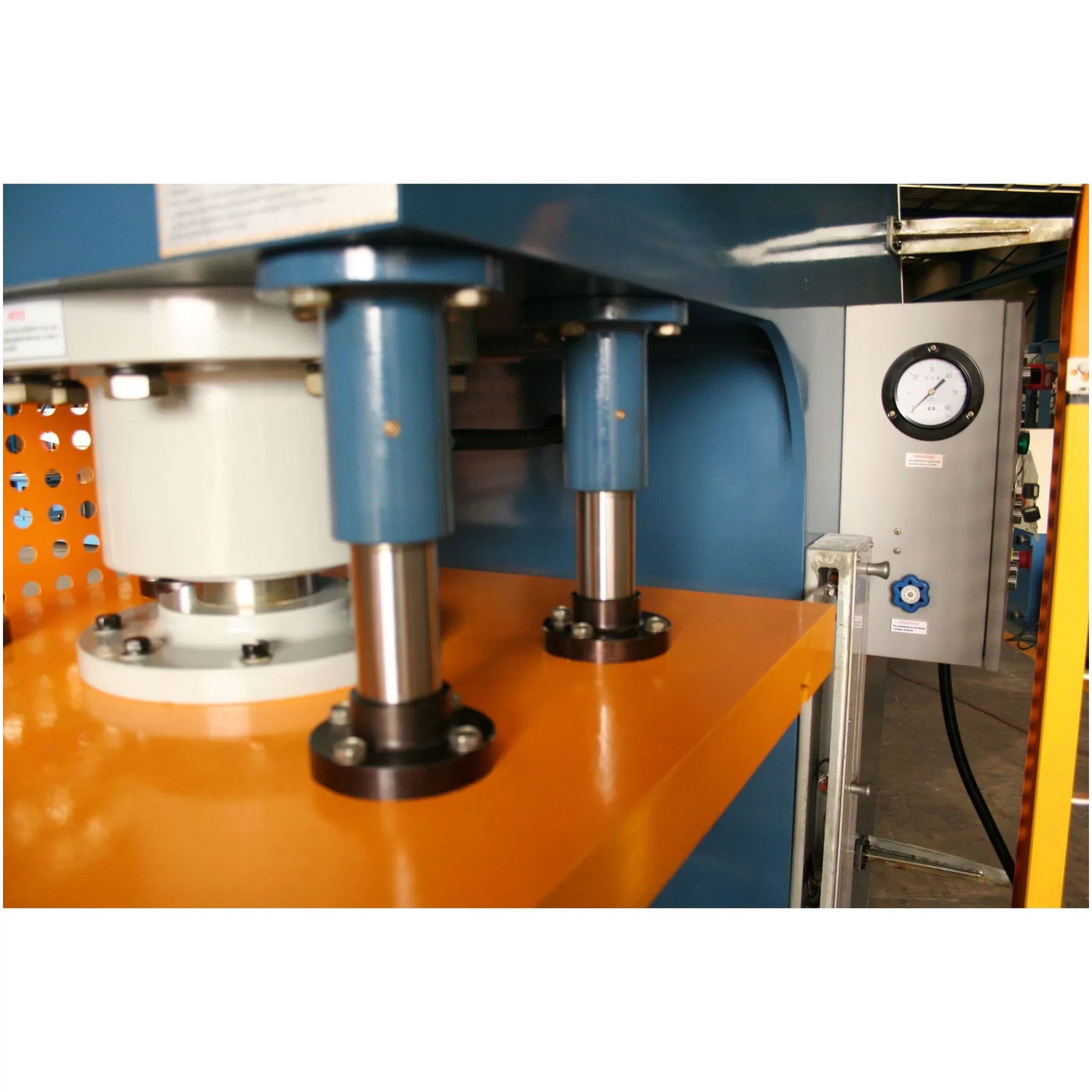

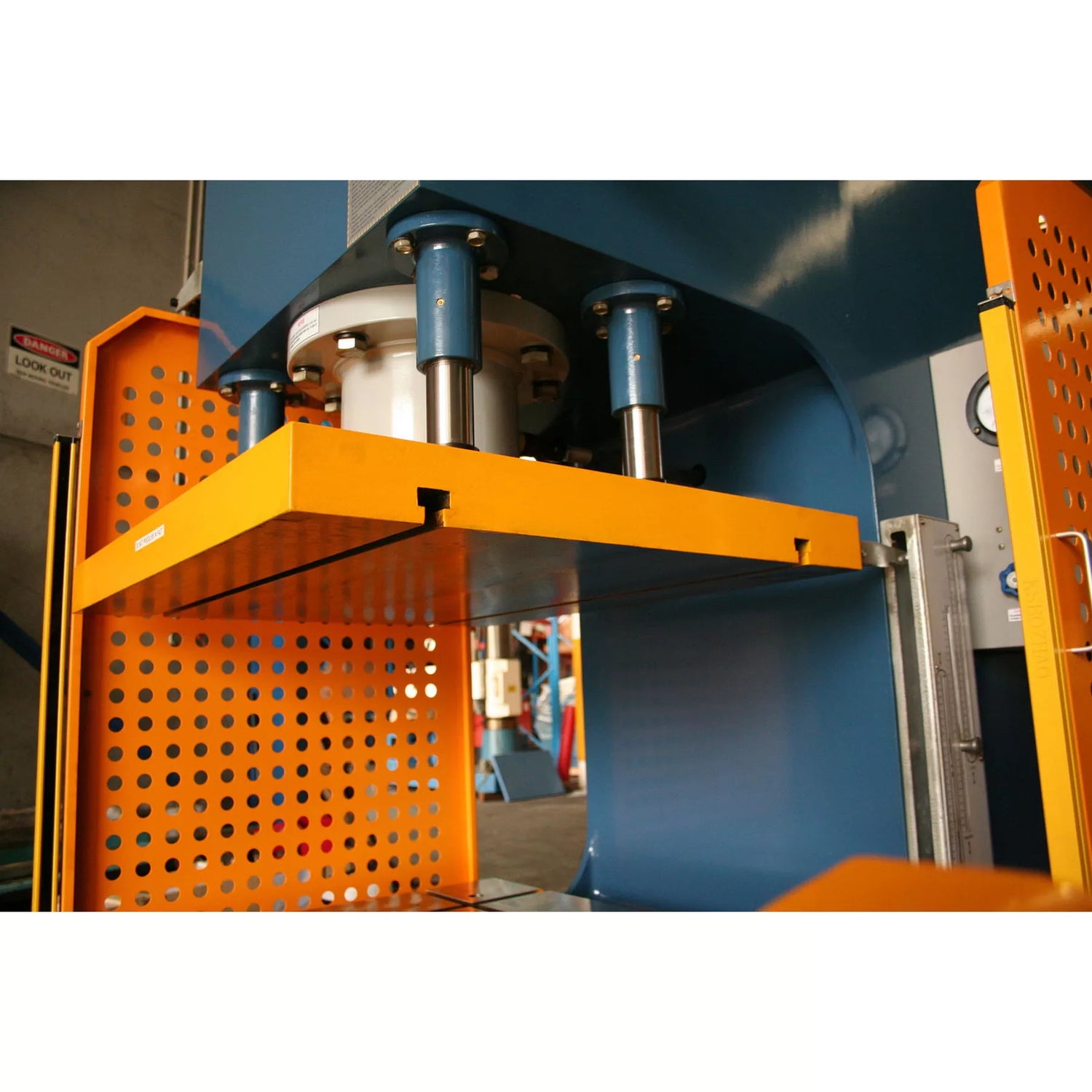

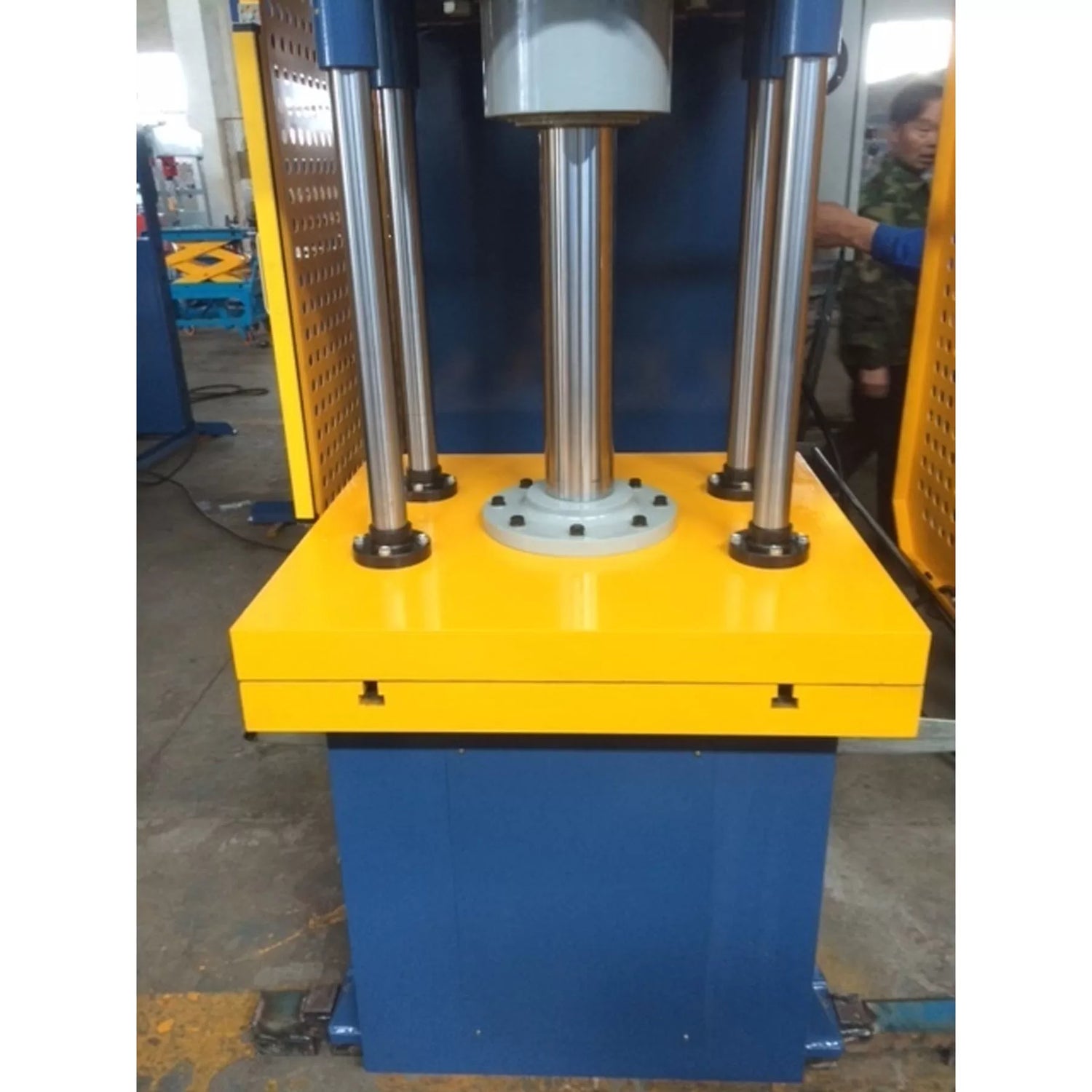

Strong hydraulic cylinder ensures uniform and precise pressing during operation
Ideal for pressing, bending, punching & moulding

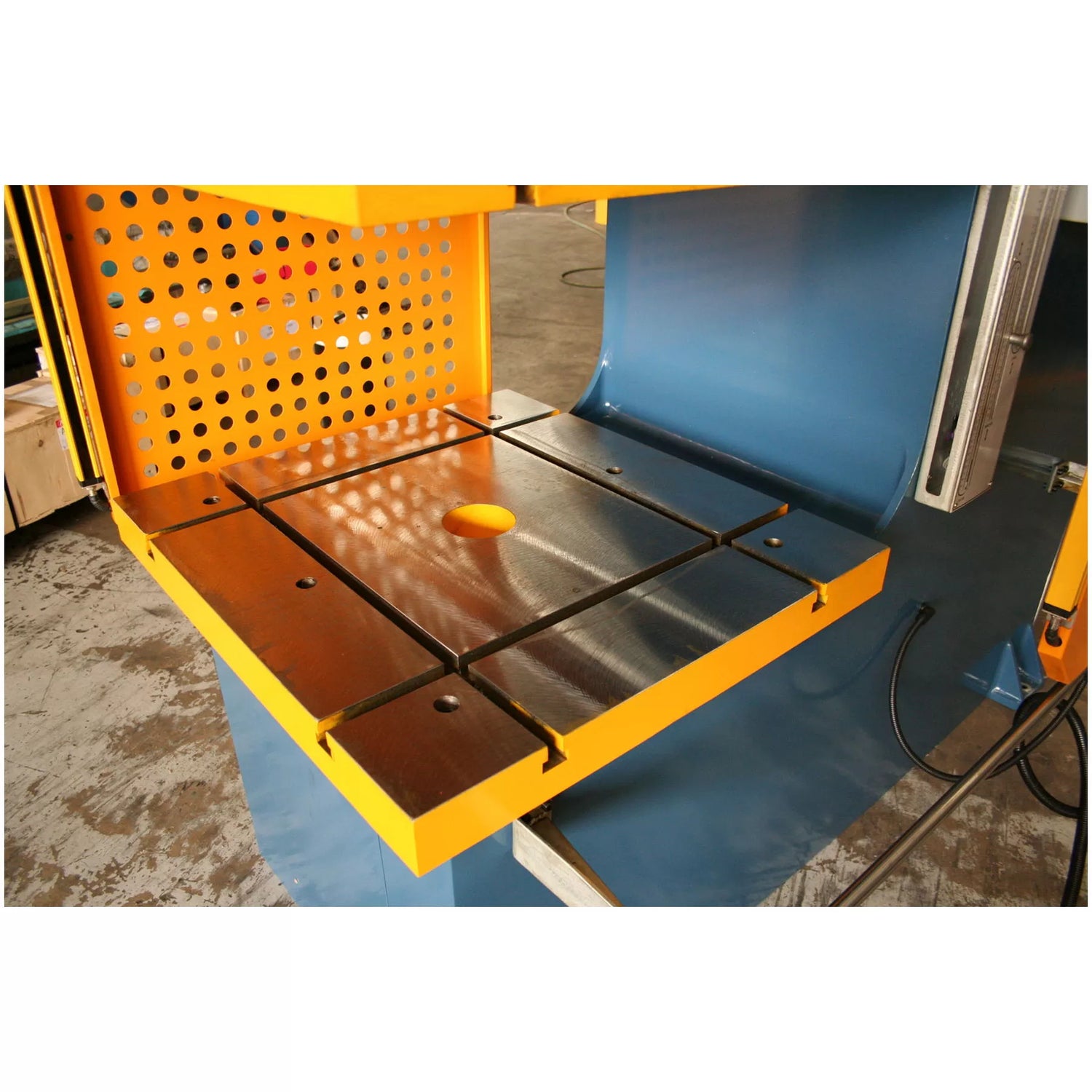

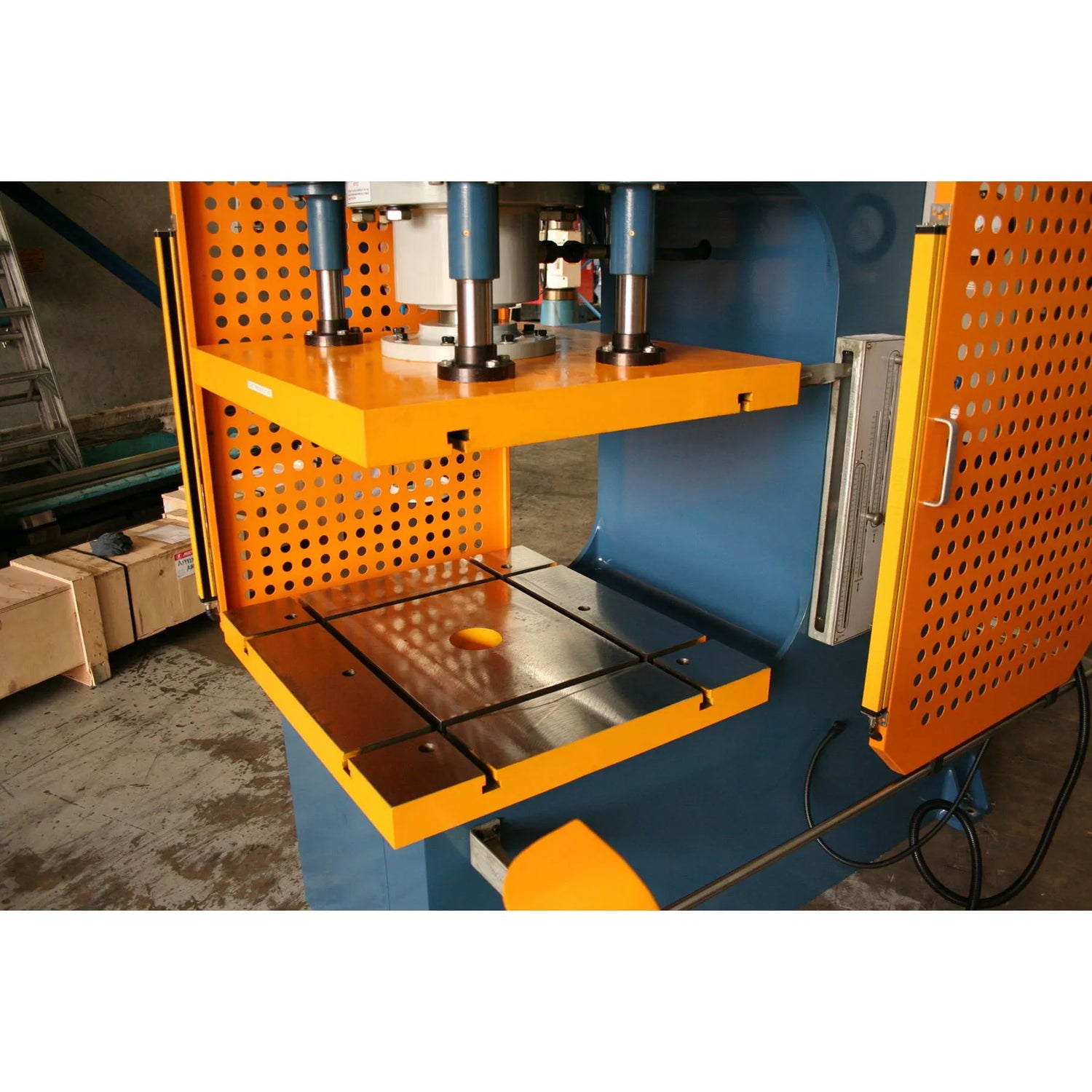

Fixed T-Slotted bottom bed for tool and job clamping
Three speed operation, rapid & working speed & retract.
Extremely torsion proof steel welded frame

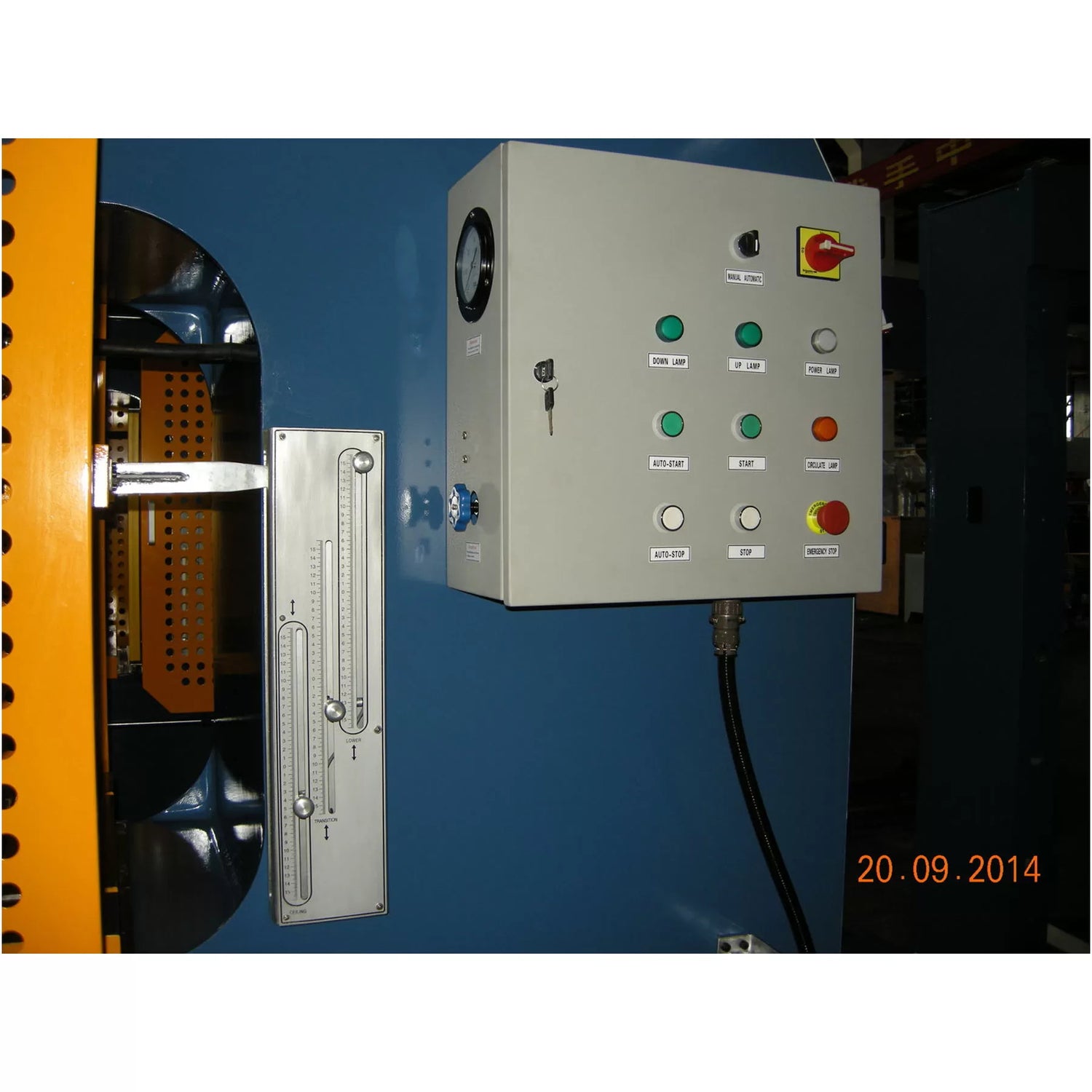

Hydraulic pressure gauge fitted

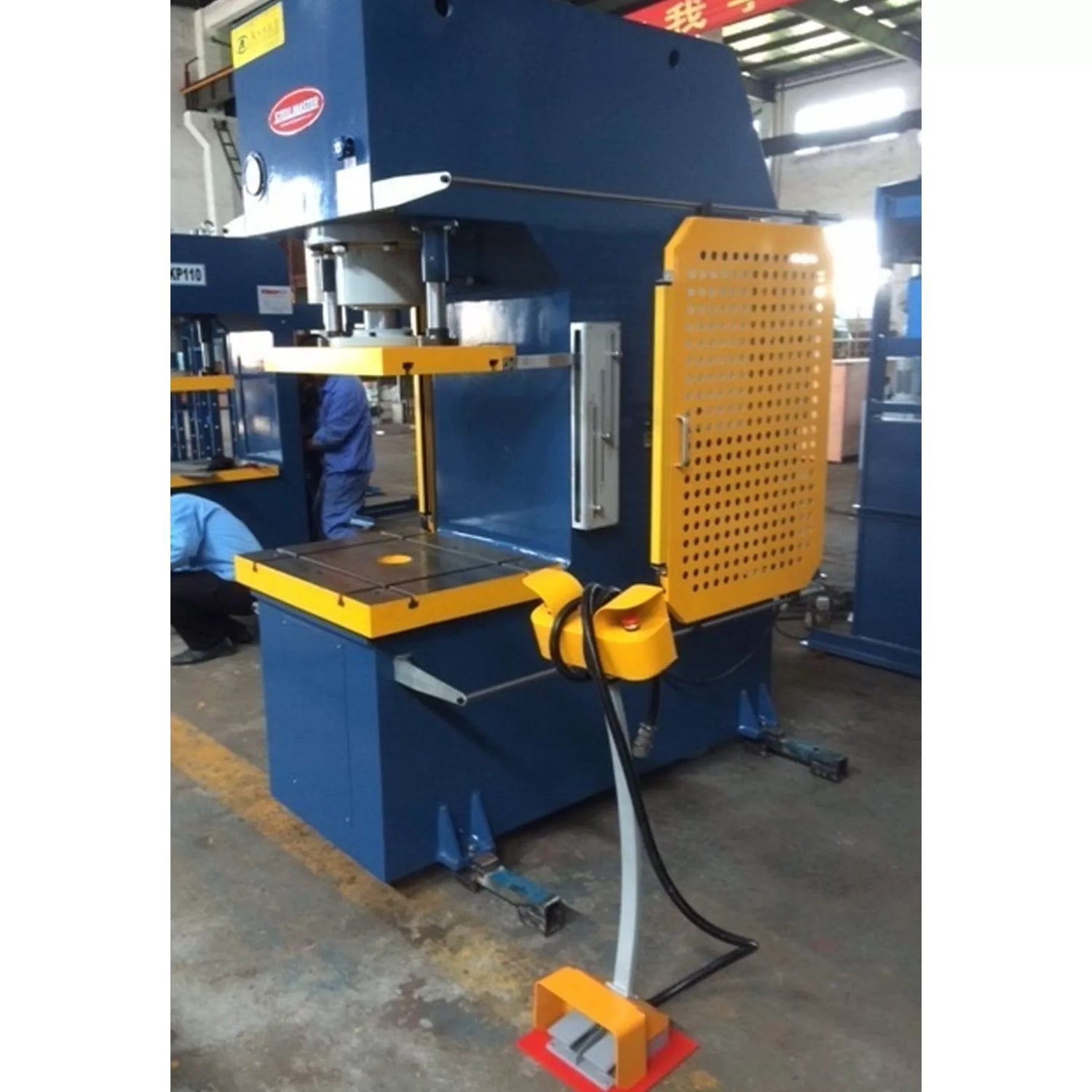

Foot pedal operation option.
CE standard and safety E stops and standard.

P.O.A - 15kg and up

Capacity – 80Ton
Table dimensions – 650mm x 520mm
Throat depth – 320
Stroke length – 300mm
Open height – 470mm
Table height – 760mm
Speed- approach, pressing, return – 23 / 6 / 31mm/sec
Power – 5.5kw / 415Volt
Dimensions – 1380mm x 800mm x 1950mm x 3300kg
