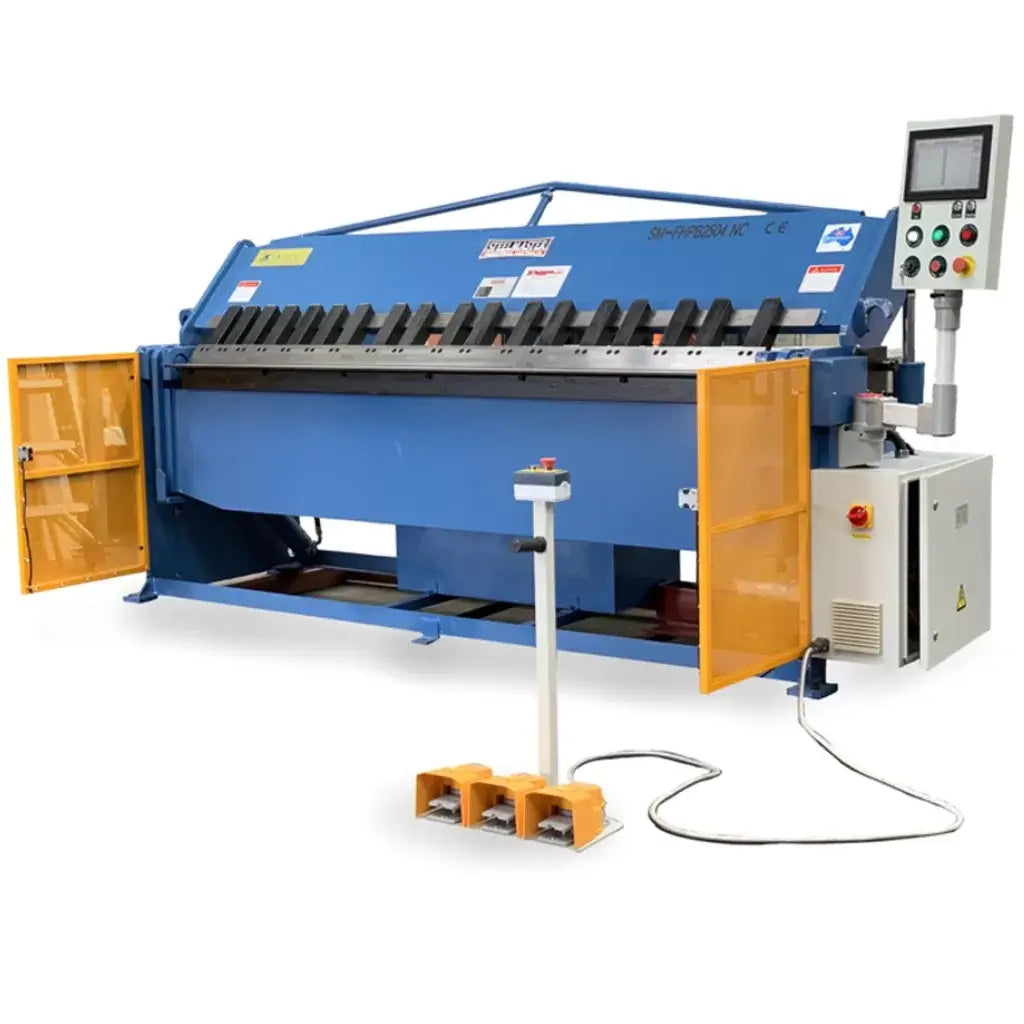

Panbrake Folder, Full Hydraulic, 2500mm x 4mm with NC1 Programmable Angle Controller
Sale price
$20,850.00
Regular price
$22,850.00
Unit price
Unavailable

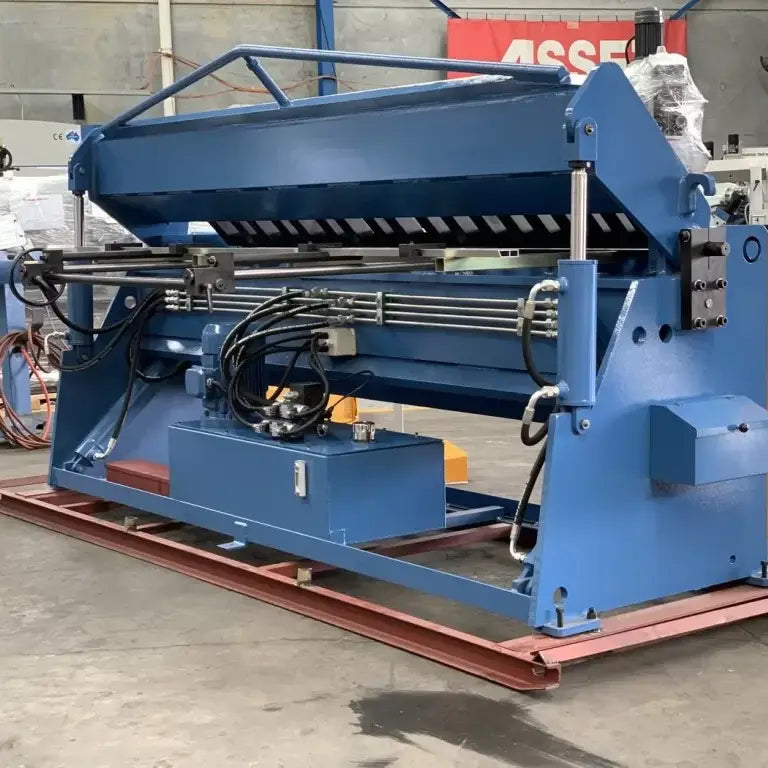

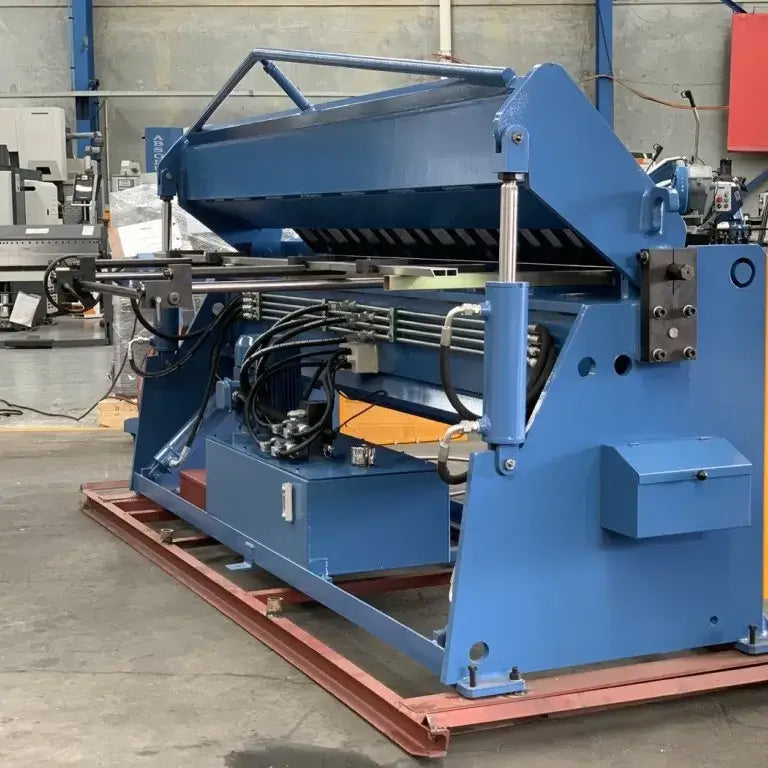

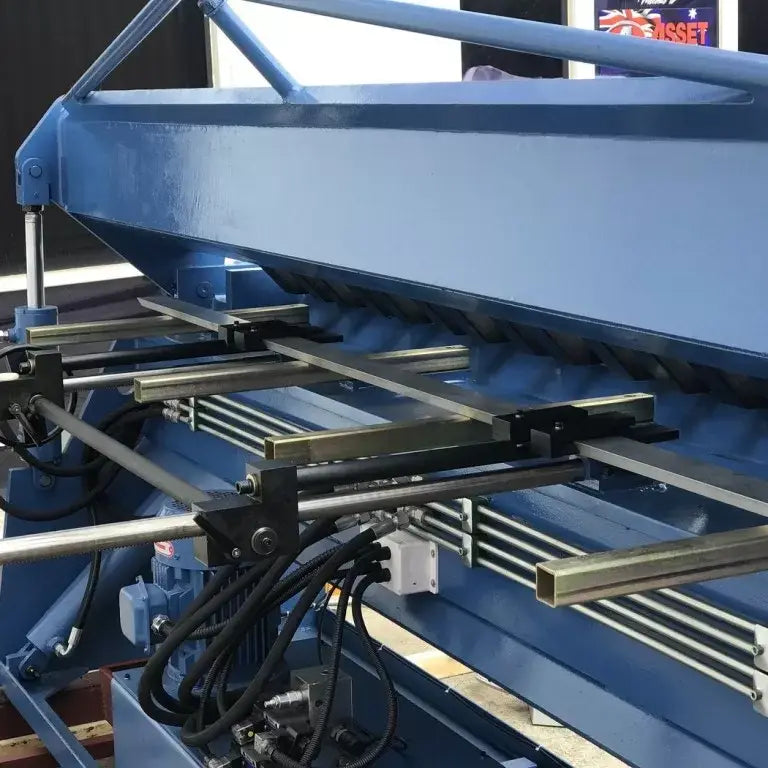

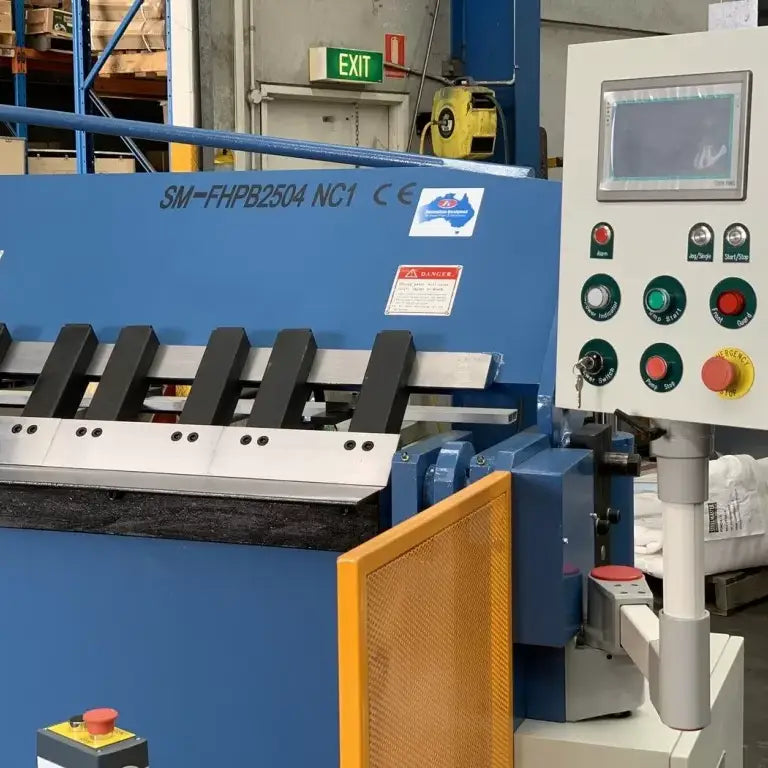

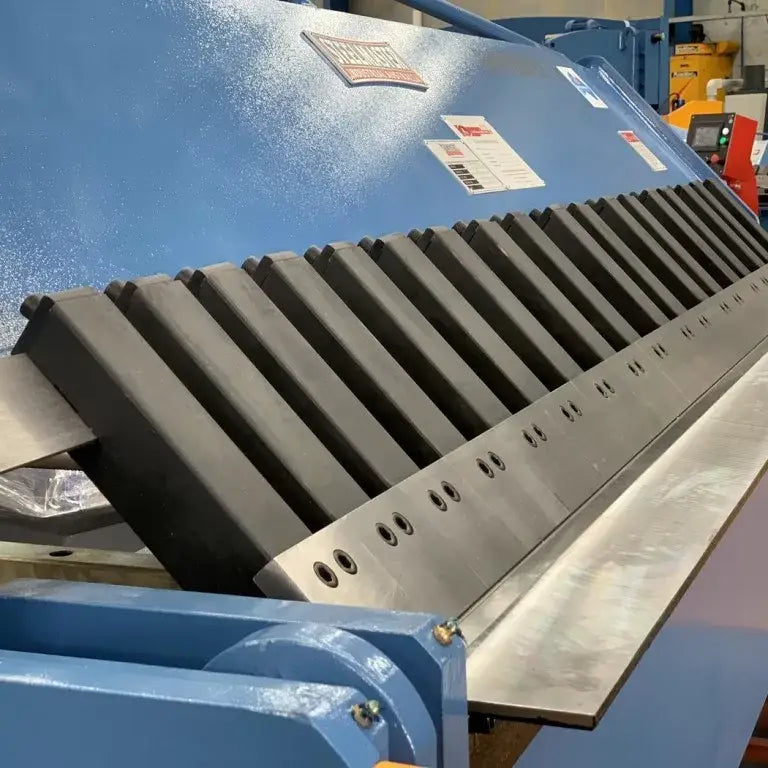

An NC-controlled Steelmaster Hydraulic Panbrake Folder (2500mm x 4mm) for accurate and repeatable sheet metal folding.
Technical Data
2500mm x 4.0mm bending capacity
o ~ 135 bending range

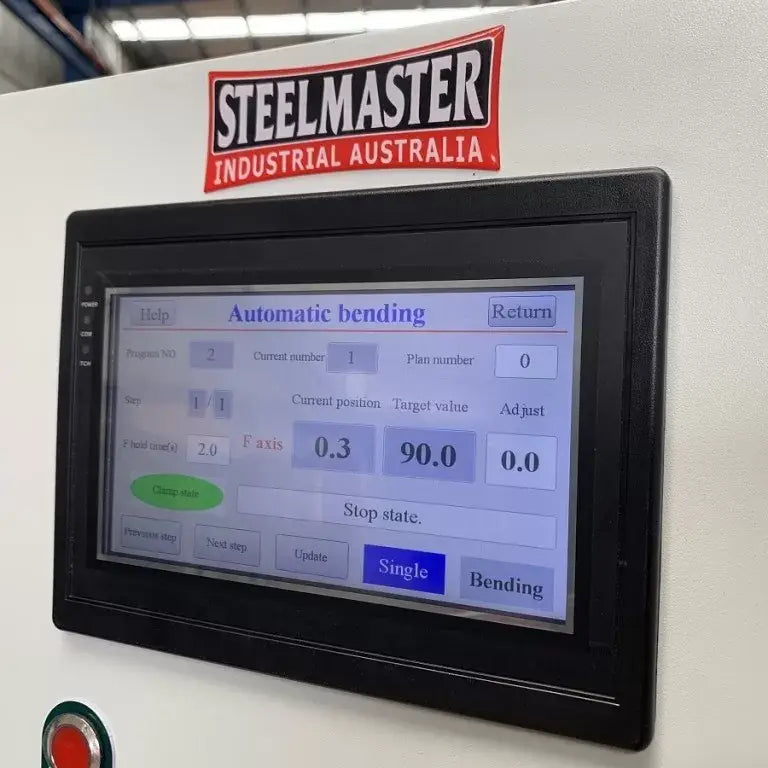

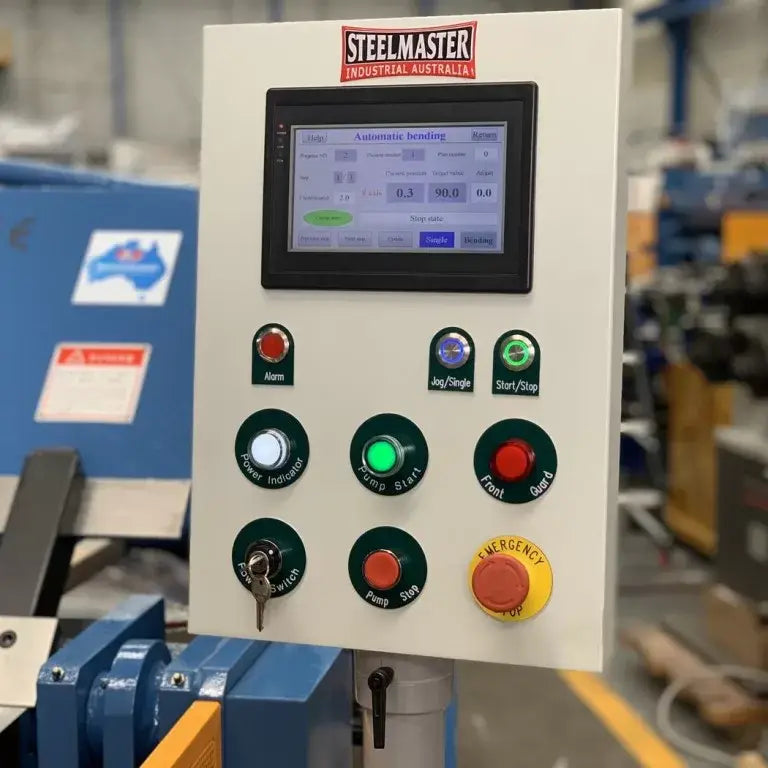

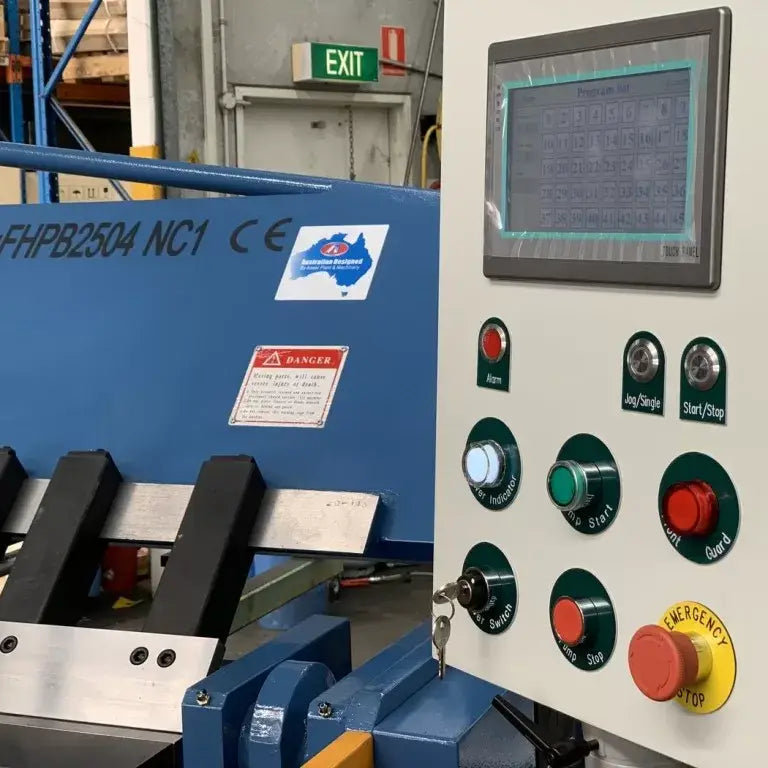

eBend 45 program touch screen programmable controller
Shipping dimensions – 3050mm x 1250mm x 1650mm
Power – 415V 5.5Kw
approx weight: 3300kg
Product Features

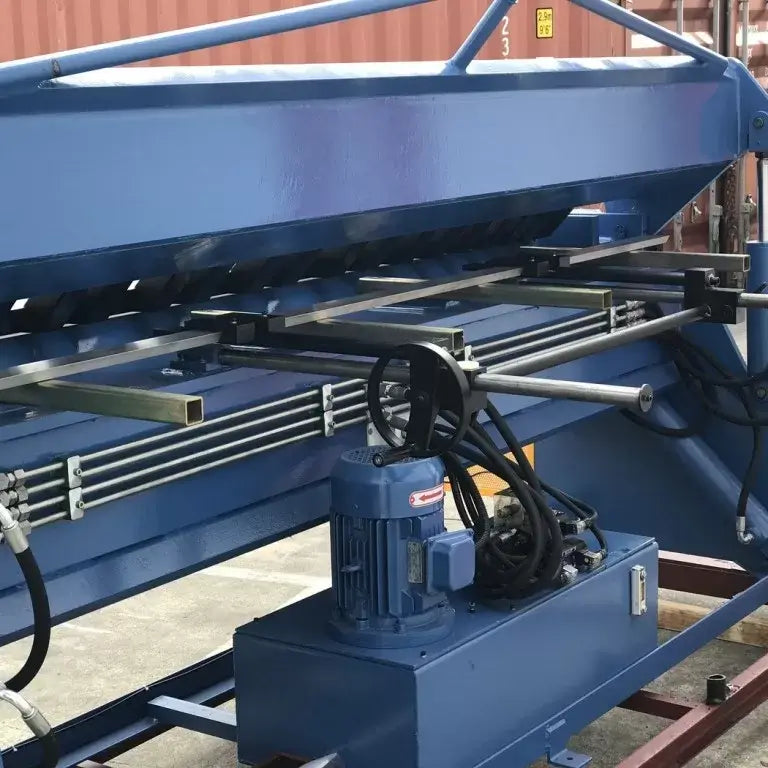

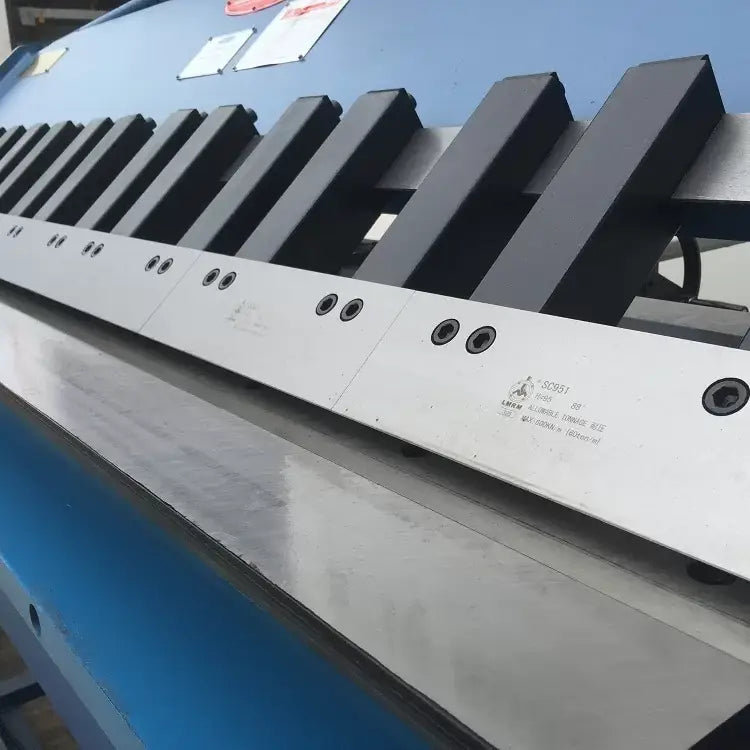

Hydraulically operated bending and clamping beam for efficient heavy duty operation
High structural rigidity from heavy plate steel box construction with continuous welded seams

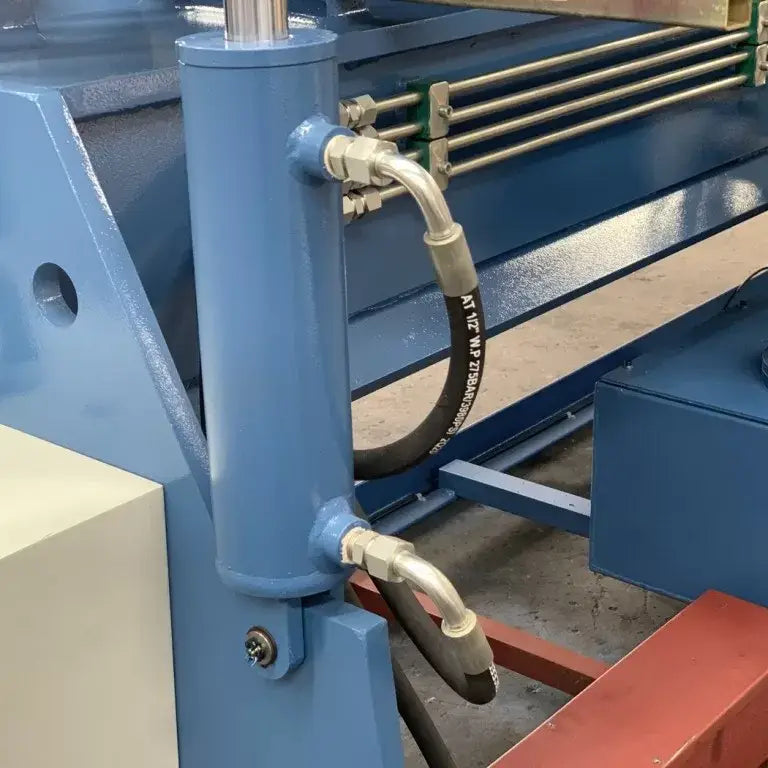

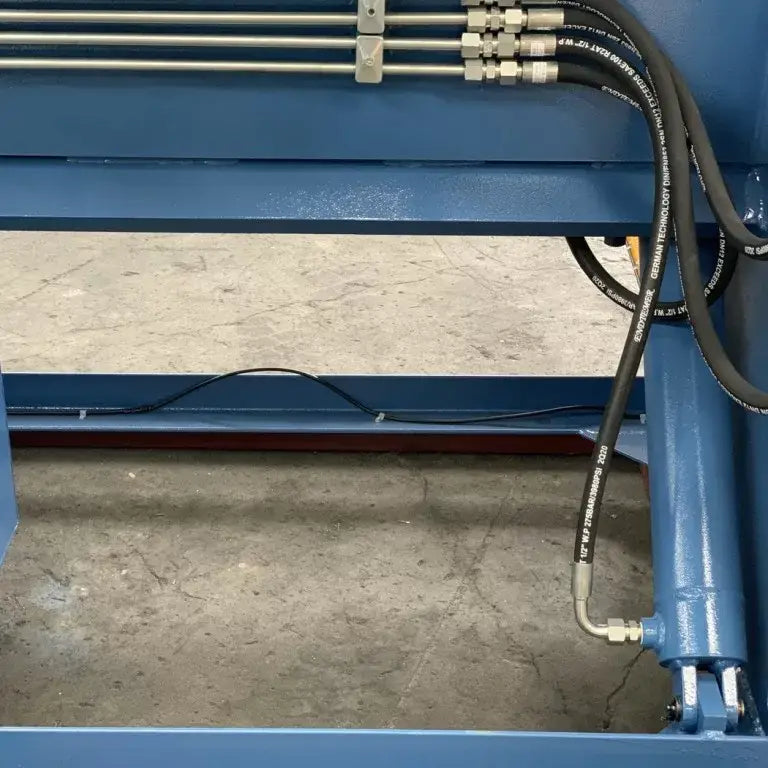

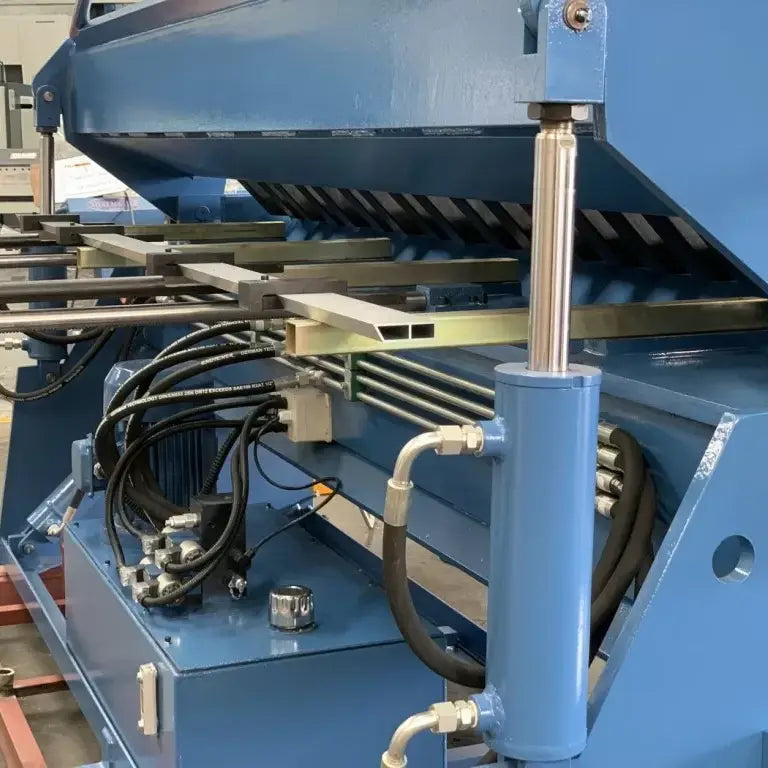

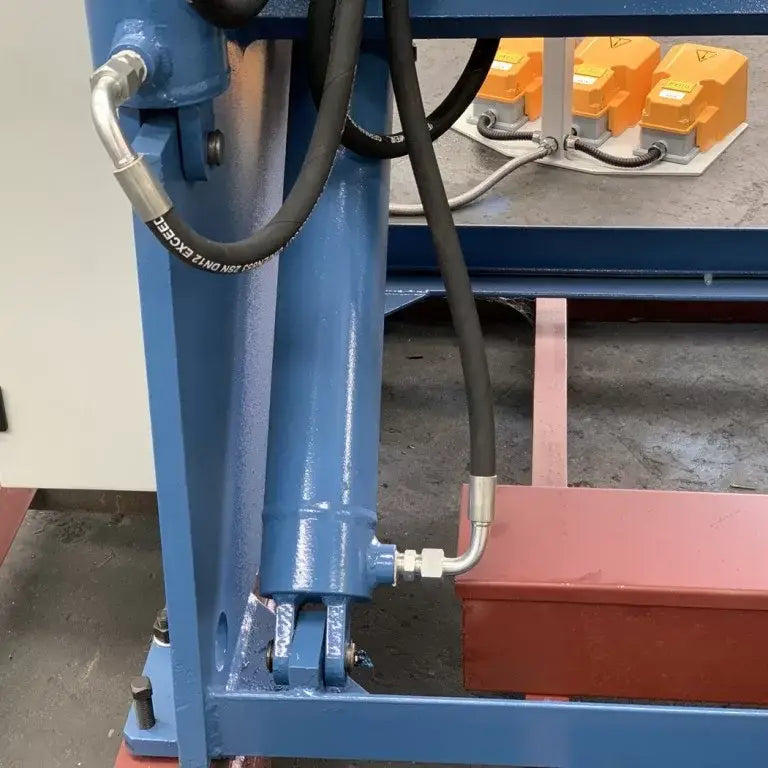

Bending beam powered by dual hydraulic cylinders

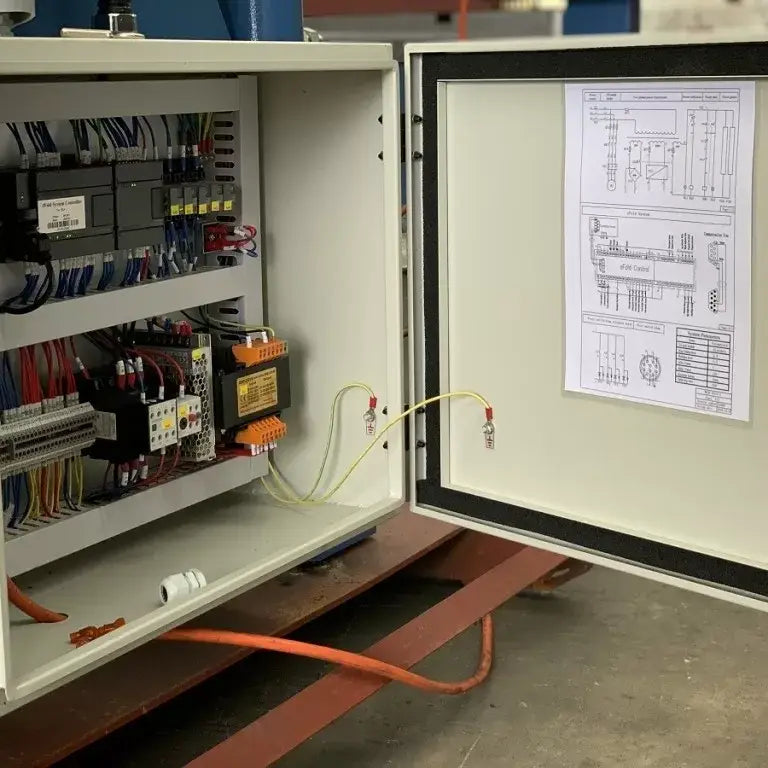

Fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature

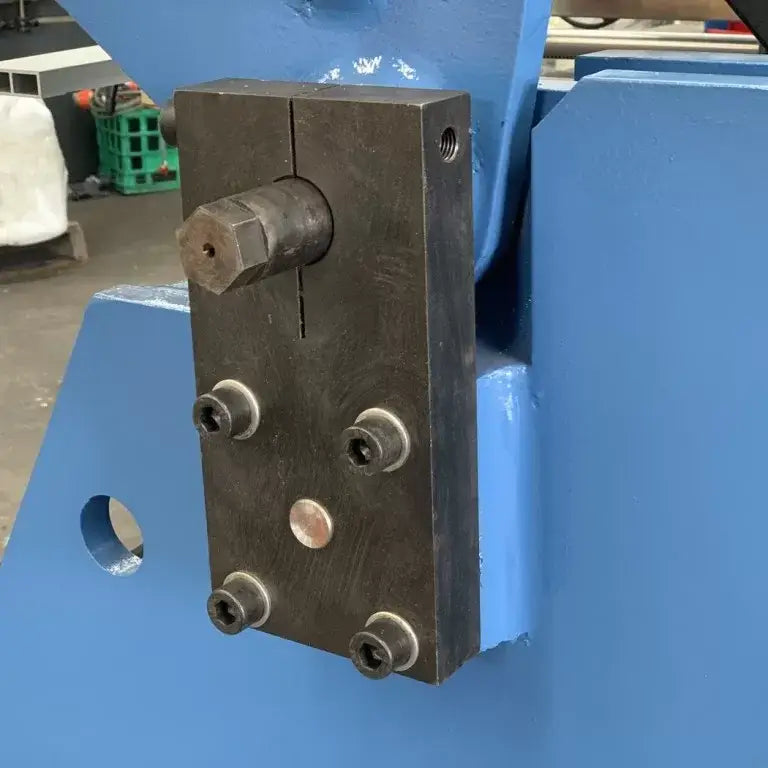

High load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
Precise electric / hydraulic controls with manual inching of bending beam
Utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
Comprehensive equipment protection from electric and hydraulic overload systemsHydraulic System
High quality componentry ensures reliable performance for years of continuous operation

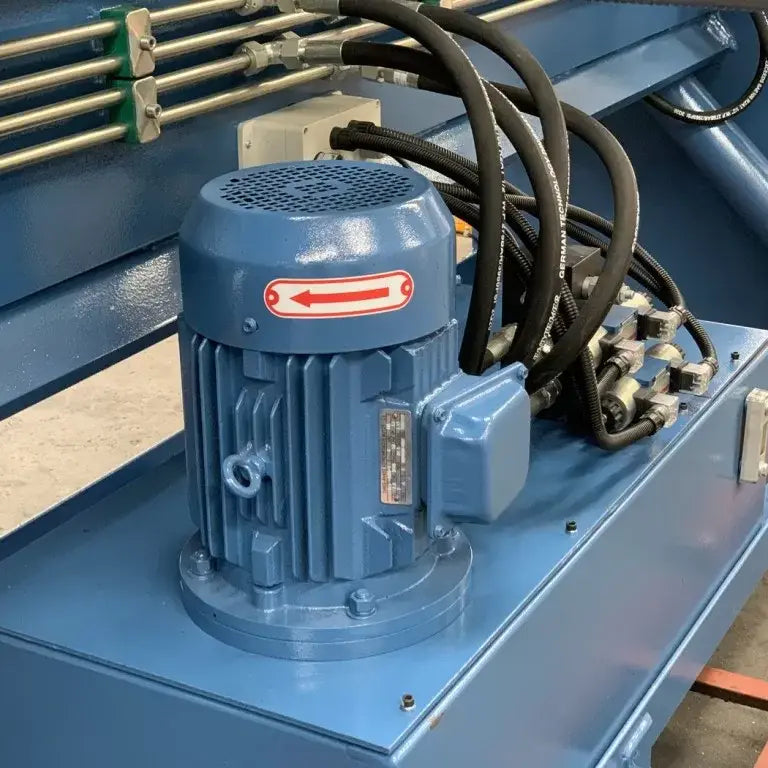

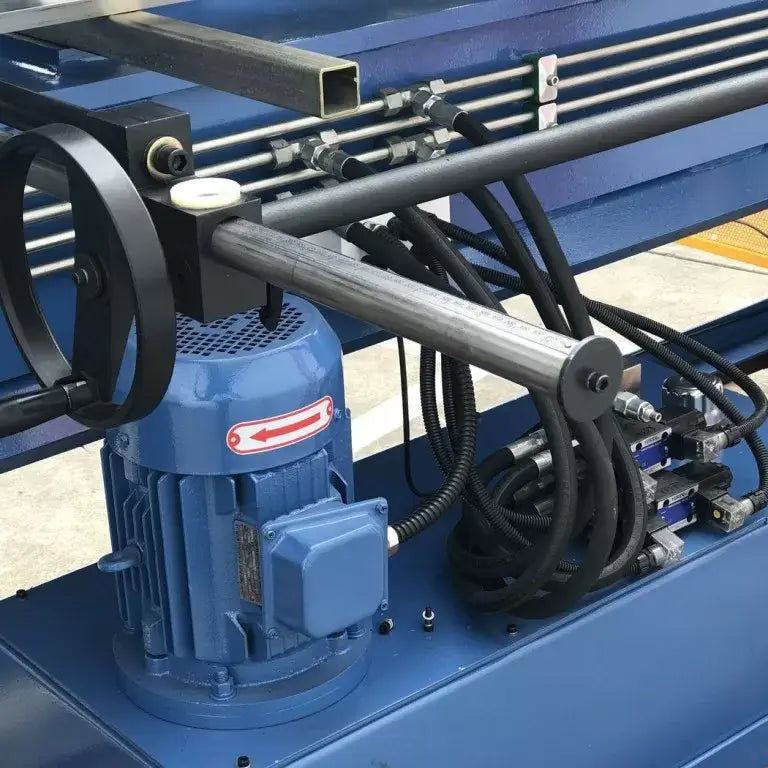

Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
Unique electric / hydraulic control ensures safe and simple operation
Services required to be provided by customer
Bending Capacity
2500mm x 4mm
Equipment & Accessories Supplied
Recommended Add On Accessories
Optional Items To Be Added
Related products settings
OPTIONAL EQUIPMENT WE CAN OFFER
The principal characteristics of the STEELMASTER ADH FCM Series 3015 Fibre Laser are
You can also see the changes in the promotional video here
Optional Parts & Accessories as follows
NC2 eBend Programmable Controller
Structural & Operating Features
Hydraulic System
High quality componentry ensures reliable performance for years of continuous operation
Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
Unique electric / hydraulic control ensures safe and simple operation
NC1 Programmable Controller
Standard Angle Setting Option
2500mm x 4.0mm bending capacity
0 ~ 135 bending range
eBend 45 program touch screen programmable controller
Shipping dimensions – 3050mm x 1250mm x 1650mm
Power – 415V 5.5Kw
Approx weight: 3300kg
Manual Shear Suppliers in Australia
Manually Operated Panbrake Folder
Steelmaster Metalworking Hydraulic Panbrake Folders
We stock a comprehensive range of
Heavy Duty Variable Rake Guillotine
Sheetmetal Electro Shear Guillotine
Sheetmetal Manual Treadle Guillotine
Steelmaster Sheetmetal Metalworking Guillotines
CNC2 Foldmaster Graphical Hydraulic Panbrake Folders
NC1 Operated Hydraulic Panbrake Folders

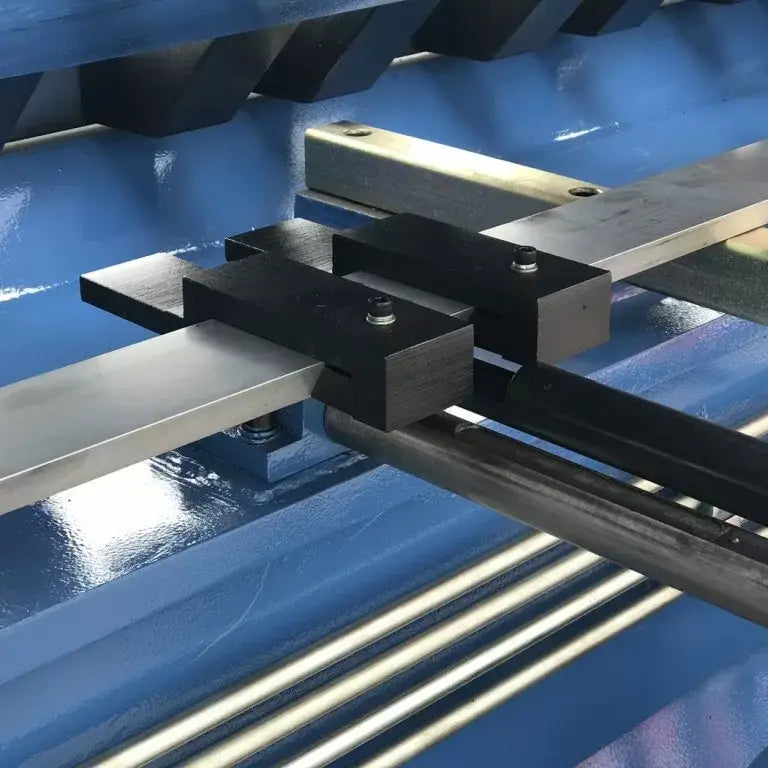

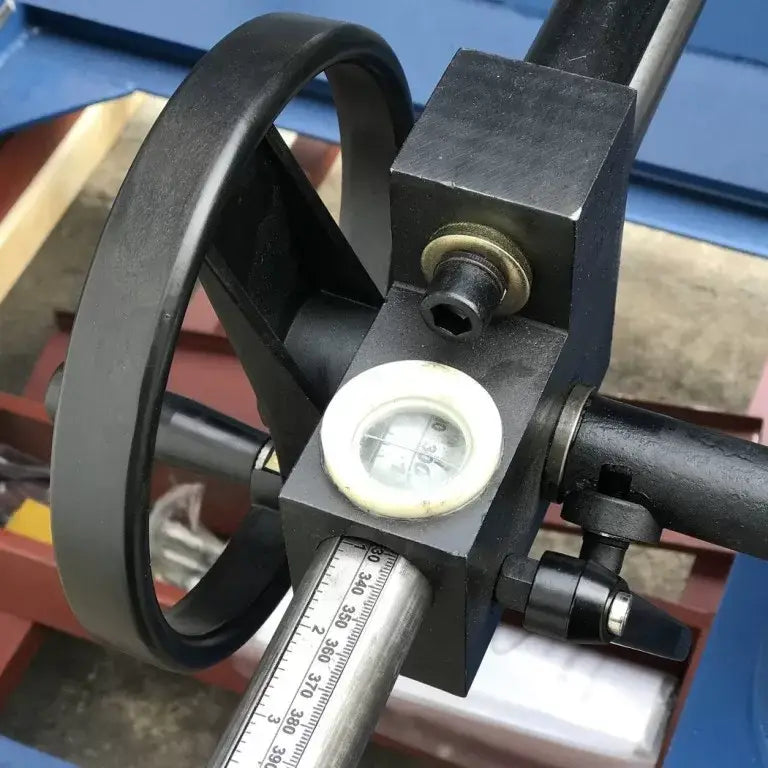

Offering programmable control controlling bending & manual calibrated backgauge
eBend touch screen programmable setting operating in, manual, automatic and repeat modes

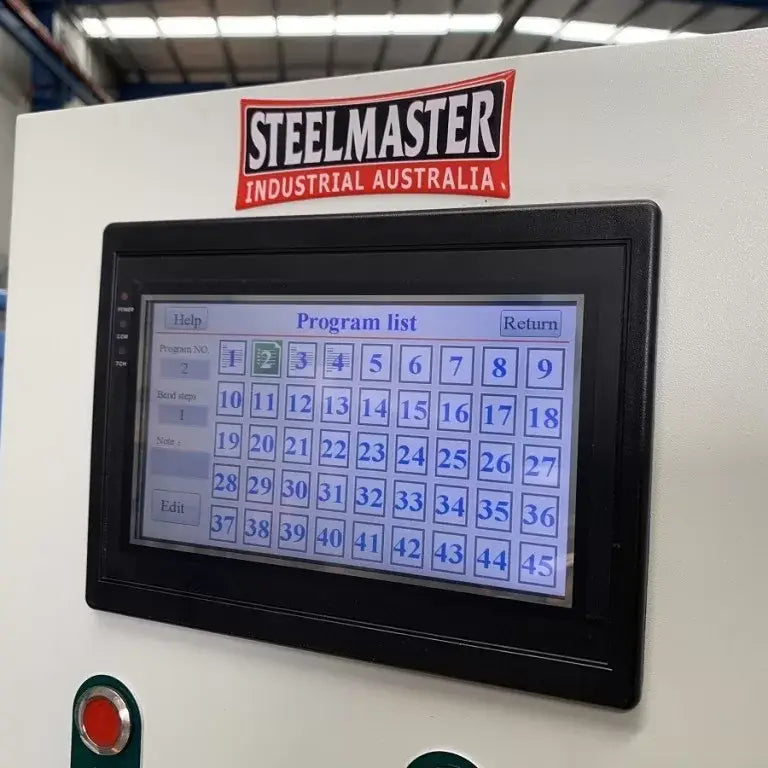

eBend offering powerful 45 programs each with 16 bend steps

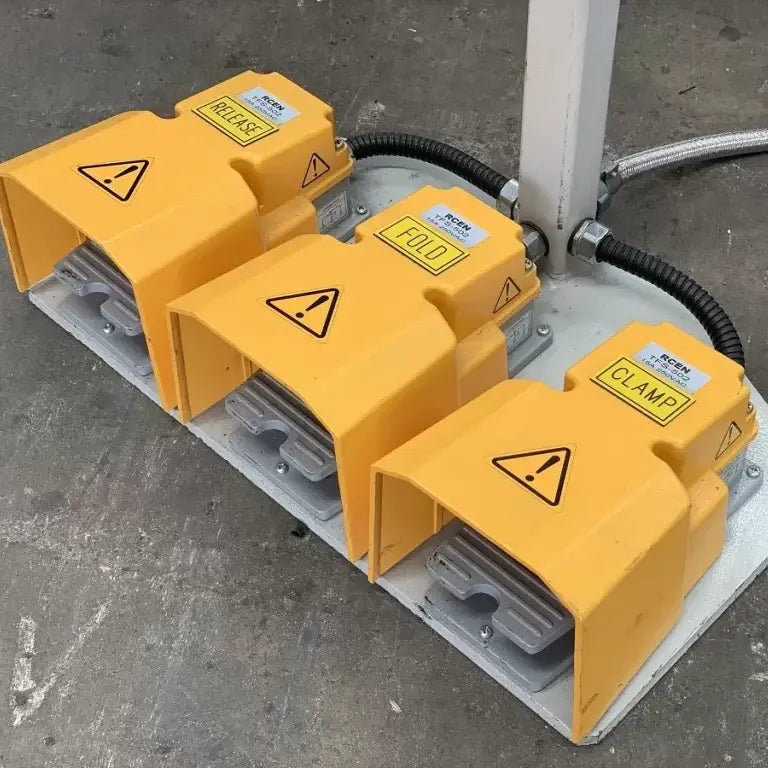

Designed to control a 4 ram folder with up, down, clamp and release functionality
