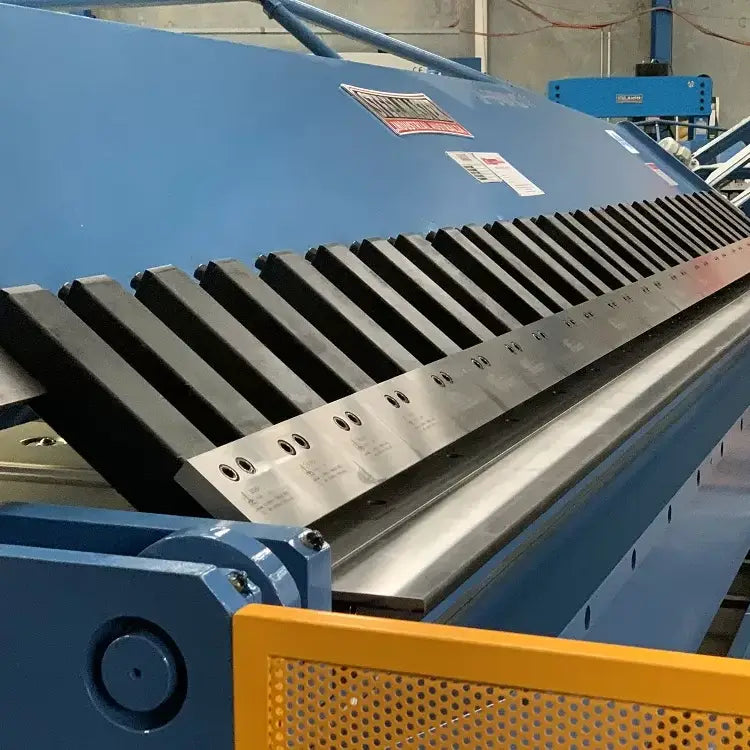

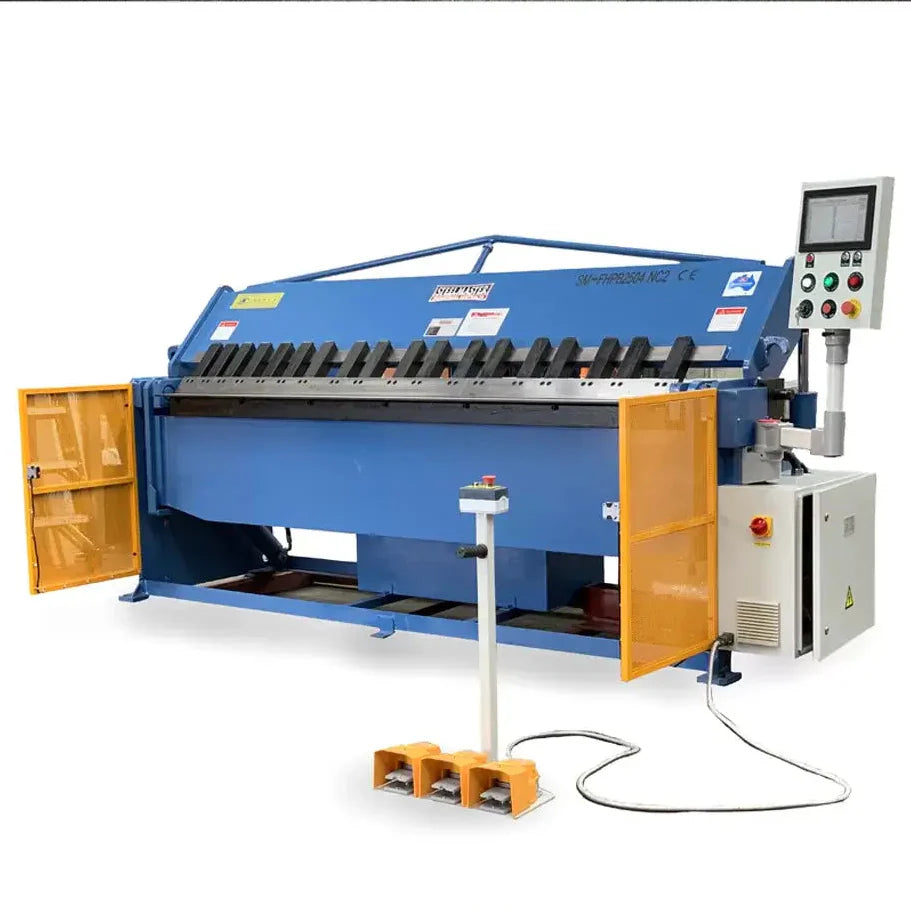

Panbrake Folder, Full Hydraulic, 2500mm x 4mm c/w e-Bend 2 Axis Programmable Control
Regular price
$31,850.00
Unit price
Unavailable
This high-spec Steelmaster Panbrake Folder (2500mm x 4mm) features an e-Bend 2-axis programmable control.
Technical Data
2500mm x 4.0mm bending mild steel capacity
2500mm x 2.0mm bending stainless capacity
0 ~ 135 bending range

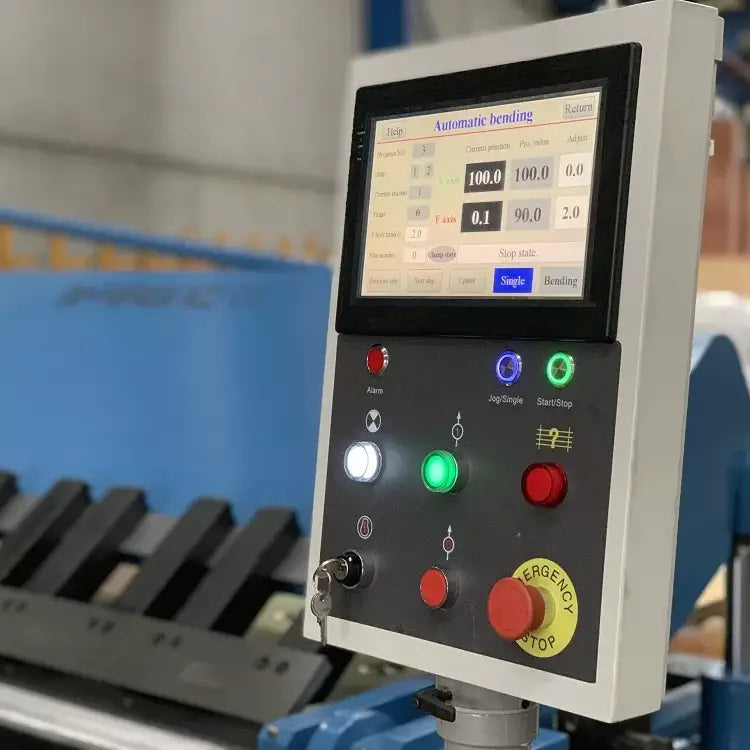

eBend 2 x Axis touch screen programmable controller
backgauge travel length – 900mm. Position A & B
optional backgauge travel length to 1200mm available on request. Position A, B & C
shipping dimensions – 3050mm x 1500mm x 1650mm
power – 415V 5.5Kw
approx weight: 3550kg
Product Features
Hydraulically operated bending and clamping beam for efficient heavy duty operation
High structural rigidity from heavy plate steel box construction with continuous welded seams

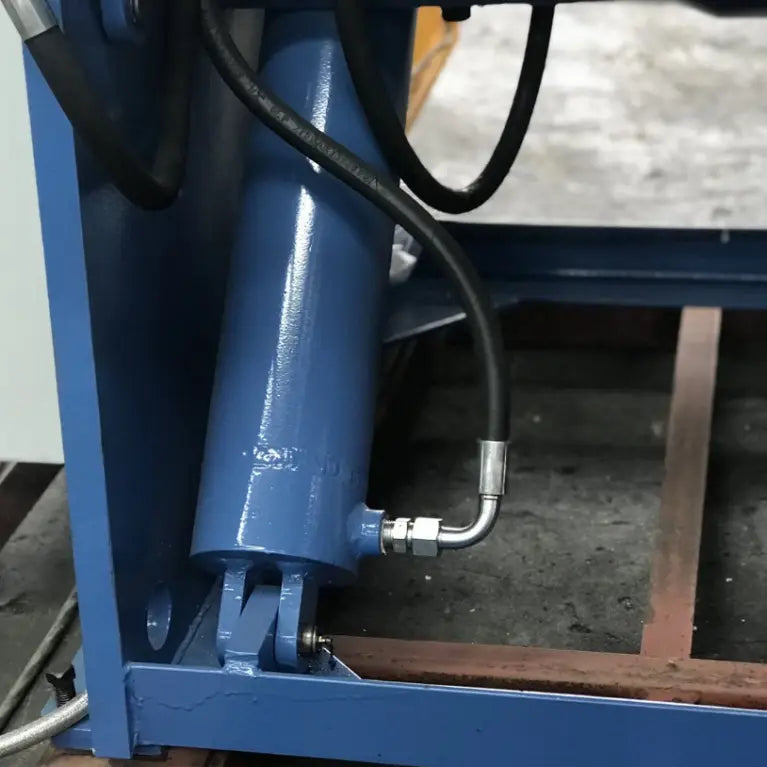

Bending beam powered by dual hydraulic cylinders

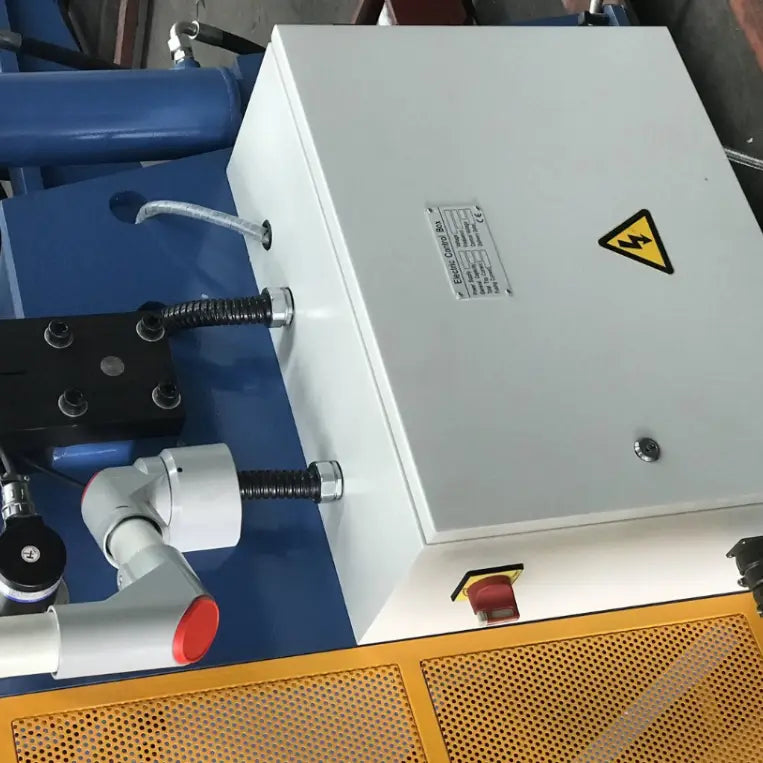

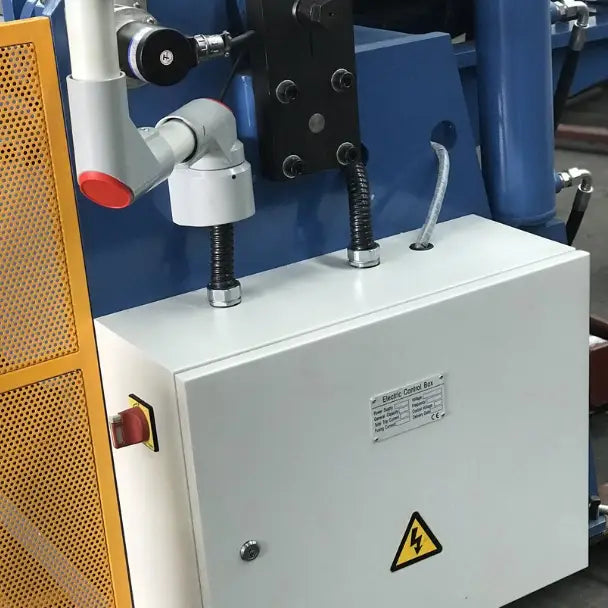

Fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature

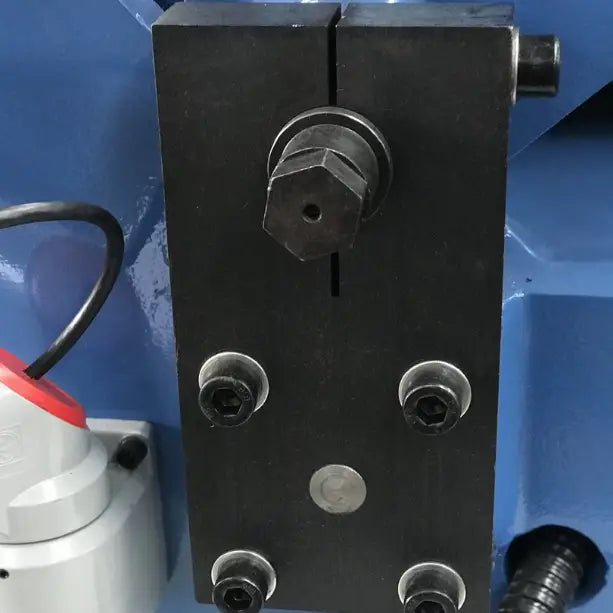

High load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
Precise electric / hydraulic controls with manual inching of bending beam
Utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
Comprehensive equipment protection from electric and hydraulic overload systems
Services required to be provided by customer
Bending Capacity
2500mm x 4mm
Equipment & Accessories Supplied
Recommended Add On Accessories
Optional Items To Be Added
Related products settings
OPTIONAL EQUIPMENT WE CAN OFFER
The principal characteristics of the STEELMASTER ADH FCM Series 3015 Fibre Laser are
You can also see the changes in the promotional video here
Optional Parts & Accessories as follows
NC2 eBend Programmable Controller
Offering programmable control controlling bending & backgauge sequence.

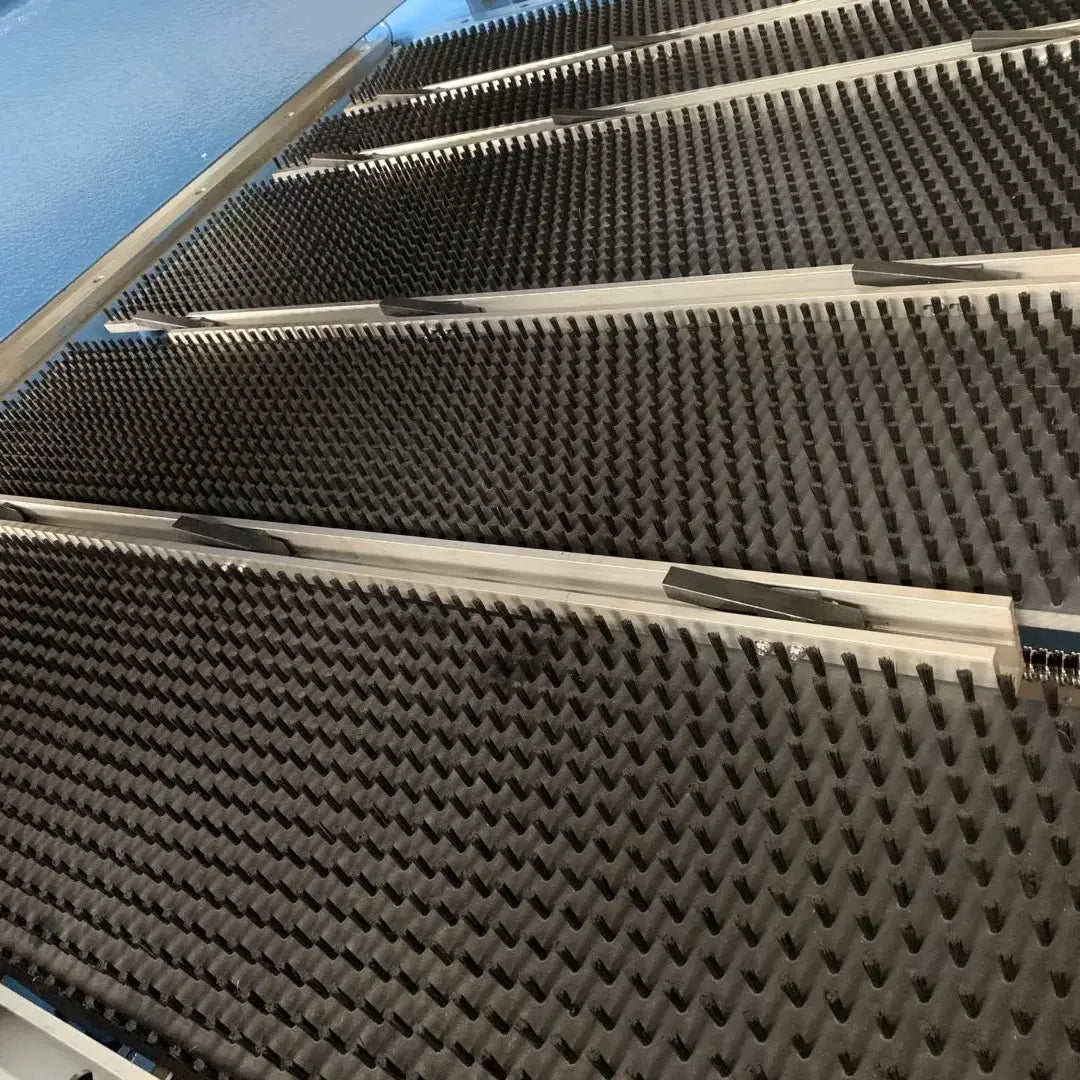

New rear brush table with ballscrew operated backgauge positioning
Operation in manual, step program, automatic modes and repeat modes
eBend touch screen programmable setting operating in, manual, automatic and repeat modes
Designed to control a 4 ram folder with up, down, clamp and release functionality
Structural & Operating Features

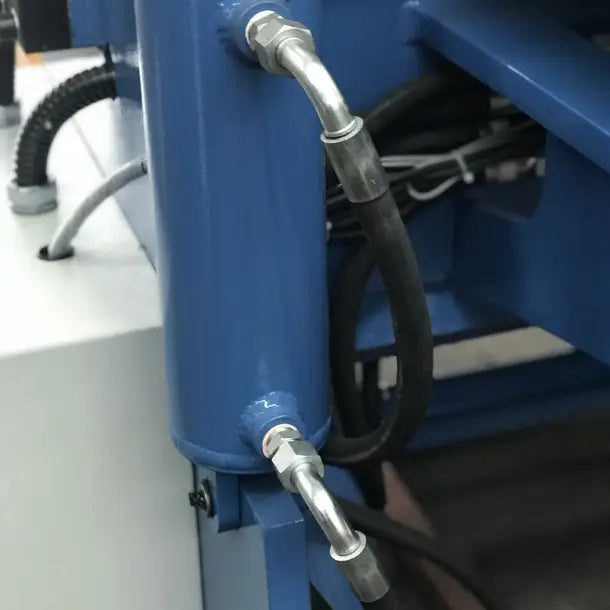

Hydraulic System
High quality componentry ensures reliable performance for years of continuous operation

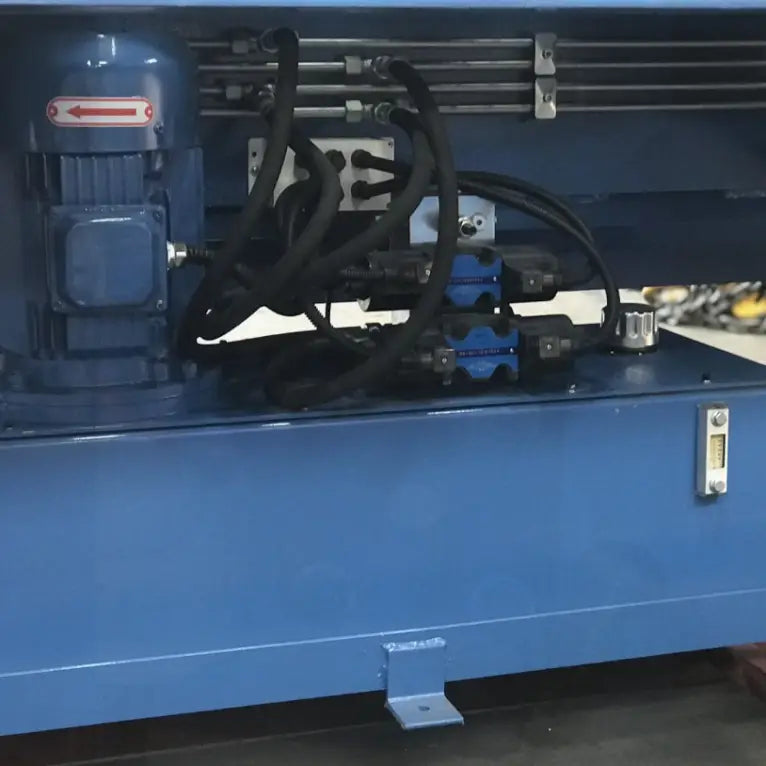

Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
Unique electric / hydraulic control ensures safe and simple operation
NC1 Programmable Controller
Standard Angle Setting Option
