Panbrake Folder, Full Hydraulic, 3200mm x 4mm with NC2 Programmable Angle Controller
Regular price
$37,850.00
Unit price
Unavailable

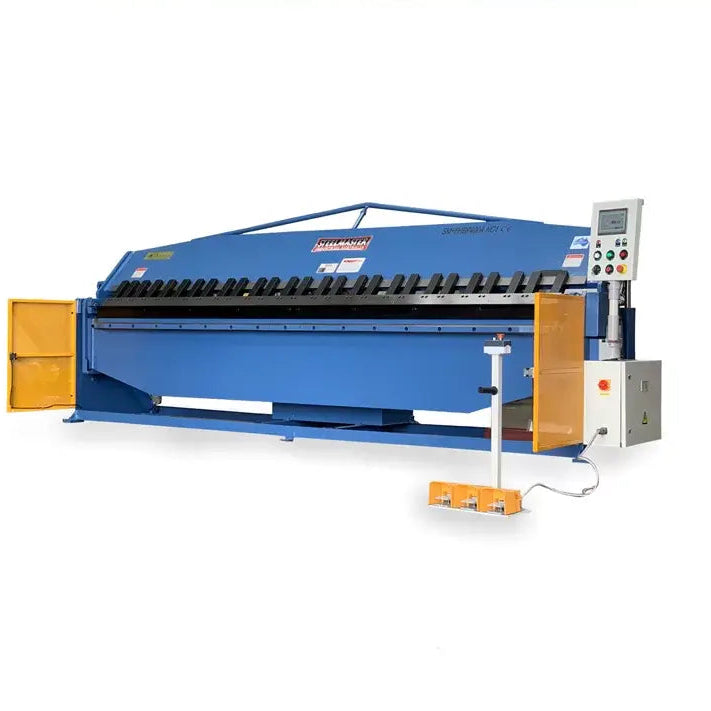

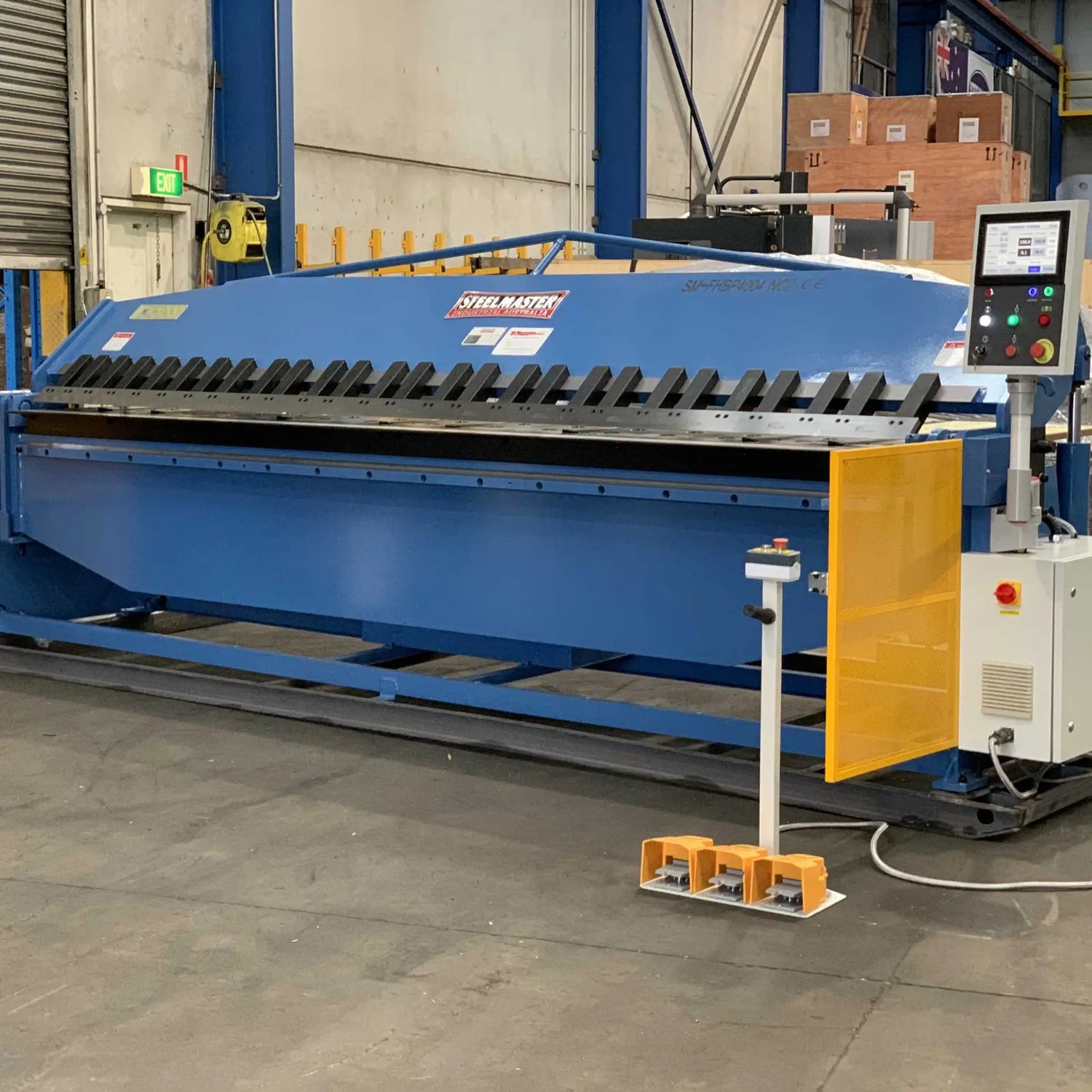

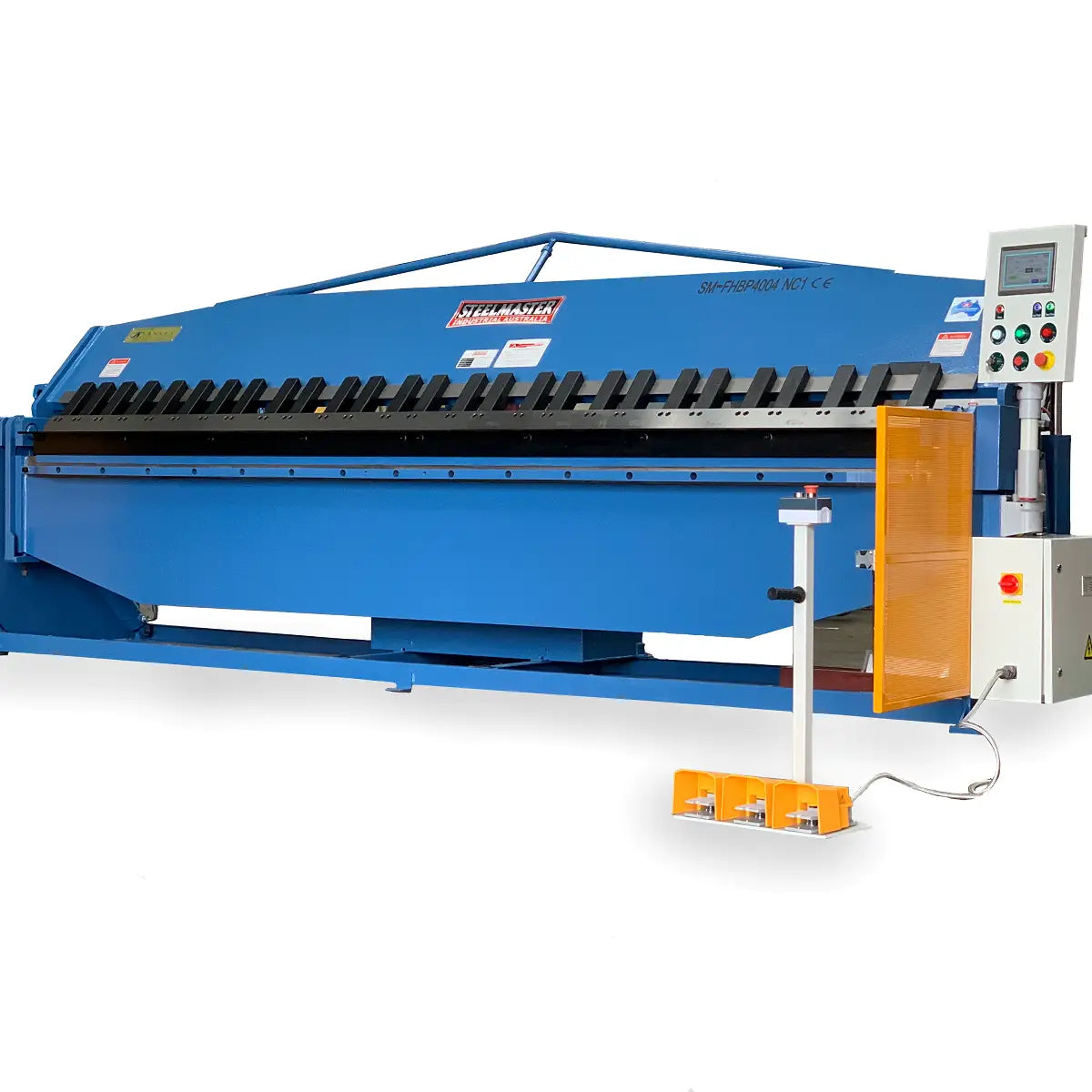

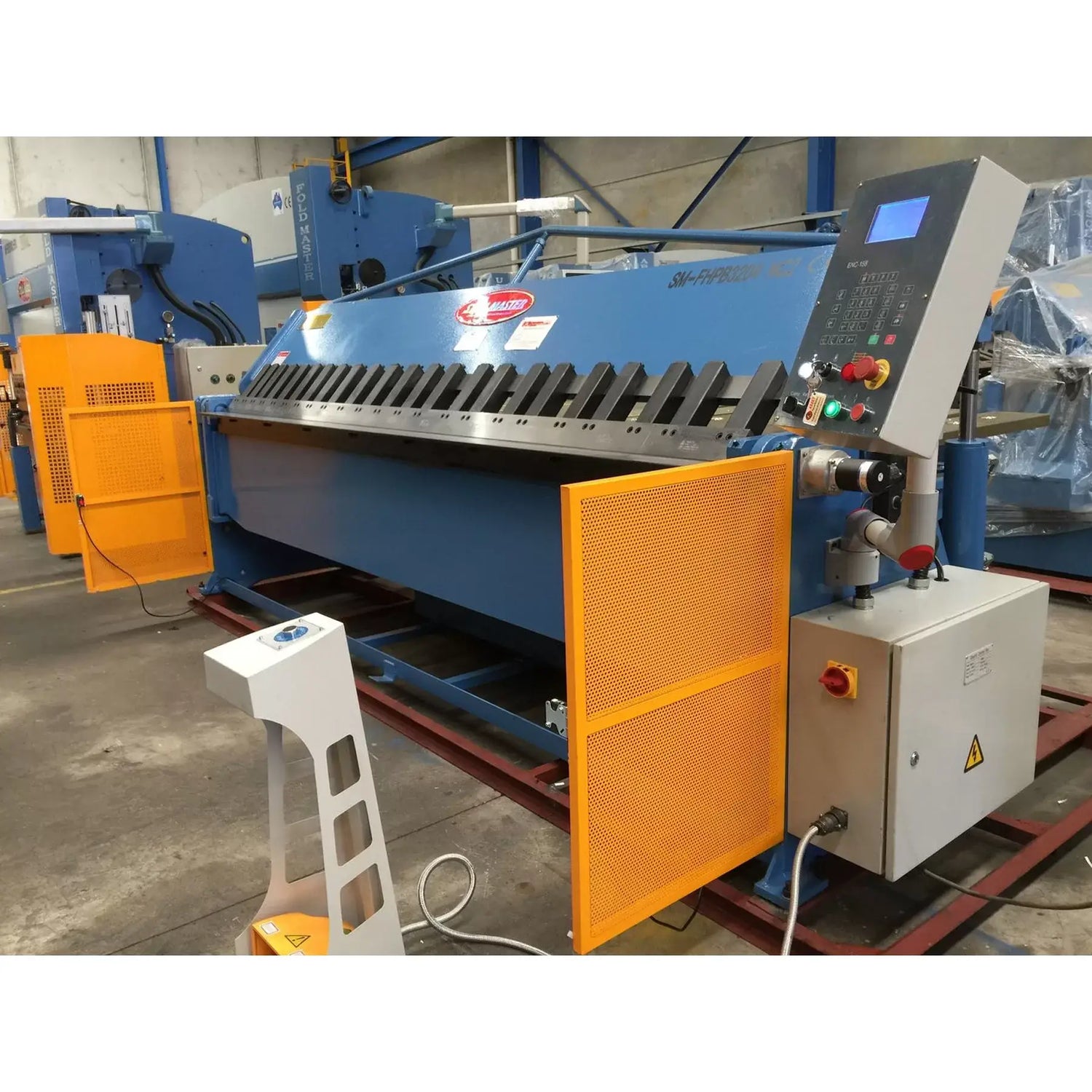

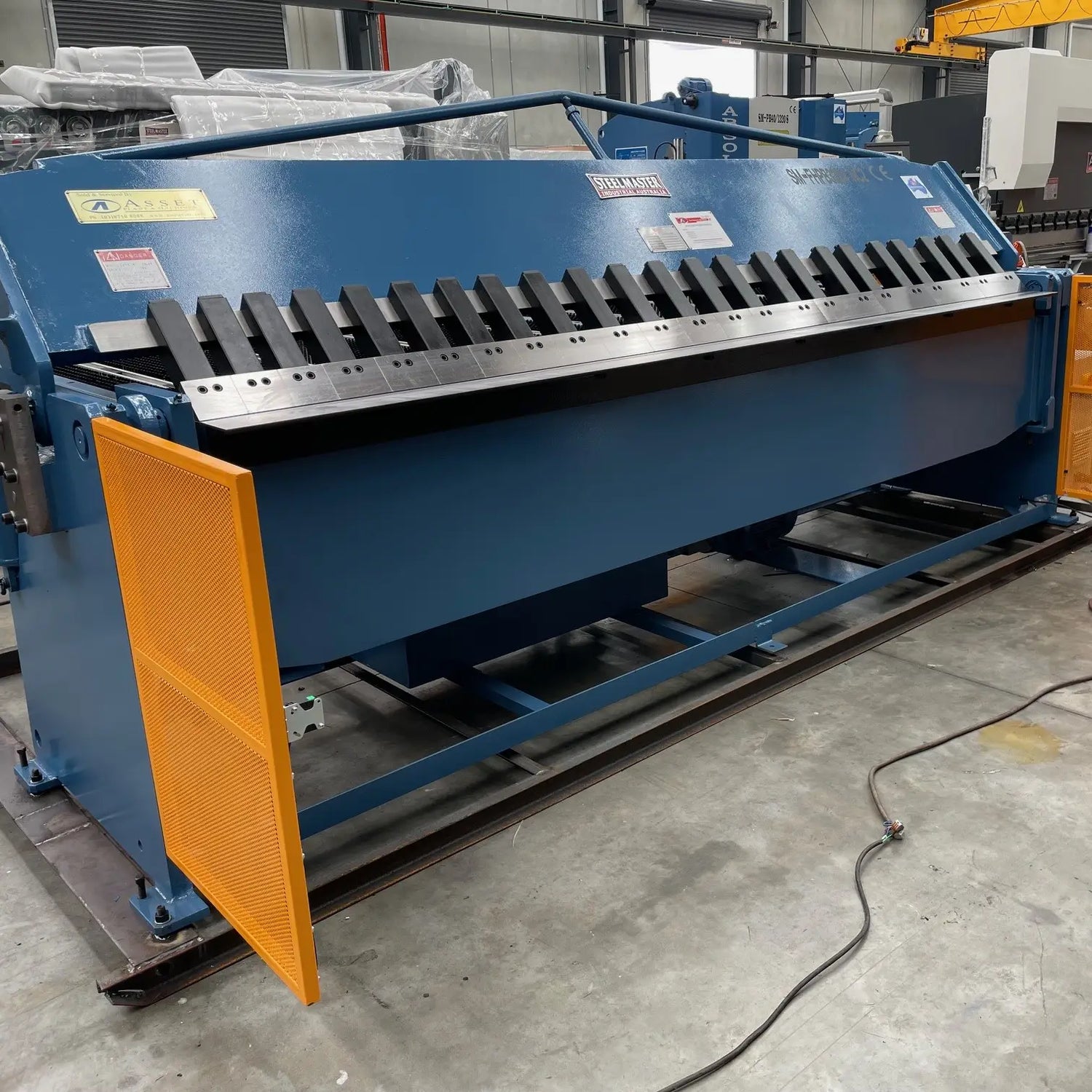

A 3200mm Steelmaster Hydraulic Panbrake Folder with an advanced NC2 programmable angle controller.
Technical Data
3200mm x 4.0mm bending capacity
o ~ 135 bending range
Backgauge travel length – 900mm. Position A & B
Optional backgauge travel length to 1200mm available on request. Position A, B & C
Shipping dimensions – 3800mm x 1500mm x 1550mm
Power – 415V 4.0Kw
approx weight: 4100kg
Product Features

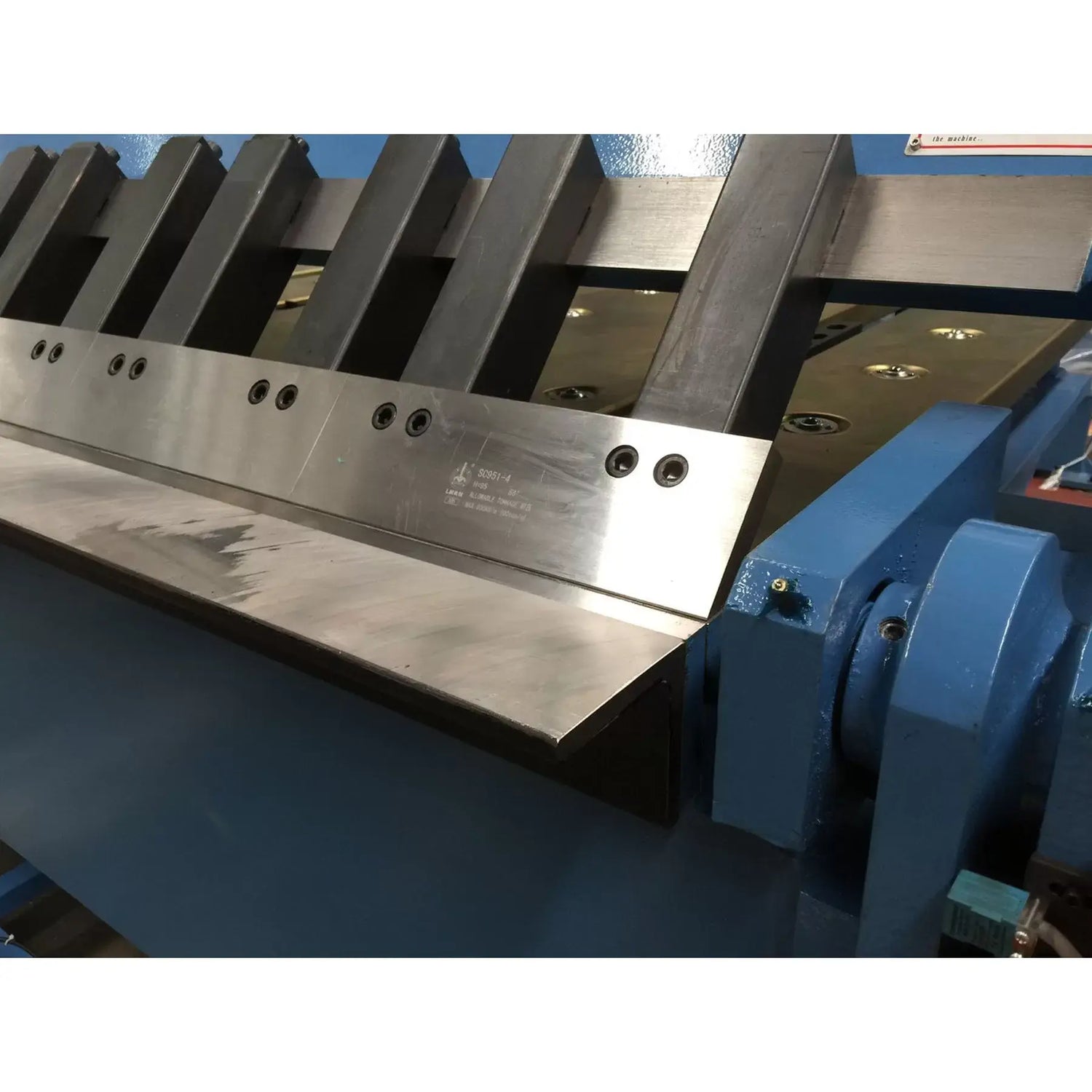

Hydraulically operated bending and clamping beam for efficient heavy duty operation
High structural rigidity from heavy plate steel box construction with continuous welded seams
Bending beam powered by dual hydraulic cylinders

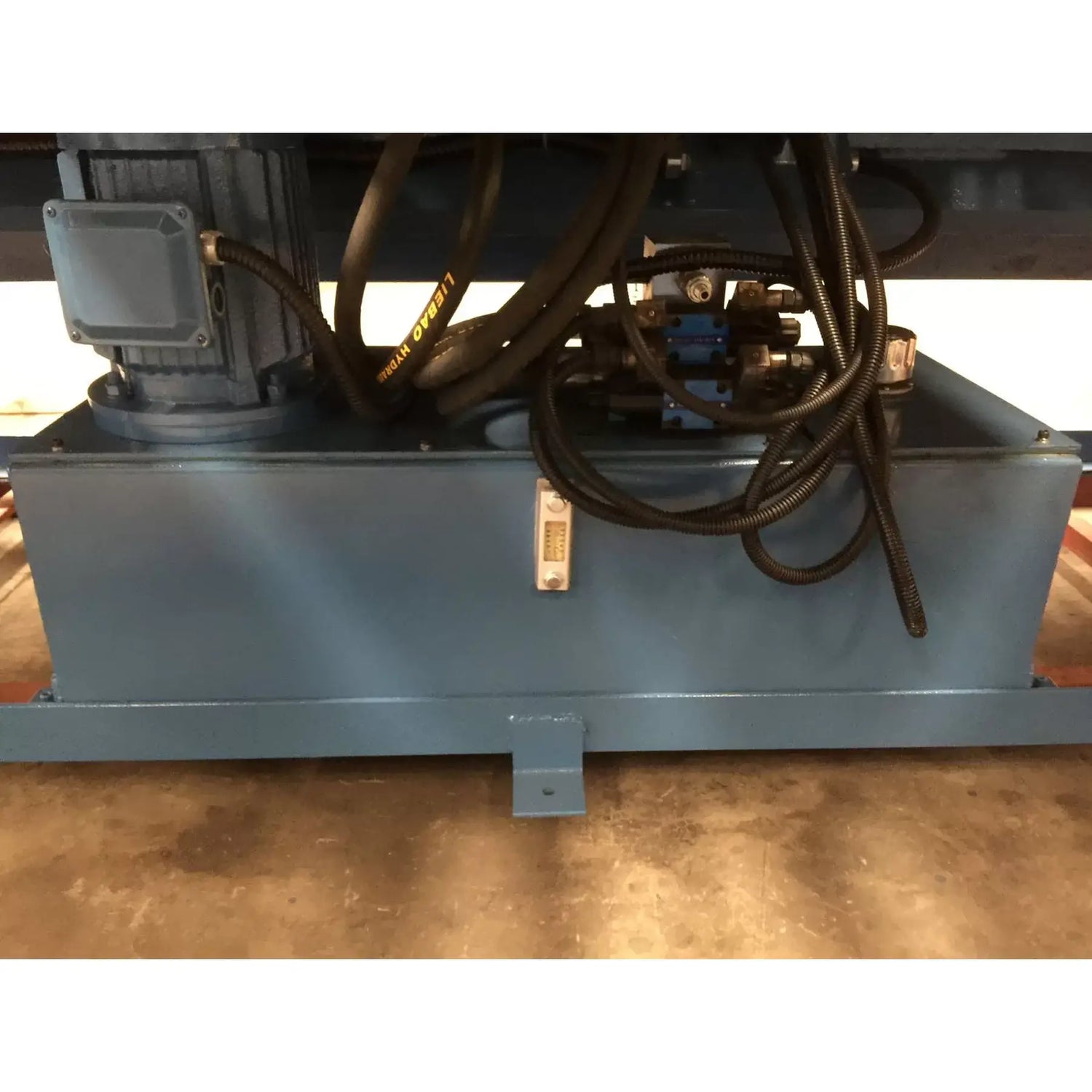

Fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature

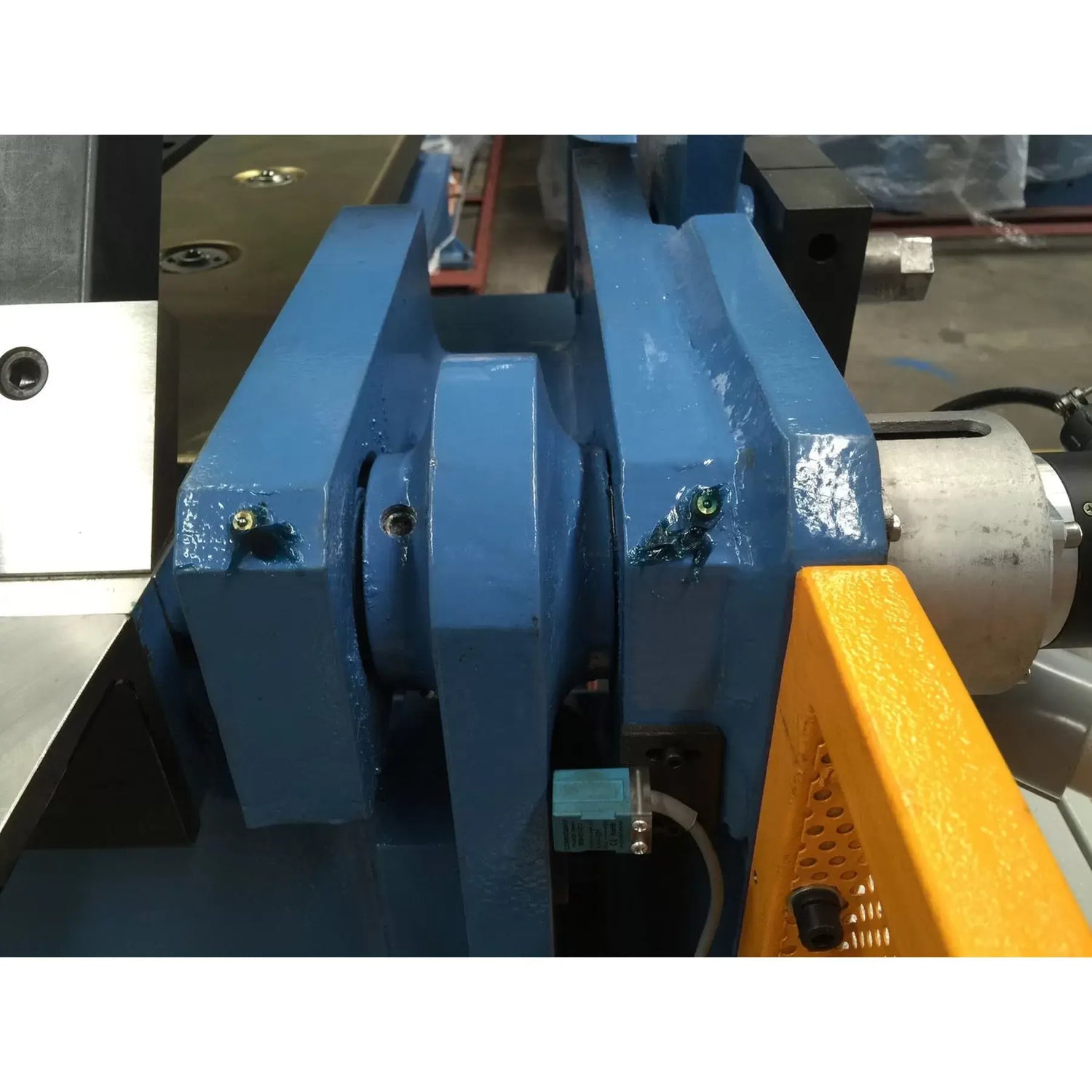

High load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
Precise electric / hydraulic controls with manual inching of bending beam
Utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
Comprehensive equipment protection from electric and hydraulic overload systemsHydraulic System
High quality componentry ensures reliable performance for years of continuous operation
Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
Unique electric / hydraulic control ensures safe and simple operation
Services required to be provided by customer
Bending Capacity
3200mm x 4mm
Equipment & Accessories Supplied
Recommended Add On Accessories
Optional Items To Be Added
Related products settings
OPTIONAL EQUIPMENT WE CAN OFFER
The principal characteristics of the STEELMASTER ADH FCM Series 3015 Fibre Laser are
You can also see the changes in the promotional video here
Optional Parts & Accessories as follows

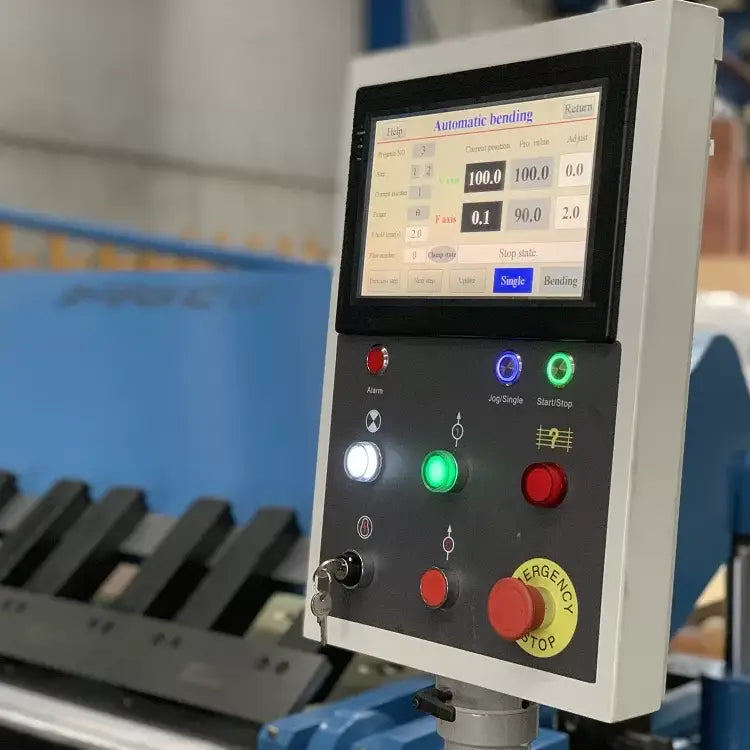

NC2 eBend Programmable Controller
Offering programmable control controlling bending & backgauge sequence.

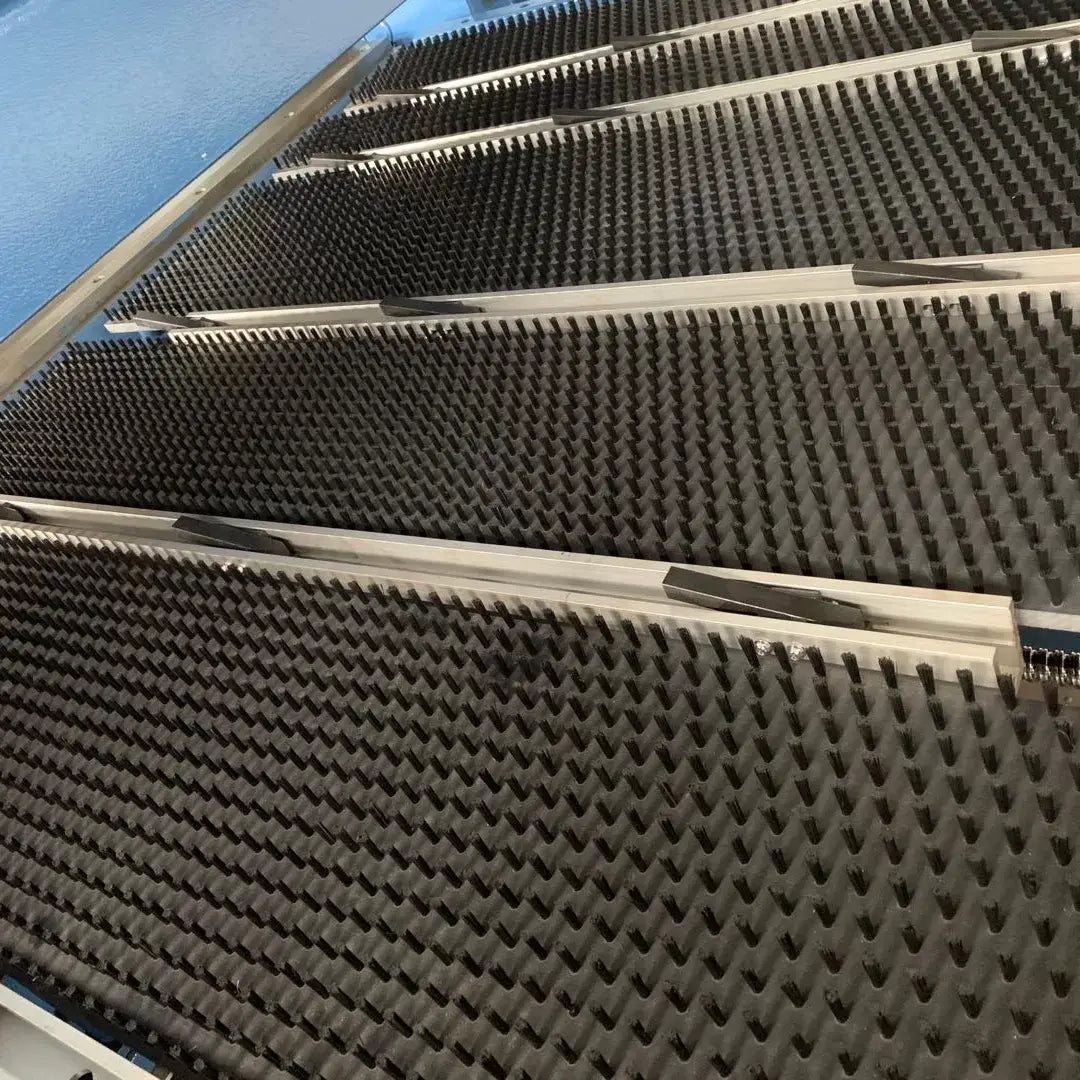

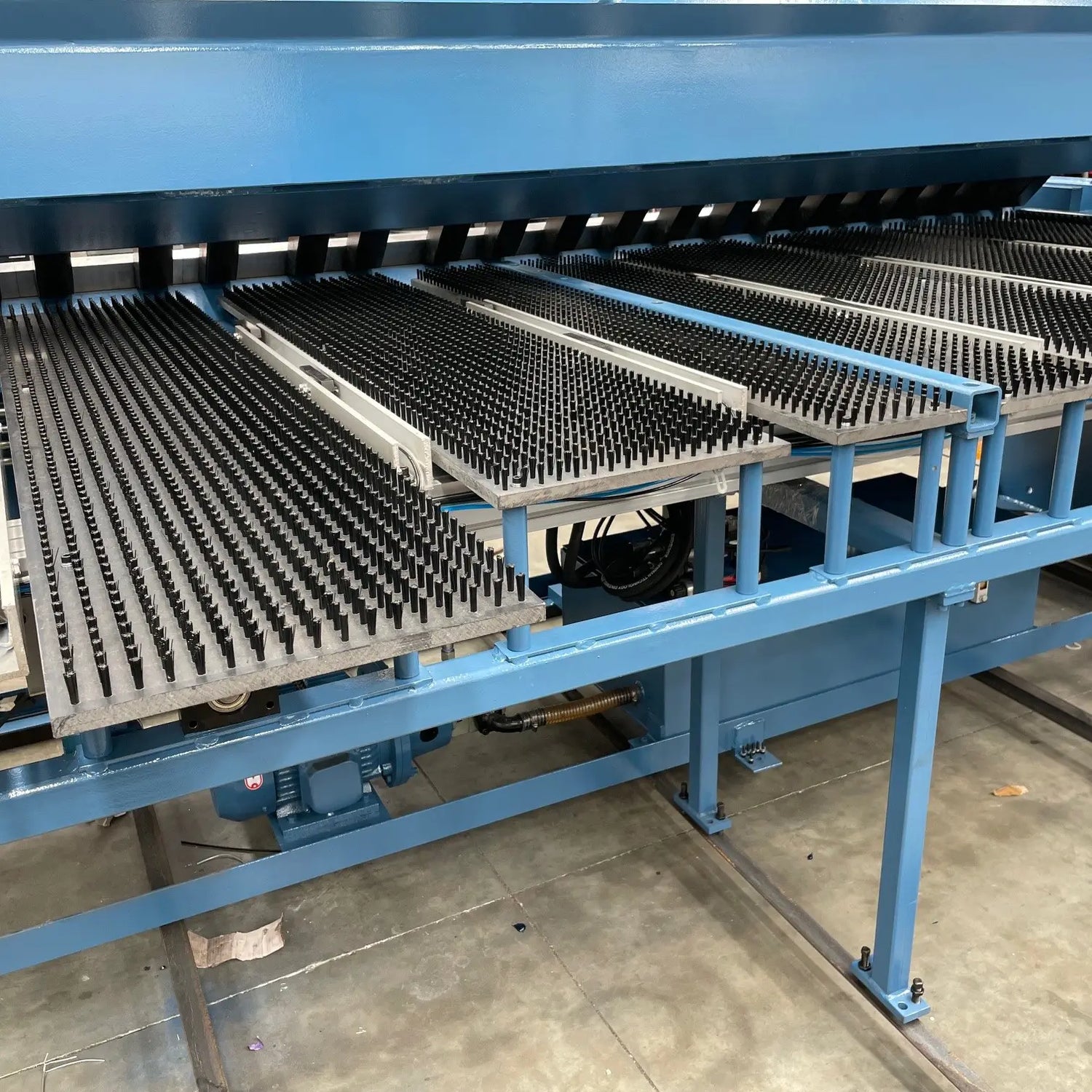

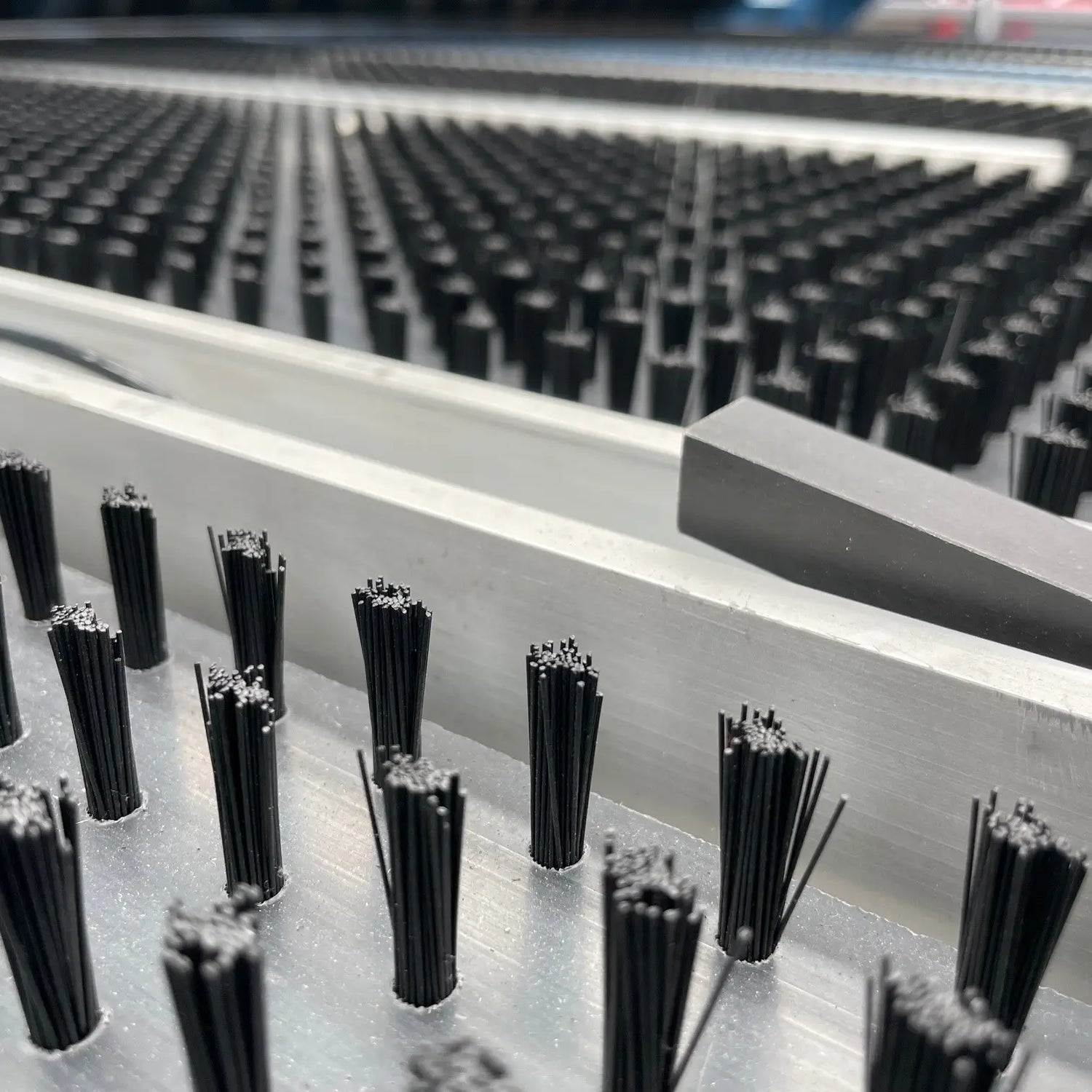

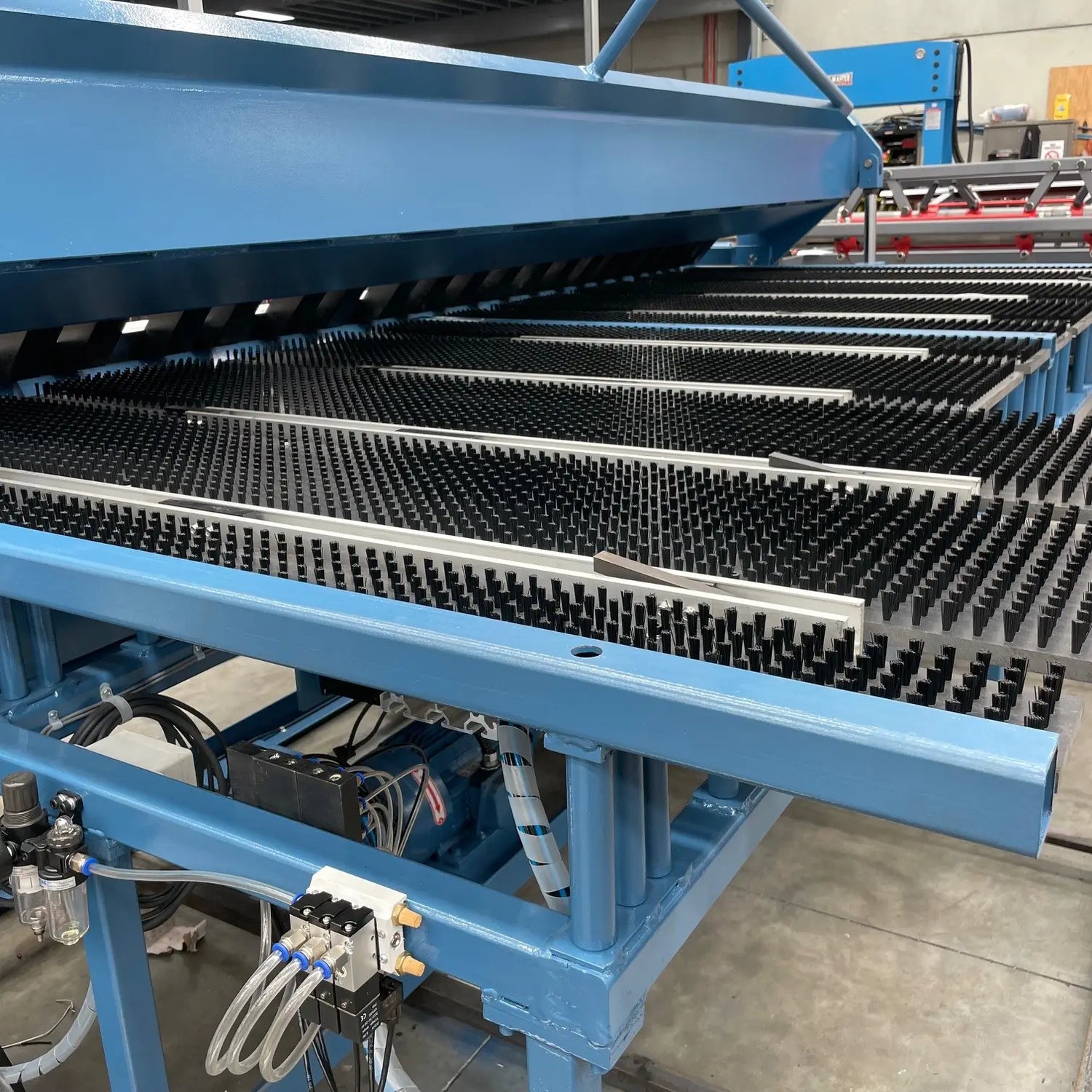

New rear brush table with ballscrew operated backgauge positioning
Operation in manual, step program, automatic modes and repeat modes
99 station memory setting operating in, manual, automatic and repeat modes
Designed to control a 4 ram folder with up, down, clamp and release functionality
Structural & Operating Features
Hydraulically operated bending and clamping beam for efficient heavy duty operation
High structural rigidity from heavy plate steel box construction with continuous welded seams
Bending beam powered by dual hydraulic cylinders
Fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature
High load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
Precise electric / hydraulic controls with manual inching of bending beam
Utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
Comprehensive equipment protection from electric and hydraulic overload systems
