Steelmaster Industrial
Geared Head Drill, 40mm Capacity, Power Feed & Coolant, 415V
Sale price
$5,185.00
Regular price
$5,490.00
Unit price
Unavailable

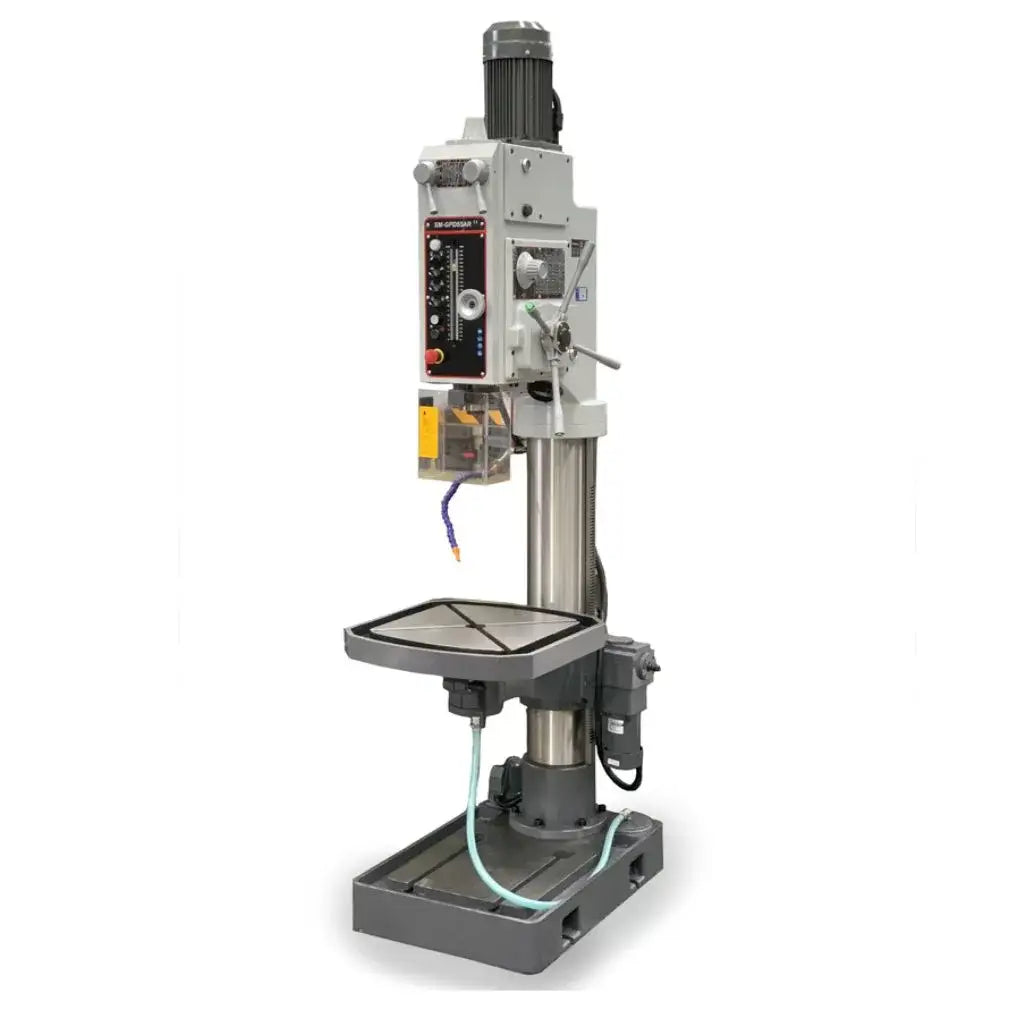

Steelmaster SM-GPD45A industrial geared head drill (415V) with 40mm capacity, power feed, and coolant system.
Technical Data

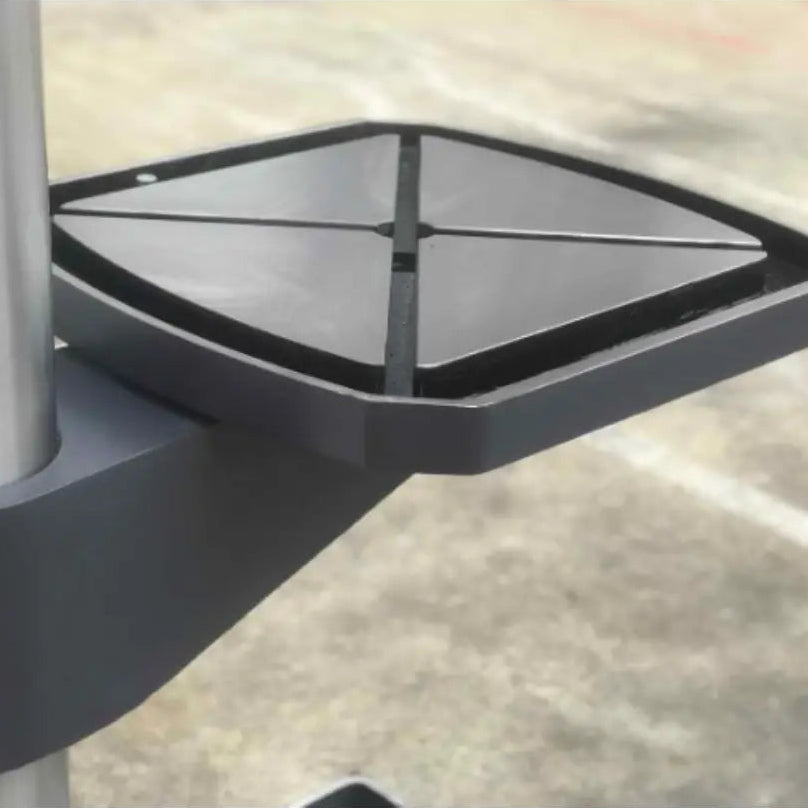

560mm x 660mm tee slotted swivel work table

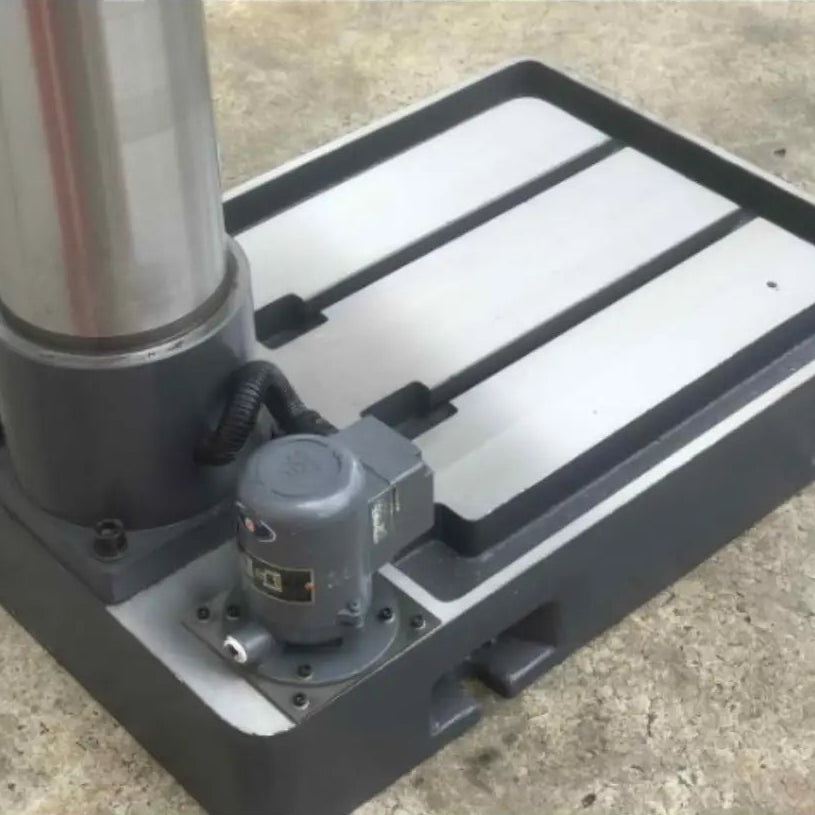

730mm x 500mm heavy duty tee work base
180mm spindle travel
4 morse taper spindle
Speeds range – 50 ~ 1450

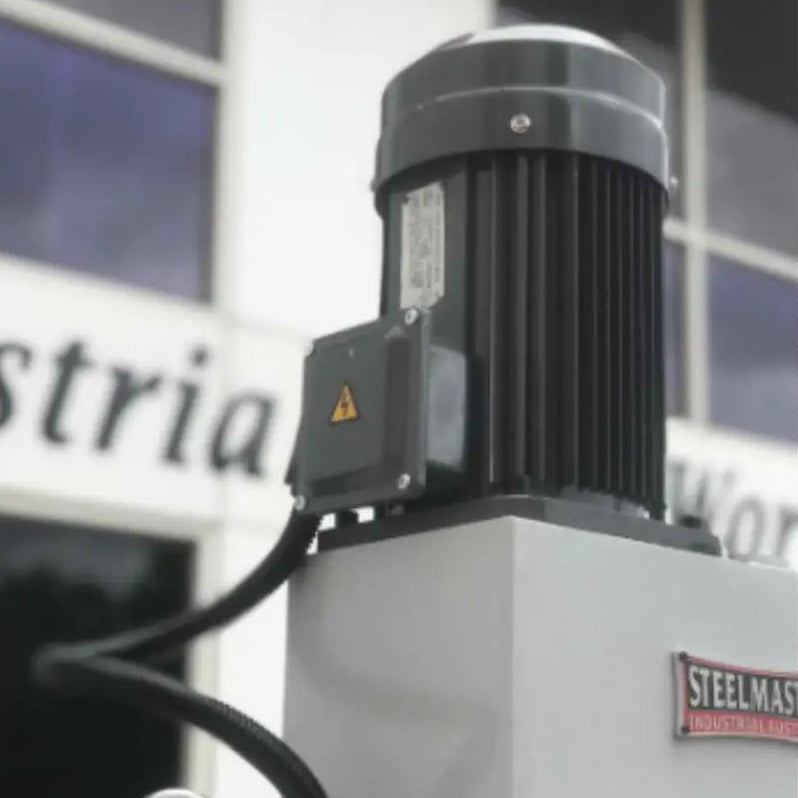

Motor capacity – 1.5Kw x 415Volt
Machine dimensions – 1150mm x 700mm x 2280mm
Crate shipping dimensions – 2300mm x 1100mm x 630mm High
Approx weight: 610kg
Spindle travel -180 mm
Power holding feed- 0.1 ~ 0.3 / 3 mm/rev
Spindle holding fixture 4 mt
Spindle distance / table (max) -705 mm
Spindle distance / base (max) -1215 mm
Throat depth - 350 mm
Working table surface (l x w) - 560 mm x 560 mm
T-slot size -18 mm
Drilling table swivel - ±45°
Spindle speeds- 50 ~ 1450 rpm
Number of steps 18 steps

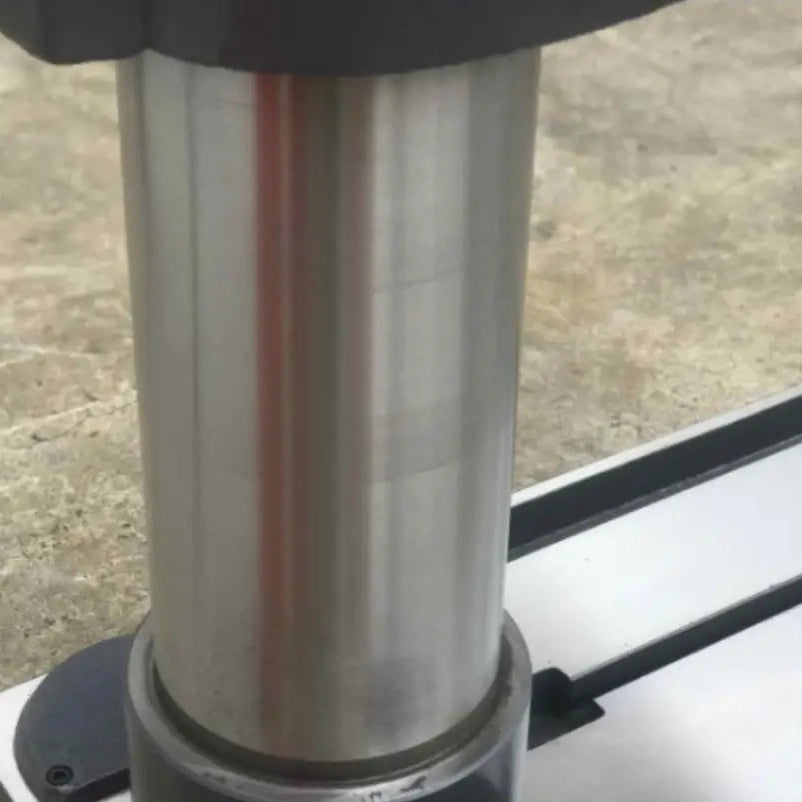

Upright diameter - 150 mm
Motor power- 1.5 / 415 kw/V
Dimensions (l x w x h) 940 mm x 560 mm x 2260 mm
Weight (nt)- 610 kg
Product Features
40mm drilling capacity, M24 tapping capacity
Rgid cast iron construction
Tapping selector fitted when used in conjunction with tapping head (GPD40A & 50A only)
Power raise and lower of table (GPD50A only)
Large throat up to 380 mm
Halogen work light as standard
Tables rotates 180 and swivels 45°

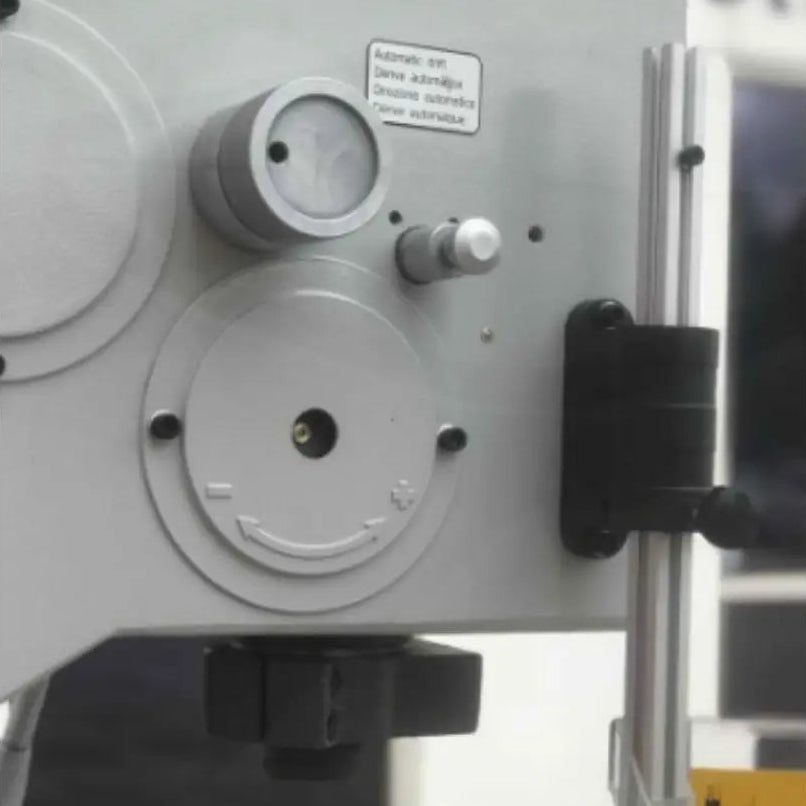

4 step automatic feed
Adjustable depth stop
Thick-walled column
Extremely easy tool change

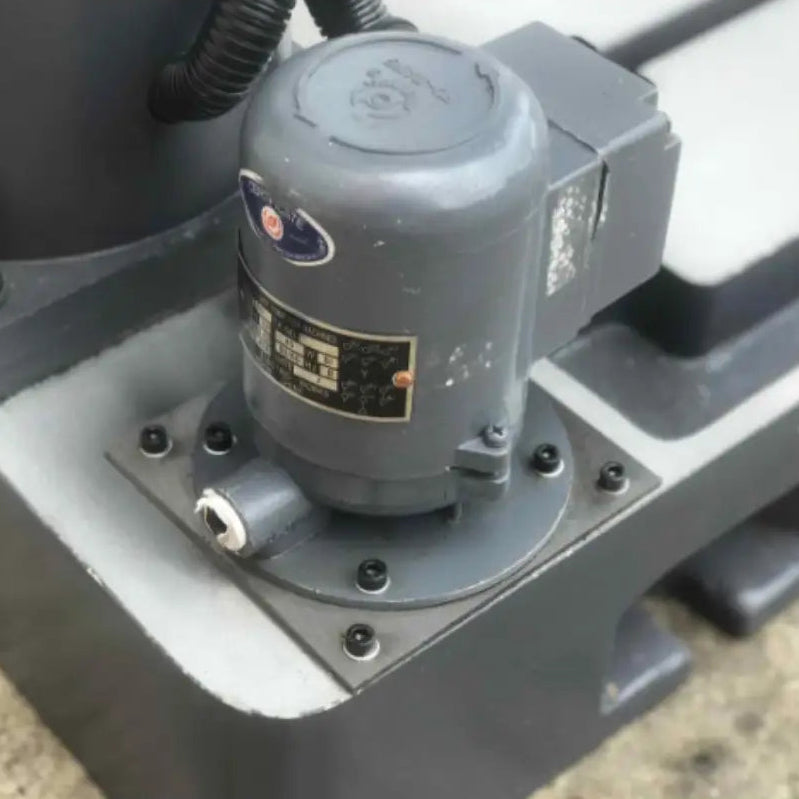

Coolant system
CE compliant
