Steelmaster Industrial | SKU: 24-0109

Corner Notcher, Hydraulic, 200x200x4mm

Name: Corner Notcher, Hydraulic, 200x200x4mm
Brand: Steelmaster Industrial
SKU: 24-0109
Price: 7950.00 AUD
Availability: InStock

PRICE EX GST

$7,950.00

PRICE INC GST

$8,745.00

MODEL NUMBER: STEELMASTER-SM-HCN200-4-CORNER-NOTCHER

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

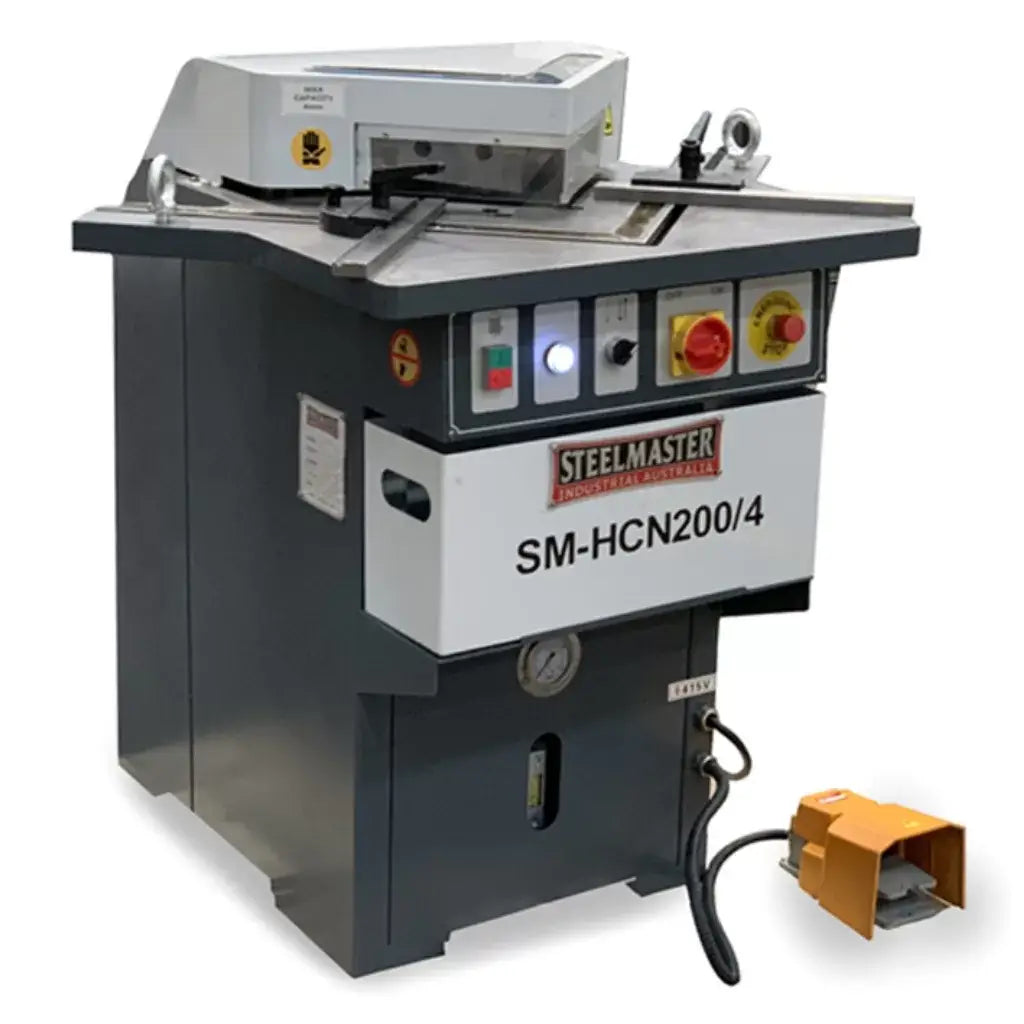

Steelmaster SM-HCN200/4 FIM Euro corner notcher with 200x200x4mm capacity and hydraulic operation.

PRODUCT FEATURES

Quick blade gap adjustment
Reversible bottom blades
Manual stroke length adjustment
Internal back stop with scale
Special guide on the table for cuts in a subsequent way, such as cuts longer than the blade length
Tempered steel guiding system
Selector switch for foot or hand control
Cast-iron head and base
Cast-iron table with t-slots and built-in scales (in. and mm.)
Two squaring guides with protractors
High-carbon, high-chrome blades
Remote foot control

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

200mm x 200mm x 4mm mild steel
200mm x 200mm 3mm stainless
Notching angle – 90 degrees
Dimensions – 940mm x 950mm x 1190mm x 580Kg
3Kw x 415V

Corner Notcher, Hydraulic, 200x200x4mm
