Hydraulic Workshop Press, 100 Ton, Fixed & Sliding Head

Name: Hydraulic Workshop Press, 100 Ton, Fixed & Sliding Head
Brand: Steelmaster Industrial
SKU: 27-0281
Price: 9850.00 AUD
Availability: InStock

Reg: $10,850.00

Sale: $9,850.00

MODEL NUMBER: STEELMASTER-SM-HEPM110-HYDRAULIC-PRESS-100T

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

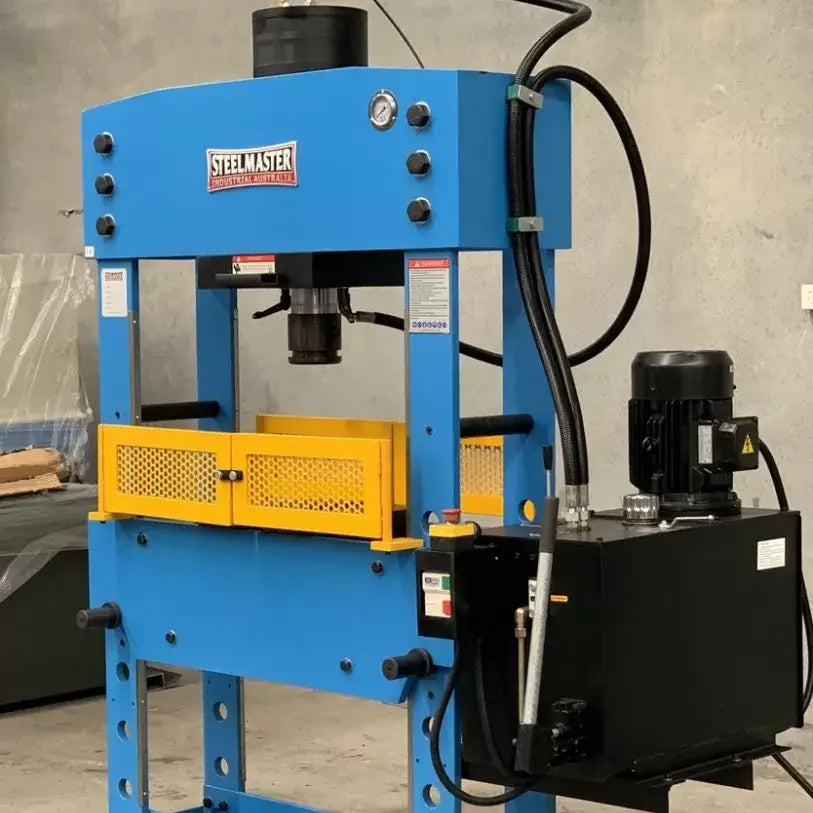

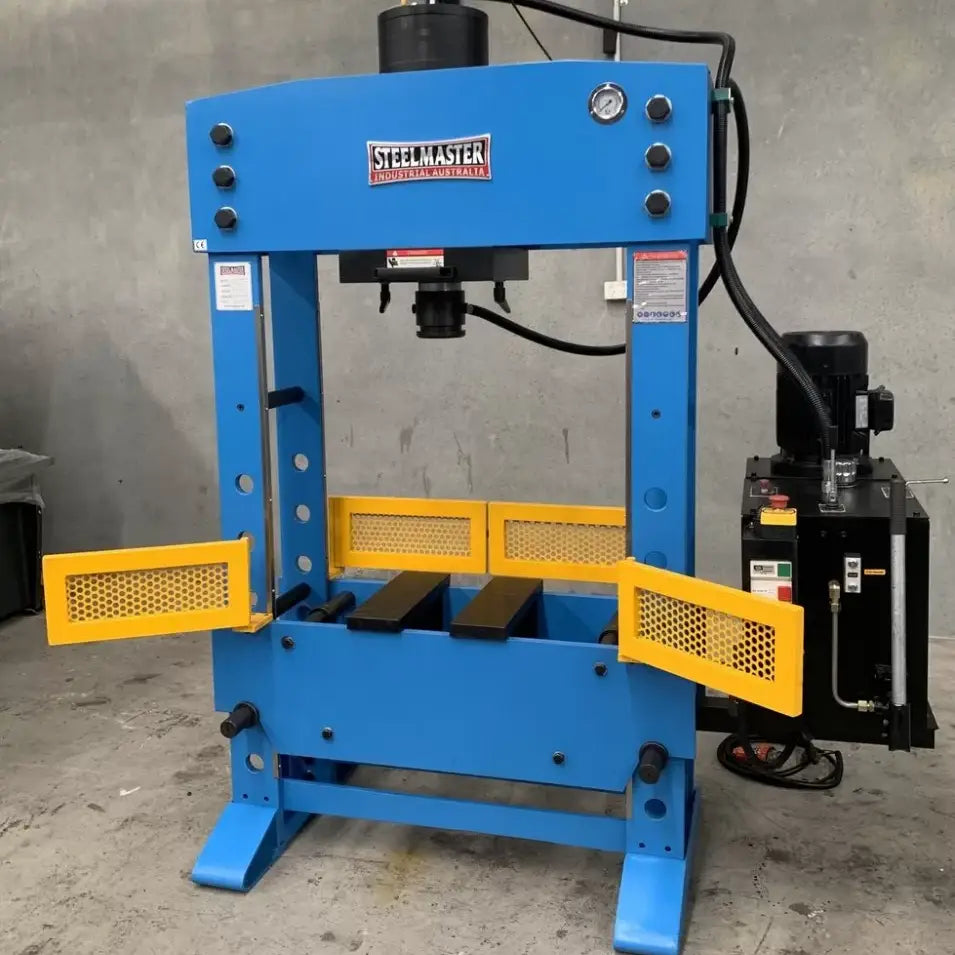

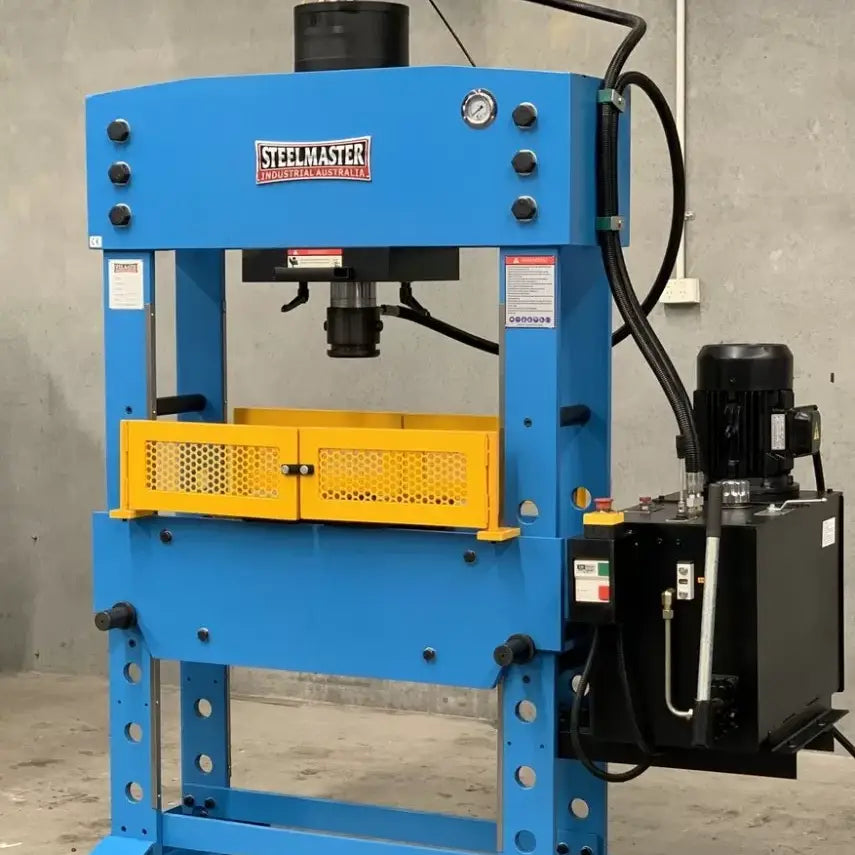

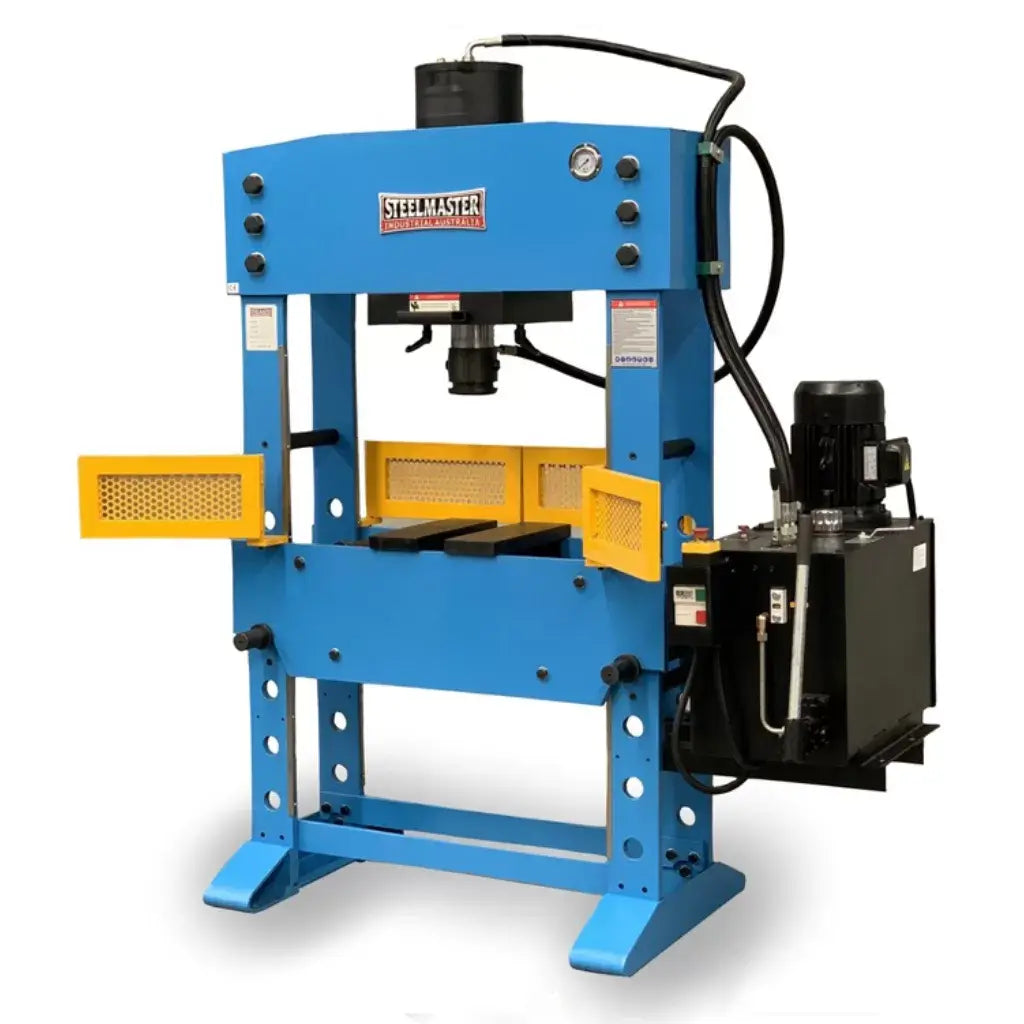

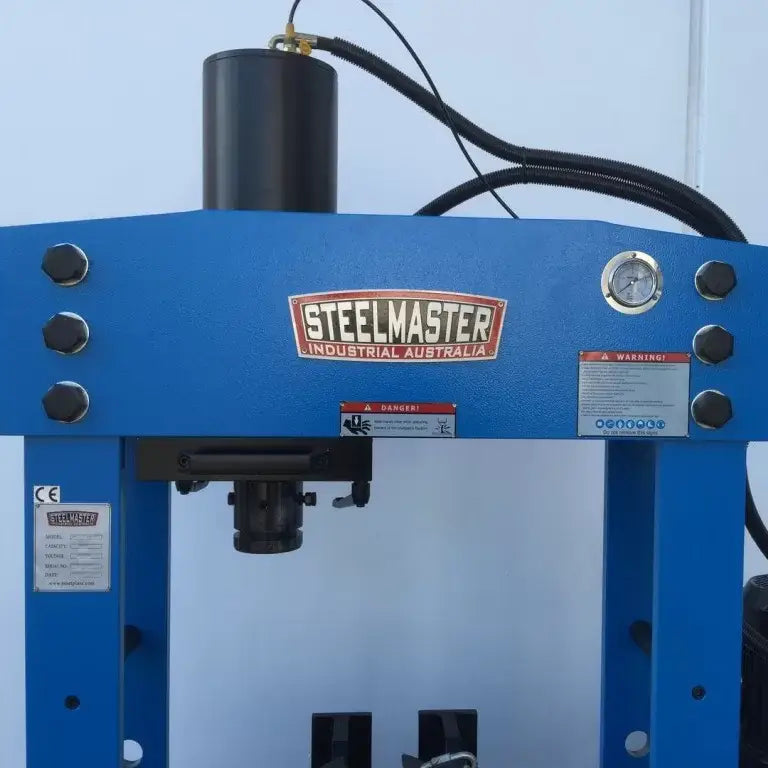

Steelmaster Industrial SM-HEPM110 hydraulic workshop press with a 100-ton capacity and a fixed & sliding head.

PRODUCT FEATURES

100 ton force

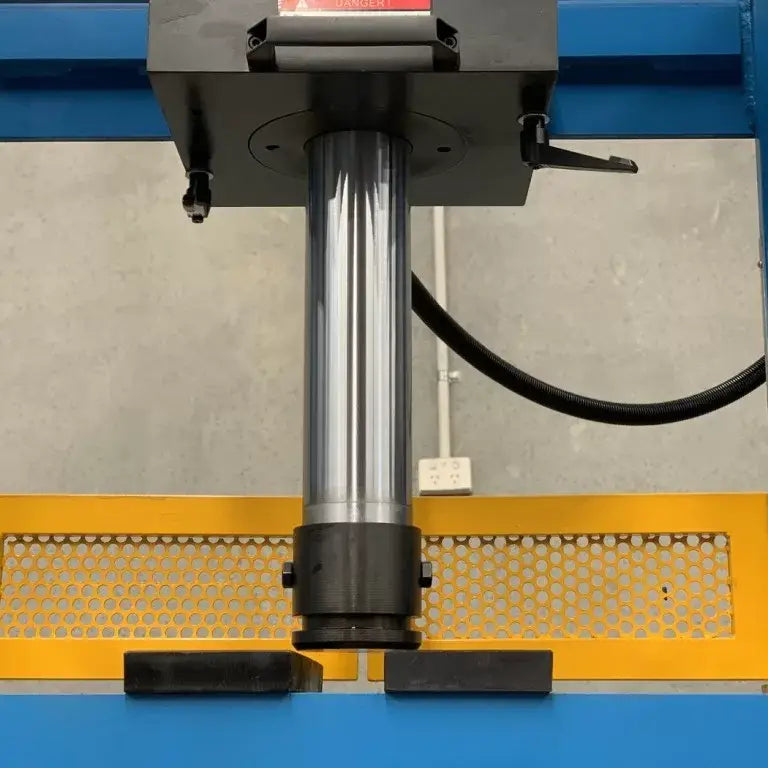

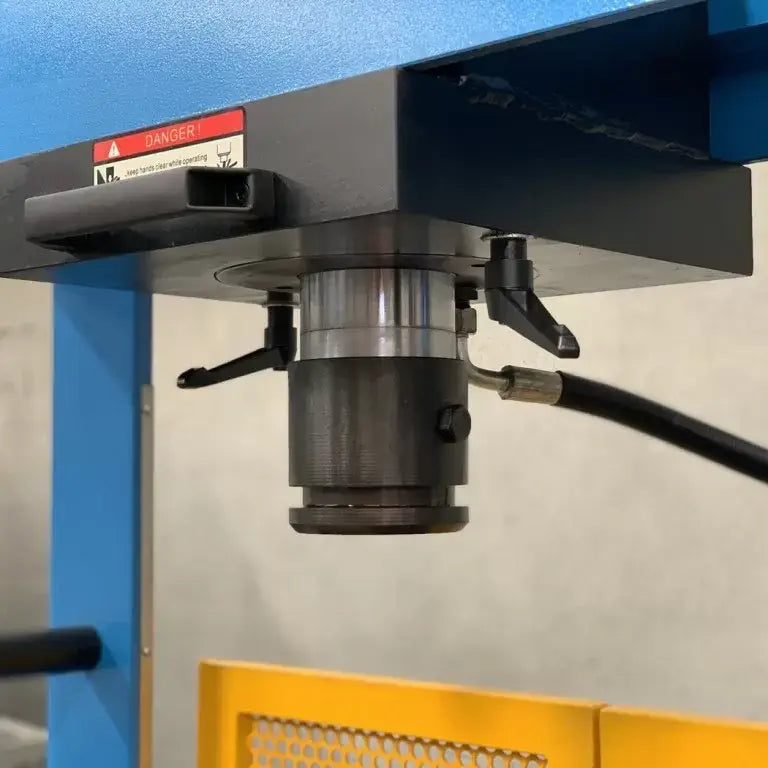

Fixed central position or slide left or right.
Offering more flexibility to your pressing applications

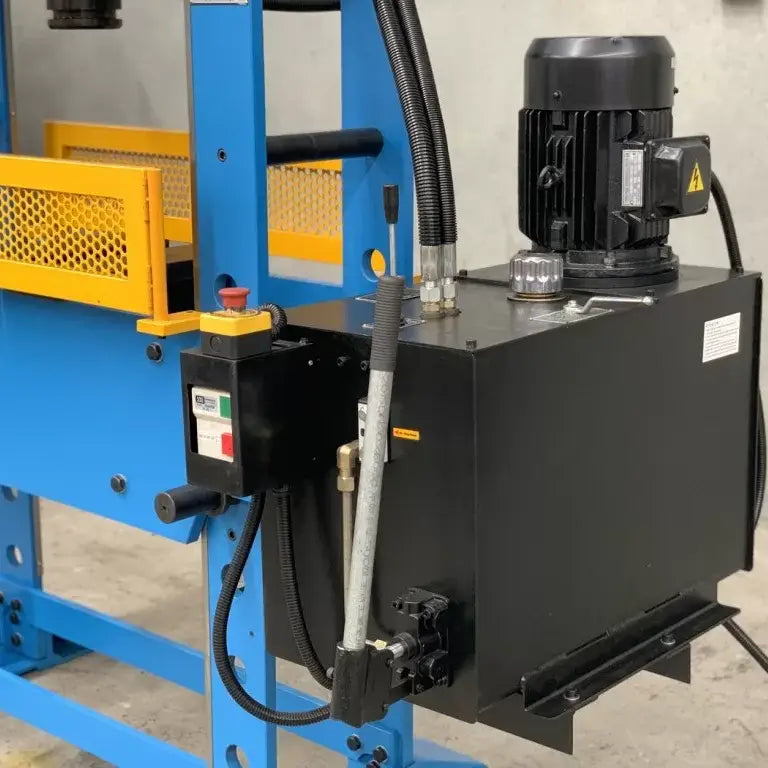

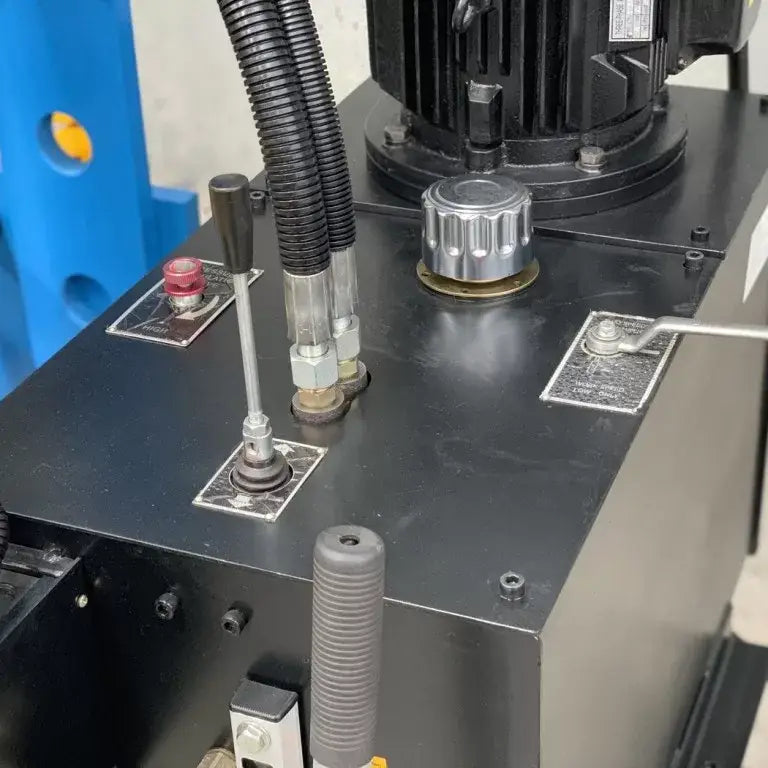

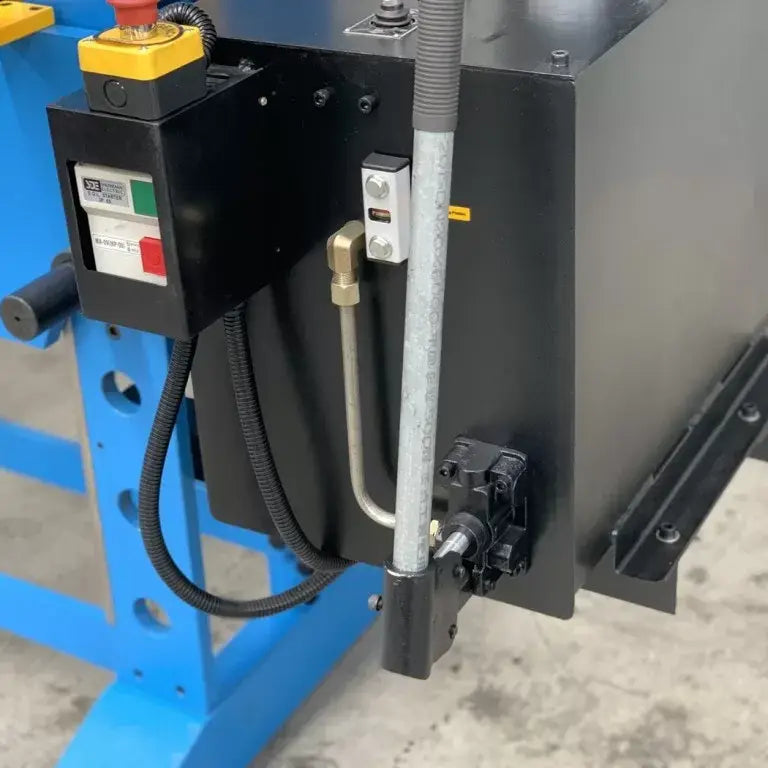

Twin speed control with manual adjustment
For the removal and press-fit of bearings and bushings

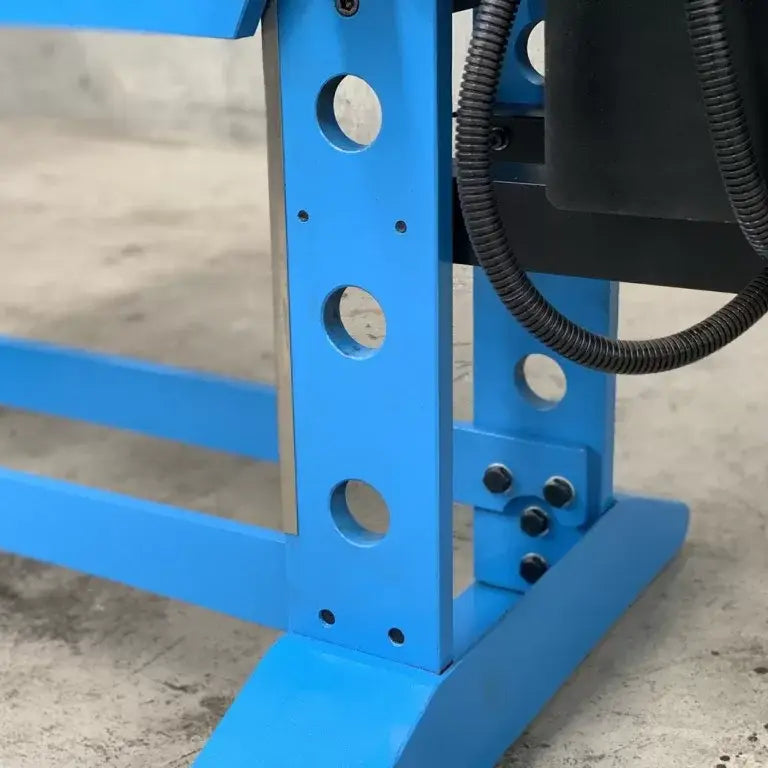

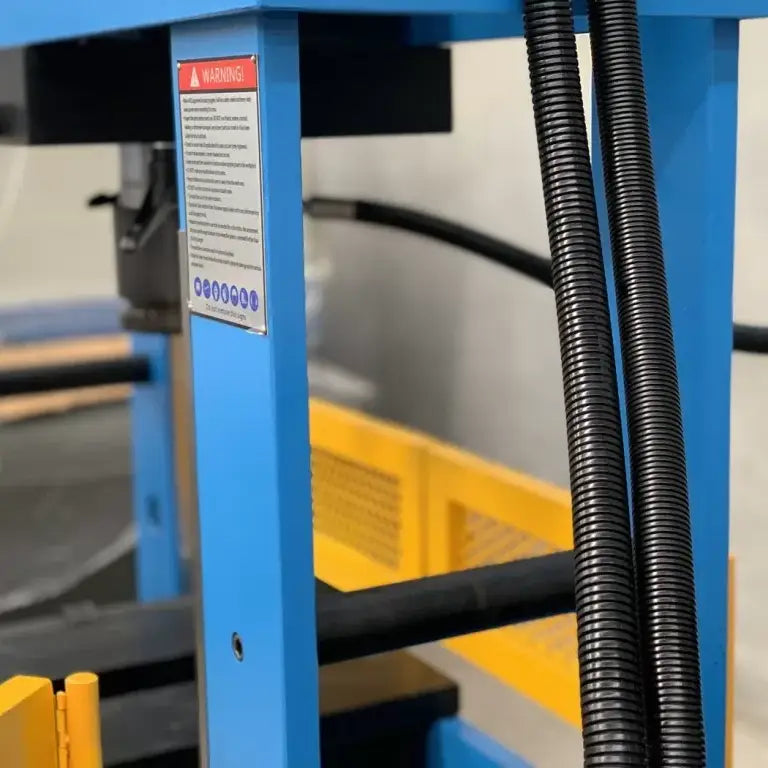

Extremely torsion proof steel welded frame

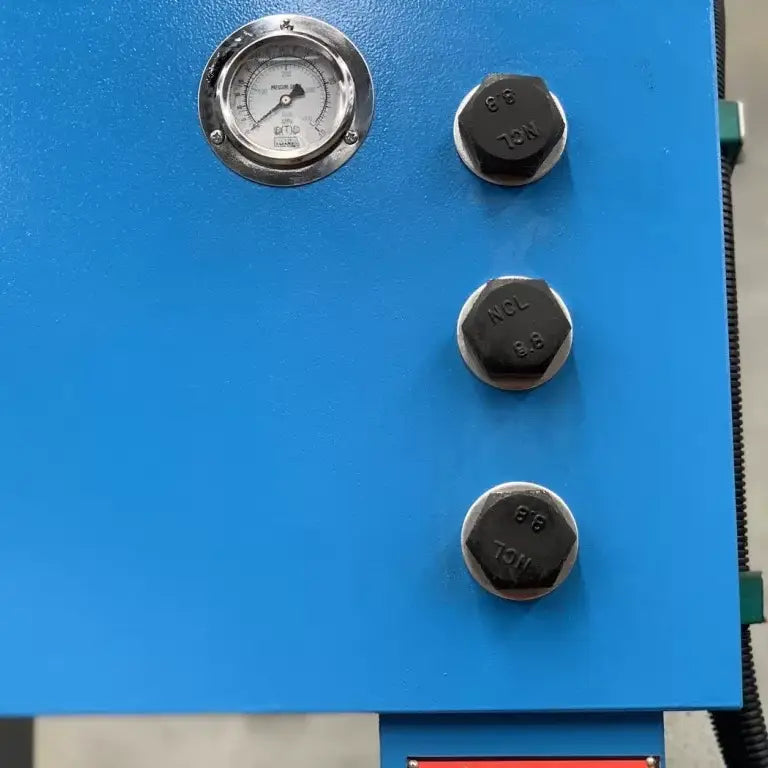

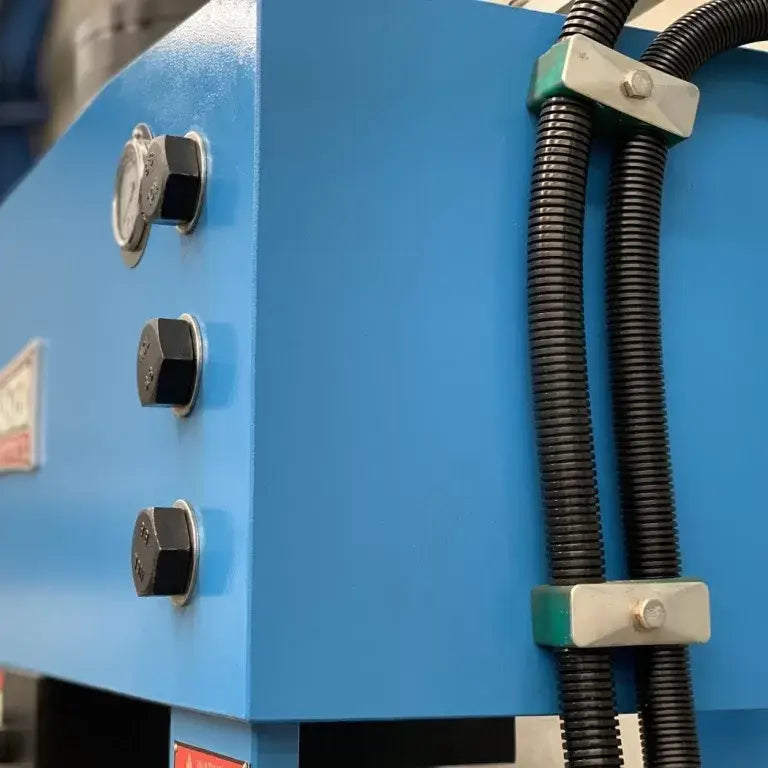

Hydraulic pressure gauge fitted

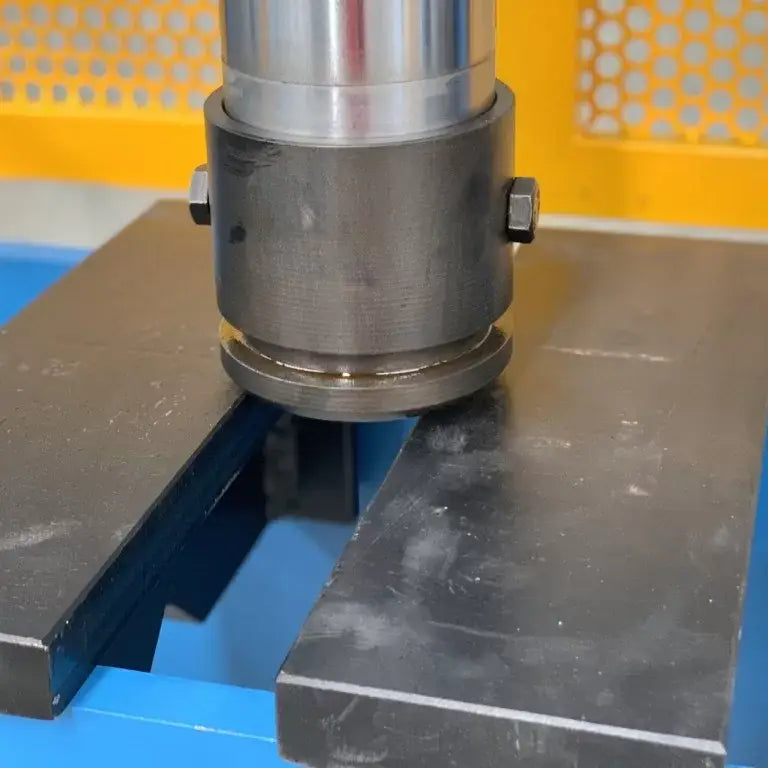

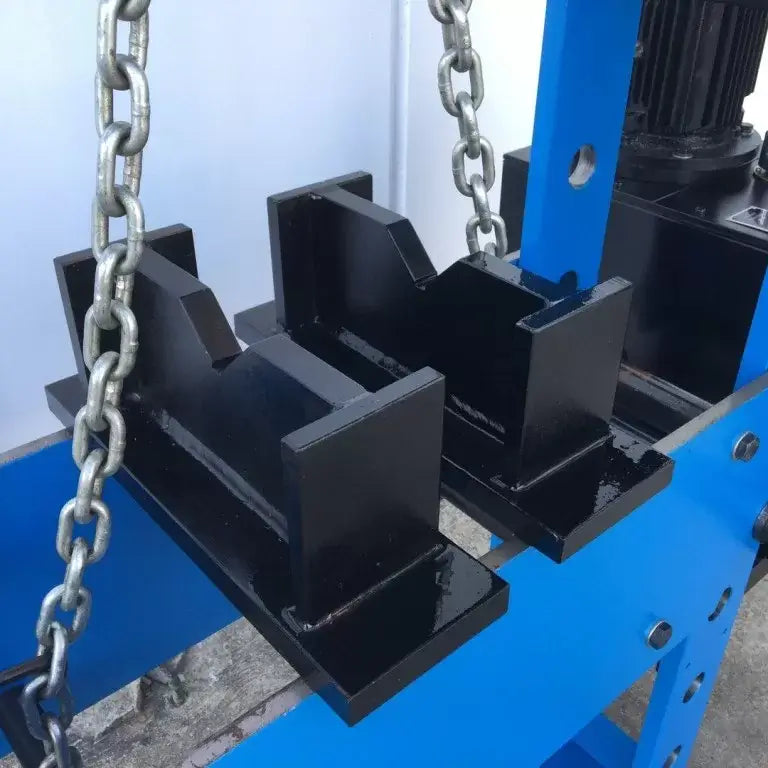

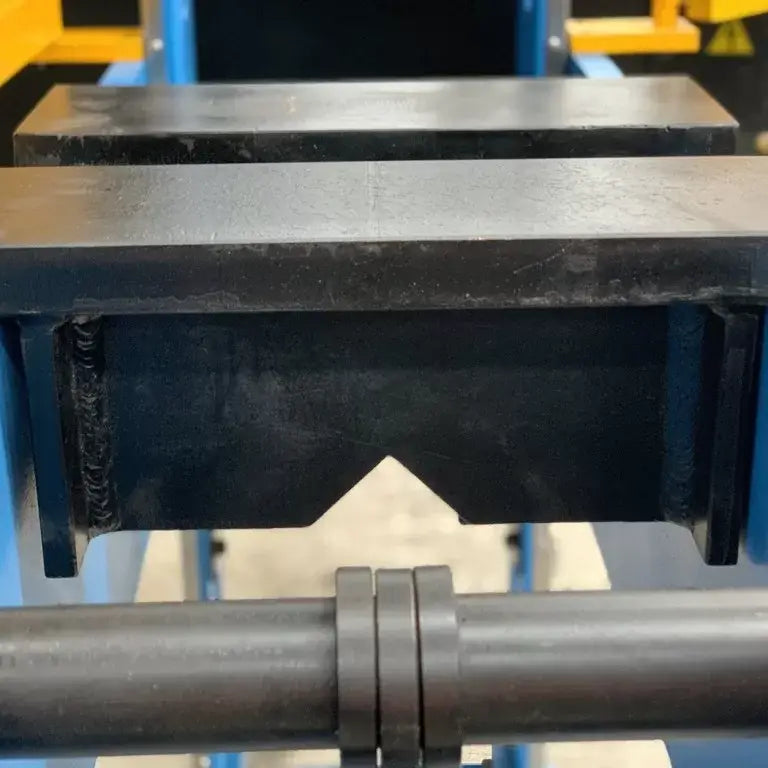

Quick fit work plate with vee blocks supplied.

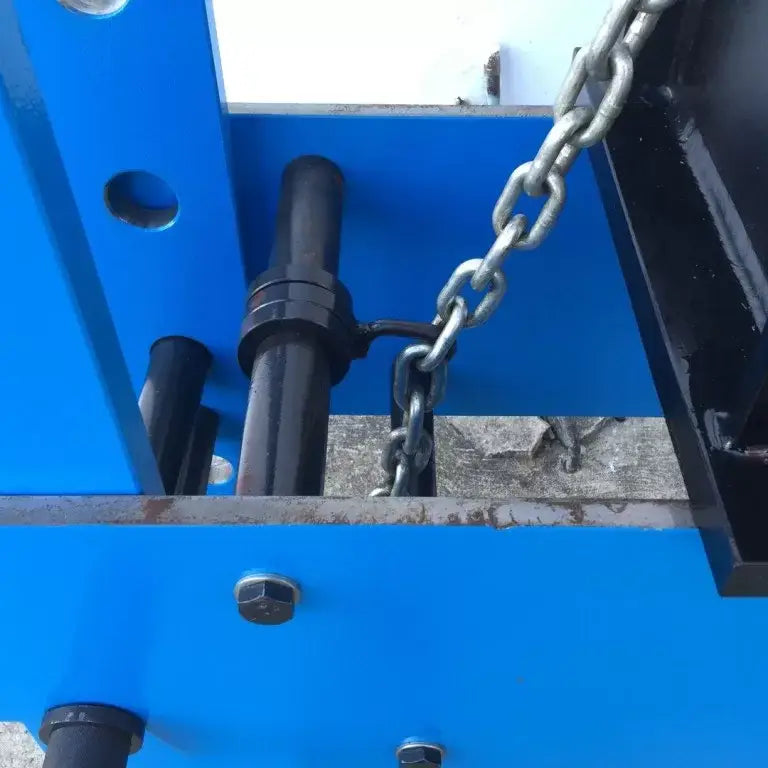

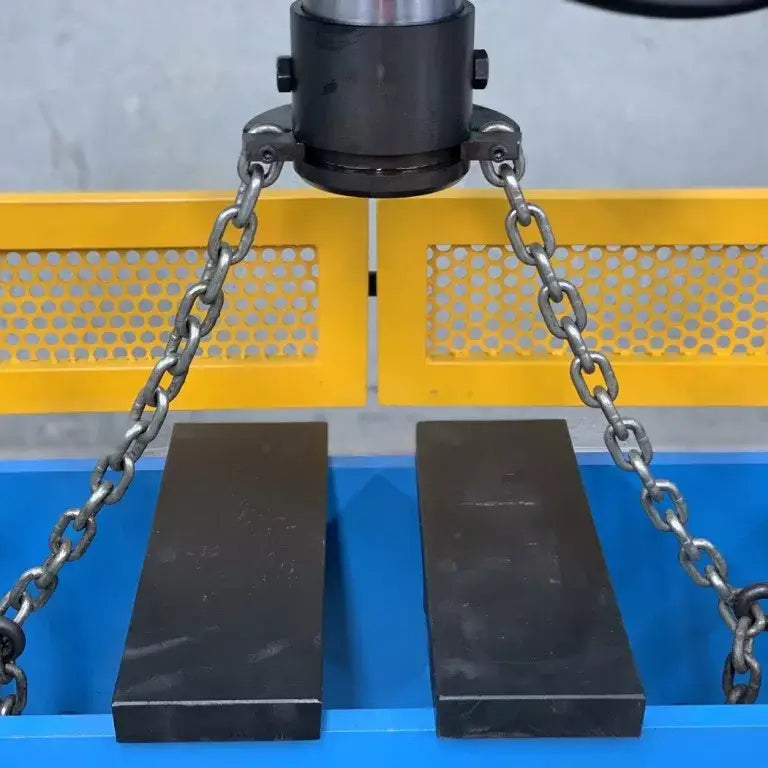

Lifting chains included
Wide frame models available up to 1500mm wide

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

Capacity – 100Ton
Frame width distance – 920mm (can offer up to 1500mm)
Stroke length – 400mm
Max. pressure – 236 bar

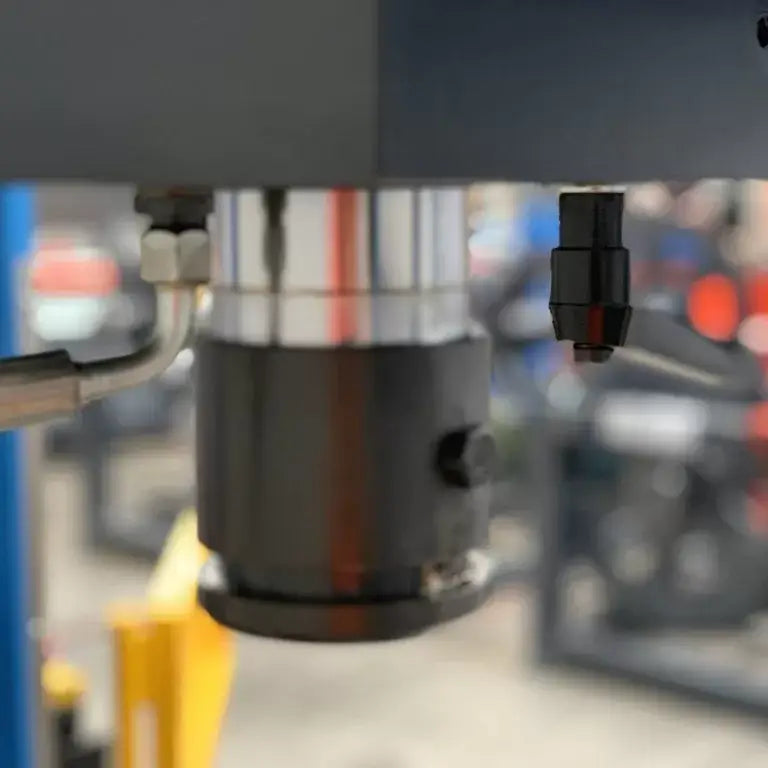

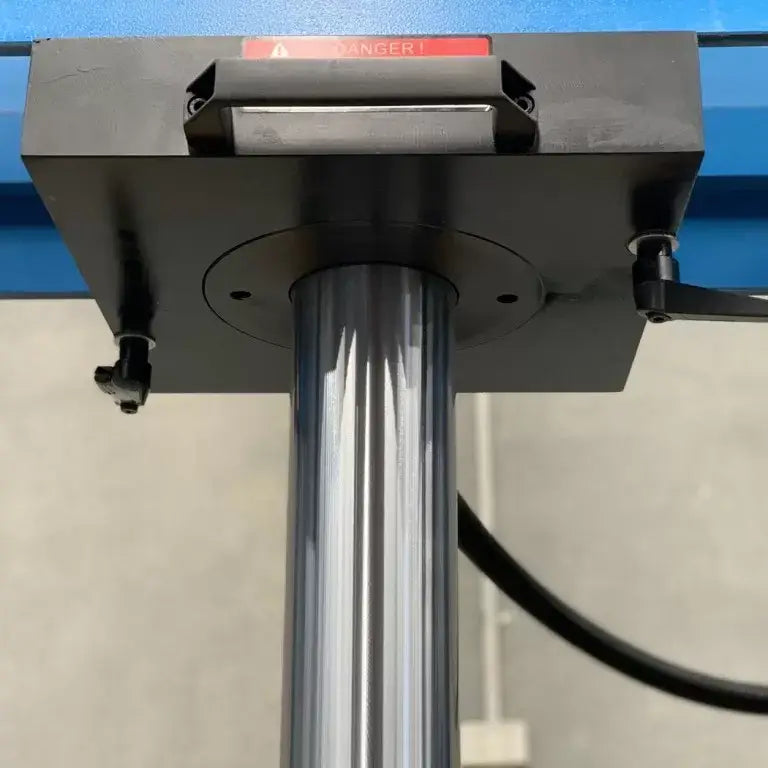

Cylinder – fixed & sliding
Working speed – 6 (2.4)mm / sec
Approach speed – 6 (9.3)mm / sec
Return speed – 9.5 (12)mm / sec

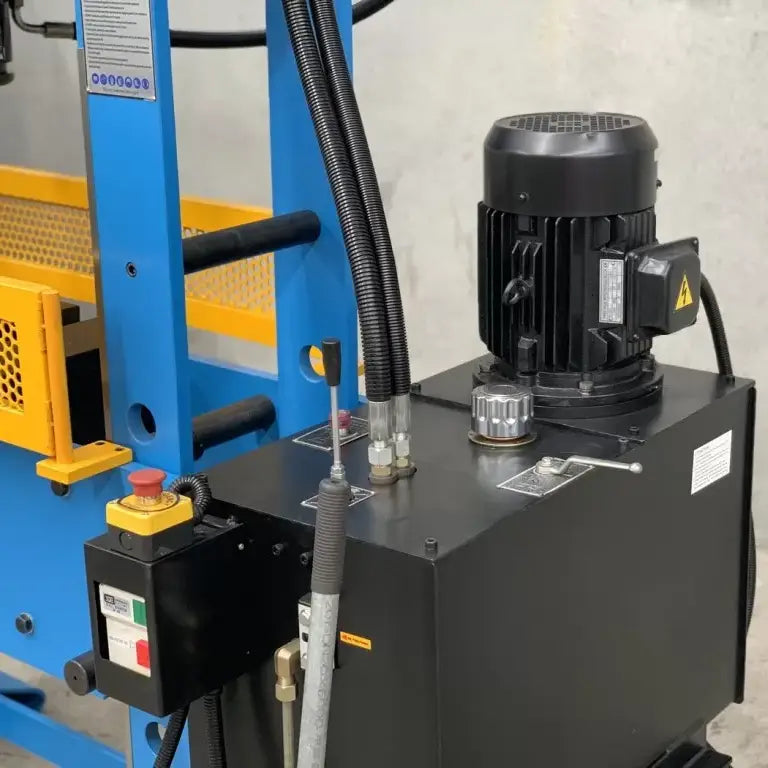

Oil tank capacity – 30 litres

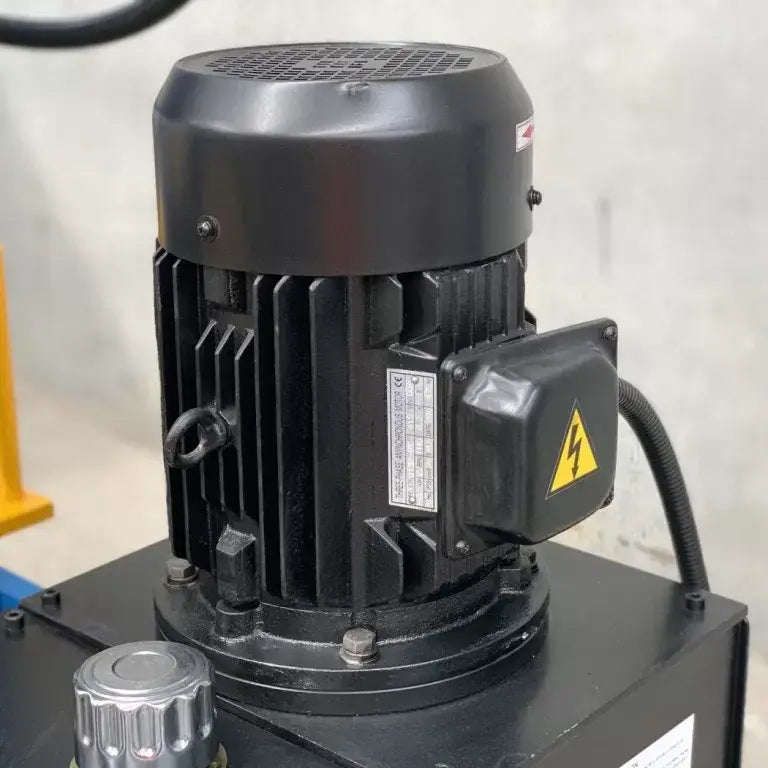

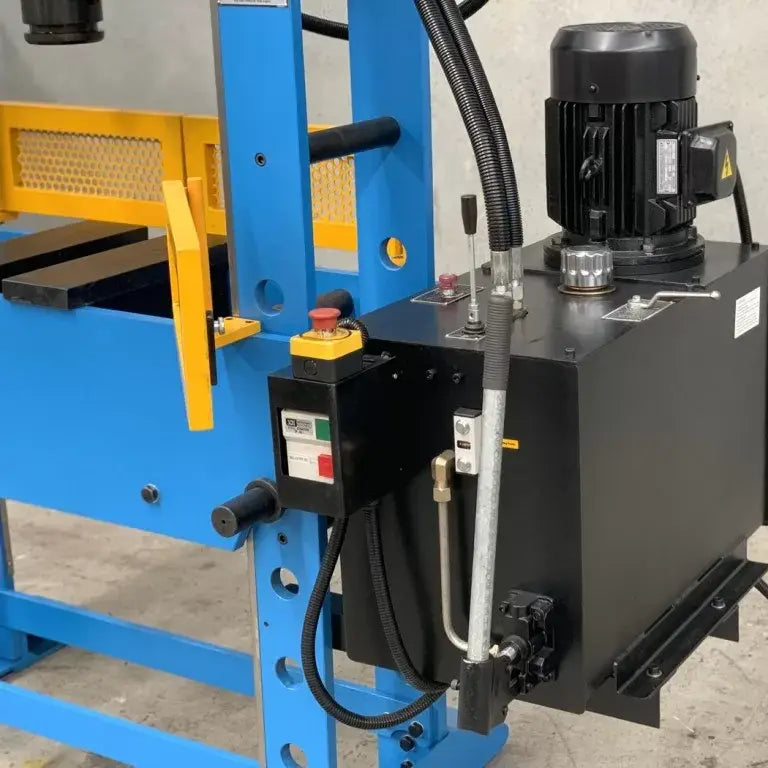

Power – 4.0Kw / 415Volt
Dimensions – 1700mm x 940mm x 2134mm x 1300kg
Freight crate dimensions – 1350mm x 980mm x 2260mm x 1330kg

TECHNICAL DIAGRAM INFO

A = 2200mm
B = 1310mm
C = 900mm
D = 910mm
E = 300mm
F = 1750mm
