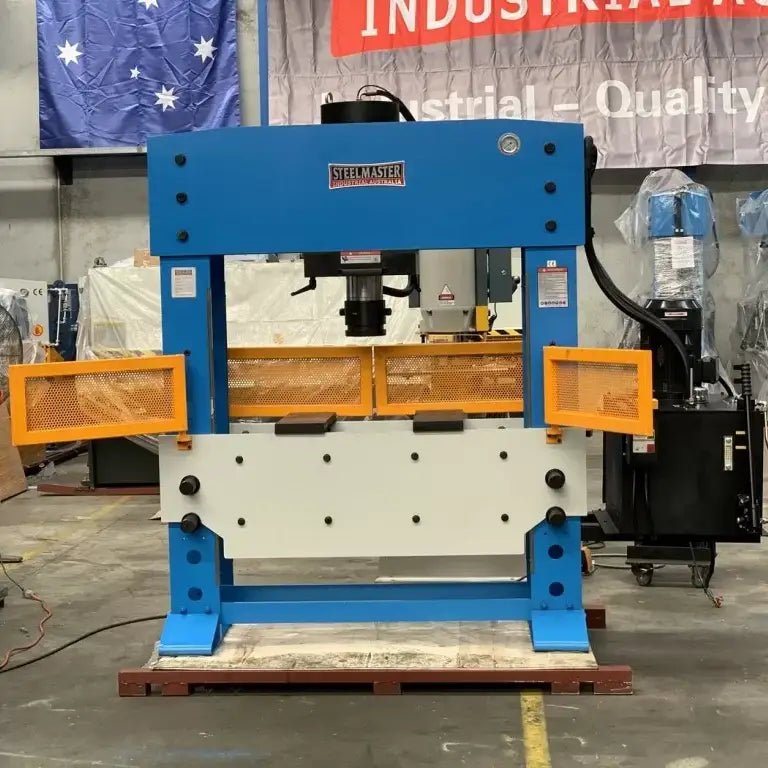

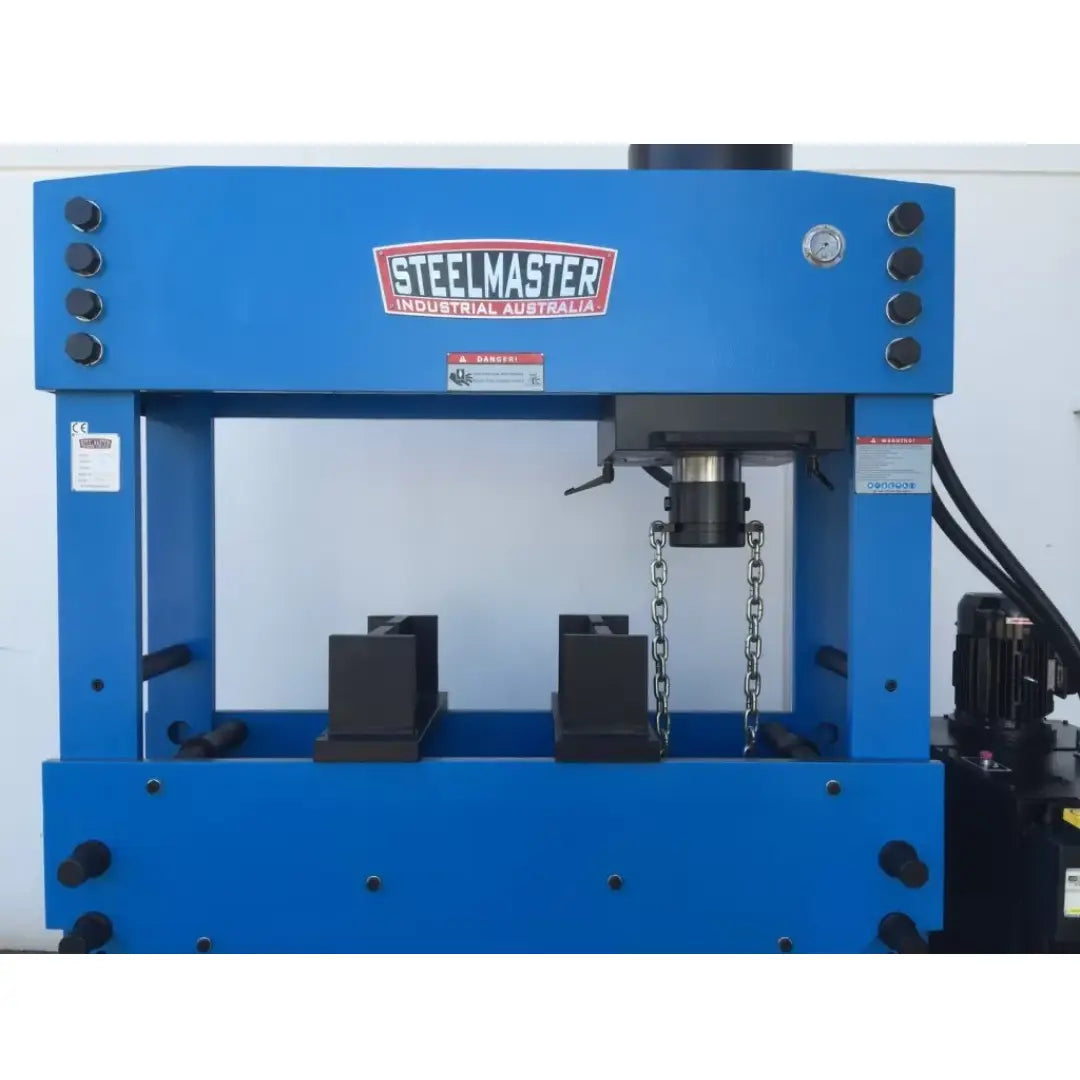

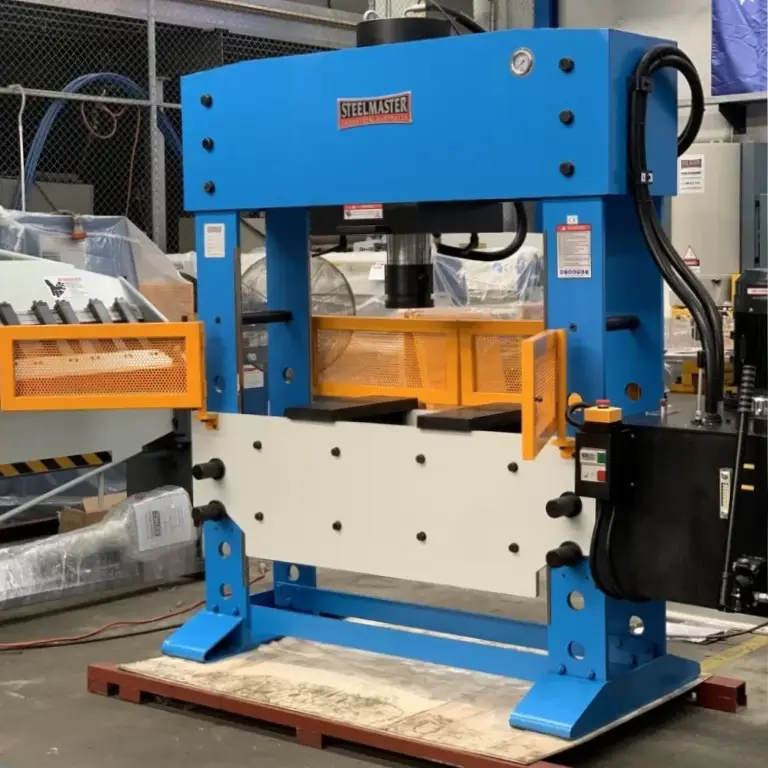

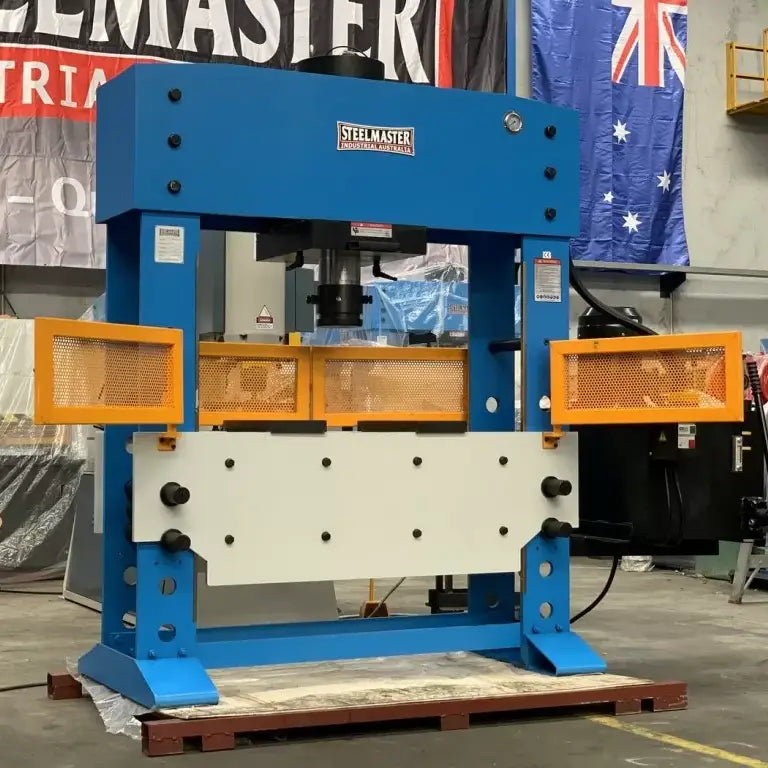

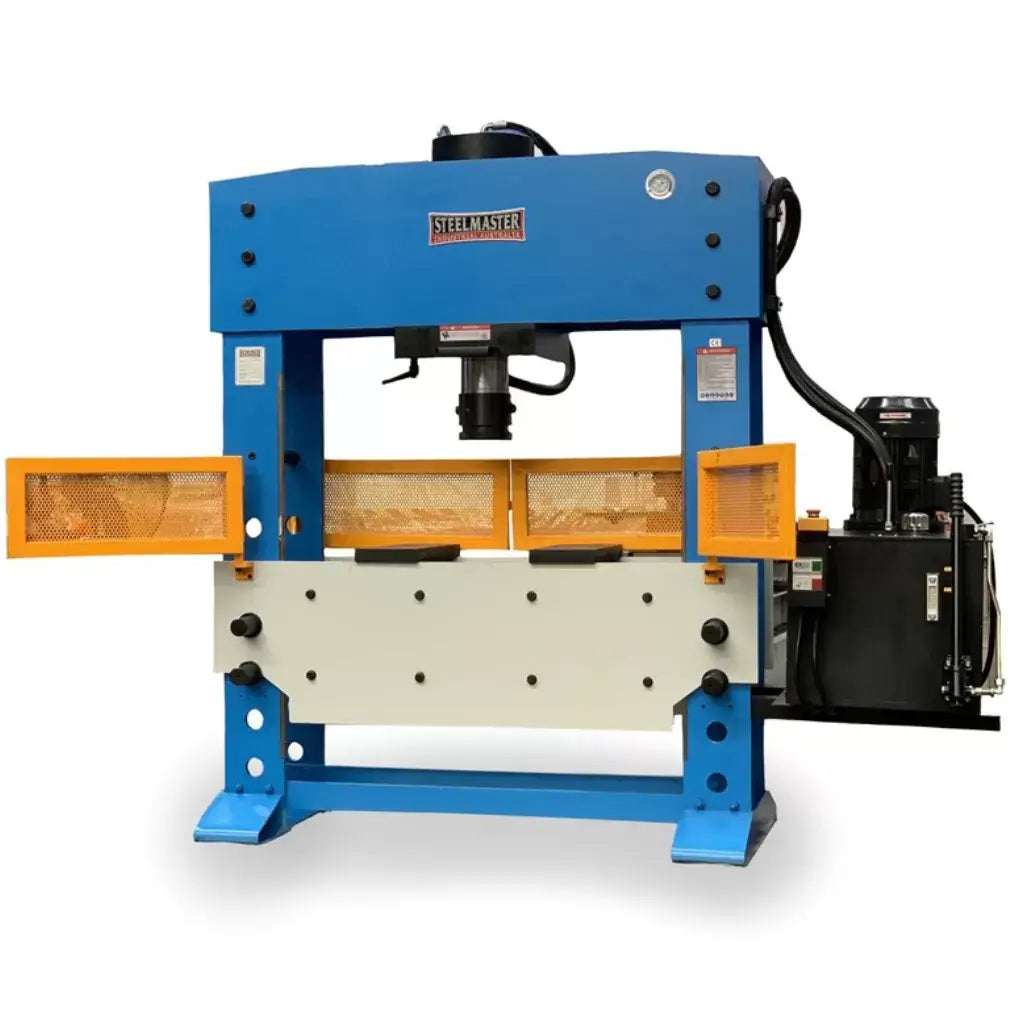

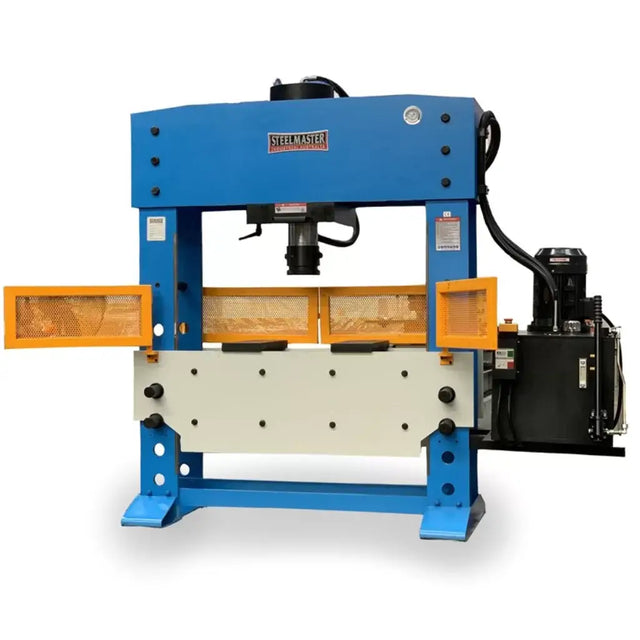

Hydraulic Workshop Press, 200 Ton, Fixed & Sliding Head

SM-HEPM200

200 ton force

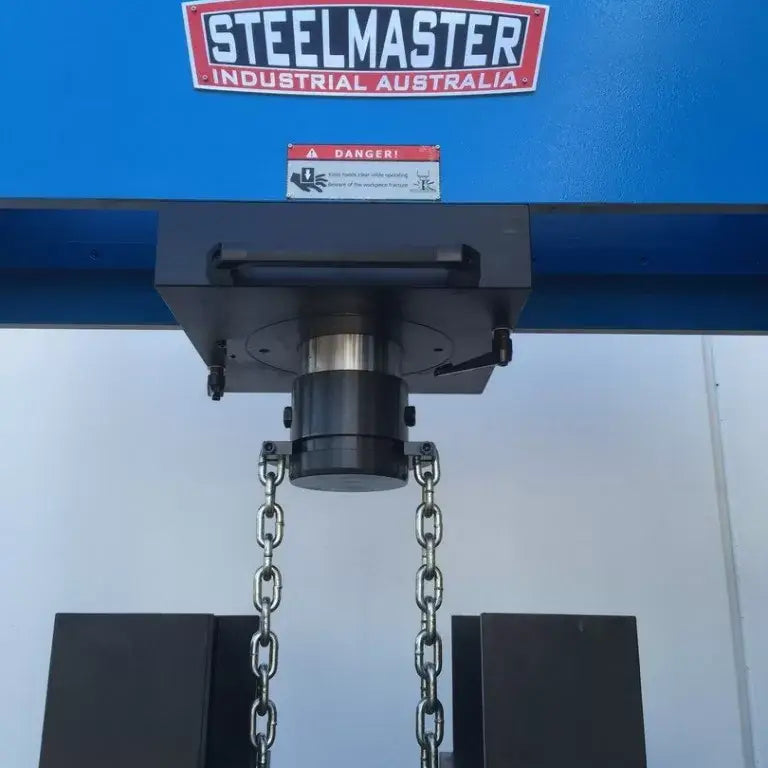

Fixed central position or slide left or right.
Offering more flexibility to your pressing applications

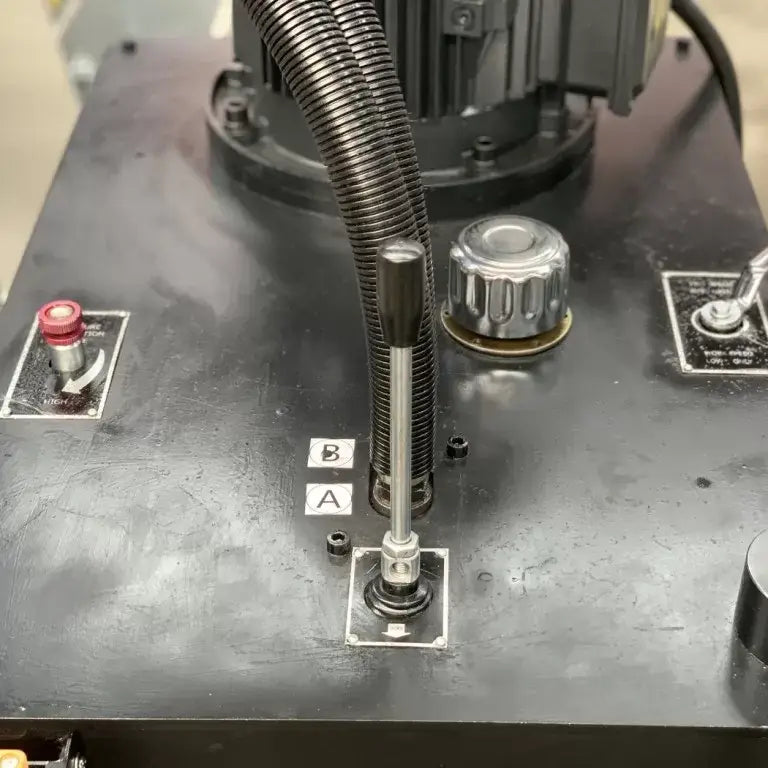

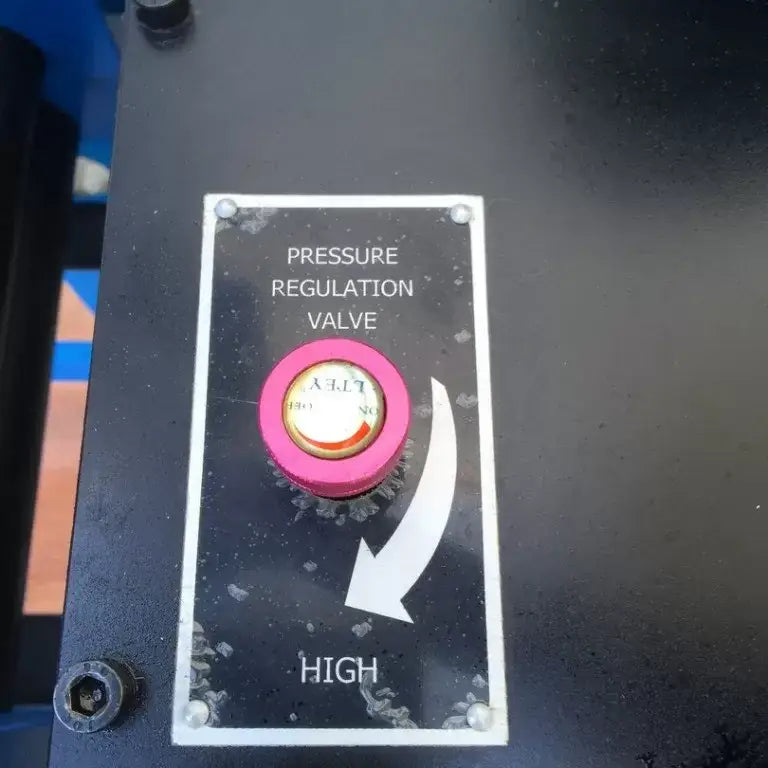

Twin speed control with manual adjustment
For the removal and press-fit of bearings and bushings

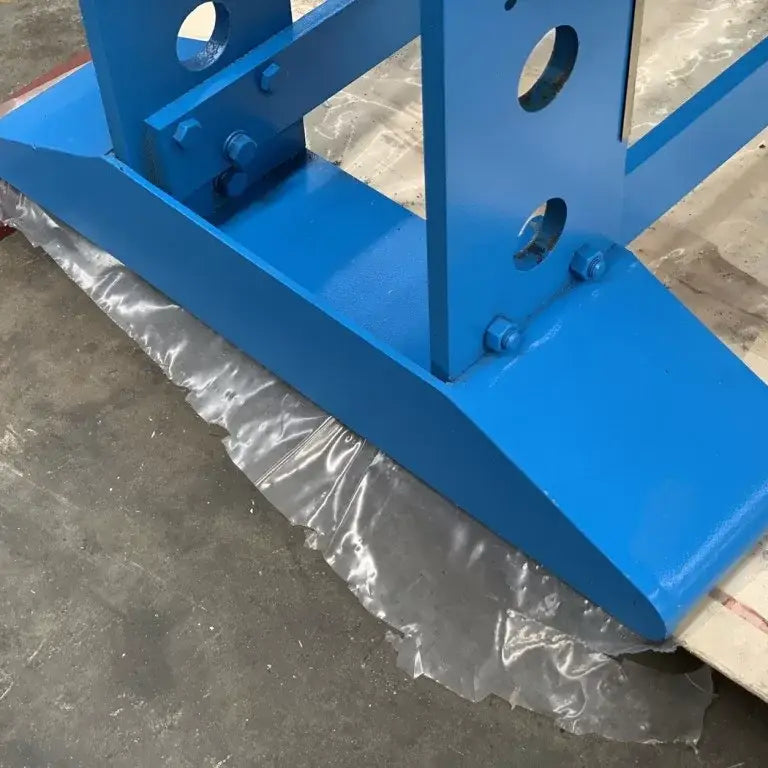

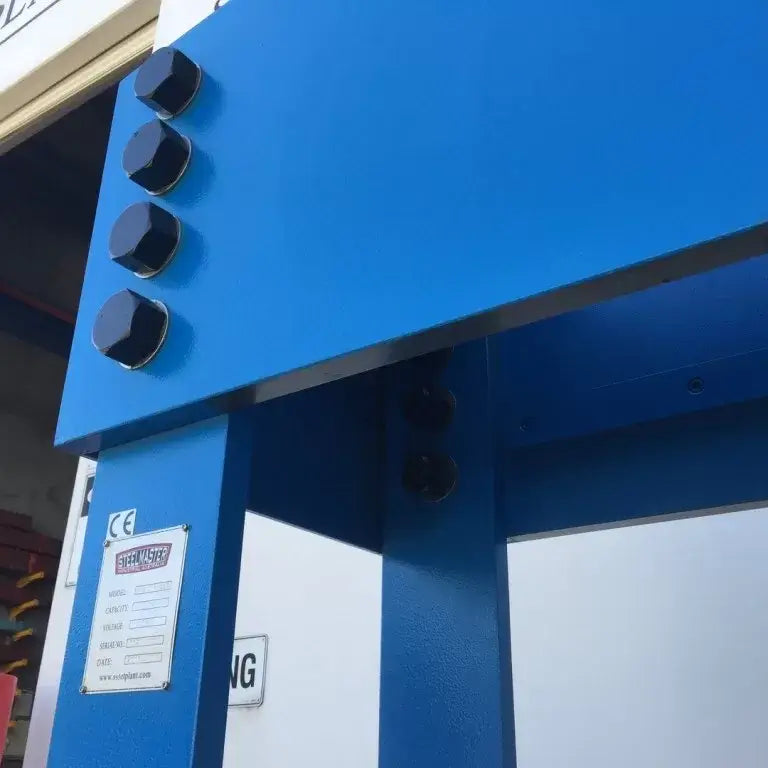

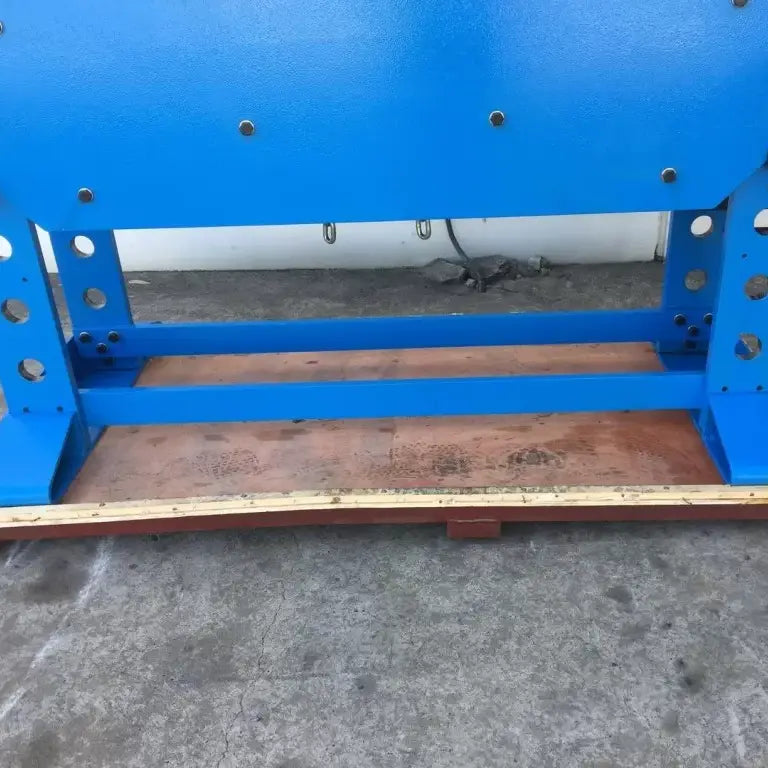

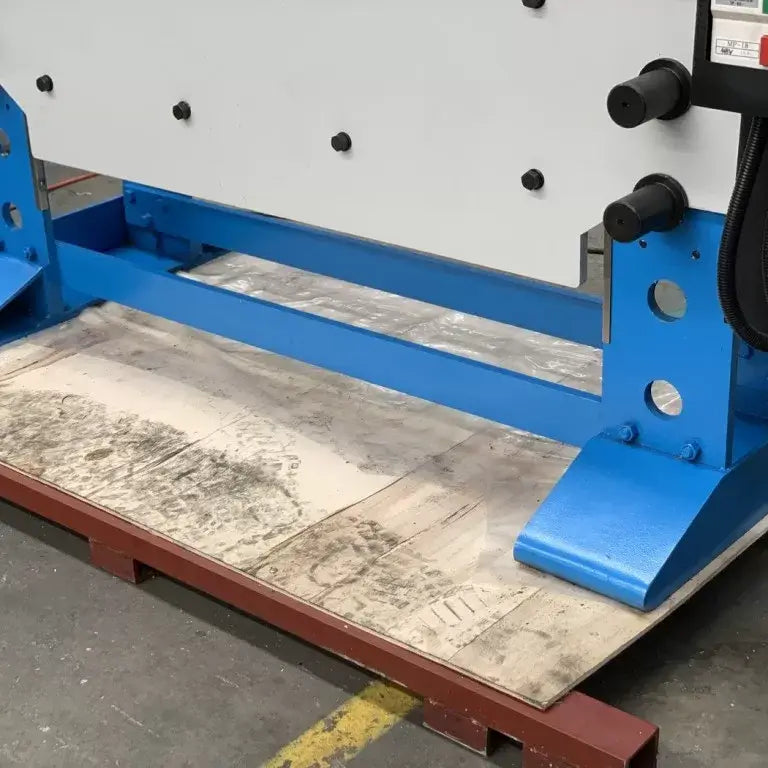

Extremely torsion proof steel welded frame

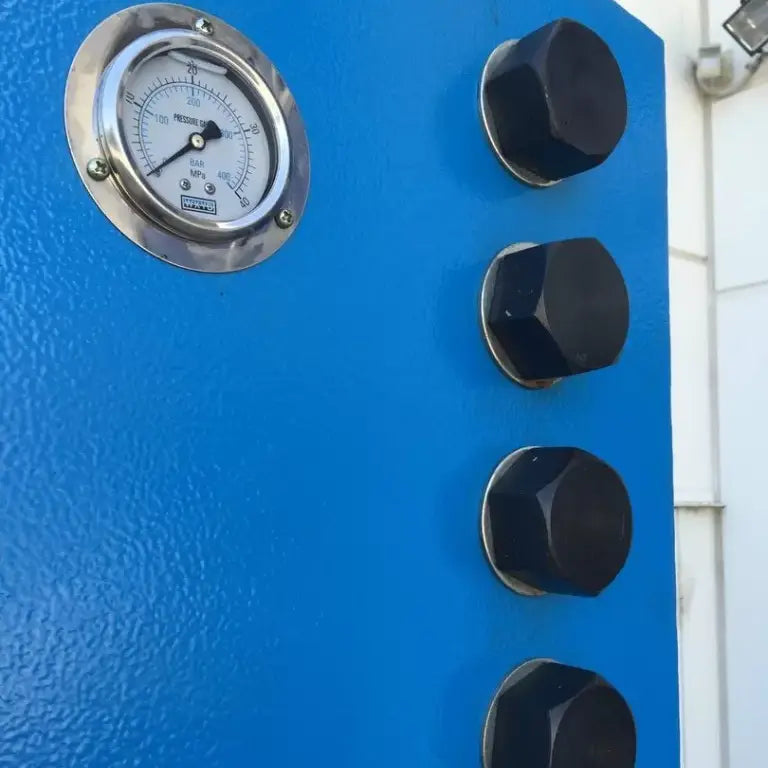

Hydraulic pressure gauge fitted

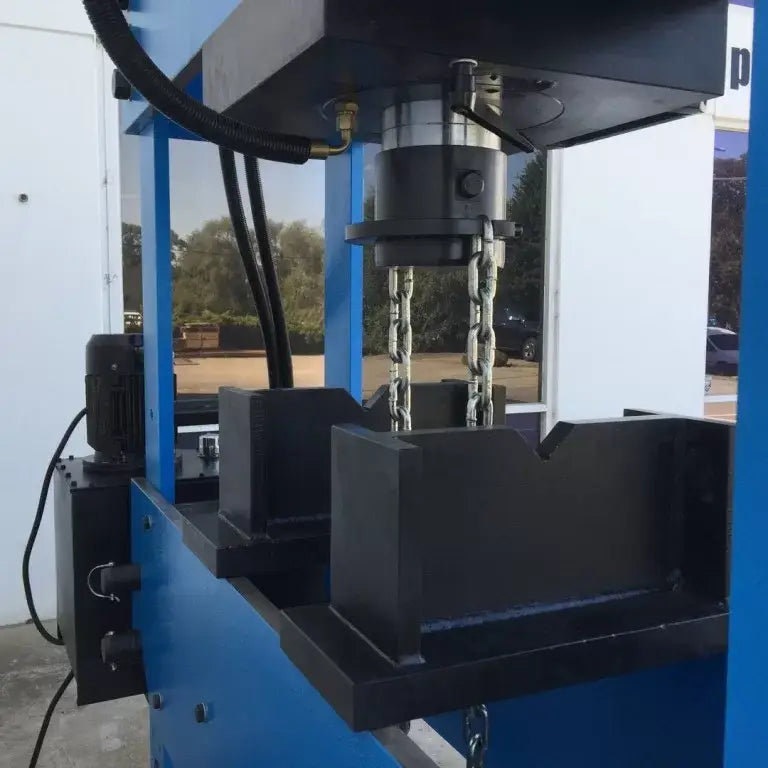

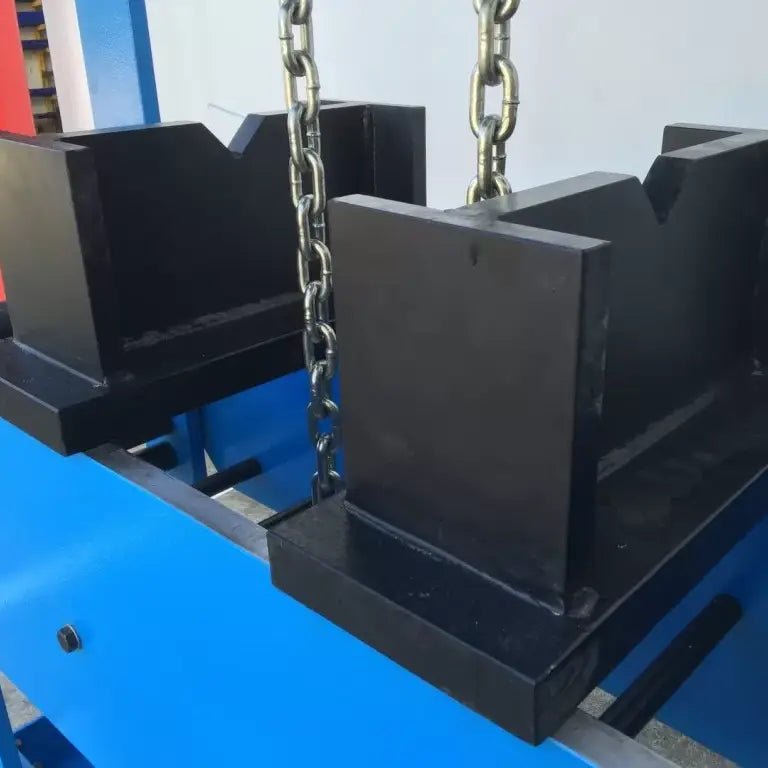

Quick fit work plate with vee blocks supplied.

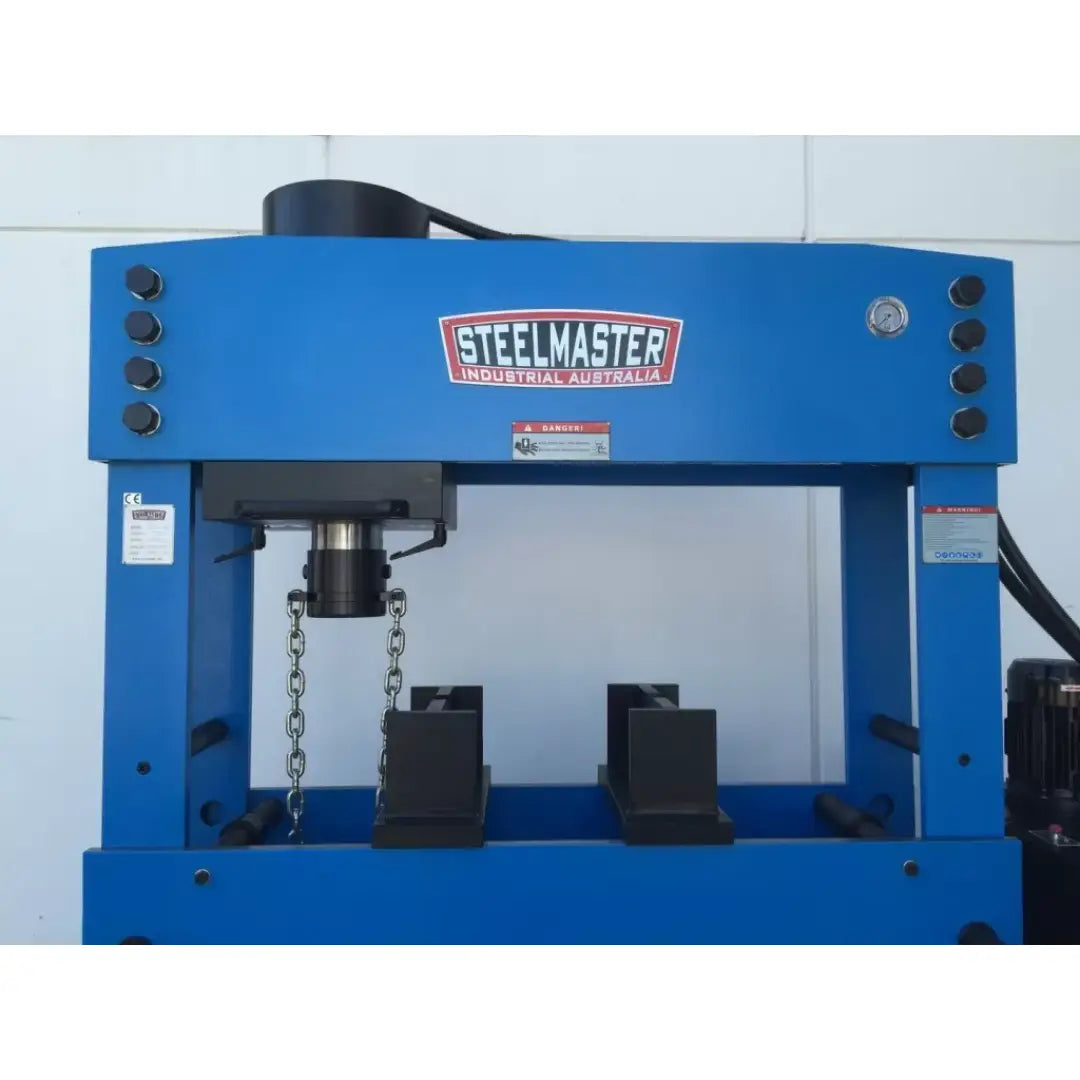

Lifting chains included
Wide frame models available up to 1500mm wide

19+0282 – Pressbrake Bending Attachment – 450mm Long x 40mm Vee Opening, Spring Return
19+0281 – Pressbrake Bending Attachment – 600mm Long x 80mm Vee Opening, Spring Return
19+0283 – Pressbrake Bending Attachment – 600mm Long x 120mm Vee Opening, Spring Return

P.O.A - 15kg and up

Capacity – 200Ton
Frame width distance – 1500mm
Stroke length – 400mm
Max. pressure – 244 bar

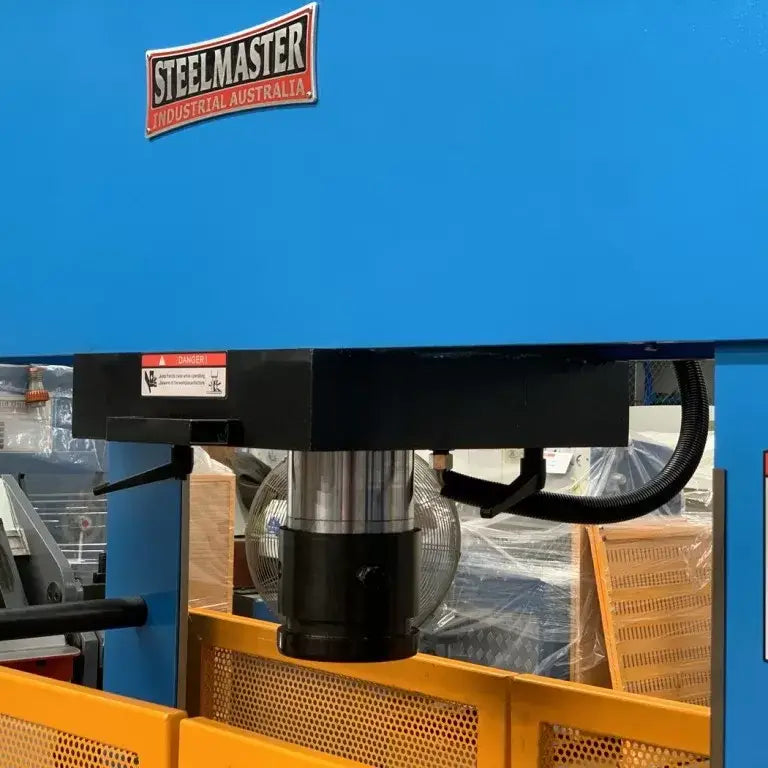

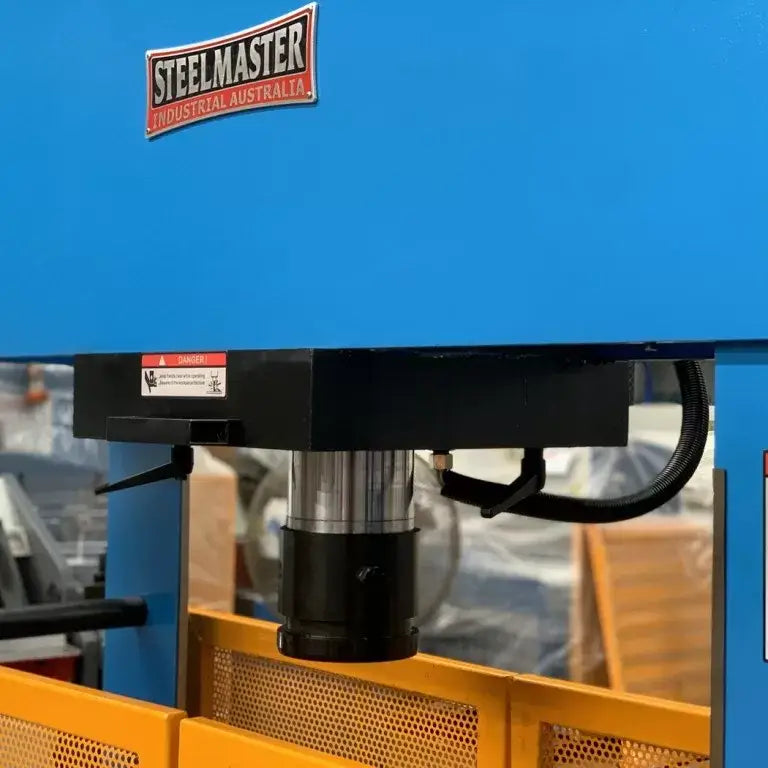

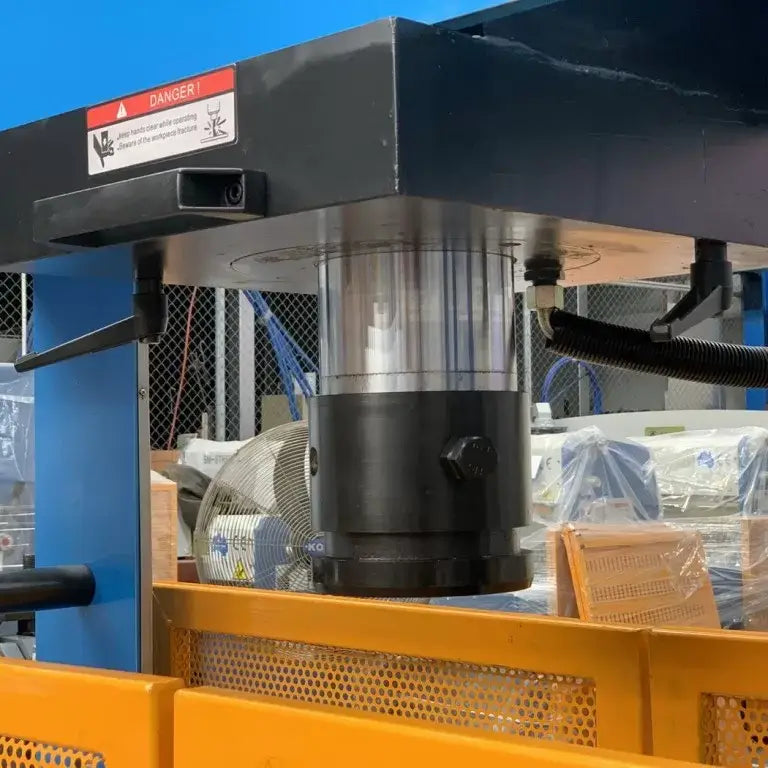

Cylinder – fixed & sliding
Working speed – 3.6 (1.8)mm / sec
Approach speed – 3.6 (6.6)mm / sec
Return speed – 5.2 (8.8)mm / sec

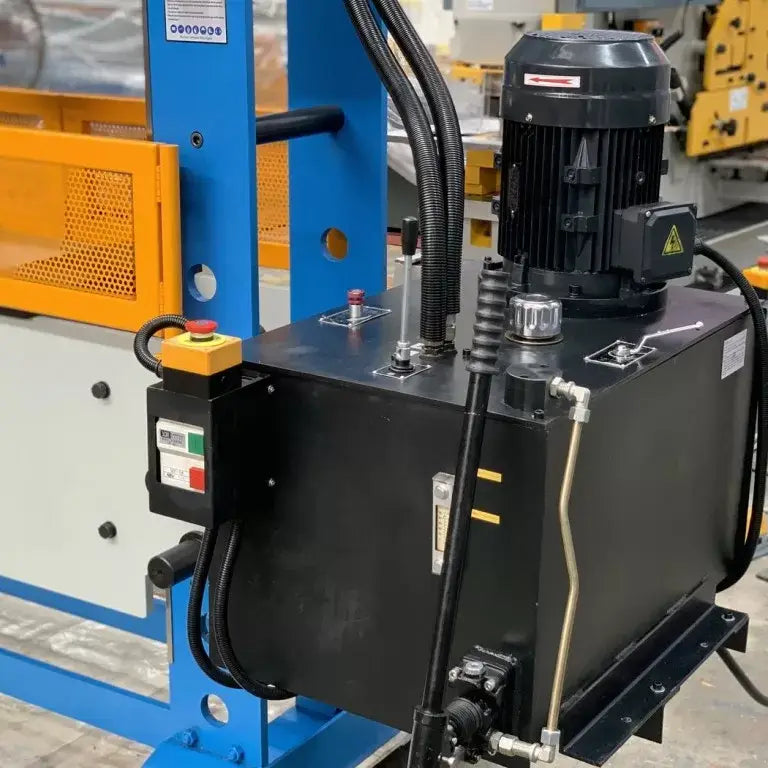

Oil tank capacity – 30 litres

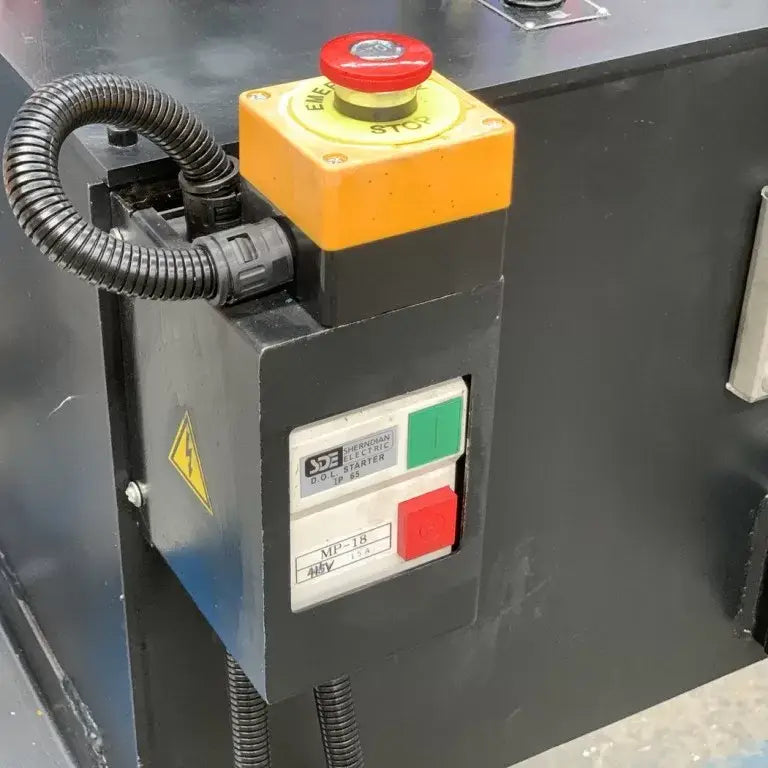

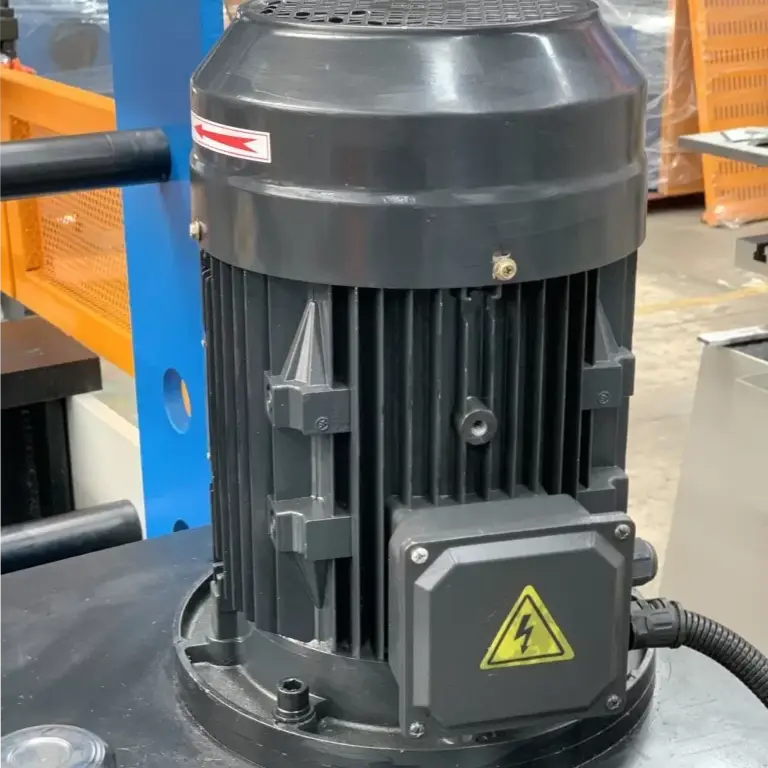

Power – 5.5Kw / 415Volt
Dimensions – 2100mm x 1118mm x 2235mm x 3400kg

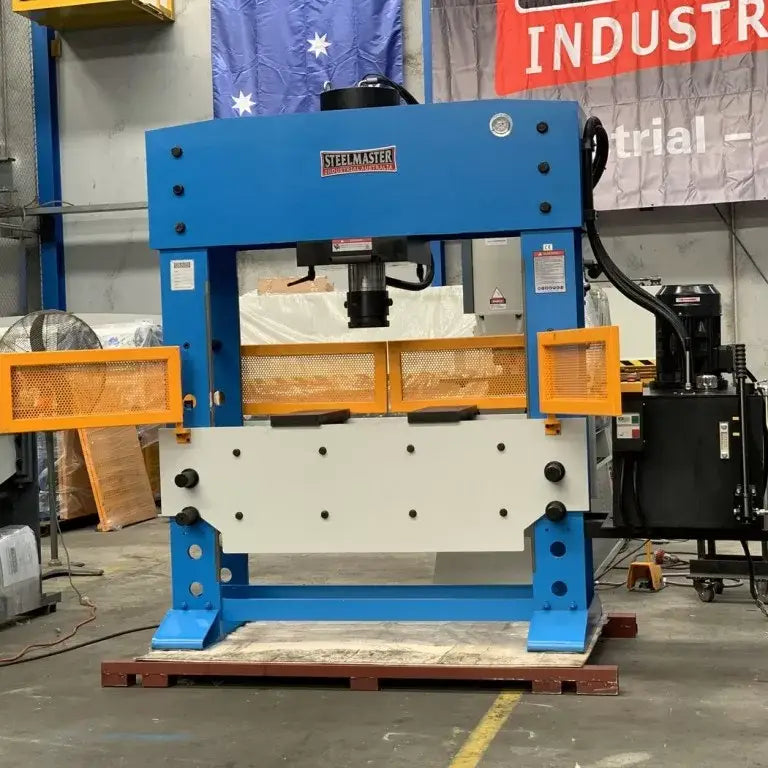

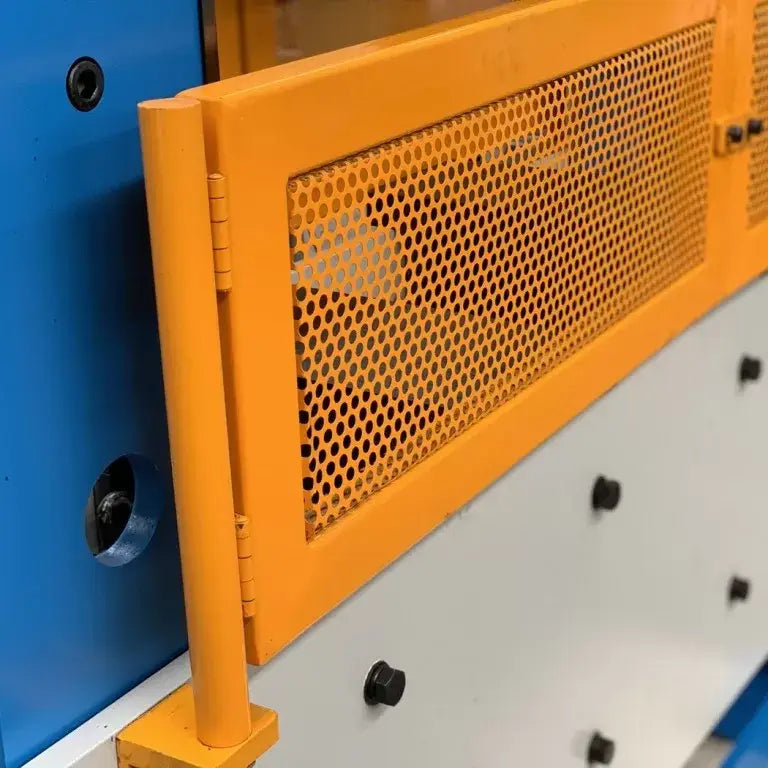

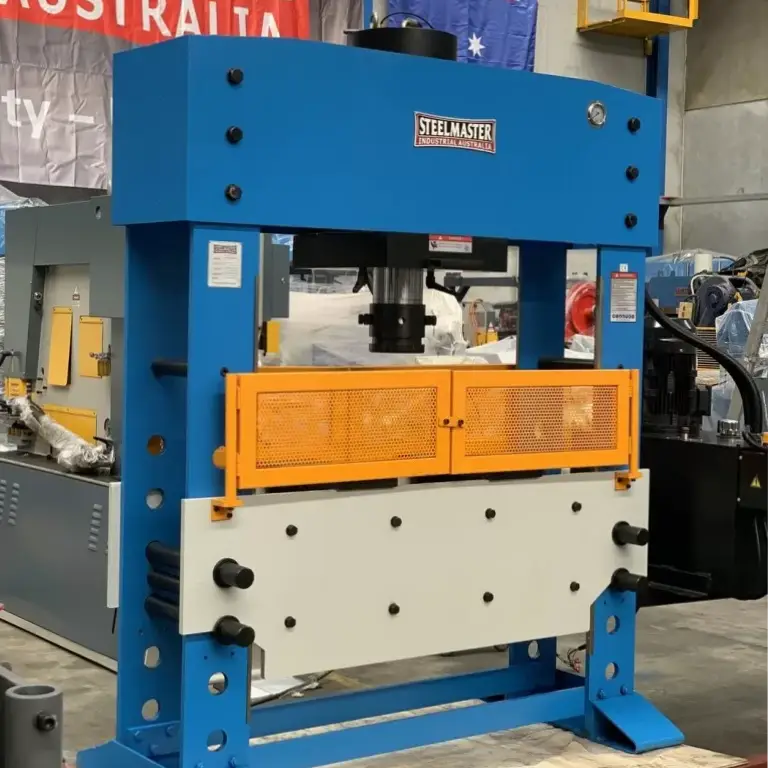

Front Swing Out Door Guards & Rear Guards Available – Please quote SKU – 27+0014
Factory fitted guards only applies to pricing
