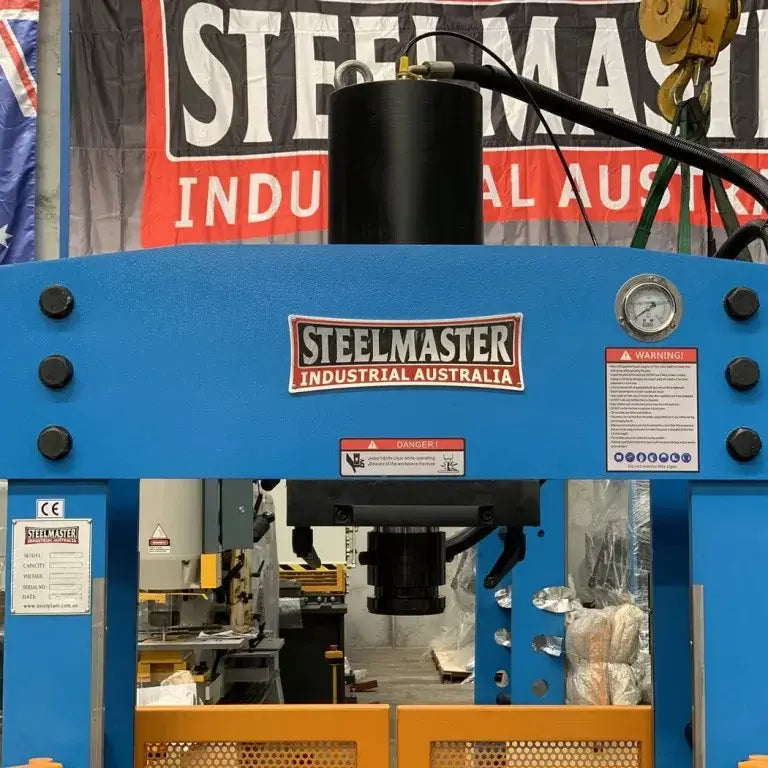

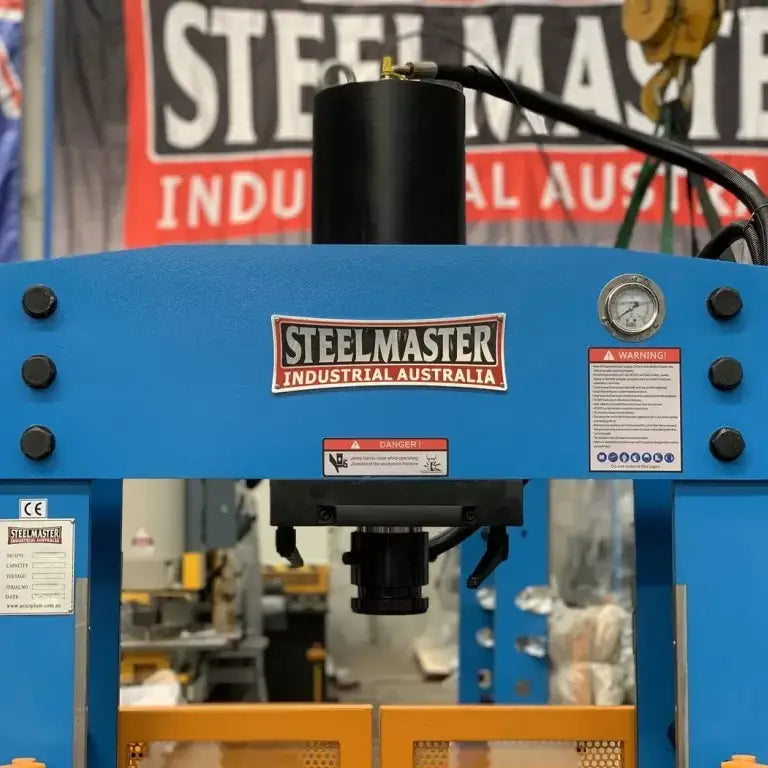

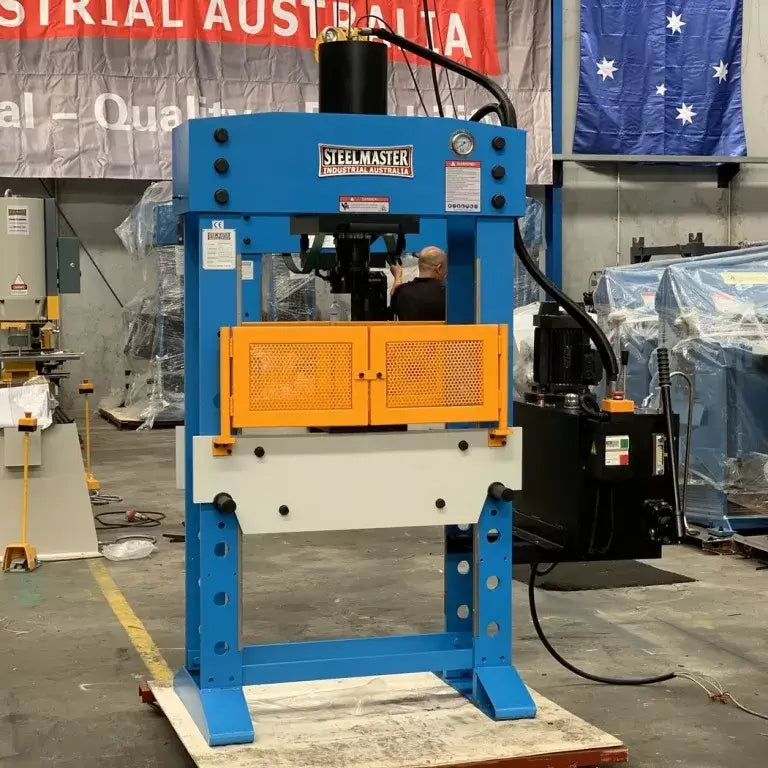

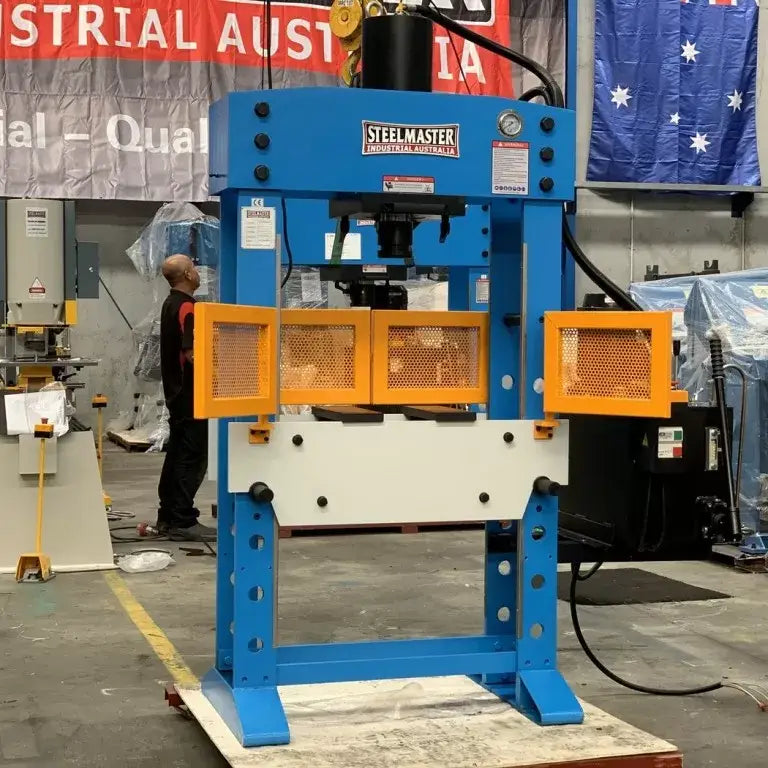

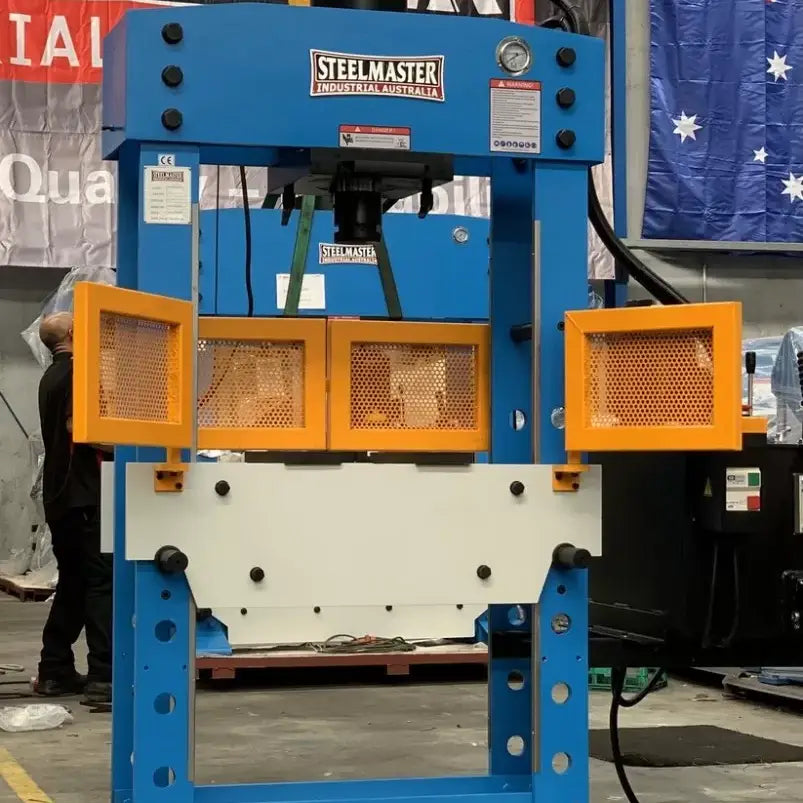

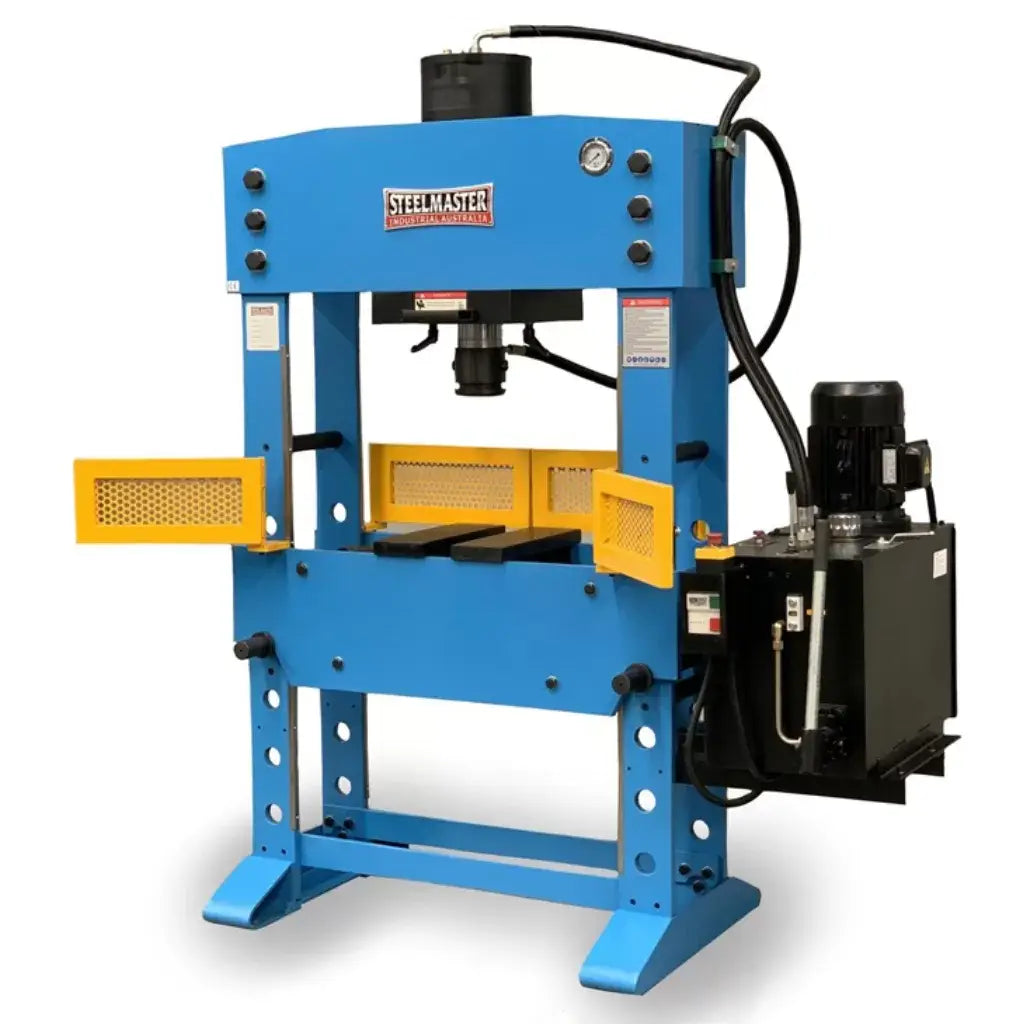

Hydraulic Workshop Press, 60 Ton, Fixed & Sliding Head

SM-HEPM66

60 ton force

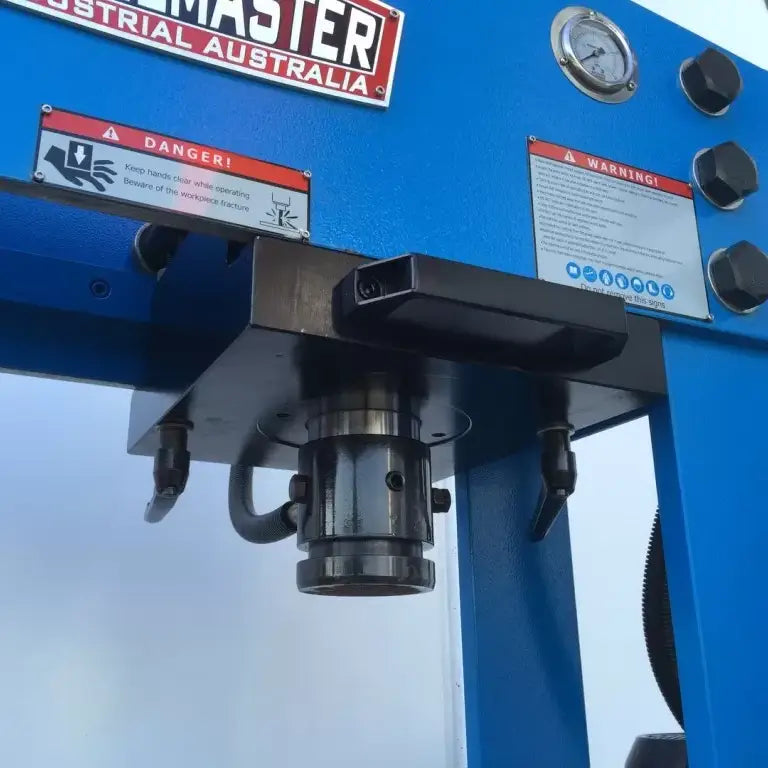

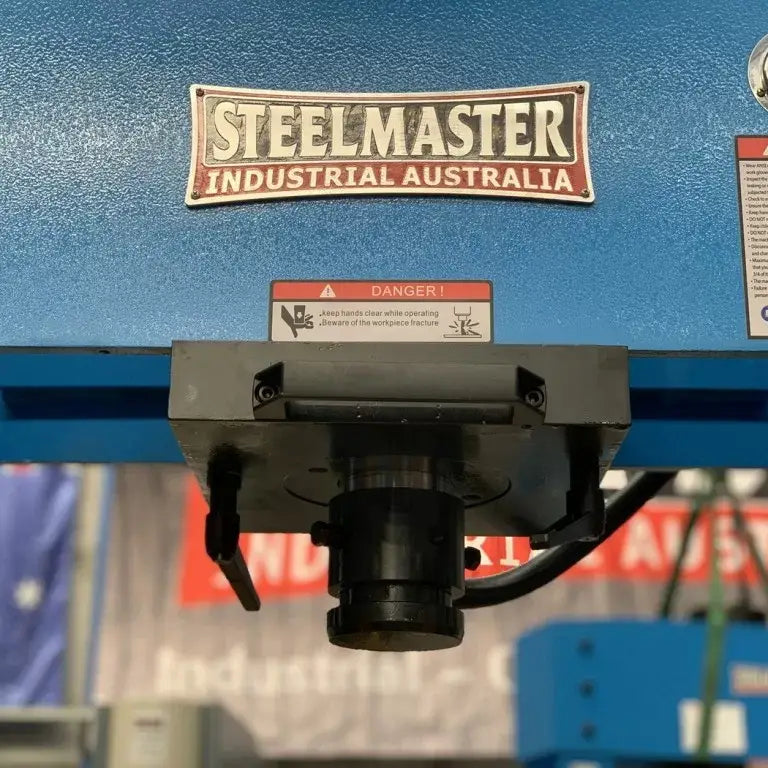

Fixed central position or slide left or right.
Offering more flexibility to your pressing applications

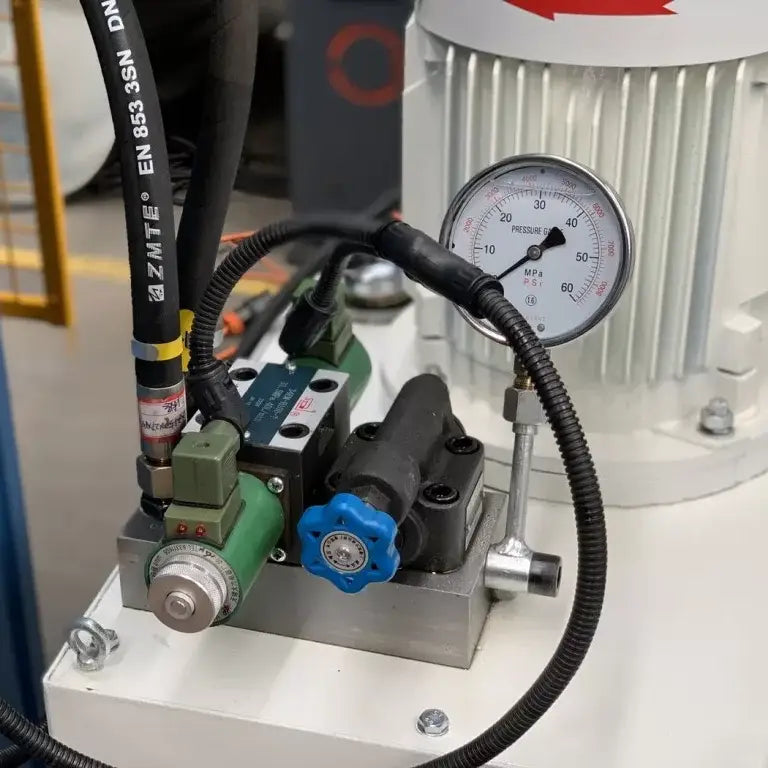

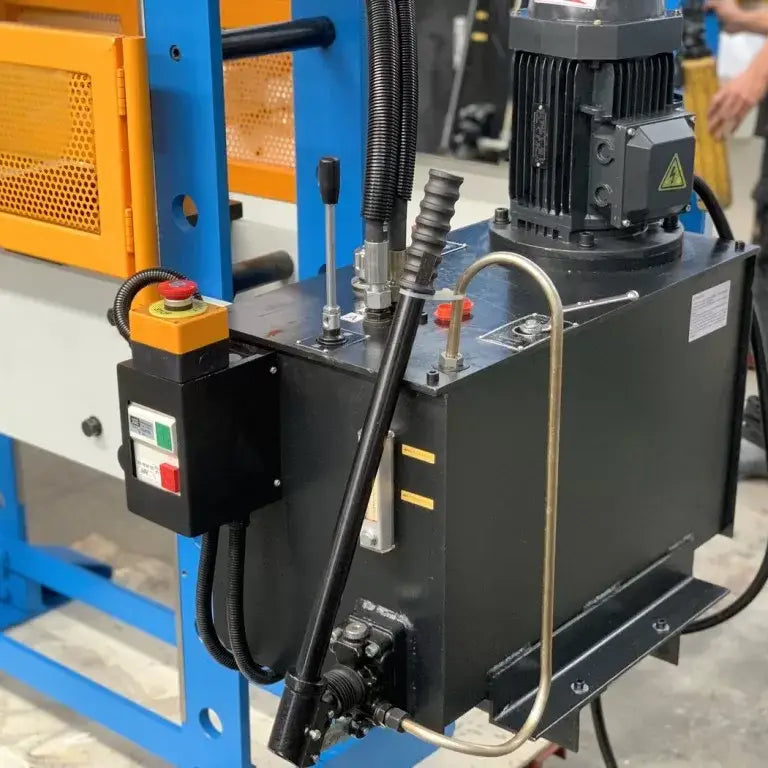

Twin speed control with manual adjustment
For the removal and press-fit of bearings and bushings

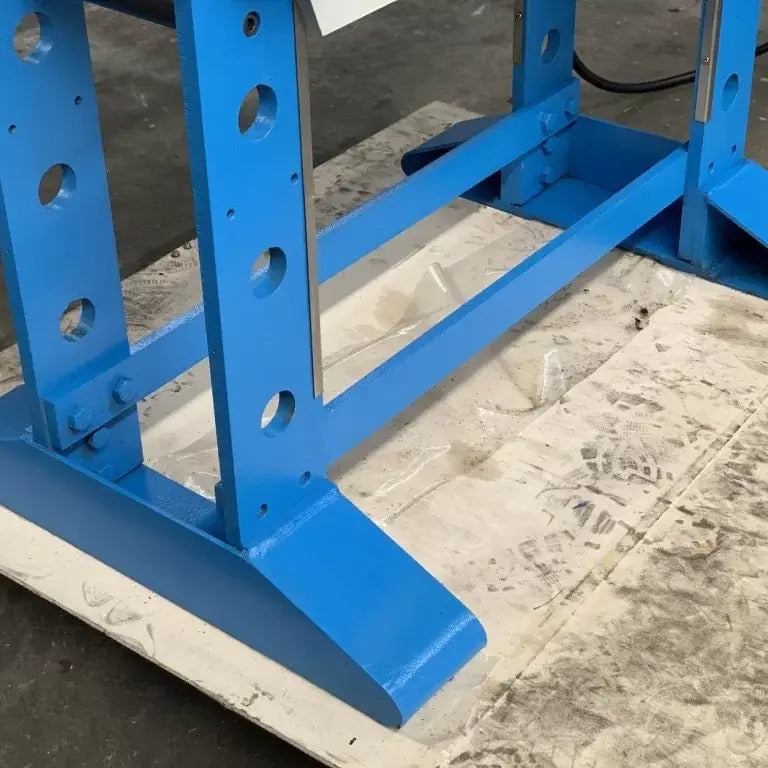

Extremely torsion proof steel welded frame

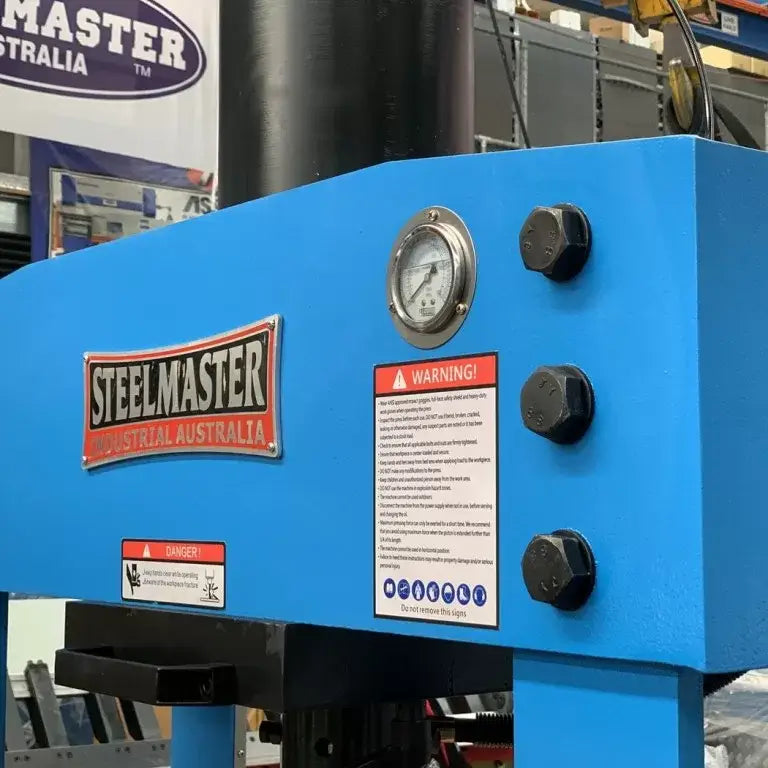

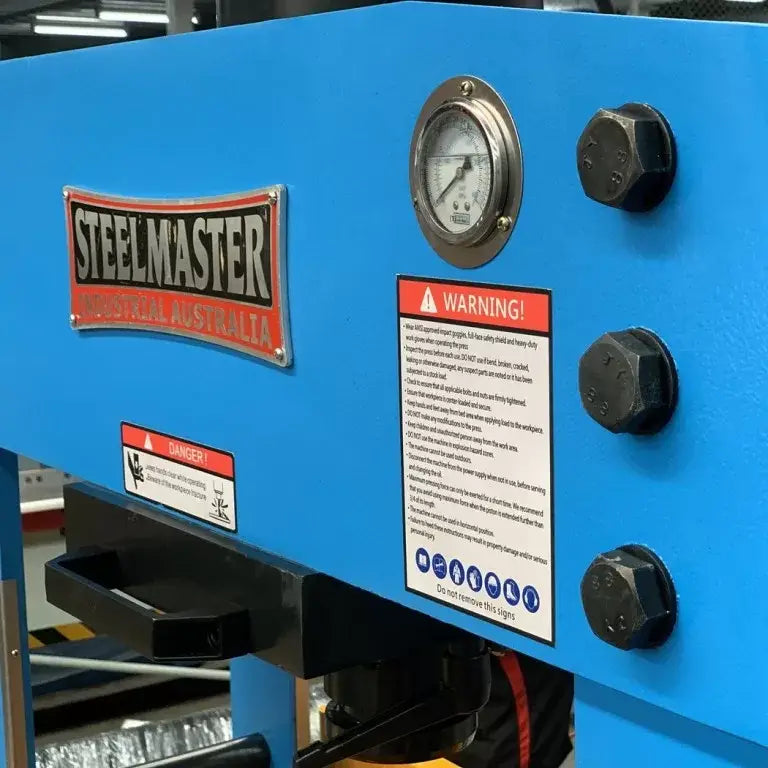

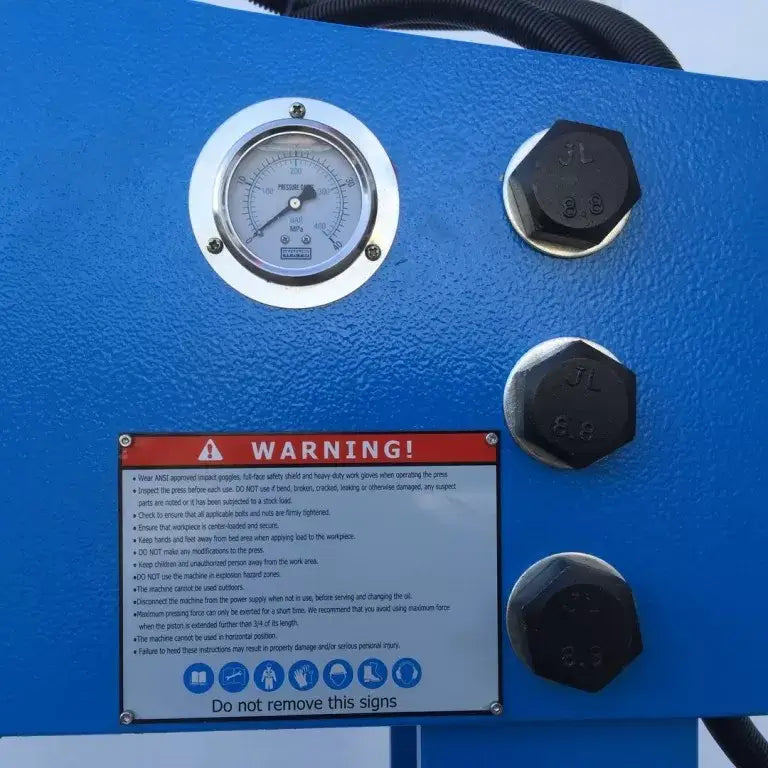

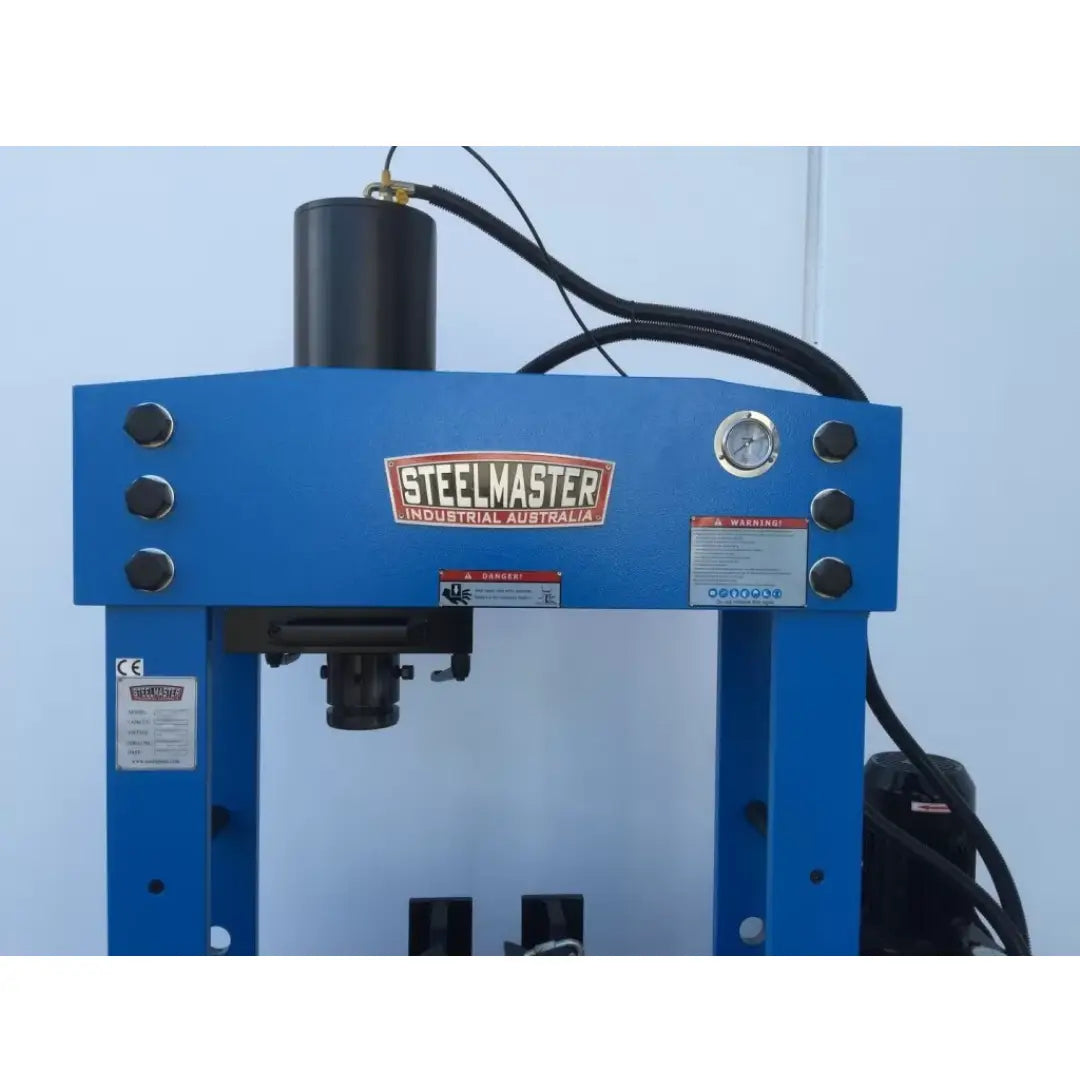

Hydraulic pressure gauge fitted

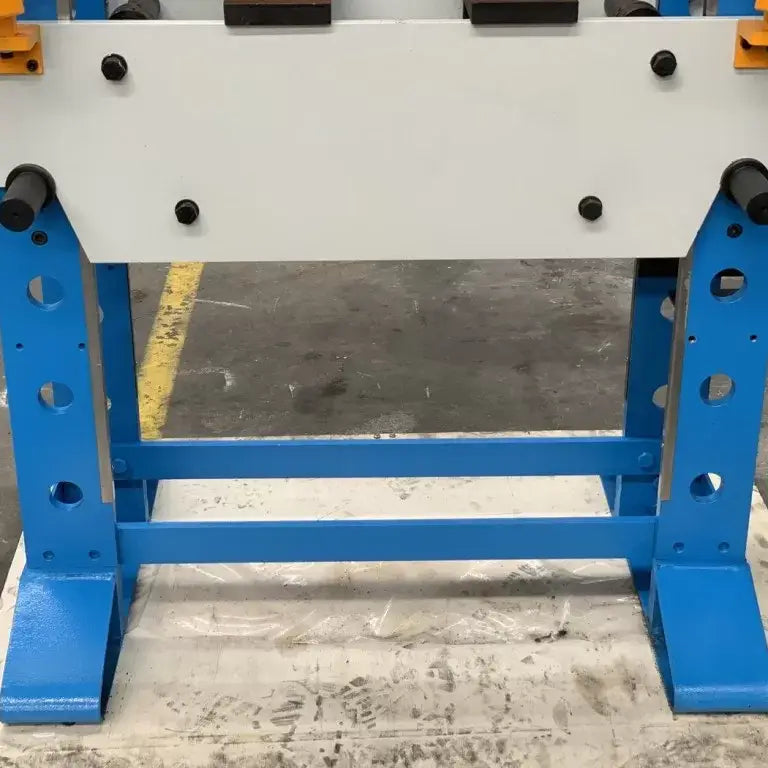

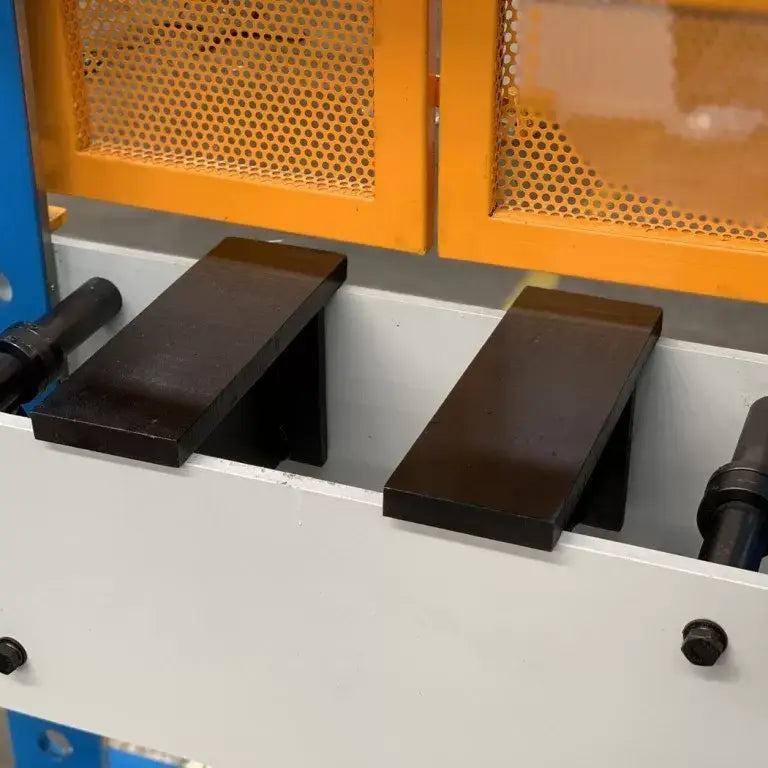

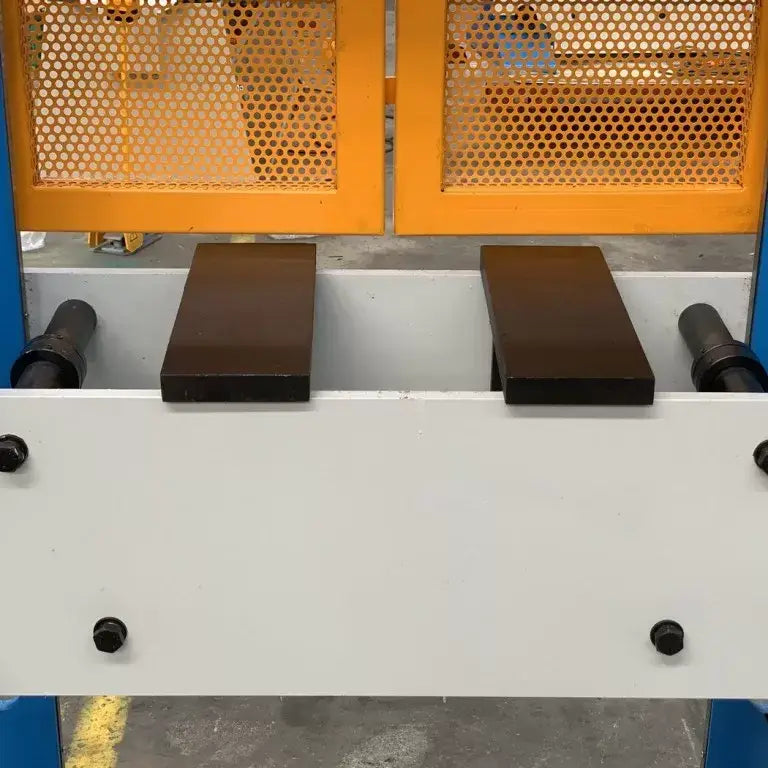

Quick fit work plate with vee blocks supplied.

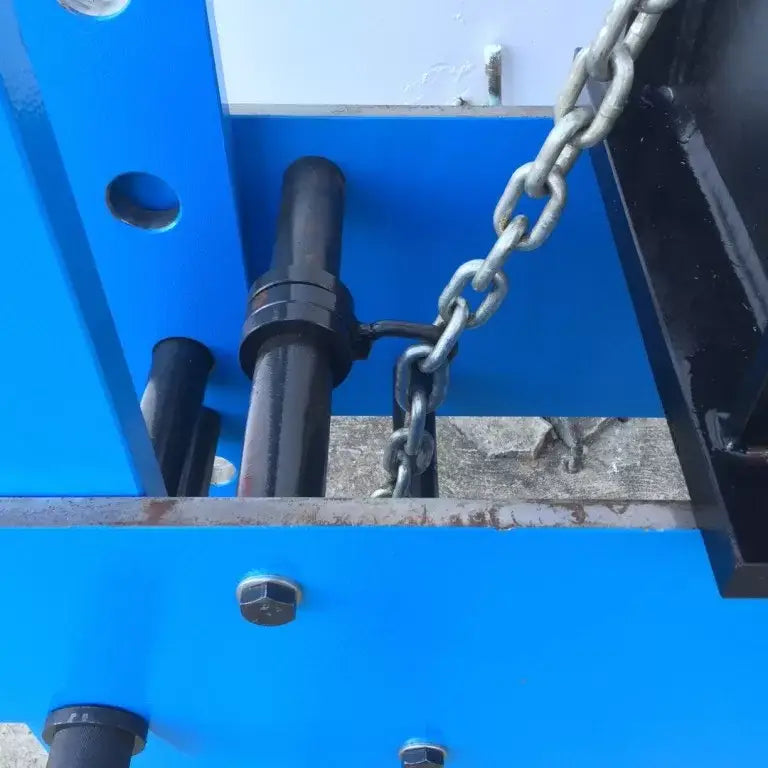

Lifting chains included
Wide frame models available up to 1500mm wide

P.O.A - 15kg and up

Capacity – 66Ton
Frame width distance – 750mm (can offer up to 1500mm)
Stroke length – 400mm
Cylinder – fixed & sliding
Working speed – 5 (2)mm / sec
Approach speed – 5 (9.6)mm / sec
Return speed – 7 (12.7)mm / sec
Oil tank capacity – 8 litres

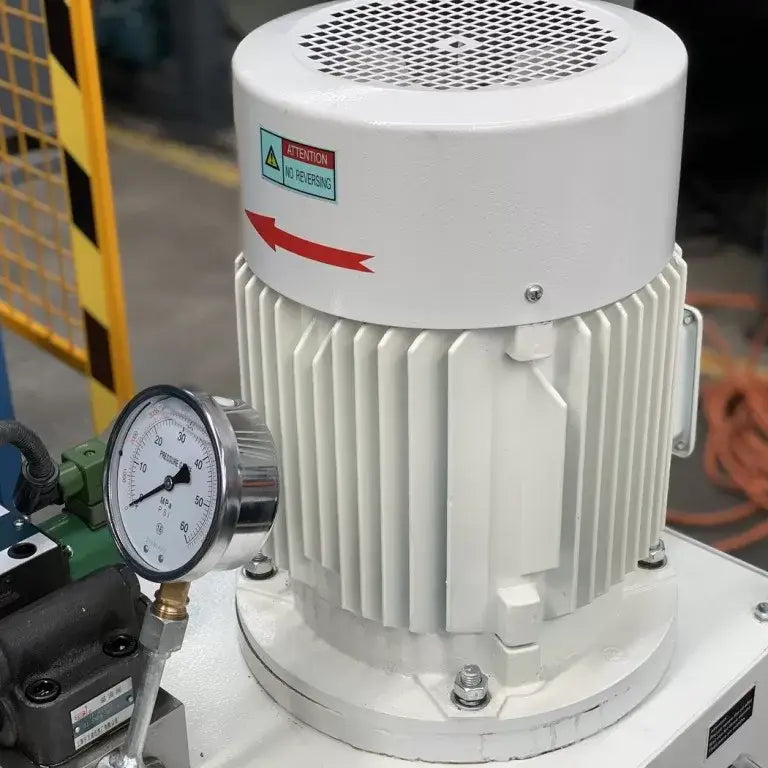

Power – 2.2Kw / 415Volt
Dimensions – 1524mm x 1016mm x 2057mm x 700kg
Crate shipping dimensions – 1100mm x 800mm x 2200mm x 720kg

A = 2100mm
B = 1150mm
C = 900mm
D = 740mm
E = 250mm
F = 1520mm
