Steelmaster Industrial

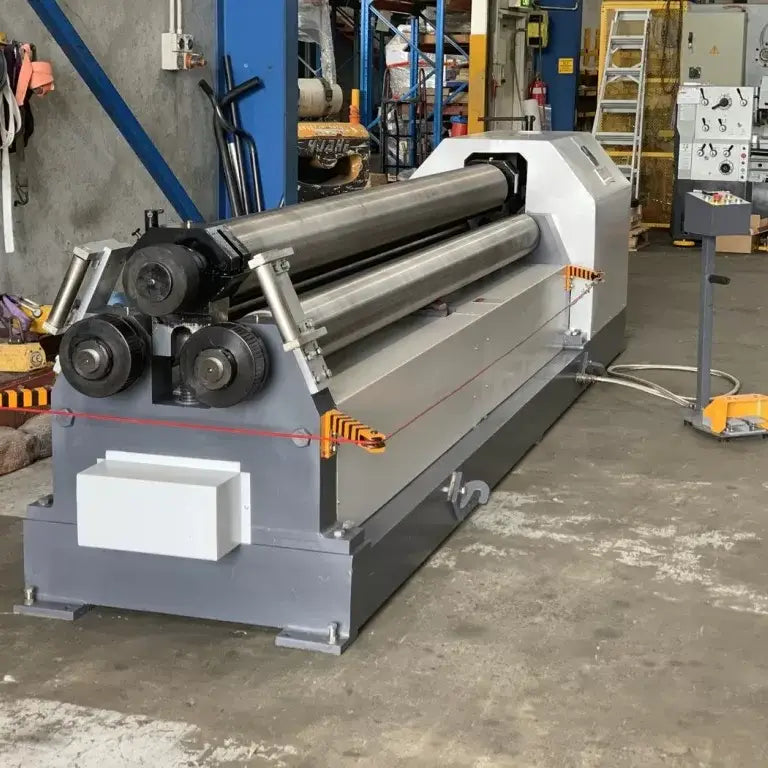

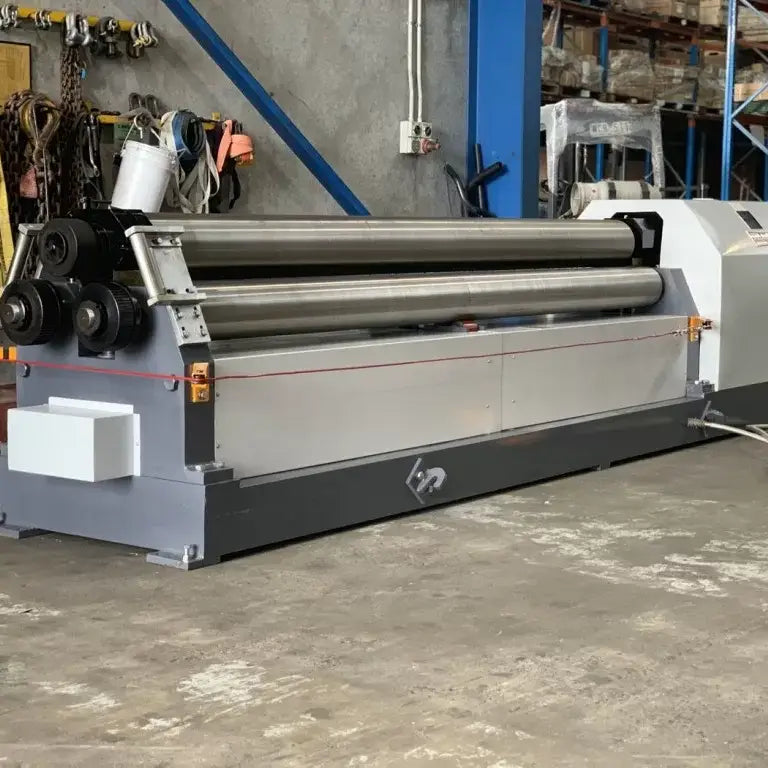

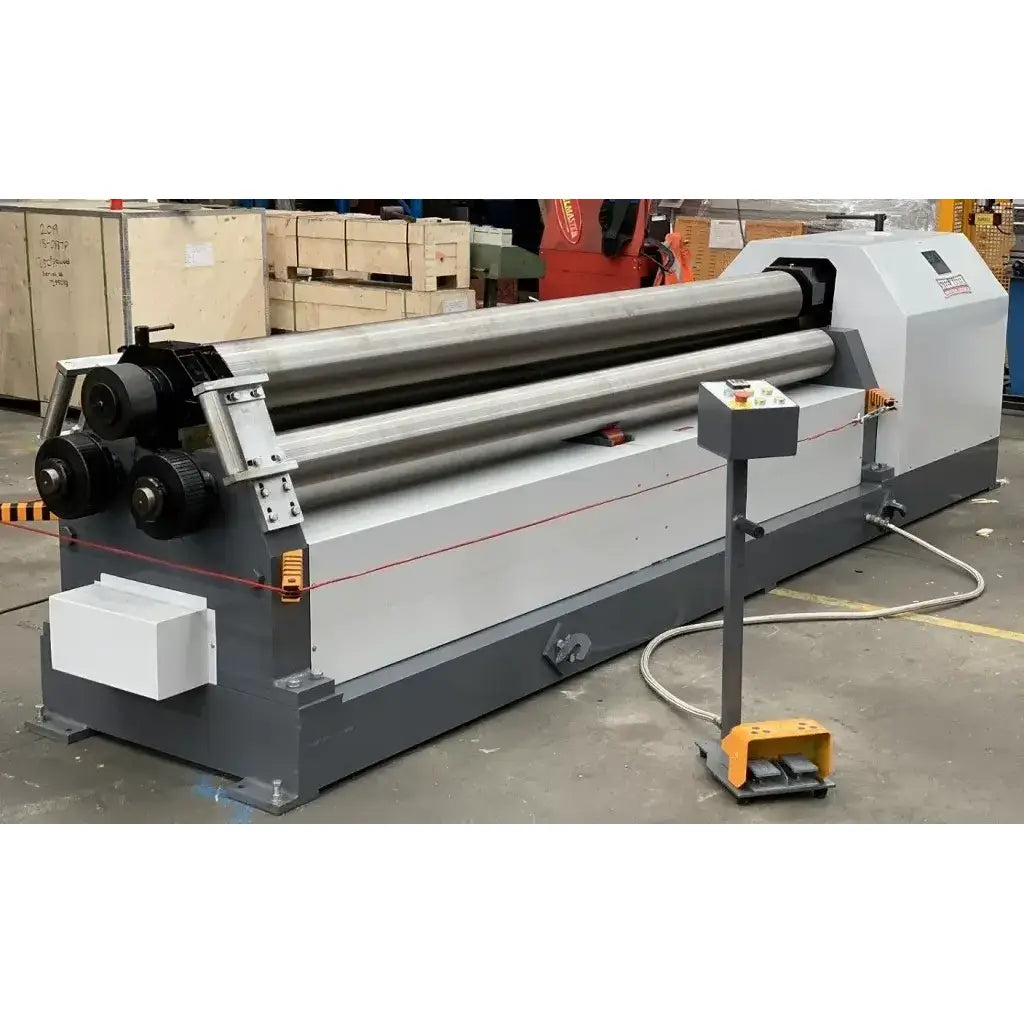

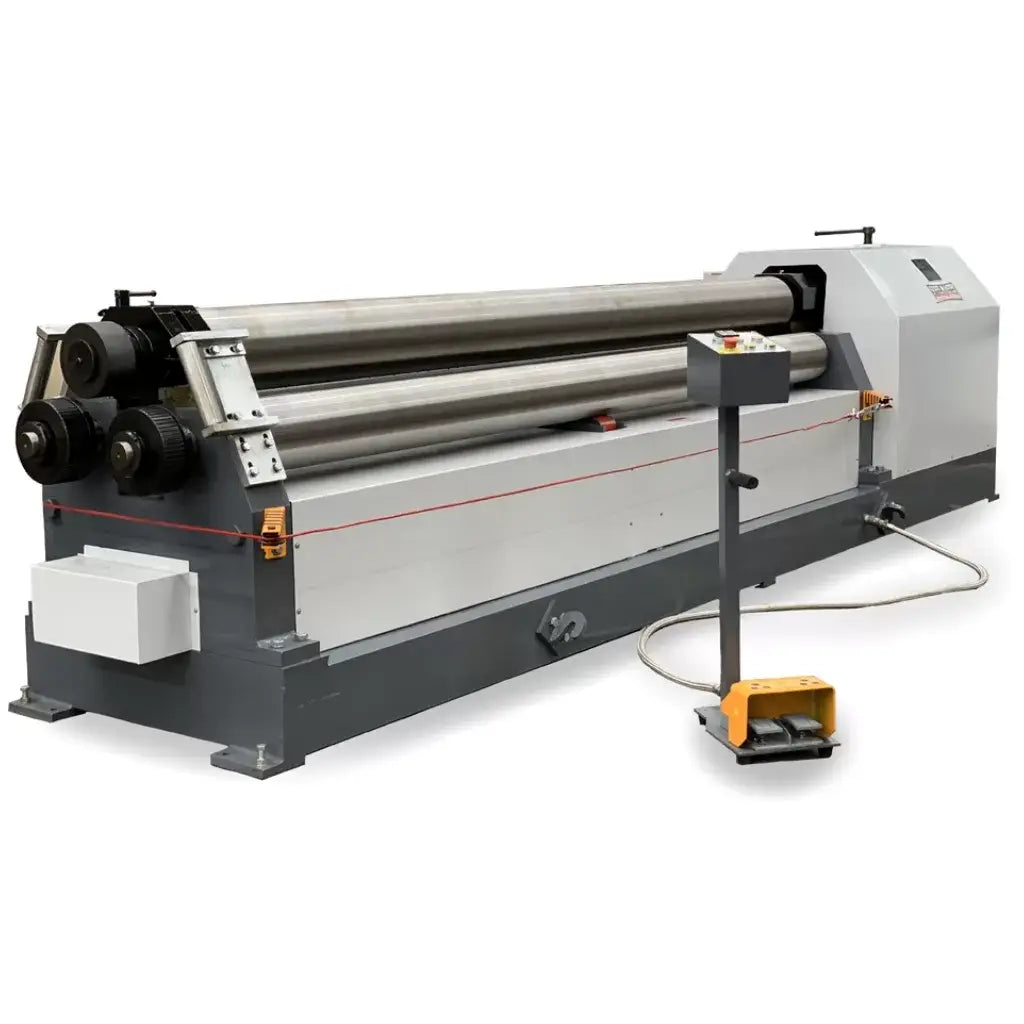

Plate / Curving Rollers, 2550mm x 8mm, Motorised Operation
Regular price
$22,850.00
Unit price
Unavailable

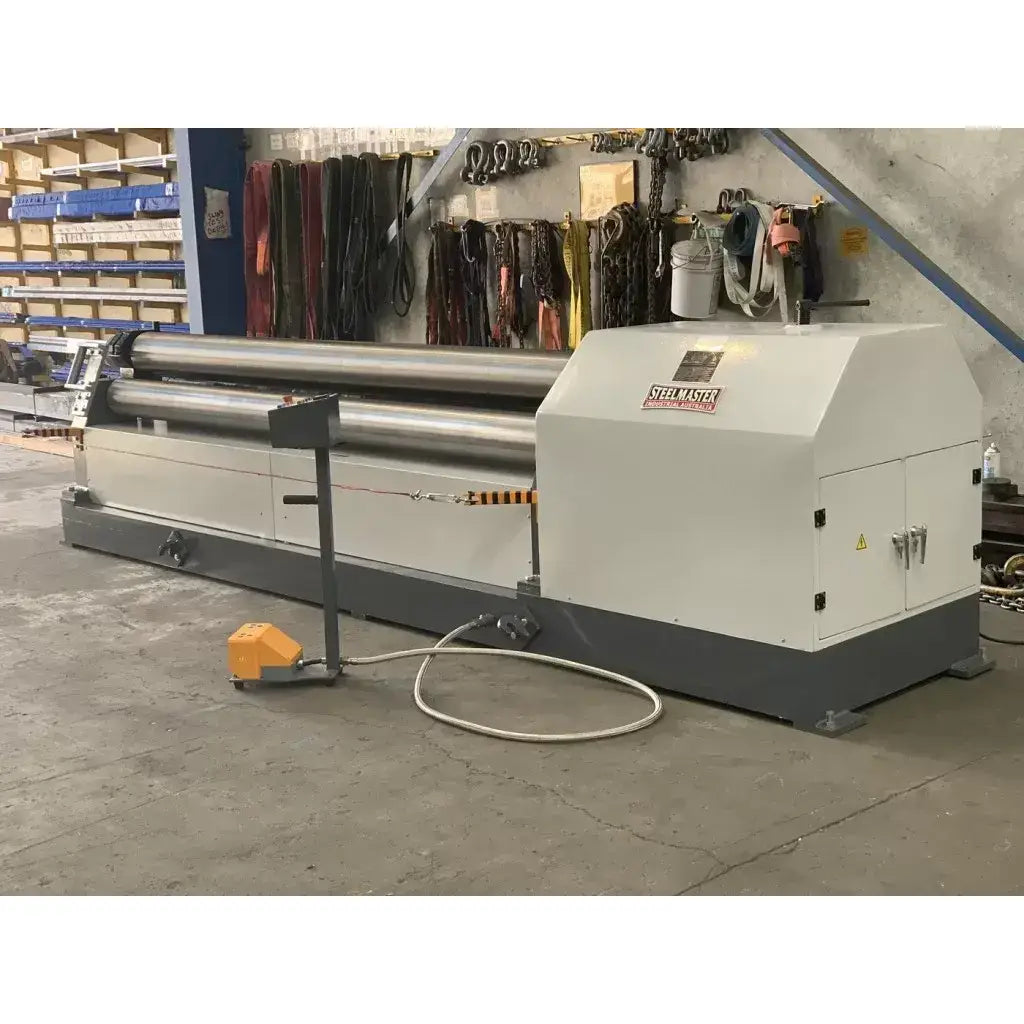

A heavy-duty Steelmaster Plate / Curving Roller (2550mm x 8mm), this motorised plate roller is built for tough jobs.
Technical Data
Capacity – 2550mm x 8mm mild steel
Digital readout display for top roller position
230mm top roll diameter
210mm bottom roll diameter
230mm minimum roll diameter
5.5kw – 415 volt
Dimensions – 4300mm x 1200mm x 1450mm
Weight – 4300kg
Product Features
Heavy duty welded frame construction
Bottom rolls powered by gearbox and gear system
Power up & down top roll for curving adjustment
Digital readout display for top roller position

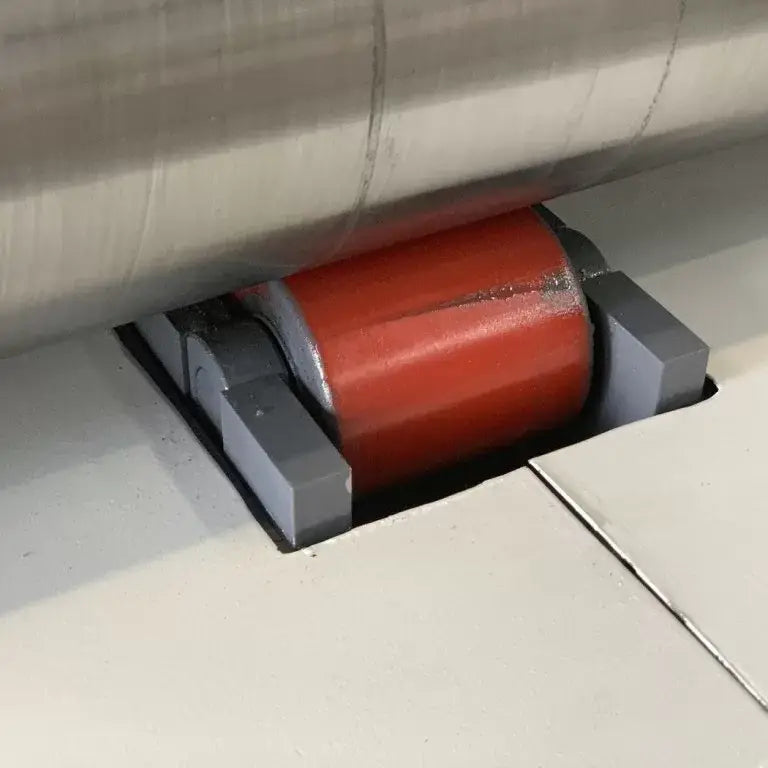

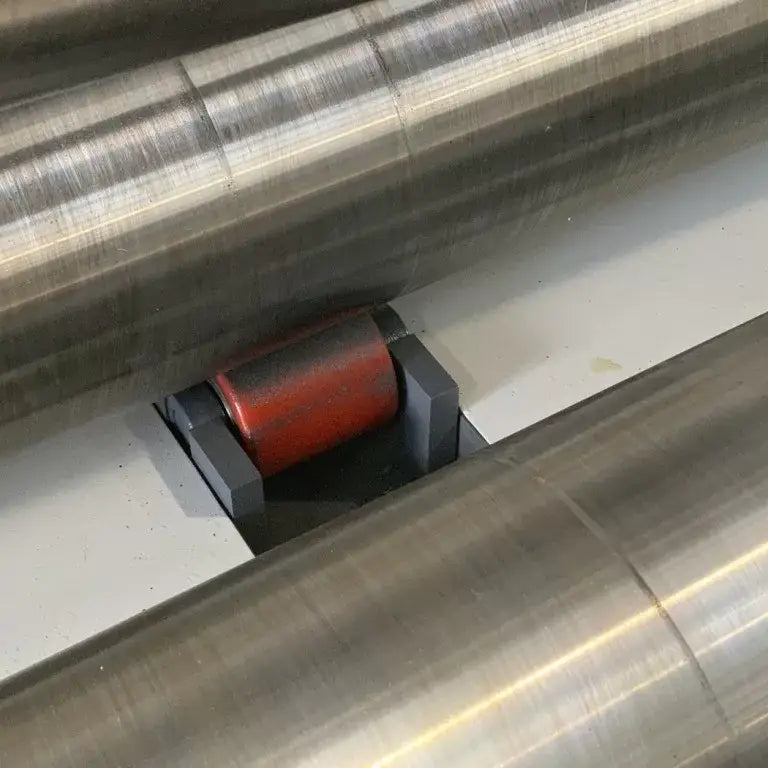

Tilt and support bearings for top roller
Precision ground rolls

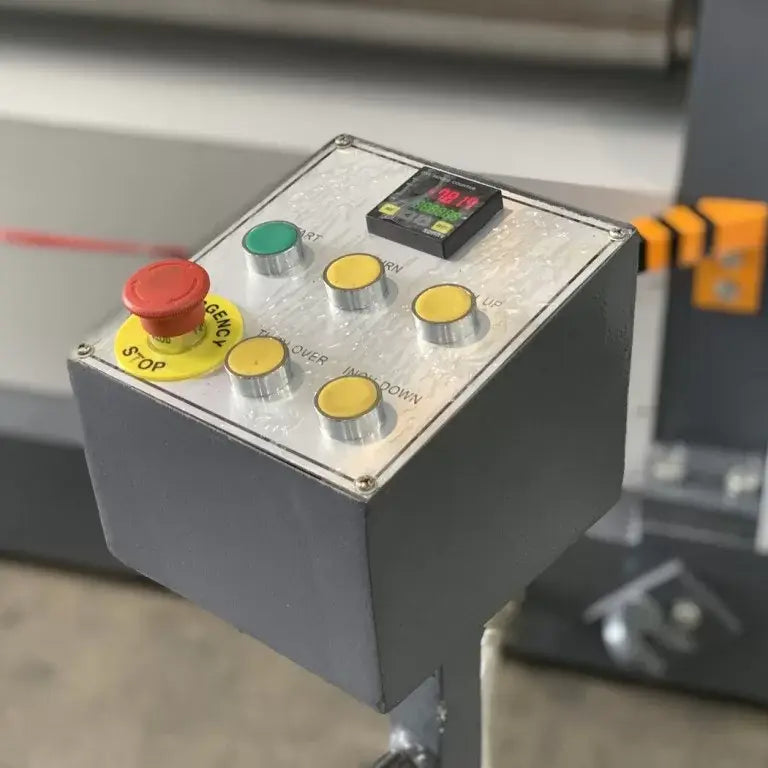

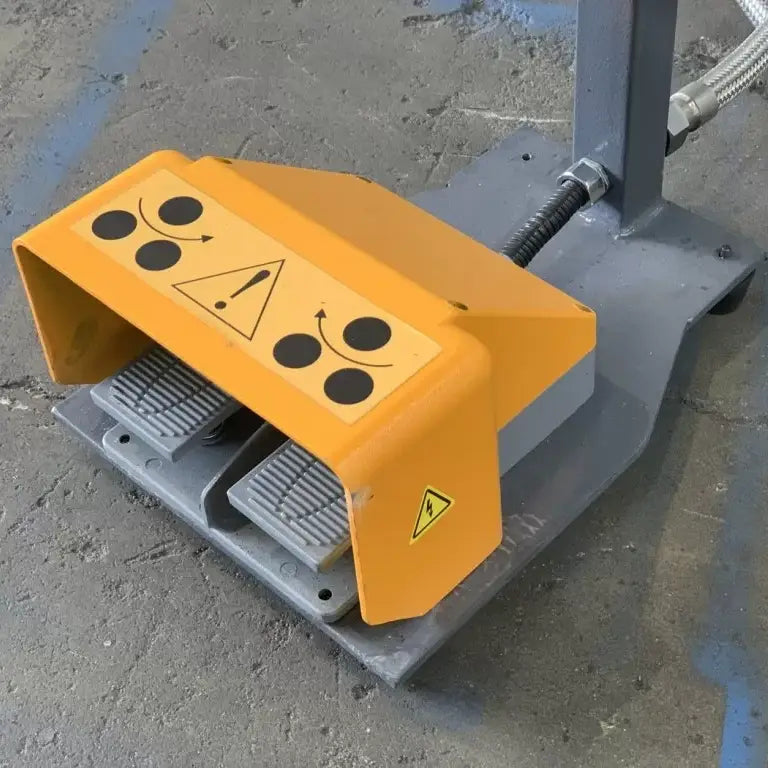

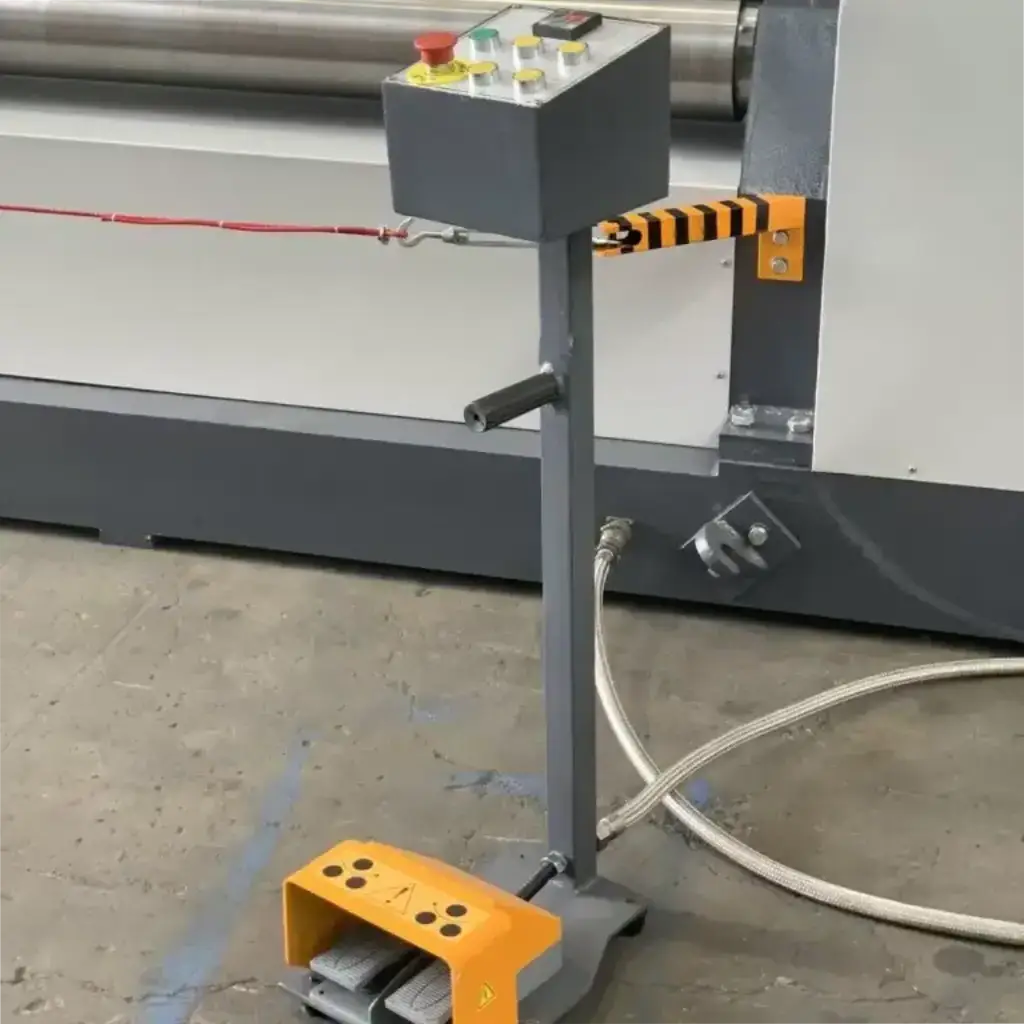

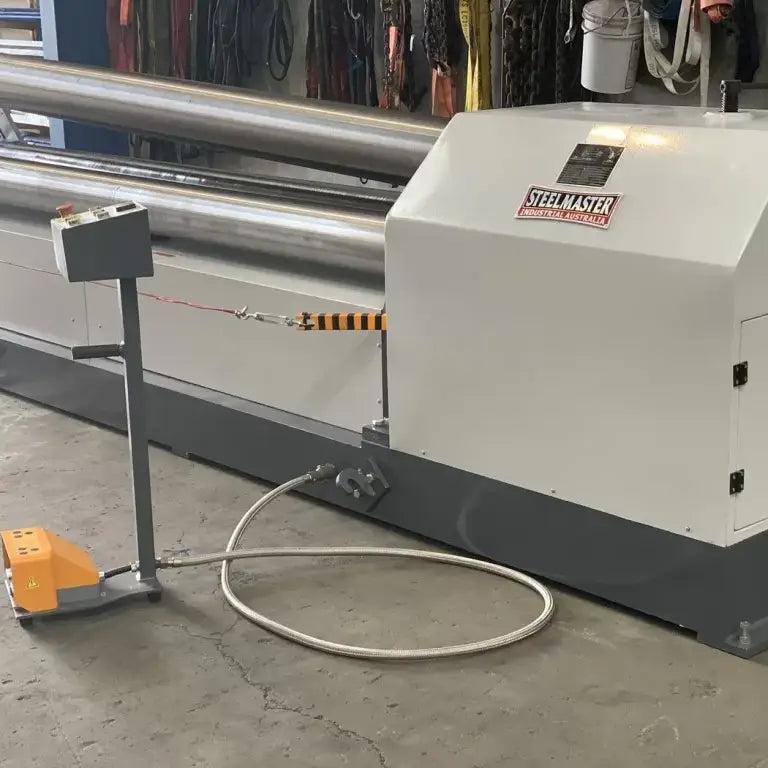

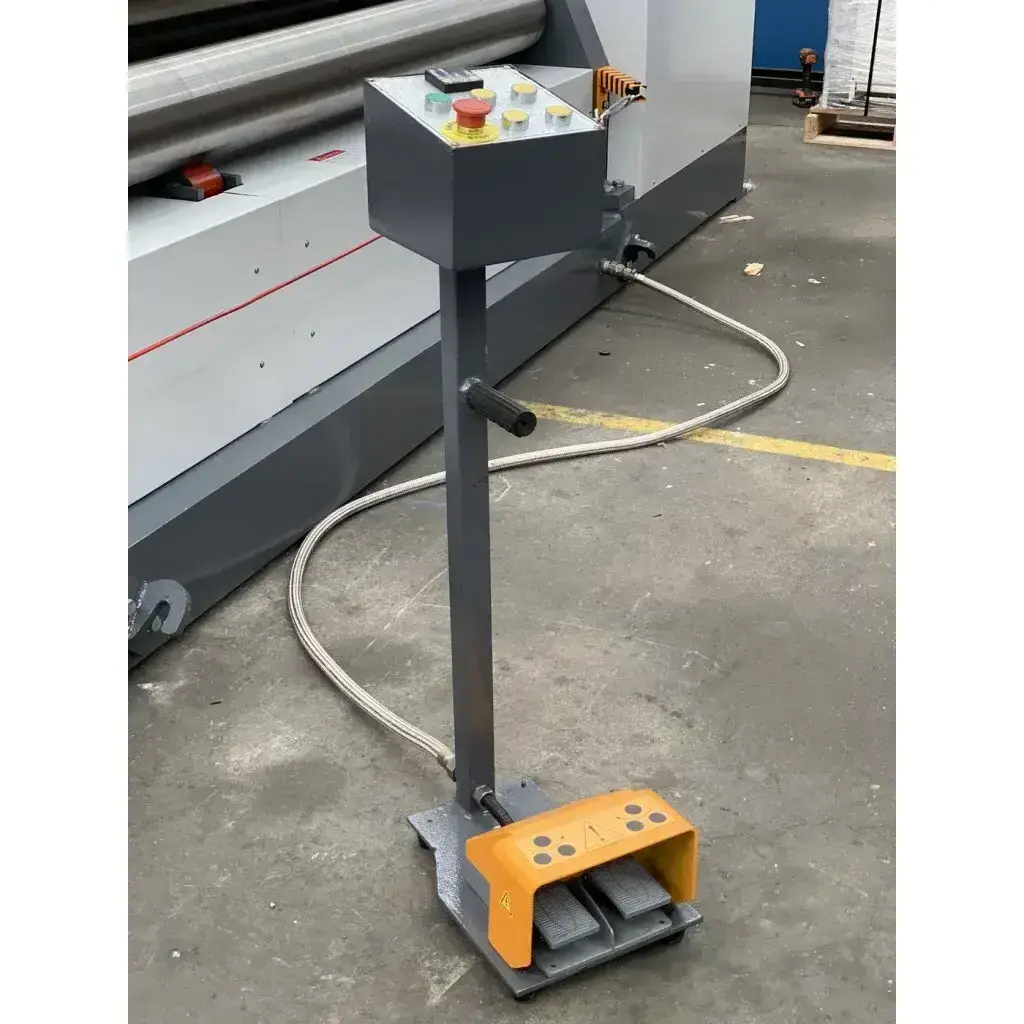

Pendent control operation with forward and reverse on the foot pedal

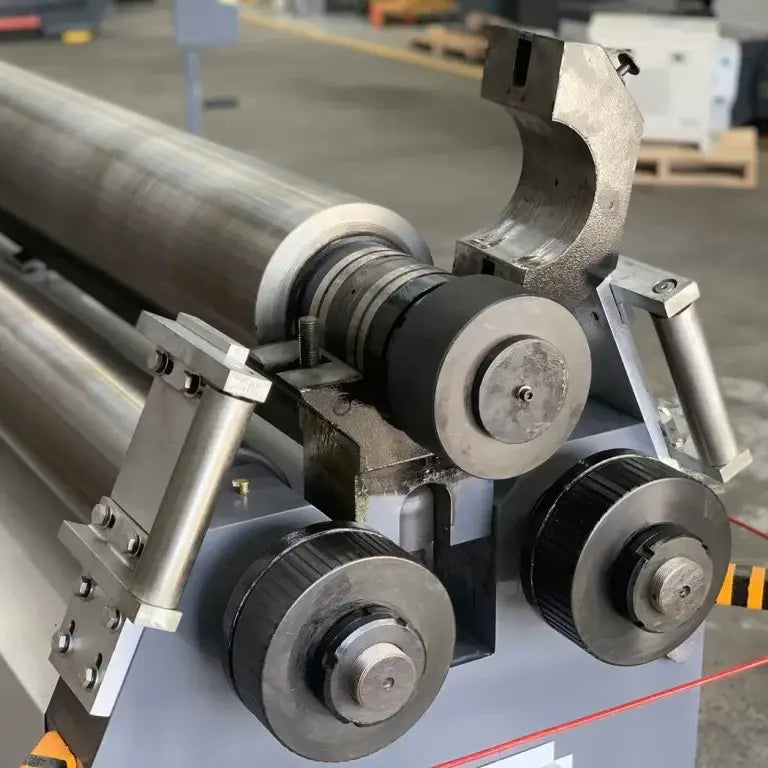

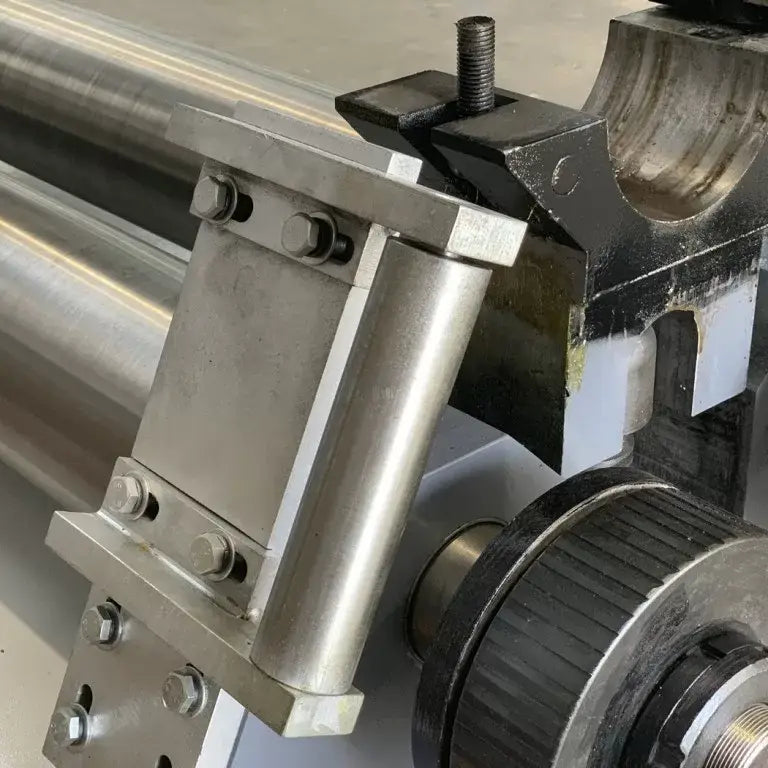

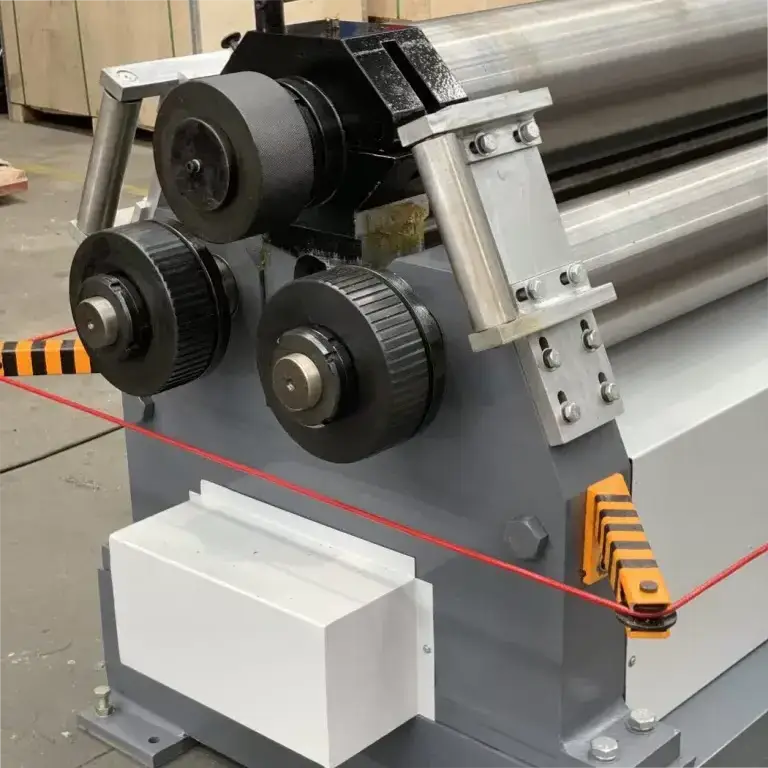

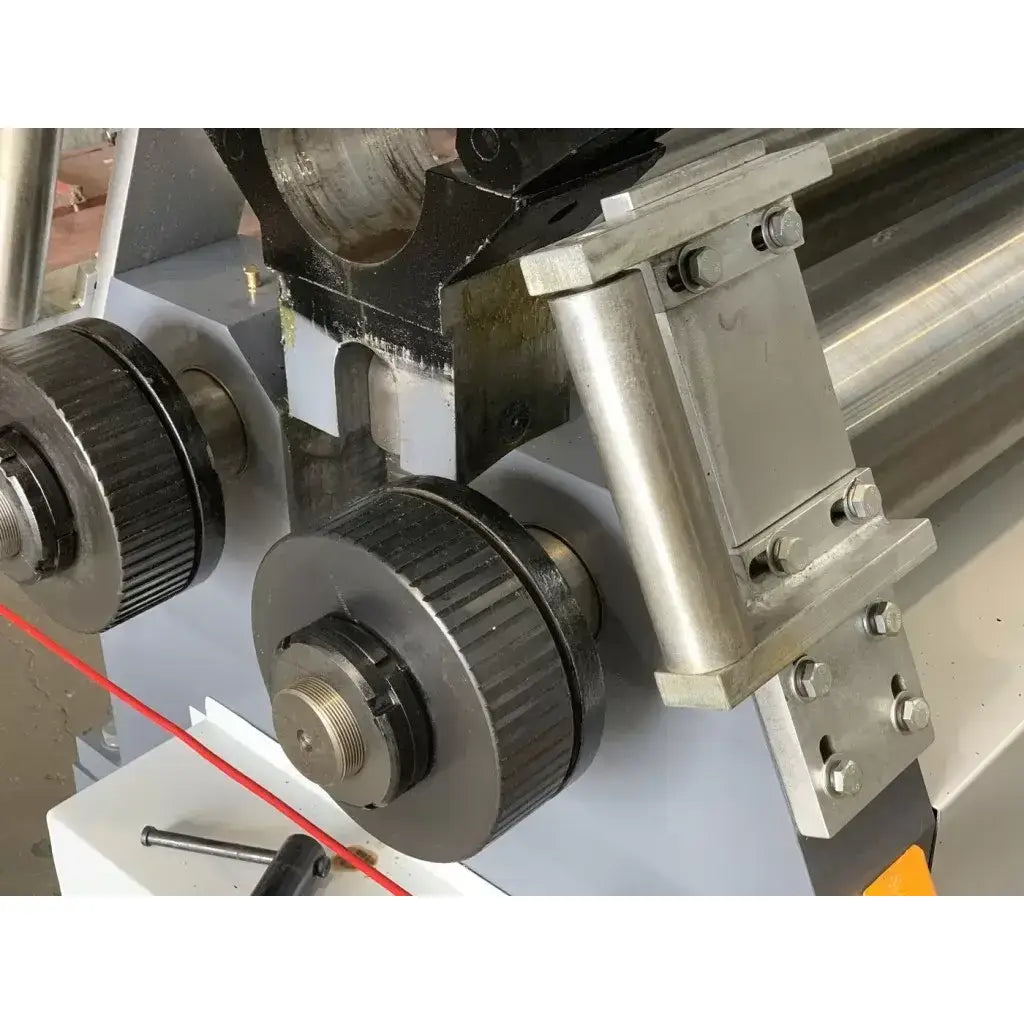

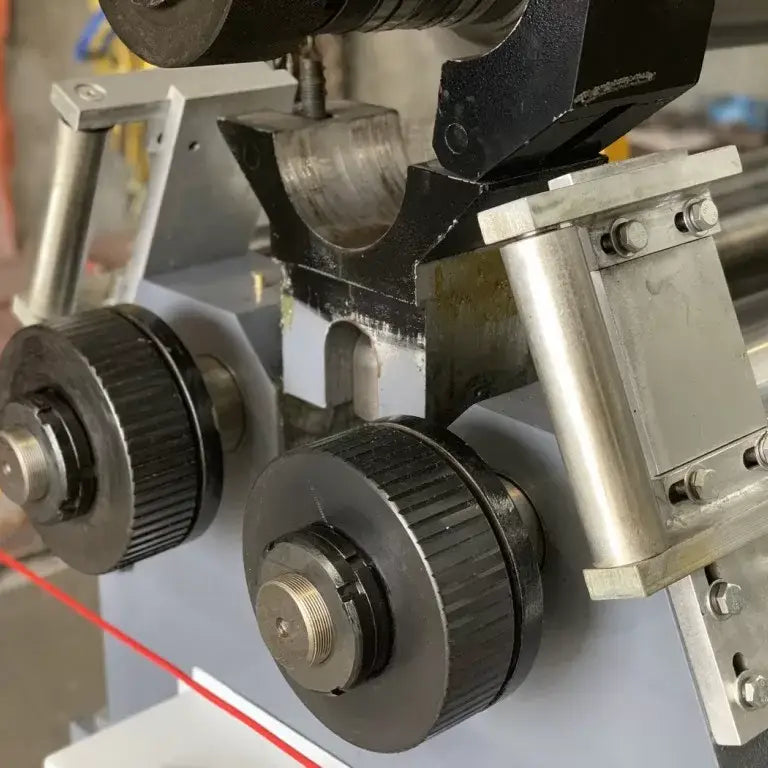

Stub extensions standard, offering basic section rolling operation

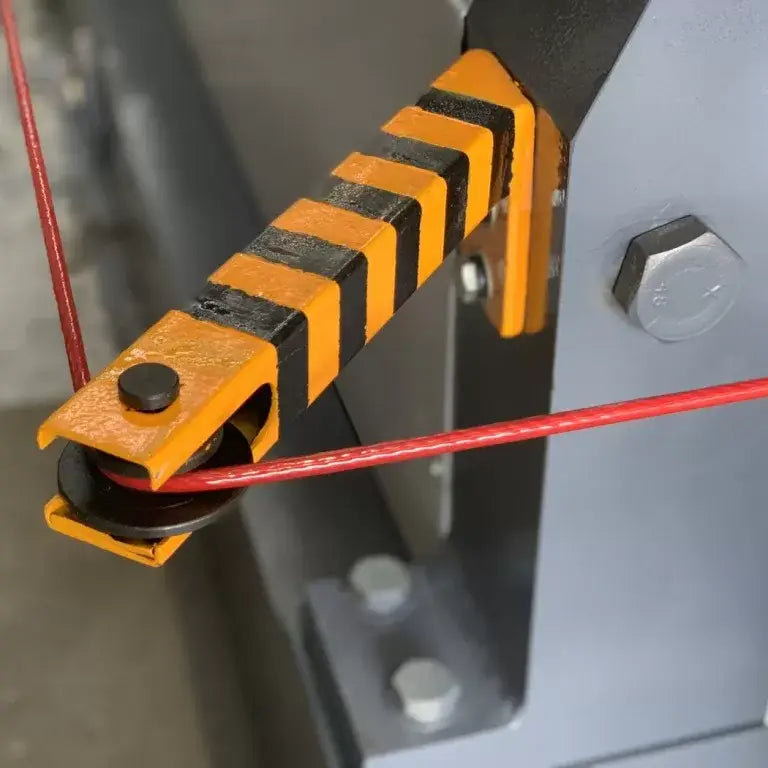

Safety interlocks and emergency shut-off device surrounding roll operation area

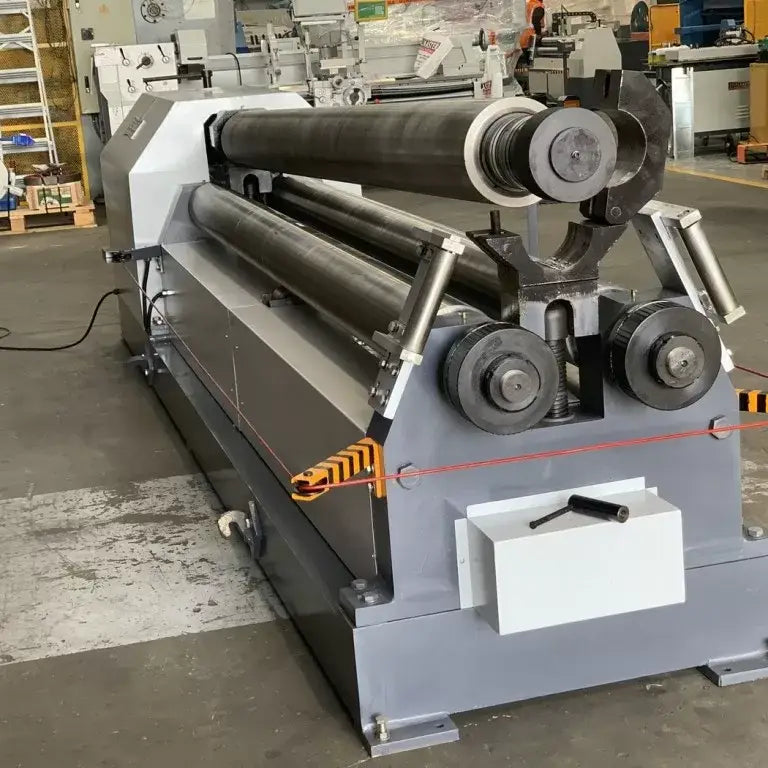

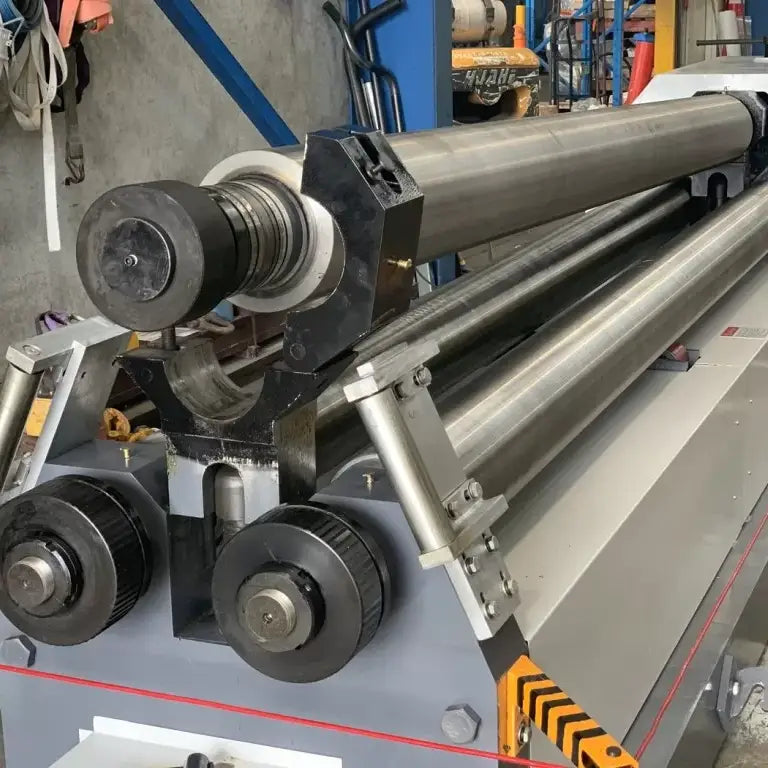

Swing out end enables complete cylinders to be removed
Services required to be provided by customer
Rolling Capacity
2550mm x 8mm
Includes
1 x set end pipe profile formers approx 63mm diameter
1 x set end split, flat & angle formers
