Steelmaster Industrial

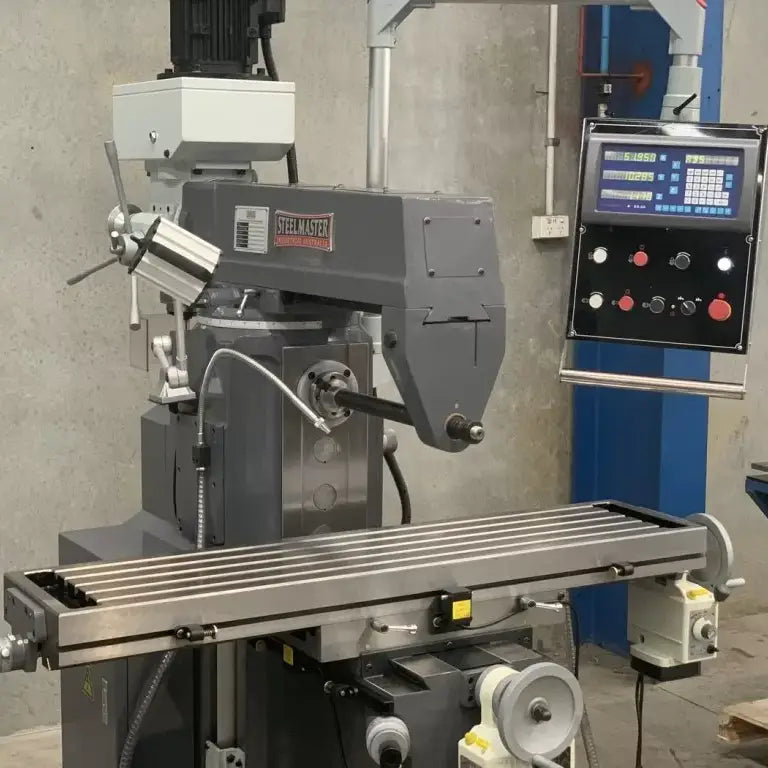

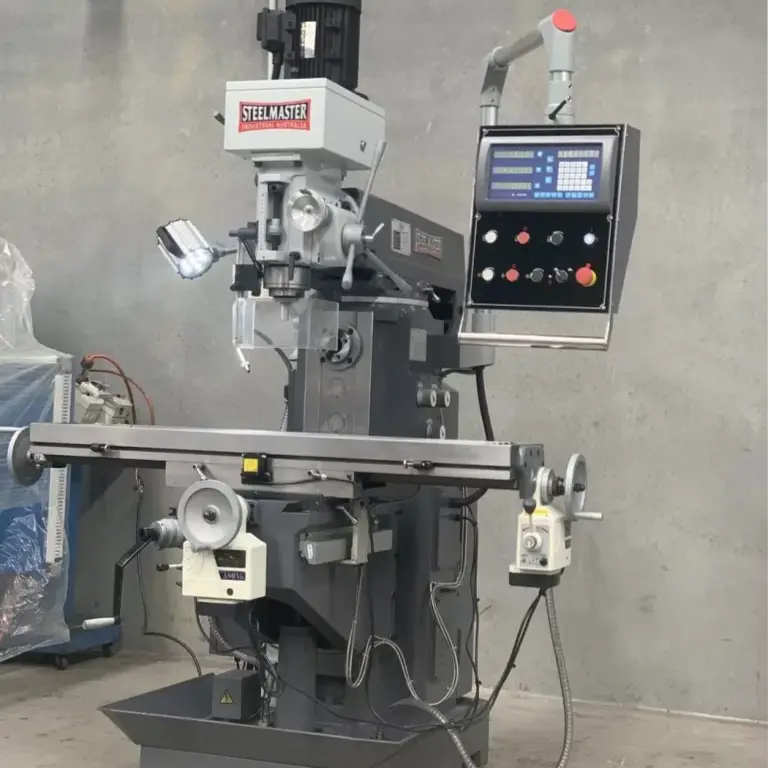

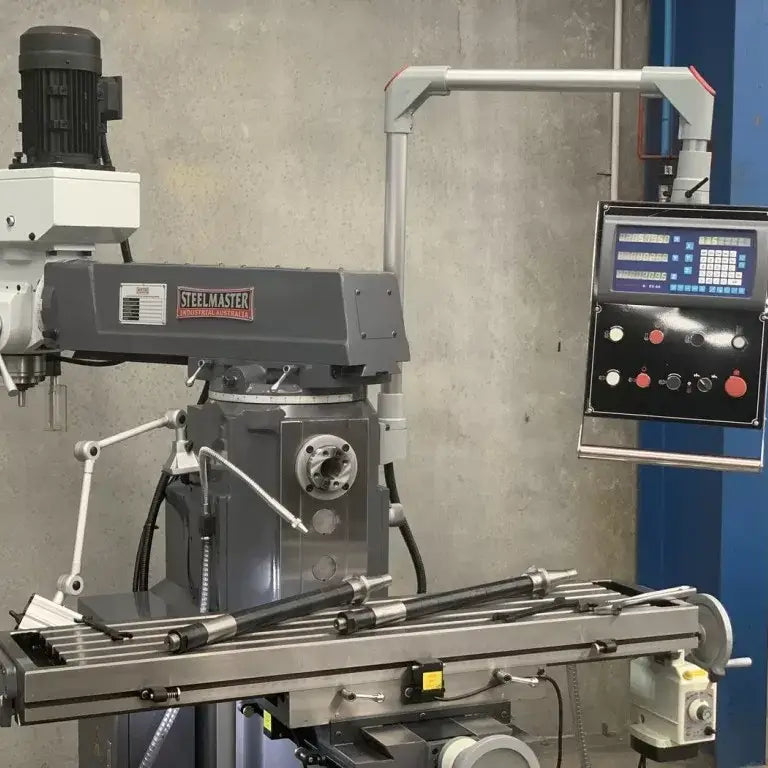

Universal Mill, Gear Head Drive with Easson 3 Axis Digital Readout
Sale price
$13,450.00
Regular price
$13,850.00
Unit price
Unavailable

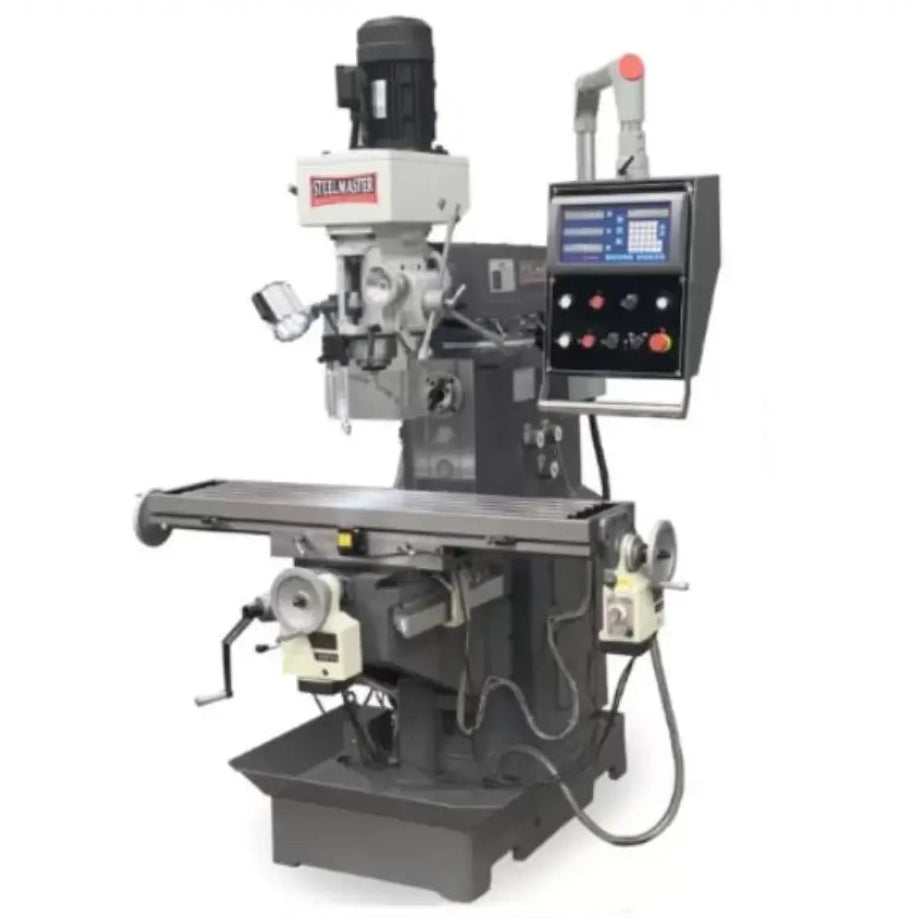

This Steelmaster Universal Mill features a gear head drive and an Easson 3-axis digital readout. A versatile milling machine.
Technical Data
Table size – 1270mm x 280mm
X travel – 750mm manual feed / 730mm power feed
Y travel – 260mm

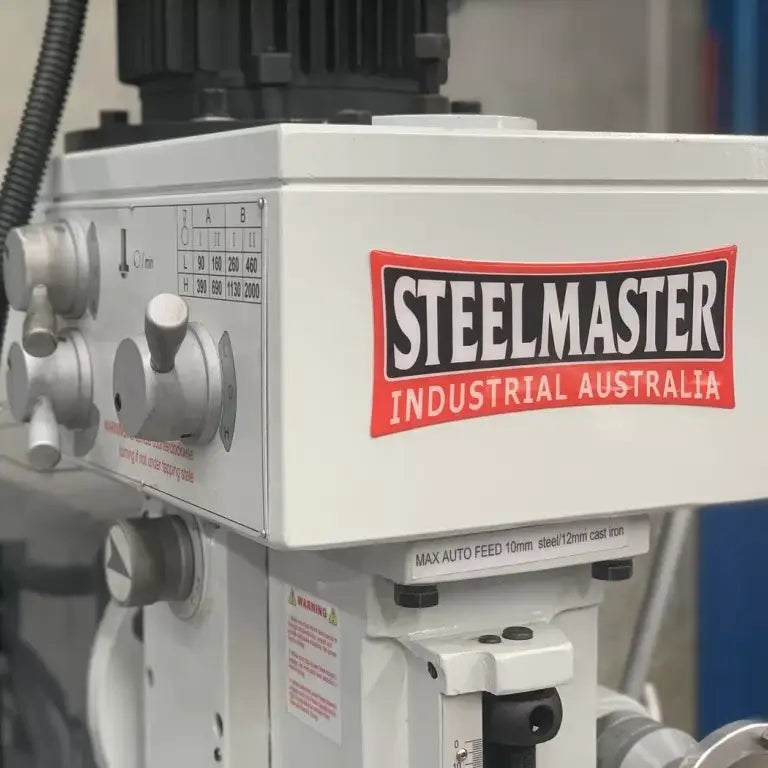

Vertical speeds – 90 ~ 2000 (8)

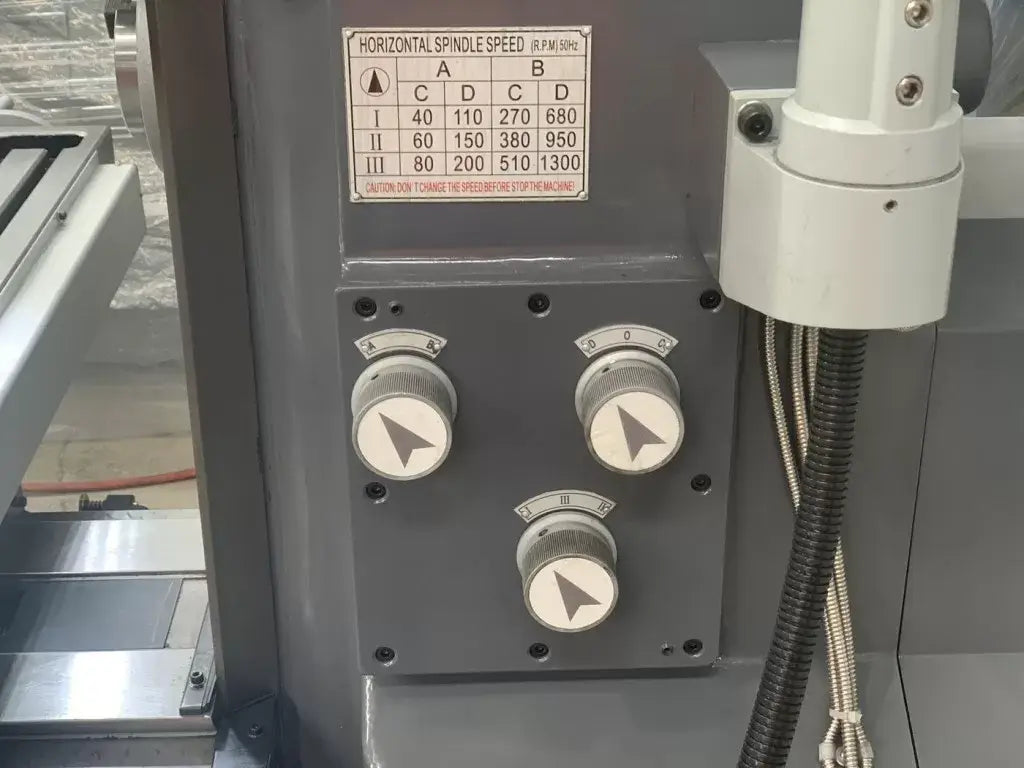

Horizontal speeds – 40 ~ 1300 (12)
Spindle fixture – ISO 40
Motor capacity – 2.2Kw (3H.P) motors (2 off)
Crate – 1550mm x 1450mm x 2250mm H
Approx weight: 1550kg
Same machine builder at Grizzly model G0757
Product Features
Compact and practical milling machine manufactured from vibration dampening cast iron

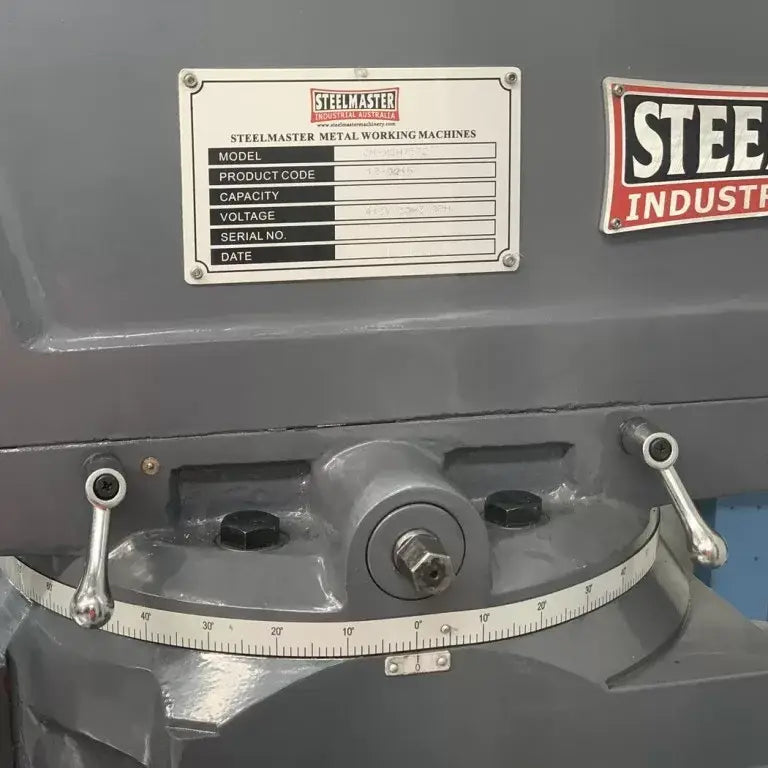

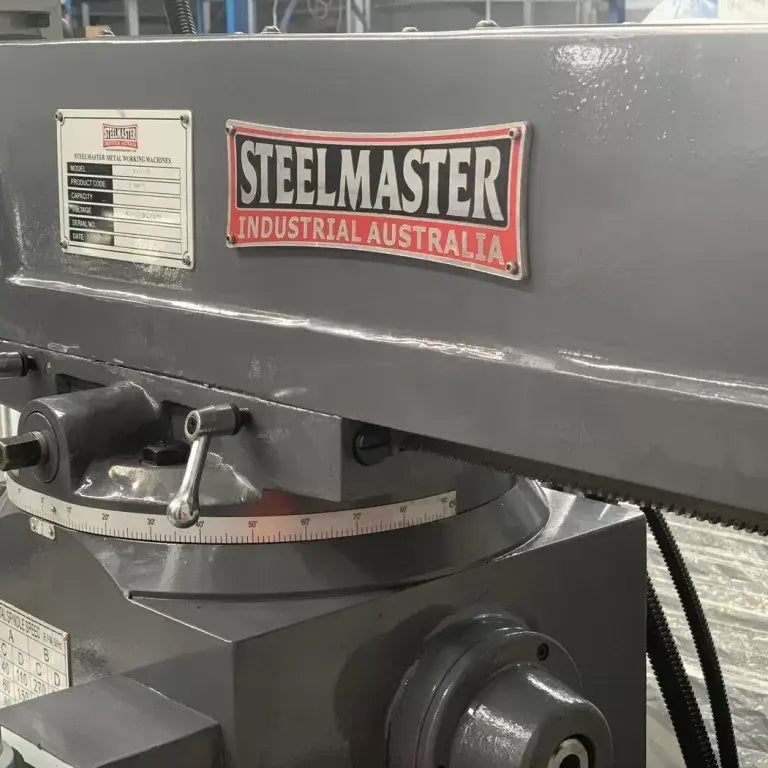

Swivelling head to 90°& table to 45°

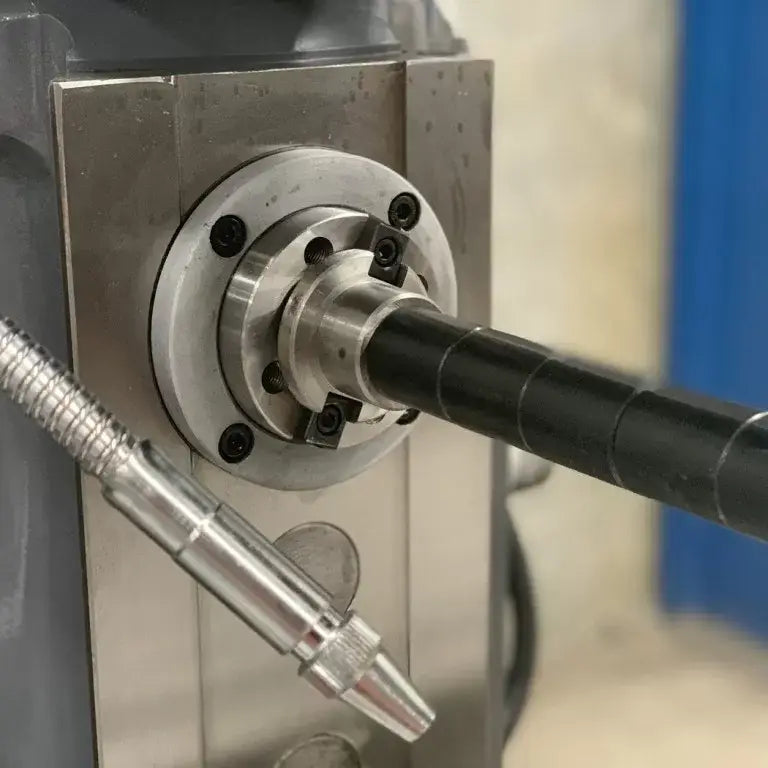

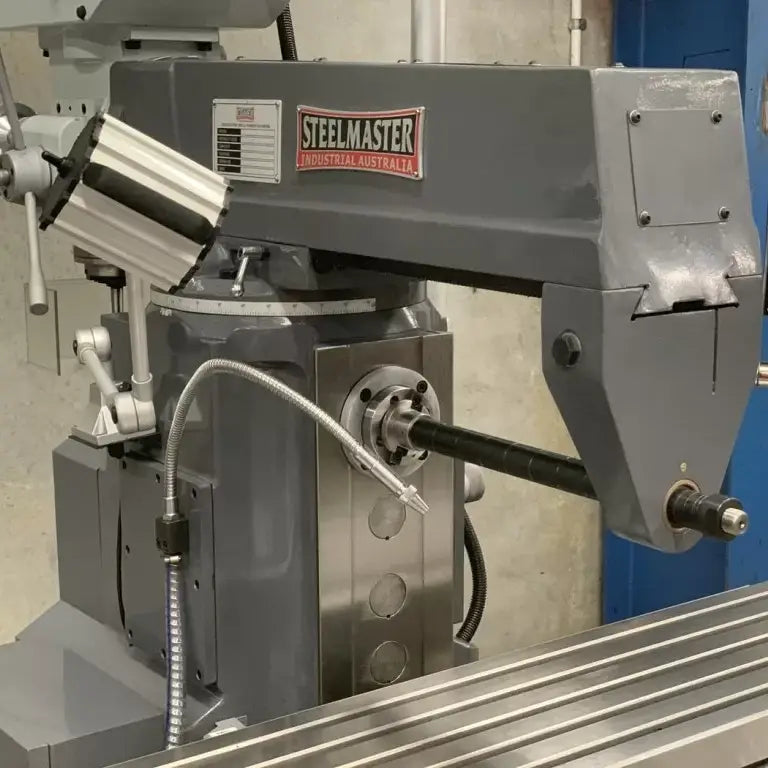

40 ISO horizontal and vertical spindles are hardened and ground
Precision-machined dovetail slide ways and table

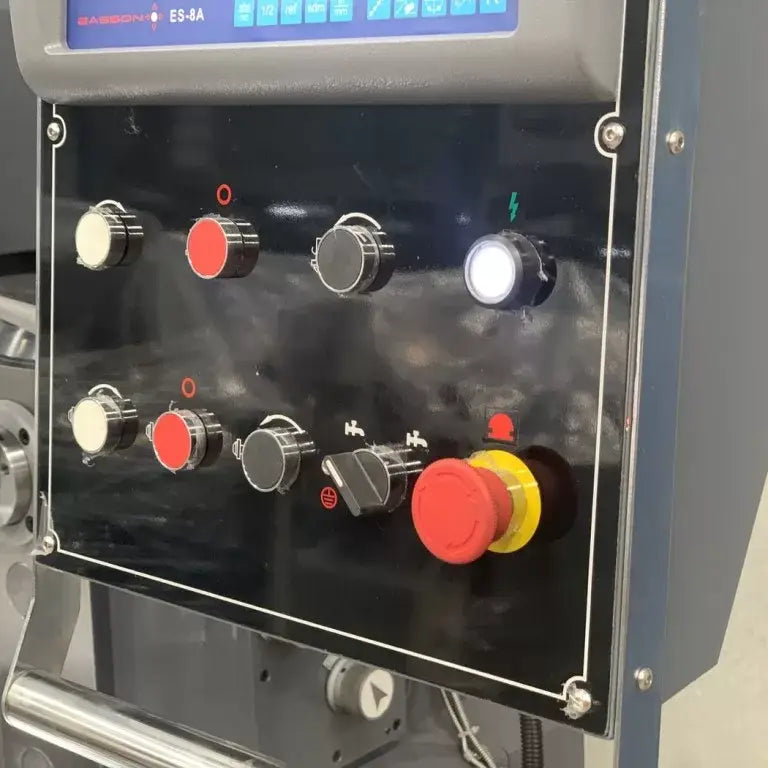

Forward and reverse on/off switch

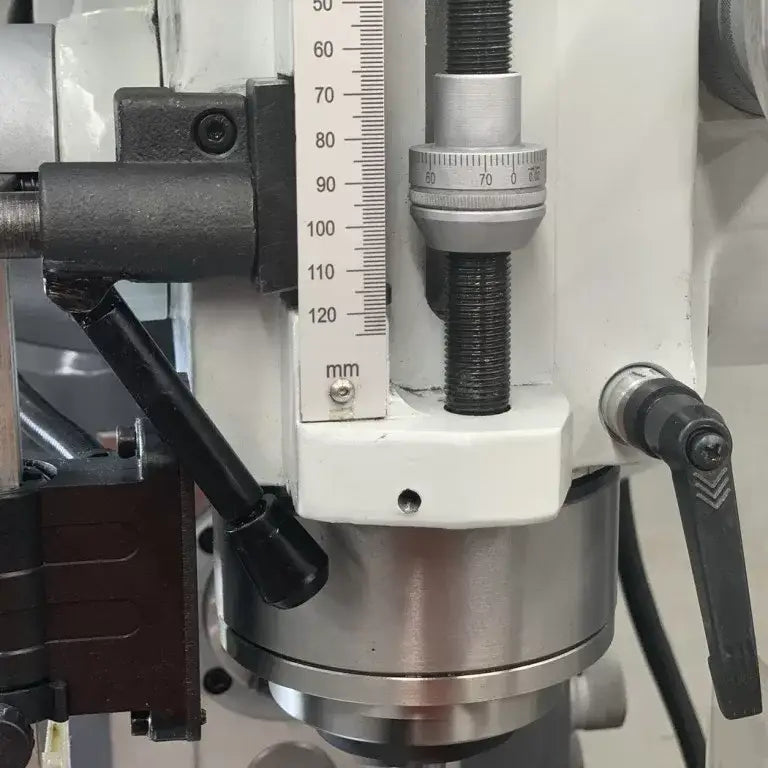

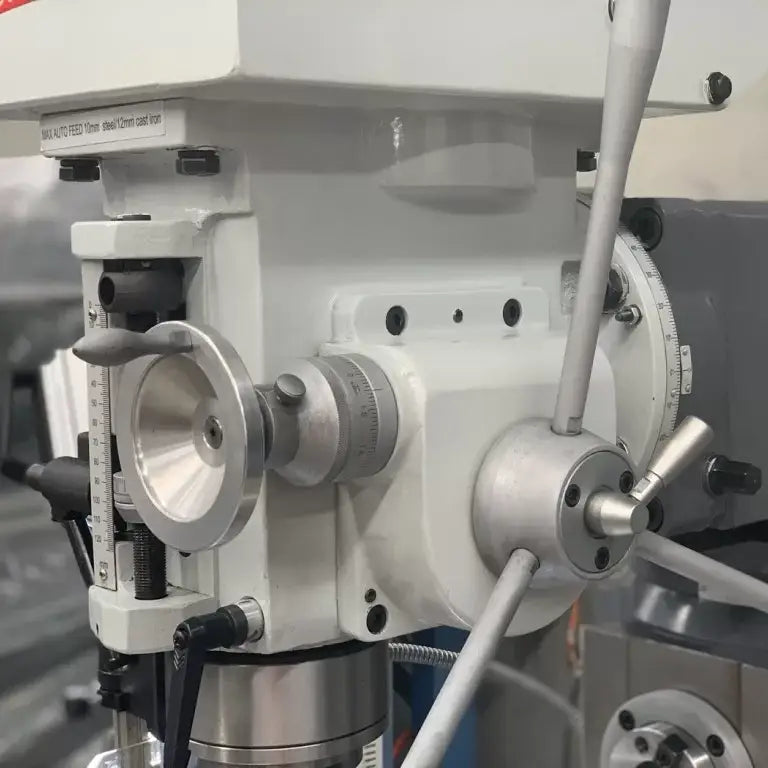

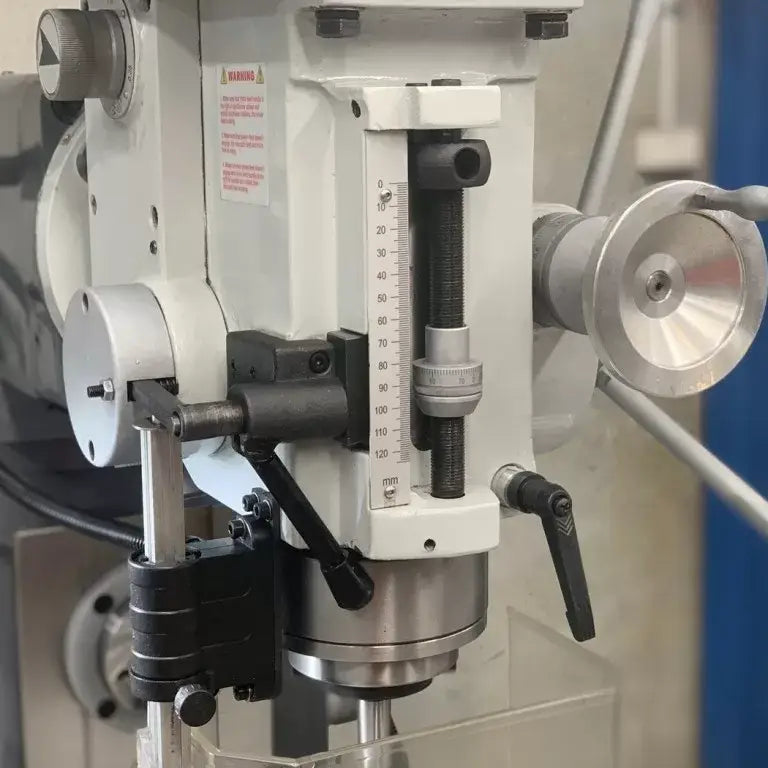

Fine hand wheel operated quill feed

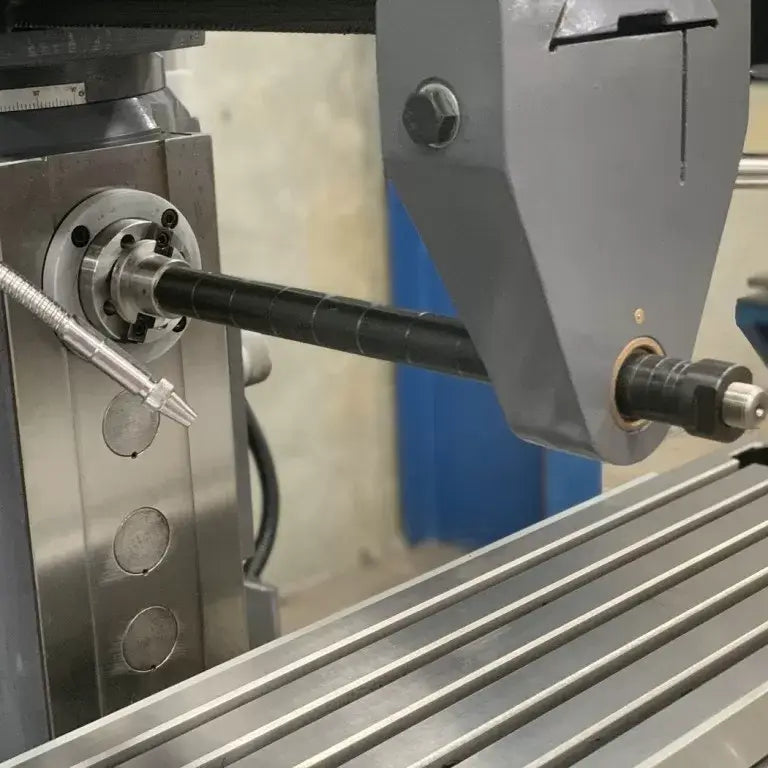

Two arbours for the horizontal spindle.

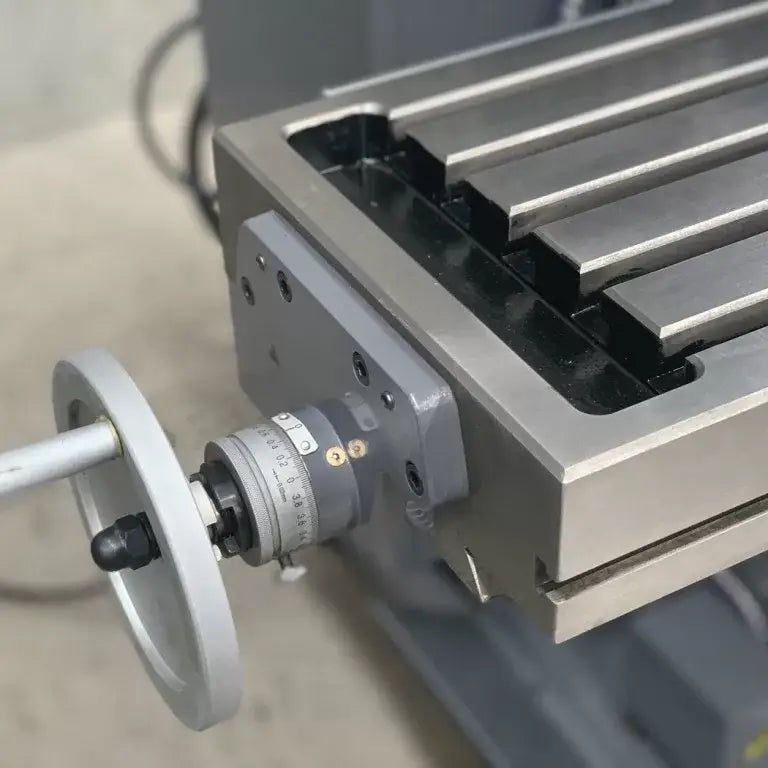

Calibrated hand wheels fitted on all movement directions
Height adjustment of work table through ergonomically designed crank handle. all 3 axis are fitted with clamping devices
2 axis power table feeds

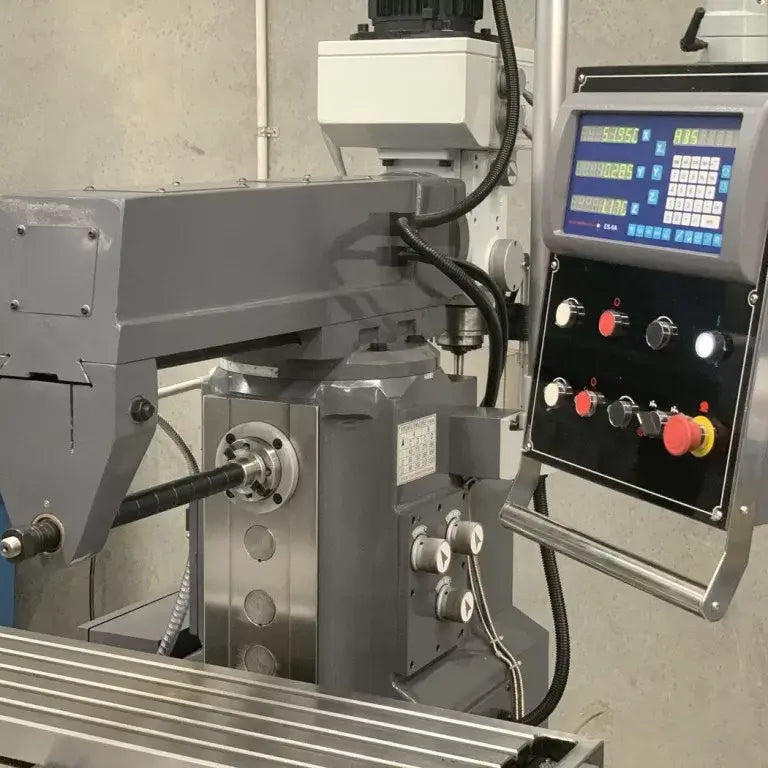

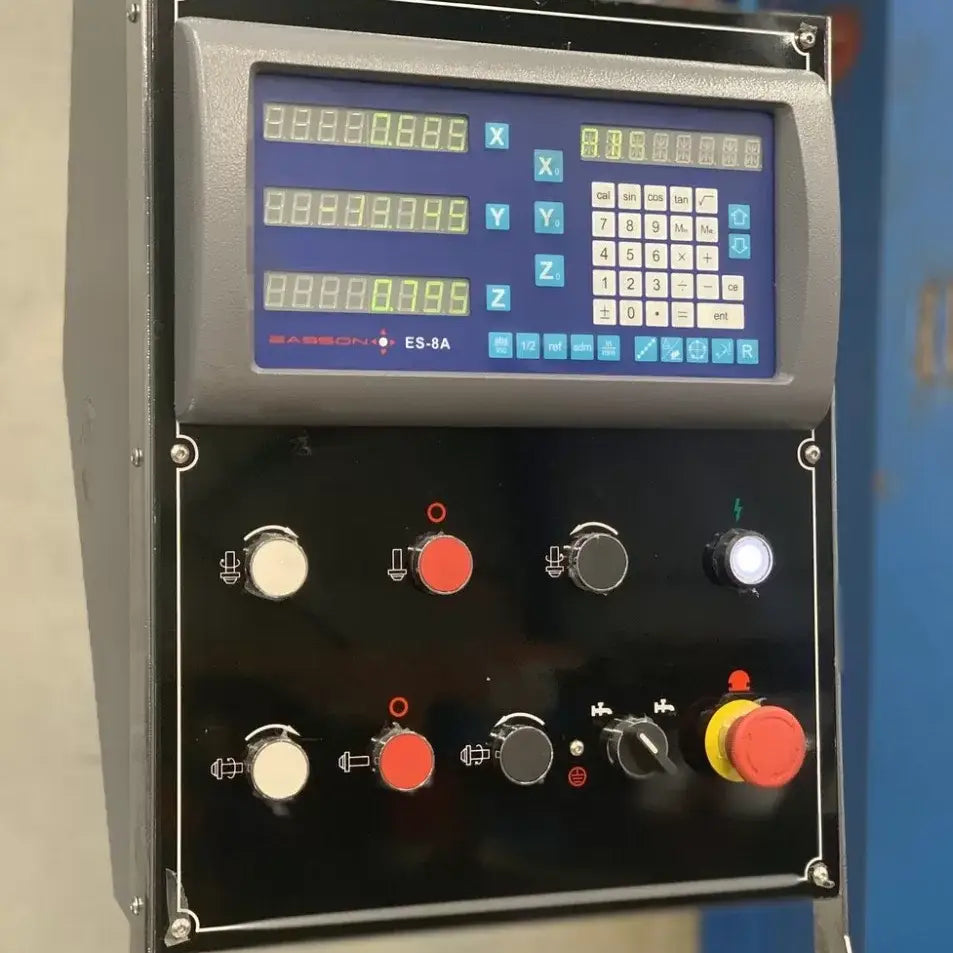

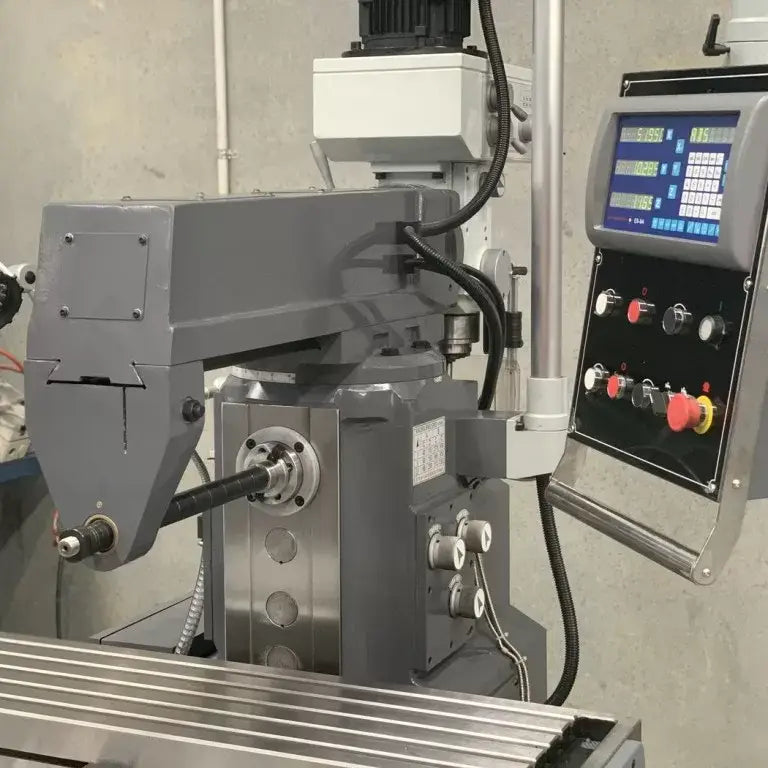

3 axis DRO fitted
415 Volt operation
Services required to be provided by customer
Includes

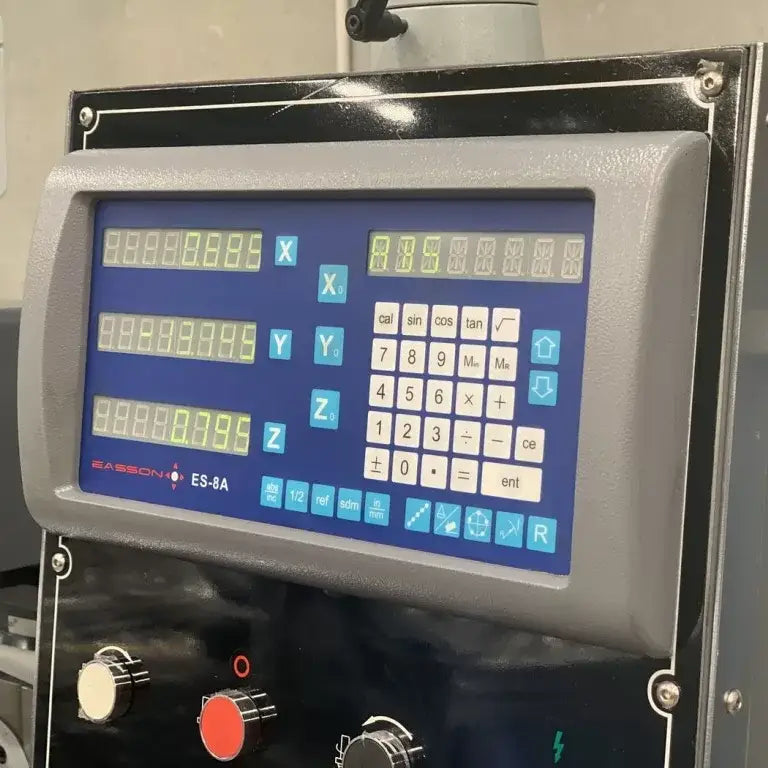

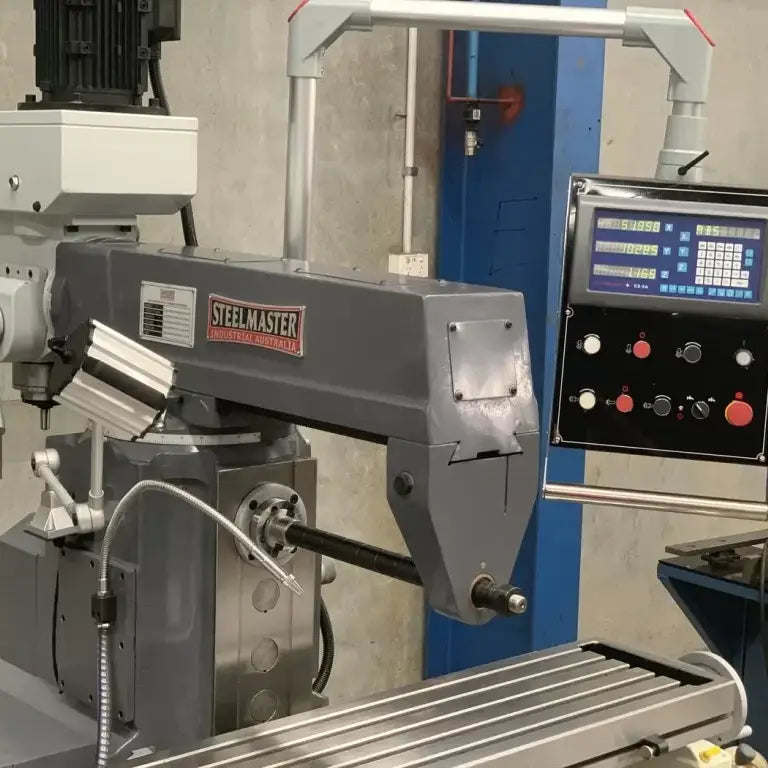

3 Axis digital readout system
Z Axis quill feed

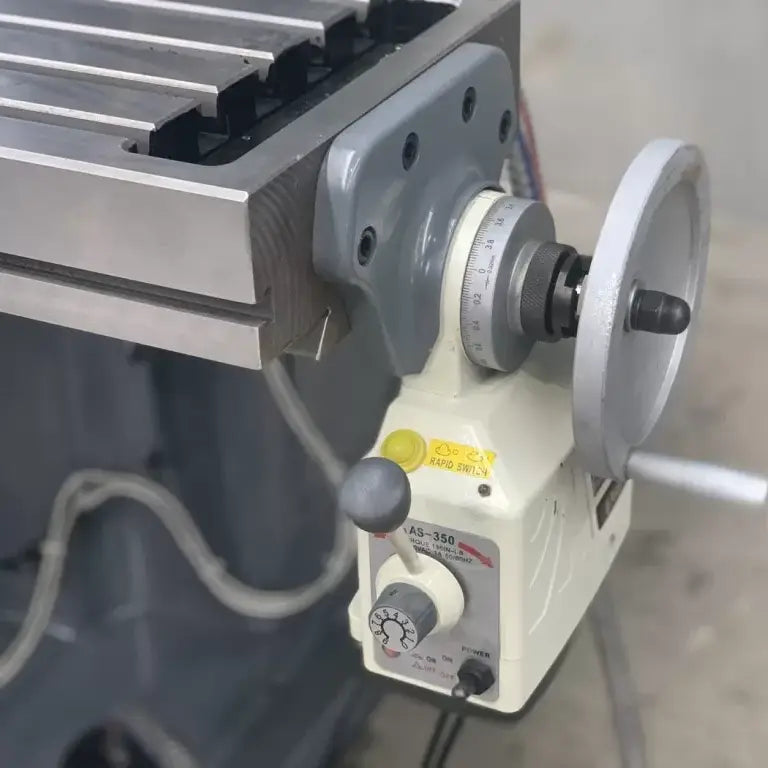

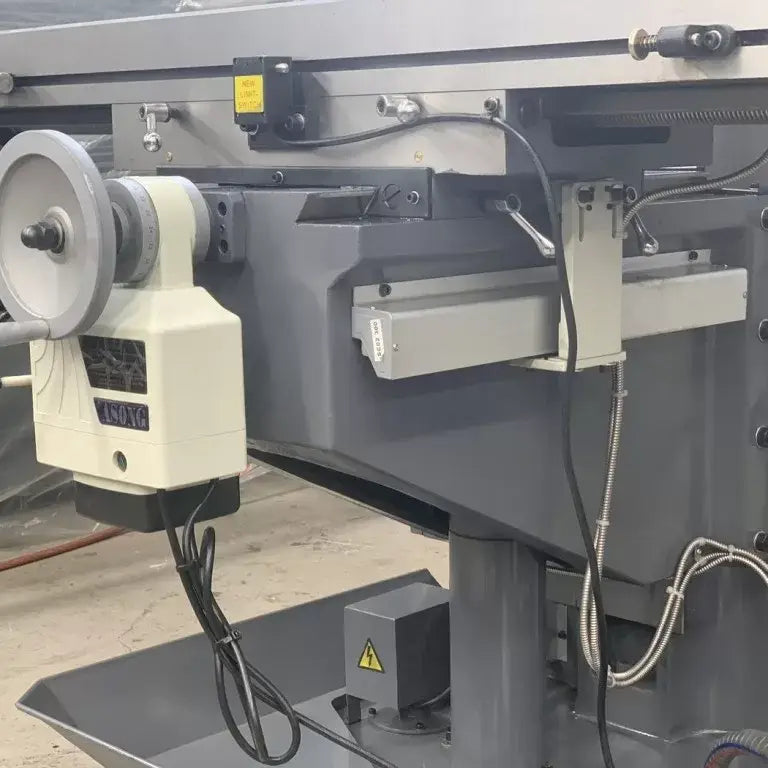

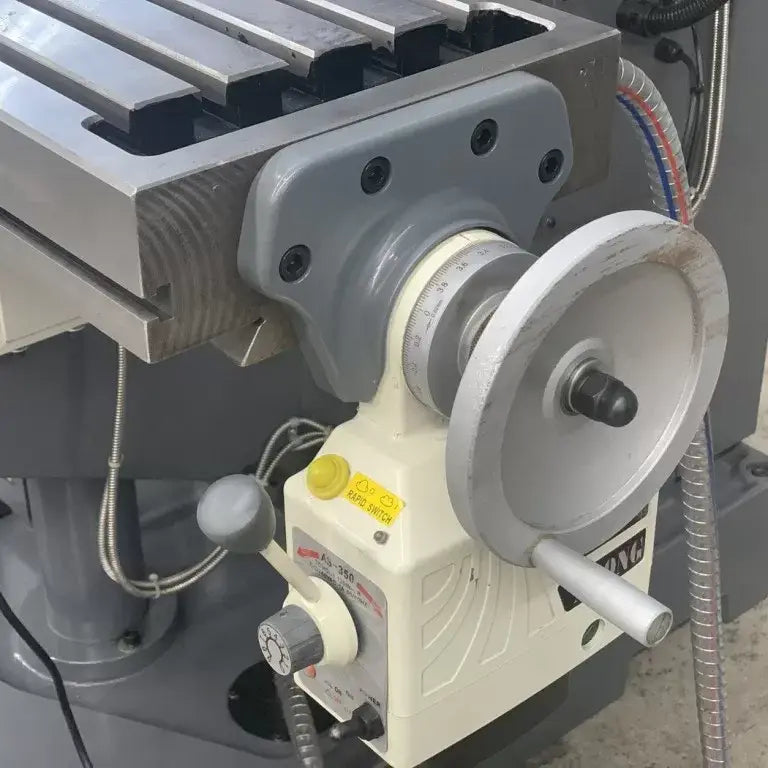

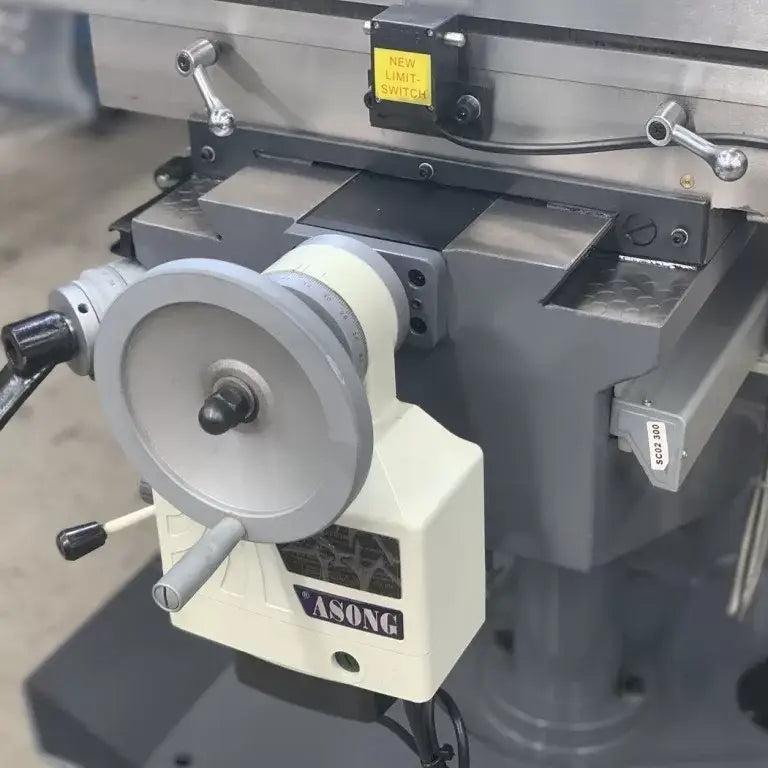

X & Y Axis power-feeds
Safety cutter guard
Swarf tray
Coolant system
Drill chuck & arbor

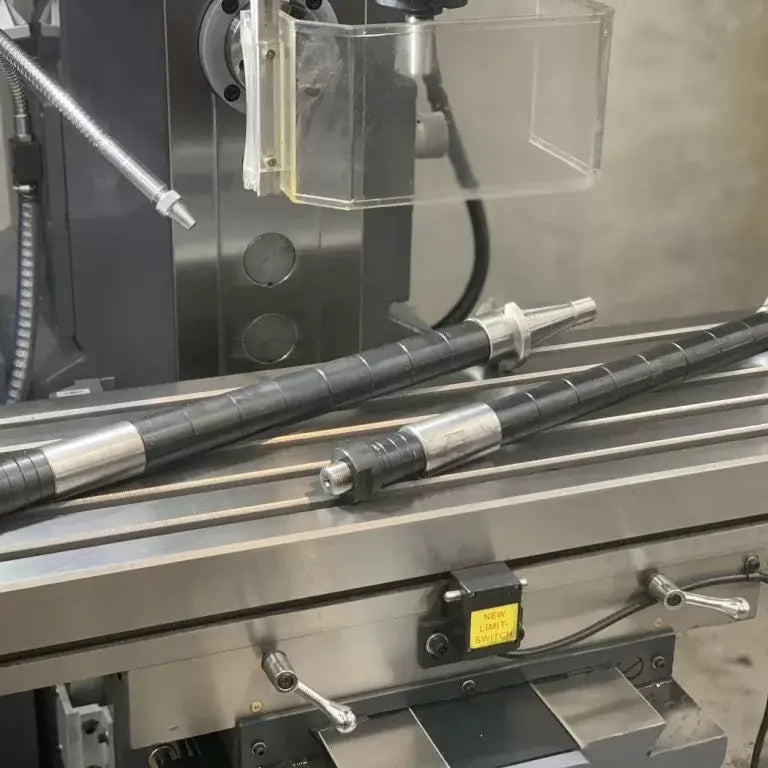

2 x horizontal arbors
2 x NT40 (ISO 40) to 2 & 3MT adaptors

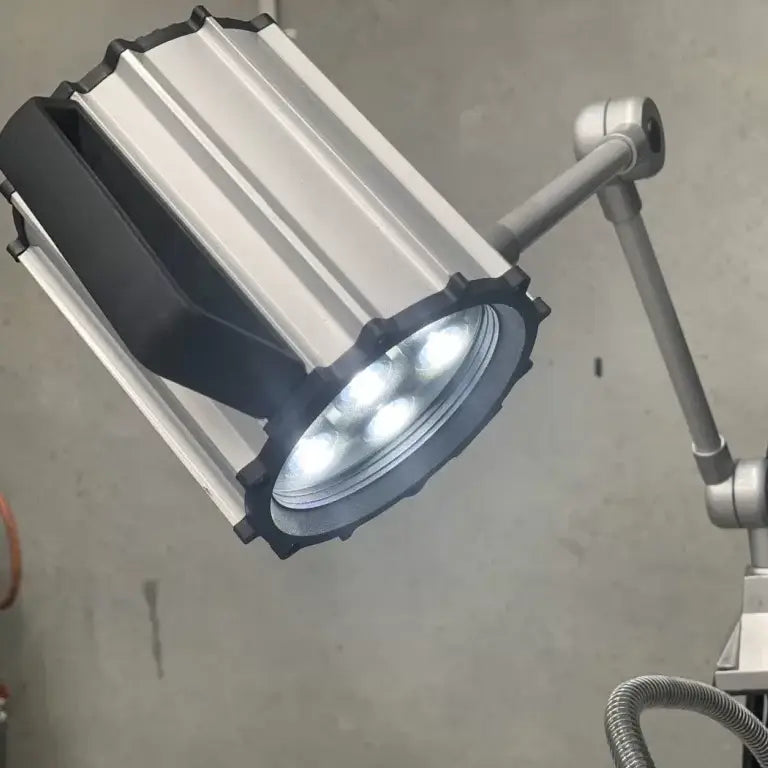

NEW LED lamp
