Steelmaster Industrial | SKU: 13-0213

Universal Mill, ISO 50 Horizontal & ISO 40 Vertical Spindles

Name: Universal Mill, ISO 50 Horizontal & ISO 40 Vertical Spindles
Brand: Steelmaster Industrial
SKU: 13-0213
Price: 39850.00 AUD
Availability: InStock

PRICE EX GST

$39,850.00

PRICE INC GST

$43,835.00

MODEL NUMBER: STEELMASTER-SM-MU2000-UNIVERSAL-MILL

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

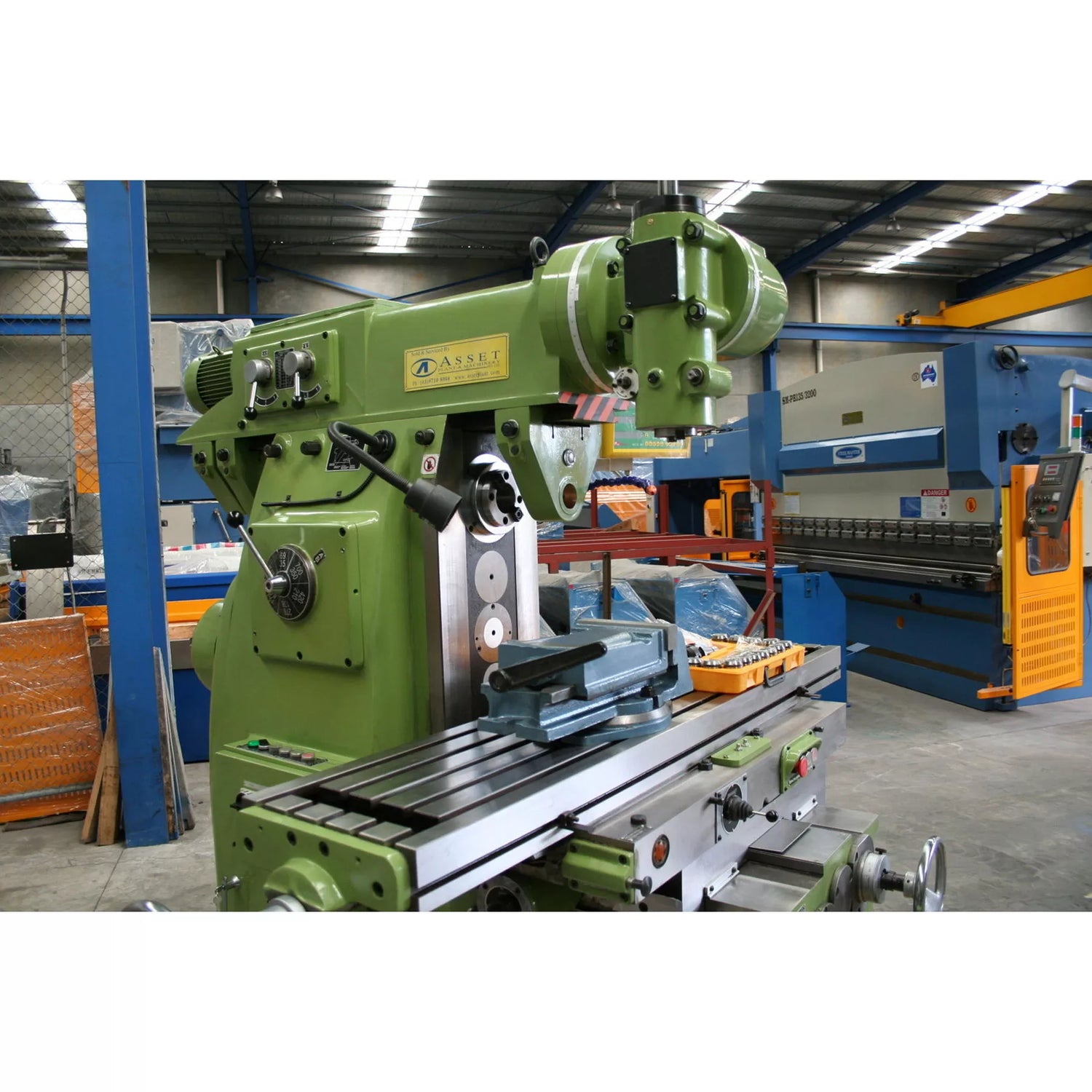

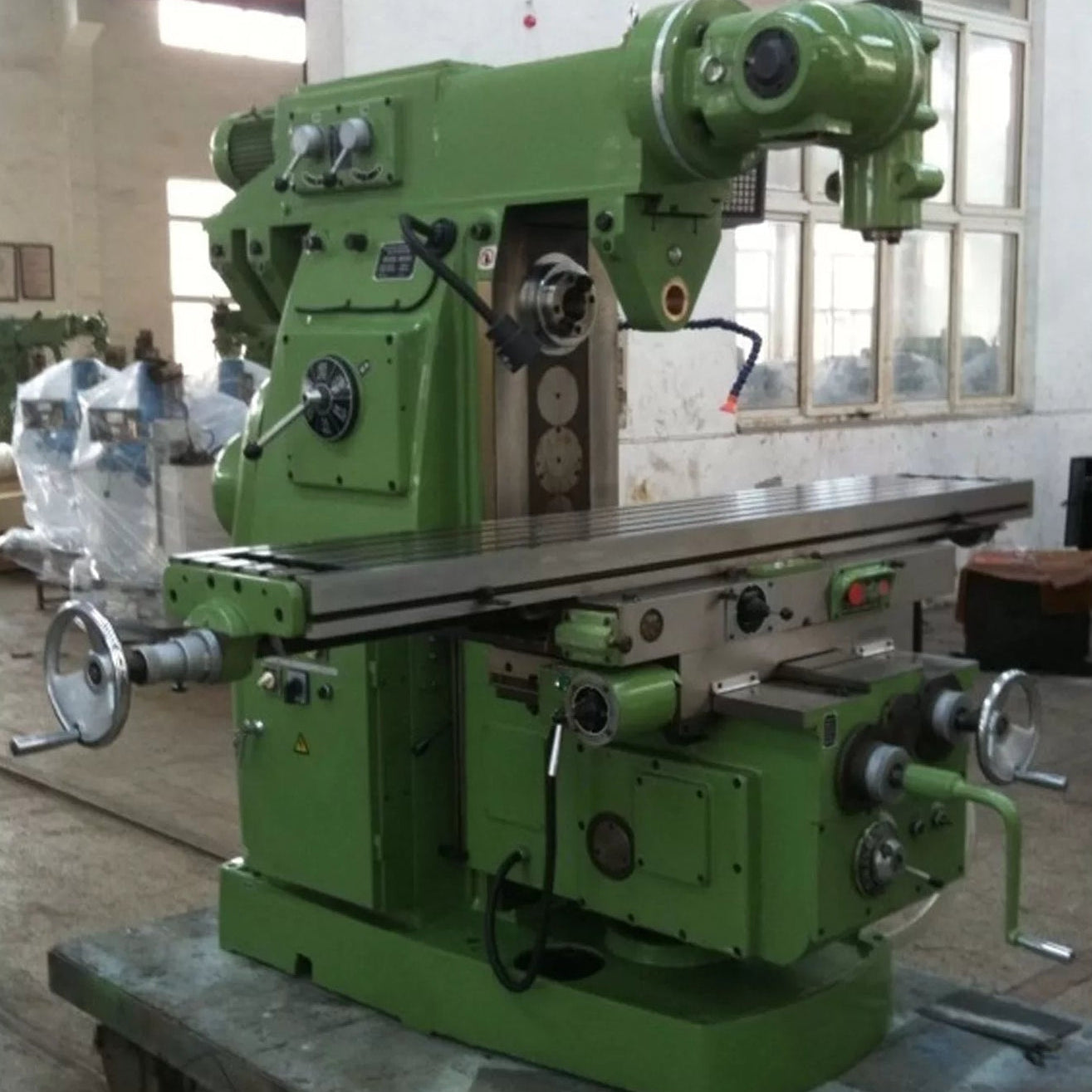

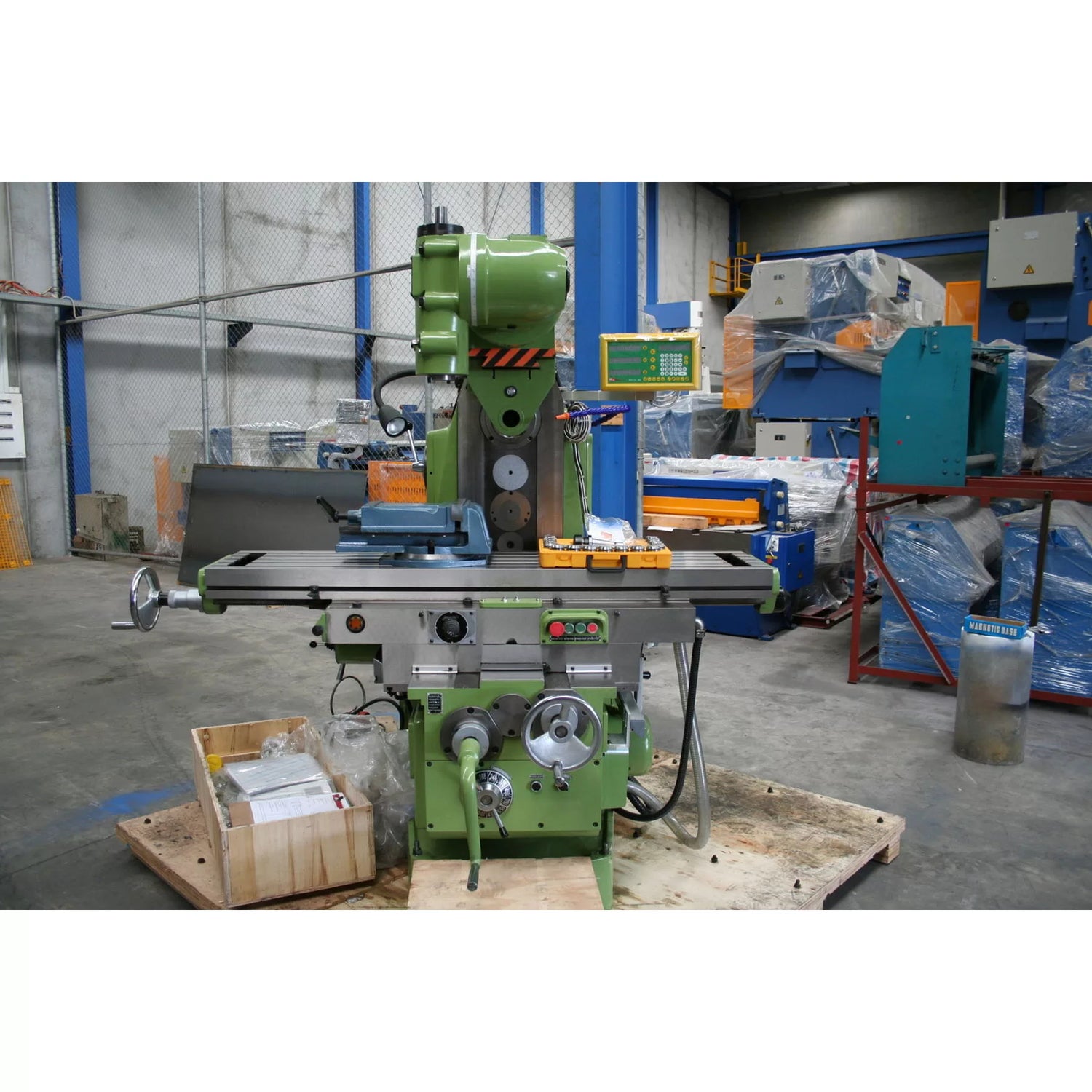

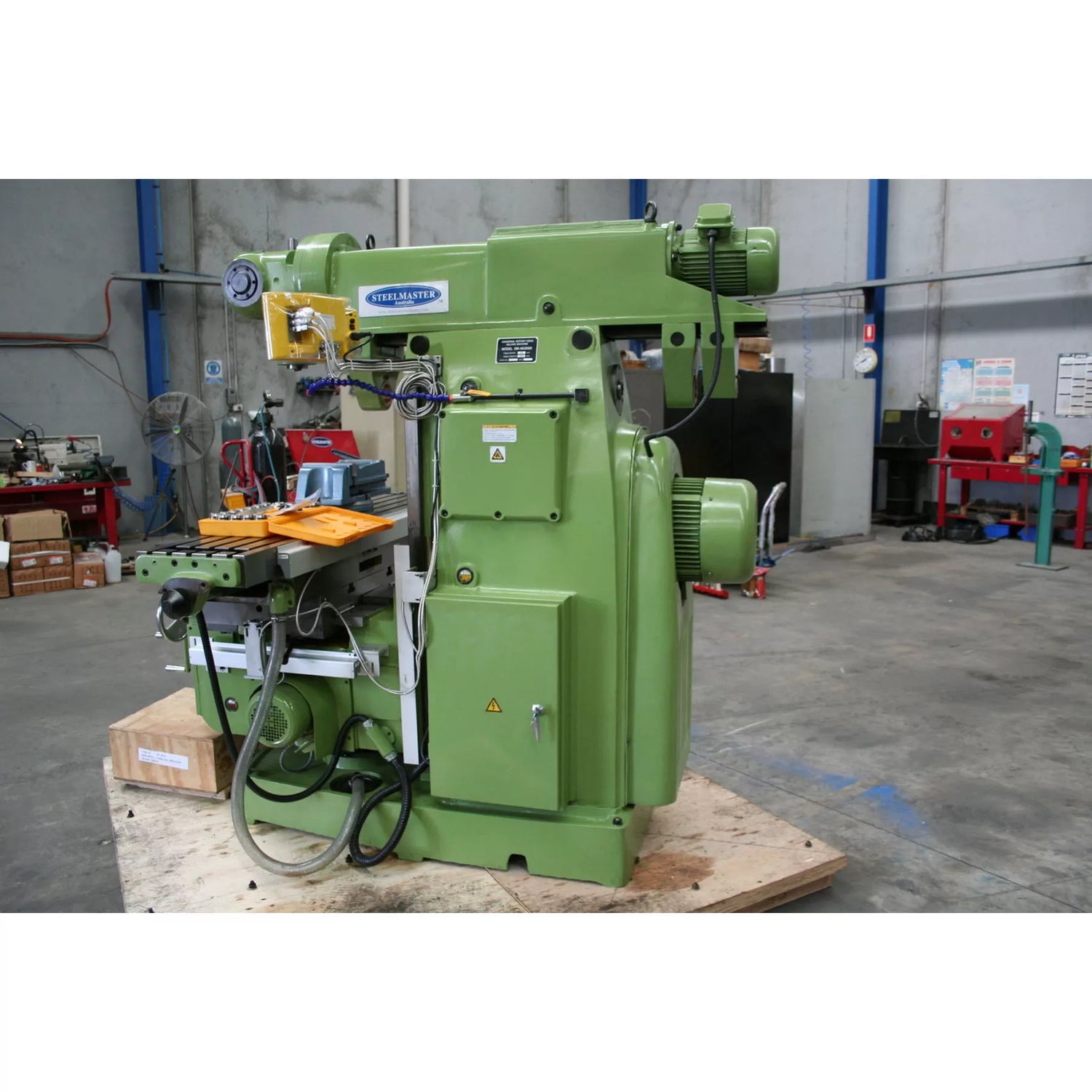

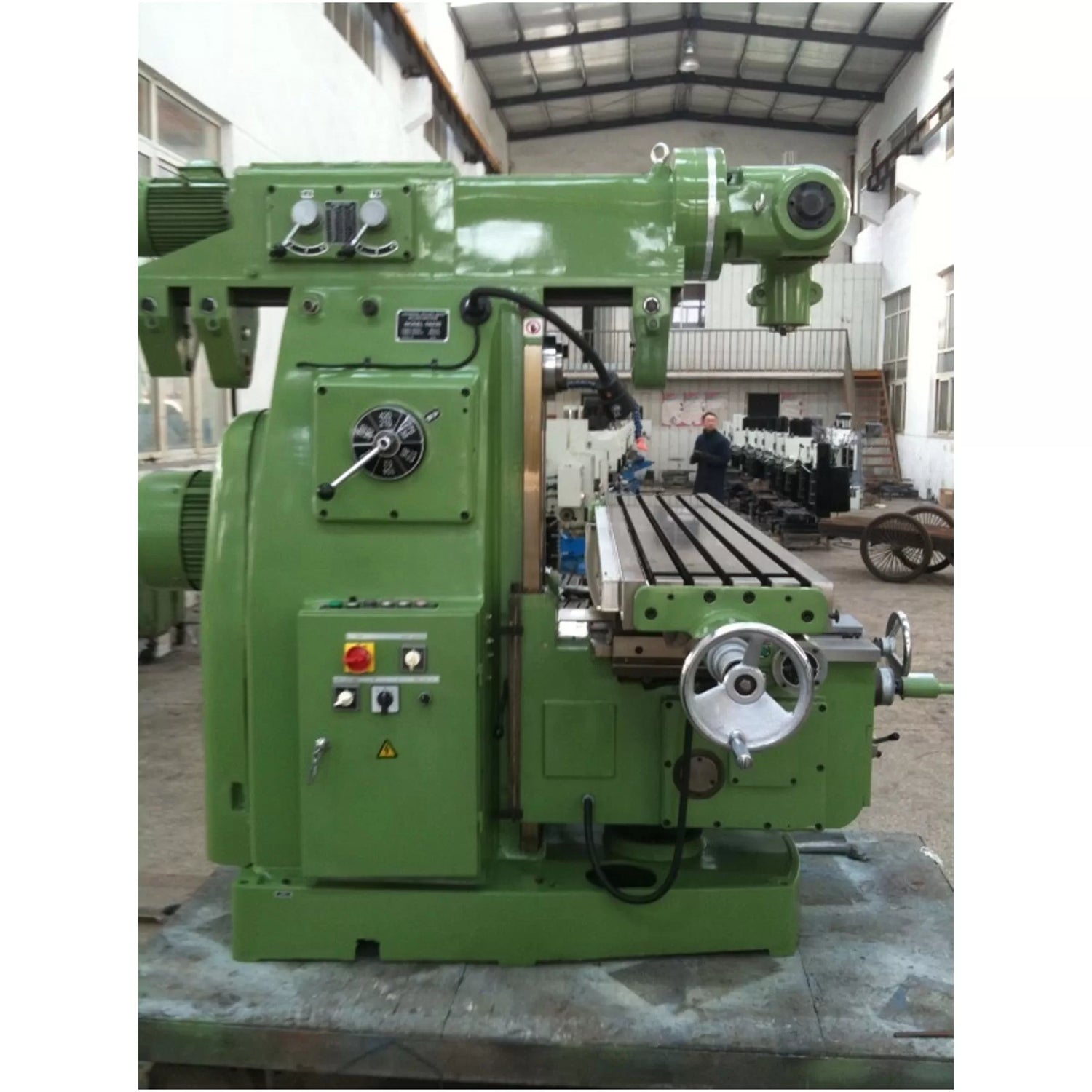

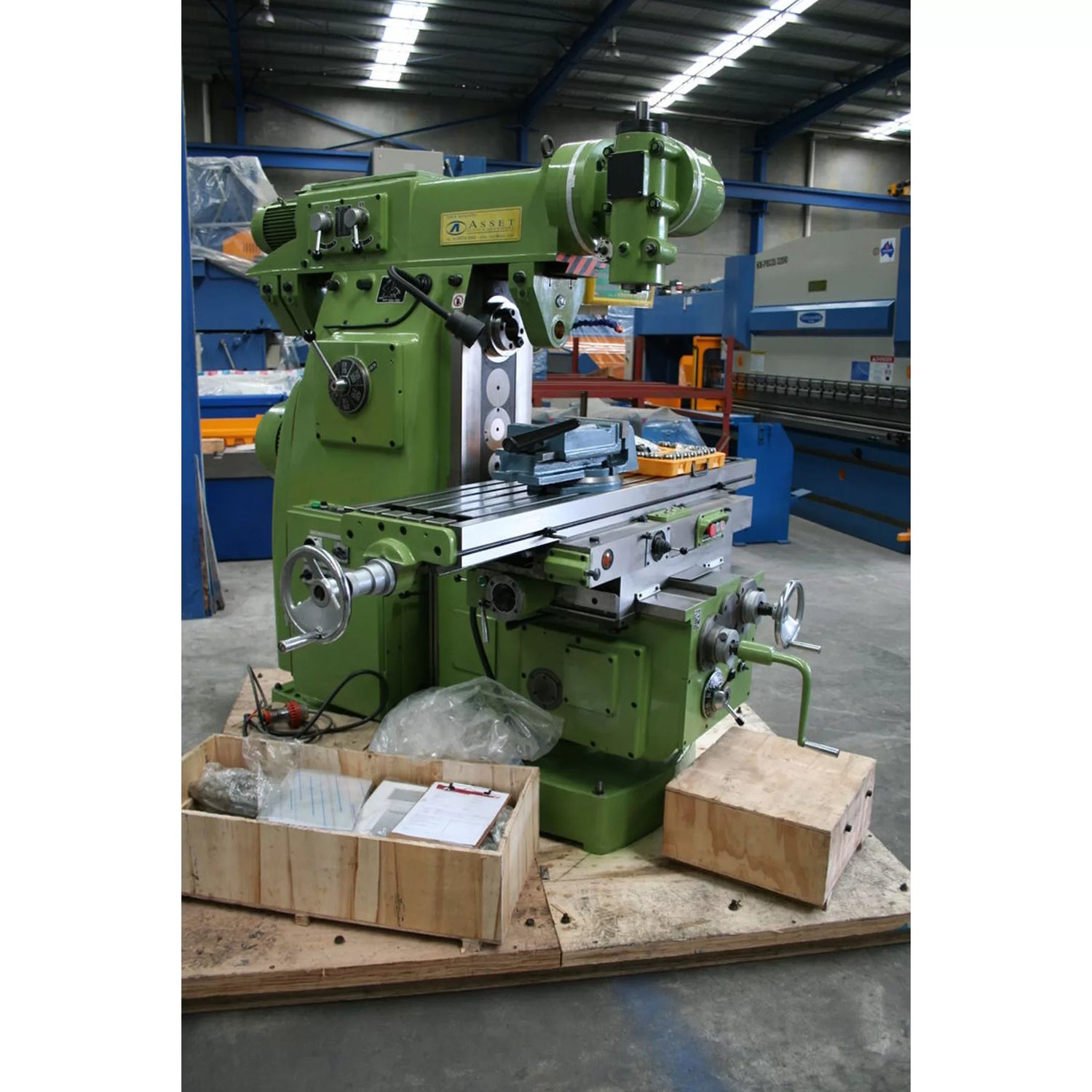

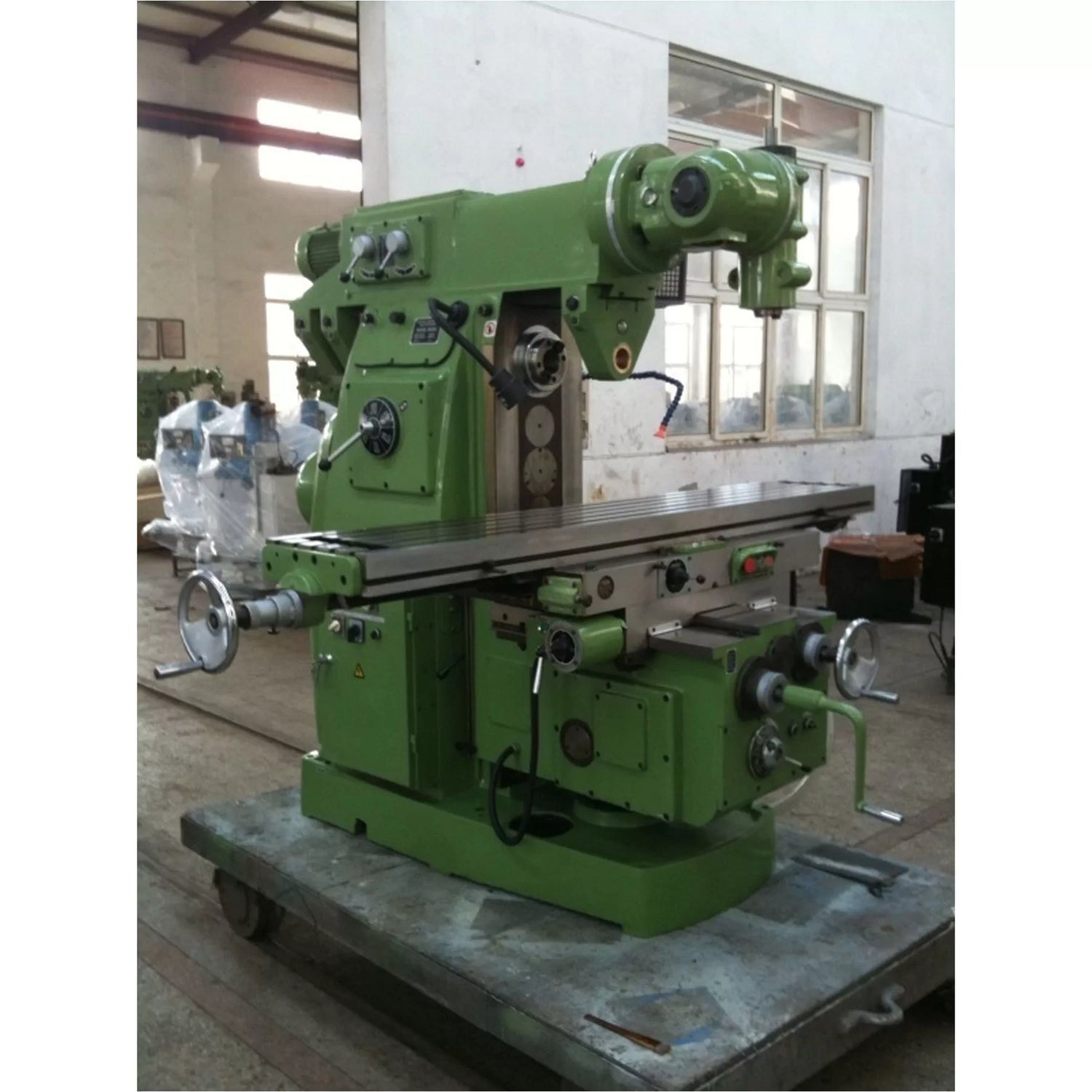

A heavy-duty Steelmaster Universal Mill with ISO 50 horizontal and ISO 40 vertical spindles.

ACCESSORIES INCLUDED

3 axis DRO, halogen work light, horizontal arbor, draw bars, universal swivel head, operating tools, automatic central lubrication, coolant system, test certificate in accordance to DIN 8615

DIMENSIONS

Length -2190 (mm)
Width – 2230 (mm)
Height – 2140 (mm)
Weight – 3100 (kg)

PRODUCT FEATURES

Heavy duty ribbed machine frame ensures maximum rigidity
Rigid, torsion proof powered overarm
Universal by-rotative milling head
Vertical Milling Head Included
Hardened and ground gears, nitride hardened – in oil bath
All operating controls on this machine can be operated from the front of the machine with easy access
Automatic feeds on all 3 axis directions
Automatic lubrication system
Suds pump and coolant system
Halogen work light

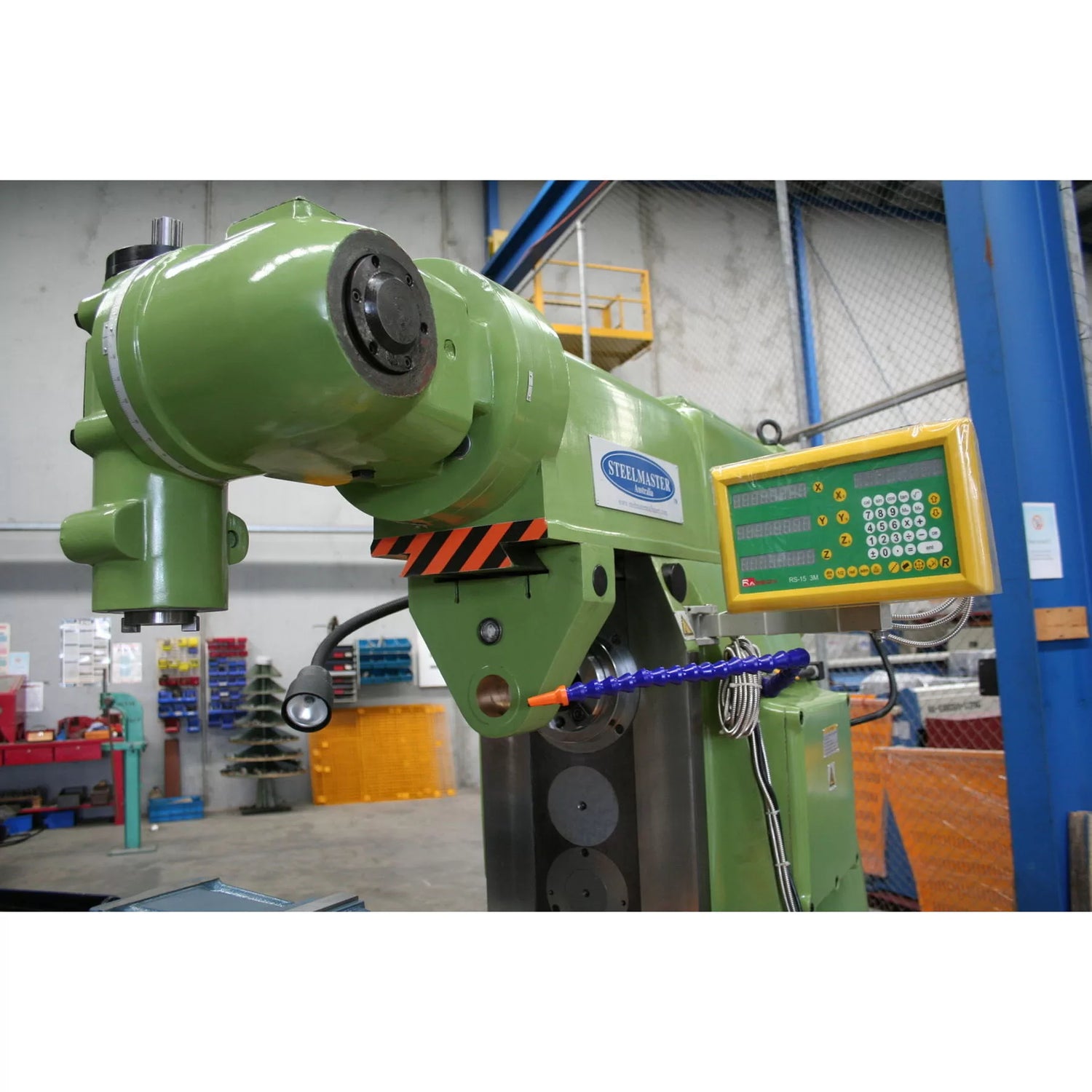

Multifunction 3 axis DRO
Splash guard / chip tray
Tool kit
Operation manual
CE compliant

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

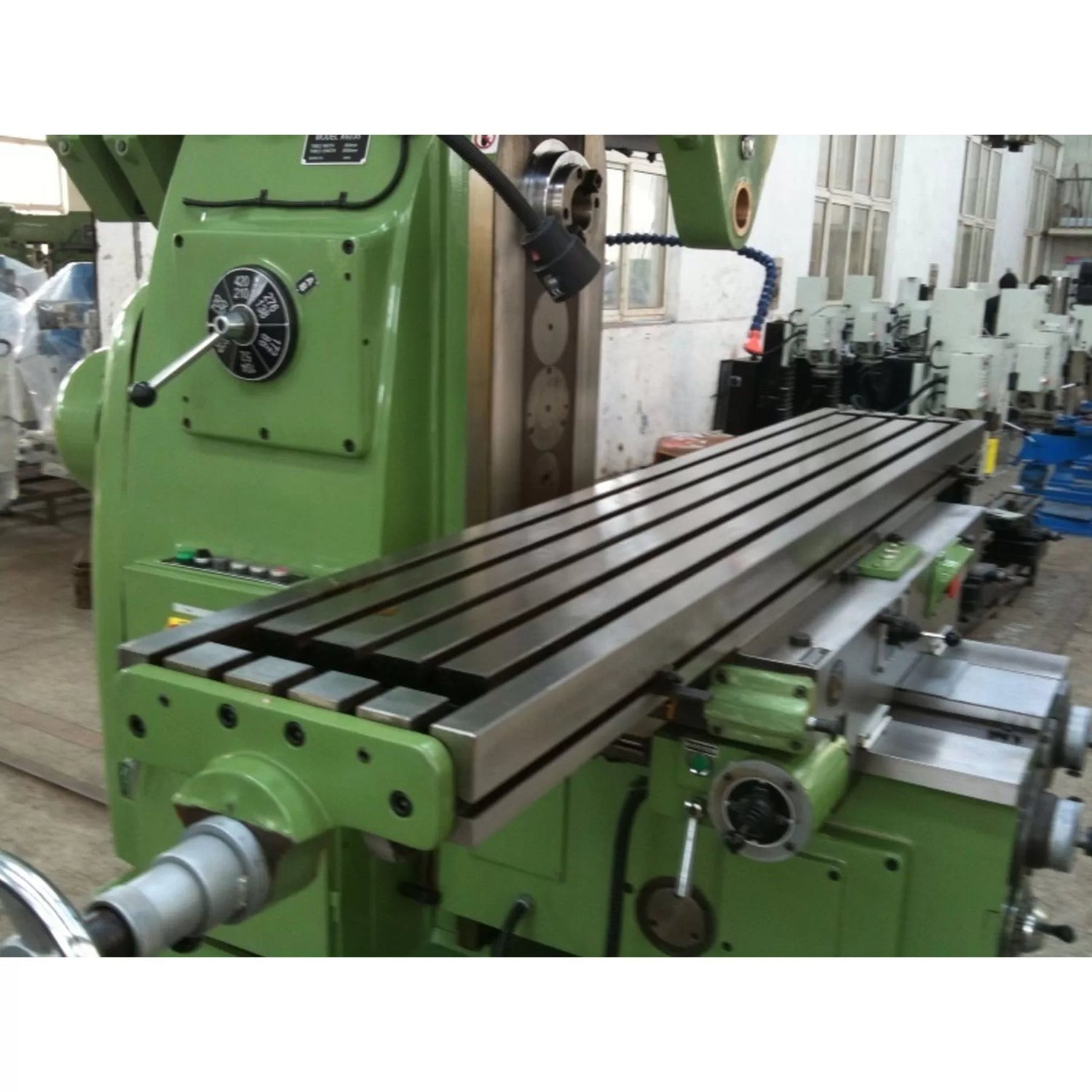

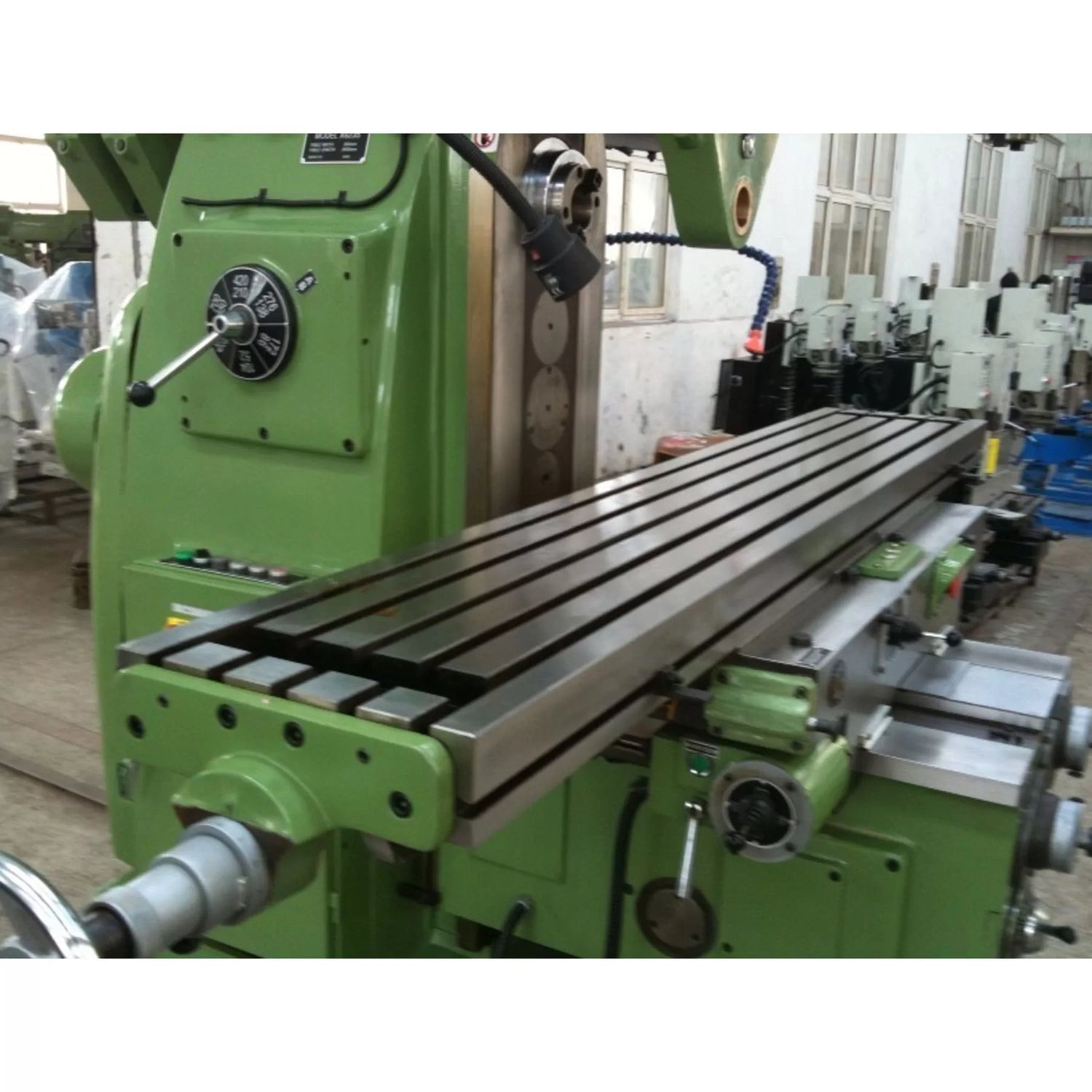

Work Table Size – 2000mm x 350mm
Max Travel of Table – 1000mm
Cross Travel – 300mm
Vertical Travel – 400mm
Vertical Milling Head Included
Max. Swivel of Table – 45 Degrees +/-
Horizontal Spindle – 50 ISO
Vertical Spindle – 40 ISO
Distance Spindle to Table – 30mm ~ 430mm
Horizontal Speed Range – 30/1400RPM
Vertical Speed Range – 30/1400RPM
Feed Range: Cross & Long – 15mm ~ 750mm/min
Vertical Knee Feed – 5mm ~ 250mm/min
Rapids in 3 x Axis
Voltage – 7.5Kw / 415 Volt 3 Phase
