HVAC / Sheetmetal Button Punch Snap Lock. Steelmaster Model: SM-SLC-20. Lock Former 1.0mm Capacity
Sale price
$8,250.00
Regular price
$8,850.00
Unit price
Unavailable

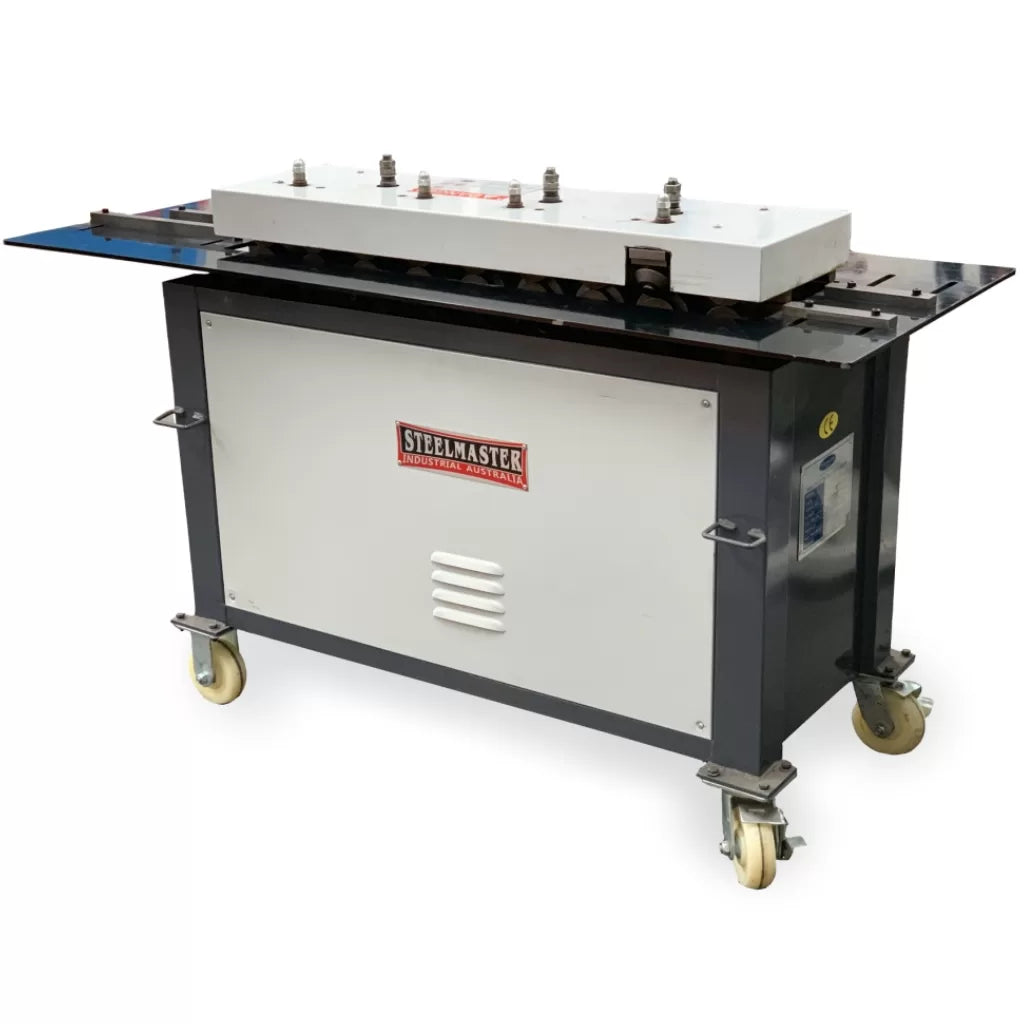

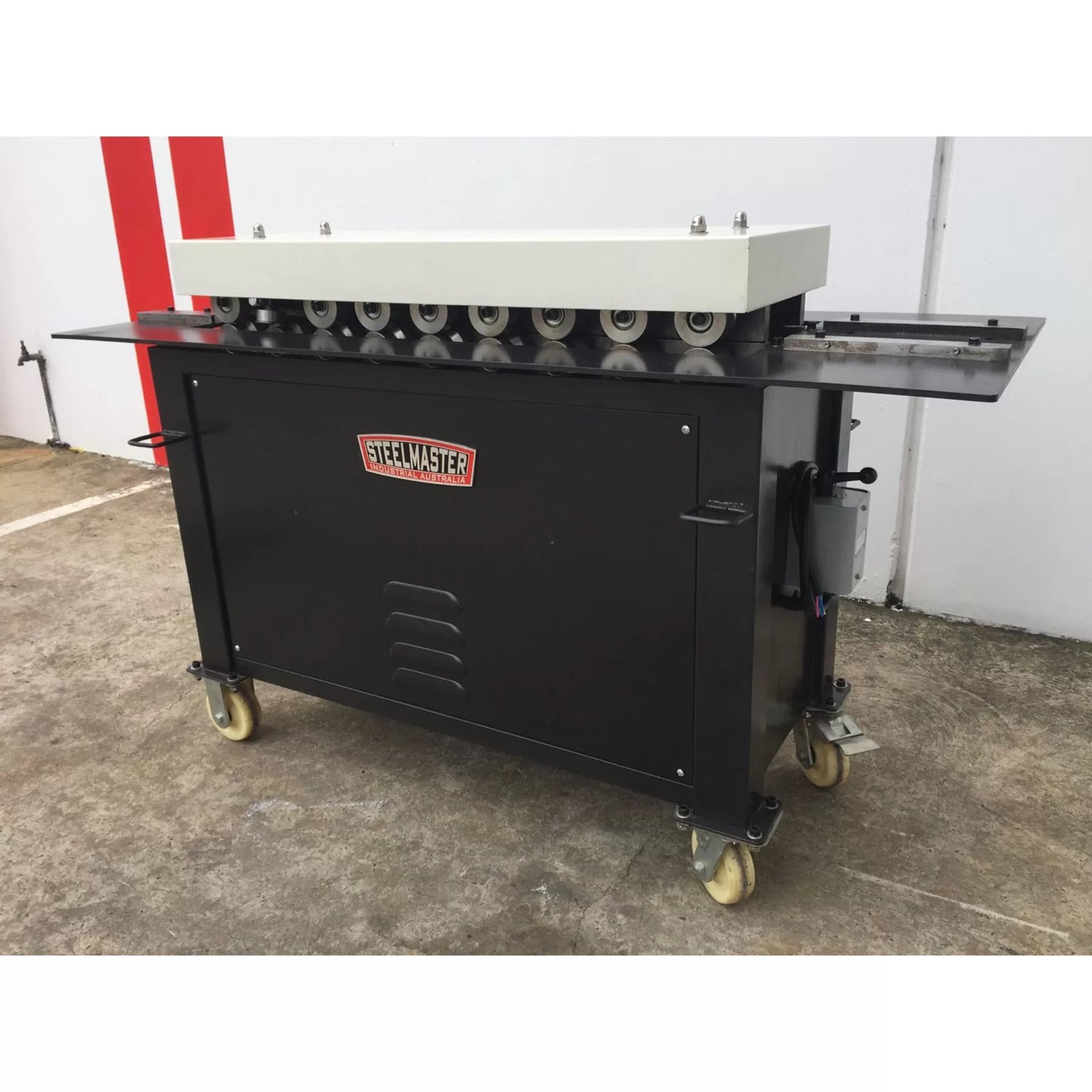

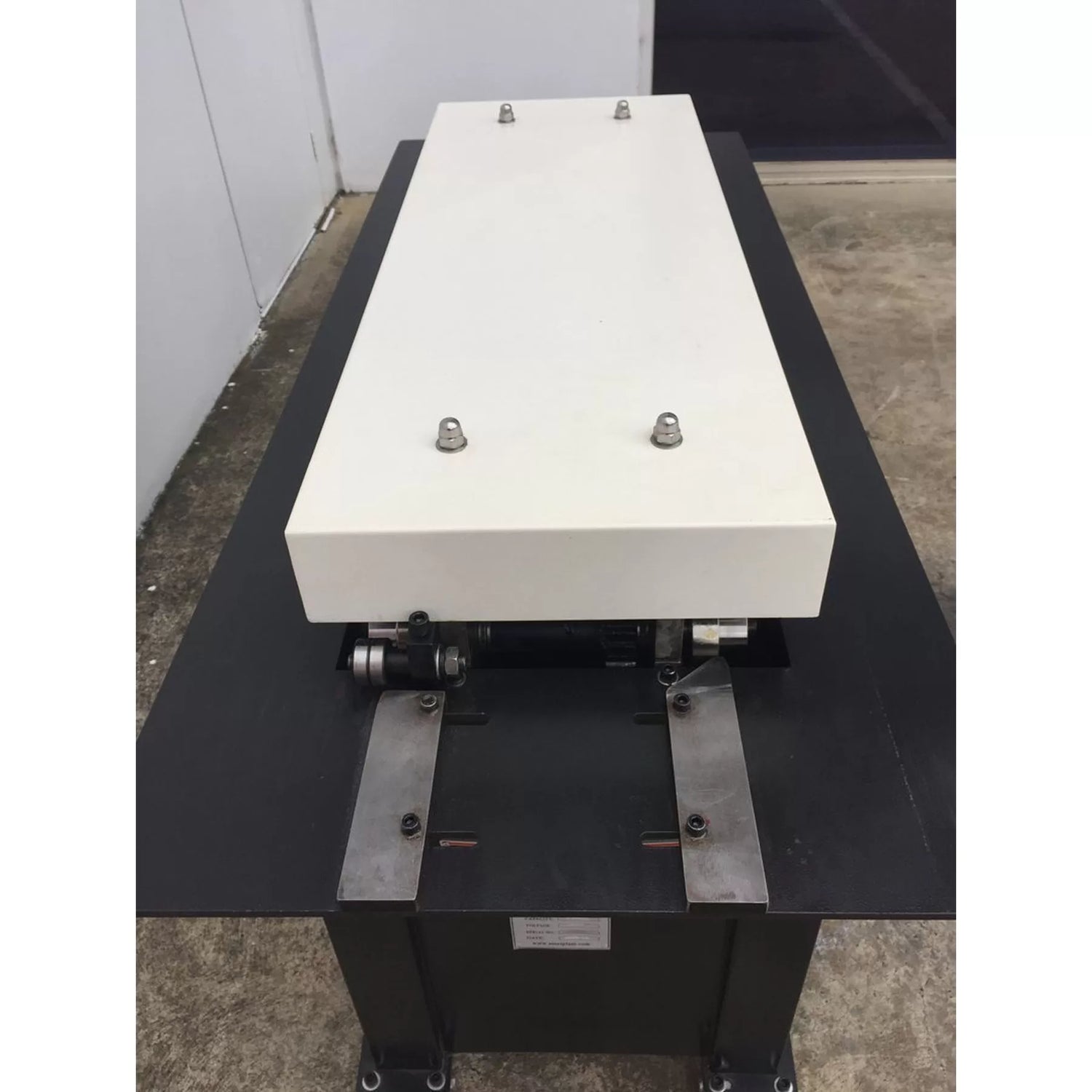

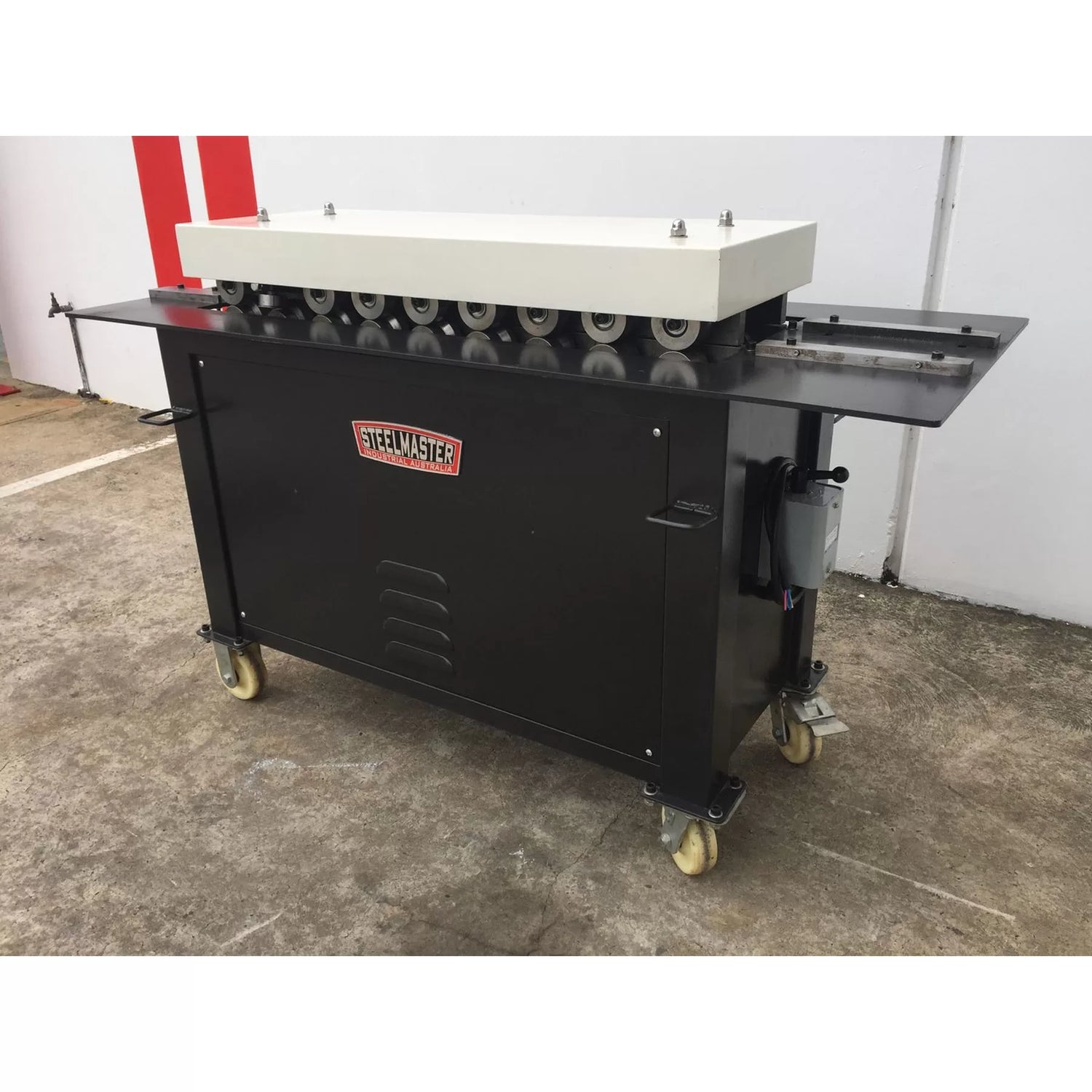

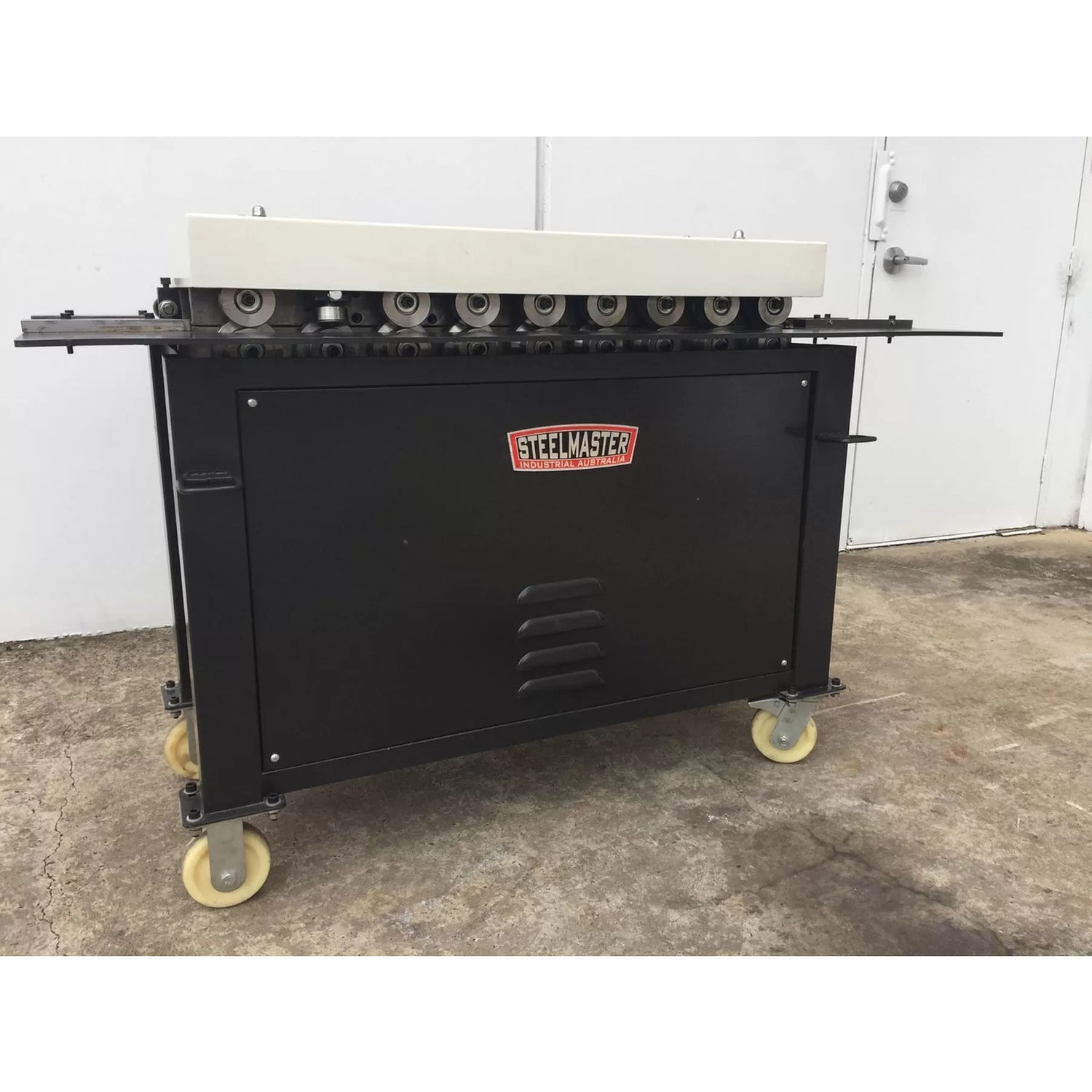

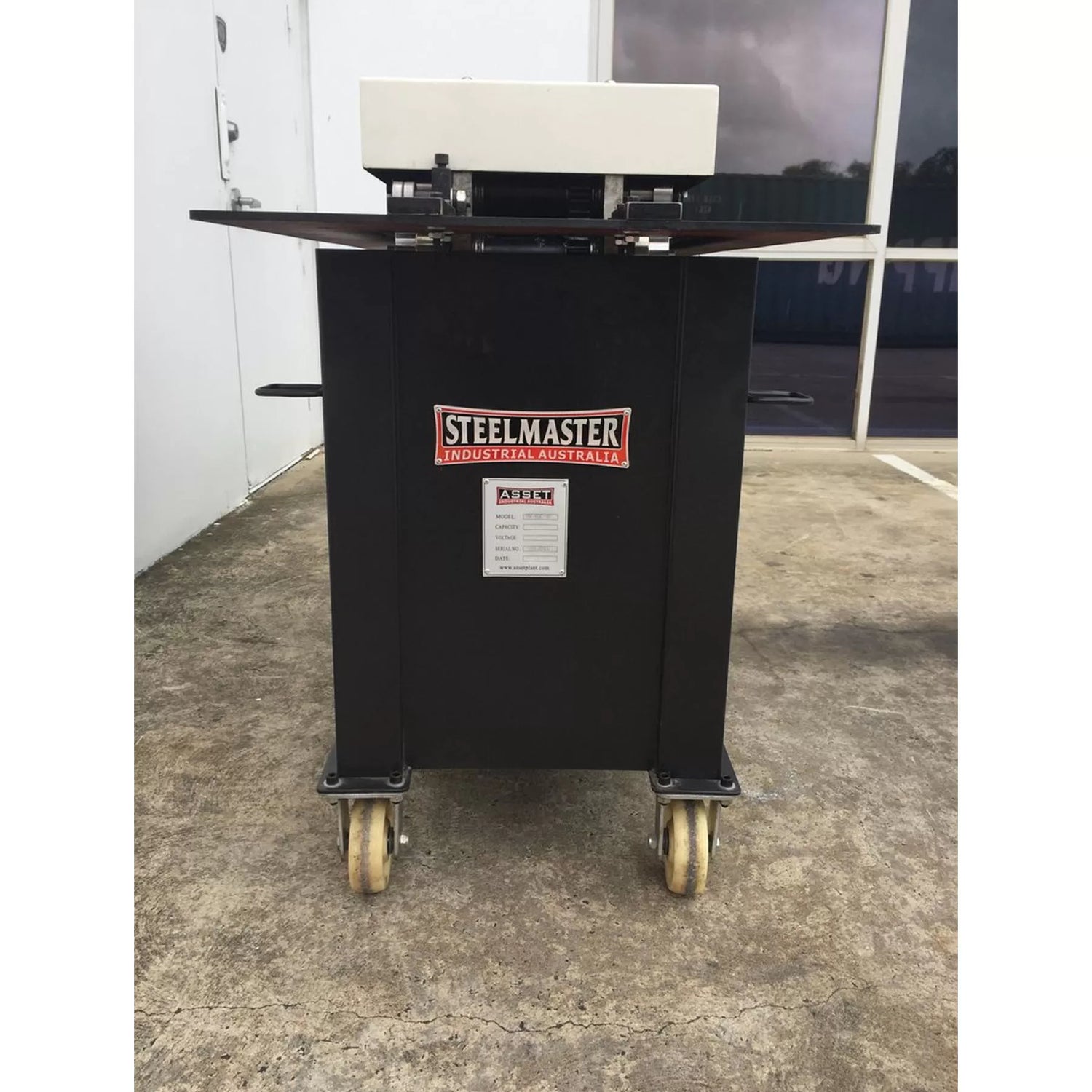

A Steelmaster Button Punch Snap Lock former (1.0mm), ideal for joining sheet metal in HVAC applications.
Technical Data

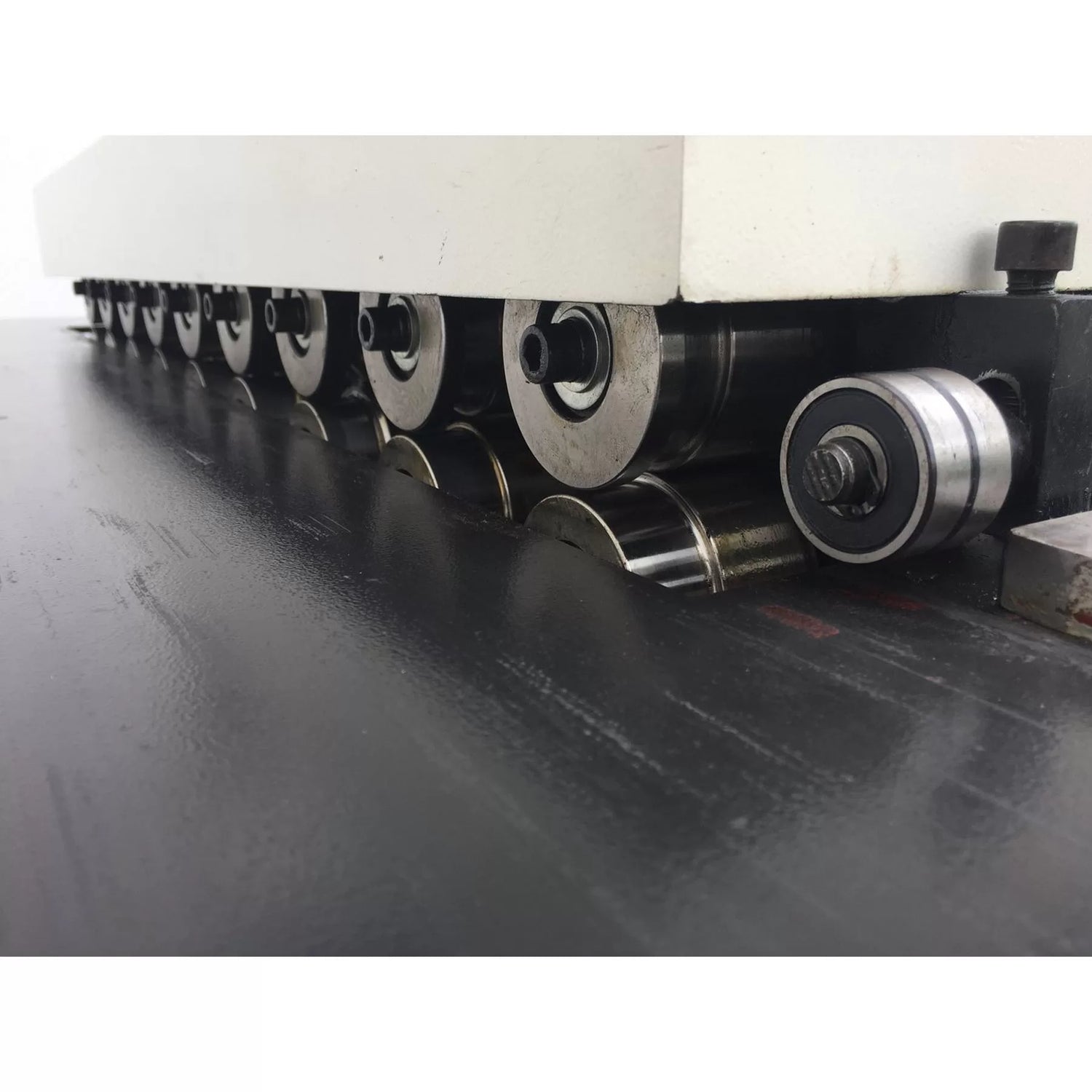

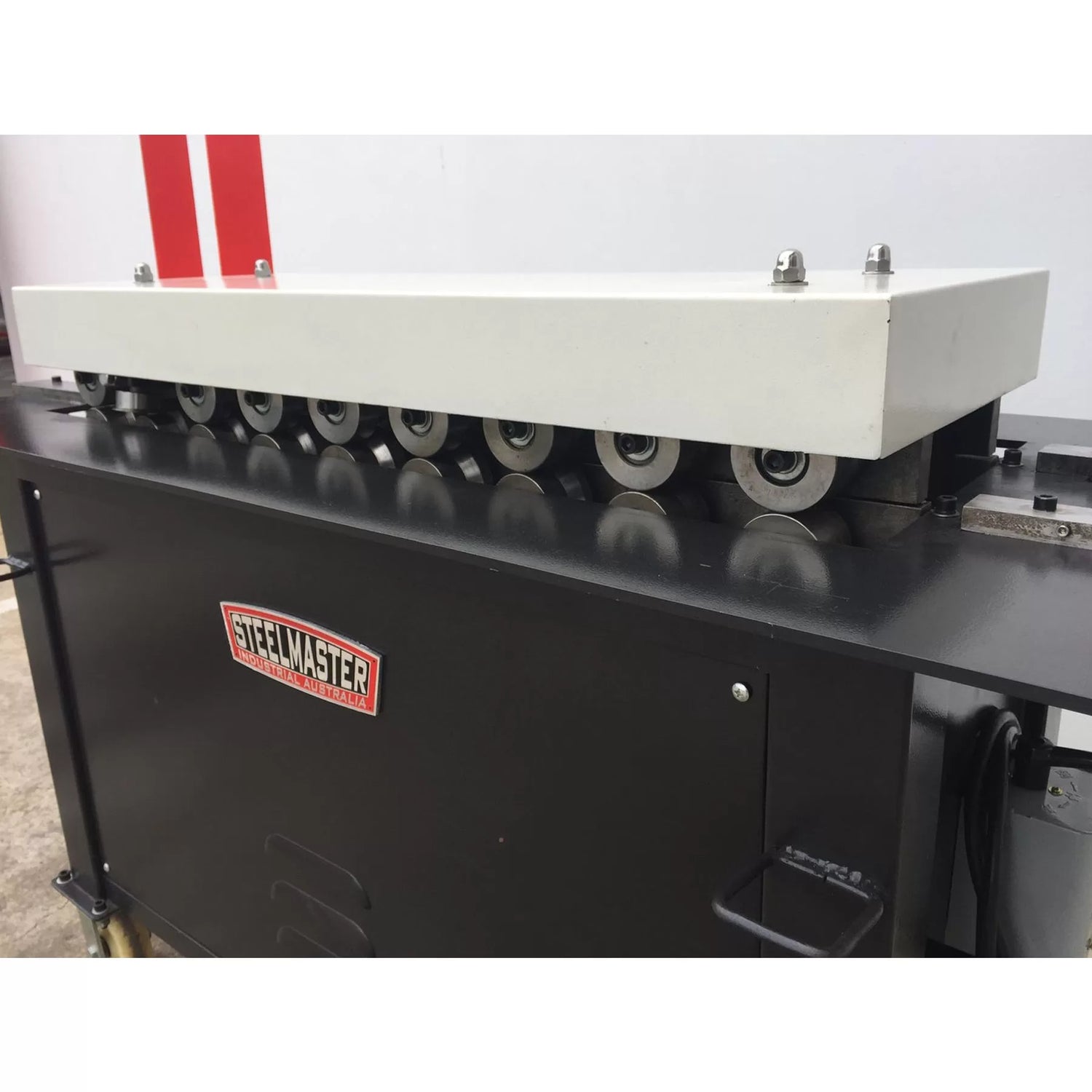

9 stage roll configeration

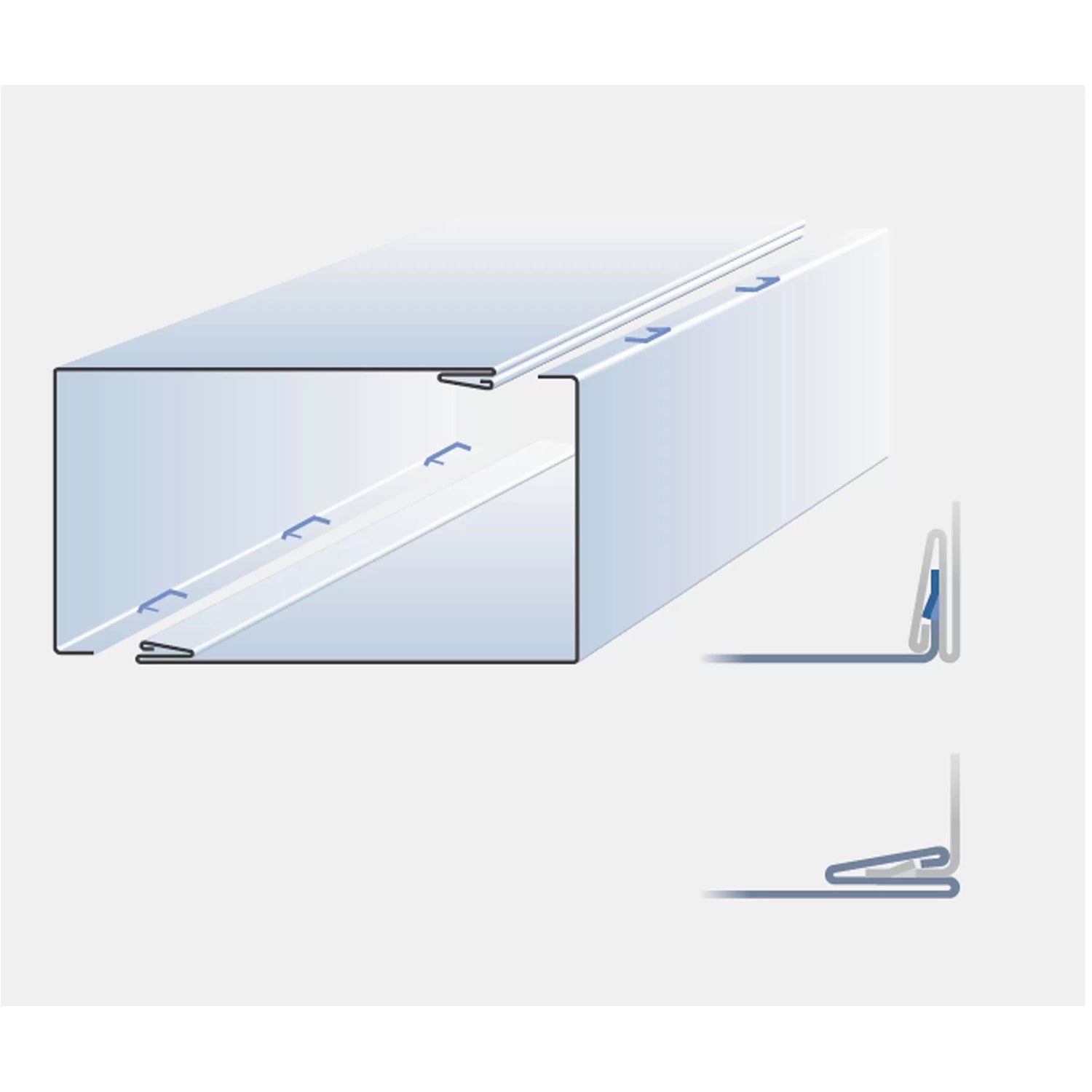

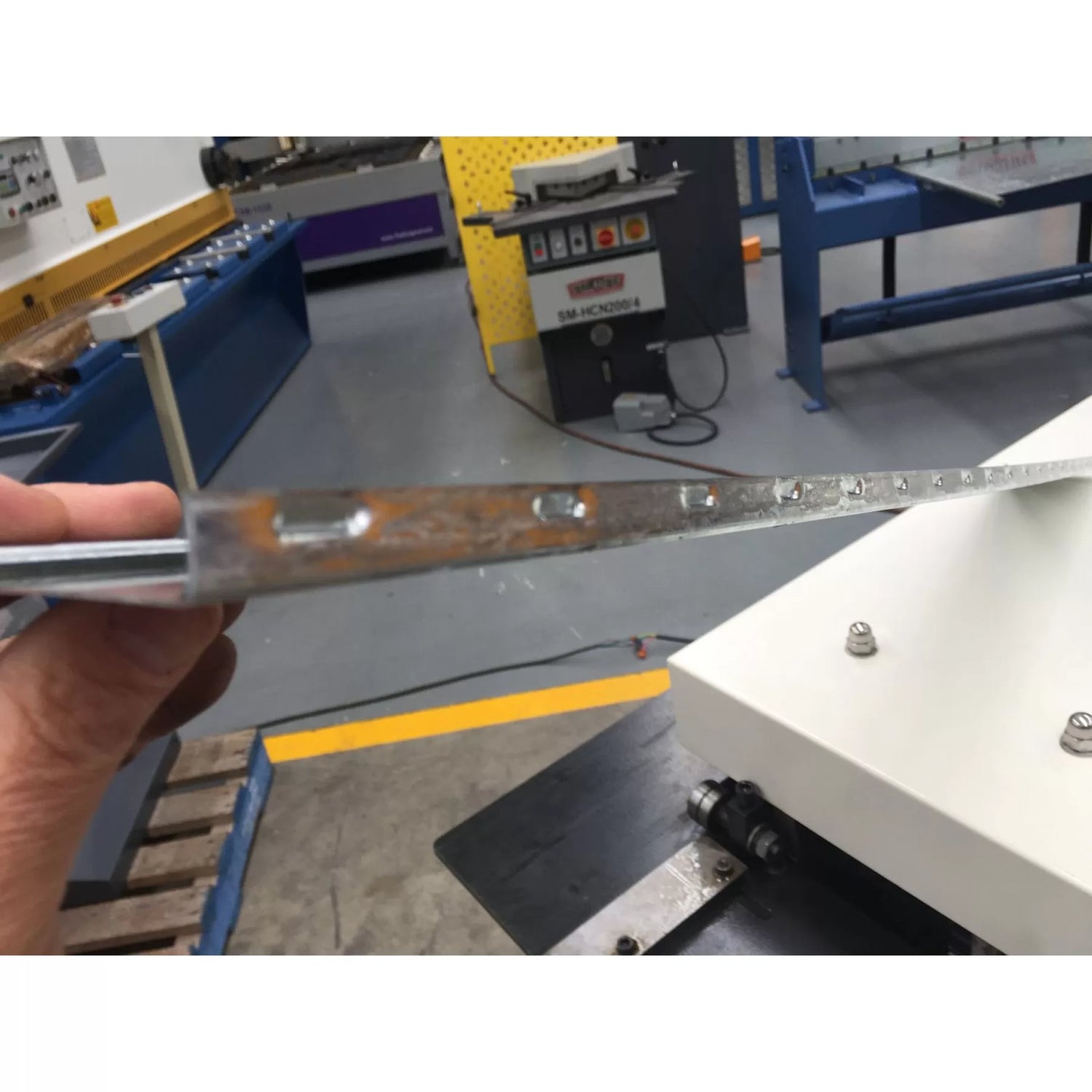

Button punch snap lock with turn up supplied as standard

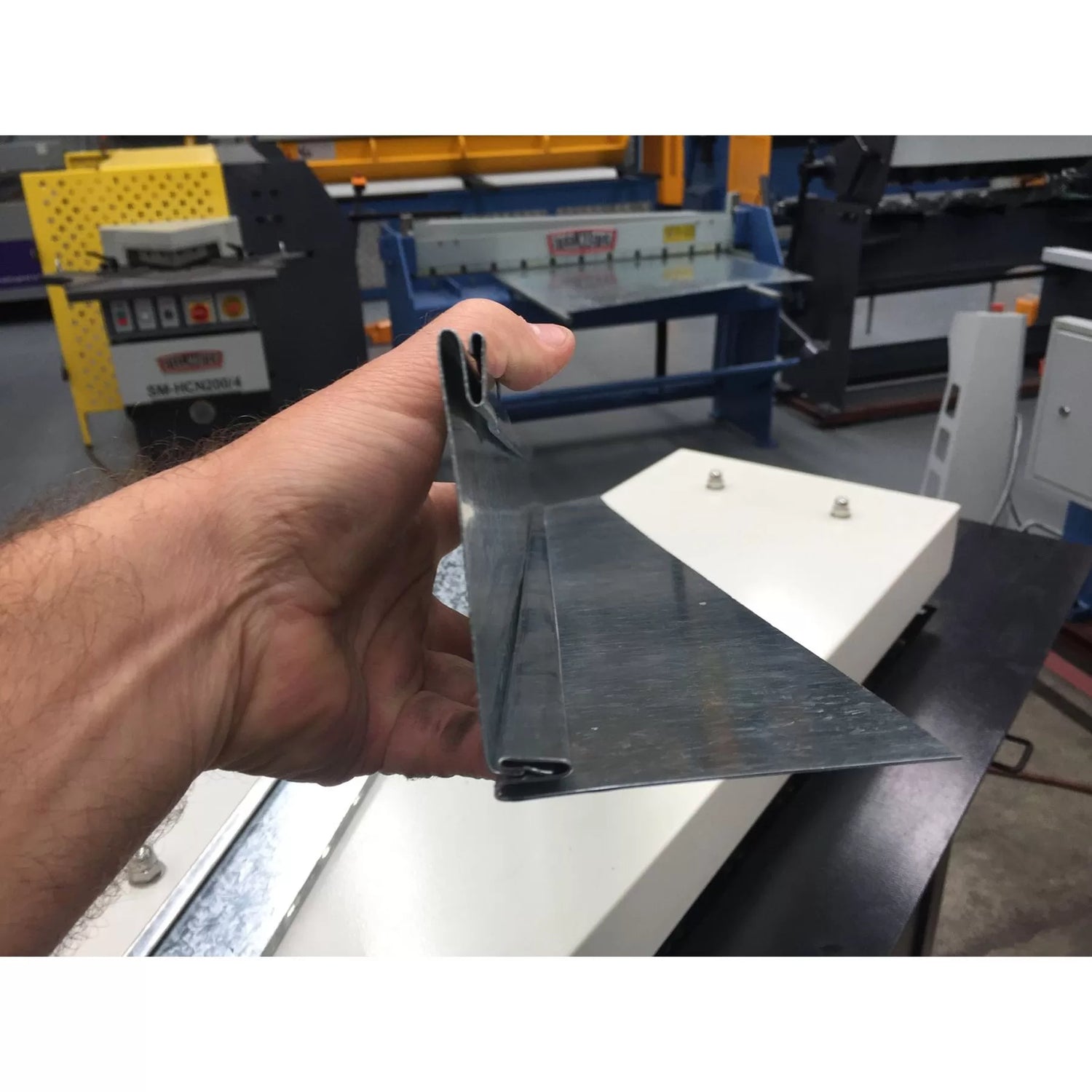

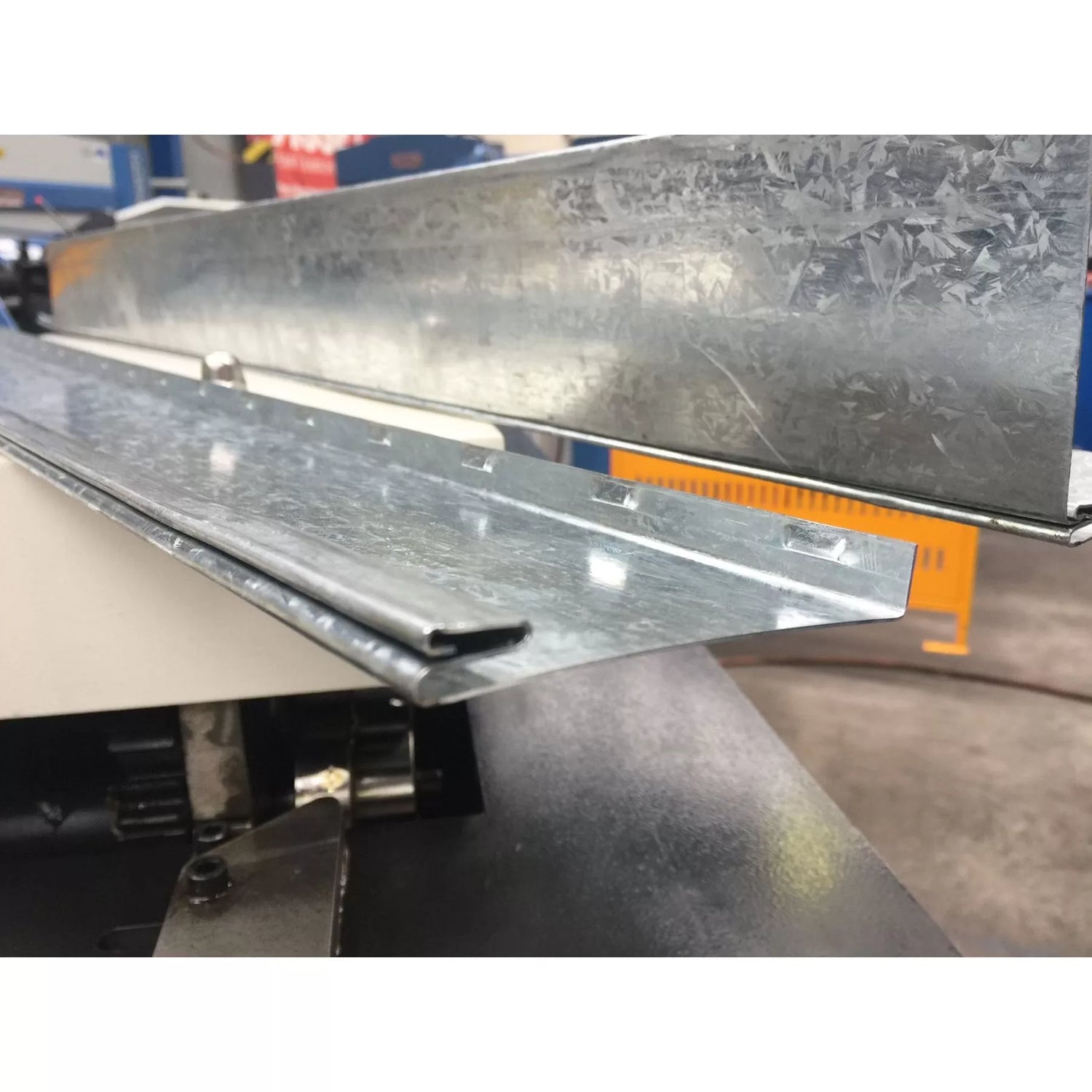

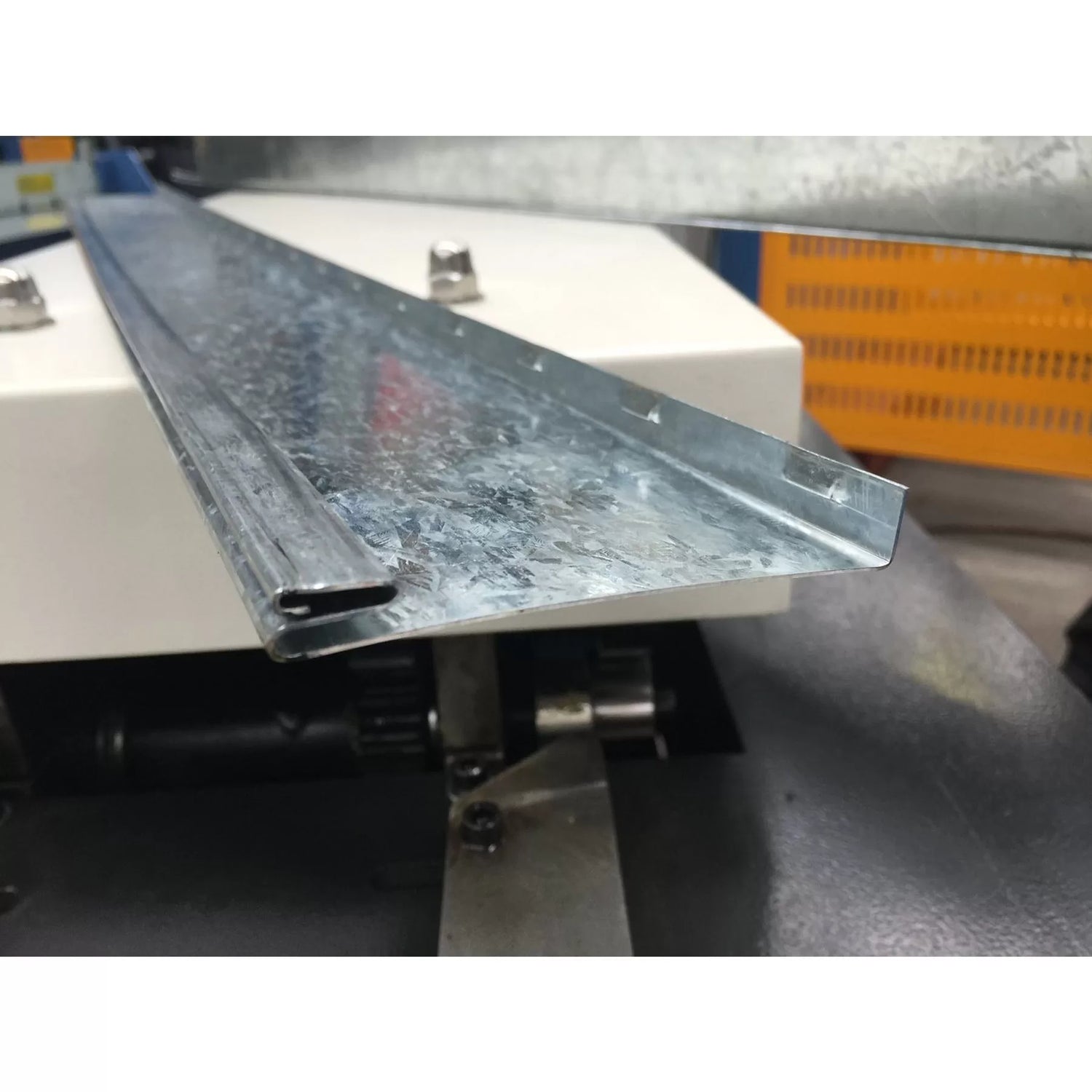

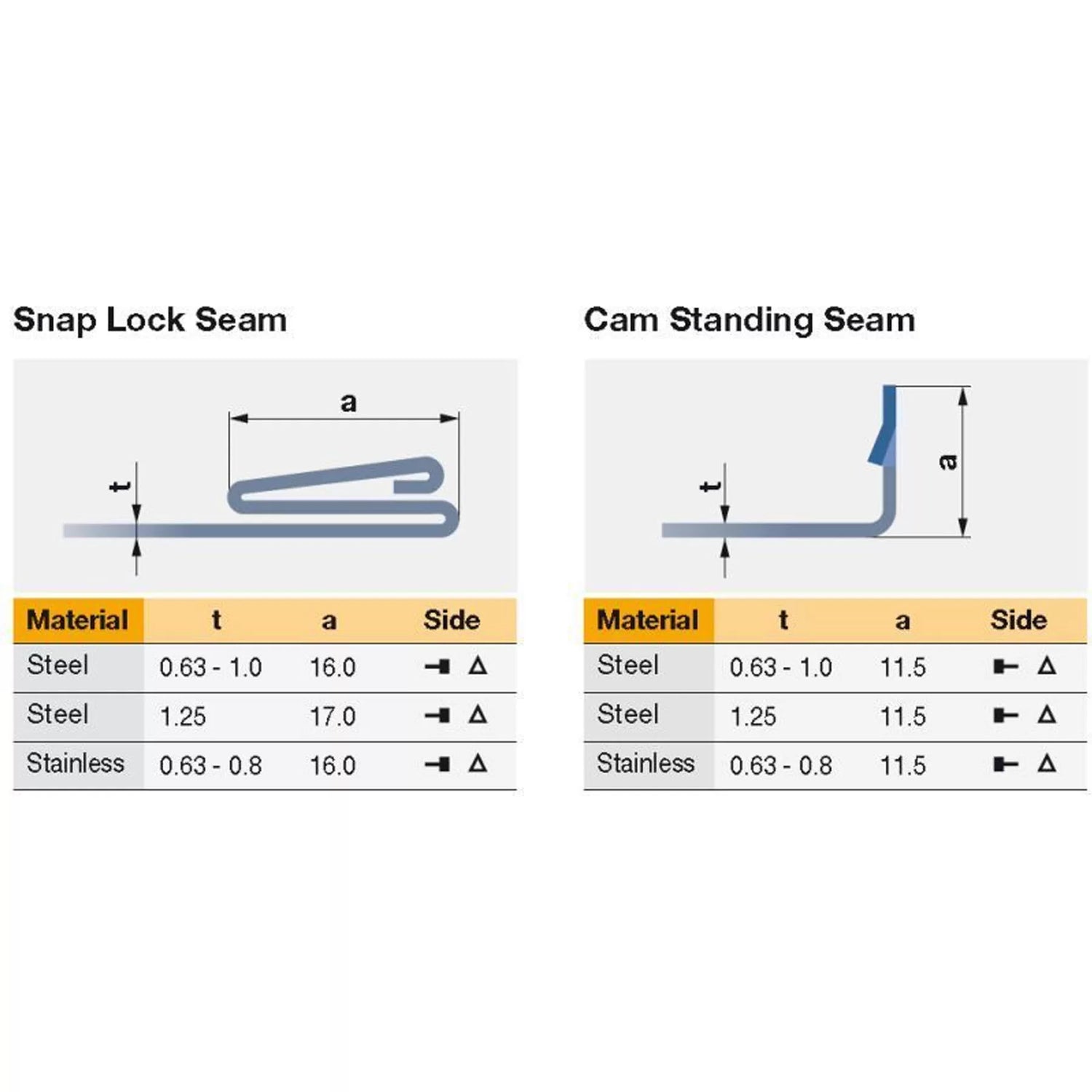

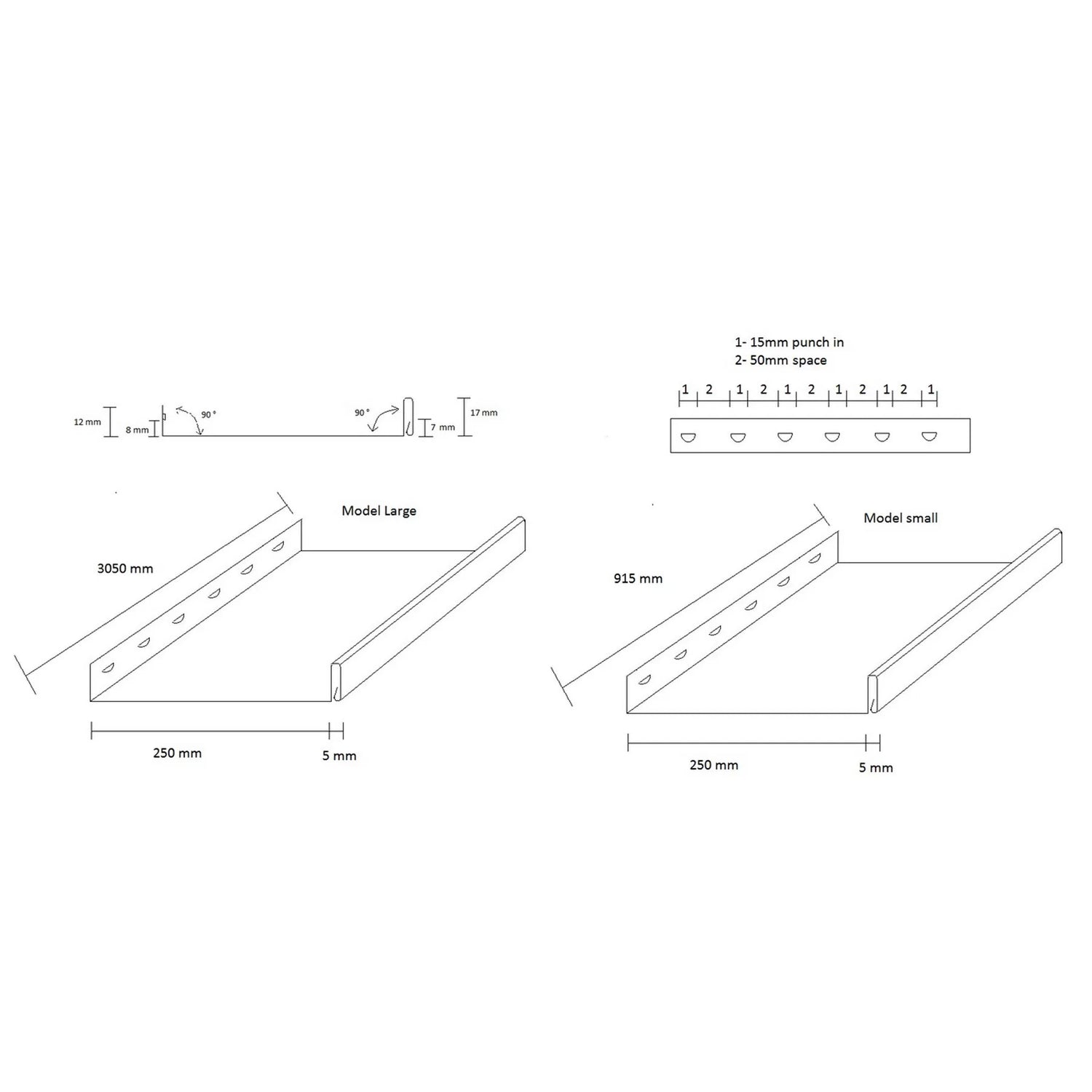

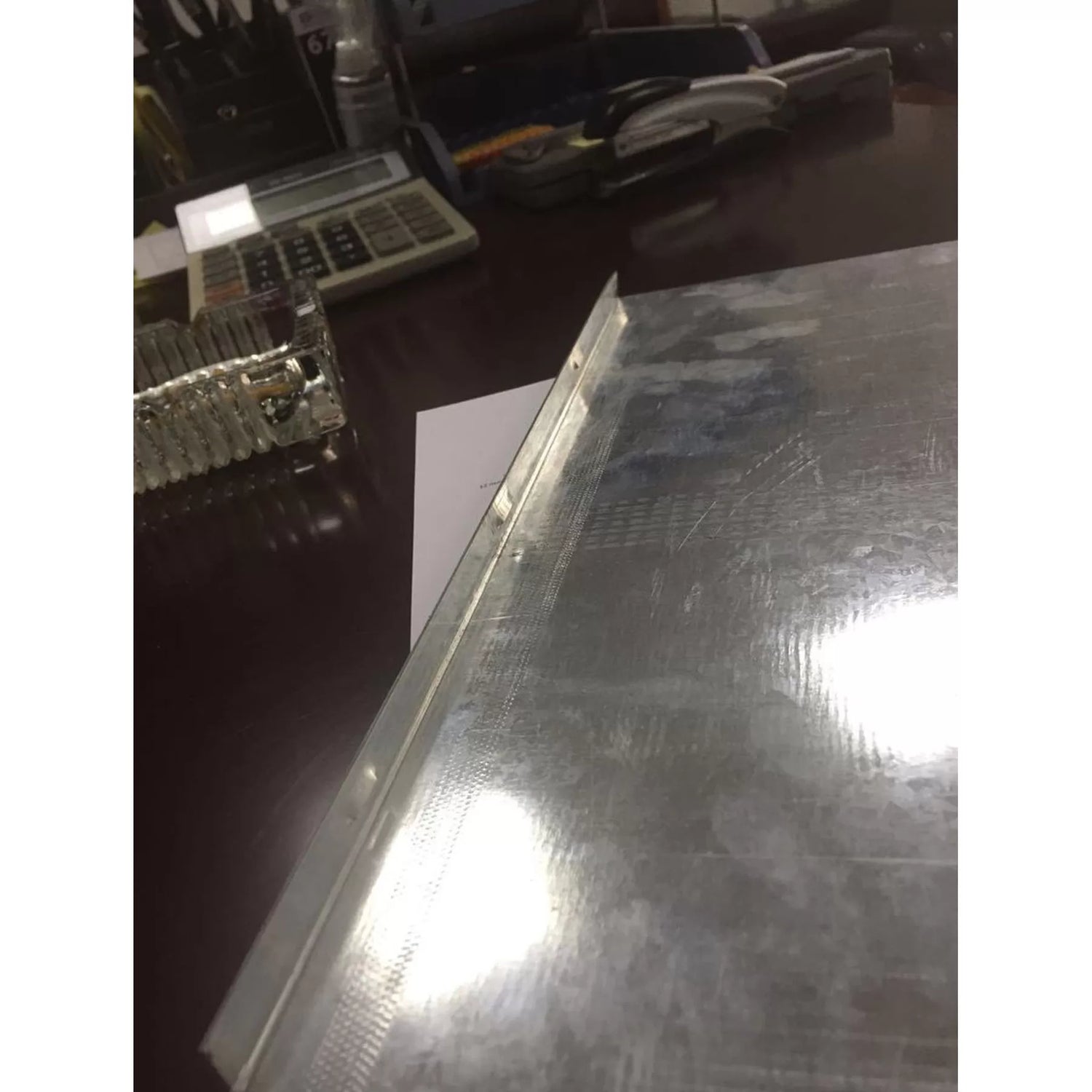

Snap lock dimensions as follows, 12mm turn up height, 15mm snap lock width, 50mm spacings.

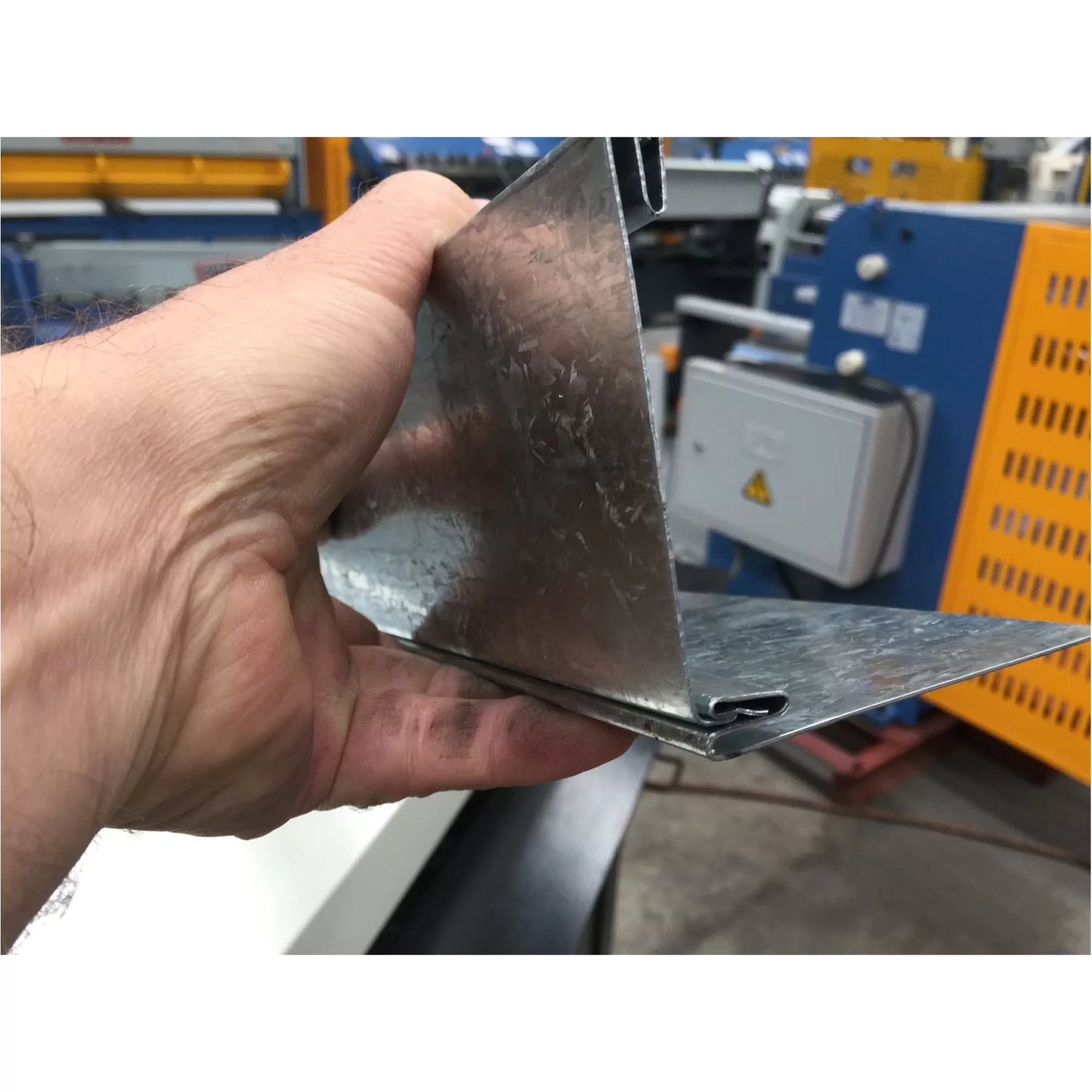

Opposite station has snap lock female profile
0.6mm ~ 1.0mm capacity.
Work table height – 810mm
3Kw 415Volt – 3 Phase Power.

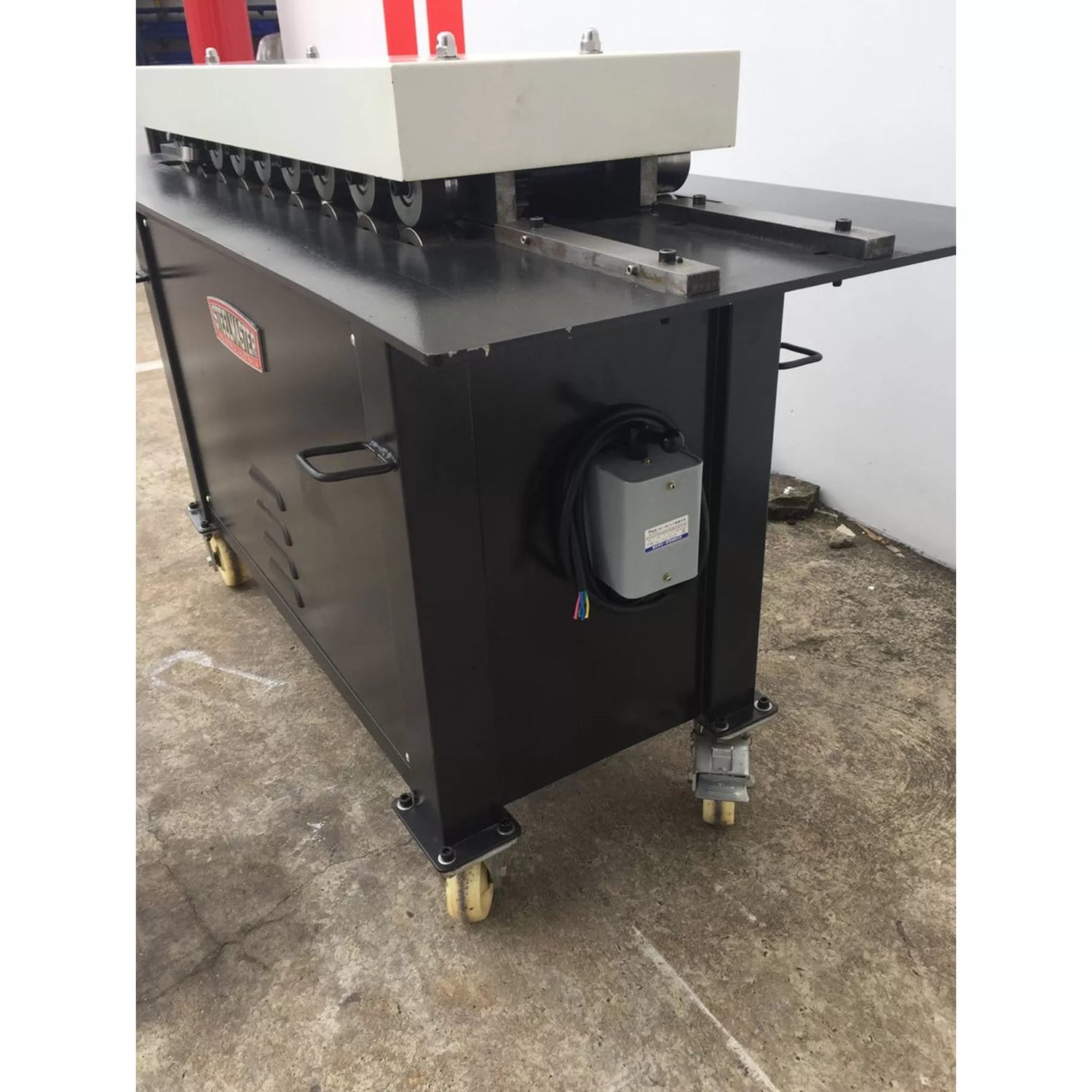

1500mm x 630mm x 1000mm x 300Kg Dimensions
Product Features
A must for all HVAC sheetmetal, ducting and climate control fabricating workshops
Positive lubrication to all moving parts via grease nipples

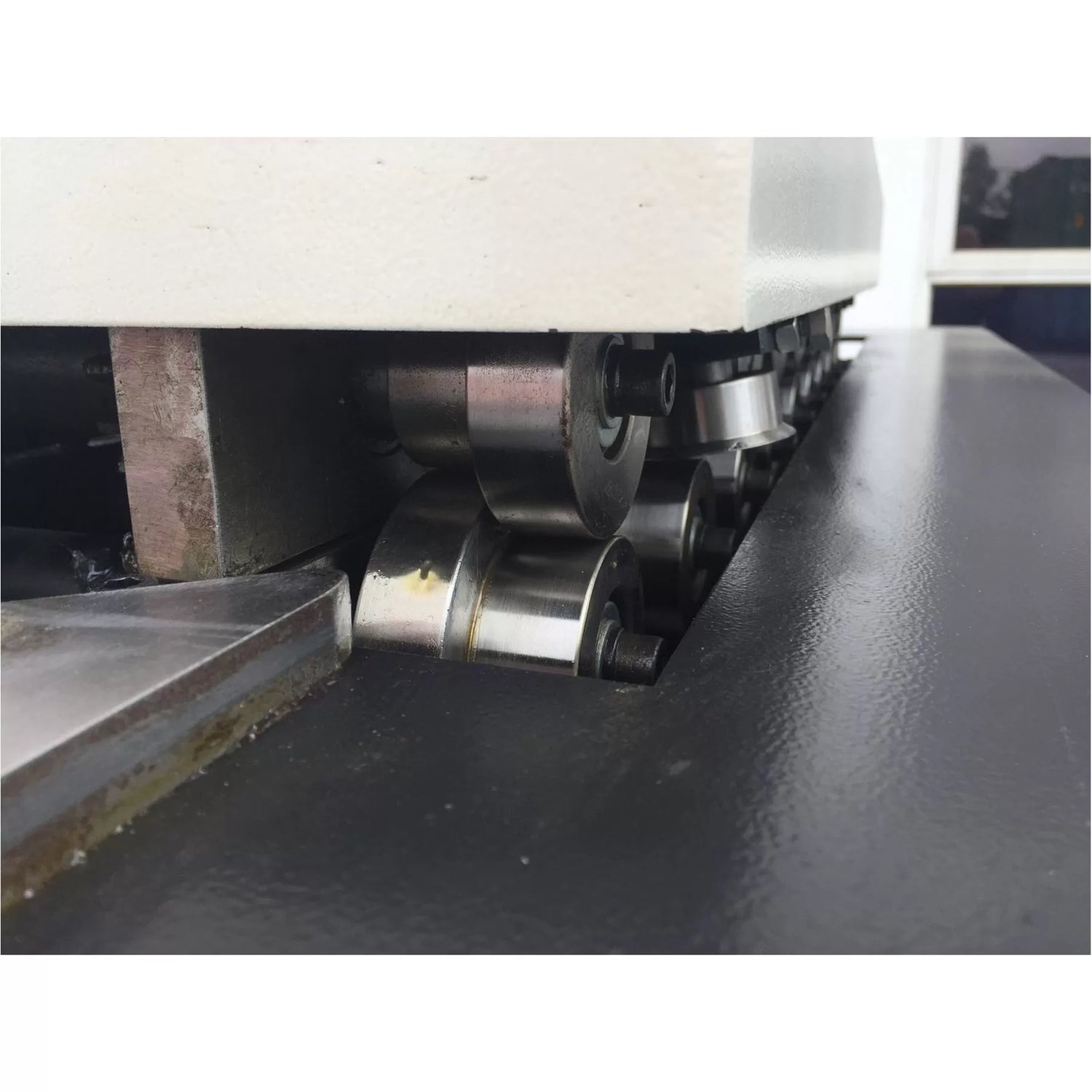

Hardened and ground shafts with case hardened formers

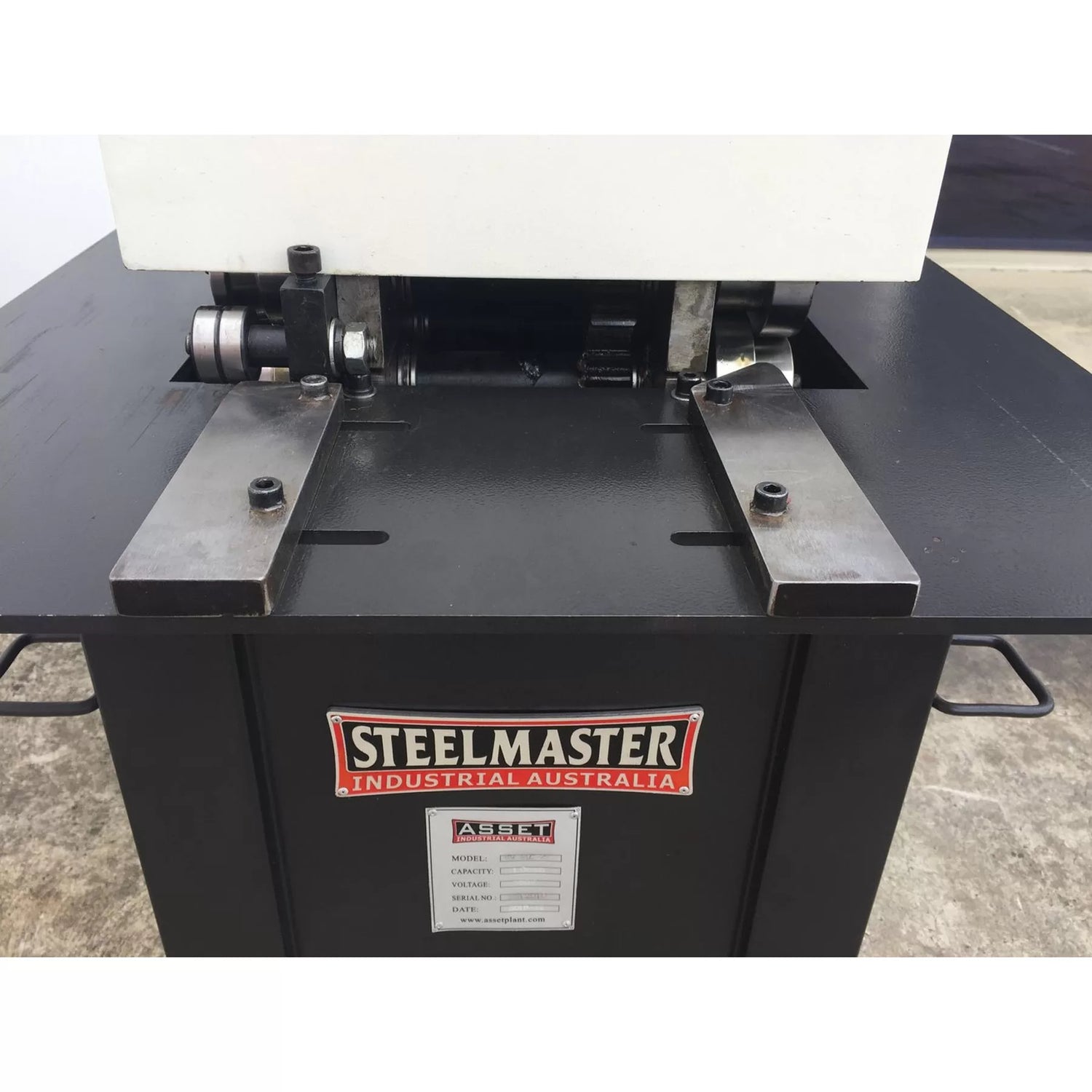

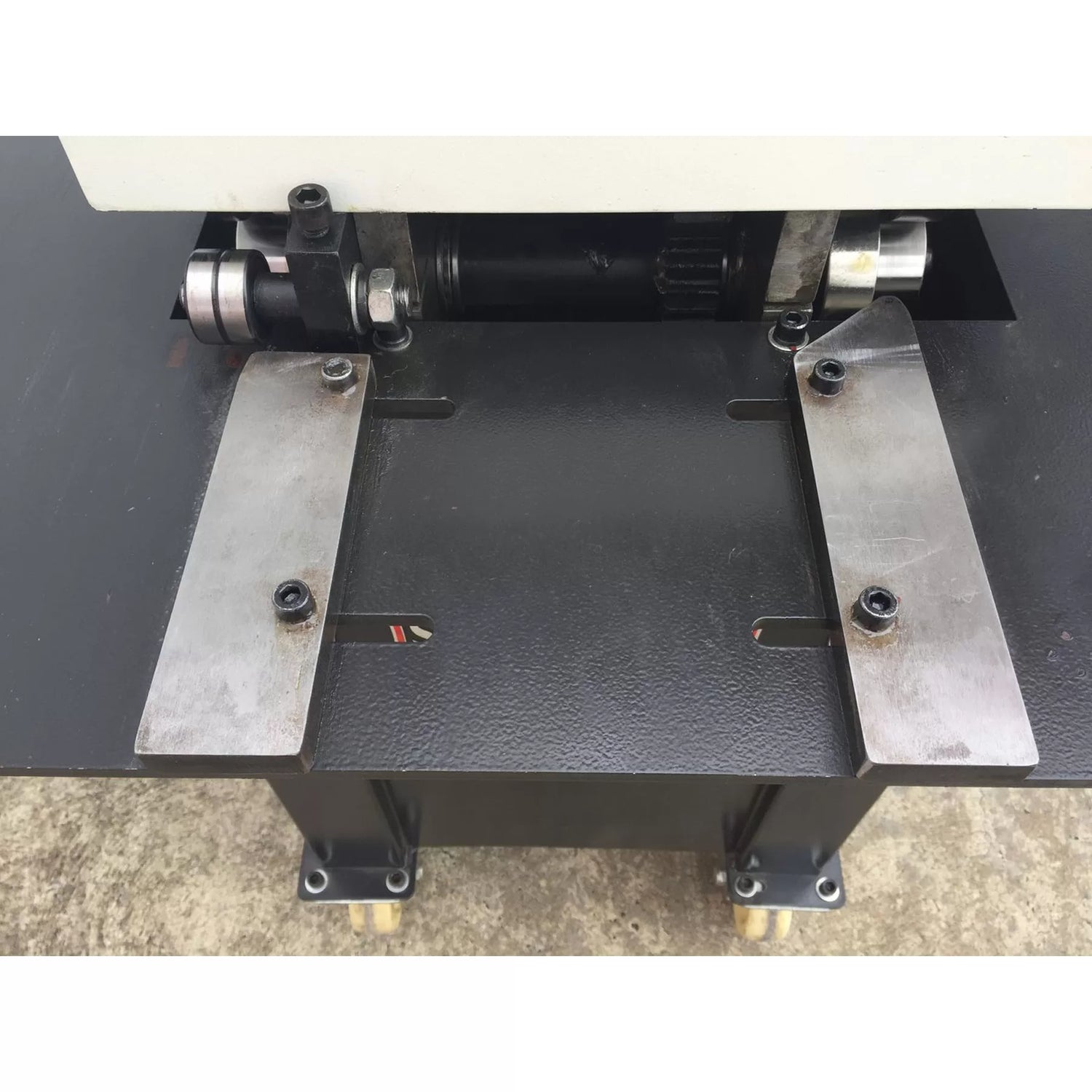

Hardened sheet guides
Extended shafts for additional rolls
Approx 14 m/min. forming speed
Large in-feed table
