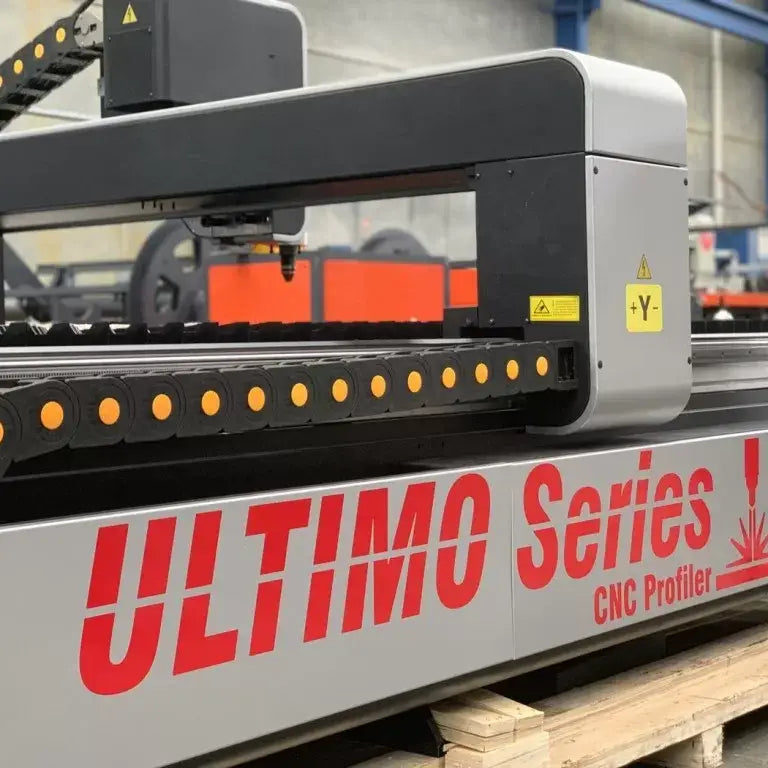

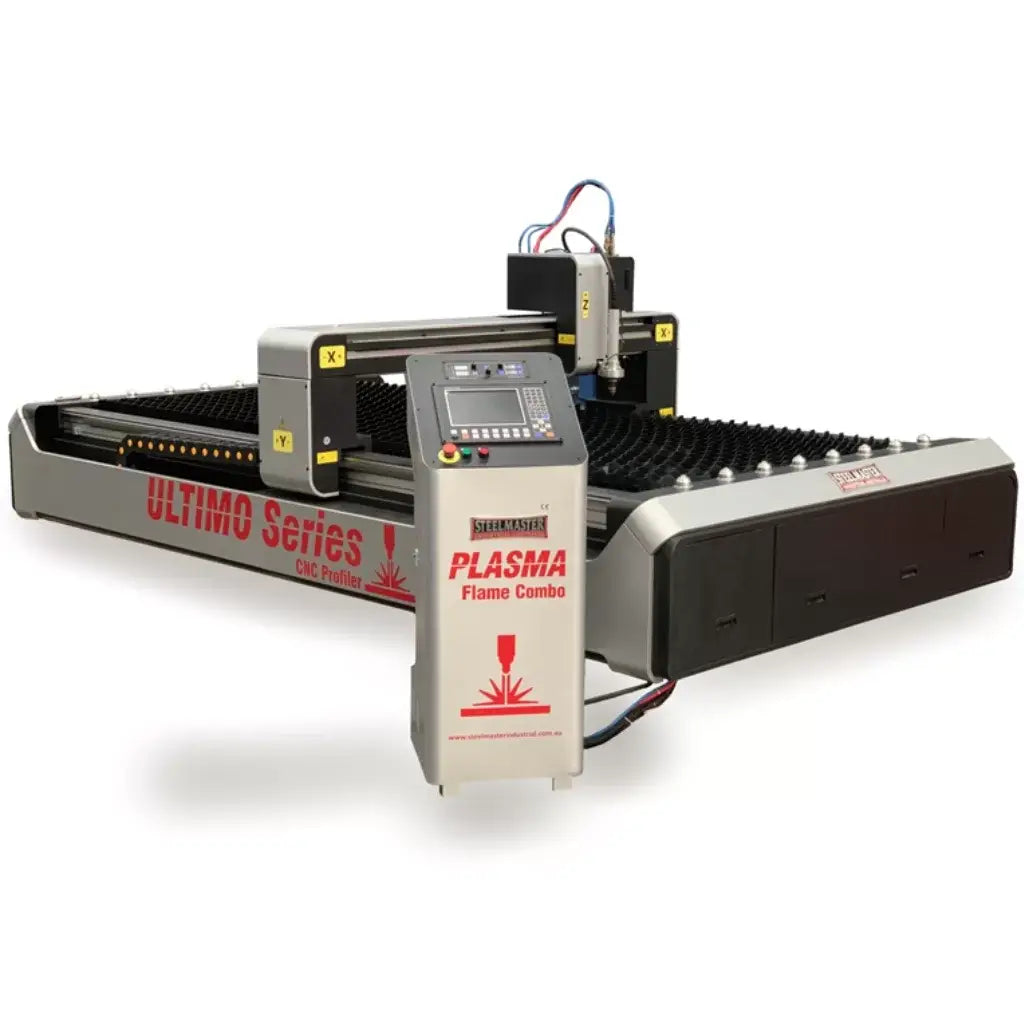

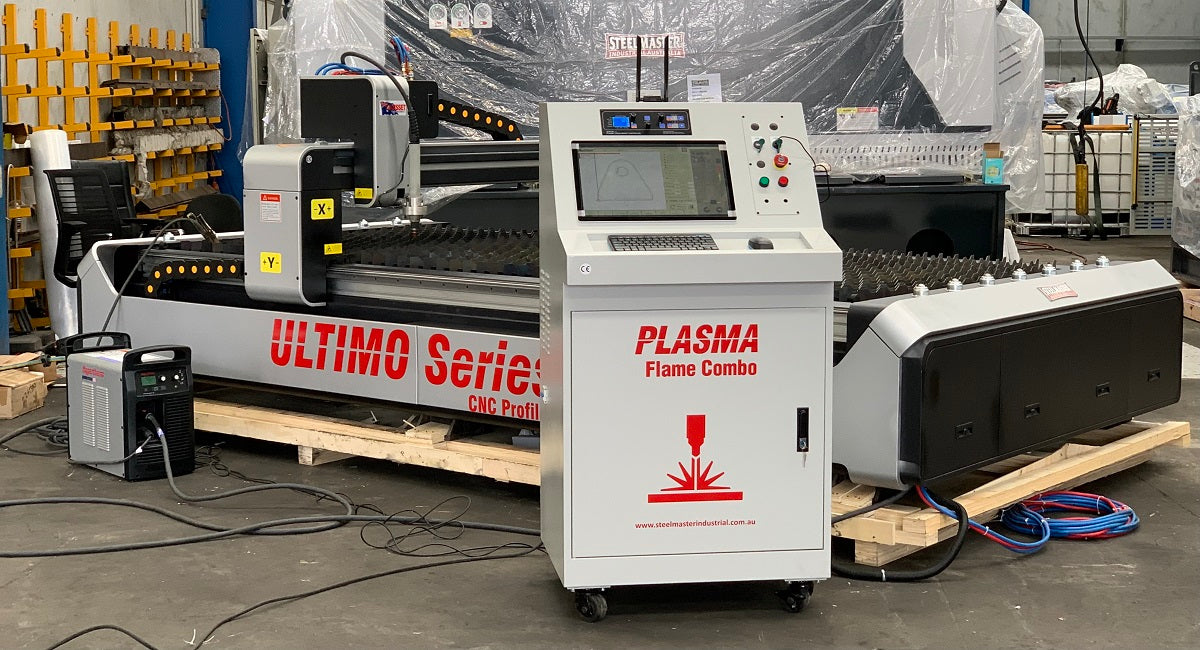

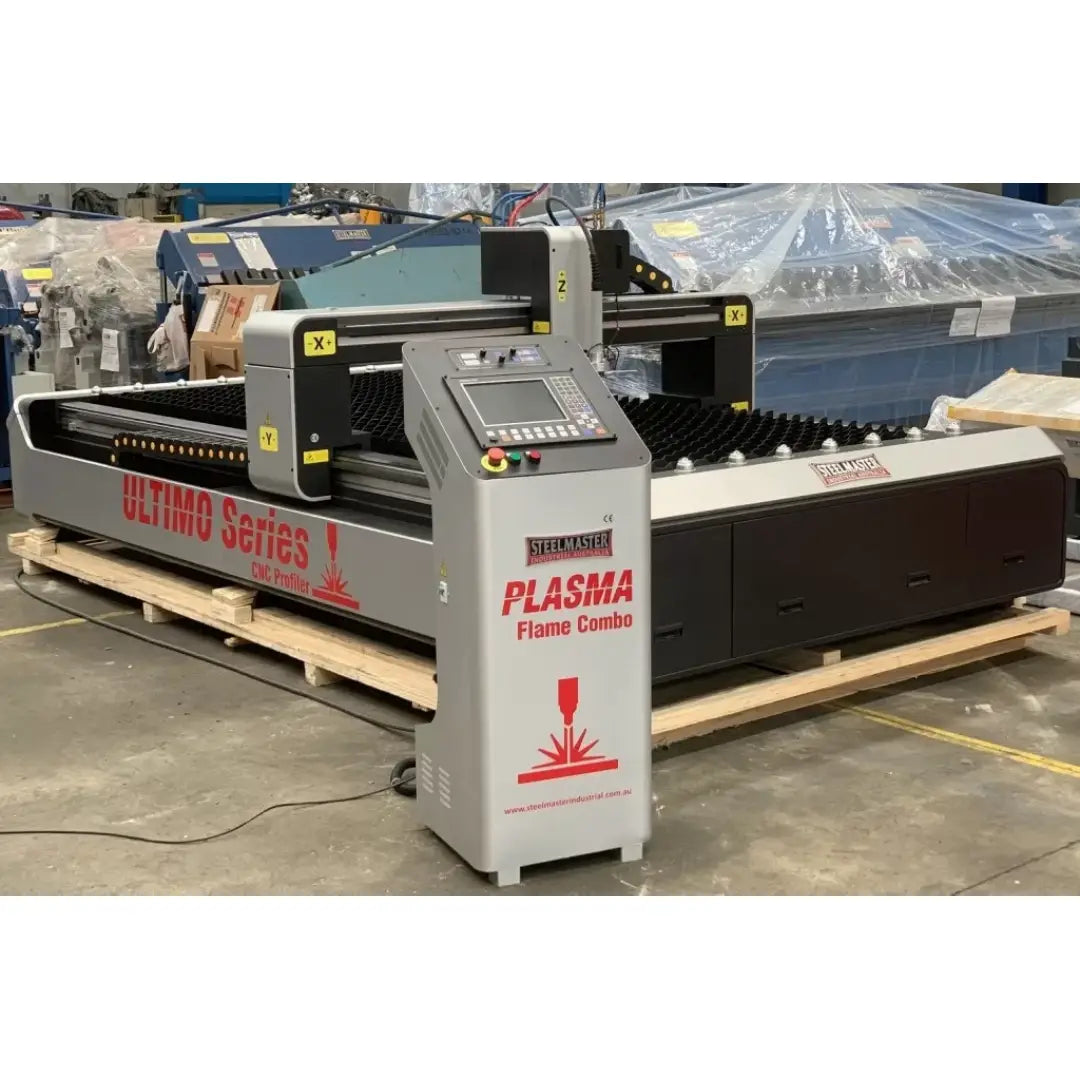

Plasma / Flame Combo CNC – STEELMASTER ULTIMO Plus - CNC Plasma & Oxy Flame Profiler 1500mm x 3000mm. Networkable.

Fastcam Professional (Auto-Nesting)
Save drawings to USB
All popular DXF and DWG files supported

FLSK CNC

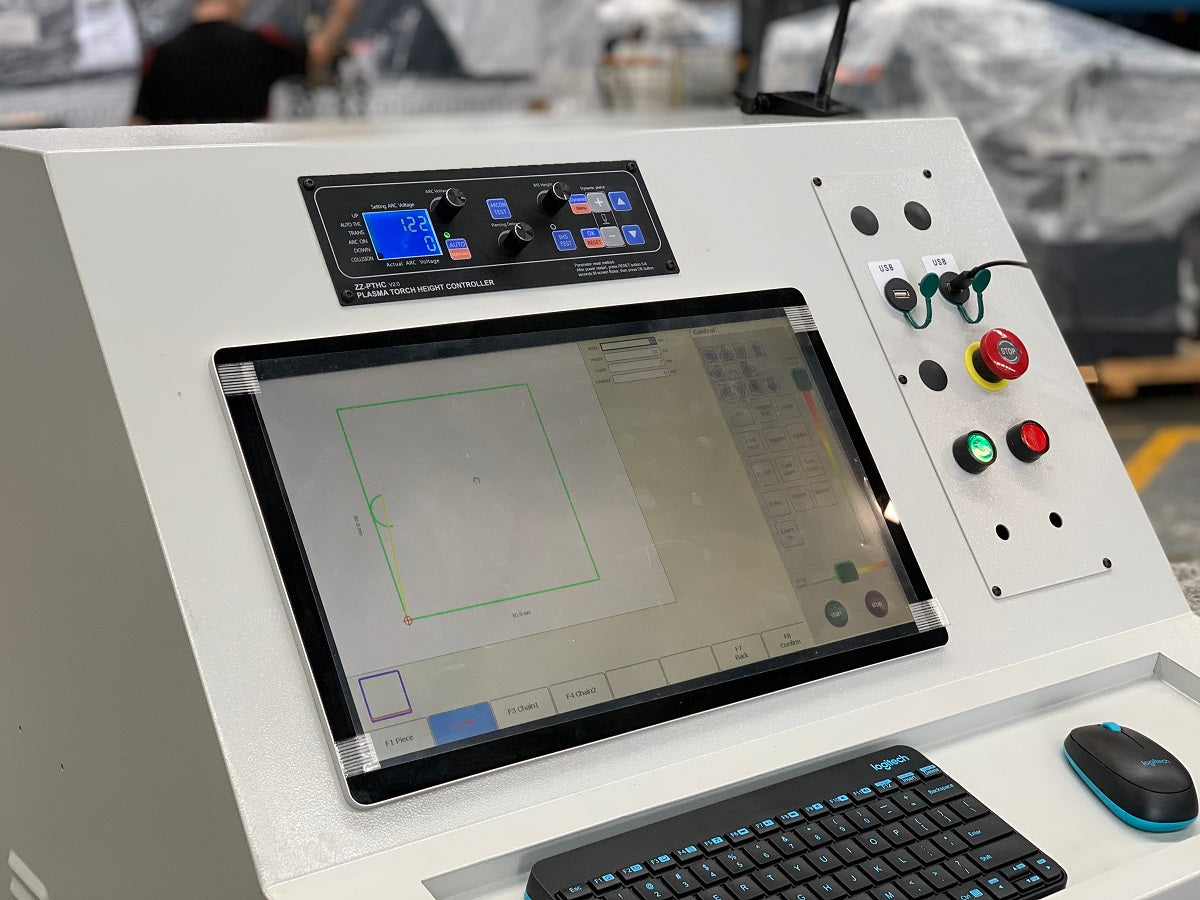

Huge LCD colour display
USB input

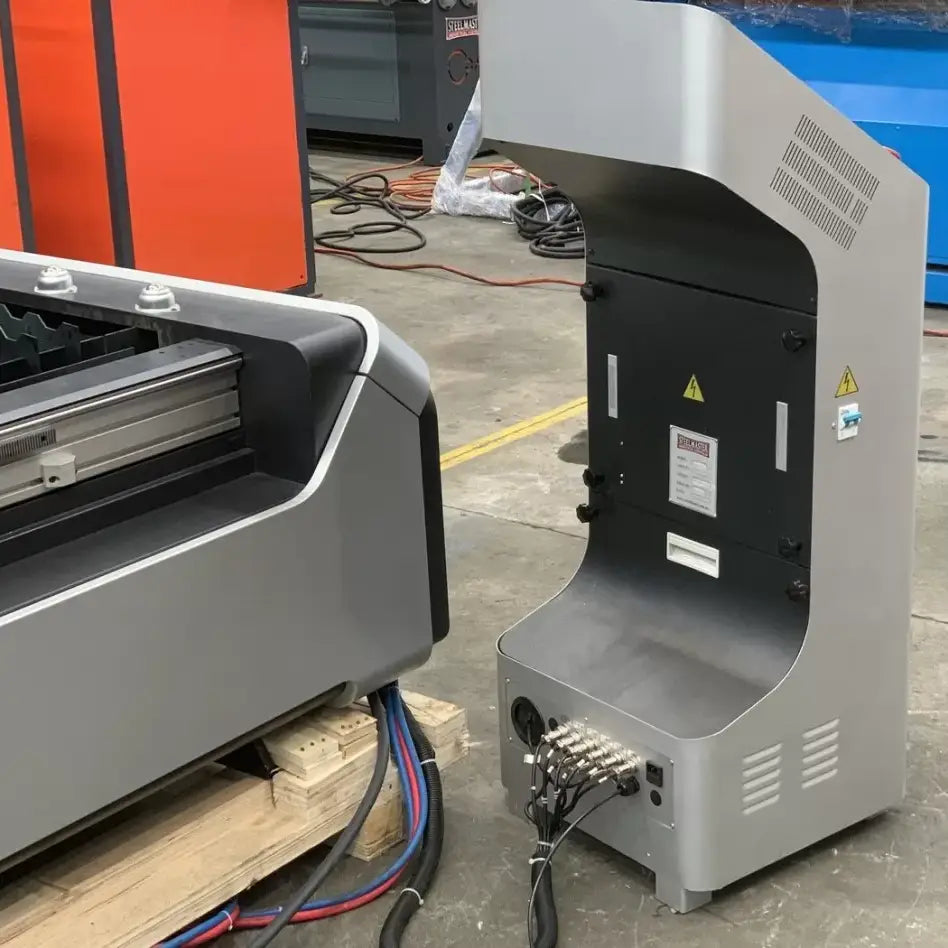

Mobile console

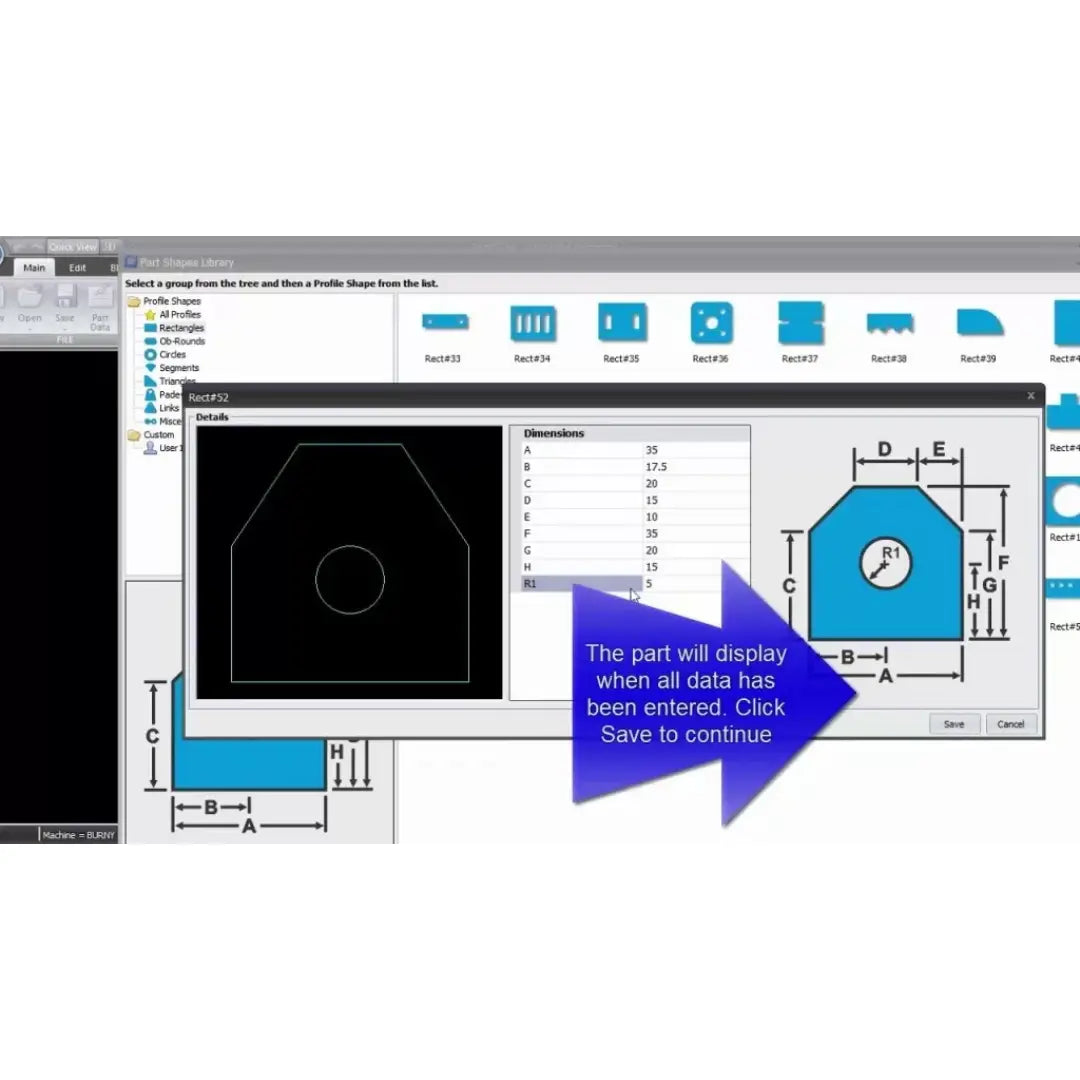

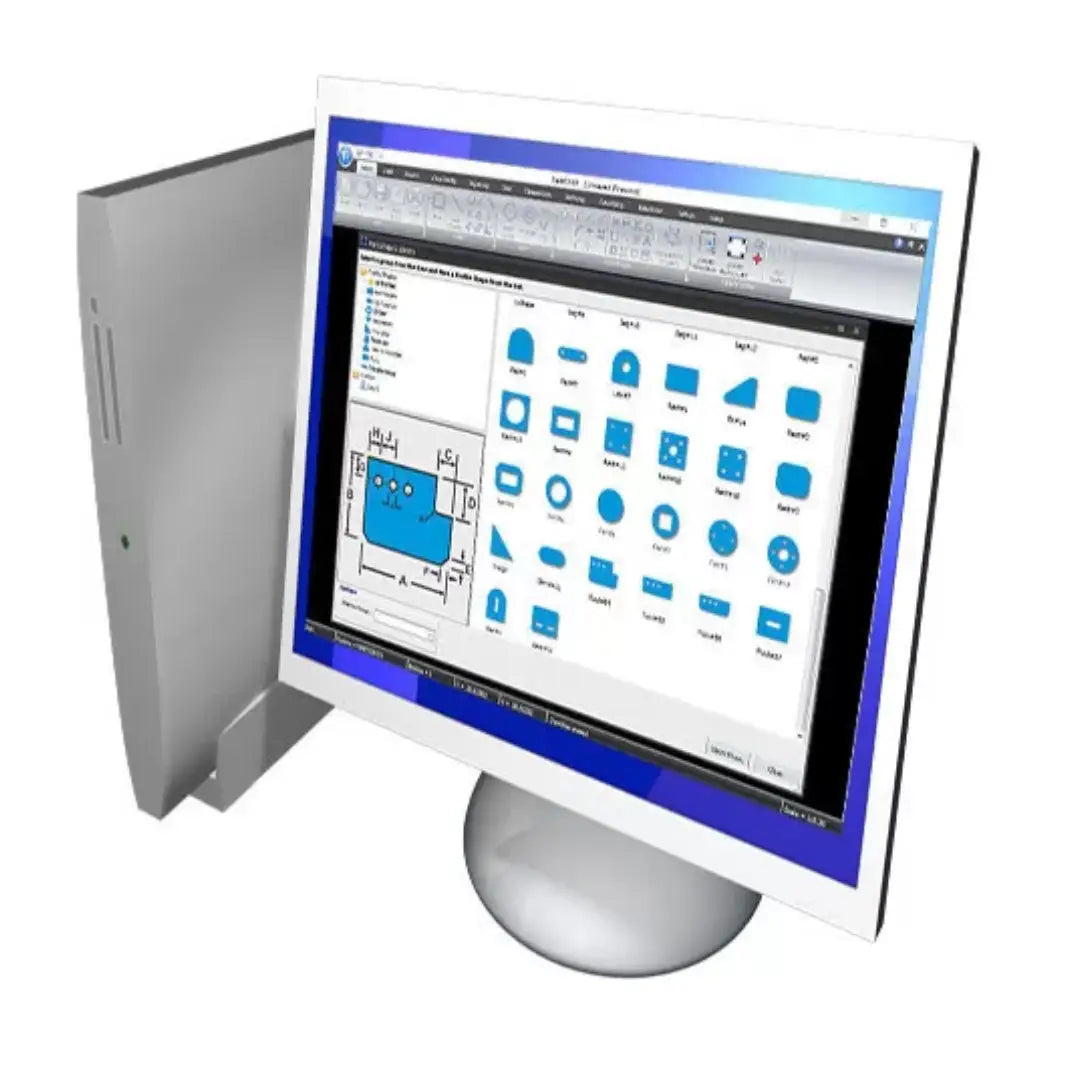

Template library for quick and easy cutting of standard shapes and angles
Real-time cutting path

1500mm x 3000mm

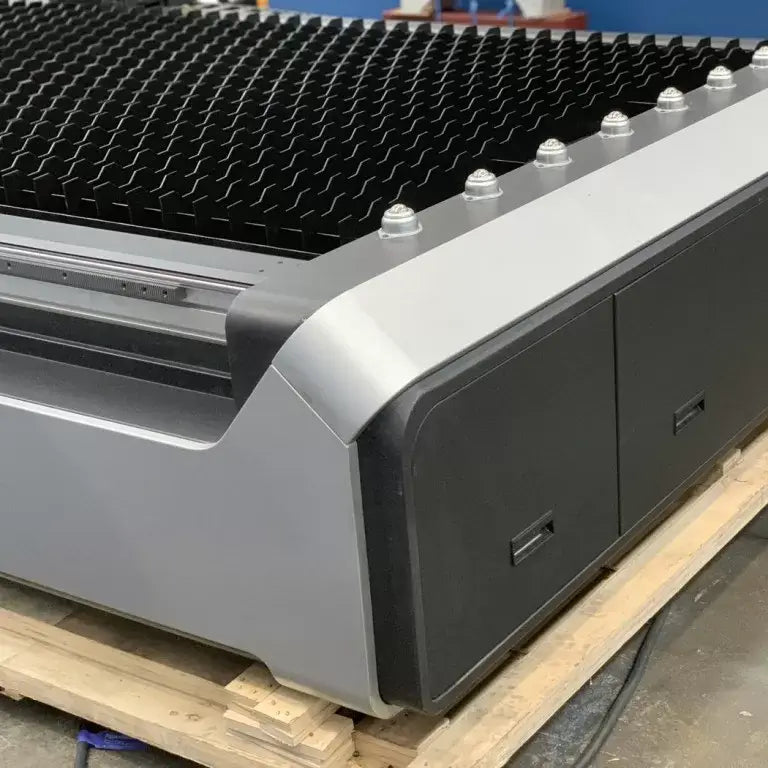

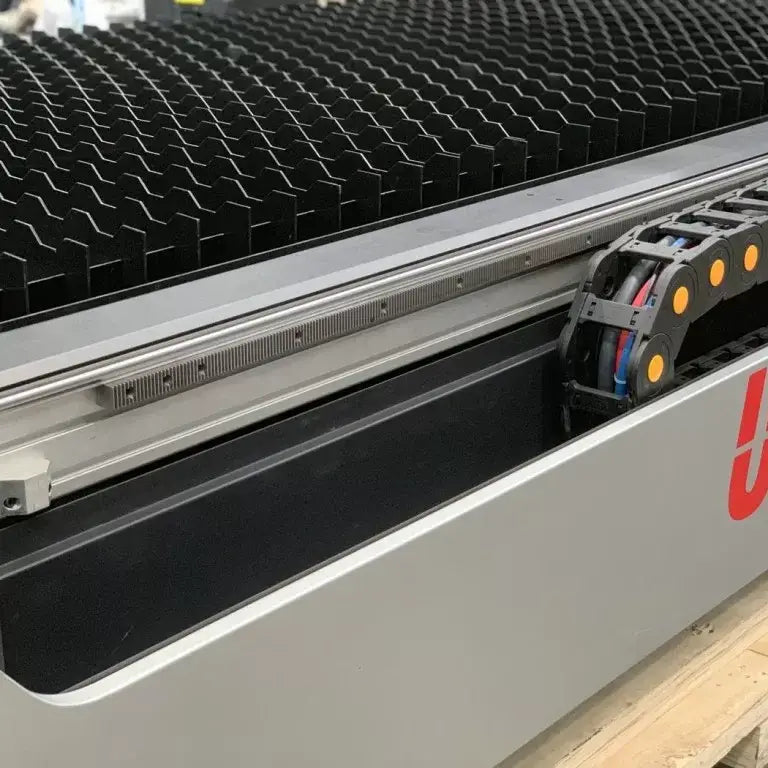

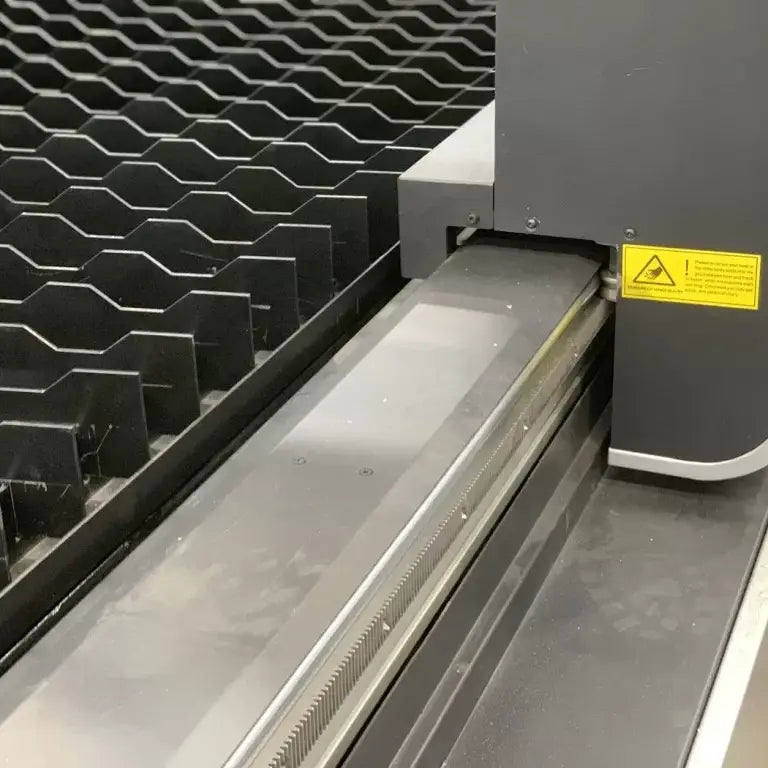

Heavy Duty Industrial Build 1500mm x 3000mm downdraft cutting table

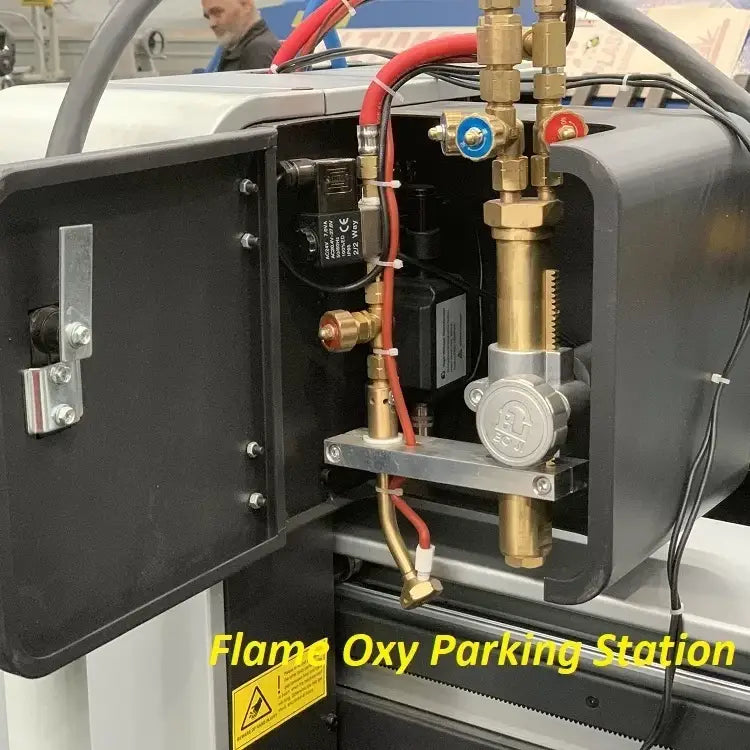

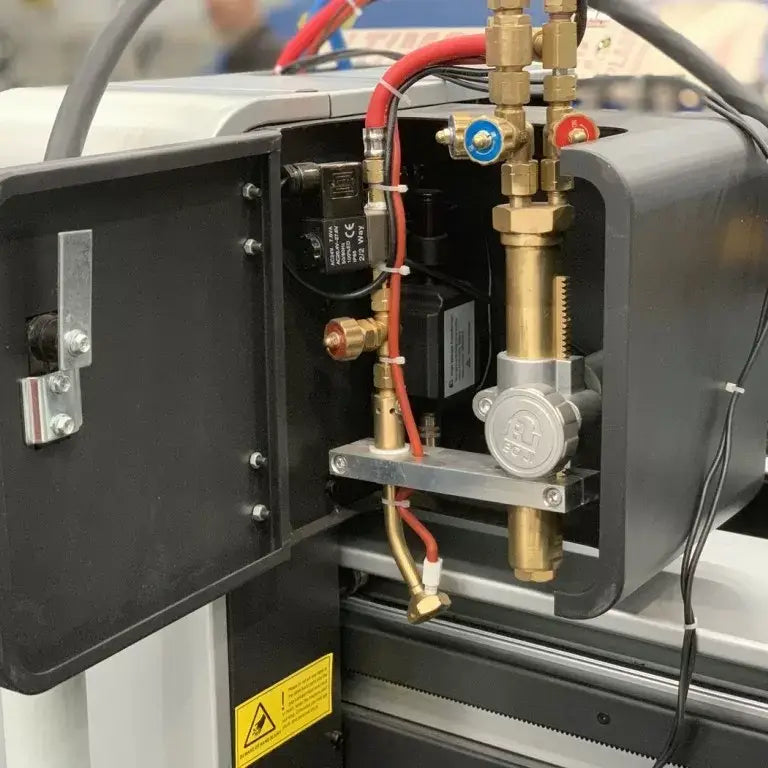

Dual head machine with Plasma & Oxy fitted.

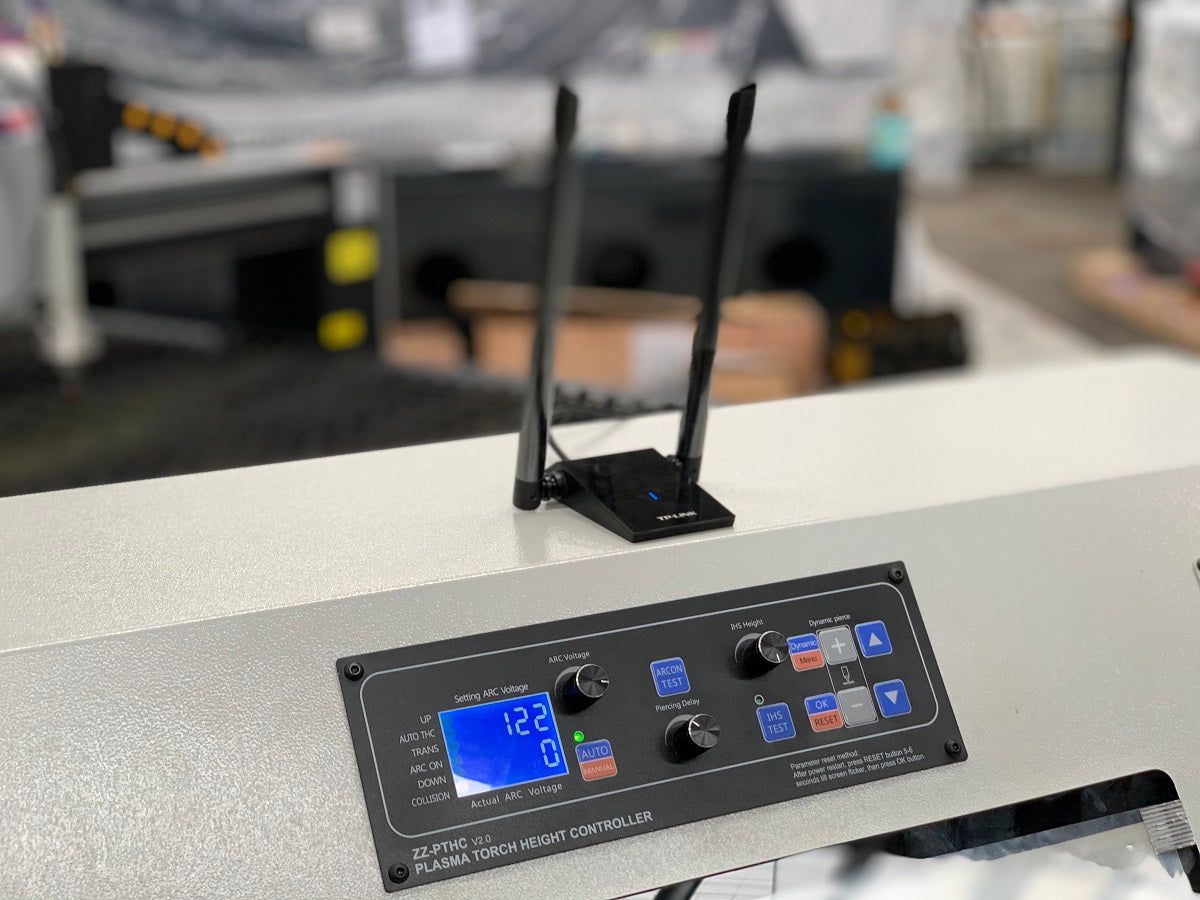

THC torch height control fitted

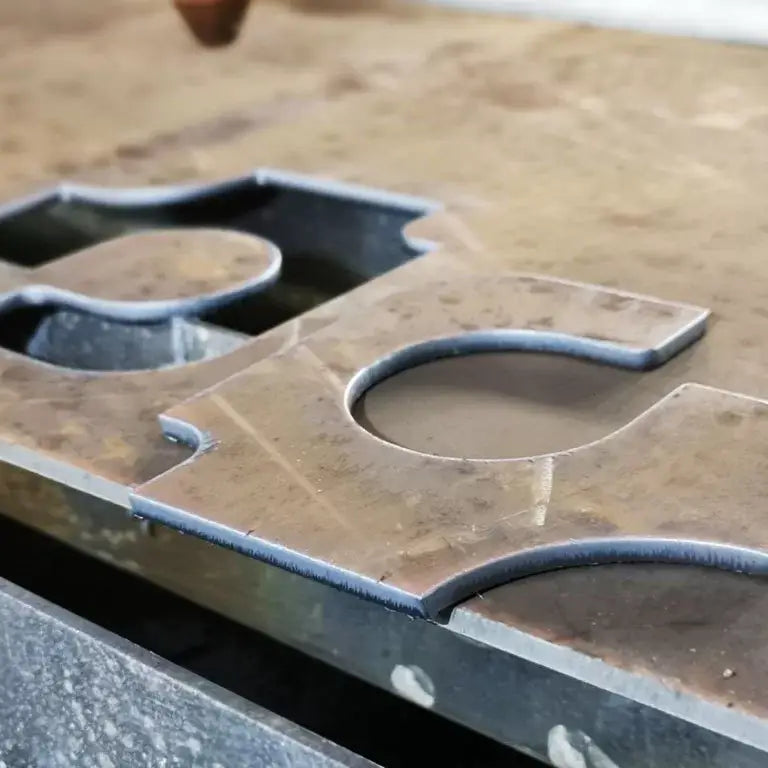

Superior cut speed, quality and stability
Optimum track speed. even for fine contours and tight radii
Huge LCD display
Fast Cam base module supplied standard

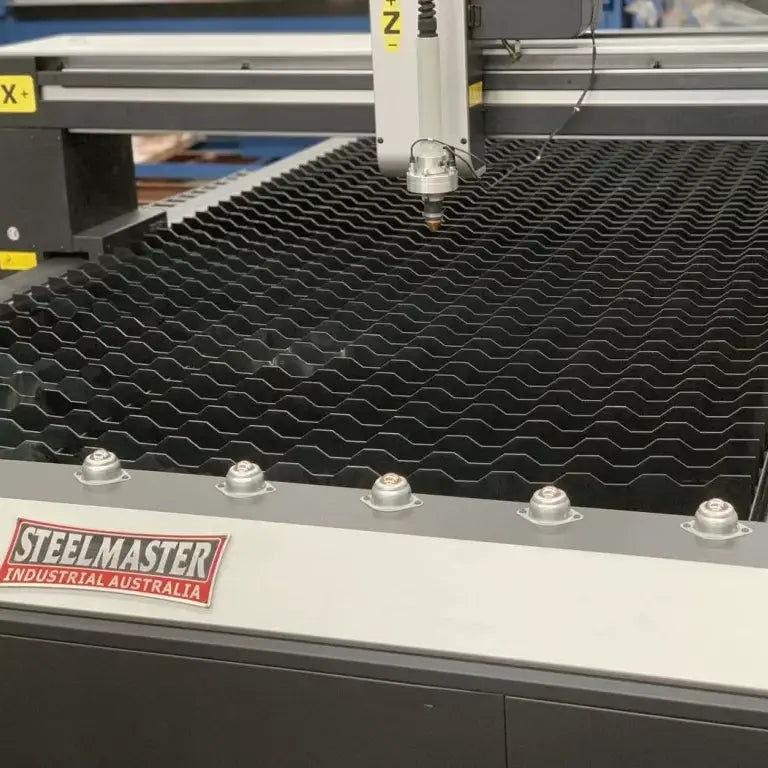

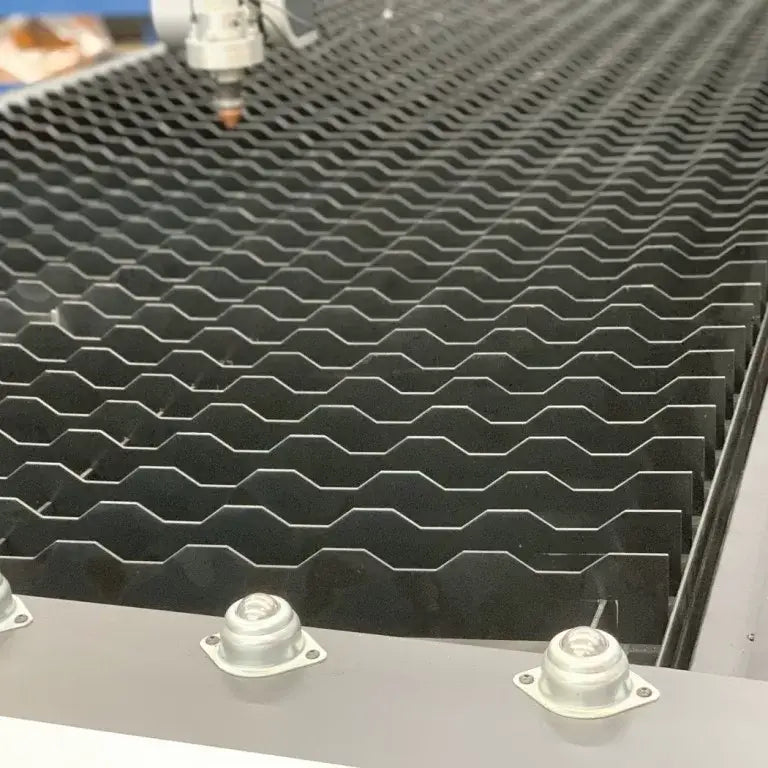

Roller balls to assist with material loading and unloading
High quality cnc controller options offering options, accepting G & M codes.
Plasma Power Source, Lead & Torch need to be added to suit customers cutting requiremen

25-0258 – Air Dryer – Power System – Model: PSD-5N, 20 cfm, 16 Bar 2~3 Degree Dew Point, – 240V
25+0258 – Filtration – HYPERTHERM – Model: 128647 Micron Eliminizer Filter To Be Fitted To The PMX
25+0259 – Filtration – Power System – Model: PSF12F, Purity – 0.01 Micron, 54CFM Volume, Auto Drain.
21+0805 – CLEARMASTER SM-DR-3000 Laser / Plasma Fume Extraction System, 3000m/Hr. Anti-Spark Arrestor – Up to 1500mm x 3000mm Table
21+0806 – CLEARMASTER SM-PA-6000CT Laser / Plasma Fume Extraction System, 6000m/Hr. Anti-Spark Arrestor Up to 2000mm x 4000mm Table
25-0259 – Power System Model NB7/270 – 35 CFM Piston Compressor. 7.5 H.P- 415 v
25-0220 – AIRMASTER Rotary Screw Air Compressor & Air Dryer. Model: 11MK2, 58 cfm Capacity, 116 psi.
50+0200 – Digital Thickness Gauge – 0mm ~ 15mm
50+0112 – Digital LCD Vernier Calliper – 150mm Length.
Full Range of Consumables Available In Store or Online

Electrical connection.
Compressed air.
Fume extraction provisions.
Asset can offer you the above additional items on request.

Other options available if not already noted above
Water table available (note – aluminium cannot be cut on water table systems due to safety issues)
Servo drives
Network Technology – Windows 10 upgrade.

P.O.A - 15kg and up

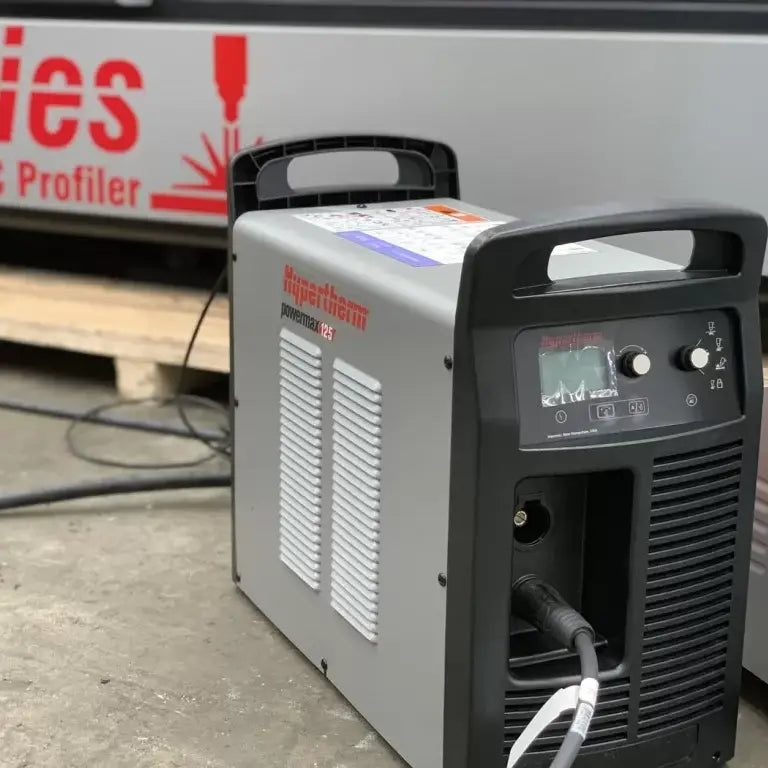

Hypertherm PMX45 ~ Maxpro 200
Click here to refer to Cutting Speeds & Charts – http://www.hypertherm.com/en/Service/Manuals/

Plasma cutting area – 1500mm x 3000mm
Etching working area – 1306mm x 3000mm
Z travel – 100mm
Oxy cutting capacity approx 80mm
Cutting speed – 0 ~ 8000mm / min
MAX cutting speed – 12,000mm / min
Accuracy – 0.2mm
Plasma torch diameter – 35mm
Work mode of plasma – non contact ignition
Dimensions – 3800mm x 2200mm
Crate dimensions – 3900mm x 2300mm x 1750mm (H) x 1600Kg
Weight – 1500Kg
Power source – 415volt
12 month warranty
