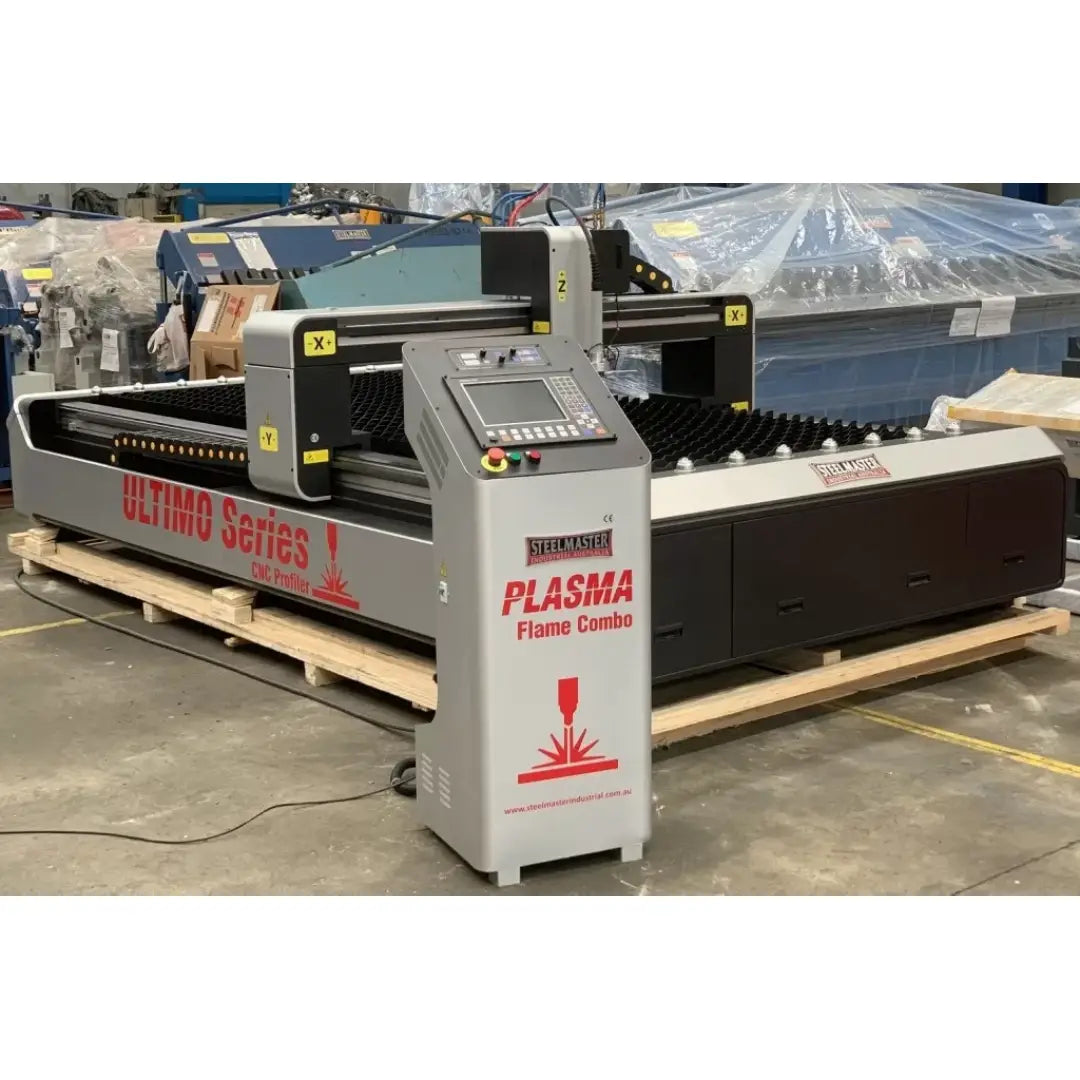

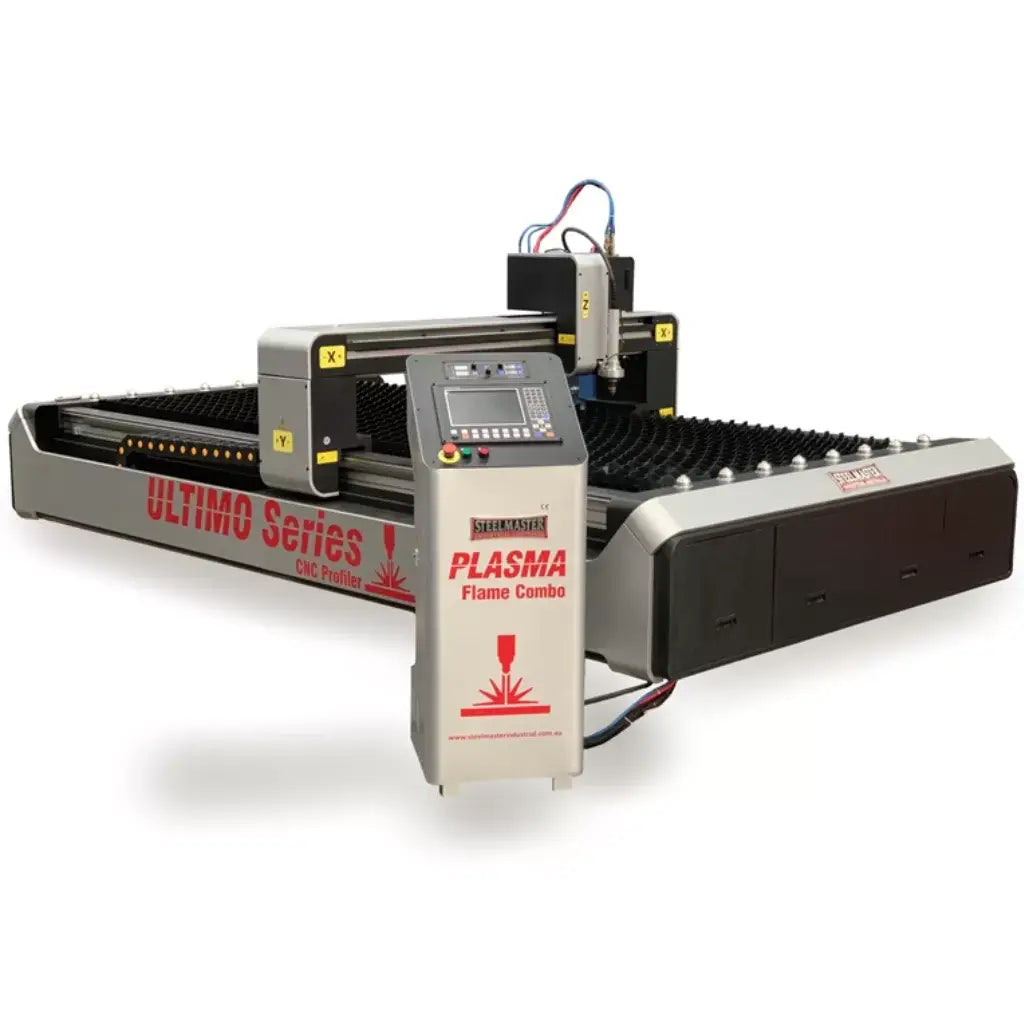

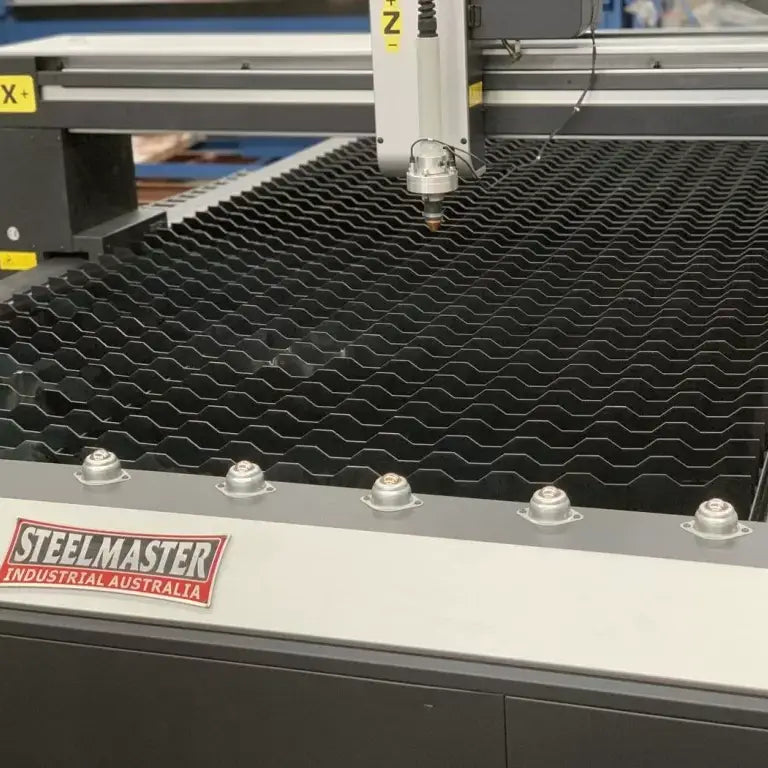

Plasma / Flame Combo CNC – STEELMASTER ULTIMO Plus – CNC Plasma & Oxy Flame Profiler 1500mm x 3000mm

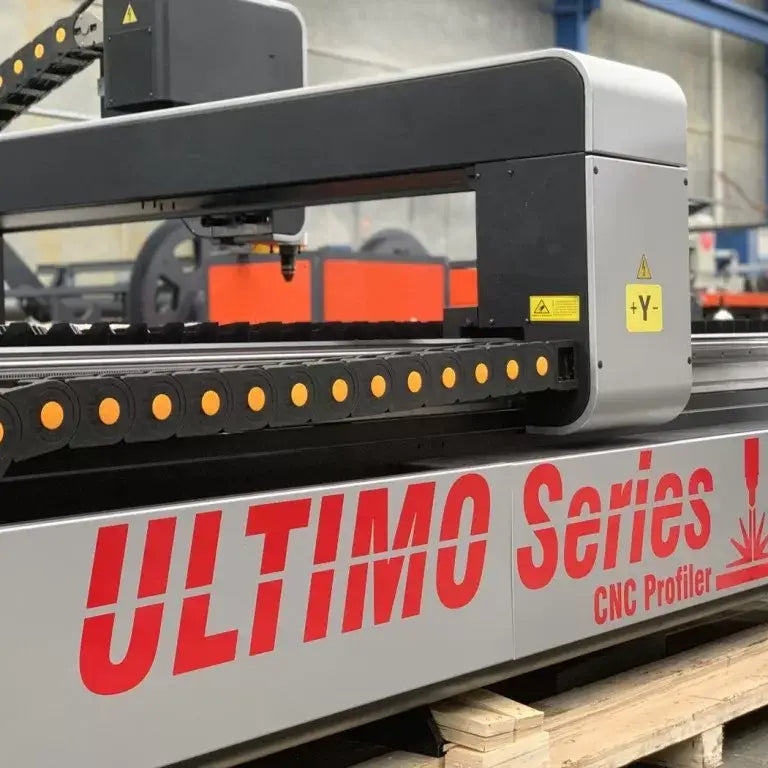

❚ Heavy Duty Industrial Build 1500mm x 3000mm downdraft cutting table

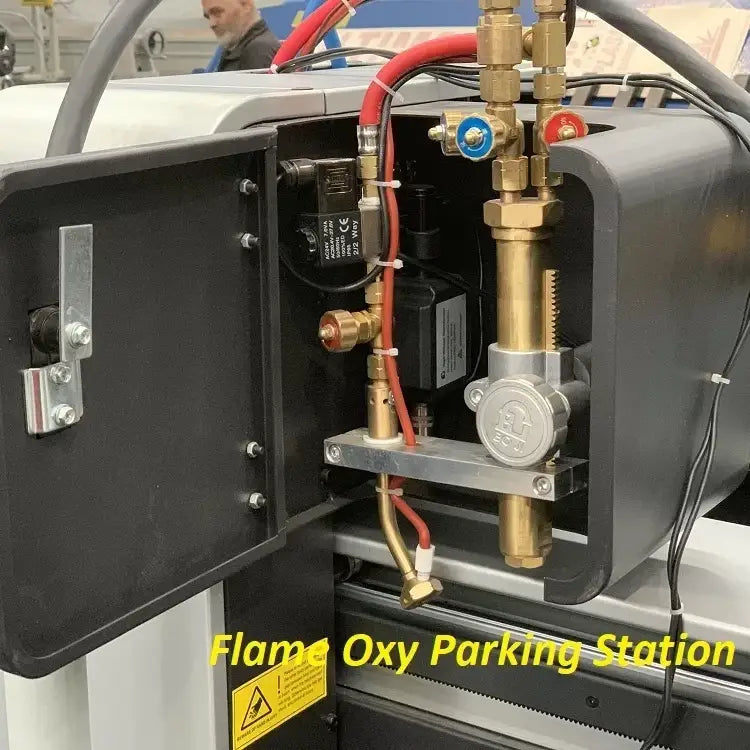

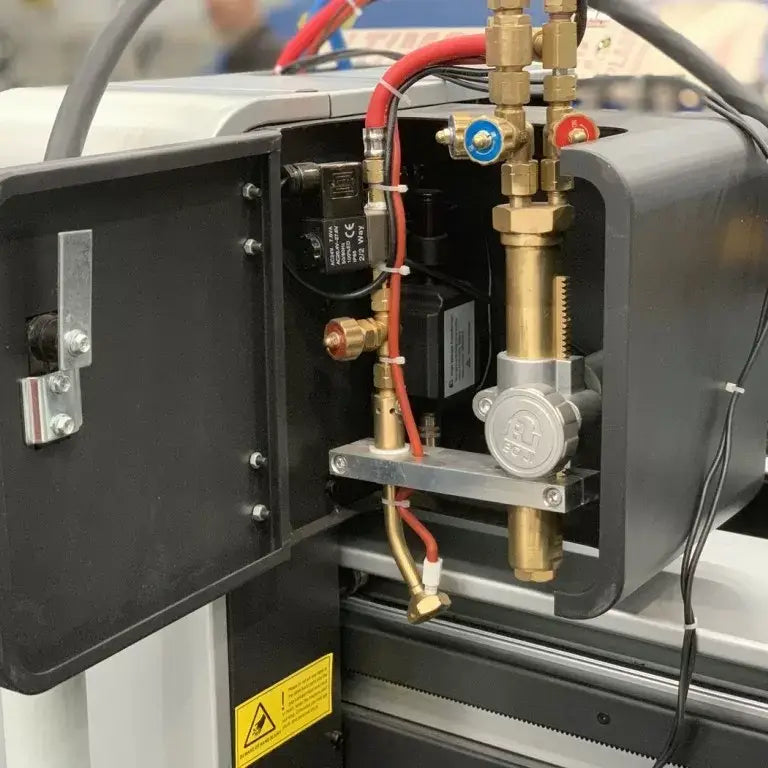

❚ Dual head machine with Plasma & Oxy fitted.
❚ THC torch height control fitted
❚ superior cut speed, quality and stability
❚ optimum track speed. even for fine contours and tight radii
❚ Huge LCD display
❚ Fast Cam base module supplied standard

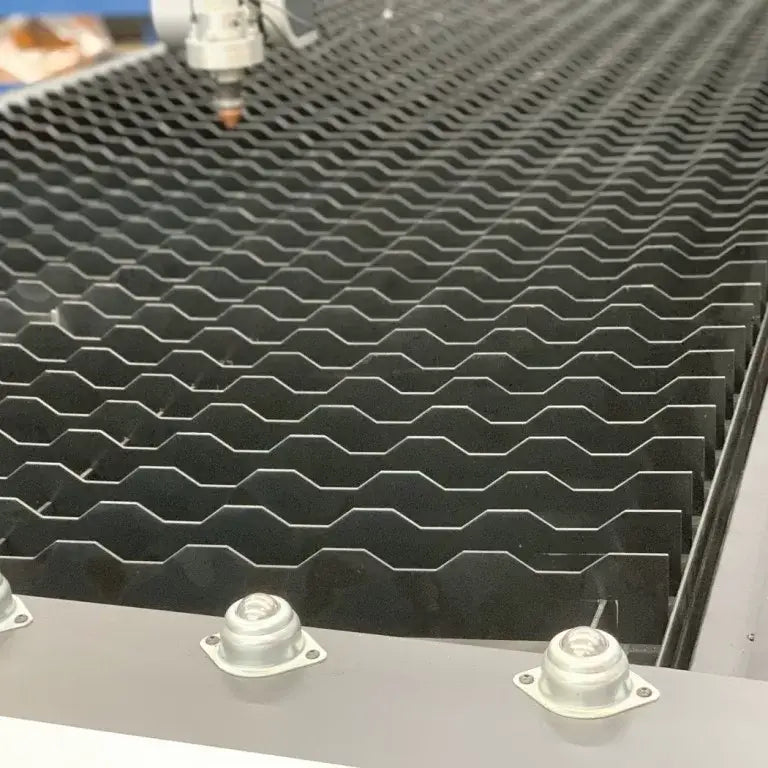

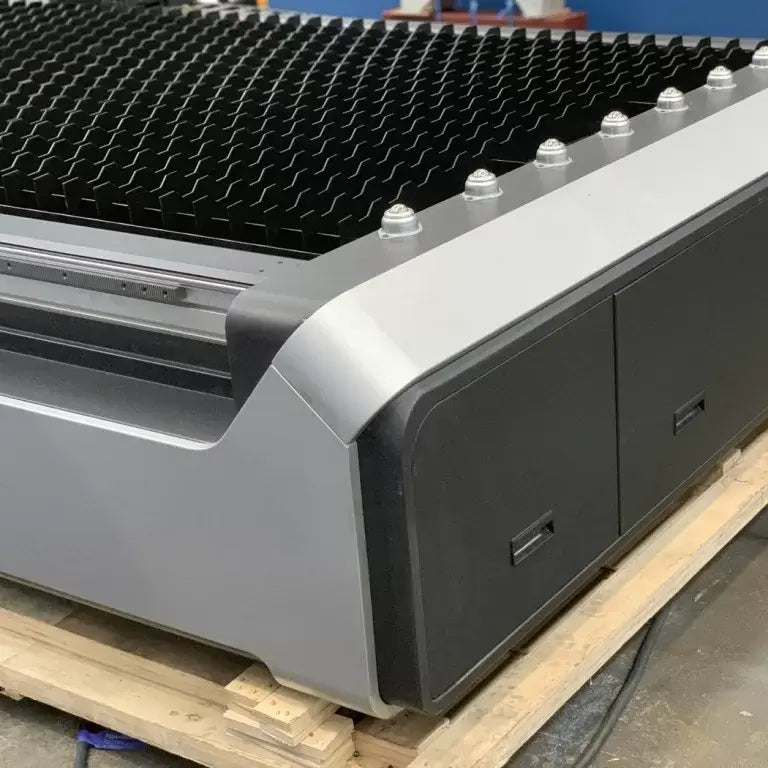

❚ Roller balls to assist with material loading and unloading
❚ high quality cnc controller options offering options, accepting G & M codes.
❚ Plasma Power Source, Lead & Torch need to be added to suit customers cutting requirements.

❚ cutting area – 1500mm x 3000mm
❚ Z travel – 100mm
❚ Oxy cutting capacity approx 80mm
❚ cutting speed – 0 ~ 8000mm / min
❚ MAX cutting speed – 12,000mm / min
❚ accuracy – 0.2mm
❚ plasma torch diameter – 35mm
❚ work mode of plasma – non contact ignition
❚ dimensions – 3800mm x 2200mm
❚ crate dimensions – 3900mm x 2300mm x 1750mm (H) x 1600Kg
❚ weight – 1500Kg
❚ power source – 415volt
❚ 12 month warranty
Suggested Power Sources

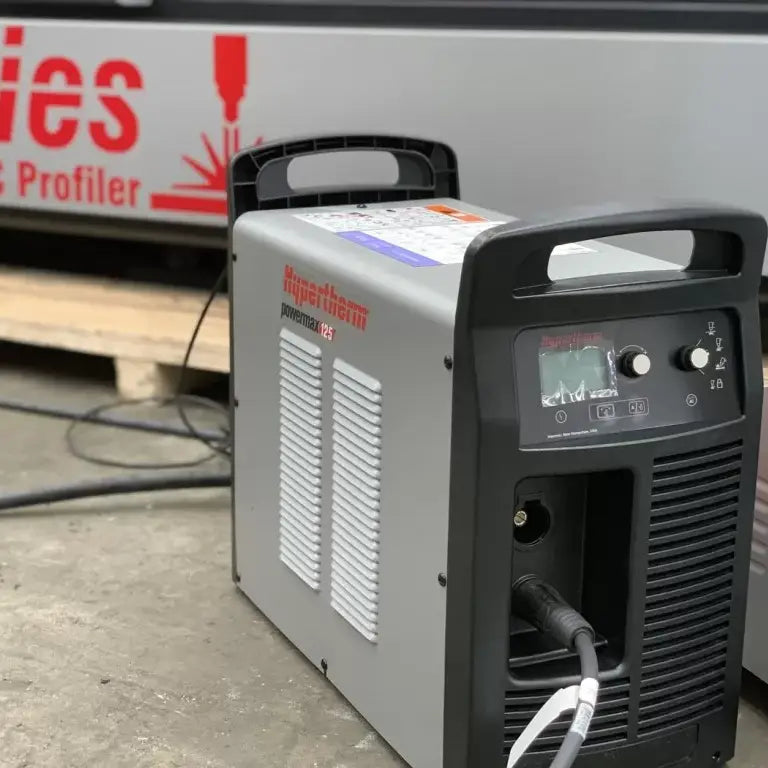

❚ Hypertherm PMX45 ~ Maxpro 200
❚ Click here to refer to Cutting Speeds & Charts – http://www.hypertherm.com/en/Service/Manuals/

CNC Software

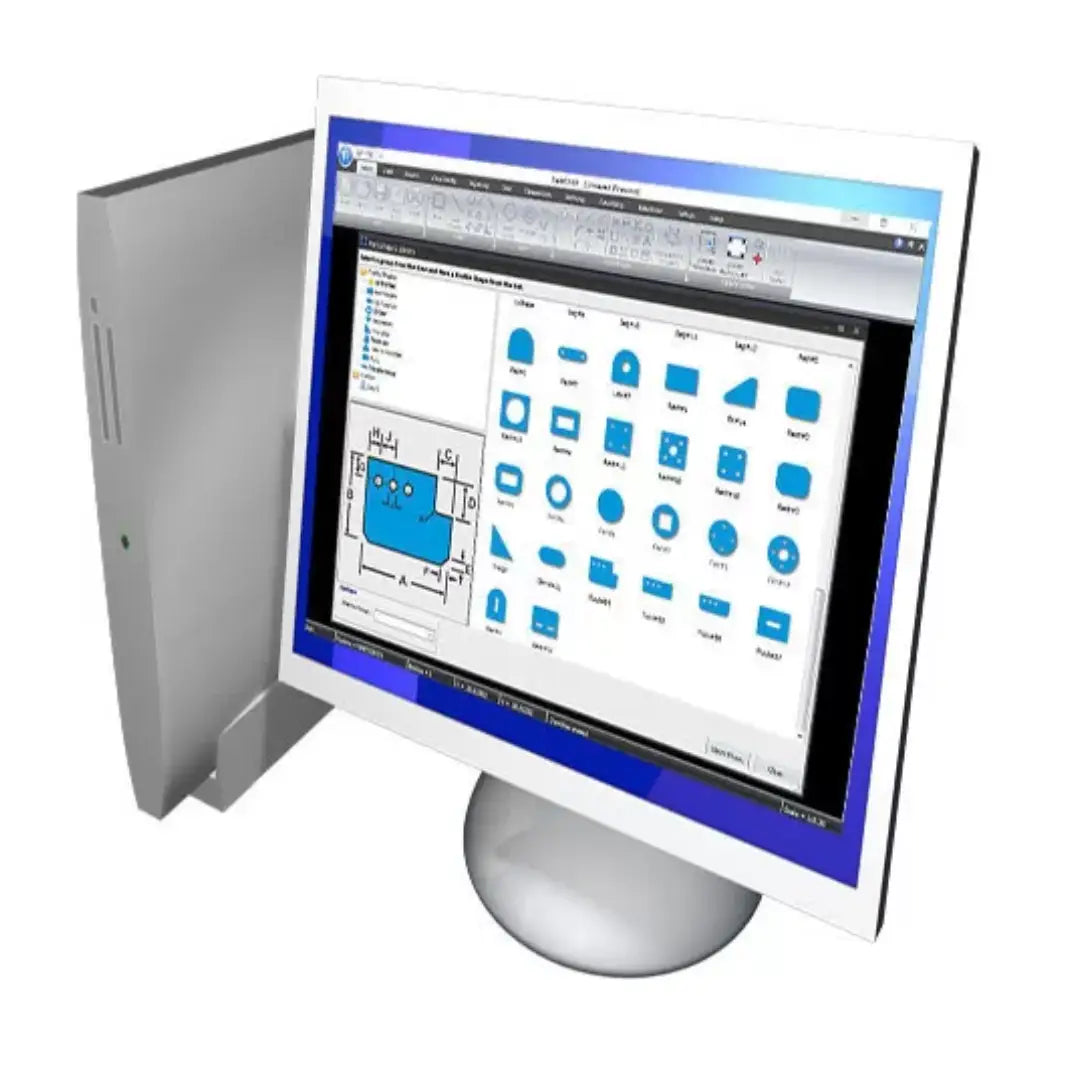

❚ Fastcam Professional (Auto-Nesting)
❚ Save drawings to USB
❚ All popular DXF and DWG files supported

Webpage:
http://www.fastcam.com/fastcam.html

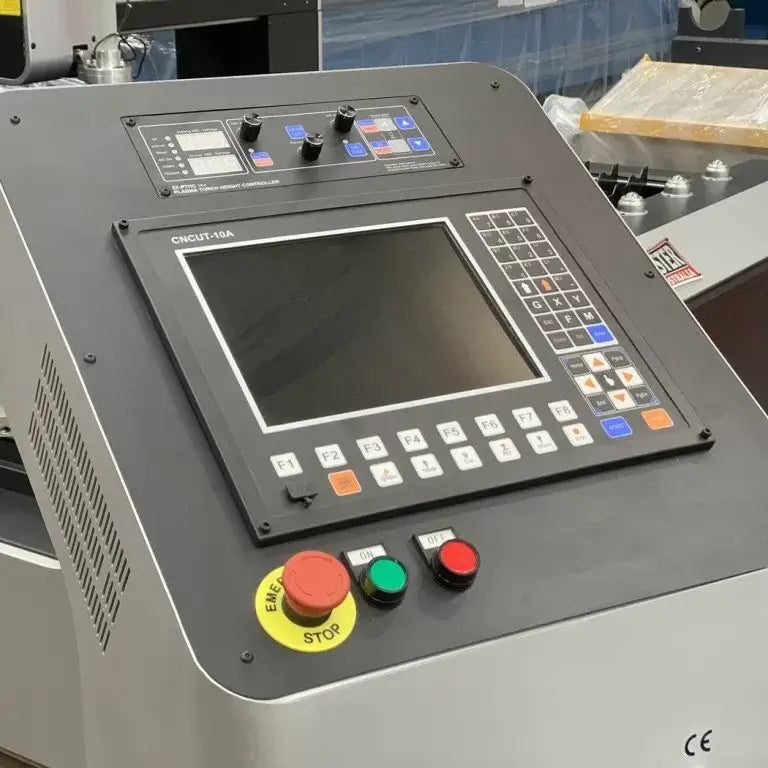

CNC Control

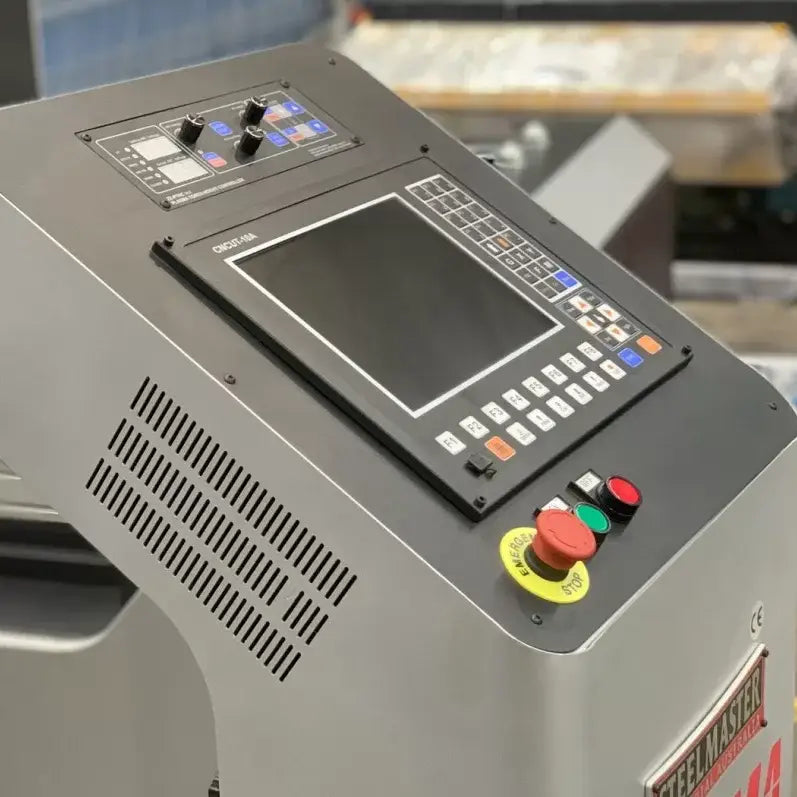

❚ FLSK CNC

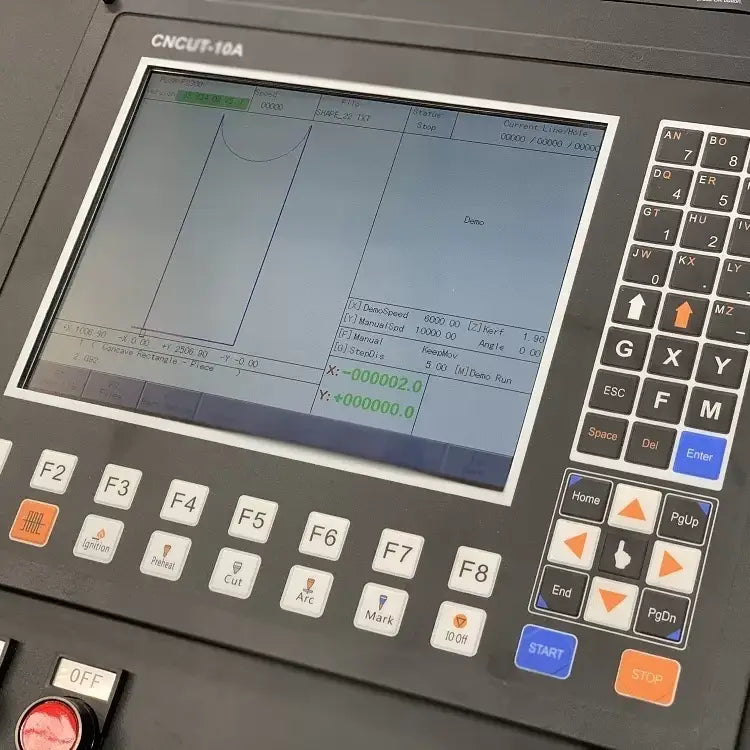

❚ Huge LCD colour display
❚ USB input

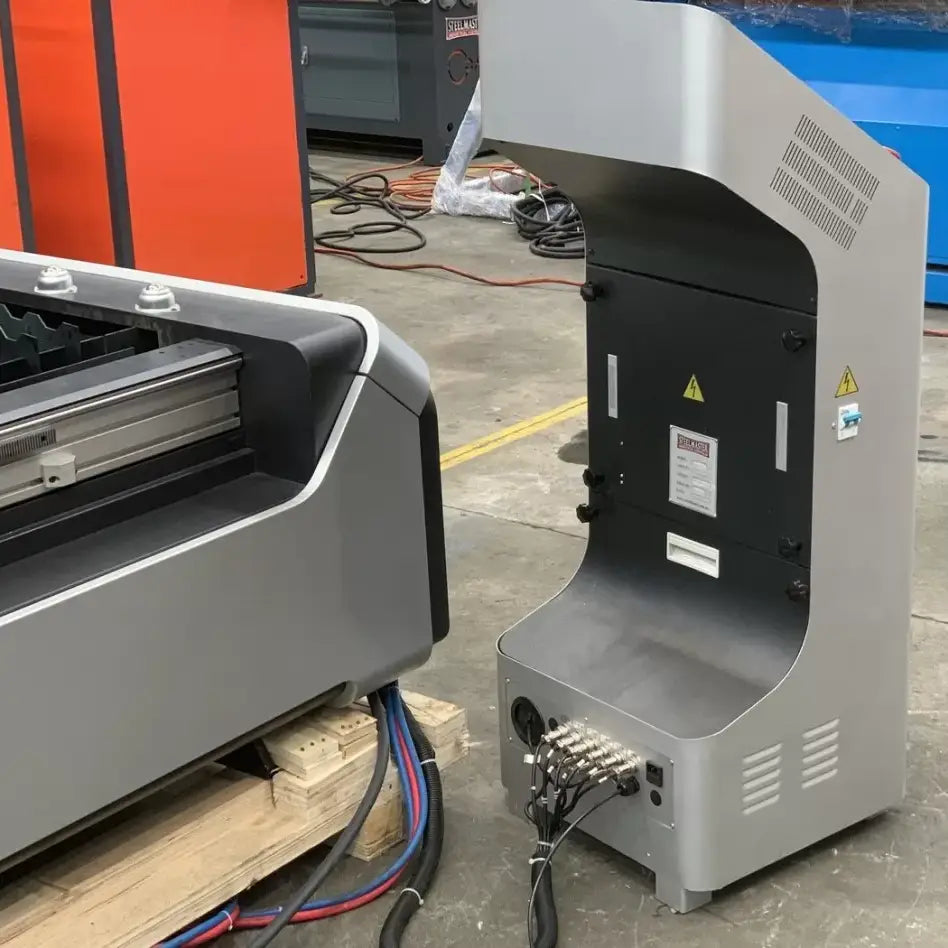

❚ Mobile console

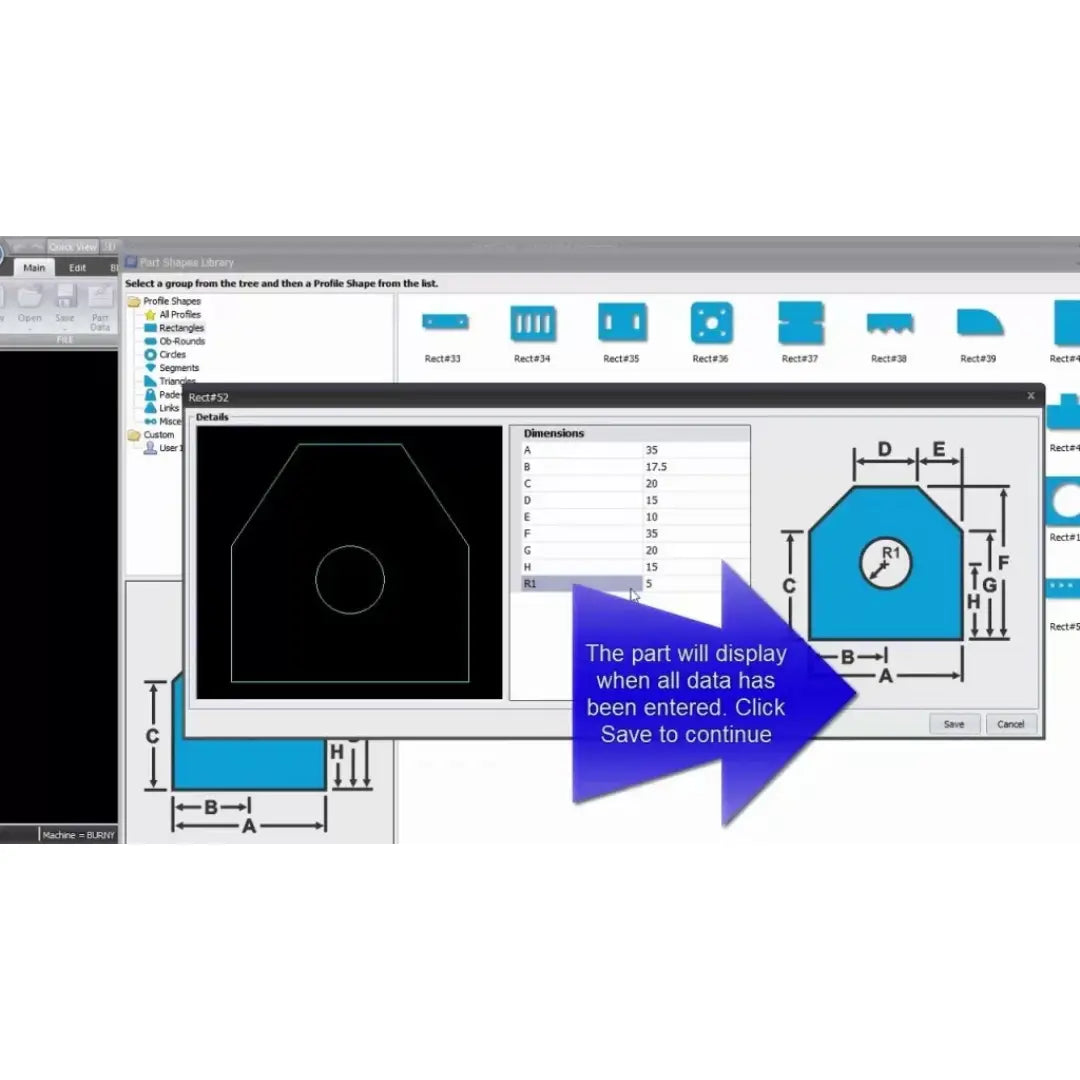

❚ Template library for quick and easy cutting of standard shapes and angles
❚ Real-time cutting path

Services required to be provided by customer
❚ electrical connection.
❚ compressed air.
❚ fume extraction provisions.
❚ Asset can offer you the above additional items on request.

Other options available if not already noted above
❚ water table available (note – aluminium cannot be cut on water table systems due to safety issues)
❚ servo drives
❚ Network Technology – Windows 10 upgrade.

We guarantee the best service & technical advice
*** BUY DIRECT FROM THE IMPORTER & SAVE ***
*** EX STOCK FOR IMMEDIATE DELIVERY AUSTRALIA WIDE ***

Recommended Add On Accessories
❚25-0258 – Air Dryer – Power System – Model: PSD-5N, 20 cfm, 16 Bar 2~3 Degree Dew Point, – 240V
❚25+0258 – Filtration – HYPERTHERM – Model: 128647 Micron Eliminizer Filter To Be Fitted To The PMX
❚25+0259 – Filtration – Power System – Model: PSF12F, Purity – 0.01 Micron, 54CFM Volume, Auto Drain.
❚21+0805 – CLEARMASTER SM-DR-3000 Laser / Plasma Fume Extraction System, 3000m/Hr. Anti-Spark Arrestor – Up to 1500mm x 3000mm Table
❚21+0806 – CLEARMASTER SM-PA-6000CT Laser / Plasma Fume Extraction System, 6000m/Hr. Anti-Spark Arrestor Up to 2000mm x 4000mm Table
❚25-0259 – Power System Model NB7/270 – 35 CFM Piston Compressor. 7.5 H.P- 415 v
❚25-0220 – AIRMASTER Rotary Screw Air Compressor & Air Dryer. Model: 11MK2, 58 cfm Capacity, 116 psi.
❚50+0200 – Digital Thickness Gauge – 0mm ~ 15mm
❚50+0112 – Digital LCD Vernier Calliper – 150mm Length.
❚Full Range of Consumables Available In Store or Online
