Plasma CNC – STEELTAILOR LEGEND B52E - 1500mm x 3000mm Table, Engraver Head, Fastcam Software
Sale price
$22,850.00
Regular price
$26,850.00
Unit price
Unavailable

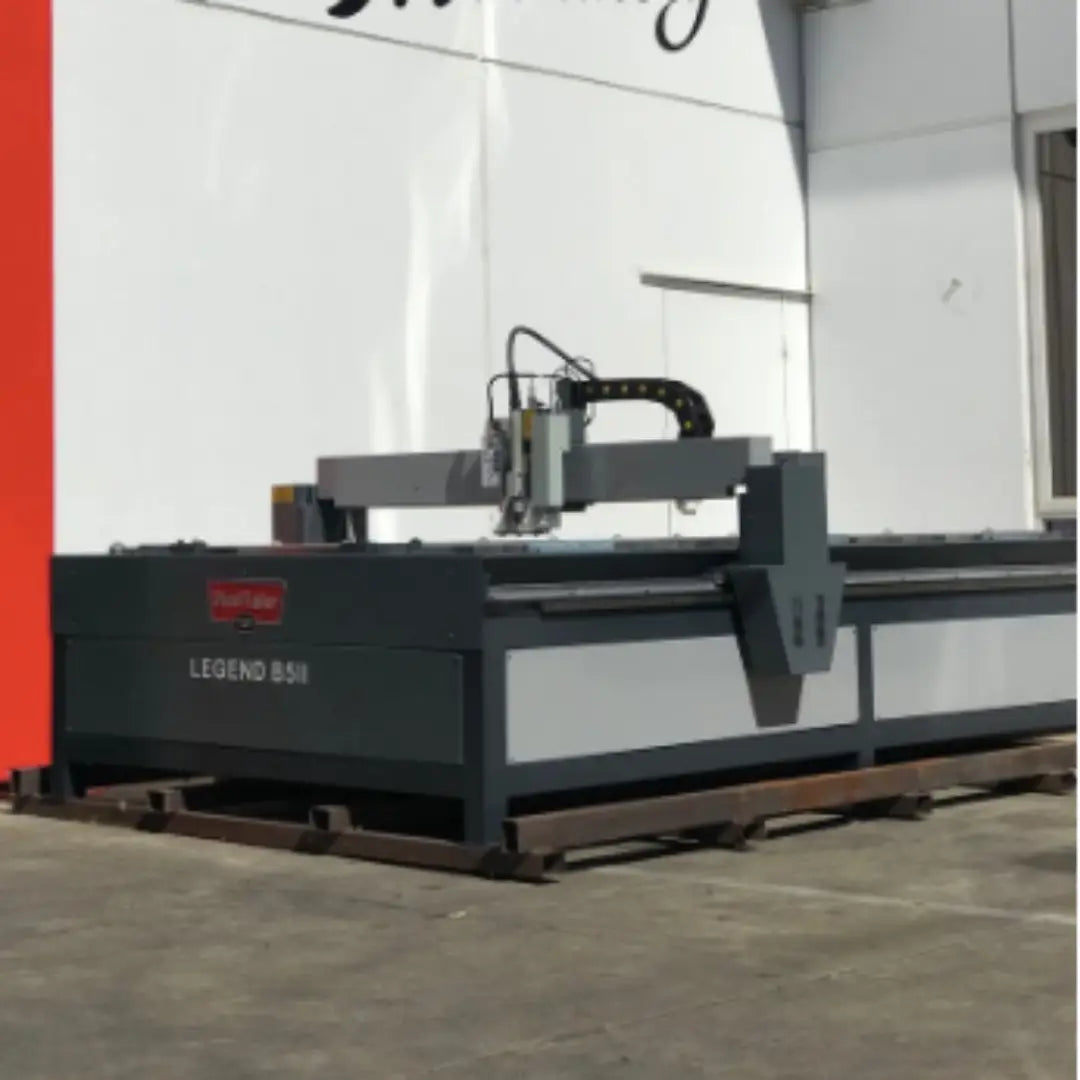

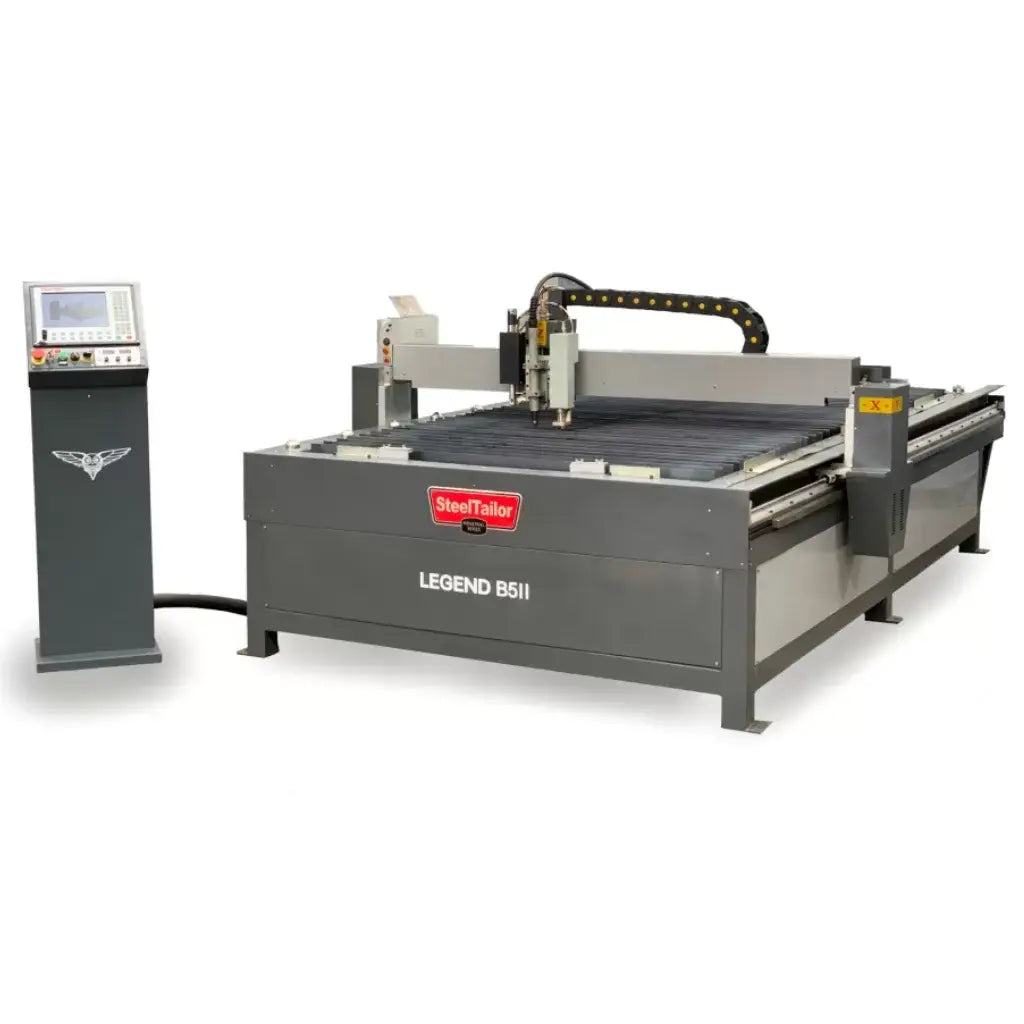

The Steeltailor Legend CNC Plasma table, featuring a 1500mm x 3000mm bed, engraver head, and Fastcam software.
Technical Data
Cutting area – 1500mm x 3000mm
Bed area – 1800mm x 3300mm
Z travel – 80mm

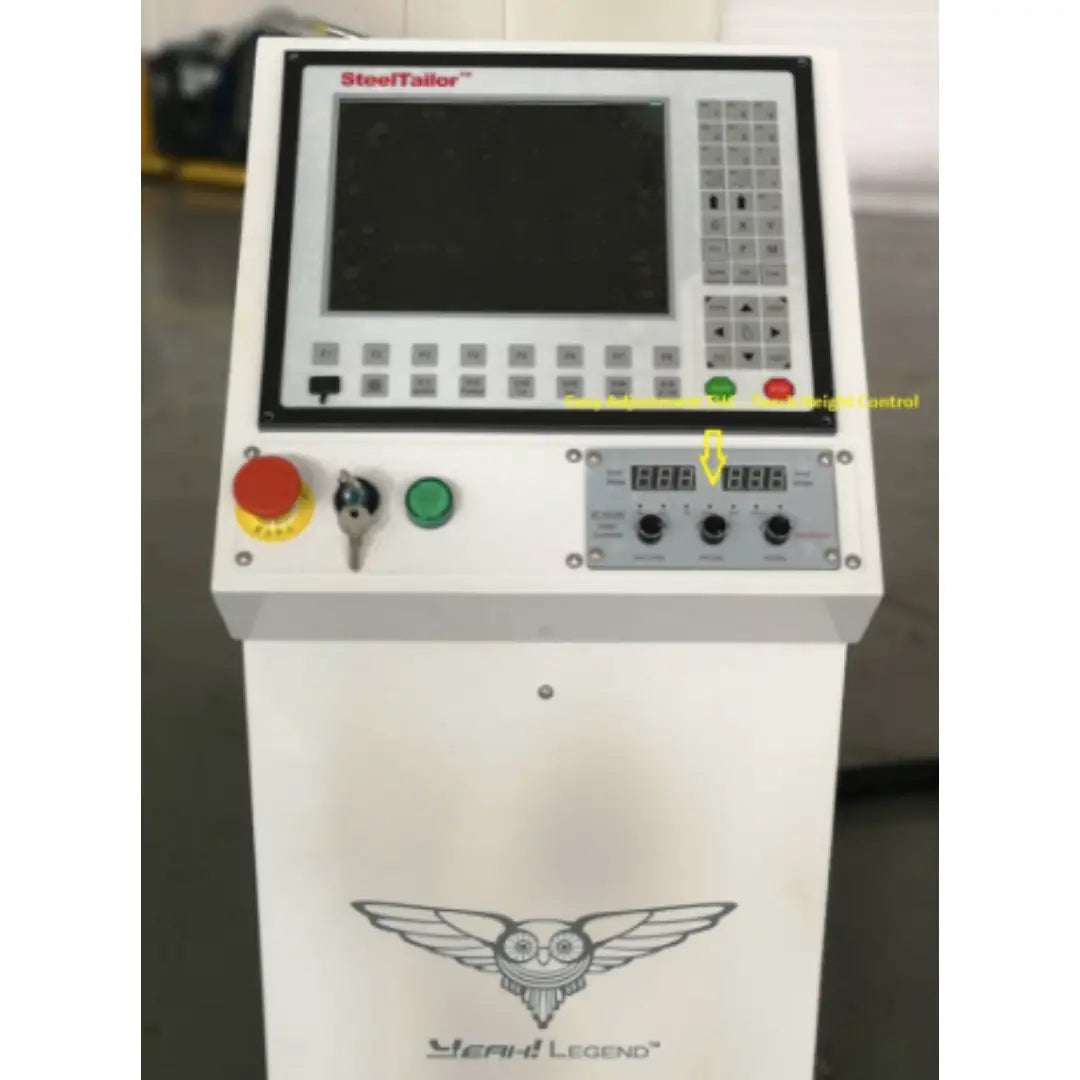

Large 10.3” LCD Screen
Larger engineered tables available to suit thicker plate
Cutting speed – 0 ~ 6000mm / min
MAX cutting speed – 12,000mm / min
Accuracy – 0.2mm
Dimensions – 3400mm x 1900mm
Crate shipping dimensions – 3600mm x 2100mm x 1600mm x 1800Kg
Weight – 1680Kg
Table power source – 240volt
Optional plasma power source – 32amp – 415volt
12 month warranty
Product Features
Power Source Plasma added in additional to this based on customers’ cutting requirements

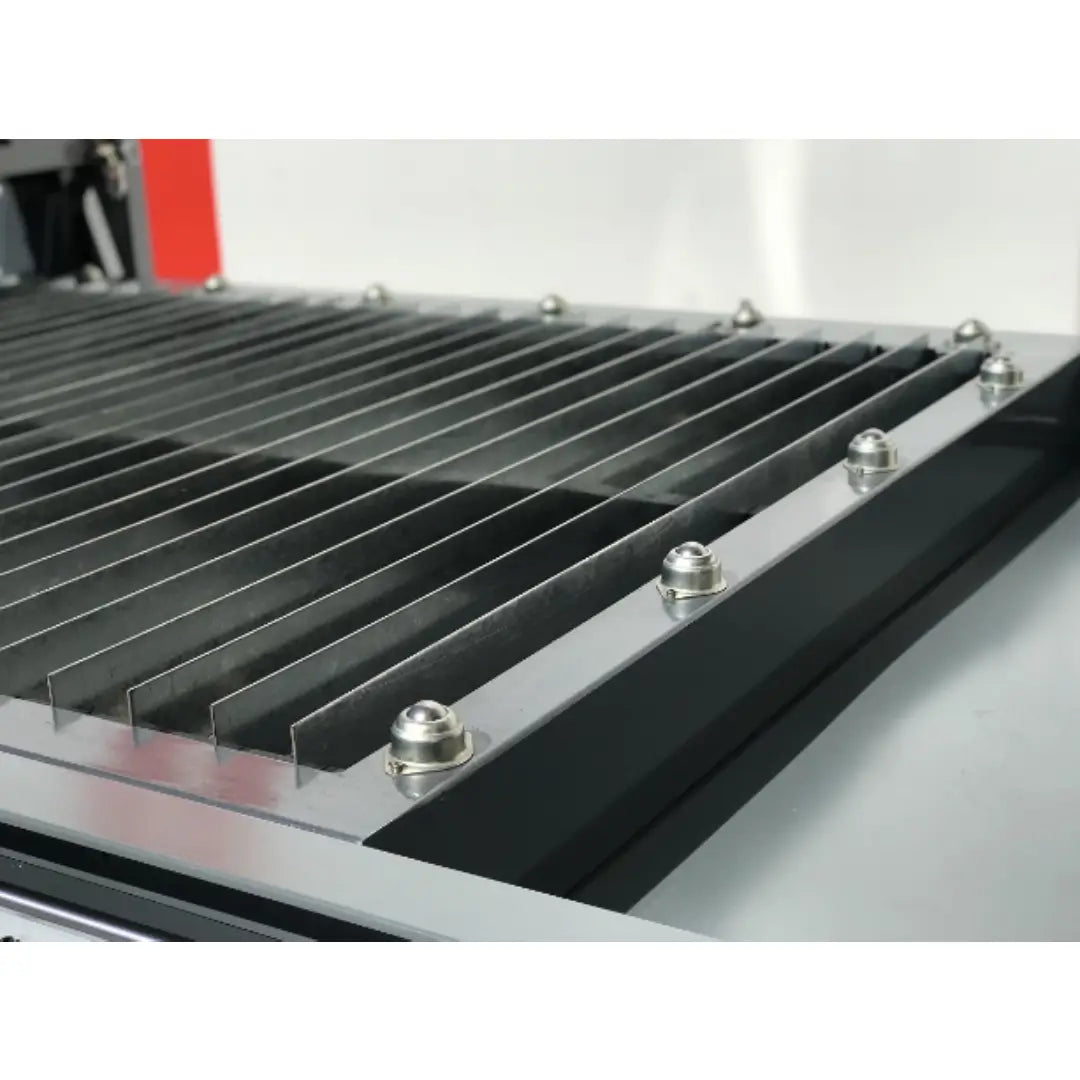

1500mm x 3000mm cutting table
Large 10.3” LCD Screen

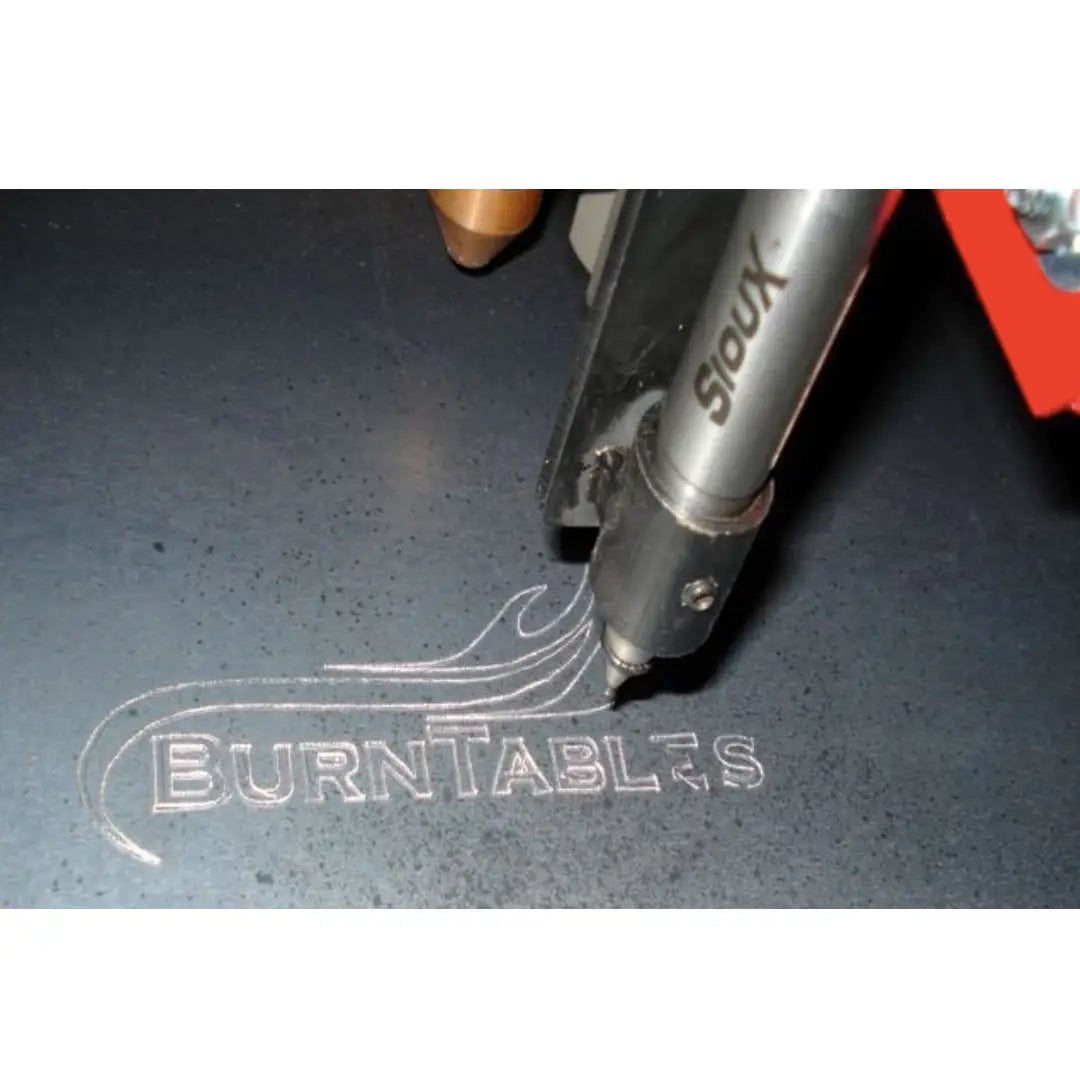

Etching engraving head fitted
THC torch height control fitted
Anti-collision device fitted
Water jacket supplied also for thin sheet cutting
Superior cut speed, quality and stability
Optimum track speed. even for fine contours and tight radii

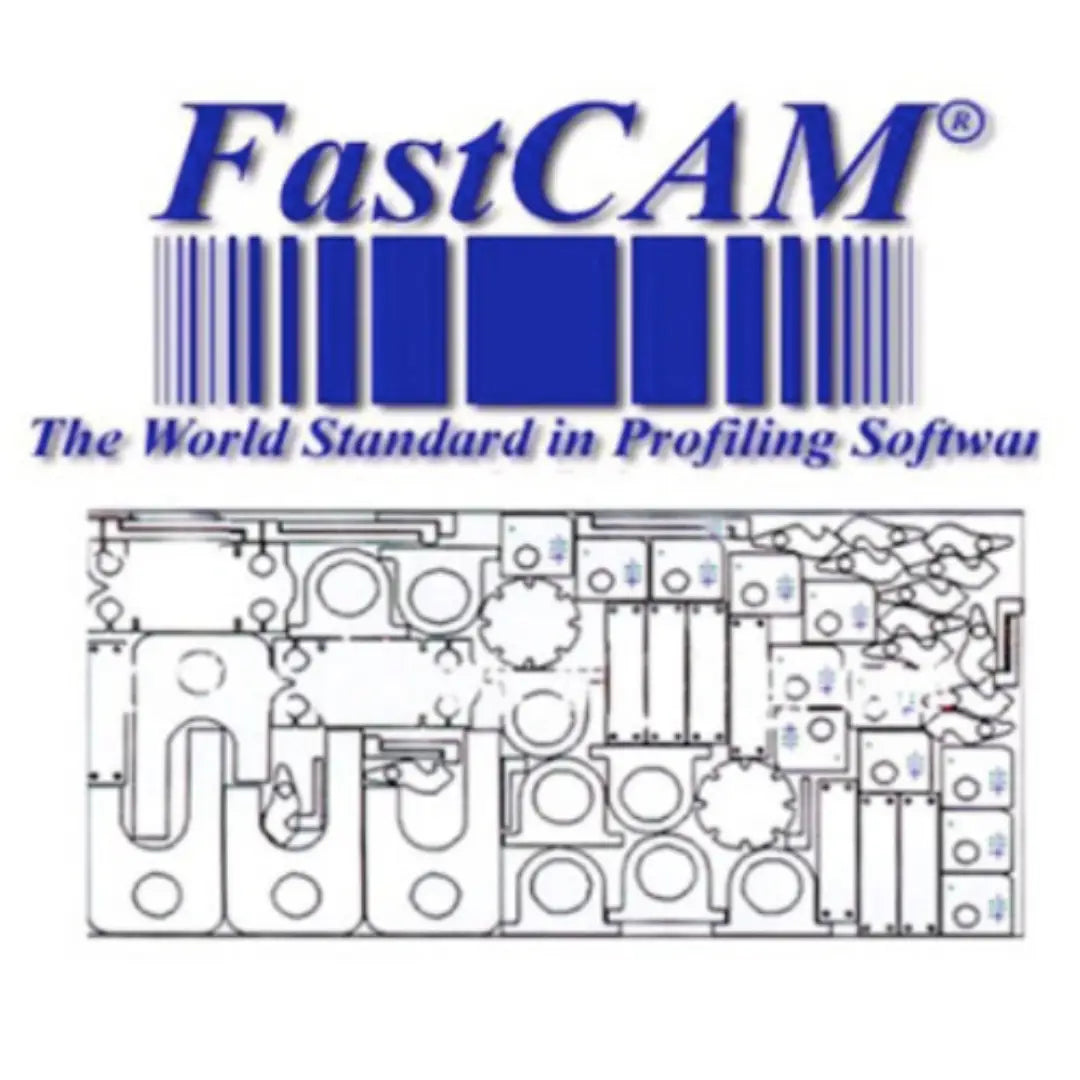

FastCam Professional Offline Software Included FREE with every machine purchase.
CNC Software Options
We offer Fast Cam Professional CNC Cutting software standard on all machines. No hidden add ons!
Nesting, Drawing Package & More – Visit www.fastcam.com for intro video and inclusion charts – including other add on modules available.
Services required to be provided by customer
Electrical connection.
Compressed air.

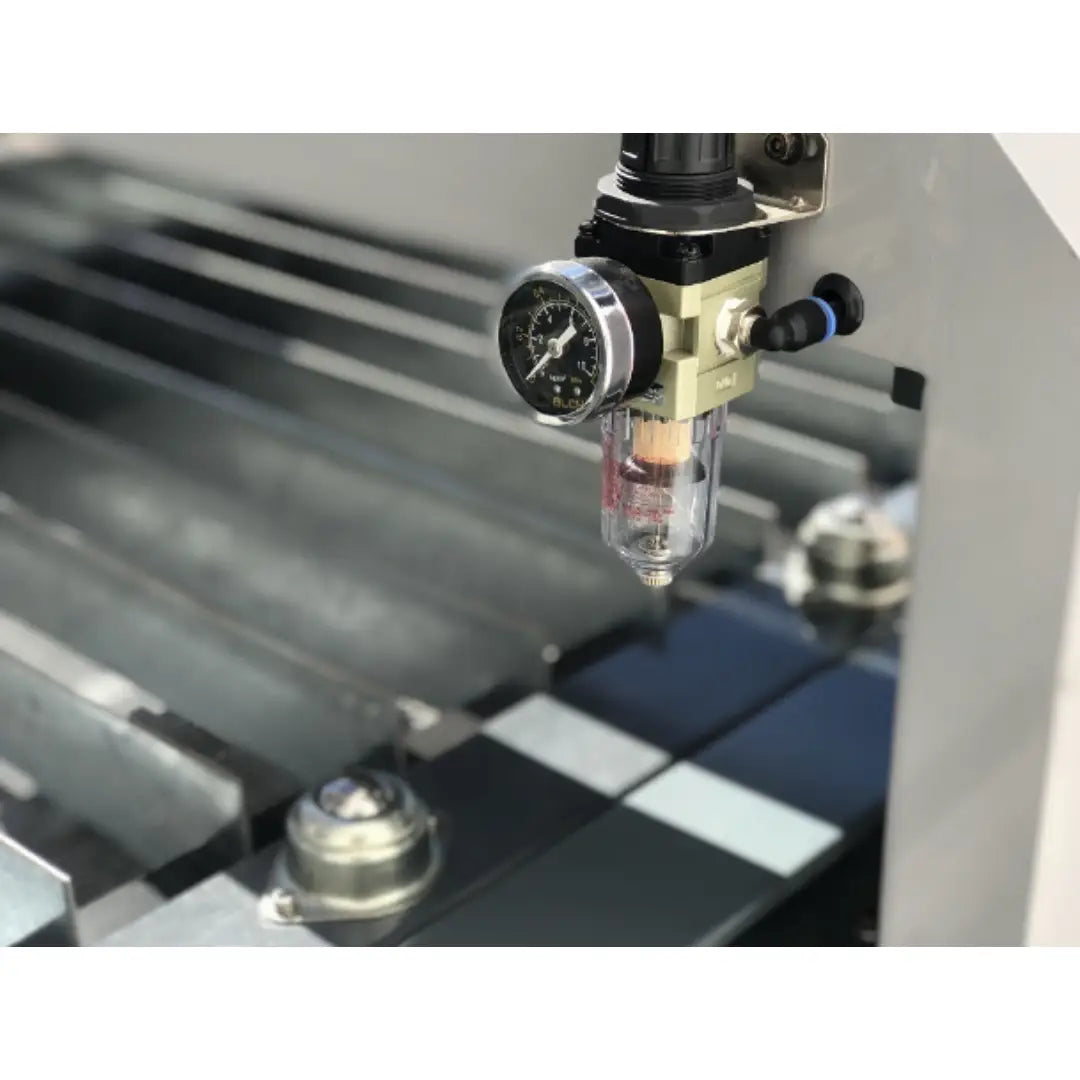

Air dryer, filter and air micron filters highly suggested – Asset stock codes for these are 25-0258, 25+0259 & 25+0258

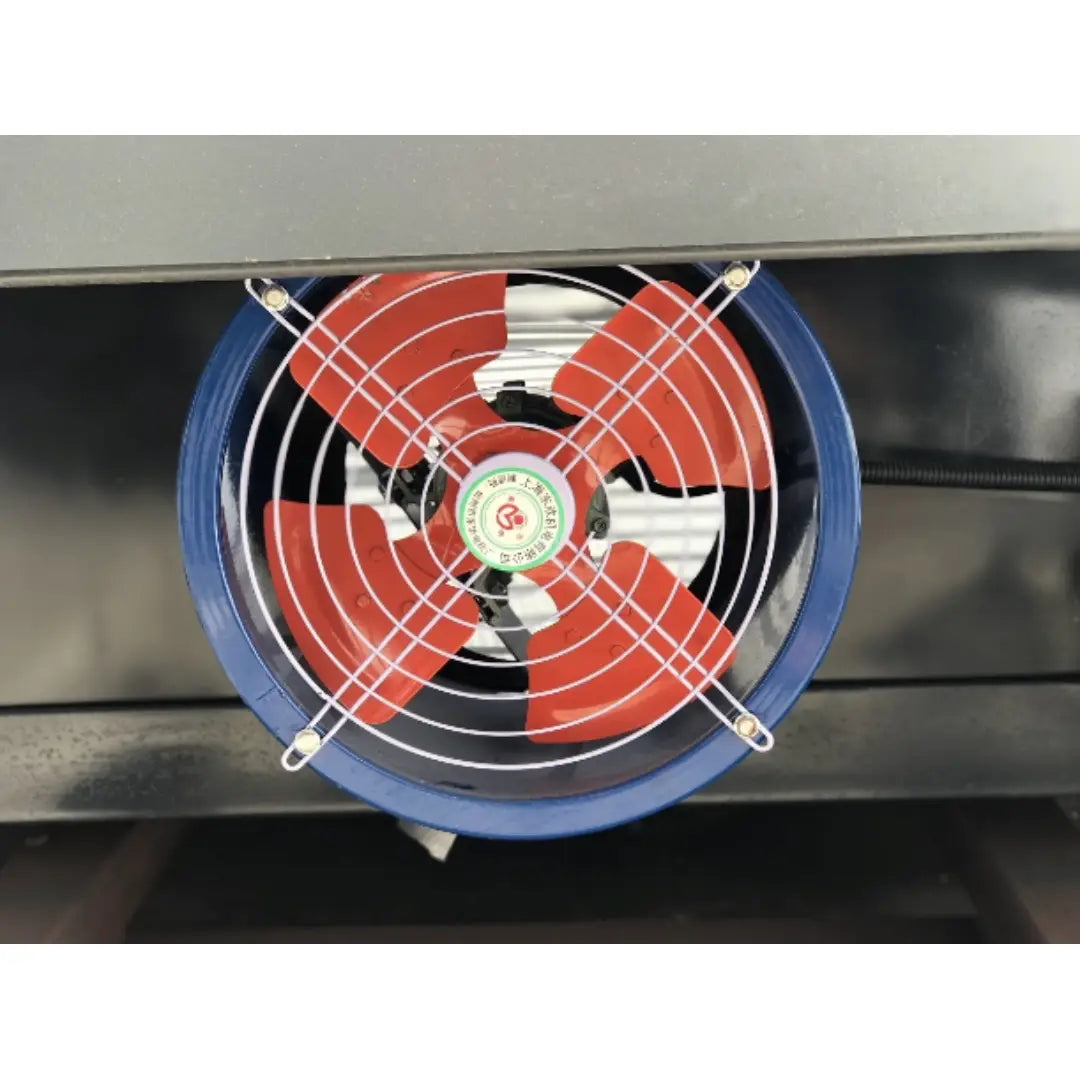

Fume extraction provisions.
Asset can offer you the above additional items on request.
Plasma CNC – STEELTAILOR LEGEND B52E - 1500mm x 3000mm Table, Engraver Head, Fastcam Software
Cutting Capacity
1500mm x 3000mm
Equipment & Accessories Supplied
Recommended Add On Accessories
Optional Items To Be Added
Related products settings
OPTIONAL EQUIPMENT WE CAN OFFER
The principal characteristics of the STEELMASTER ADH FCM Series 3015 Fibre Laser are
You can also see the changes in the promotional video here
Fastcam 8 – https://www.youtube.com/watch?v=GHAPFg4PrYA
Engraving Head – https://drive.google.com/open?id=0Bxjl6-O373yUcDdLR1k0eFlid1U
FastCAM 8 Information
You can read all about the upgrades and changes in FastCAM 8 in the links below, together with the FastCAM 8 Brochure:
http://fastcamusa.com/download/FastCAM_v8-0_Update.pdf
http://fastcamusa.com/download/FastCAMSystem_2018.pdf
Programming

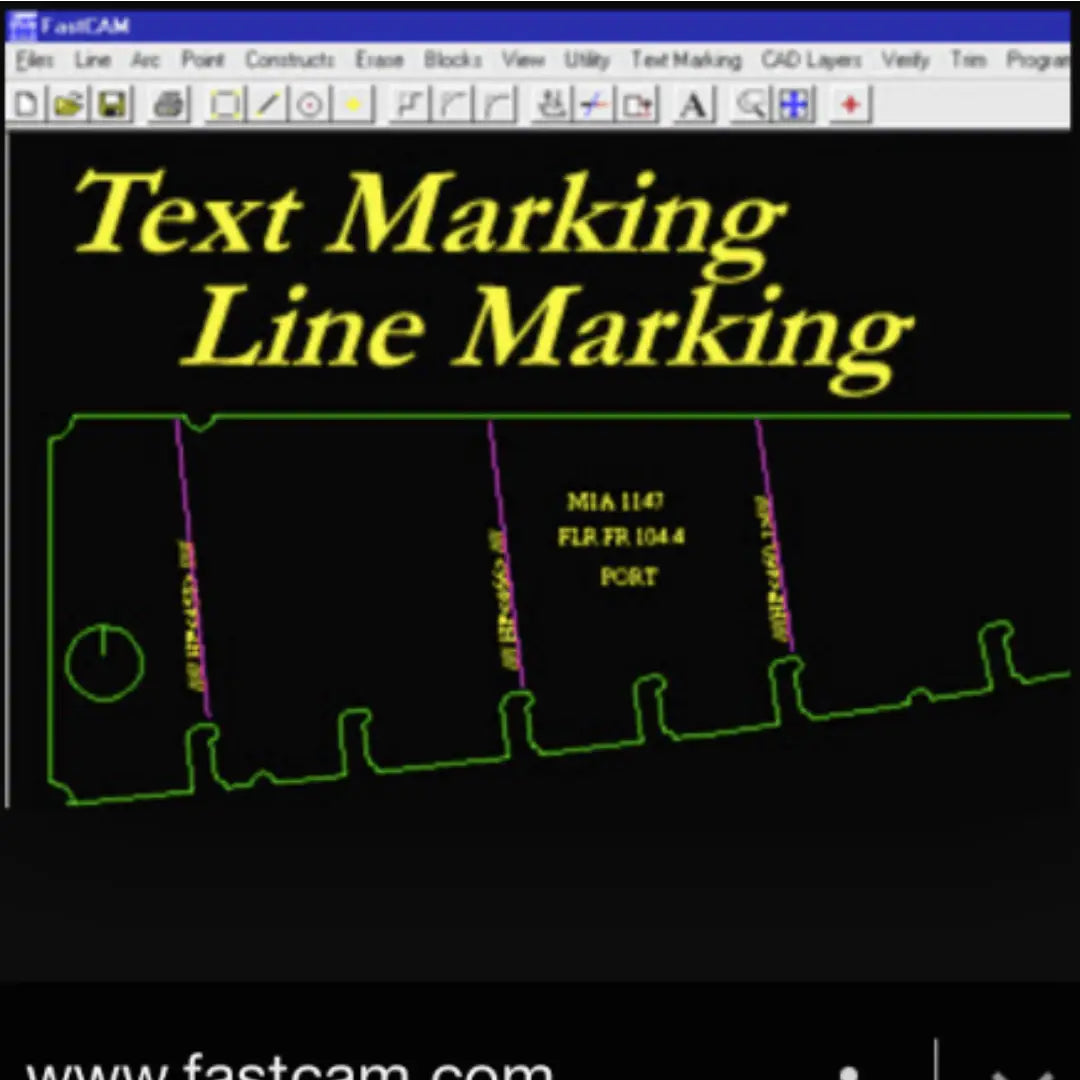

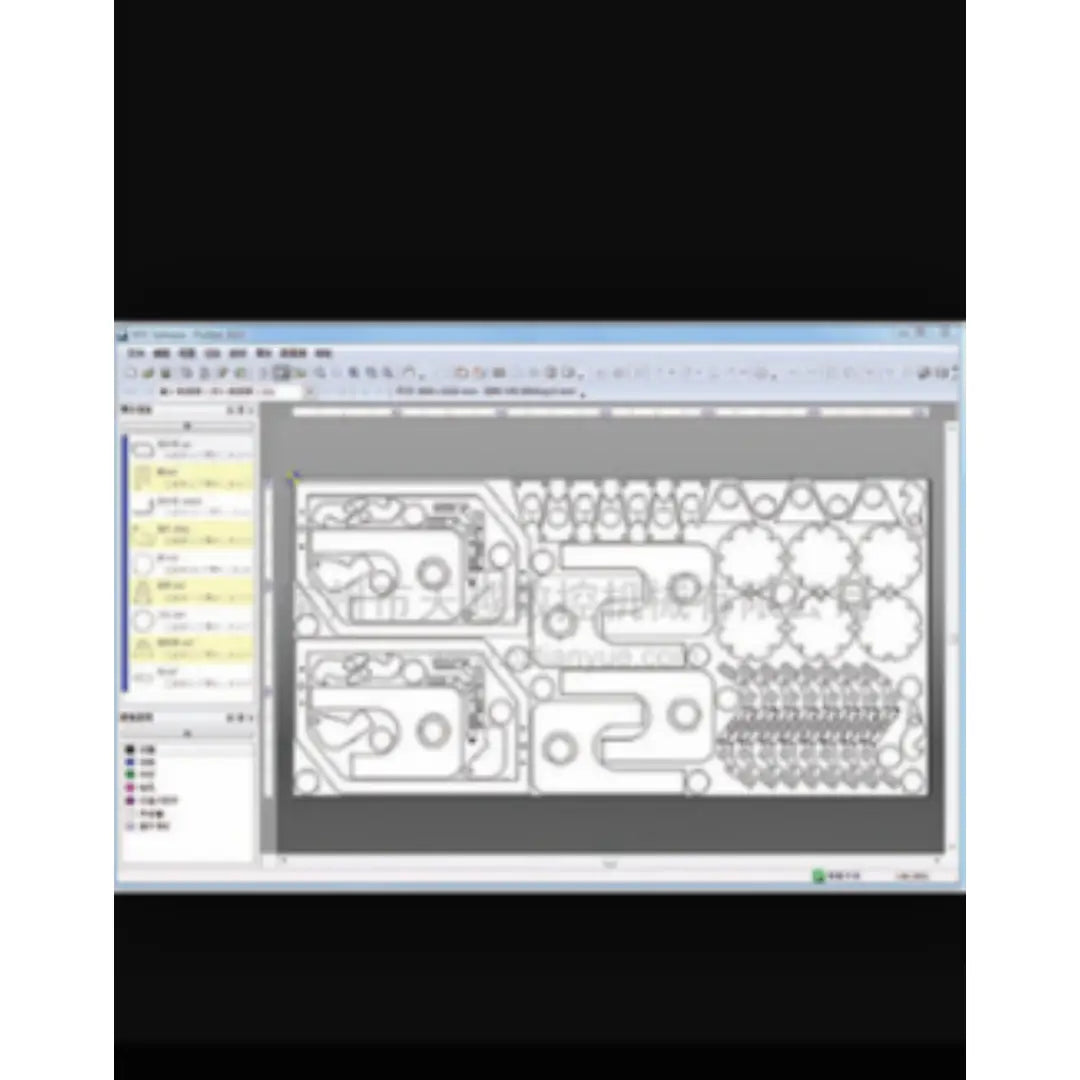

FAST CAM Professional (drawing & nesting) CNC Cutting software included with machine.
Click here for Fastcam Overview – http://response.fastcam.com/knowledge-base/article/fastcam-information-starter-pack
Machine console is pre-loaded with standard industry templates for quick editing and cutting applications
Program (nesting shapes), drawing is done by computer in office –
Save G code into USB
Program is transferred to G code
Connect USB with machine controller
Operate controller ( for this step, no computer is needed)
