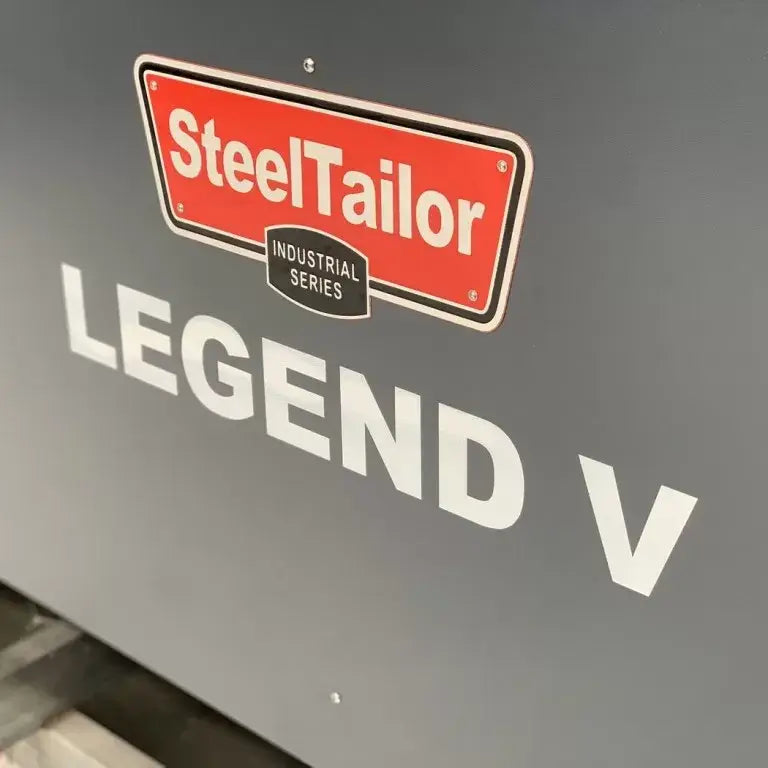

Plasma CNC – STEELTAILOR LEGEND V – 1500mm x 3000mm, Water Table & Etching Head, 10.5” LED Monitor
Sale price
$28,850.00
Regular price
$31,850.00
Unit price
Unavailable

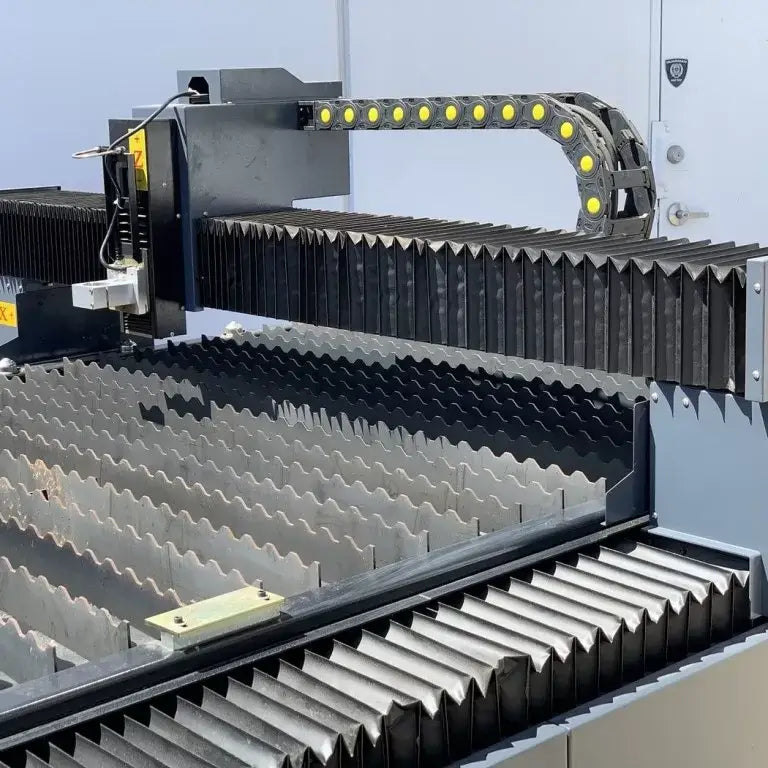

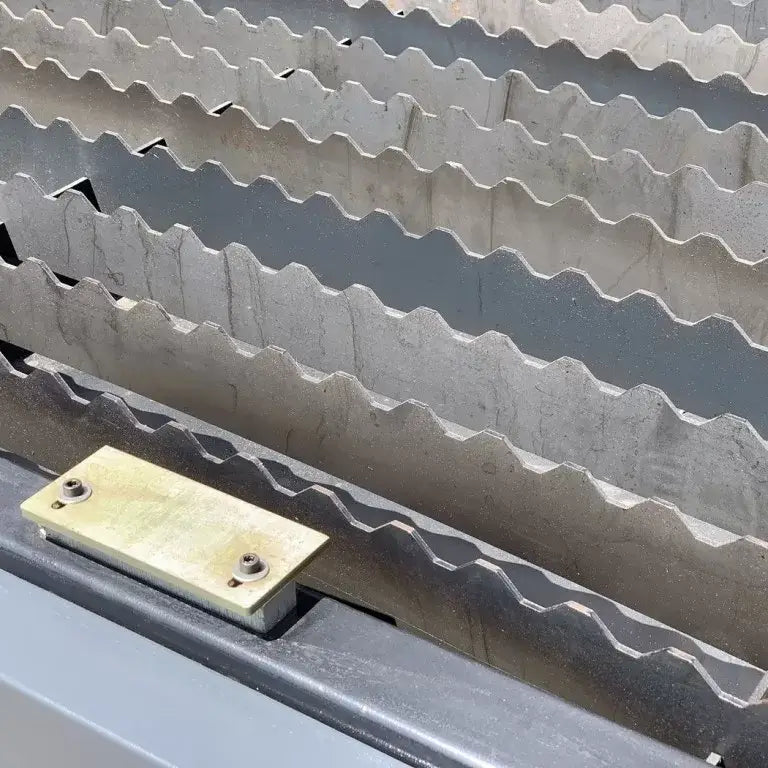

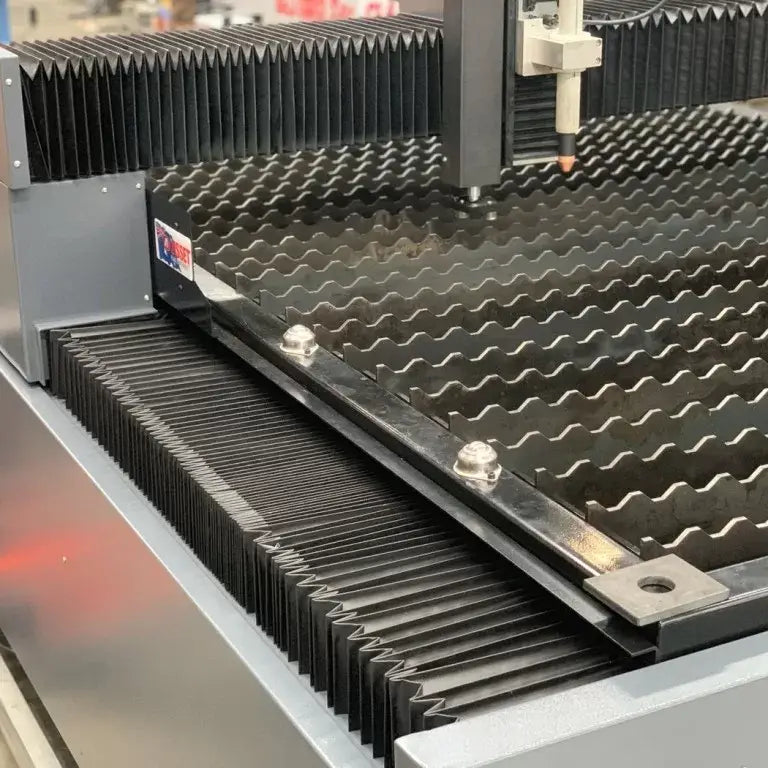

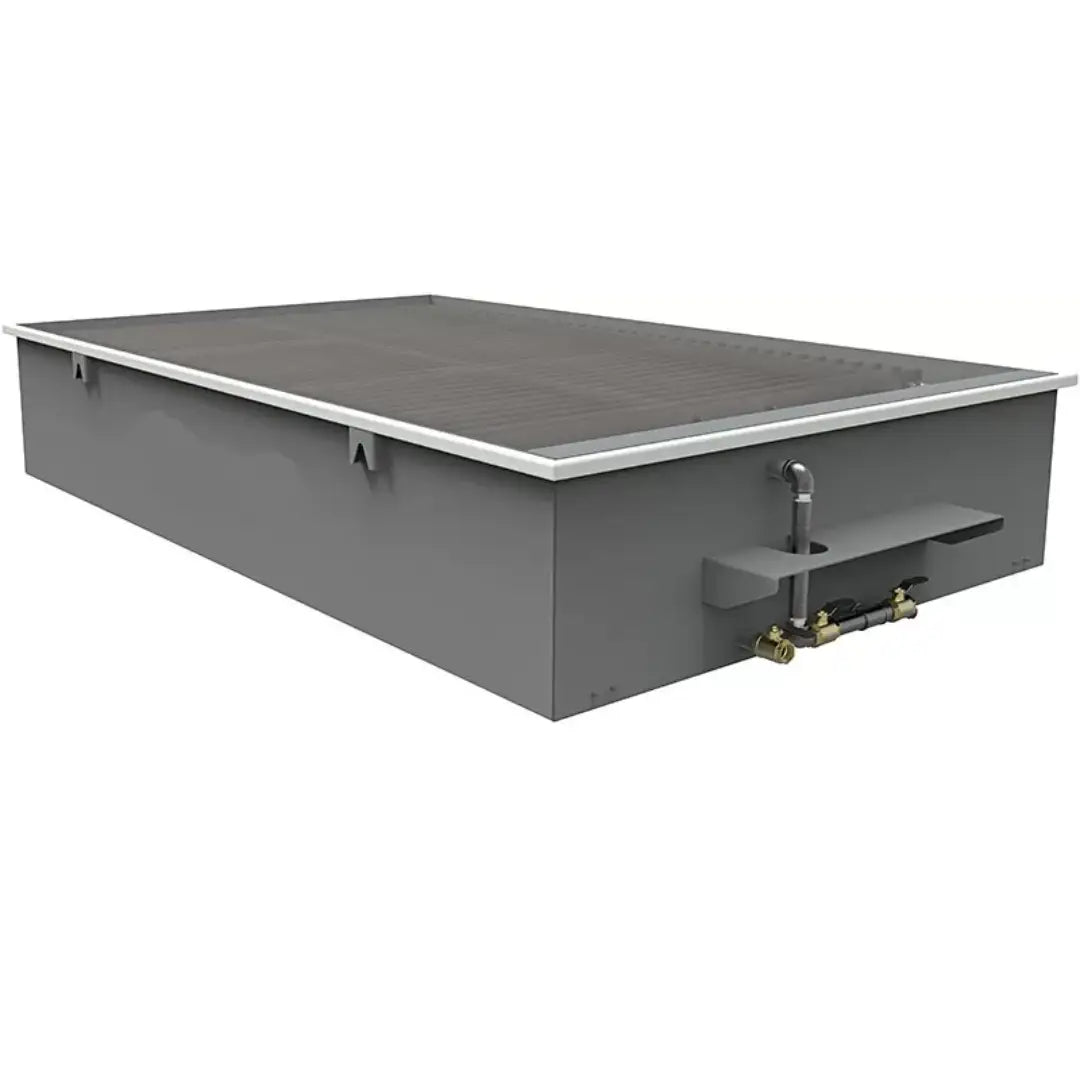

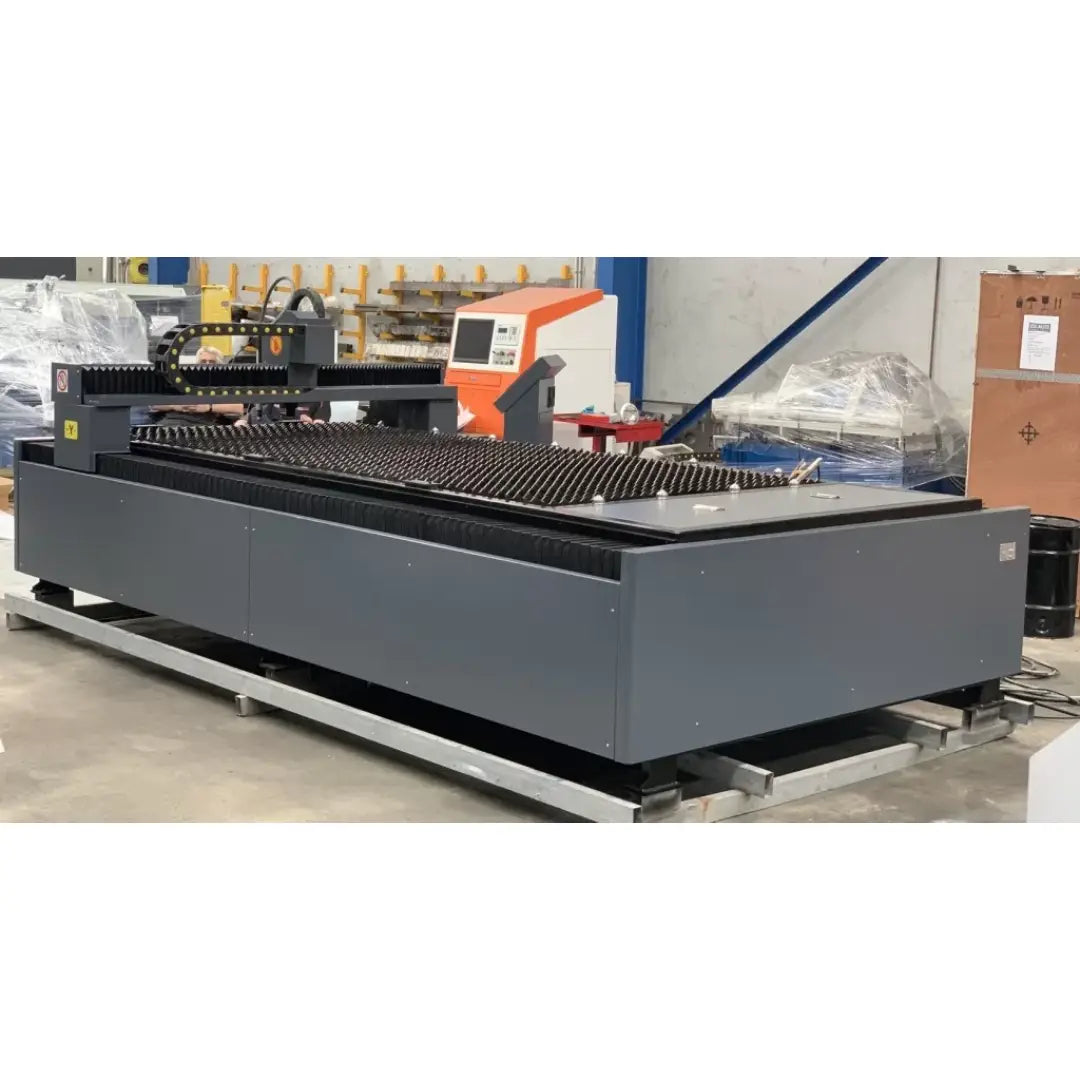

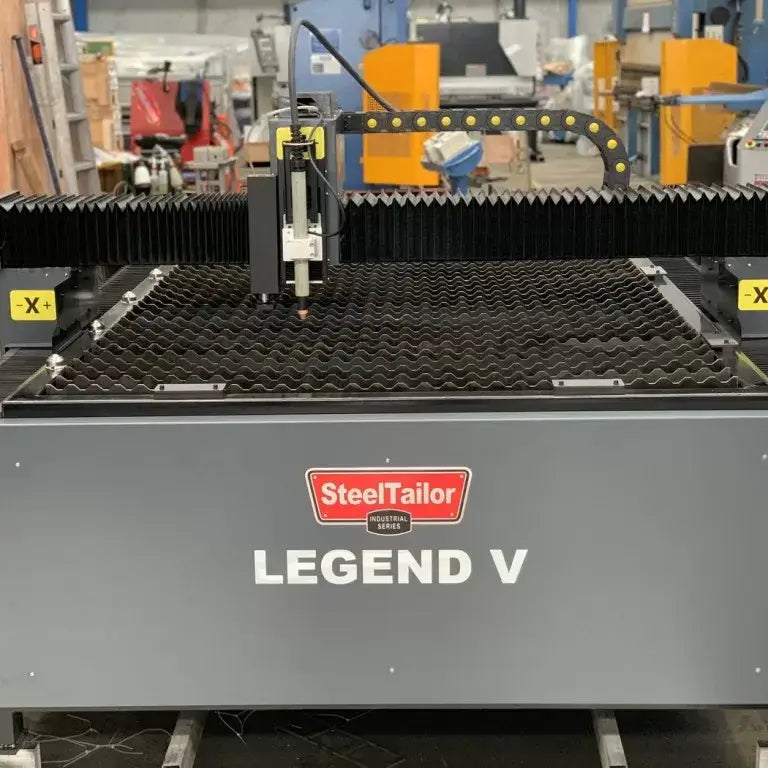

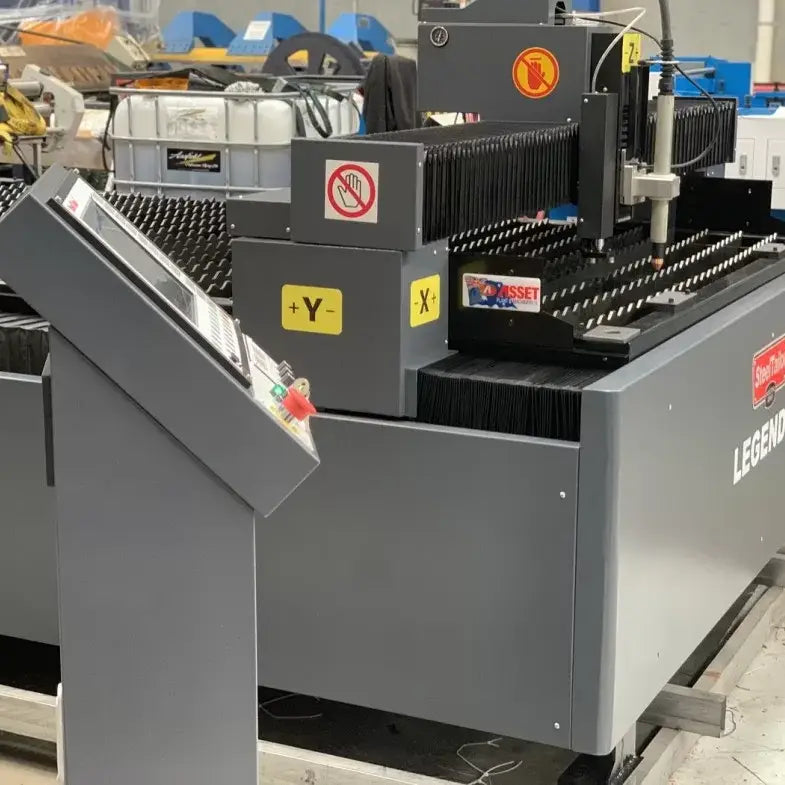

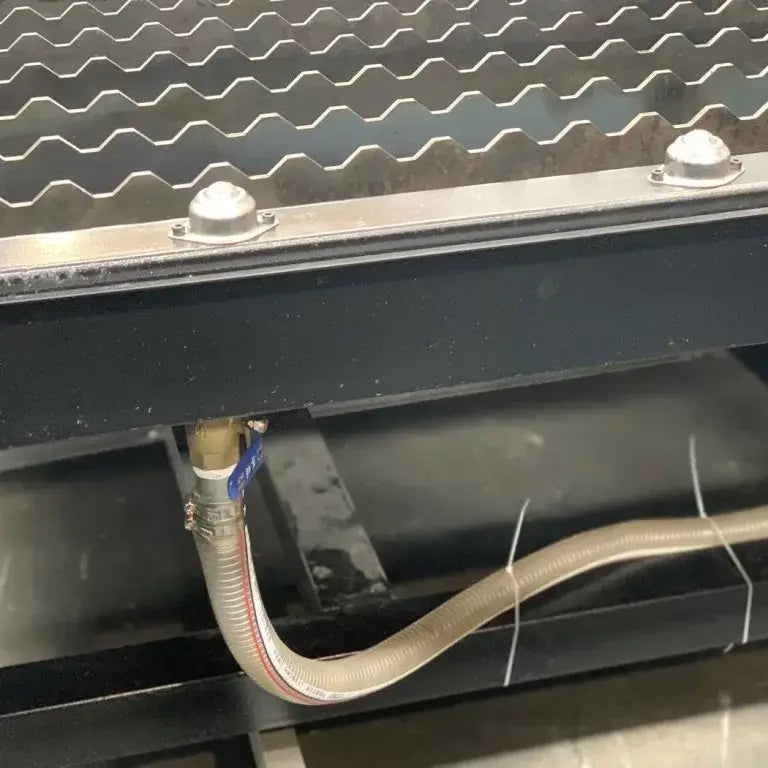

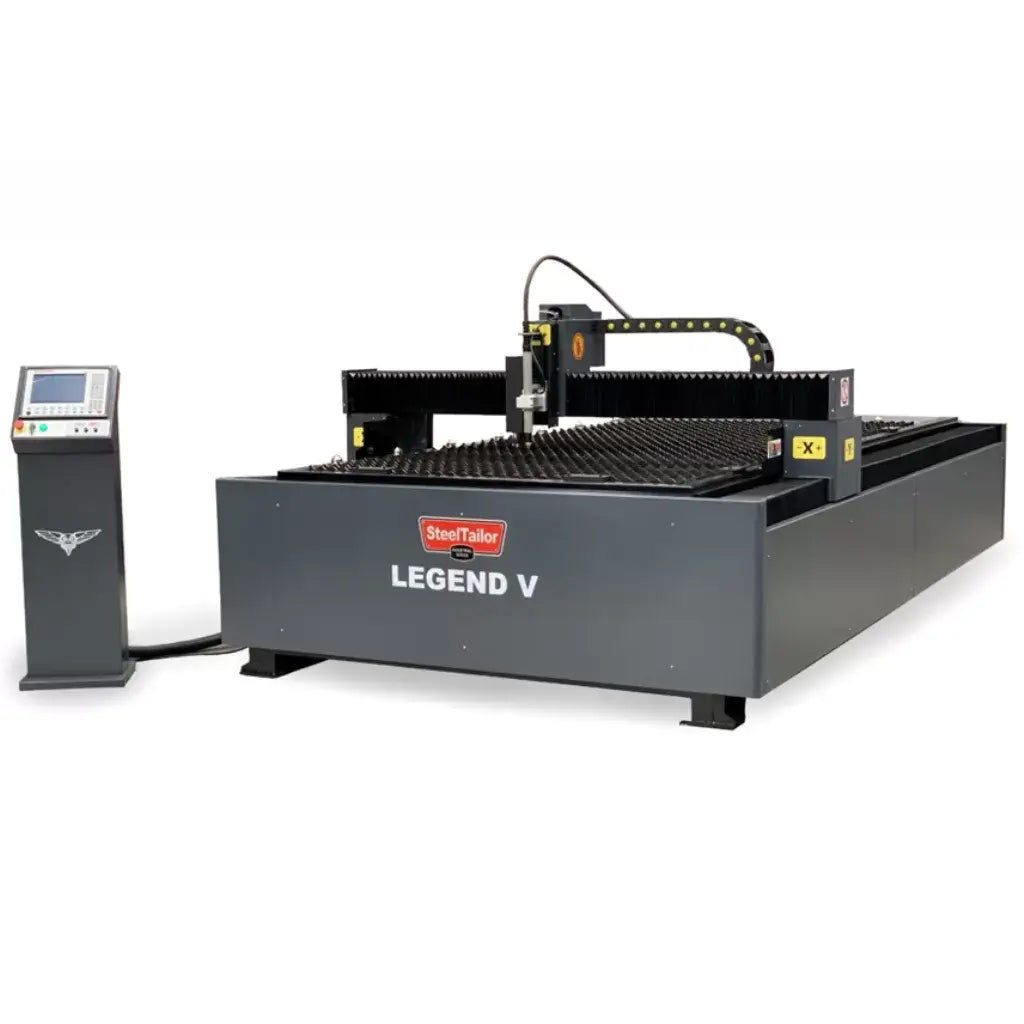

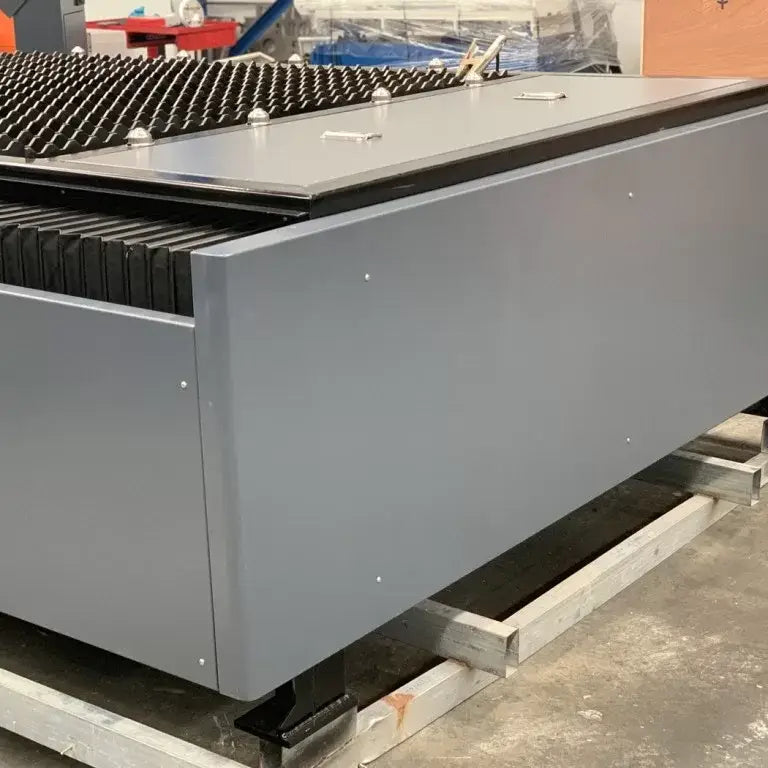

The Steeltailor Legend V CNC Plasma table with a 1500mm x 3000mm water table, servo drive, etching head, and 10.5” LED monitor.
Technical Data
Cutting area – 1500mm x 3000mm
Bed area – 1700mm x 3300mm
Z travel – 140mm
Larger engineered tables available to suit thicker plate
Cutting speed – 0 ~ 6000mm / min
MAX cutting speed – 12,000mm / min
Accuracy – 0.2mm

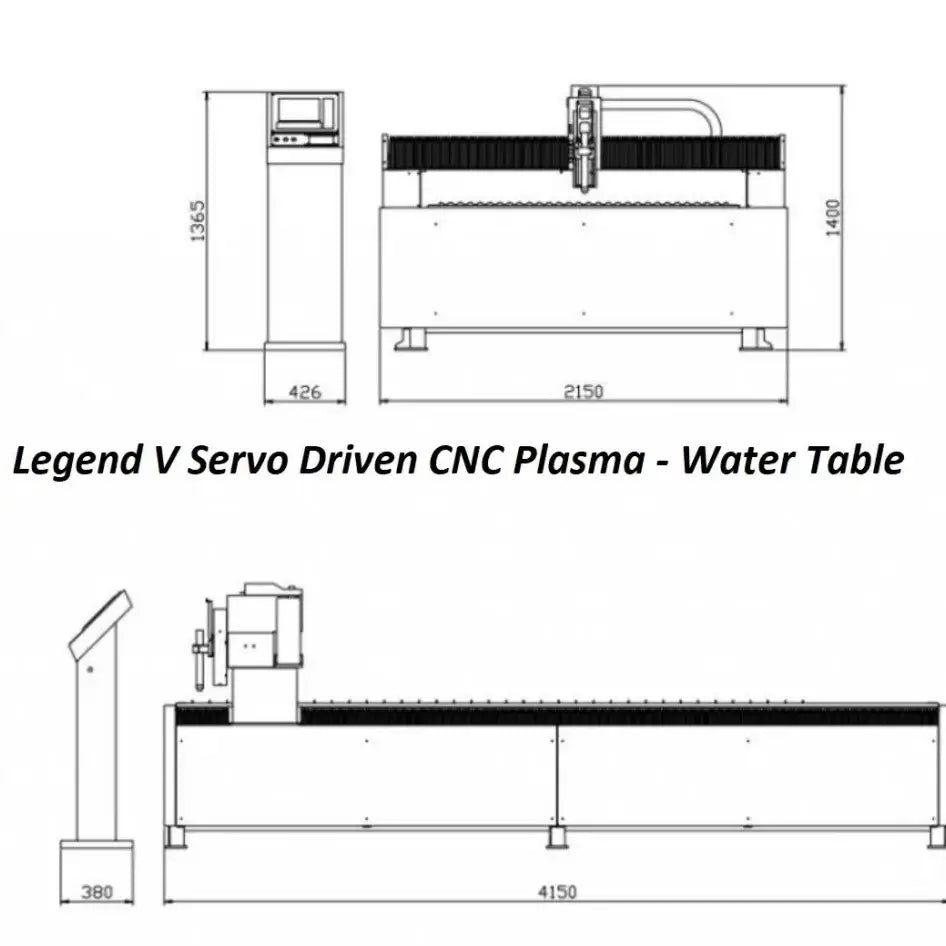

Dimensions – 3200mm x 1800mm
Weight – 1680Kg
Power source – 240volt
24 month warranty
Product Features
1500mm x 3000mm cutting table

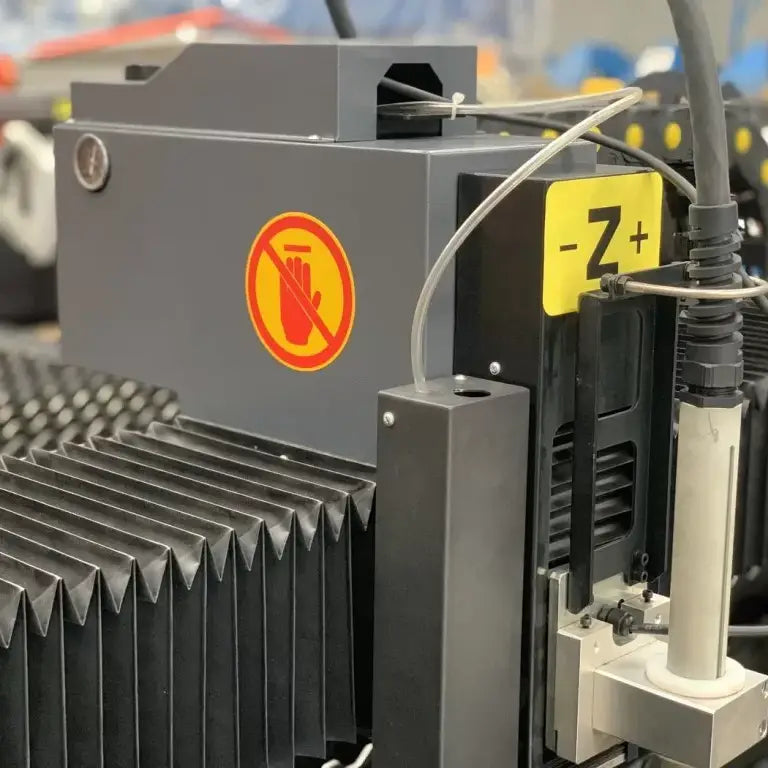

THC torch height control fitted

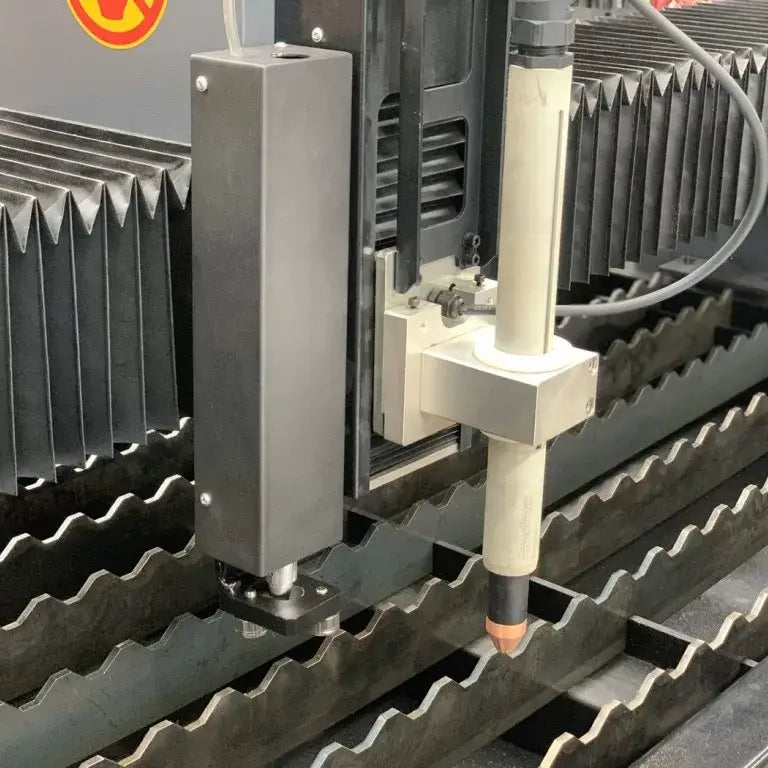

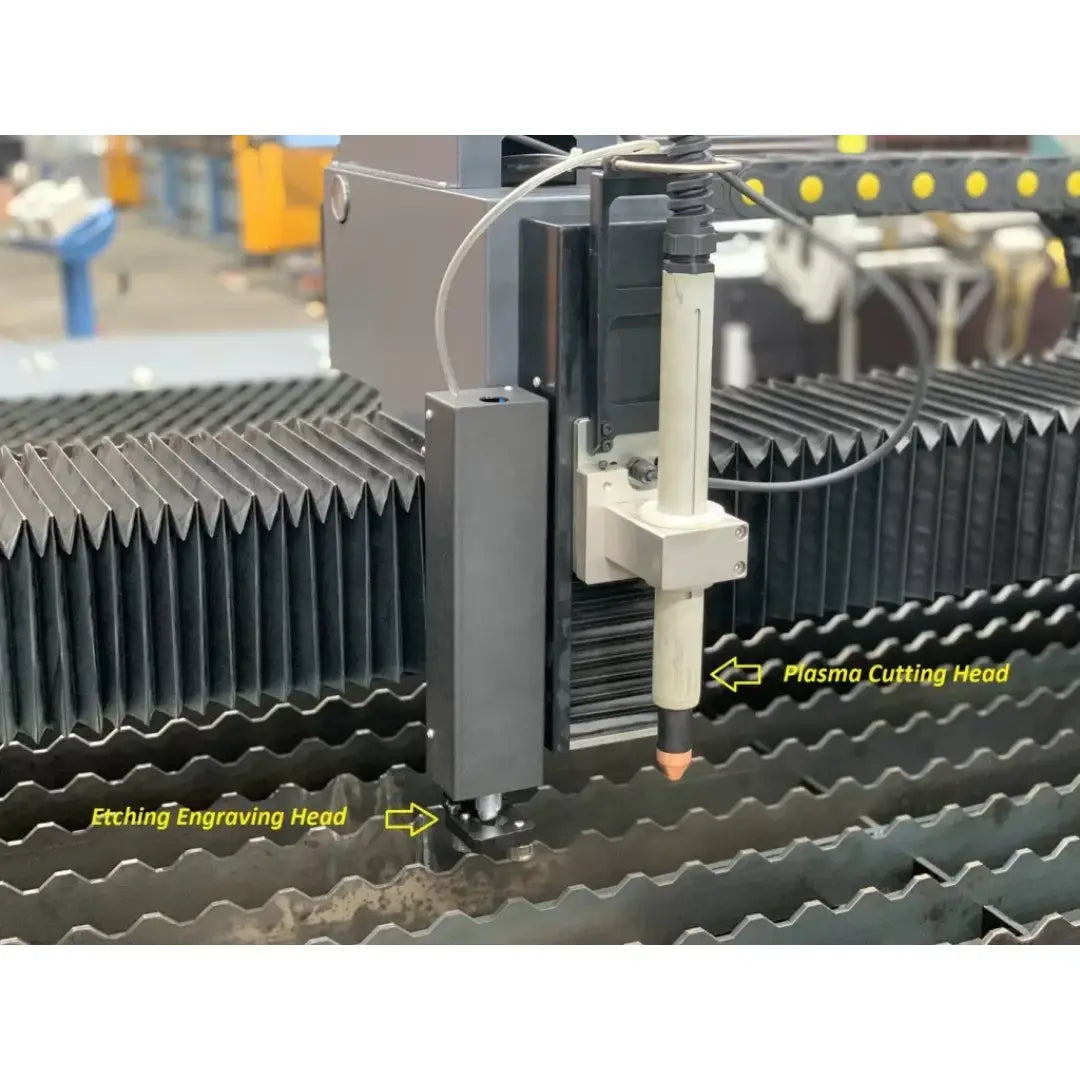

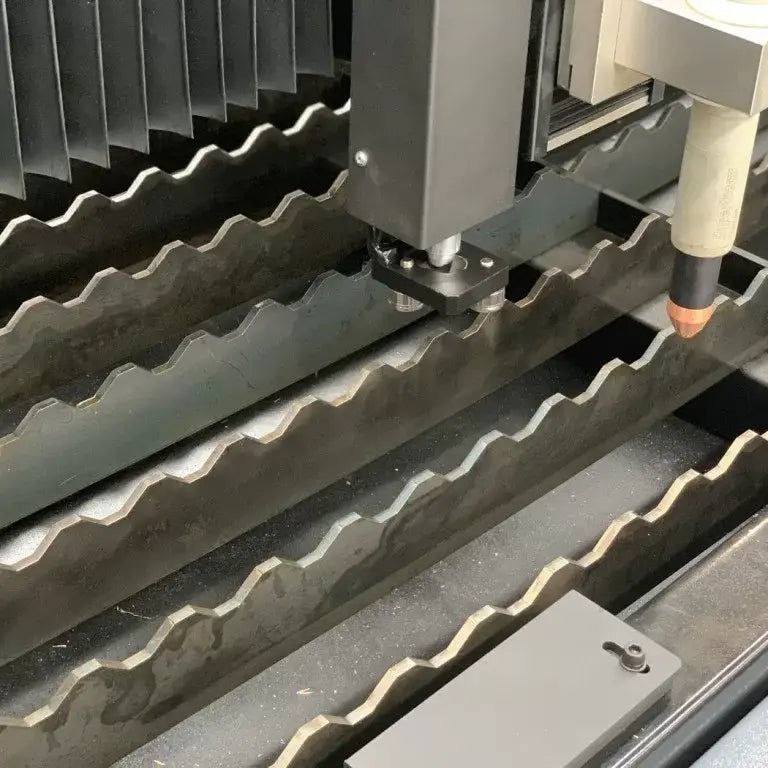

Plasma Cutting Head & Etching Engraving Head Included
Superior cut speed, quality and stability

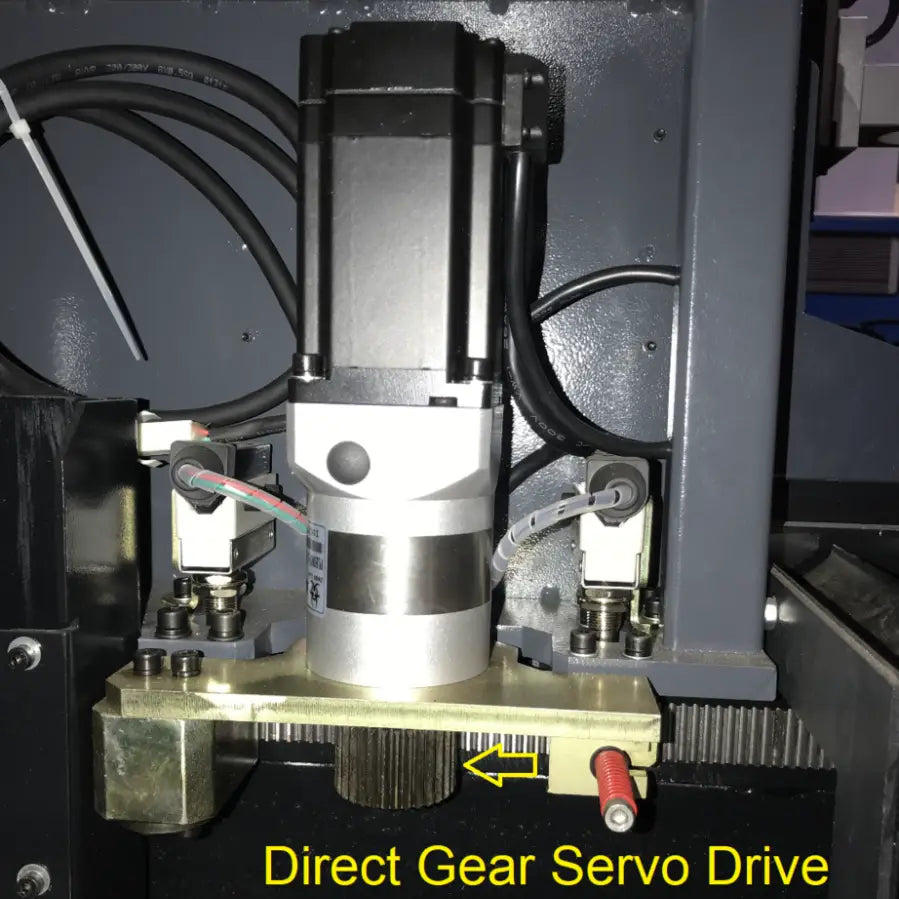

Servo drive ensuring optimum track speed. even for fine contours and tight radii
Fast Cam Professional offline software supplied standard offering, nesting, dxf file conversion and so much more.

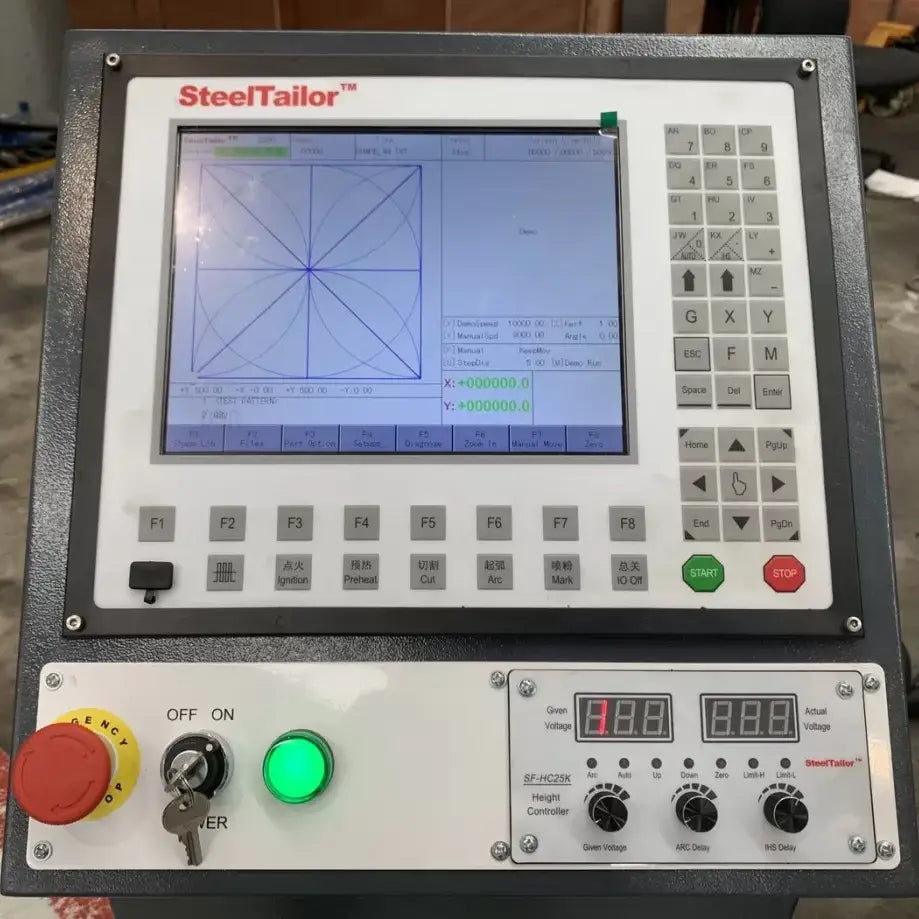

High quality cnc controller options offering options, accepting G & M codes.
Compatible with common cutting software’s such as ARTCUT, CAXA, ARTCAM

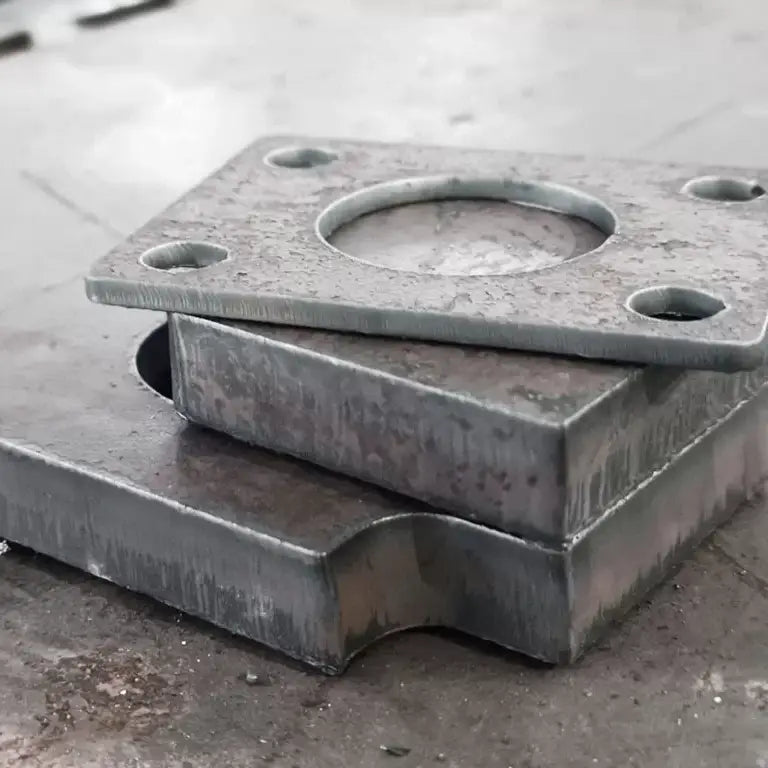

Small kerf, precise cutting, no cutting residue
All DXF or DWG (from Autocad, Solidworks) formated files can be adapted.
Services required to be provided by customer
Electrical connection.
Compressed air.
Air dryer, filter and air micron filters highly suggested – Asset stock codes for these are 25-0258, 25+0259 & 25+0258
Asset can offer you the above additional items on request.
Cutting Capacity
1500mm x 3000mm
Equipment & Accessories Supplied
Recommended Add On Accessories
Optional Items To Be Added
Related products settings
Suggested Power Sources
Power Source is added based on customers cutting requirements.
OPTIONAL EQUIPMENT WE CAN OFFER
The principal characteristics of the STEELMASTER ADH FCM Series 3015 Fibre Laser are
You can also see the changes in the promotional video here
Programming

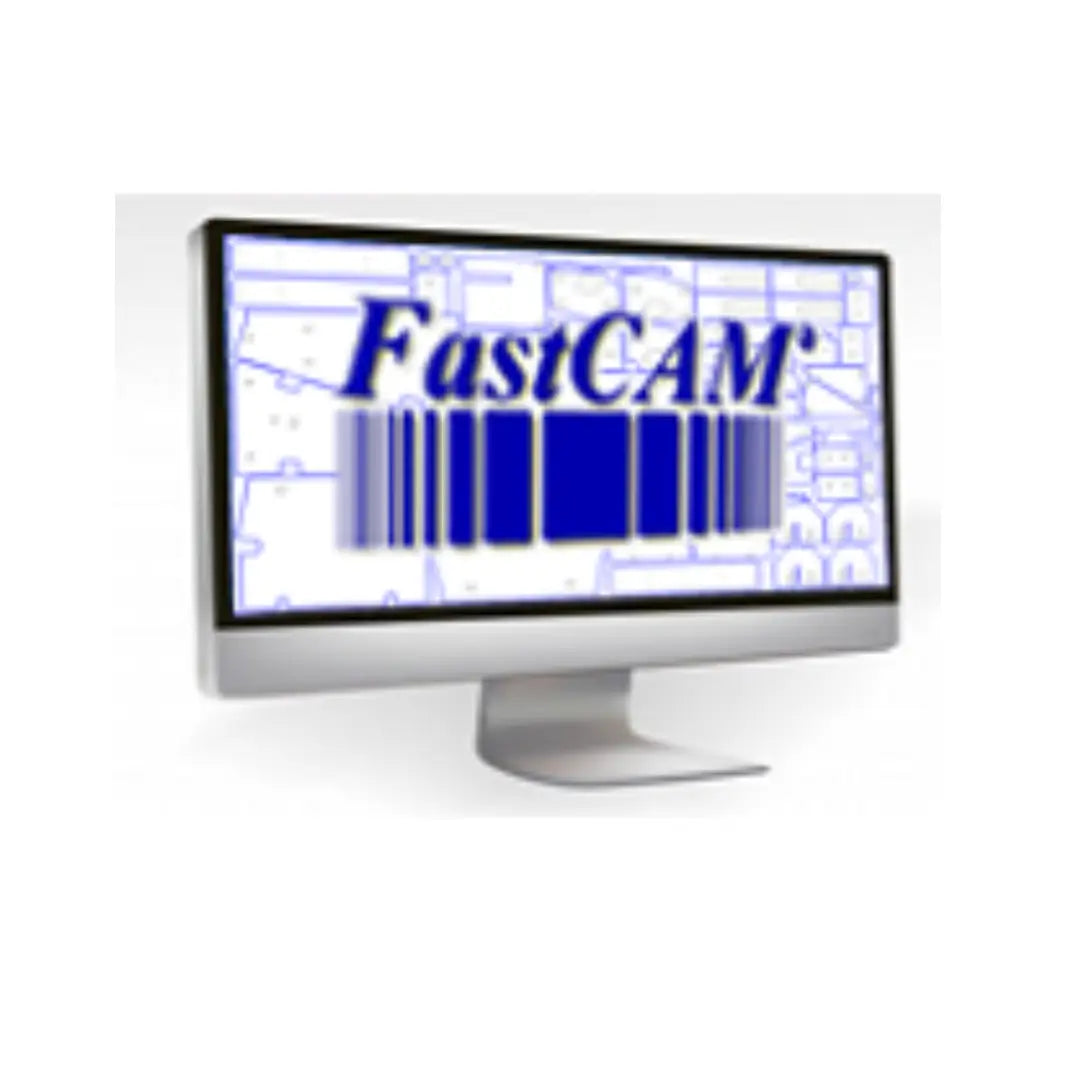

FAST CAM Professional CNC Cutting software included with machine.
Program(nesting shapes), drawing is done by computer in office
DXF, cad and other file conversions direct to cutting path
Save G code into USB
Program is transferred to G code
Connect USB with machine controller
Operate controller ( for this step, no computer is needed)
