Steelmaster Industrial

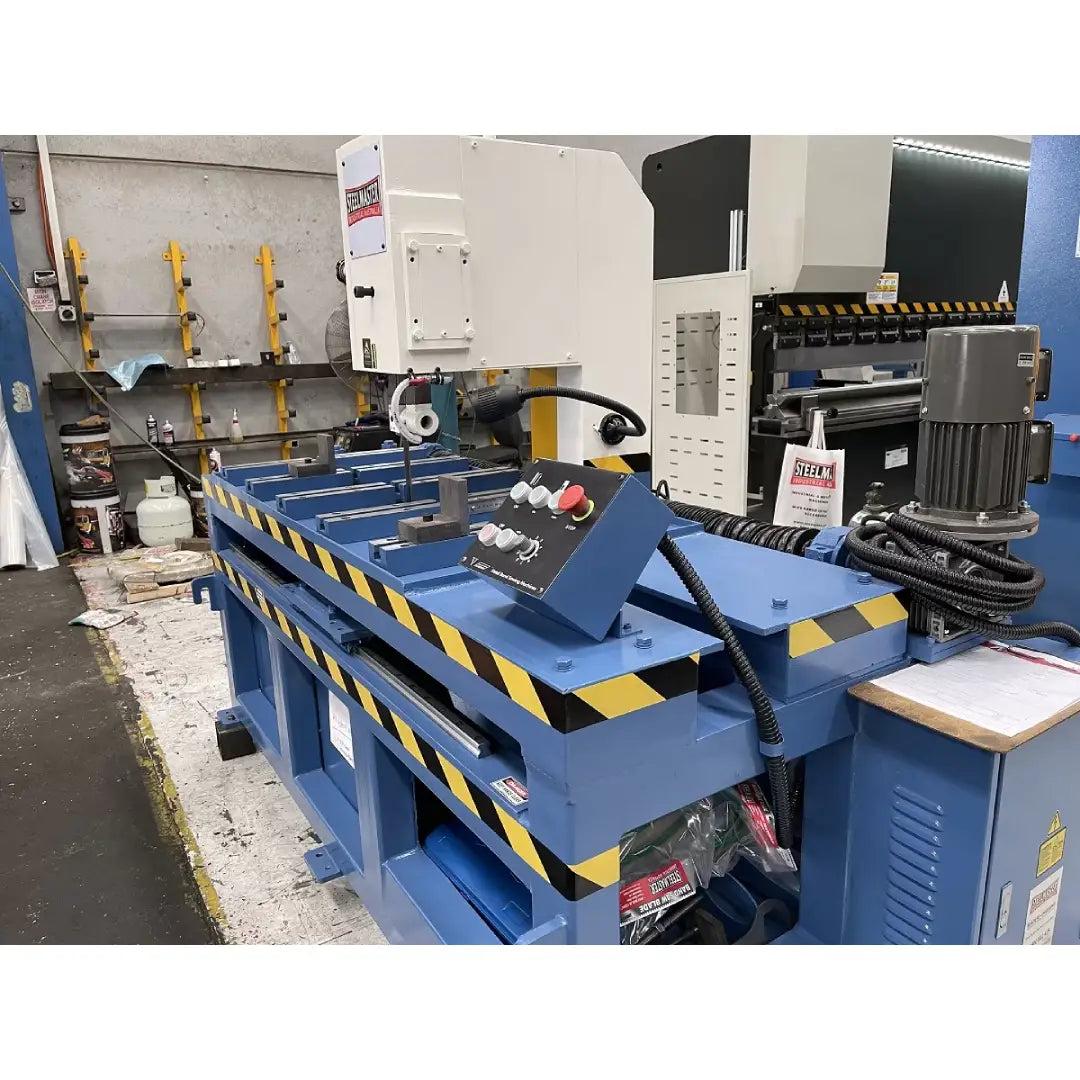

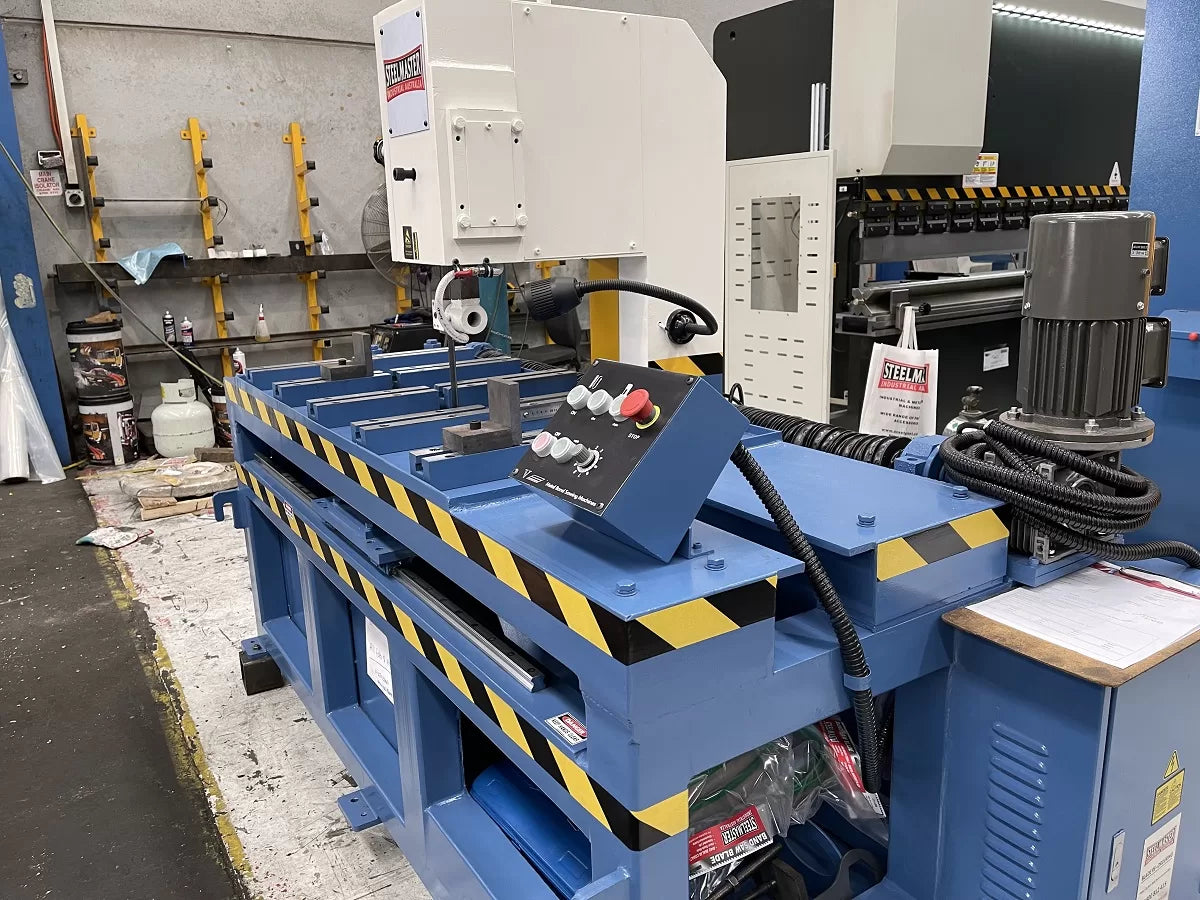

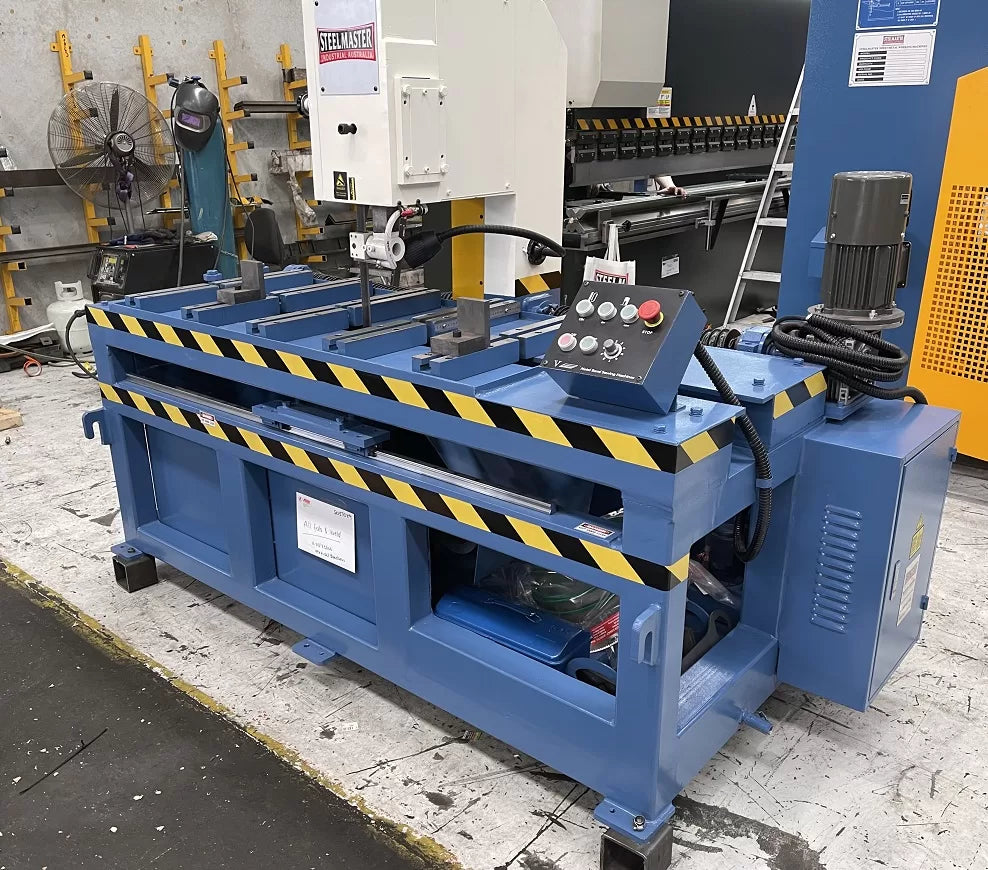

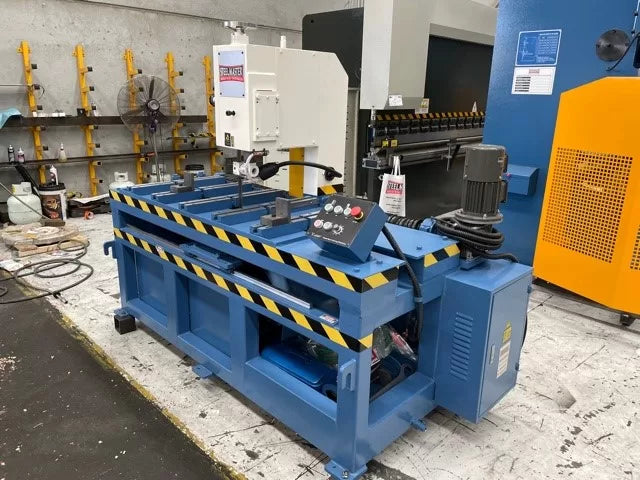

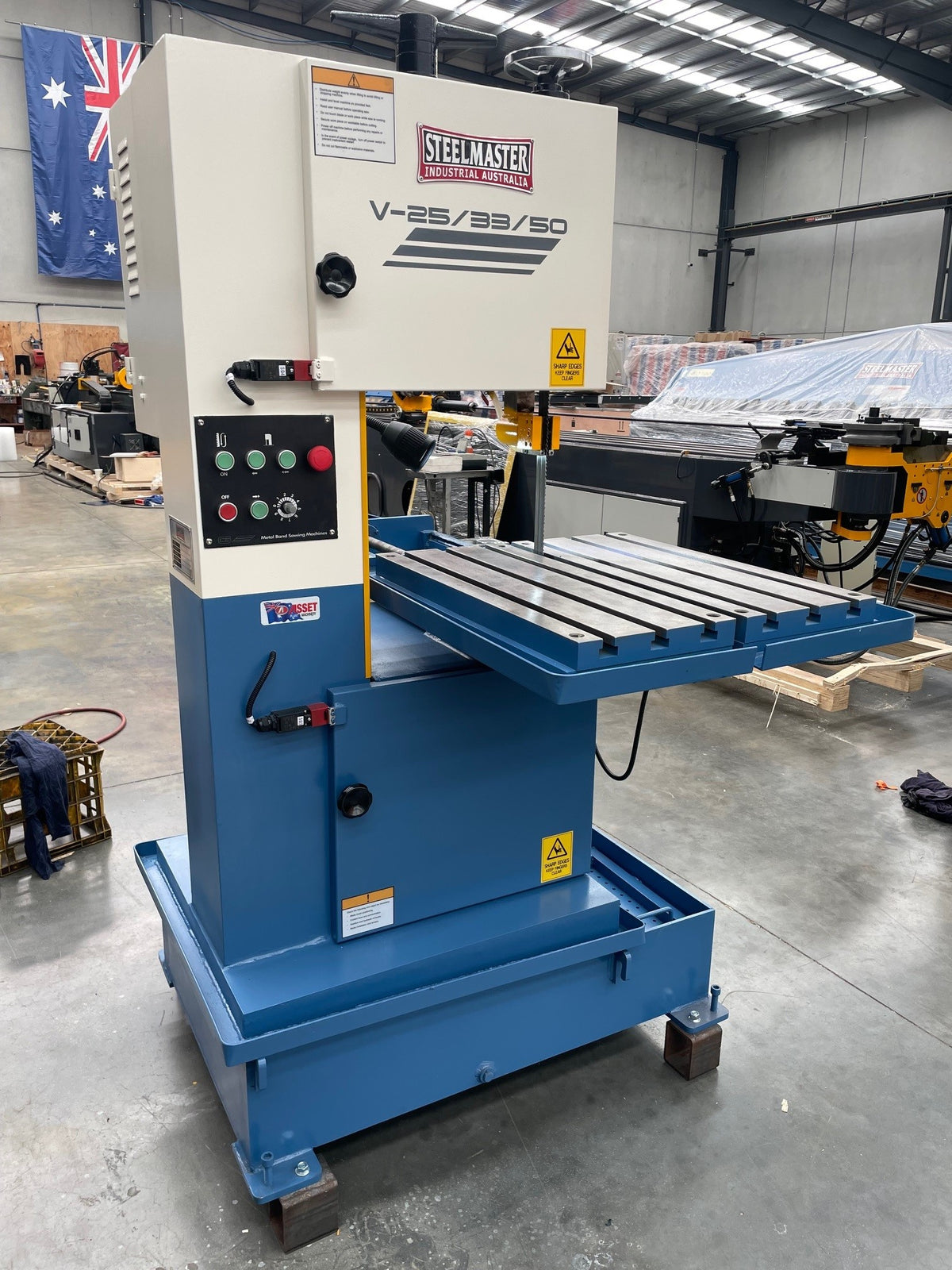

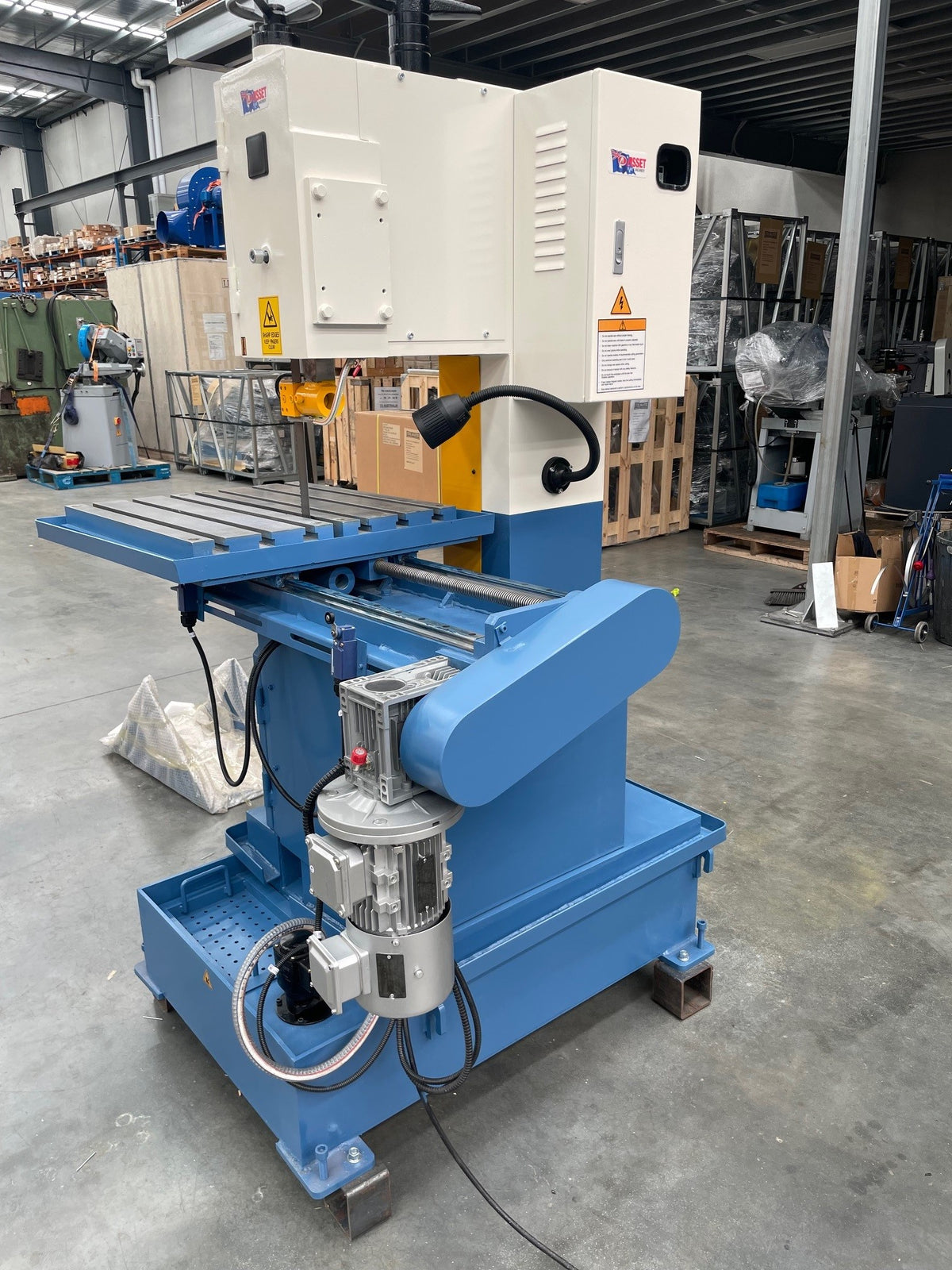

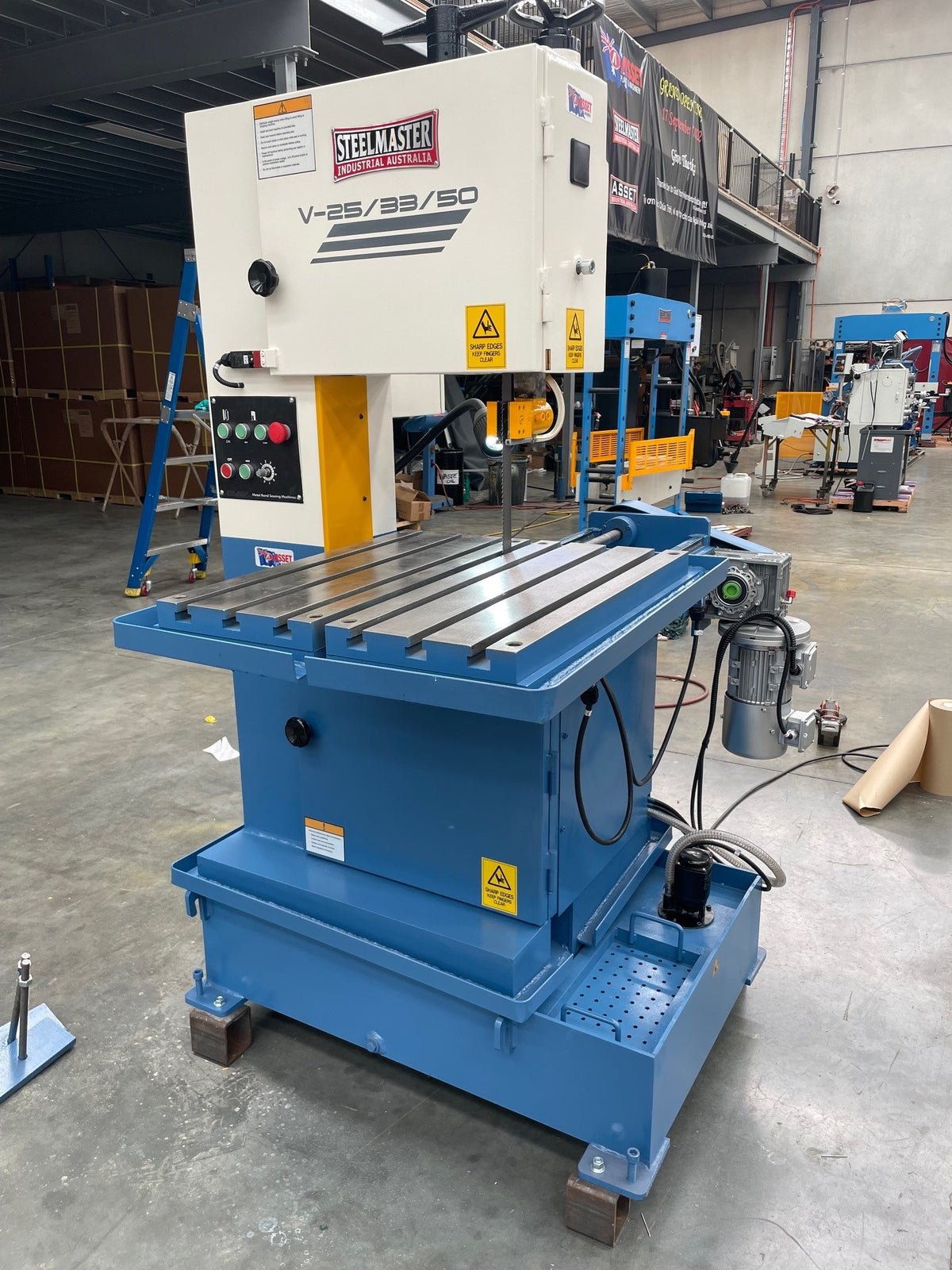

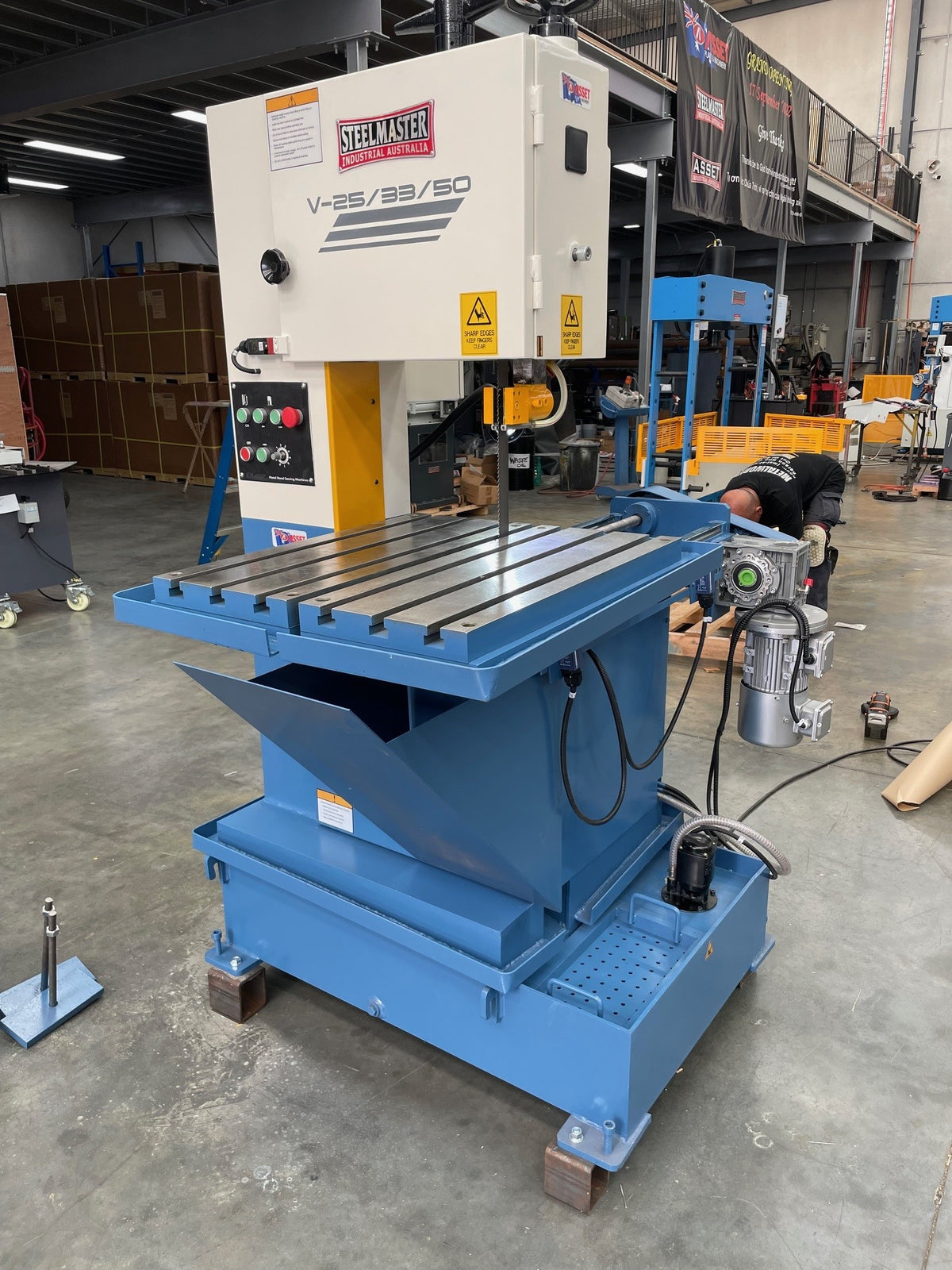

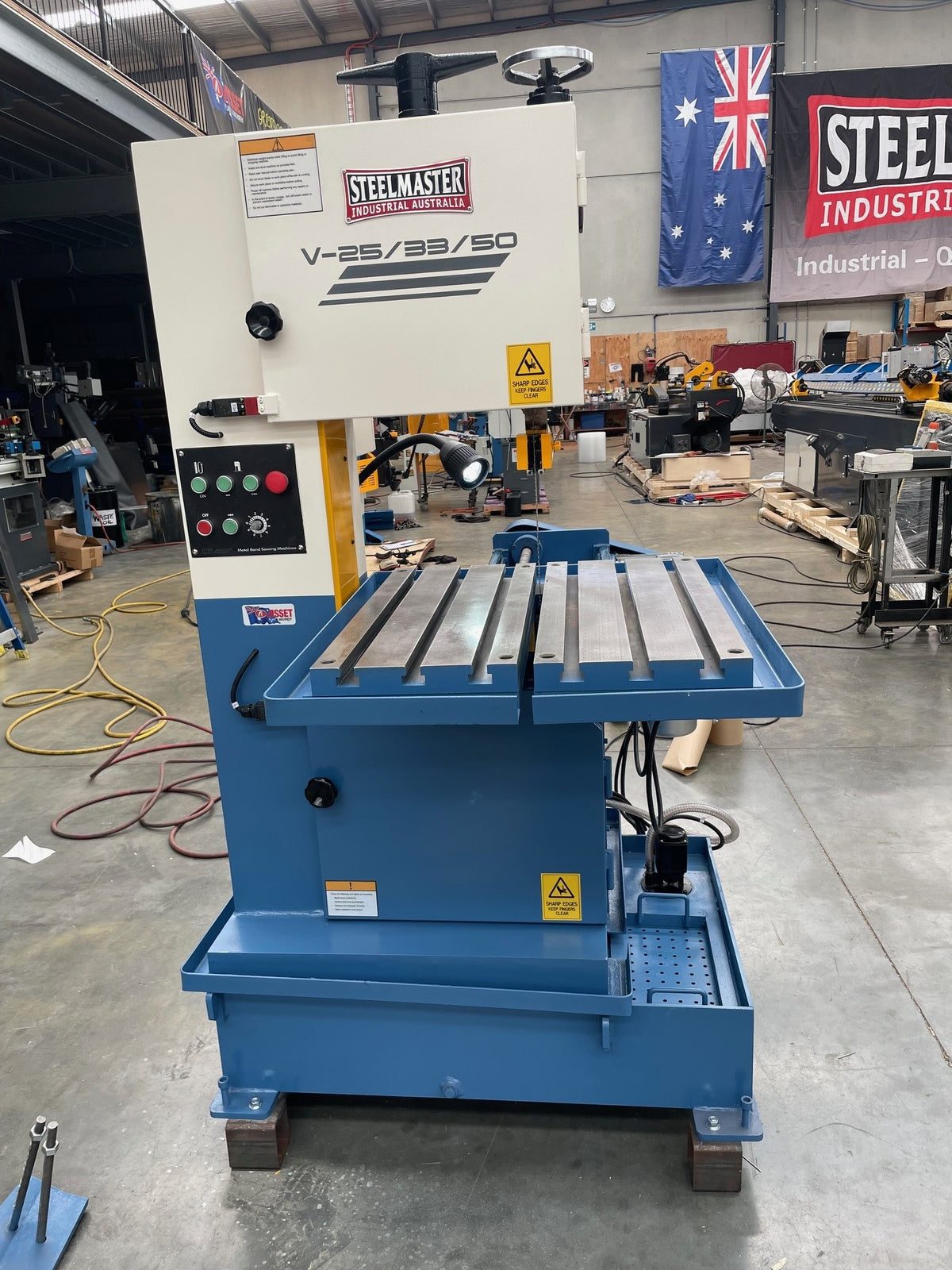

V-Series Vertical Bandsaw with Large Tee Slotted Working Table Area
Regular price
$12,850.00
Unit price
Unavailable
The V-Series Vertical Bandsaw is built for versatile cutting, featuring a Large Tee Slotted Working Table Area for secure material clamping.
Technical Data
250 max. cutting height
330mm throat depth.
Work table (w x l) – 650mm x 580mm

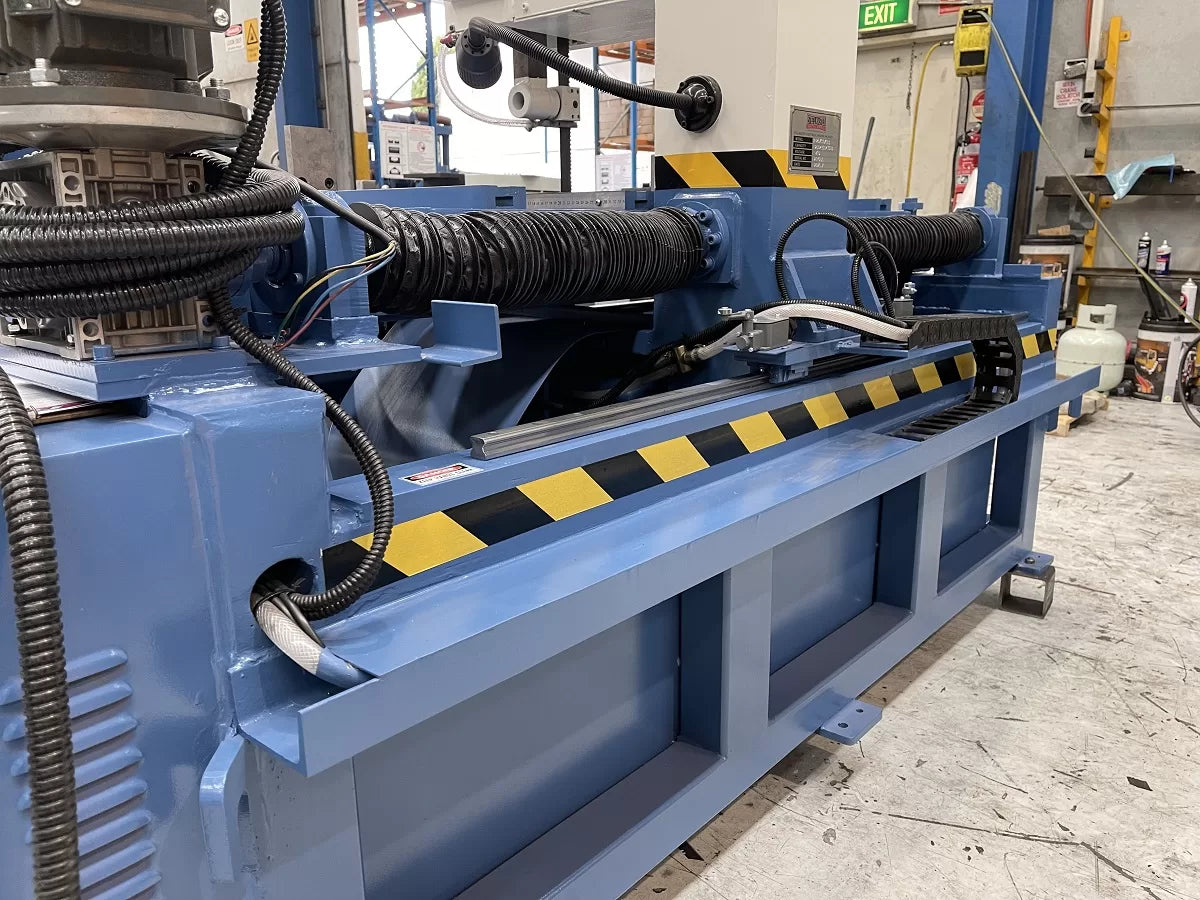

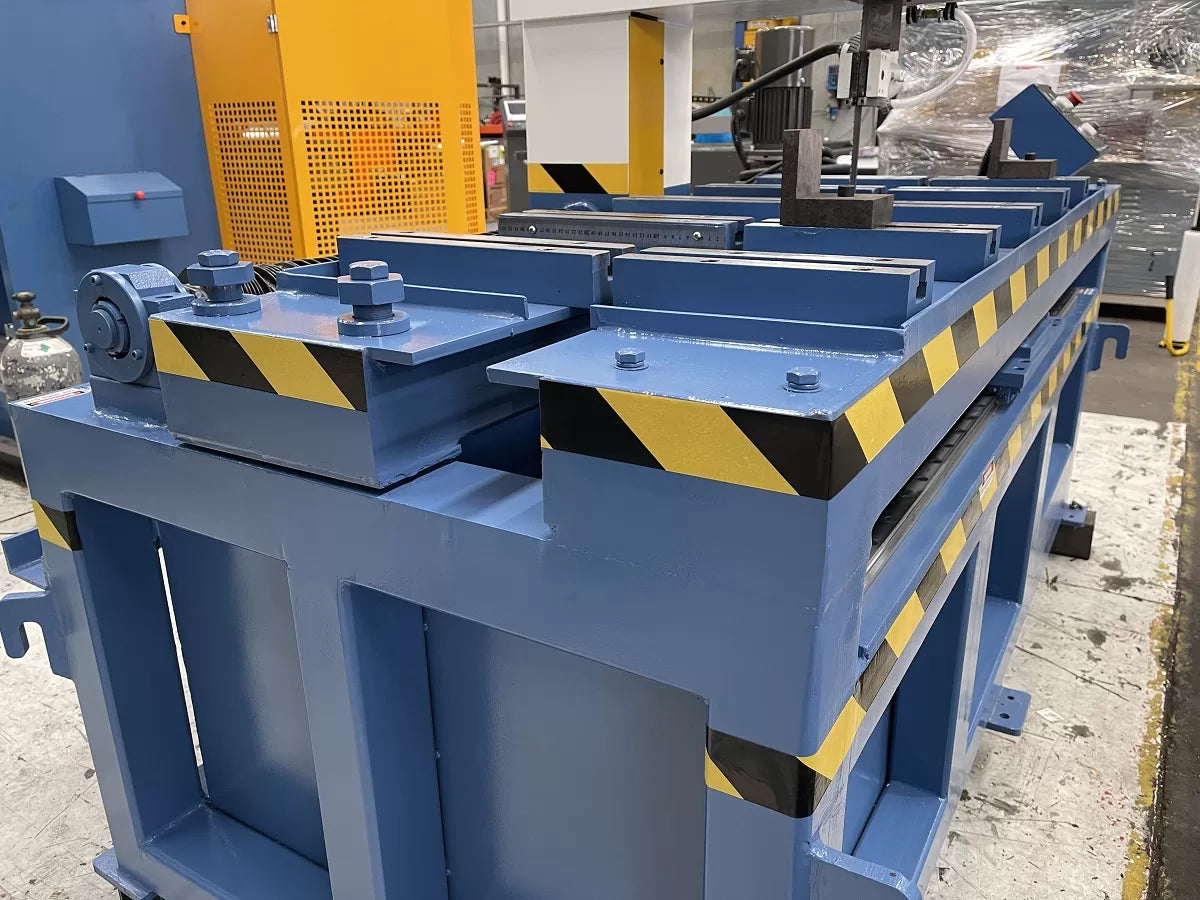

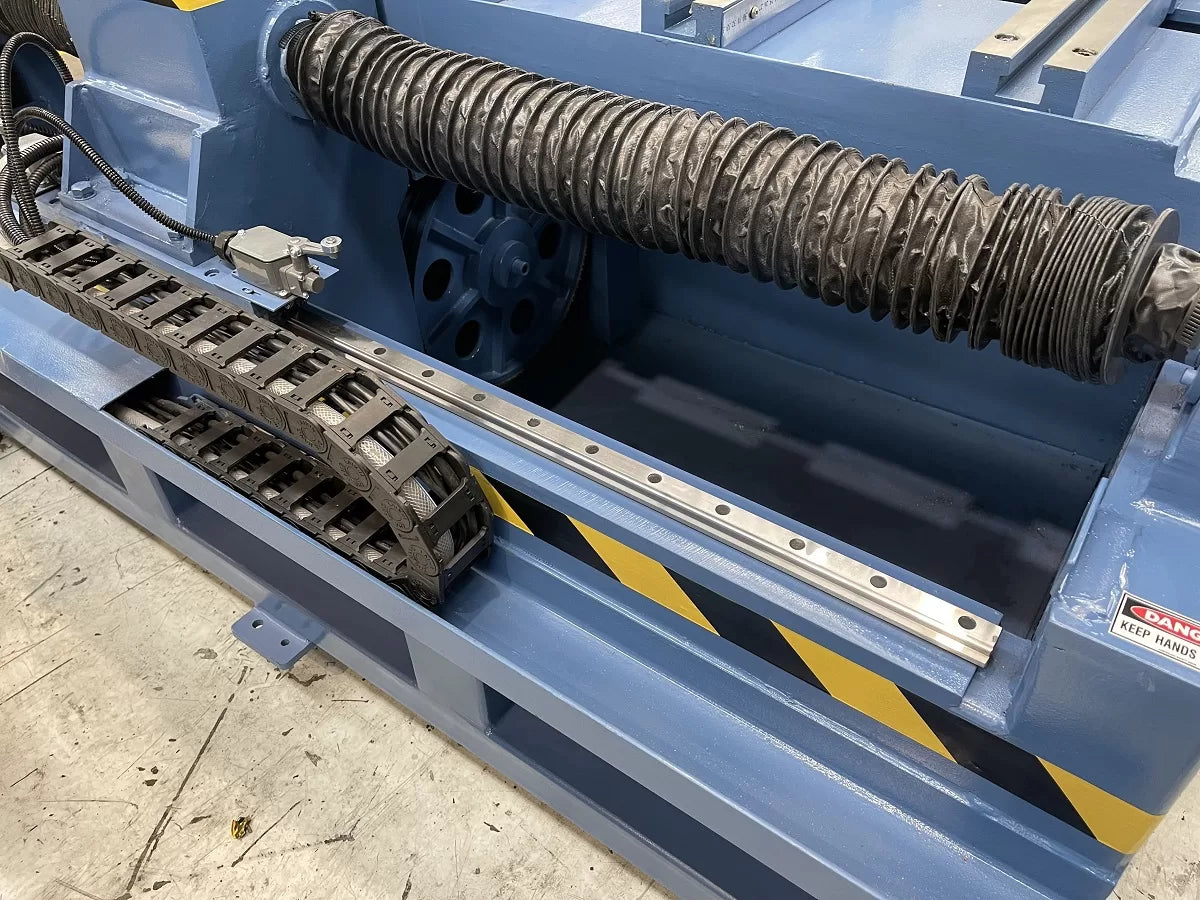

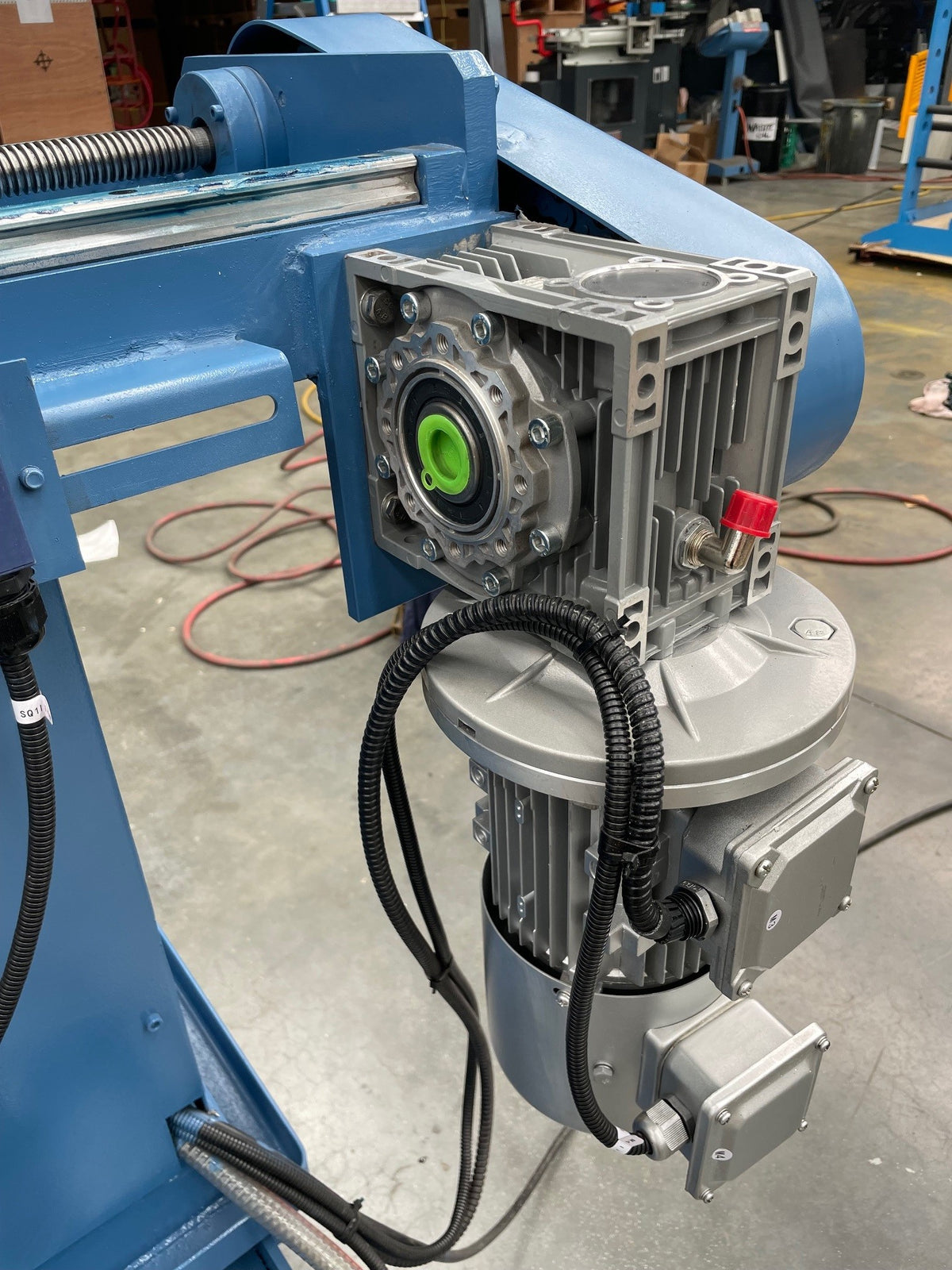

Work table feed travel – 500mm
Working height – 1010mm
Blade size: 3080mm x 34mm x 1.1.
In feed table: Yes
Motor: 3phase / 415V
Dimensions: 1200mm x 1100mm x 2080mm
Weight: 1150Kg
Product Features
Heavy duty vertical column, precision ground for additional support

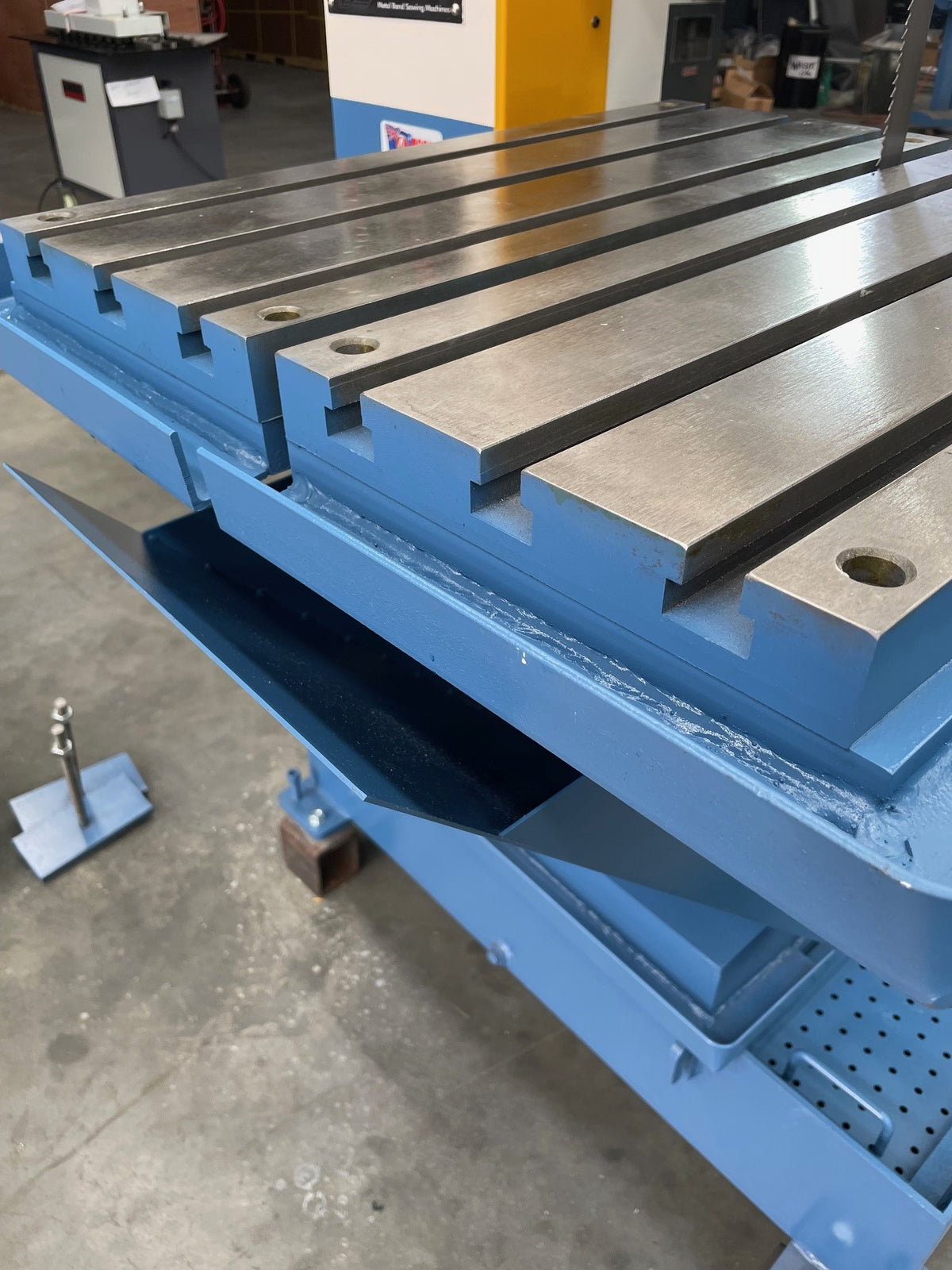

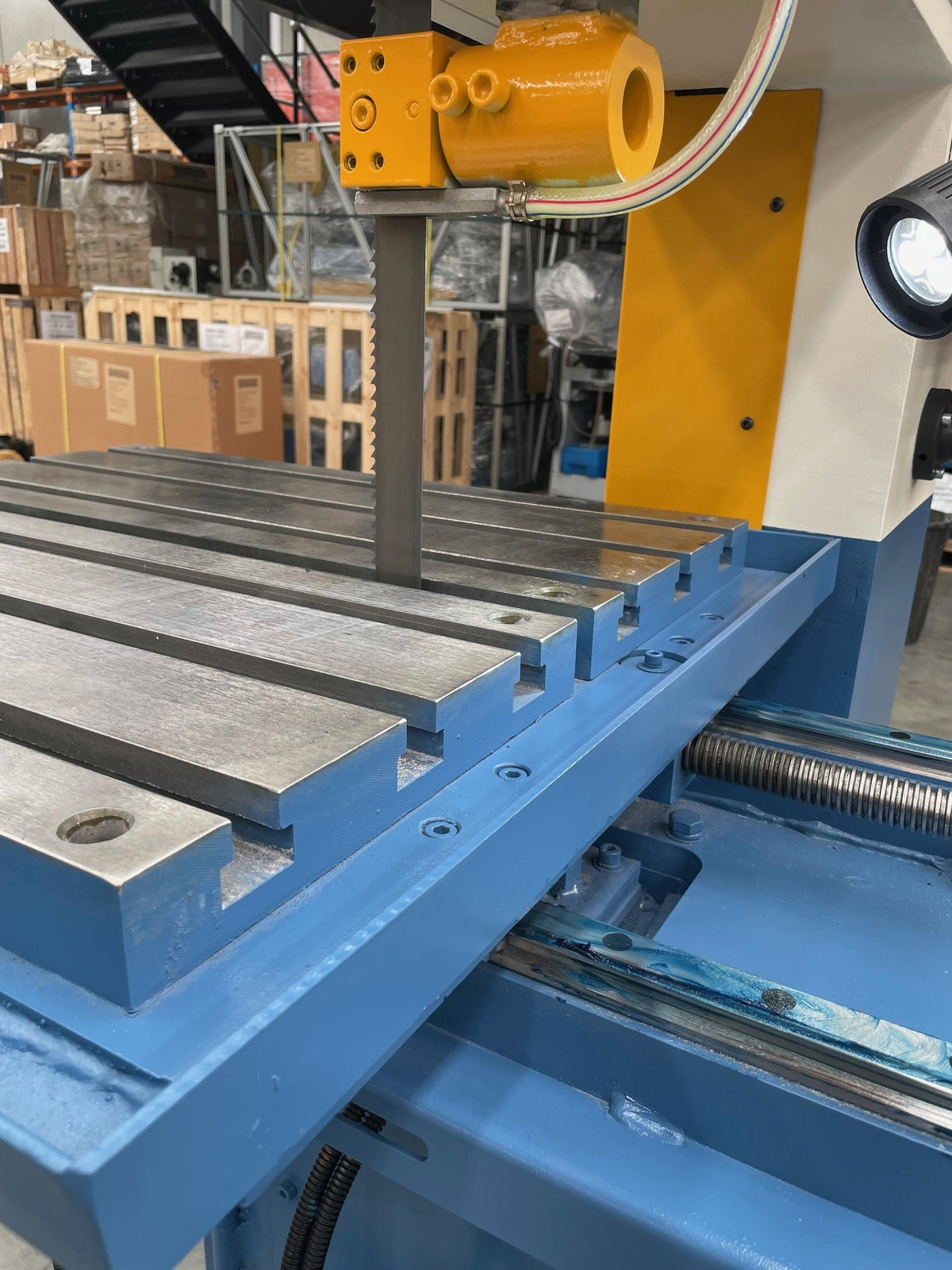

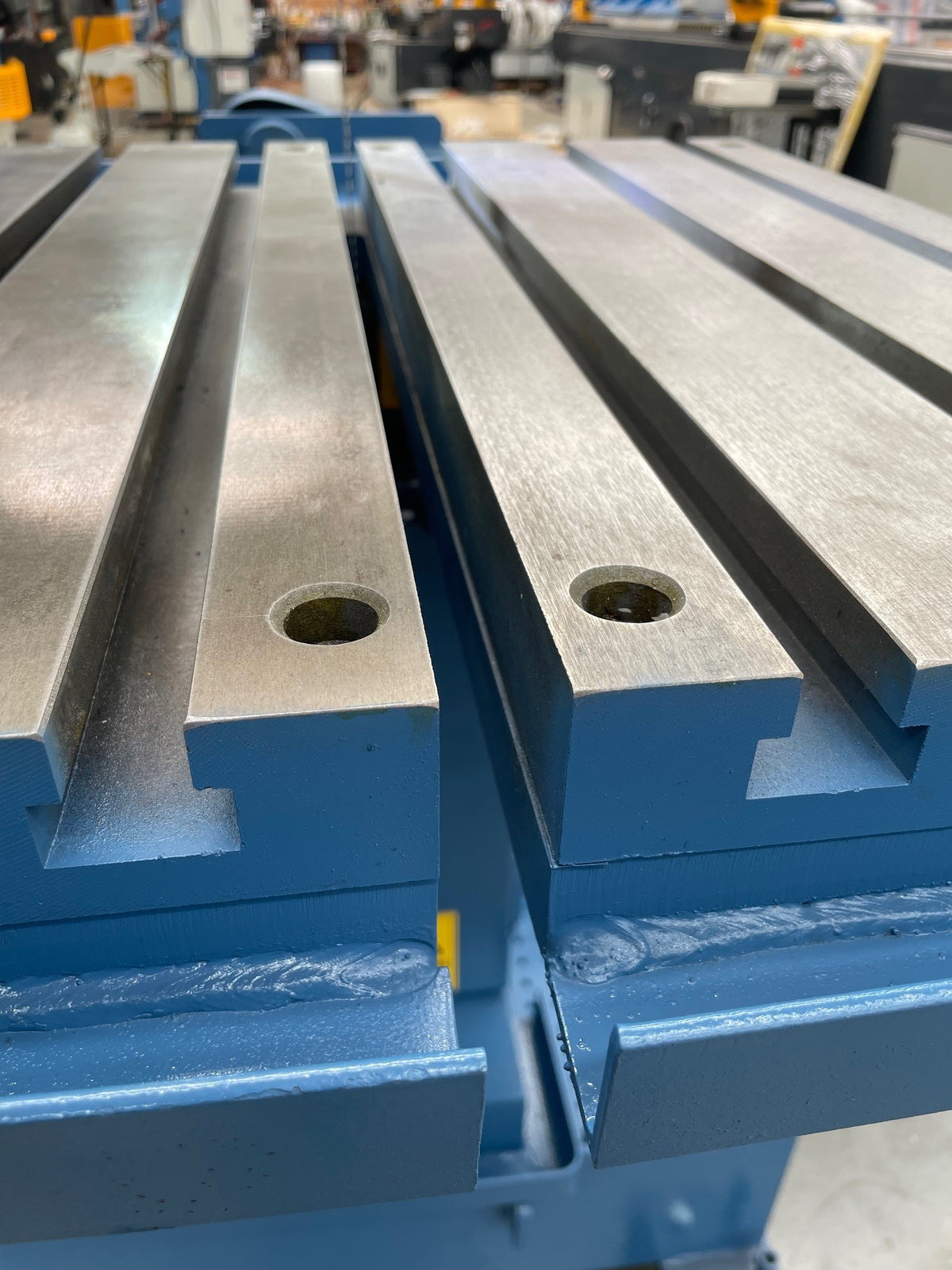

Large work table

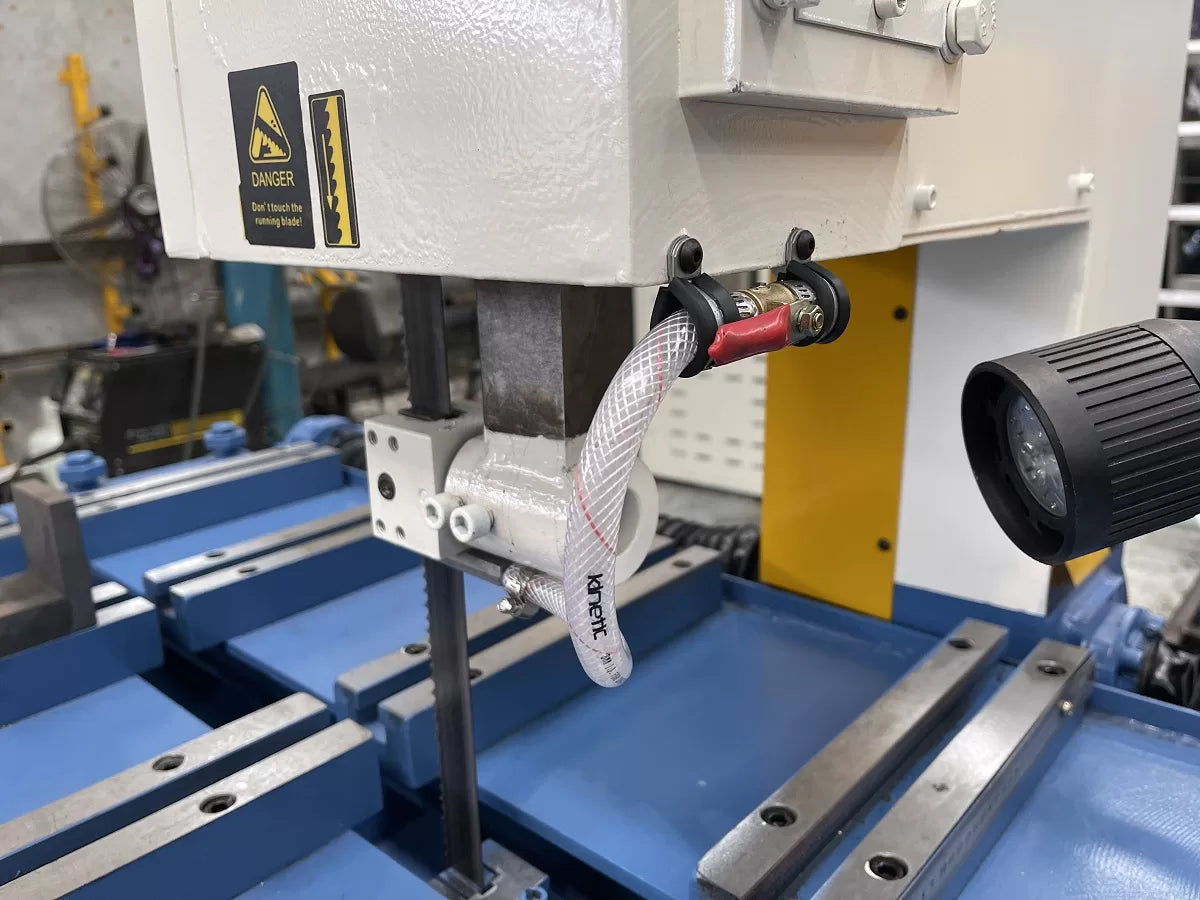

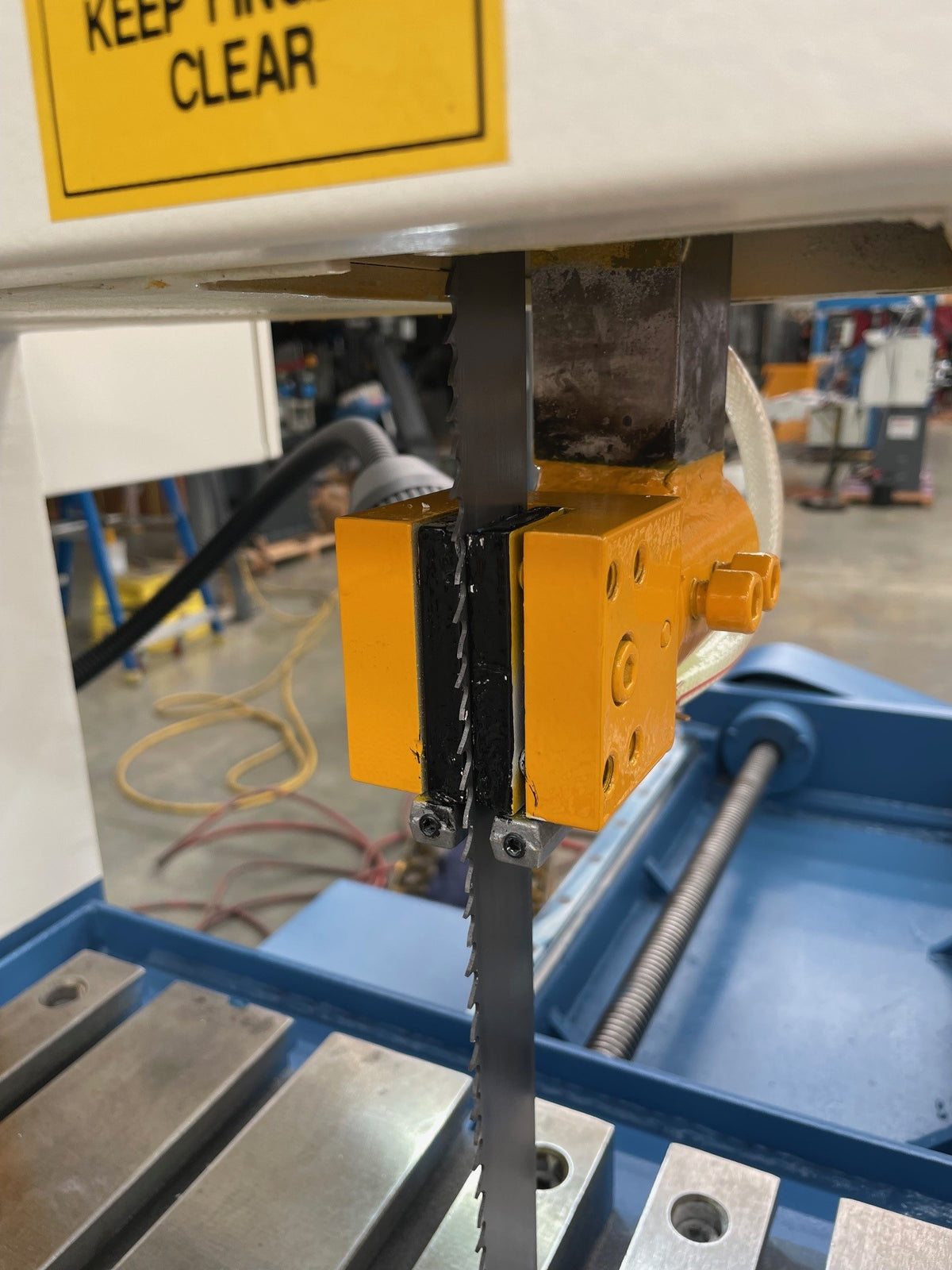

Carbide & bearing blade guides
Breakage sensor
Powered brush cleaner

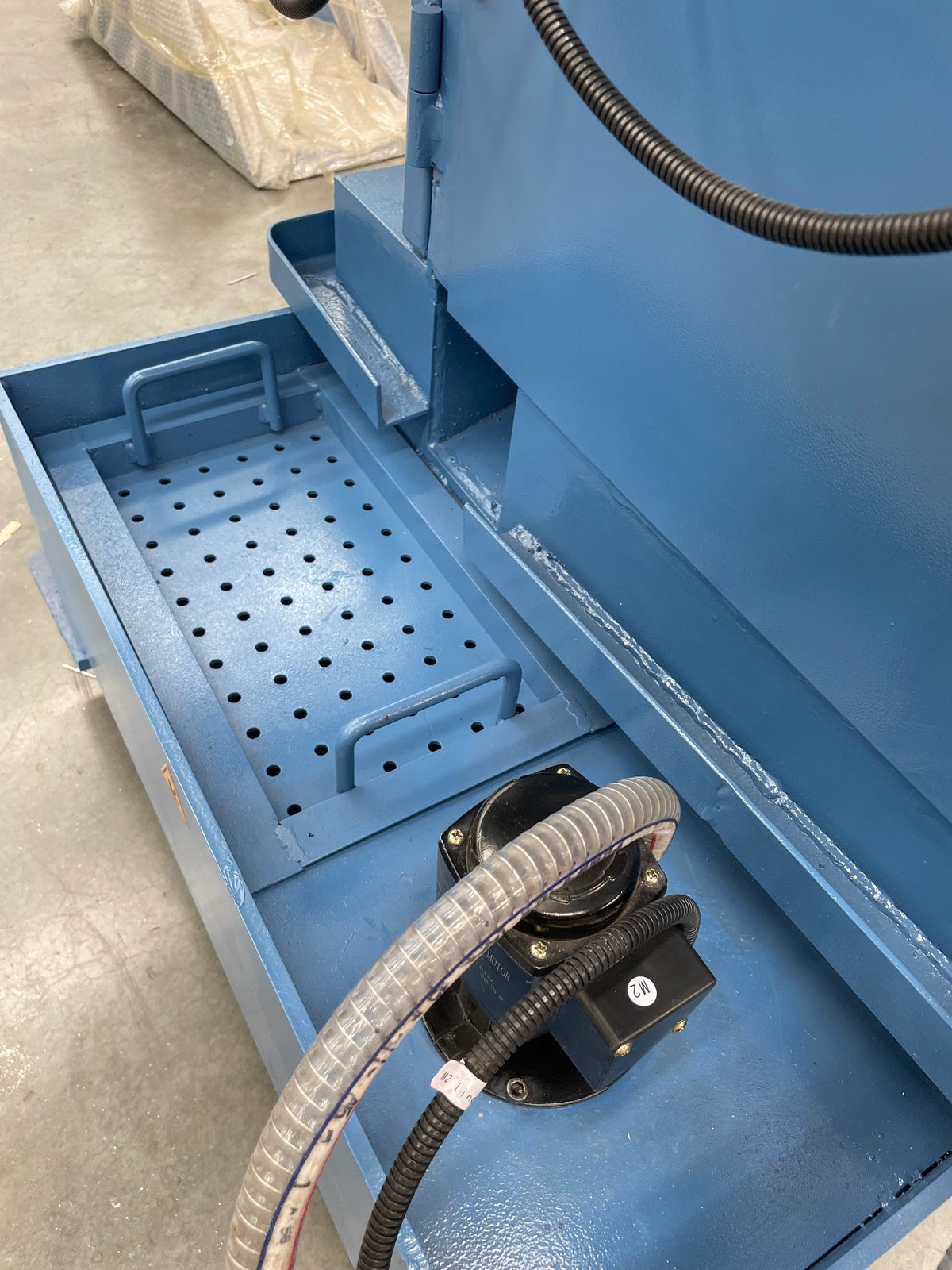

Coolant system supplied

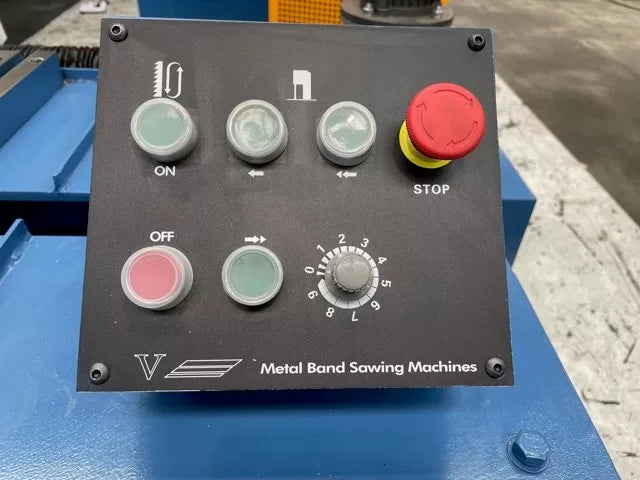

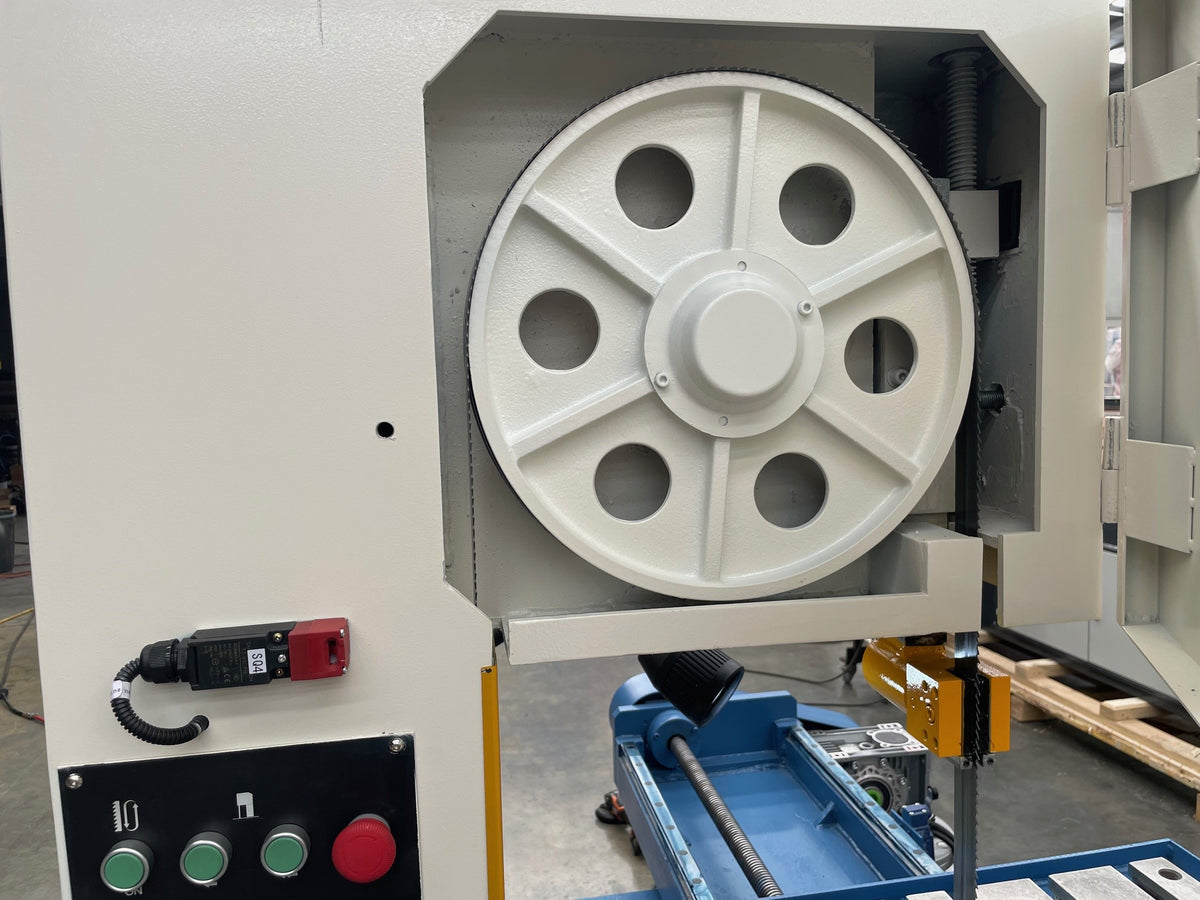

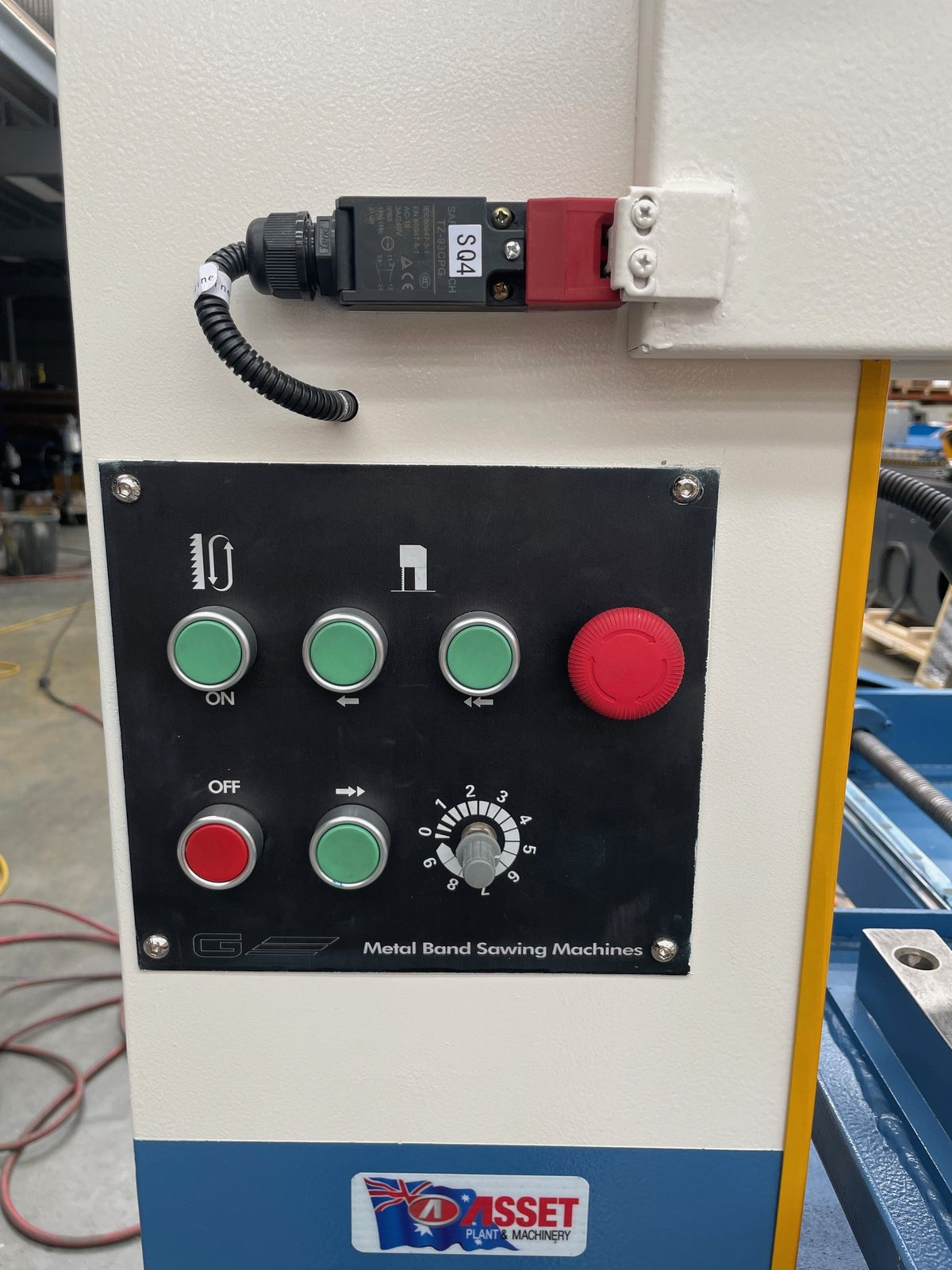

Centralized control panel
Halogen work light
One piece bi metal blade fitted
CE compliance
Tool kit Optional Equipment
Hydraulic upper clamp
Auto chip conveyor
PLC control
Hydraulic blade tensioner
Saw guide operation hydraulically operated
V series can be built to customers requirements
