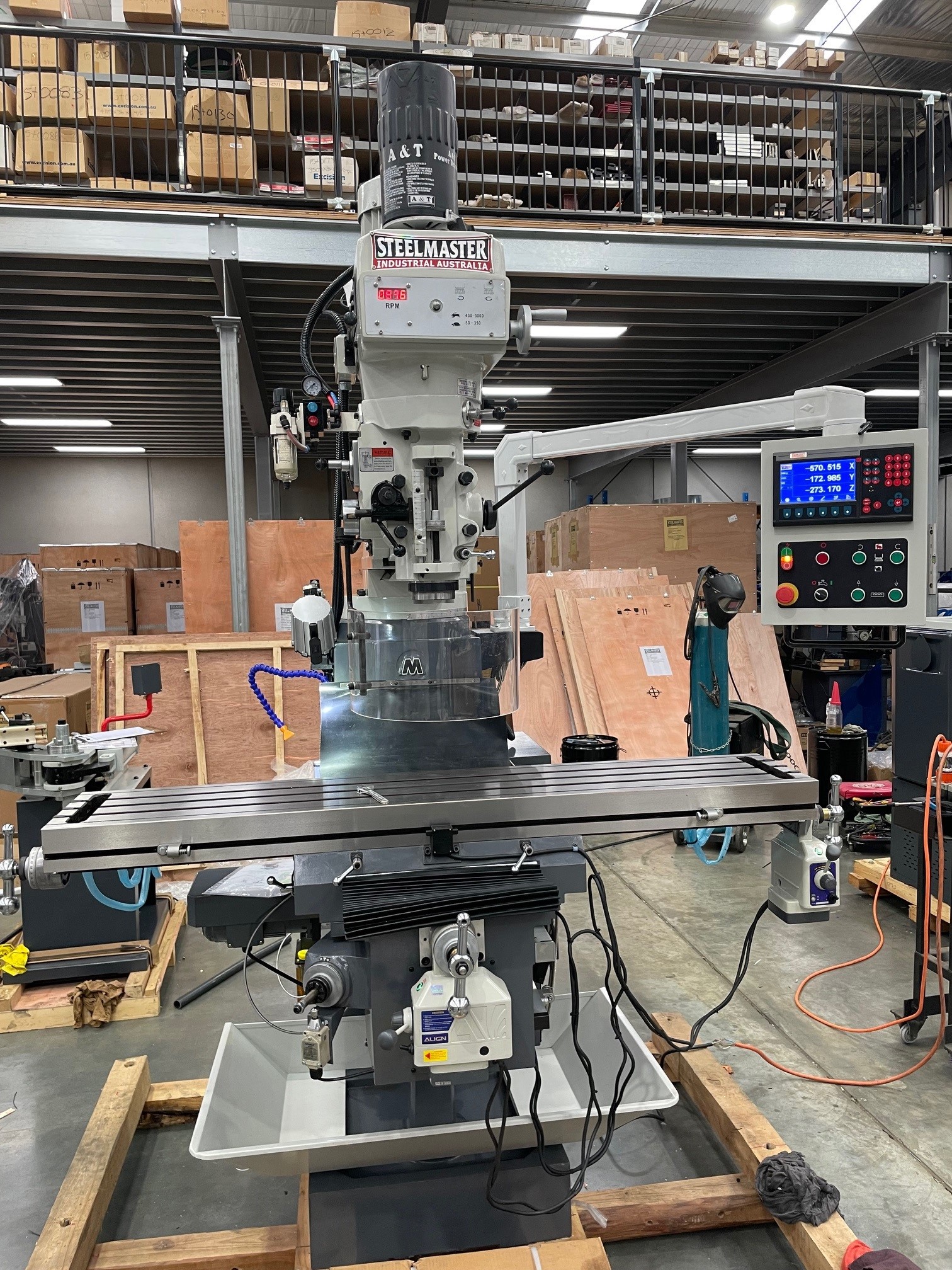

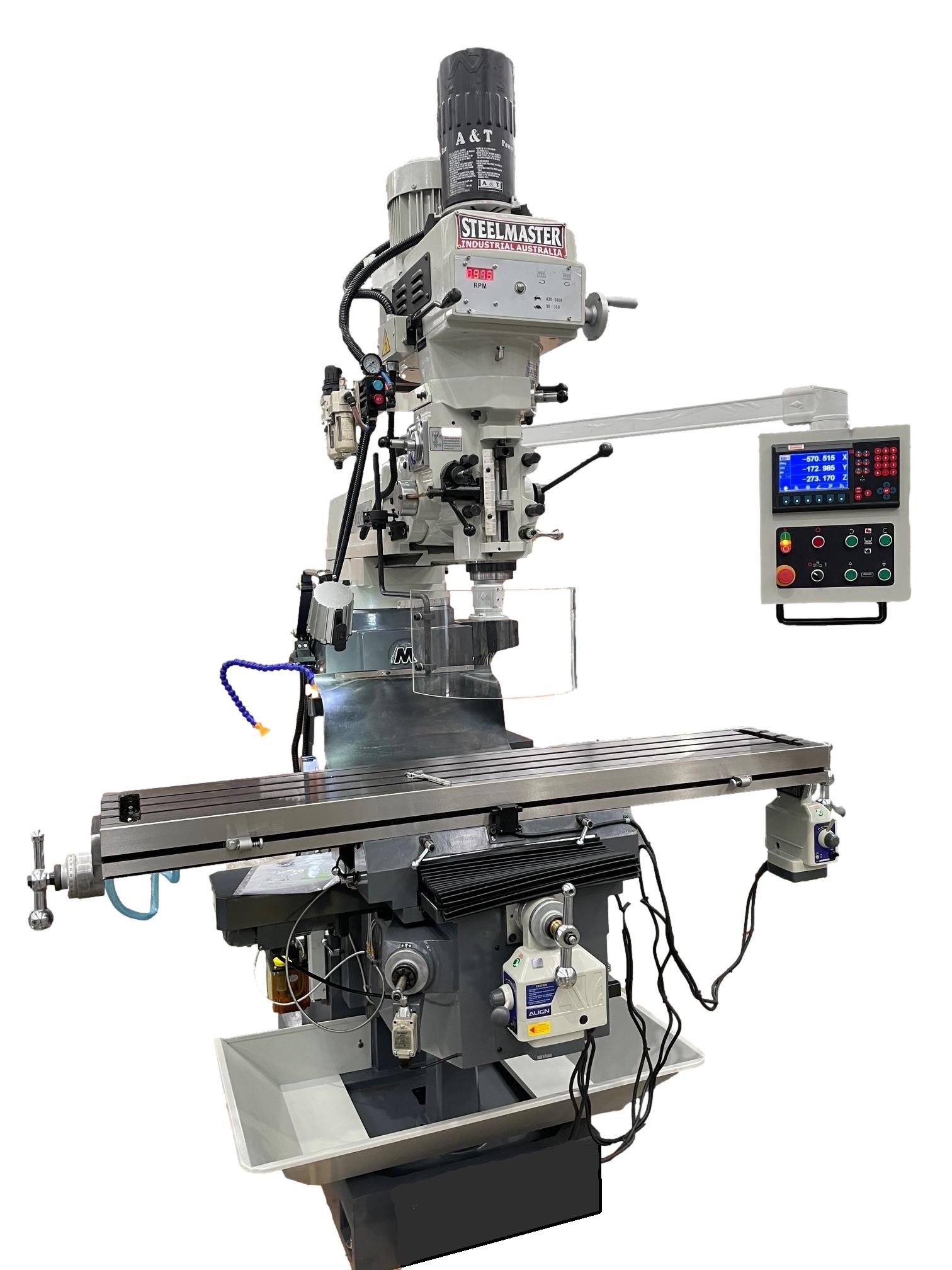

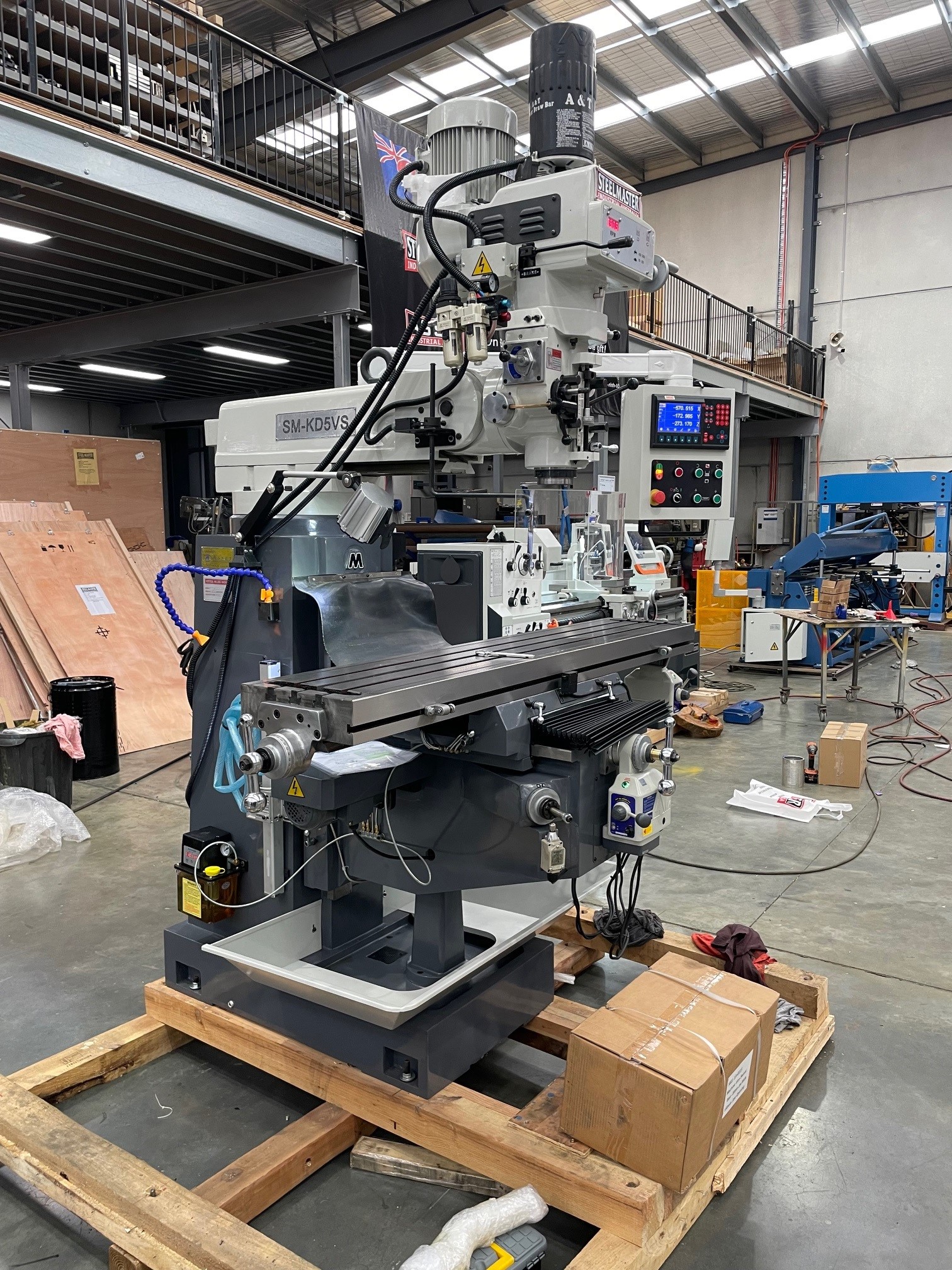

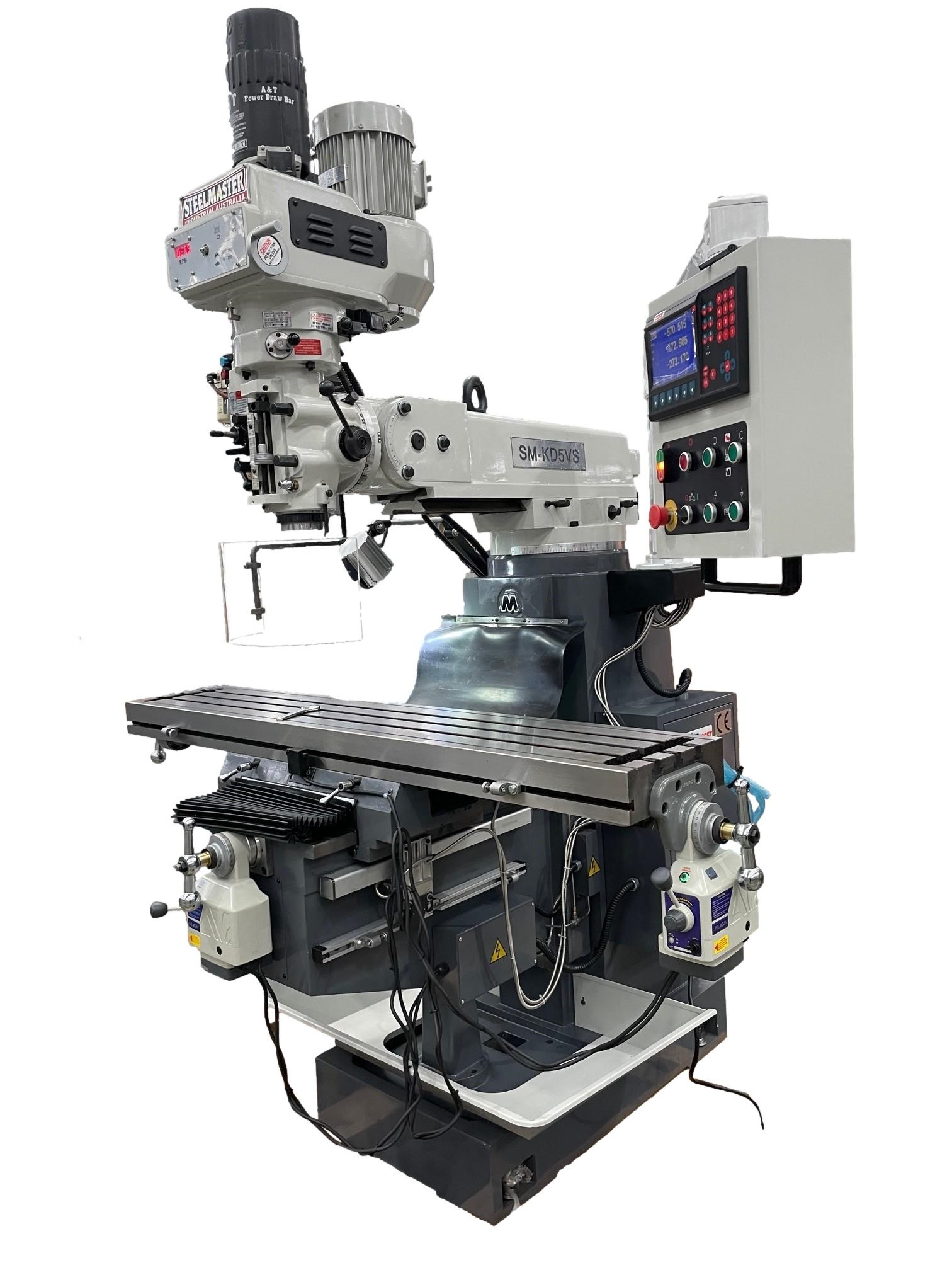

SM-KD5VS. Turret Mill Steelmaster. Pwr Draw Bar, ISO40 Spindle, 2 Axis Power Feed, 3 Axis DRO

Original price was: $23,850.00.Current price is: $22,850.00.


sku 13-0106PDB
mill type turret
table set-up area (l x w) 1580 mm x 305 mm
number of t-slots 4
t-slot size 16 mm
spindle quill travel 147 mm
spindle quill diameter 105 mm
spindle quill feed 0.04 ~ 0.15 mm
spindle mount (vert / horiz) 40 int / N/A mt
spindle to table (max) 460 mm
head swivel (l ~ r) ±90° deg
head tilt (f ~ b) N/A
spindle speeds (vertical) 80 ~ 3800 / variable rpm
spindle speeds (horizontal) N/A
longitudinal travel (x) 930 mm
cross travel (y) 420 mm
vertical travel (z) 420 mm
feed – longitudinal 0.04 ~ 0.15 mm/min
feed – cross 0.04 ~ 0.15 mm/min
feed – vertical 0.04 ~ 0.15 mm/min
throat depth 760 mm
max. work table capacity 420 kg
motor power 3.75 / 415 kw/V
dimensions (l x w x h) 1870 mm x 1900 mm x 2340 mm
weight (nt) 1750 kg


SM-KD5VS. Turret Mill Steelmaster. Pwr Draw Bar, ISO40 Spindle, 2 Axis Power Feed, 3 Axis DRO

This Mill is made with uncompromising quality Hardened and ground table, chromed quill & Turcite coated ways mean built-in durability for years of service. With a large 147mm quill travel standard and power draw bar fitted. Check out the capacities, features & specifications below! This is the machine to have for years of accurate, trouble-free operation. Fitted with Easson 3 axis digital read out. two axis table feed, power knee, variable speed head, quill feed all combine to serve you well.

❚power draw bar
❚3 axis DRO fitted standard
❚infinitely variable speed drive head with digital display
❚Taiwanese head and quality Meehanite cast frame
❚solid, precise cross table with ground surface
❚ precisely ground carriage guides with adjustable square guides
❚head swivels to left and to right
❚head tilts ±45° front to back
❚x & y axis feed standard
❚fine feed on spindle
❚power raise and lower of knee on SM-KDS4VS & SM-KD5VS models
❚147 mm quill travel (SM-KD5VS)
❚chrome-plated sleeve with extremely long cutting stroke
❚large spindle bearings guarantee stability during milling
❚guaranteed true run out on spindle taper 0.01 mm

Automatic sleeve stroke
❚spindle with right or left-handed rotation function
❚cutter head with reduction gear for high torque
❚mechanical spindle brake
❚halogen work light
❚safety interlocked spindle guard
❚coolant system standard
❚drilling and milling guard
❚tool box with tools
❚operation & service manual

Technical Data – Snap Shot
❚table size – 1580mm x 310mm
❚X / Y / Z travel – 930mm / 420mm / 420mm
❚power draw bar fiited
❚spindle quill travel – 147mm
❚quill diameter – 105mm
❚max. spindle to table – 550mm
❚holding fixture – ISO / INT-40
❚vertical speeds – 80 ~ 3800  – variable
❚motor capacity – 3.75Kw x 415Volt
❚shipping dimensions – 2000mm x 2000mm x 2400mm
❚approx weight: 1850kg

❚3 Axis digital readout system
❚2 x Axis power-feed
❚safety cutter guard
❚swarf tray
❚coolant system
❚halogen lamp
❚tool box and operation manual
