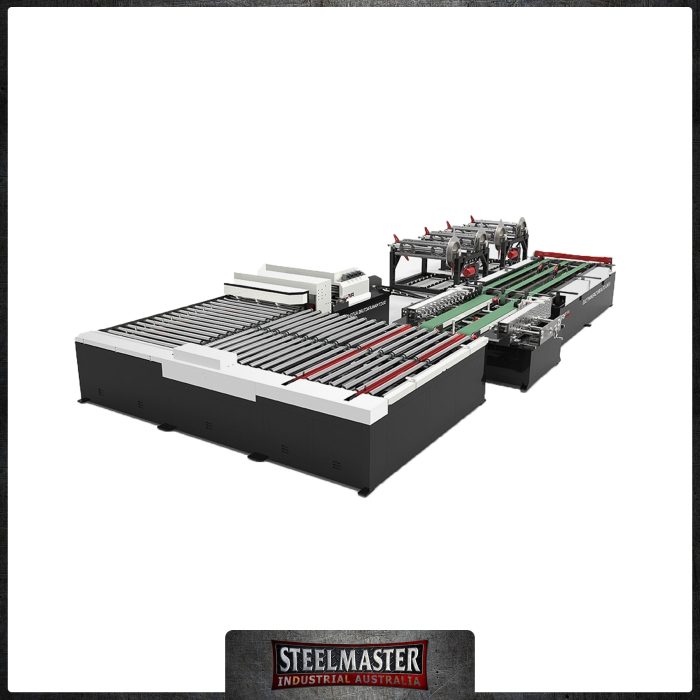

HVAC Auto Integrated Duct Line Model: AML-V-U Type, 1550mm, Leveller/Grooving/Notching/TDF/Pittsburg

HVAC Auto Integrated Duct Line Model: AML-V-U Type, 1550mm, Leveller/Grooving/Notching/TDF/Pittsburg

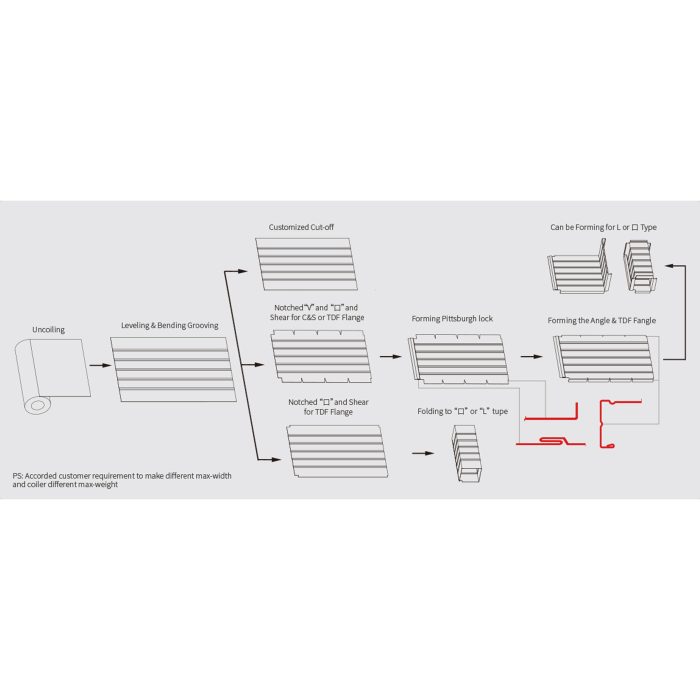

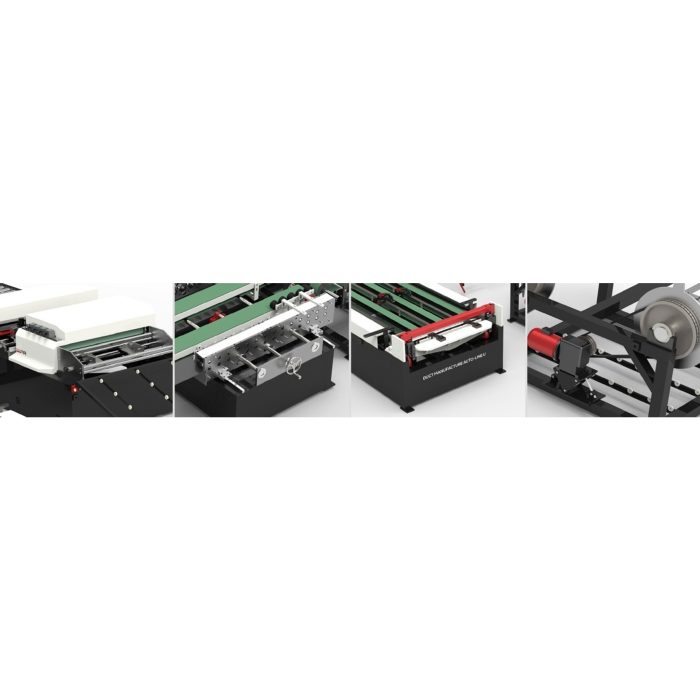

Our Duct production line V (U Type) comprises of a integrated all in one system. Combining twin decoiler, leveller grooving unit, “V” and “口” notching unit, TDF Forming, Pittsburgh Forming, Shearing & Folding all in one. Offering all these applications in one machine increases production, reduces labour and maximising profit.
The production line electrical control part adopts full servo control; the control system has a closed-loop feedback system, Accuracy and stability were obvious improved. The maximum operating speed of 15 m / min.
Length tolerance is ±0.5mm; diagonal tolerance is ± 0.8mm.

Technical Snap Shot

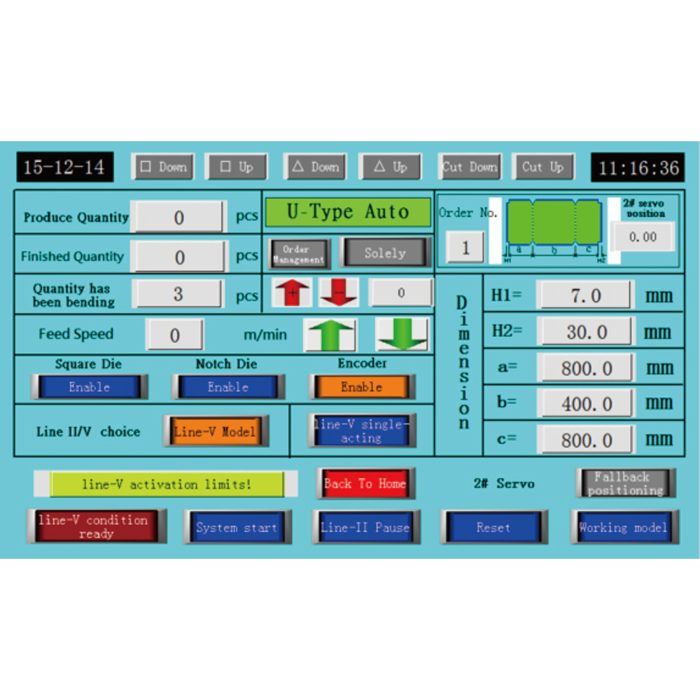

❚Panasonic Servo with Touch screen PLC Control
❚Infeed Material Levelling,
❚Material Grooving
❚Vee or Rectangle Notching
❚TDF Forming on Both Side of Sheet – Adjustable Width to 1500mm
❚End Pittsburgh Profile Forming
❚Drive Side Ducts
❚Material Box Folding
❚Material Shearing
❚Up to 1550mm width x 1.0mm material
❚Shearing tolerance of ±0.5mm
❚Hydraulic folding tolerance of ±0.5mm
❚0-18m/min feeding speed, fast acting back gauge
❚Decoiler width upto 1500mm wide & 2500Kg Capacity.
❚Dimensions – 16000mm x 6000m
