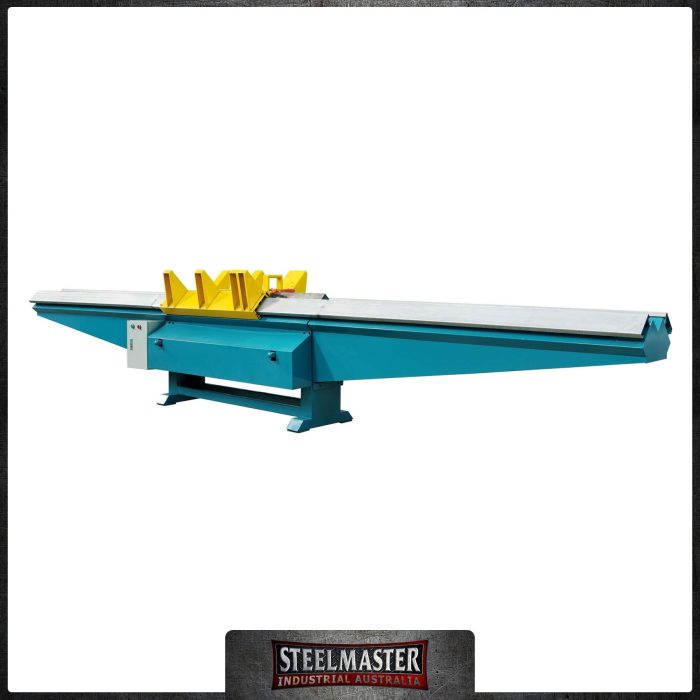

HVAC / Sheetmetal Ducting Duct Zipper. Steelmaster Model: DZ-H10, 150mm x 150mm Min. Duct Size

HVAC / Sheetmetal Ducting Duct Zipper. Steelmaster Model: DZ-H10, 150mm x 150mm Min. Duct Size

Our Steelmaster Duct Zipper allows you to produce the highest quality duct work faster, easier, and more profitably than ever before. This technology and engineering have taken the seaming process from the traditional three steps down to only one.
Traditional methods roll form the receiver lock, than the roll form the flange, and finally connect the two and close the seam. Our Duct Zipper does all this in one smooth and simple operation! The material handling system supports the blanks and moves through the machine along with the duct work. After one seam is completed, the operator simply puts the duct crosswise onto the material guidance system and slides it back to the entry point. It’s that simple, easy and more often than not saves a second operator!

Features
❚a must for all sheetmetal HVAC, ducting and climate control fabricating workshops
❚the seaming processing From 3 Steps to 1

Technical Data
❚150mm x 150mm min. duct size
❚700mm bearing height
❚1550mm bearing length.
❚0.4mm ~ 1.0mm material thickness.
❚15m/min line speed
❚work table height – 800mm
❚415Volt – 3 Phase Power.
