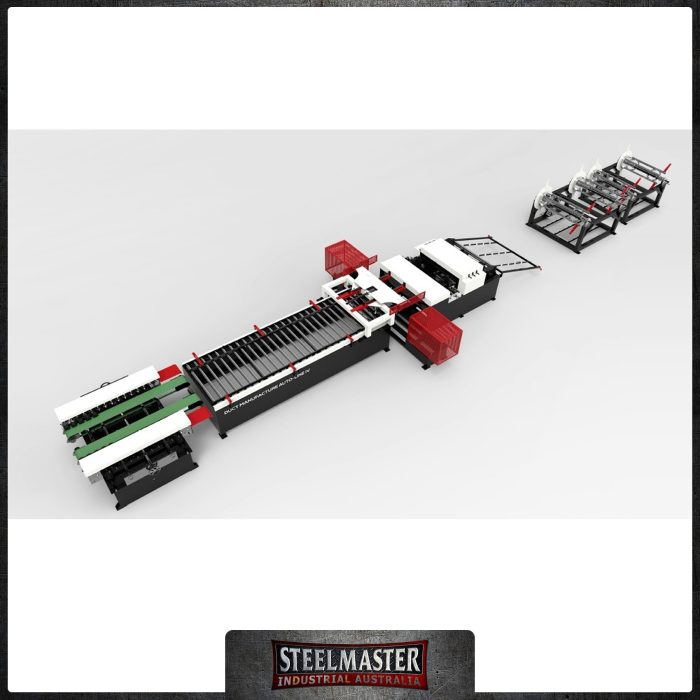

HVAC Auto. Integrated Duct Line Model: AML-4, 1530mm Wide, Leveller/Grooving/Notching/TDF/Pittsburgh

HVAC Auto. Integrated Duct Line Model: AML-4, 1530mm Wide, Leveller/Grooving/Notching/TDF/Pittsburgh

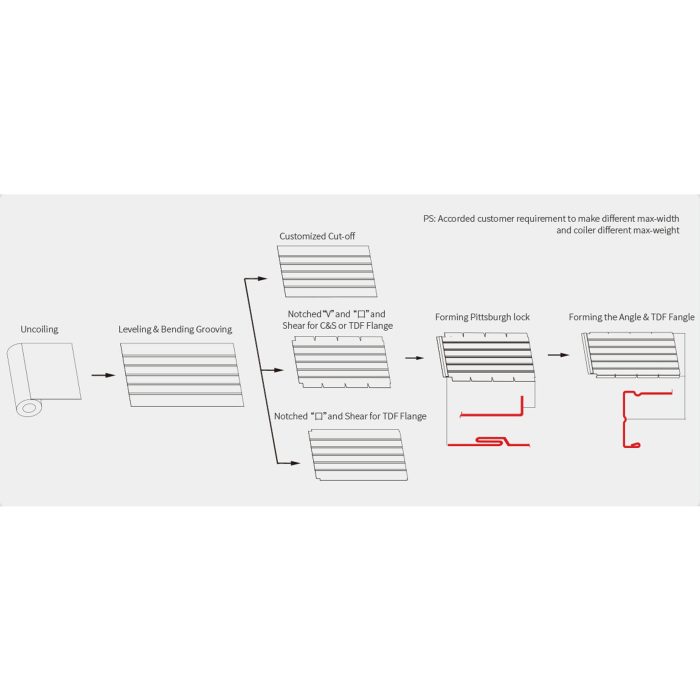

Our Duct production line IV comprises of a integrated all in one system. Combining twin decoiler, leveller grooving unit, “V” and “口” notching unit, TDF Forming, Pittsburgh Forming & Shearing.
Offering all these applications in one machine increases production, reduces labour and maximising profit.
The production line electrical control part adopts full servo control; the control system has a closed-loop feedback system, Accuracy and stability were obvious improved. The maximum operating speed of 15 m / min.
Length tolerance is ±0.5mm; diagonal tolerance is ± 0.8mm.

Technical Snap Shot
❚Panasonic Servo with Touch screen PLC Control
❚Infeed Material Levelling,
❚Material Grooving
❚Vee or Rectangle Notching
❚TDF Forming on Both Side of Sheet – Adjustable Width to 1530mm
❚End Pittsburgh Profile Forming
❚Material Shearing
❚Up to 1530mm width x 1.0mm material
❚Decoiler width upto 1530mm wide & 2500Kg Capacity.
❚Dimensions – 20000mm x 3500m
